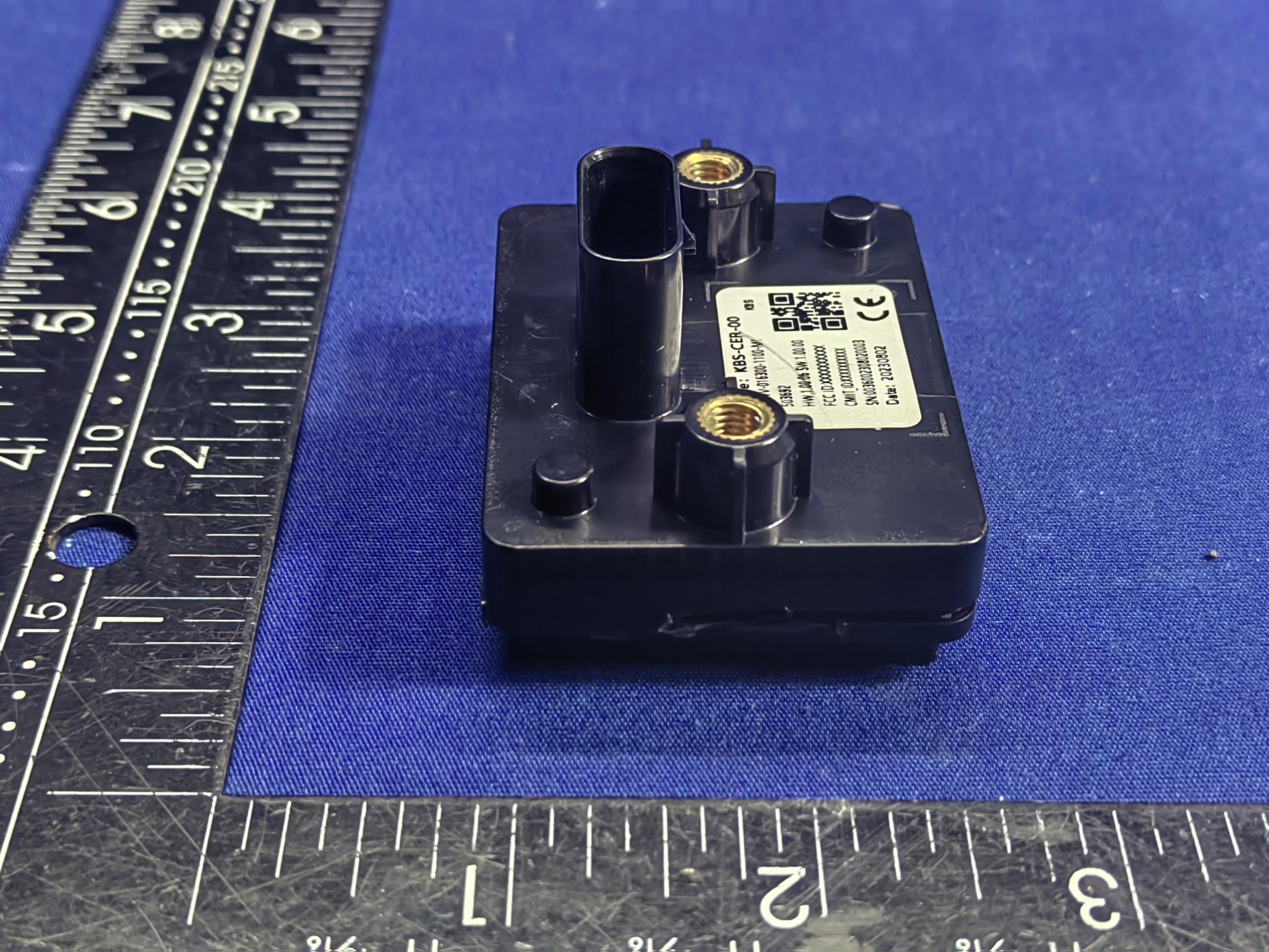

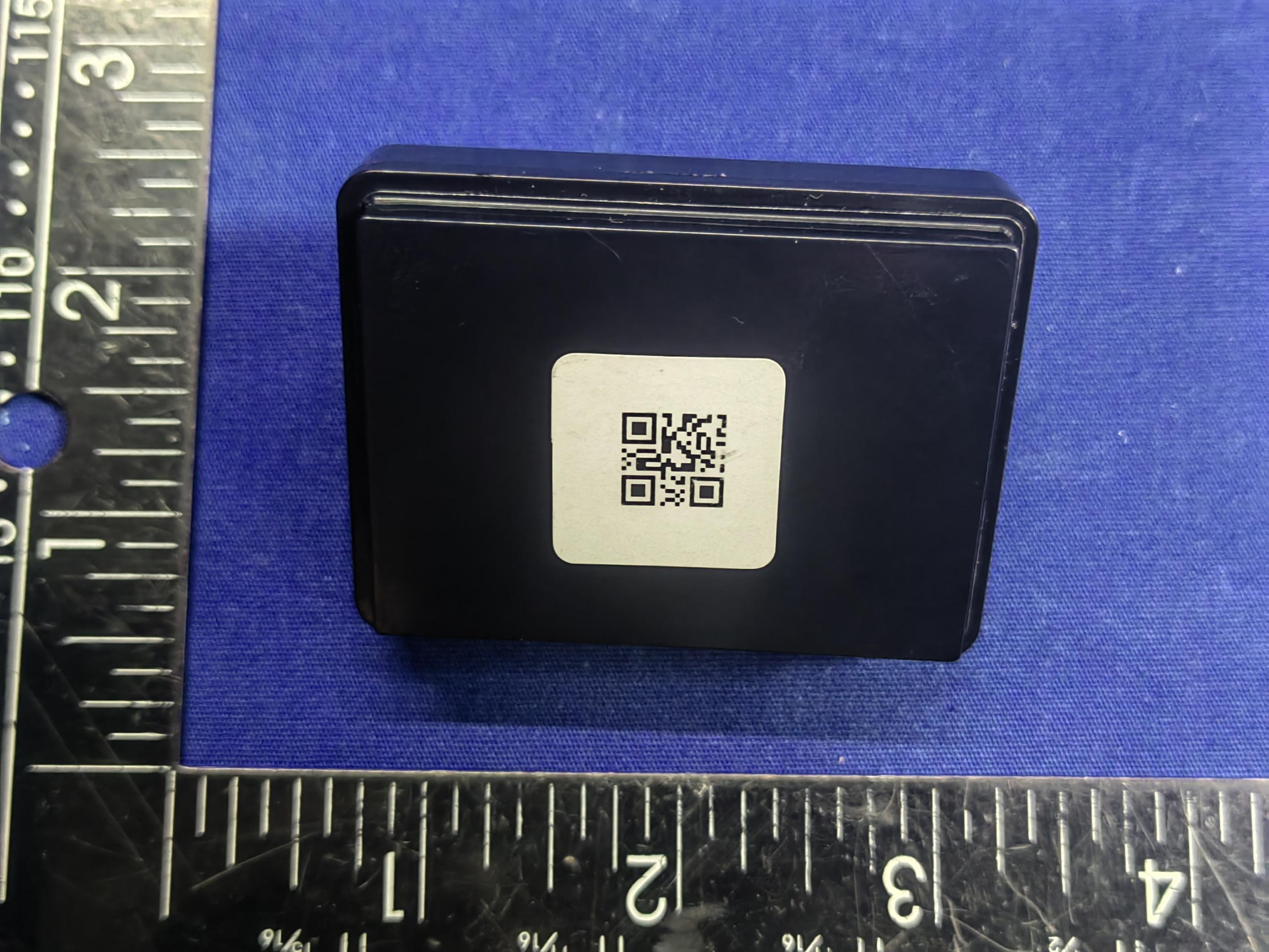

EUTEXTERNALPHOTOGRAPHS ----------------Theend----------------

EUTINTERNALPHOTOGRAPHS Antenna ----------------Theend----------------

FCCID:2BCID-KBS Accordingto§15.247(i)and§1.1307(b)(1),systemsoperatingundertheprovisionsofthissection shallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. AccordingtoKDB447498D01GeneralRFExposureGuidanceV06 The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]* [ √ f(GHz)] ≤ 3.0for1-gSARand ≤ 7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz； PoweranddistanceareroundedtothenearestmWandmmbeforecalculation； Theresultisroundedtoonedecimalplaceforcomparison； Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis ≤ 50mm andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. Weuse5mmasseparationdistancetocalculate. Maximummeasuredtransmitterpower: BLE: TransmitFrequency (GHz) ModeMaxConducted Power(dBm) tuneupmaximum power(dBm) Result calculation 1-gSAR 2.402(1M)GFSK-0.3500.3153 2.440(1M)GFSK-1.3600.3153 2.480(1M)GFSK-0.8700.3153 2.402(2M)GFSK-0.2900.3153 2.440(2M)GFSK-1.3500.3153 2.480(2M)GFSK-0.8600.3153 Conclusion: Forthemaxresult:0.315≤3.0for1-gSARextremitySAR,NoSARisrequired. Signature:Date:2023.9.25 NAMEANDTITLE(Pleaseprintortype):LisaWang/Manager COMPANY(Pleaseprintortype):ShenzhenEMTEKCo.,Ltd./Building69,MajialongIndustry Zone,NanshanDistrict,Shenzhen,Guangdong,China

ReportNo.ENS2307180210W01301RPage43of61Ver.1.0 BLE_2M_Ant1_2402_0~Reference BLE_2M_Ant1_2402_30~1000 ReportNo.ENS2307180210W01301RPage44of61Ver.1.0 BLE_2M_Ant1_2402_1000~26500 BLE_2M_Ant1_2440_0~Reference ReportNo.ENS2307180210W01301RPage45of61Ver.1.0 BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 ReportNo.ENS2307180210W01301RPage46of61Ver.1.0 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 ReportNo.ENS2307180210W01301RPage47of61Ver.1.0 BLE_2M_Ant1_2480_1000~26500 ReportNo.ENS2307180210W01301RPage48of61Ver.1.0 8.6RADIATEDSPURIOUSEMISSION 8.6.1ApplicableStandard AccordingtoFCCPart15.247(d),15.205,15.209andKDB558074D0115.247MeasGuidancev05r02 AccordingtoICRSS-GenandRSS-247 8.6.2ConformanceLimit AccordingtoFCCPart15.247(d):radiatedemissionswhichfallintherestrictedbands,asdefinedin §15.205(a),mustalsocomplywiththeradiatedemissionlimitsspecifiedin§15.209(a)(see§15.205(c)). AccordingtoFCCPart15.205,Restrictedbands MHzMHzMHzGHz 0.090-0.11016.42-16.423399.9-4104.5-5.15 10.495-0.50516.69475-16.69525608-6145.35-5.46 2.1735-2.190516.80425-16.80475960-12407.25-7.75 4.125-4.12825.5-25.671300-14278.025-8.5 4.17725-4.1777537.5-38.251435-1626.59.0-9.2 4.20725-4.2077573-74.61645.5-1646.59.3-9.5 6.215-6.21874.8-75.21660-171010.6-12.7 6.26775-6.26825123-1382200-230014.47-14.5 8.291-8.294149.9-150.052310-239015.35-16.2 8.362-8.366156.52475-156.525252483.5-250017.7-21.4 8.37625-8.38675156.7-156.92690-290022.01-23.12 8.41425-8.41475162.0125-167.173260-326723.6-24.0 12.29-12.293167.72-173.23332-333931.2-31.8 12.51975-12.52025240-2853345.8-335836.43-36.5 12.57675-12.57725322-335.43600-4400(2) 13.36-13.41 AccordingtoFCCPart15.205,thelevelofanytransmitterspuriousemissioninRestrictedbandsshallnot exceedtheleveloftheemissionspecifiedinthefollowingtable Restricted Frequency(MHz) FieldStrength(μV/m)FieldStrength (dBμV/m) Measurement Distance 0.009-0.4902400/F(KHz)20log(uV/m)300 0.490-1.70524000/F(KHz)20log(uV/m)30 1.705-303029.530 30-88100403 88-21615043.53 216-960200463 Above960500543 8.6.3TestConfiguration Testaccordingtoclause7.2radiofrequencytestsetup2 8.6.4TestProcedure ThistestisrequiredforanyspuriousemissionthatfallsinaRestrictedBand,asdefinedinSection 15.205.Itmustbeperformedwiththehighestgainofeachtypeofantennaproposedforusewiththe EUT.Usethefollowingspectrumanalyzersettings: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=1MHzforf  1GHz(1GHzto25GHz),100kHzforf<1GHz(30MHzto1GHz) ReportNo.ENS2307180210W01301RPage49of61Ver.1.0 VBW  RBW Sweep=auto Detectorfunction=peak Trace=maxhold FollowtheguidelinesinANSIC63.10-2013withrespecttomaximizingtheemissionbyrotatingtheEUT, measuringtheemissionwhiletheEUTissituatedinthreeorthogonalplanes(ifappropriate),adjusting themeasurementantennaheightandpolarization,etc.Apre-ampandahighpassfilterarerequired forthistest,inordertoprovidethemeasuringsystemwithsufficientsensitivity.Allowthetraceto stabilize.Thepeakreadingoftheemission,afterbeingcorrectedbytheantennafactor,cableloss, pre-ampgain,etc.,isthepeakfieldstrength,whichmustcomplywiththelimitspecifiedinSection 15.35(b).Submitthisdata. NowsettheVBWto10Hz,whilemaintainingalloftheotherinstrumentsettings.Thispeaklevel,once corrected,mustcomplywiththelimitspecifiedinSection15.209.Ifthedwelltimeperchannelofthe hoppingsignalislessthan100ms,thenthereadingobtainedwiththe10HzVBWmaybefurther adjustedbya“dutycyclecorrectionfactor”,derivedfrom20log(dwelltime/100ms),inaneffortto demonstratecompliancewiththe15.209limit.Submitthisdata. Repeataboveproceduresuntilallfrequencymeasuredwascomplete. 8.6.5TestResults Temperature: 22 ̊C RelativeHumidity: 43  ATMPressure:1011mbar SpuriousEmissionbelow30MHz(9KHzto30MHz) Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit3m(dBuV/m)Over(dB) H/VPKAVPKAVPKAV ---------------- Note:theamplitudeofspuriousemissionthatisattenuatedbymorethan20dBbelowthepermissible limithasnoneedtobereported. Distanceextrapolationfactor=40log(Specificdistance/testdistance)(dB); Limitline=Specificlimits(dBuV)+distanceextrapolationfactor ReportNo.ENS2307180210W01301RPage50of61Ver.1.0 SpuriousEmissionAbove1GHz(1GHzto25GHz) Alltheantenna(Antenna1)andmodes(BLE_1M,BLE_2M)modehavebeentested,andthe worst(Antenna1,BLE_1M)resultrecordedwasreportasbelow: Testmode:BLE_1MFrequency:Channel0:2402MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit3m(dBuV/m)Over(dB) H/VPKAVPKAVPKAV 4803.75V51.3344.8274.0054.0022.679.18 14608.12V63.9346.2974.0054.0010.077.71 17634.37V69.4947.2774.0054.004.516.73 4803.75H50.7143.8574.0054.0023.2910.15 14585.62H64.1646.0074.0054.009.848.00 17962.5H69.4446.5174.0054.004.567.49 Testmode:BLE_1MFrequency:Channel19:2440MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit3m(dBuV/m)Over(dB) H/VPKAVPKAVPKAV 4878.75V50.3743.8074.0054.0023.6310.20 14647.5V63.8445.3174.0054.0010.168.69 17981.25V68.1647.7474.0054.005.846.26 4878.75H50.2350.2374.0054.0023.779.20 14647.5H64.8064.8074.0054.009.208.36 17960.62H66.2066.2074.0054.007.807.03 Testmode:BLE_1MFrequency:Channel39:2480MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit3m(dBuV/m)Over(dB) H/VPKAVPKAVPKAV 4959.375V49.2941.2374.0054.0024.7112.77 14703.75V62.7744.2474.0054.0011.239.76 17715V68.1646.0074.0054.005.848.00 4959.375H48.3240.0574.0054.0013.9510.96 14664.37H64.1345.0074.0054.009.008.05 17958.75H68.2646.9474.0054.007.066.14 Note:(1)AllReadingsarePeakValue(VBW=3MHz)andAverageValue(VBW=10Hz). (2)EmissionLevel=ReadingLevel+CorrectFactor. (3)CorrectFactor=Ant_F+Cab_L–Preamp (4)Thereadingofemissionsareattenuatedmorethan20dBbelowthepermissible limitsorthefieldstrengthistoosmalltobemeasured. ReportNo.ENS2307180210W01301RPage51of61Ver.1.0 SpuriousEmissioninRestrictedBand2310-2390MHzand2483.5-2500MHz Alltheantenna(Antenna1)andmodes(BLE_1M,BLE_2M)modehavebeentested,andthe worst(Antenna1,BLE_2M)resultrecordedwasreportasbelow: Testmode:BLE_2MFrequency:Channel0:2402MHz Frequency (MHz) Polarity PK(dBuV/m) (VBW=3MHz) Limit3m …

Text truncated - open the document above for the full version.

ReportNo.ENS2307180210W01301RPage1of61Ver.1.0 TESTREPORT ProductName:6KWV ModelNumber:6KWV-016300-1100-M1 FCCID:2BCID-KBS Preparedfor:Ningbozhenglangautopartsco.,ltd Address:221BinhaiFourthRoad,HangzhouBayNewArea,Ningbo China Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Building69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China Tel:(0755)26954280 Fax:(0755)26954282 ReportNumber:ENS2307180210W01301R Date(s)ofTests:July18,2023toSeptember13,2023 Dateofissue:September13,2023 $二维码$ ReportNo.ENS2307180210W01301RPage2of61Ver.1.0 TableofContents 1TESTRESULTCERTIFICATION.......................................................................................................3 2EUTTECHNICALDESCRIPTION.....................................................................................................5 3SUMMARYOFTESTRESULT..........................................................................................................6 4TESTMETHODOLOGY.....................................................................................................................7 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS............................................................7 4.2MEASUREMENTEQUIPMENTUSED.......................................................................................7 4.3DESCRIPTIONOFTESTMODES.............................................................................................9 5FACILITIESANDACCREDITATIONS.............................................................................................10 5.1FACILITIES................................................................................................................................10 5.2EQUIPMENT.............................................................................................................................10 5.3LABORATORYACCREDITATIONSANDLISTINGS................................................................10 6TESTSYSTEMUNCERTAINTY.......................................................................................................11 7SETUPOFEQUIPMENTUNDERTEST.........................................................................................12 7.1RADIOFREQUENCYTESTSETUP1.....................................................................................12 7.2RADIOFREQUENCYTESTSETUP2.....................................................................................12 7.3CONDUCTEDEMISSIONTESTSETUP.................................................................................15 7.4BLOCKDIAGRAMCONFIGURATIONOFTESTSYSTEM.....................................................16 7.5SUPPORTEQUIPMENT...........................................................................................................16 8TESTREQUIREMENTS...................................................................................................................17 8.1DTS6DBBANDWIDTH............................................................................................................17 8.2DTS99%BANDWIDTH............................................................................................................18 8.3MAXIMUMPEAKCONDUCTEDOUTPUTPOWER................................................................25 8.4MAXIMUMPOWERSPECTRALDENSITY..............................................................................30 8.5UNWANTEDEMISSIONSINNON-RESTRICTEDFREQUENCYBANDS.............................34 8.6RADIATEDSPURIOUSEMISSION..........................................................................................48 8.7CONDUCTEDEMISSIONSTEST............................................................................................60 8.8ANTENNAAPPLICATION.........................................................................................................61 ReportNo.ENS2307180210W01301RPage3of61Ver.1.0 1TESTRESULTCERTIFICATION Applicant: Ningbozhenglangautopartsco.,ltd Address: 221BinhaiFourthRoad,HangzhouBayNewArea,NingboChina Manufacturer: Ningbozhenglangautopartsco.,ltd Address: 221BinhaiFourthRoad,HangzhouBayNewArea,NingboChina EUT:6KWV ModelName:6KWV-016300-1100-M1 Trademark:N/A MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT FCC47CFRPart2,SubpartJ FCC47CFRPart15,SubpartC PASS ICRSS-GEN,Issue5(04-2018)+A1(03-2019)+A2(02-2021) ICRSS-247Issue2(02-2017) PASS TheaboveequipmentwastestedbyEMTEK(SHENZHEN)CO.,LTD.Thetestdata,dataevaluation,test procedures,andequipmentconfigurationsshowninthisreportweremadeinaccordancewiththe proceduresgiveninANSIC63.10(2013)andtheenergyemittedbythesampleEUTtestedasdescribed inthisreportisincompliancewiththerequirementsofFCCRulesPart2,Part15.247,ICRSS-247Issue 2andICRSS-GEN,Issue5. Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport. DateofTest:July18,2023toSeptember13,2023 Preparedby: UnaYu/Editor Reviewer: JoeXia/ Supervisor Approve&AuthorizedSigner:LisaWang/Manager ReportNo.ENS2307180210W01301RPage4of61Ver.1.0 ModifiedHistory VersionReportNo.RevisionDateSummary Ver.1.0ENS2307180210W01301R/OriginalReport ReportNo.ENS2307180210W01301RPage5of61Ver.1.0 2EUTTECHNICALDESCRIPTION Characteristics Description Product: 6KWV ModelNumber: 6KWV-016300-1100-M1 Samplenumber:2# DeviceType： BluetoothV5.0 DataRate:1Mbps,2Mbps Modulation:GFSK OperatingFrequencyRange:2402-2480MHz NumberofChannels:40Channels TransmitPowerMax:-0.29dBm AntennaType:ceramicchipantenna AntennaGain:1.75dBi PowerSupply:DC12V DateofReceived:July18,2023 TemperatureRange:-40°C~+85°C Note:formoredetails,pleaserefertotheUser’smanualoftheEUT. ReportNo.ENS2307180210W01301RPage6of61Ver.1.0 3SUMMARYOFTESTRESULT FCC PartClause ICPart Clause TestParameterVerdictRemark 15.247(a)(2) RSS-247,5.2(a) RSS-Gen6.7 EmissionBandwidthPASS 15.247(b)(3) RSS-247,5.4(d) RSS-Gen6.12 MaximumPeakConductedOutput Power PASS 15.247(e) RSS-247,5.2(b) RSS-Gen6.12 MaximumPowerSpectralDensity Level PASS 15.247(d)RSS-247,5.5 UnwantedEmissionInto Non-RestrictedFrequencyBands PASS 15.247(d)RSS-247,5.5 UnwantedEmissionIntoRestri…

Text truncated - open the document above for the full version.

1.1.PhotosofRadiationEmissionMeasurement SpuriousEmissionTestSetup(Below1GHz) SpuriousEmissionTestSetup(Above1GHz) ----------------Theend----------------
