2BCIS-SR-PROGateway for Tractians industrial sensors

Date: February 01, 2024 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Certifications concerning “covered” equipment. Section 2.911(d)(5)(i)- (ii) FCC ID: 2BCIS-SR-PRO FRN: 0034134106 We,Tractian Technologies Inc., 1389 Peachtree St NE, Atlanta, GA 30309 USA; certify that: - the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. - as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, __________________________ By: Marlon Almeida Title: Certification Engineer Company: Tractian Technologies Inc. Telephone: +1 678 599 3602 e-mail: [email protected]

Date: November 22nd, 2023 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Certification designating a U.S. agent for service of process. As required by section 2.911(d)(7), FCC ID: 2BCIS-SR-PRO We, Tractian Technologies Inc., Address: 201 17th St NW, Atlanta, G A 30363 USA. with associated FRN: 0034134106; certify that: Agent name: Leo Kepple Borba Title: Head of Sales Telephone: Tractian Technologies Inc. e-mail: [email protected] F RN: 0034134106 Is our designated U.S. agent for service of p rocess and we acknowledge: - our consent to accept service of process in the United States for matters related to the applicable equipment at the physical U.S. address and email address of the designated U.S. agent - the acceptance to maintain an U.S. agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCB046_00 //DEKRA Testing and Certification, S.A.U. //www.dekra-product-safety.com/wireless ApplicantDesignated U.S. Agent Sincerely, ____________________________ By: Marlon Almeida Title: Compliance Engineer Company: Tractian Technologies Inc. Telephone: +1 678 599 3602 e-mail: [email protected] We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address stated above. ___________________________ By: Leo Kepple Borba Title: Head of Sales Company: Tractian Technologies Inc. Telephone: +1 678 599 3602 e-mail: [email protected]

SãoPaulo,November16th,2023 DEKRATestingandCerti fication,S.A.U. ParqueTecnológicodeAndalucía C/SeveroOchoa2&6 29590Campanillas Málaga,España Subject:DeclarationonBluetoothFunctionalityfromESP32-WROVER-IEisdisabled. I am writing to inform you that our product,Smart Receiver Pro, utilizes module ESP32-WROVER-IE with the FCC ID 2AC7Z-ESP32WROVERE which includes various functionalities. However, I want to clarify that all Bluetooth functions associated with this modulehavebeenintentionallydisabled. Foranyfurtherinquiries,pleasefeelfreetocontactus. Thankyou Sincerely, ___________________________________________ MarlonJeanasisdeAlmeida ComplianceEngineer TractianTechnologiesInc. [email protected]

Date:November21st,2023 DEKRATestingandCertification,S.A.U. ParqueTecnológicodeAndalucía C/SeveroOchoa2&6 29590Campanillas Málaga,España Ref:AgentletterforFCCID:2BCIS-SR-PRO We, TractianTechnologiesInc., 20117thStNW, Atlanta,GA30363,USA, herebyauthorize DEKRACertification,Inc. 405GlennDrive,Suite12 20164Sterling–Virginia-USA Mr./Ms.LourdesValverde, e-mail:[email protected], Phone:+1(732)207-8336 toactasouragentinthepreparationofthisapplicationforequipmentcertification,includingthesigningofall documentsrelatingtothesematters. Thepresentauthorizationconsidersthedevelopmentofdocumentsonbehalfoftheclient,writtenunderhisown letterheadandrelatedtothenecessaryinformationtobeprovidedonhisbehalftocompletethecertification process. WealsoherebycertifythatneitherwenoranypartytothisapplicationaresubjecttoadenialofU.S.Federal benefits,whichincludeFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,U.S.C.862 becauseofconvictionforpossessionordistributionofcontrolledsubstance. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,Iacknowledgethatall responsibilityforcomplyingwiththetermsandconditionsforCertification,asspecifiedbyDEKRATestingand Certification,S.A.U.,stillresideswithus. Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, __________________________ By:MarlonAlmeida Title:ComplianceEngineer Company:TractianTechnologiesInc. Telephone:+55819809-8874 e-mail:[email protected] FCB011_02//DEKRATestingandCertification,S.A.U.//www.dekra-product-safety.com/wireless

Date:November21st,2023 DEKRATestingandCertification,S.A.U. ParqueTecnológicodeAndalucía C/SeveroOchoa2&6 29590Campanillas Málaga,España Ref:ConfidentialityrequestforFCCID:2BCIS-SR-PRO Towhomitmayconcern: Pursuantto§0.457(d)(1)(ii)and§0.459oftheCommission’sRules(47C.F.R.)and§552(b)(4)oftheFreedomof InformationAct,TractianTechnologiesInc.,herebyrequeststhatapartofthesubjectFCCapplicationbeheld confidentialtoavoidreleaseofsensitiveinformationoftheproducttothepublic. Fortheproductstatedabove,werequestthatthefollowinginformationbewithheldfrompublicdisclose: TypeofConfidentialityRequestedExhibit ☐ ShortTerm ☐ PermanentBlockDiagrams ☐ ShortTermExternalPhotos ☐ ShortTermInternalPhotos ☐ ShortTerm ☐ PermanentOperationDescription ☐ ShortTerm ☐ PermanentPartsList&Placement/BOM ☐ ShortTerm ☐ PermanentTune-UpProcedure ☐ ShortTerm ☐ PermanentSchematics ☐ ShortTermTestSetupPhotos ☐ ShortTermUser’sManual ☐ ShortTerm ☐ PermanentSDRsoftwareandsecurityinformation PermanentConfidentiality: Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic.The publicdisclosureofthesemattersmightbeharmfultousandprovideunjustifiedbenefitstoourcompetitors. Short-TermConfidentiality: Weherebyrequestshort-termconfidentialityfortheproductstatedabovetoavoidprematurereleaseofsensitive informationpriortomarketingorreleaseoftheproducttothepublic. Releasedateofshorttermconfidentialityis: 45daysfromgrantdatemarked ☐ 90daysfromgrantdatemarked ☐ 135daysfromgrantdatemarked ☐ 180daysfromgrantdatemarked ☐ Specificdate: WearealsoawarethatweareresponsibletonotifyDEKRAintheeventinformationregardingtheproductorthe productismadeavailabletothepublic.DEKRAwillthenreleasethedocumentslistedaboveforpublicdisclosure pursuanttoFCCPublicNoticeDA04-1705. Sincerely, __________________________ By:MarlonAlmeida Title:ComplianceEngineer Company:TractianTechnologiesInc. Telephone:+55819809-8874 e-mail:[email protected] FCB012_05//DEKRATestingandCertification,S.A.U.//www.dekra-product-safety.com/wireless n n n n n n n n n n n

Date:November21st,2023 DEKRATestingandCertification,S.A.U. ParqueTecnológicodeAndalucía C/SeveroOchoa2&6 29590Campanillas Málaga,España Ref:SDoCdeclarationletterforequipmentwithFCCID:2BCIS-SR-PRO Pursuantto§15.101oftheCommission’sRules(47C.F.R.),TractianTechnologiesInc.,herebydeclarethat thedeviceabovementionedisclassifiedunderthefollowingequipmentclass/classes: ☐ JABPart15ClassBDigitalDevice ☐ JADPart15ClassADigitalDevice ☐ JAVOtherNon-DigitalSDoCDevices ☐ JBPPart15ClassBComputingDevice/PersonalComputer ☐ JBCPart15ClassBComputingDevice/PersonalComputer ☐ CXXCommunicationsRcvrforusew/licensedTxandCBs ☐ CRRSuperregenerativeReceiver ☐ CYYCommunicationsReceiverusedw/Pt15Transmitter ☐ HIDPart15TVInterfaceDevice AndwillfollowtheAuthorizationprocedureSupplier’sDeclarationofConformitypriortotheinitiationof marketing. Sincerely, ______________________________ By:MarlonAlmeida Title:ComplianceEngineer Company:TractianTechnologiesInc. Telephone:+55819809-8874 e-mail:[email protected] FCB034_00//DEKRATestingandCertification,S.A.U.//www.dekra-product-safety.com/wireless n

Date: February, 02, 2024 FCC ID:2BCIS-SR-PRO We, Tractian Technologies Inc, hereby declare that we are only and fully responsible for this application of FCC ID:2BCIS-SR-PRO.The product, Smart Receiver Ultra has the following integrated modules: ● Wi-Fi Module:ESP-32-WROVER-IE - FCC ID: 2AC7Z-ESP32WROVERE ● LTE MODEM:SIM7600G - FCC ID: 2AJYU-8PYA008 The modules listed above are integrated into our products following the module manufacturer's instructions and tested according to FCC norms. In case of any questions, please feel free to contact me. Regards, Marlon Almeida Compliance Engineer Tel.: +55 81 9 9809-8874 e-mail: [email protected]

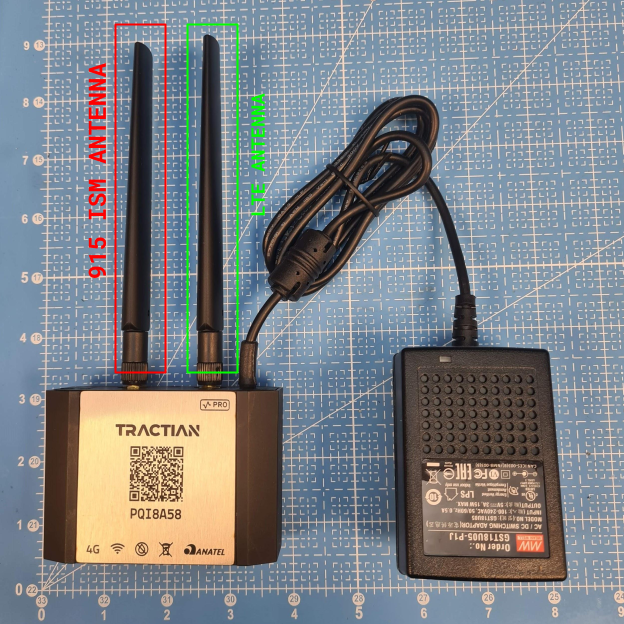

SmartTracPro ExternalPhotos Figure1-TopView-External Figure2-BottomView-External Figure3-SMAConnectors Figure4-SmartReceiverPro-Bottom Figure5-SmartReceiverPro-Left Figure6-SmartReceiverPro-Right

Contains FCC ID: 2AC7Z-ESP32WROVERE; 2AJYU-8PYA008 Contains IC: 21098-ESPWROVERE; 23761-8PYA009 IC ID: 31644-SRPRO Figure 1 - Smart Receiver Pro - Bottom View

SmartReceiverPro InternalPhotos Figure1-TopView-Internal Figure2-BottomView-Internal Figure3-WifiAntenna-Internal Figure4-ModemSIM7600G-Bottom

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.003A1 02-06-2024 Test report No: 4316ERM.003A1 Assessment report RF EXPOSURE REPORT ACCORDING TO FCC 47 CFR Part 2.1093 (*) Identification of item under evaluation Gateway for Tractian's industrial sensors (*) Trademark Tractian (*) Model and /or type reference Smart Receiver Pro (*) Other identification of the product FCC ID: 2BCIS-SR-PRO IC ID: IC ID: 31644-SRPRO HVIN: Smart Receiver Pro (*) Features LTE; Wi-fi and 915 MHz ISM (*) Manufacturer Tractian Tecnologia Ltda. Av. dos Imares, 437 - Indianápolis São Paulo - SP - Brazil 04085-000 Test method requested, standard FCC 47 CFR Part 2.1093. Radiofrequency radiation exposure evaluation: portable devices Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 02-06-2024 Report template No FDT08_23 (*) “Data provided by the client” DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.003A1 Page 2 of 9 02-06-2024 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Data provided by the client .......................................................................................................... 3 Identification of the client............................................................................................................. 3 Document history ........................................................................................................................ 3 Appendix A: FCC RF Exposure assessment result ..................................................................... 4 Appendix B: FCC RF Exposure information ................................................................................ 7 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.003A1 Page 3 of 9 02-06-2024 Competences and guarantees In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification Inc. at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Assessment Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the assessment. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Certification Inc. and the Accreditation Bodies Data provided by the client Identification of the client Document history Report number Date Description 4316ERM.003 12-27-2023 First release. 4316ERM.003A1 02-05-2024 Second release. Antenna gain value for Zigbee technology, distance information and Simultaneous transmission assessment was updated in Appendix A. This modified test report cancels and replaces the test report 4316ERM.003 The following data has been provided by the client: 1. Information relating to the description of the sample ("Identification of the item tested", "Trademark", "Model and/or type reference tested"). 2. The sample consists of a Gateway for Tractian's industrial sensors. DEKRA declines any responsibility with respect to the information provided by the client and that may affect the validity of results. Tractian Technologies Inc. 201 17th St. NW, 2nd Floor Atlanta, GA 30309, USA DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.003A1 Page 4 of 9 02-06-2024 Appendix A: FCC RF Exposure assessment result DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.003A1 Page 5 of 9 02-06-2024 General description of the device under evaluation The device under evaluation consists of a Gateway for Tractian's industrial sensors. According to the manufacturer, during its normal use, the minimum separation distance between the radiating structures of the device and nearby users will be 20cm. In order to perform the assessment a conservative evaluation distance of 20 cm has been used. As stated into DEKRA Certification Inc. test report num. 4316ERM.002A1 for Zigbee, and FCC ID’s: 2AJYU- 8PYA008 for LTE and 2AC7Z-ESP32WROVERE for Wi-Fi 2.4 GHz, the maximum measured output power levels for each supported technology are: Technology / Mode Band Frequency (MHz) Maximum Conducted Output Power (dBm) Antenna peak gain (dBi) Maximum E.R.P. (dBm) Maximum E.R.P. (mW) LTE 2 1850 - 1910 23.50 8.00 29.35 860.99 LTE 4 1710 - 1755 24.30 5.00 27.15 518.80 LTE 5 824 - 849 25.16 8.00 31.01 1261.83 LTE 12 699 - 716 24.50 7.00 29.35 860.99 LTE 13 777 - 787 22.43 8.00 28.28 672.98 L…

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.002A1 Page 1 of 42 02-05-2024 FCC LISTED, REGISTRATION NUMBER: 2764.01 ISED LISTED REGISTRATION NUMBER: 23595-1 Test report No: 4316ERM.002A1 Test Report USA FCC Part 15.247, 15.209, 15.207; & CANADA RSS-247, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and License- Exempt Local Area Network (LE-LAN) Devices. (*) Identification of item tested Gateway for Tractian's industrial sensors (*) Trademark Tractian (*) Model and /or type reference tested Smart Receiver Pro Other identification of the product FCC ID: 2BCIS-SR-PRO IC ID: IC ID: 31644-SRPRO HVIN: Smart Receiver Pro (*) Features LTE; Wi-fi and 915 MHz ISM Manufacturer Tractian Tecnologia Ltda. Av. dos Imares, 437 - Indianápolis São Paulo - SP - Brazil 04085-000 Test method requested, standard USA FCC Part 15.247 (2020): Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209 (2018): Radiated emission limits; general requirements. USA FCC Part 15.207 (2018): Conducted emission limits. CANADA RSS-247 Issue 3 (August 2023). CANADA RSS-Gen Issue 5 amendment 1 (March 2019). Guidance for Performing Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid Systems Devices Operating Under Section 15.247 of the FCC Rules. 558074 D01 Meas Guidance v05r02 dated April 2, 2019. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 02-05-2024 Report template No FDT08_23 (*) “Data provided by the client” DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.002A1 Page 2 of 42 02-05-2024 Index Competences and guarantees ......................................................................................... 3 General conditions........................................................................................................... 3 Uncertainty ...................................................................................................................... 3 Data provided by the client .............................................................................................. 4 Usage of samples ............................................................................................................ 4 Test sample description ................................................................................................... 5 Identification of the client ................................................................................................. 6 Testing period and place ................................................................................................. 6 Document history ............................................................................................................ 6 Environmental conditions................................................................................................. 8 Remarks and comments .................................................................................................. 8 Testing verdicts ............................................................................................................... 9 Summary ......................................................................................................................... 9 List of equipment used during the test ........................................................................... 10 Appendix A: Test results ................................................................................................ 11 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.002A1 Page 3 of 42 02-05-2024 Competences and guarantees DEKRA Certification Inc. is a testing laboratory accredited by A2LA (The American Association for Laboratory Accreditation), to perform the tests indicated in the Certificate 2764.01 DEKRA Certification Inc. is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Certification Inc. and the Accreditation Bodies. Uncertainty Uncertainty (factor k=2) was calc…

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.005 Page 1 of 28 02-06-2024 FCC LISTED, REGISTRATION NUMBER: 2764.01 ISED LISTED REGISTRATION NUMBER: 23595-1 Test report No: 4316ERM.005 Test report USA FCC Part 15.247, 22,24 & 27, 15.209, 15.207, 15.31(h), CANADA RSS-247, RSS-132, RSS-133, RSS-139, RSS-Gen (*) Identification of item tested Gateway for Tractian's industrial sensors (*) Trademark Tractian (*) Model and /or type reference tested Smart Receiver Pro Other identification of the product FCC ID: 2BCIS-SR-PRO IC ID: IC ID: 31644-SRPRO HVIN: Smart Receiver Pro (*) Features LTE; Wi-fi and 915 MHz ISM Manufacturer Tractian Tecnologia Ltda. Av. dos Imares, 437 - Indianápolis São Paulo - SP - Brazil 04085-000 Test method requested, standard USA FCC Part 15.247 (10-1-20 Edition): Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 22,24 & 27 10-1-18 Edition. USA FCC Part 15.209 (10-1-20 Edition): Radiated emission limits; general requirements. CANADA RSS-247 Issue 3, August 2023 CANADA RSS-132 Issue 3, January 2013 CANADA RSS-133 Issue 6, Amendment 1, January 2018 CANADA RSS-139 Issue 4, September 2022 CANADA RSS-Gen Issue 5 amendment 1 (March 2019). Guidance for Performing Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid Systems Devices Operating Under Section 15.247 of the FCC Rules. 558074 D01 Meas Guidance v05r02 dated April 2, 2019. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 02-06-2024 Report template No FDT08_23 (*) “Data provided by the client” DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.005 Page 2 of 28 02-06-2024 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Uncertainty.................................................................................................................................. 3 Data provided by the client .......................................................................................................... 4 Usage of samples ....................................................................................................................... 4 Test sample description .............................................................................................................. 5 Identification of the client ............................................................................................................. 6 Testing period and place ............................................................................................................. 6 Document history ........................................................................................................................ 6 Environmental conditions ............................................................................................................ 7 Remarks and comments ............................................................................................................. 7 Testing verdicts ........................................................................................................................... 8 Summary .................................................................................................................................... 8 List of equipment used during the test ....................................................................................... 10 Appendix A: Test results (Multi-transmitter) ............................................................................... 11 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 4316ERM.005 Page 3 of 28 02-06-2024 Competences and guarantees DEKRA Certification Inc. is a testing laboratory accredited by A2LA (The American Association for Laboratory Accreditation), to perform the tests indicated in the Certificate 2764.01 DEKRA Certification Inc. is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission…

Text truncated - open the document above for the full version.

DATA AND DEVICES / ANT-LTE-WS-SMA ANT-LTE-WS-SMA Dipole Blade LTE Antenna The ANT-LTE-WS-SMA is a compact dipole, blade- style antenna for LTE and cellular IoT (LTE-M, NB- IoT) applications. The ANT-LTE-WS-SMA antenna is made of rugged ABS plastic. The antenna’s hinged, rotating, design allows for the antenna to be positioned for optimum performance and reduces the potential for damage from impact compared to a fixed whip design. The antenna attaches using an SMA plug (male pin) connector. FEATURES ORDERING INFORMATION APPLICATIONS • Covers all common 4G/3G/2G LTE bands • Performance at 1710 MHz to 2200 MHz –VSWR: ≤ 2.0 –Peak Gain: 5.9 dBi –Efficiency: 75% • Performance at 791 MHz to 960 MHz –VSWR: ≤ 1.7 –Peak Gain: 3.4 dBi –Efficiency: 63% • Rugged ABS construction • Hinged design with detents for straight, 45 degree and 90 degree positioning • SMA plug (male pin) connector • Worldwide 5G/4G/3G/2G • Worldwide LTE, UMTS and GSM • Cellular IoT: LTE-M (Cat-M1) and NB-IoT • Internet of Things (IoT) devices • Smart Home networking • Sensing and remote monitoring Part NumberDescription ANT-LTE-WS-SMABlade-style LTE antenna with SMA plug (male pin) connector Available from Linx Technologies and select distributors and representatives. DATA AND DEVICES / ANT-LTE-WS-SMA2 PRODUCT DIMENSIONS Figure 1 provides dimensions of the ANT-LTE-WS-SMA antenna. The antenna whip can be tilted 90 degrees, and has a detent at 45 degrees enabling the antenna to be oriented in any direction. The rotating base allows for continuous positioning through 360 degrees even while installed. TABLE 1. ELECTRICAL SPECIFICATIONS TABLE 2. MECHANICAL SPECIFICATIONS BandsFrequency Range VSWR (max.) Peak Gain (dBi) Avg. Gain (dBi) Efficiency (%) 12, 13, 14, 17, 26, 28, 29, 44, 67, 68, 85, n83 698 MHz to 803 MHz1.64.1-2.263 5, 18, 19, 20, 26, 27, n82, n89791 MHz to 960 MHz1.73.4-3.163 241553 MHz to 1609 MHz3.35.0-1.769 1, 2, 3, 4, 25, 661710 MHz to 2200 MHz2.05.9-1.875 30, 402300 MHz to 2400 MHz2.13.1-1.671 7, 412496 MHz to 2690 MHz2.24.1-1.672 Impedance50 Ω Wavelength1/2-wave Electrical TypeDipole RadiationOmnidirectional PolarizationLinear Max Power10 W ParameterValue ConnectionSMA plug (male pin) Antenna ColorBlack Operating Temp. Range-20 °C to +65 °C Weight1.4 g (0.05 oz) Dimensions136.3 mm x 21.8 mm x 10.0 mm (5.36 in x 0.86 in x 0.39 in) Figure 1. ANT-LTE-WS-SMA Antenna Dimensions Electrical specifications and plots measured with the antenna in a straight orientation. DATA AND DEVICES / ANT-LTE-WS-SMA3 PACKAGING INFORMATION The ANT-LTE-WS-SMA antenna is individually sealed in a clear plastic bag. 600 bags per carton, 400 mm x 300 mm x 230 mm (15.7 in x 11.8 in x 9.1 in), total weight 10.1 kgs (22.3 lb). Distribution channels may offer alternative packaging options. ANTENNA ORIENTATION The ANT-LTE-WS-SMA antenna is characterized in two antenna orientations as shown in Figure 2. The antenna straight orientation characterizes use of an antenna attached to an enclosure-mounted…

Text truncated - open the document above for the full version.
