2BCJ7-P8Ultra Pocket PC

1. Open the capacitor pen cap. 2. Install the battery,Cover the pen cap. Rj45 HDMI TYPE-C USB3.0 Headphone jack FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Longjunda Technology Co., Ltd 5th Floor, Building 10, Longjun Industrial Zone, Longping Community, Dalang Street, Longhua District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/08/18 U.S. Agent Designation Shenzhen Longjunda Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BCJ7-P8): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Longjunda Technology Co., Ltd Shenzhen Longjunda Technology Co., Ltd with the FRN [0034140426] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Li Jinyang Chairman Shenzhen Longjunda Technology Co., Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Li Jinyang/Chairman Company: Shenzhen Longjunda Technology Co., Ltd. Address: 5th Floor, Building 10, Longjun Industrial Zone, Longping Community, Dalang Street, Longhua District, Shenzhen China Phone: 15818773663 Fax: N/A E-Mail: [email protected]

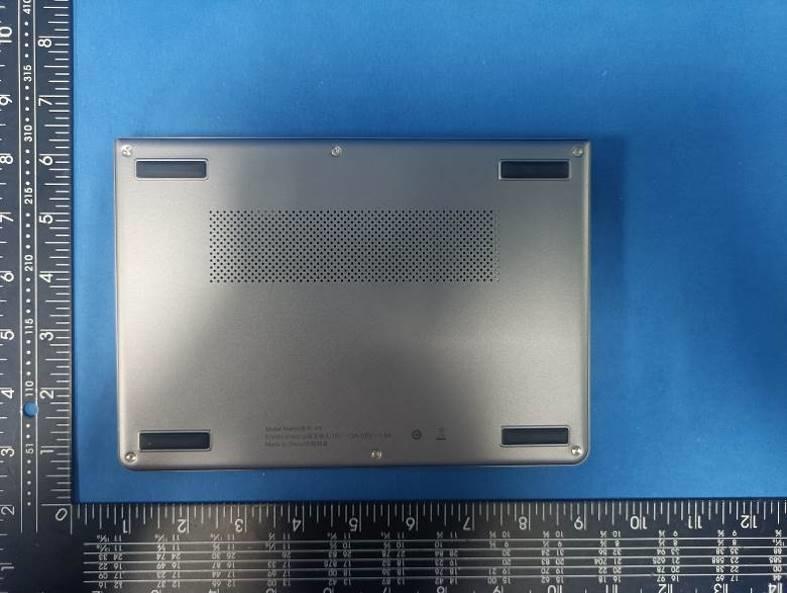

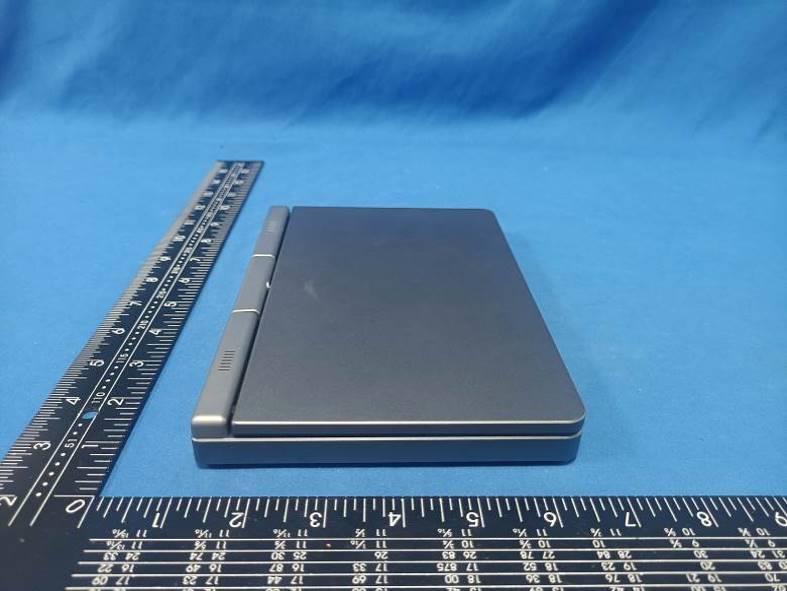

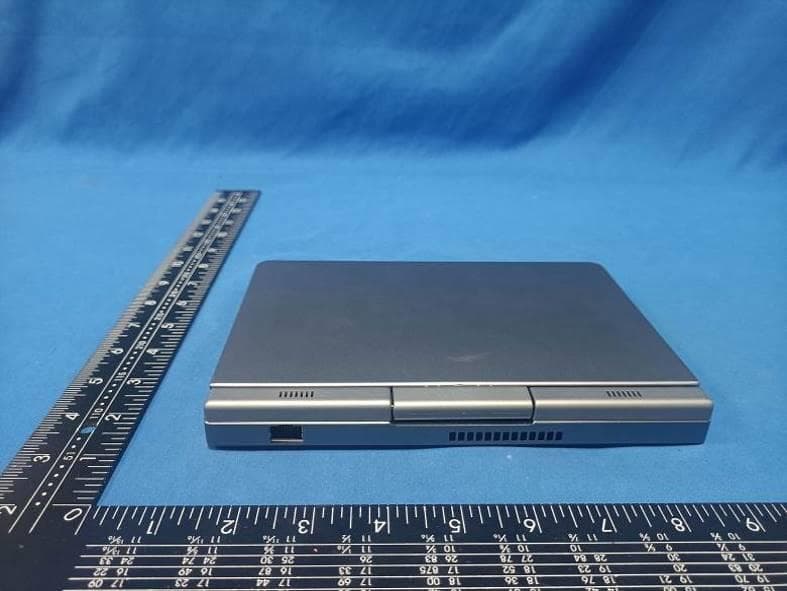

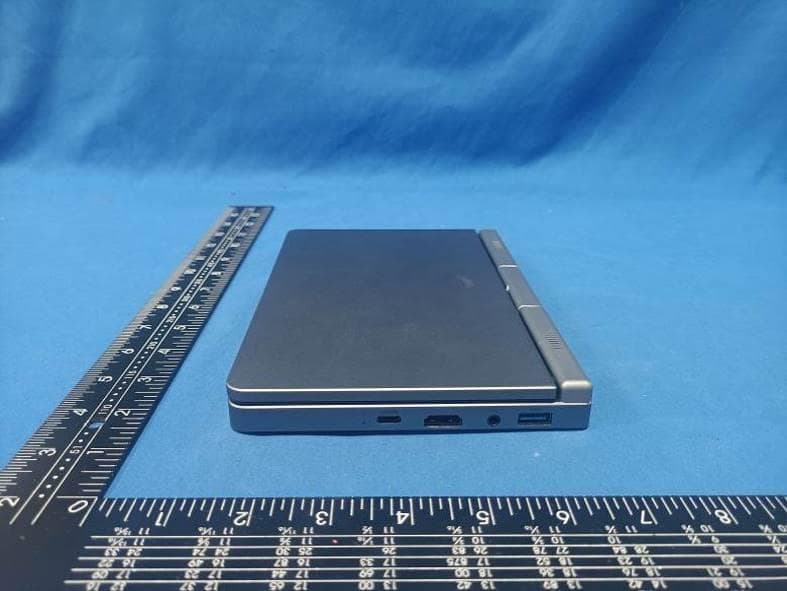

FCC ID: 2BCJ7-P8 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BCJ7-P8 Photo 4 Photo 5 Photo 6 FCC ID: 2BCJ7-P8 Photo 7

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: P8 FCC ID : 2BCJ7-P8

FCC ID: 2BCJ7-P8 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BCJ7-P8 Photo 4 Photo 5 Photo 6 FCC ID: 2BCJ7-P8 Photo 7 Photo 8 Photo 9 Antenna 1 Antenna 2 FCC ID: 2BCJ7-P8 Photo 10 Photo 11 Photo 12 FCC ID: 2BCJ7-P8 Photo 13 Photo 14 Photo 15 FCC ID: 2BCJ7-P8 Photo 16 Photo 17 Photo 18

RF Exposure evaluation FCC ID: 2BCJ7-P8 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance BT Mode Max. Peak Conducted Output Power (dBm) Max. tune-up BLE 4.24 3.5±1 2.4GWIFI Mode Max. Peak Conducted Output Power (dBm) Max. tune-up Antenna1 Antenna2 Antenna1 Antenna2 2.4GWIFI 7.07 6.82 6.5±1 6.0±1 5GWIFI Mode Max. Average Conducted Output Power (dBm) Max. tune-up Antenna1 Antenna2 Antenna1 Antenna2 5.2GWIFI 5.26 5.33 5.5±1 5.5±1 5.8GAWIFI 6.28 6.04 5.5±1 5.5±1 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Antenna1 Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 4.5 2.8184 0.8823<3.0 Yes 2.4GWIFI 2.450 5 7.5 5.6234 1.7604<3.0 Yes 5.2GWIFI 5.2 5 6.5 4.4668 2.0372<3.0 Yes 5.8GWIFI 5.8 5 6.5 4.4668 2.1515<3.0 Yes Antenna2 Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2.4GWIFI 2.450 5 7.0 5.0119 1.5690<3.0 Yes 5.2GWIFI 5.2 5 6.5 4.4668 2.0372<3.0 Yes 5.8GWIFI 5.8 5 6.5 4.4668 2.1515<3.0 Yes The sample WLAN support 2*2MIMO, they supports difference antenna, need consider simultaneous transmission; ∑ of (the highest measured or estimated SAR ANT1 +SAR ANT2 )/1.6 = (0.2371 +0.2113)/1.6 = 0.3 < 1.0; 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PIFA antenna Model P8-2 Frequency range 5180-5240MHz Manufacturer Shenzhen Longjunda Technology Co., Ltd ANT Peak Gain 0.85 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5180MHz 5220MHz 5240MHz

1. Antenna Description: Antenna type PIFA antenna Model P8 Frequency range 5180-5240MHz Manufacturer Shenzhen Longjunda Technology Co., Ltd ANT Peak Gain 0.85 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5180MHz 5220MHz 5240MHz

1. Antenna Description: Antenna type PIFA antenna Model P8 Frequency range 5745-5825MHz Manufacturer Shenzhen Longjunda Technology Co., Ltd ANT Peak Gain 0.70 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5745MHz 5785MHz 5825MHz

1. Antenna Description: Antenna type PIFA antenna Model P8-2 Frequency range 5745-5825MHz Manufacturer Shenzhen Longjunda Technology Co., Ltd ANT Peak Gain 0.70 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5745MHz 5785MHz 5825MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID............................................. : CTA23081400203 2BCJ7-P8 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 16, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Longjunda Technology Co., Ltd Address ............................................ : 5th Floor, Building 10, Longjun Industrial Zone, Longping Community, Dalang Street, Longhua District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Ultra Pocket PC Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Longjunda Technology Co., Ltd Model/Type reference ...................... : P8 Listed Models .................................. : N/A Modulation ....................................... : OFDM Frequency ......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings ............................................. : DC 11.4V From Battery and DC 15V/20V From external circuit Result ............................................... : PASS Report No.: CTA23081400203 Page 2 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Ultra Pocket PC Model /Type : P8 Serial Models : N/A Applicant : Shenzhen Longjunda Technology Co., Ltd Address : 5th Floor, Building 10, Longjun Industrial Zone, Longping Community, Dalang Street, Longhua District, Shenzhen, China Manufacturer : Shenzhen Longjunda Technology Co., Ltd Address : 5th Floor, Building 10, Longjun Industrial Zone, Longping Community, Dalang Street, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23081400203 Page 3 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions 13 4.3 Maximum Conducted Average Output Power 19 4.4 Power Spectral Density 25 4.5 Emission Bandwidth (26dB Bandwidth) 40 4.6 Minimum Emission Bandwidth (6dB Bandwidth) 48 4.7 Frequency Stability 56 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 59 6 P H O T O S O F T H E E U T ........................................................... 60 Report No.: CTA23081400203 Page 4 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15 Subpart E—Unlicensed National Information Infrastructure Devices ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB789033 D02: General UNII Test Procedures New Rules v01r02 Report No.: CTA23081400203 Page 5 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:ct…

Text truncated - open the document above for the full version.

Report No.: CTA23081400203 Page 38 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT20) U-NII 1 U-NII 3 CH36 CH149 CH40 CH157 CH48 CH165 Report No.: CTA23081400203 Page 39 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) U-NII 1 U-NII 3 CH38 CH151 CH46 CH159 802.11ac(HT80) U-NII 1 U-NII 3 CH42 CH155 Report No.: CTA23081400203 Page 40 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.5 Emission Bandwidth (26dB Bandwidth) Limit N/A Test Procedure 1. Set resolution bandwidth (RBW) = approximately 1 % of the EBW. 2. Set the video bandwidth (VBW) > RBW. 3. Detector = Peak. 4. Trace mode = Max hold. 5. Measure the maximum width of the emission that is 26 dB down from the peak of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW / EBW ratio is approximately 1 %. Test Configuration EUT SPECTRUM ANALYZER Test Results ANT 1 Type Bands Channel 26dB Bandwidth (MHz) Limit (MHz) Result 802.11a U-NII 1 36 22.480 N/A Pass 44 22.240 48 21.760 802.11n(HT20) U-NII 1 36 23.280 44 22.320 48 23.040 802.11n(HT40) U-NII 1 38 40.960 46 40.640 802.11ac(HT20) U-NII 1 36 22.600 44 21.880 48 23.200 802.11ac(HT40) U-NII 1 38 41.040 46 40.960 802.11ac(HT80) U-NII 1 42 82.240 Report No.: CTA23081400203 Page 41 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 Type Bands Channel 26dB Bandwidth (MHz) Limit (MHz) Result 802.11a U-NII 1 36 21.560 N/A Pass 44 21.640 48 21.840 802.11n(HT20) U-NII 1 36 22.000 44 23.440 48 23.120 802.11n(HT40) U-NII 1 38 40.720 46 41.040 802.11ac(HT20) U-NII 1 36 22.320 44 23.320 48 22.560 802.11ac(HT40) U-NII 1 38 41.440 46 41.120 802.11ac(HT80) U-NII 1 42 82.400 Test plot as follows: Report No.: CTA23081400203 Page 42 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 1 802.11a 802.11n(HT20) CH36 CH36 CH40 CH40 CH48 CH48 Report No.: CTA23081400203 Page 43 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH38 CH36 CH46 CH40 CH48 Report No.: CTA23081400203 Page 44 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH38 CH42 CH46 Report No.: CTA23081400203 Page 45 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 802.11a 802.11n(HT20) CH36 CH36 CH40 CH40 CH48 CH48 Report No.: CTA23081400203 Page 46 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH38 CH36 CH46 CH40 CH48 Report No.: CTA23081400203 Page 47 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH38 CH42 CH46 Report No.: CTA23081400203 Page 48 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.6 Minimum Emission Bandwidth (6dB Bandwidth) Limit Within the 5.725-5.85 GHz band, the minimum 6 dB bandwidth of U-NII devices shall be at least 500 kHz. Test Procedure 1. Set resolution bandwidth (RBW) = 100 kHz 2. Set the video bandwidth 3 x RBW. 3. Detector = Peak. 4. Trace mode = Max hold. 5. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Test Configuration EUT SPECTRUM ANALYZER Test Results ANT 1 Type Bands Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a U-NII 3 149 16.280 ≥500KHz Pass 157 16.320 165 15.880 802.11n(HT20) U-NII 3 149 17.120 157 16.520 165 17.080 802.11n(HT40) U-NII 3 151 35.040 159 35.280 802.11ac(HT20) U-NII 3 149 14.960 157 16.240 165 15.880 802.11ac(HT40) U-NII 3 151 35.920 159 35.120 802.11ac(HT80) U-NII 3 155 75.040 Report No.: CTA23081400203 Page 49 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 Type Bands Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a U-NII 3 149 15.600 ≥500KHz Pass 157 …

Text truncated - open the document above for the full version.

Report No.: CTA23081400203 Page 50 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 1 802.11a 802.11n(HT20) CH149 CH149 CH157 CH157 CH165 CH165 Report No.: CTA23081400203 Page 51 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH151 CH149 CH159 CH157 CH165 Report No.: CTA23081400203 Page 52 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH151 CH155 CH159 Report No.: CTA23081400203 Page 53 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 802.11a 802.11n(HT20) CH149 CH149 CH157 CH157 CH165 CH165 Report No.: CTA23081400203 Page 54 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH151 CH149 CH159 CH157 CH165 Report No.: CTA23081400203 Page 55 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH151 CH155 CH159 Report No.: CTA23081400203 Page 56 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Frequency Stability LIMIT Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual. TEST CONFIGURATION TEST PROCEDURE Frequency Stability under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to -30°C. After the temperature stabilized for approximately 30 minutes recorded the frequency. Repeat step measure with 10°C increased per stage until the highest temperature of +50°C reached. Frequency Stability under Voltage Variations: Set chamber temperature to 20°C. Use a variable AC power supply / DC power source to power the EUT and set the voltage to rated voltage. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and recorded the frequency. Reduce the input voltage to specify extreme voltage variation (±15%) and endpoint, record the maximum frequency change. TEST RESULTS Record worst case as below: Report No.: CTA23081400203 Page 57 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Ant1: Reference Frequency: 802.11ac channel=36 frequency=5180MHz Voltage ( V ) Temperature (°C) Frequency error Limit (ppm) Result Hz ppm DC 11.40 -30 110.55 0.021342 Within the band of operation Pass -20 174.44 0.033676 -10 145.59 0.028106 0 146.62 0.028305 10 145.98 0.028181 20 99.45 0.019199 30 167.13 0.032264 40 129.68 0.025035 50 128.77 0.024859 DC 12.54 25 195.53 0.037747 DC 10.26 25 118.73 0.022921 Reference Frequency: 802.11ac channel=149 frequency=5745MHz Voltage ( V ) Temperature (°C) Frequency error Limit (ppm) Result Hz ppm DC 11.40 -30 135.85 0.023647 Within the band of operation Pass -20 129.36 0.022517 -10 167.25 0.029112 0 169.88 0.029570 10 136.33 0.023730 20 144.74 0.025194 30 116.76 0.020324 40 168.61 0.029349 50 160.85 0.027998 DC 12.54 25 150.92 0.026270 DC 10.26 25 129.56 0.022552 Report No.: CTA23081400203 Page 58 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Ant2: Reference Frequency: 802.11ac channel=36 frequency=5180MHz Voltage ( V ) Temperature (°C) Frequency error Limit (ppm) Result Hz ppm DC 11.40 -30 110.36 0.021305 Within the band of operation Pass -20 174.46 0.033680 -10 145.20 0.028031 0 146.35 0.028253 10 146.06 0.028197 20 99.36 0.019181 30 167.24 0.032286 40 129.58 0.025015 50 128.44 0.024795 DC 12.54 25 195.51 0.037743 DC 10.26 25 118.52 0.022880 Reference Frequency: 802.11ac channel=149 frequency=5745MHz Voltage ( V ) Temperature (°C) Frequency error Limit (ppm) Result Hz ppm DC 11.40 -30 135.48 0.023582 Within the band of operation Pass -20 129.39 0.022522 -10 167.28 0.029117 0 168.43 0.029318 10 136.34 0.023732 20 144.83 0.025210 30 116.52 0.020282 40 168.60 0.029347 50 160.88 0.028003 DC 12.54 25 150.76 0.026242 DC 10.26 25 129.74 0.022583 Report No.: CTA23081400203 Page 59 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, …

Text truncated - open the document above for the full version.

FCC ID: 2BCJ7-P8 Test Setup Photos of the EUT
