2BCJE-MDWireless Headphones

Wireless Headphones Instruction Manuall Please read the manual carefully and keep it for reference CONFIGURATION PARAMETER Pairing Name: MD Chip version: 5.3 Charging time: About 1-2h PRODUCT INTRODUCTION 1.Charging box*1 2.Left and right headphones*1 3.data line*1 4.Product specification*1 BINAURAL PAIRING CONNECTION 1. Picking up the earphones will automatically turn on and pair, and the pairing is successful. The main earphone light will flash alternately, and the secondary earphone LED light will turn off (if there is no pairing, simply double-click any earphone to pair). 2. Open the wireless list of the device and search for "MD"; 3. Click to complete the connection (LED light off). If the connection fails, put the headphones back into the charging case, close the cover, and repeat the above operation. If both ears leave the device at the same time beyond the distance, the headphones will enter a reconnection state. If there is no reconnection to the device within 3 minutes, both headphones will automatically shut down. After the first connection, the earphones will automatically reconnect to the last paired device after restarting (provided that the phone's Bluetooth is turned on) Switch between English and Chinese Headset boot without connecting any device in the case of Boot, press 5 buttons (quick press) can be switched between English and Chinese freely. OPERATION MODE Operating instructions (1) Pick up the earphones and immediately turn them on automatically, with the light on for 1 second. (2) When the headphones are turned off, press and hold the function button for 1 second, and the voice prompt "power on" light will light up for 1 second. 1.POWER ON 2.SHUT DOWN (1) Put the earphones back into the charging case and close the cover. The earphones will automatically turn off and the light will be on for 1 second when charging. (2) When the headphones are turned on, press and hold the function button for 3 seconds to turn off the headphones, and the voice prompt "turn off" light will light up for 1 second. Answer / end a call Connected L / R headset click once Voice assistant In the connected state Long press any headset 1.5 seconds Play the next song Music state Right ear (R) click three times Volume+ Right ear (R) double-tap wice in music state Play / pause music Connected L / R headset click once Refuse to answer the phone Long press any headset 1.5 seconds Play the previous song Music state Left ear (L) click three times Volume- Double click on the left ear (L) in the music state twice certificate inspector：08 Made in China 英语/English FCCWARNING Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust acceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipment generates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructi ons,maycauseharmfulinterferencetoradiocommunications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.If thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: —Reorientorrelocatethereceivingantenna. —Increasetheseparationbetweentheequipmentandreceiver. —Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. —Consultthedealeroranexperiencedradio/TVtec hnicianforhelp. Note:TheGranteeisnotresponsibleforanychangesormodificationsnotexpressly approvedbythepartyresponsibleforcompliance.suchmodificationscouldvoidtheuser's authoritytooperatetheequipment. ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement. ThisequipmentcomplieswithFCC'sRFradiationexposurelimitssetforthforanuncontrolled environment.Thisdeviceanditsantenna(s)mustnotbeco-locatedorconjunctionwithany other antenna or transmitter. FCC ID:2BCJE-MD

ShenzhenXinkeMeidaCommunicationCo.,Ltd. * theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter April30,2024 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2BCJE-MD Persection2.911(d)(7)oftheFCCrules,ShenzhenXinkeMeidaCommunicationCo.,Ltd.(“the applicant”)certifiesthattheequipmentforwhichauthorizationissoughtisdesignatedtothe followingU.S.Designatedagent*forserviceofprocess: CompanyName:GSSSERVICEINC PhysicalU.S.CompanyAddress: 6547NAcademyBlvd#2266ColoradoSpringsCOLORADO 80918UnitedStates Agentname: MichouxLogan AgentEmailAddress:[email protected] FRN:0033402082 Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:DesignatedAgentSigned: (Required,ifdifferenttoApplicant): Signed: Signed: Printedname:JianchuShenPrintedname:MichouxLogan Title:ManagerTitle:Manager Company Name: ShenzhenXinkeMeida CommunicationCo.,Ltd. Company Name: GSSSERVICEINC Date:4/30/2024Date:4/30/2024 FRNCode:0034135459FRNCode:0033402082

ShenzhenXinkeMeidaCommunicationCo.,Ltd. ···· CoveredEquipmentCertificationAttestationLetter 4/30/2024 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2BCJE-MD ShenzhenXinkeMeidaCommunicationCo.,Ltd.(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. ShenzhenXinkeMeidaCommunicationCo.,Ltd.(“theapplicant”)certifiesthat,asofthe dateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListas anentityproducing“covered”equipment. Signed: Printedname::JianchuShen Title:Manager CompanyName:ShenzhenXinkeMeidaCommunicationCo.,Ltd. Date: 4/30/2024

ShenzhenXinkeMeidaCommunicationCo.,Ltd. 4/30/2024 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Canada K1V1H2 AUTHORITYTOACTASAGENT-FCC Onourbehalf,IappointShenzhenXinkeMeidaCommunicationCo.,Ltd.,toactasouragentinthe preparationofthisapplicationforequipmentcertification.Icertifythatsubmitteddocumentsproperly describethedeviceorsystemforwhichequipmentcertificationissought.Ialsocertifythateachunit manufactured,importedormarketed,asdefinedinFCCregulationswillhaveaffixedtoitalabel identicaltothatsubmittedforapprovalwiththisapplication. Insigningthisletter,Applicantcertifiesthatneithertheapplicantnoranypartytotheapplicationis notsubjecttoadenialofFederalbenefits,thatincludeFCCbenefits,pursuanttoSection5301ofthe Anti-DrugAbuseActof1988,21U.S.C.§862becauseofaconvictionforpossessionordistribution ofacontrolledsubstance.See47CFR1.2002(b)forthedefinitionofa"party"forthesepurposes. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,I acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,as specifiedbyNemkoNorthAmericaInc.,stillresidesstillresideswithus. Sincerely, Printedname:JianchuShen

FamilyCertificationAttestationLetter 4/30/2024 NemkoCanadaInc 303RiverRoad Ottawa K1V1H2 Canada CompanyName:ShenzhenXinkeMeidaCommunicationCo.,Ltd.COMMUNICATION FCCID:2BCJE-MD Models:MD,MD03,MD04,MD05,MD06,MD41,MD118,MD128,MD138,MD158, MD168,MD188,MD198,MD618,MD638,MD528,MD538,MD558,MD568,MD598,RD, RD03,RD21,RD23,RD31,RD36RD39 ， RD40,M100,MINI,MINI12,MINI13,MINI14, BT,BT600,BT700,Y29,Y99,P90 WeherebyrequestFamilyCertificationfortheabovementionedModelsbasedonthembeing electricallyidentical. MDistestedmodel,othermodelsarederivativemodels.Themodelsareidenticalincircuit, onlydifferentonthemodelnames,appearancecolor,chargingcaseappearancecolor, chargingcasesizeandchargingcaseshape.SothetestdataofMDcanrepresentthe remainingmodels.Theshellmaterialisplastic Signed: Printedname:JianchuShen Title:Manager Date:4/30/2024

ShenzhenXinkeMeidaCommunicationCo.,Ltd. April30,2024 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Canada K1V1H2 REQUESTFORCONFIDENTIALITY-FCC FCCID:2BCJE-MD PursuanttoSections0.457(d)and0.459oftheCommission’sRulesandFCCGuidancedocument 726920,weherebyrequestpermanentconfidentialtreatmentofexhibitsidentifiedassuchinthe tablebelowandrequesttheyarepermanentlywithheldfrompublicreviewbasedonthedocuments containingtradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic.The publicdisclosureofthisinformationmightbeharmfultotheapplicantandprovideunjustifiedbenefits toitscompetitors. Wealsorequestshort-termconfidentialityoncertainexhibitsuntiltheintendeddateofmarketingas outlinedbelow.Werequesttheexhibitsbewithheldfrompublicviewforaperiodof180daysdays. Weattestmarketingoftheproductwillonlycommenceaftertheperiodofshort-termconfidentiality expires,orifmarketingistocommencebeforetherequestednumberofdayslistedabove,the granteewillinformNemkotoreleasetheShort-TermConfidentialityinformationwithheldontheFCC equipmentauthorizationwebsite. ExhibitTypeofConfidentialityRequested BlockDiagrams☒Permanent☐ShortTerm ExternalPhotos------------------ ☐ShortTerm InternalPhotos ☐Permanent*☐ShortTerm OperationDescription☒Permanent☐ShortTerm PartsList&Placement/BOM ☐ Permanent ☐ ShortTerm Tune-UpProcedure ☐ Permanent ☐ ShortTerm SchematicDiagrams☒Permanent☐ShortTerm TestSetupPhotos------------------ ☐ShortTerm User’sManual ☐ Permanent* ☐ ShortTerm Theasteriskeditems(*)requirefurtherinformationtobeprovidedinthisjustificationletterbeforepermanentconfidentiality willbeextendedtotheseexhibits.PleaserefertoFCCKDB726920D01foundat: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731andreviewsectionII,3)regarding specificinformationthatmustaccompanytheserequests. Note:anydocumentsheldundertheShort-Termconfidentialitywillautomaticallybecomepublic aftertherequestedtimeifanappropriateextensionrequesthasnotbeenreceived.Anyexhibits (i.e.,schematicdiagrams)thatmayhavealreadybeenrequestedtohave“Permanent” confidentialityasshownaboveneednotberepeatedunderShort-Termconfidentialityrequest. Sincerely, Signed: Printedname:JianchuShen Title:Manager CompanyName:ShenzhenXinkeMeidaCommunicationCo.,Ltd.

ShenzhenXinkeMeidaCommunicationCo.,Ltd. Thedifferencebetweentheleftheadsetandtherightheadset Productdescription:WirelessHeadphones Modelname:MD,MD03,MD04,MD05,MD06,MD41,MD118,MD128,MD138, MD158,MD168,MD188,MD198,MD618,MD638,MD528,MD538,MD558,MD568, MD598,RD,RD03,RD21,RD23,RD31,RD36RD39，RD40,M100,MINI,MINI12, MINI13,MINI14,BT,BT600,BT700,Y29,Y99,P90 FCCID:2BCJE-MD TheRFchipoftheleftandrightearphonesisthesame,onlythereisadifferencein thecircuitlayout. Client’ssignature: Client’sname/title:JianchuShen/Manager Contactinformation/address:Building201,No.12,ZhangbeiMeiyingLane,Zhangbei community,LongchengStreet,LonggangDistrict,ShenzhenCity

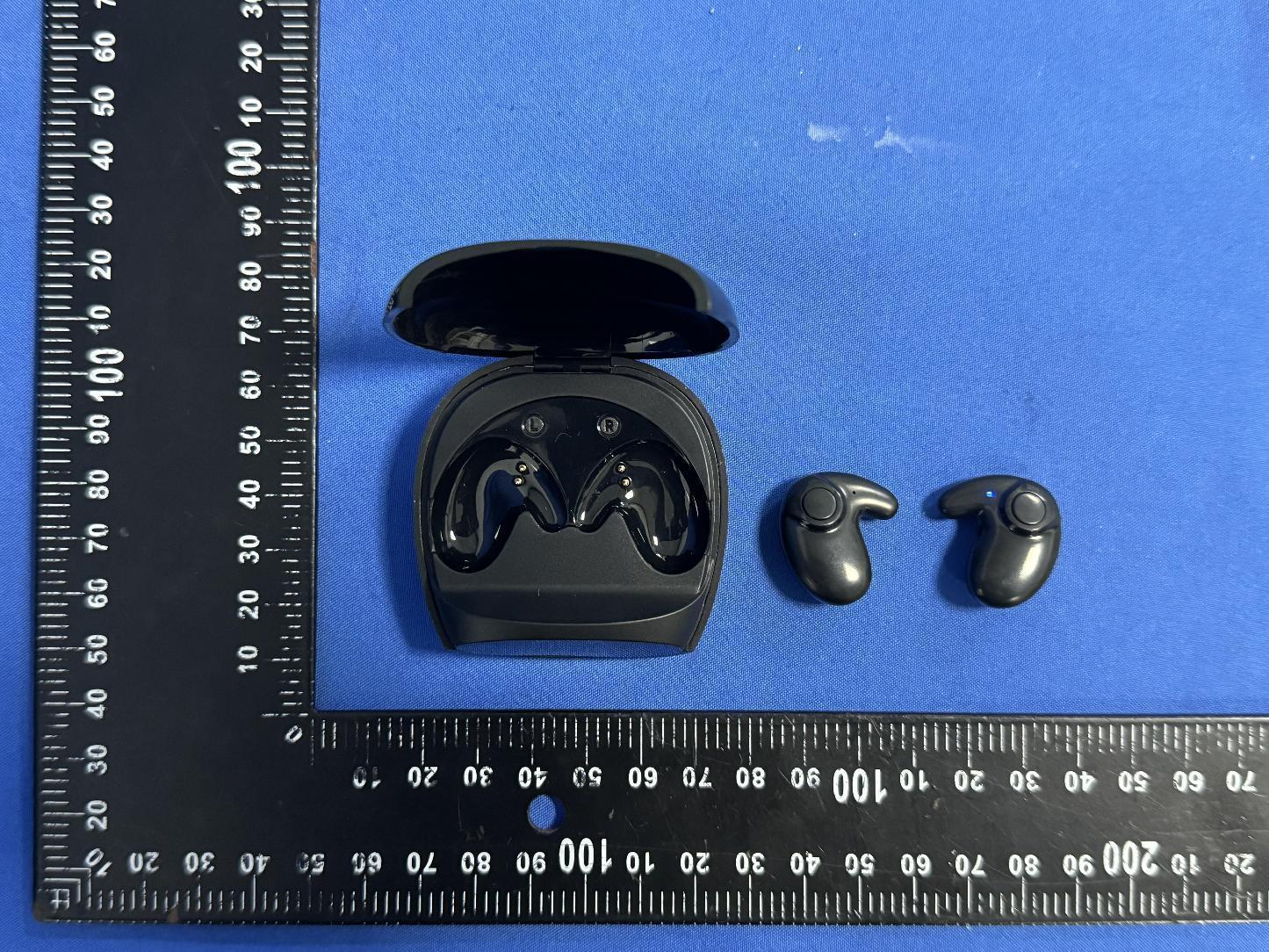

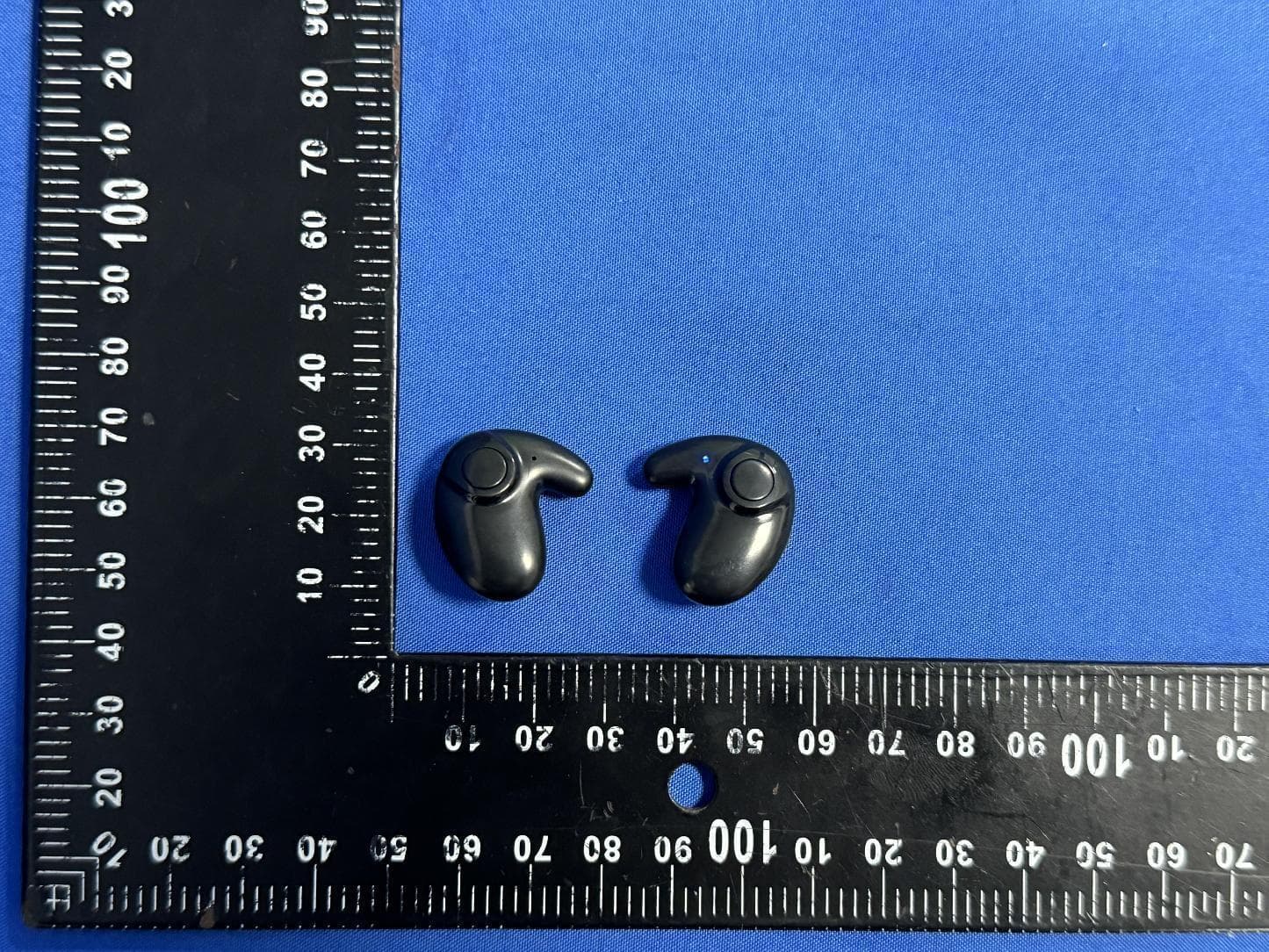

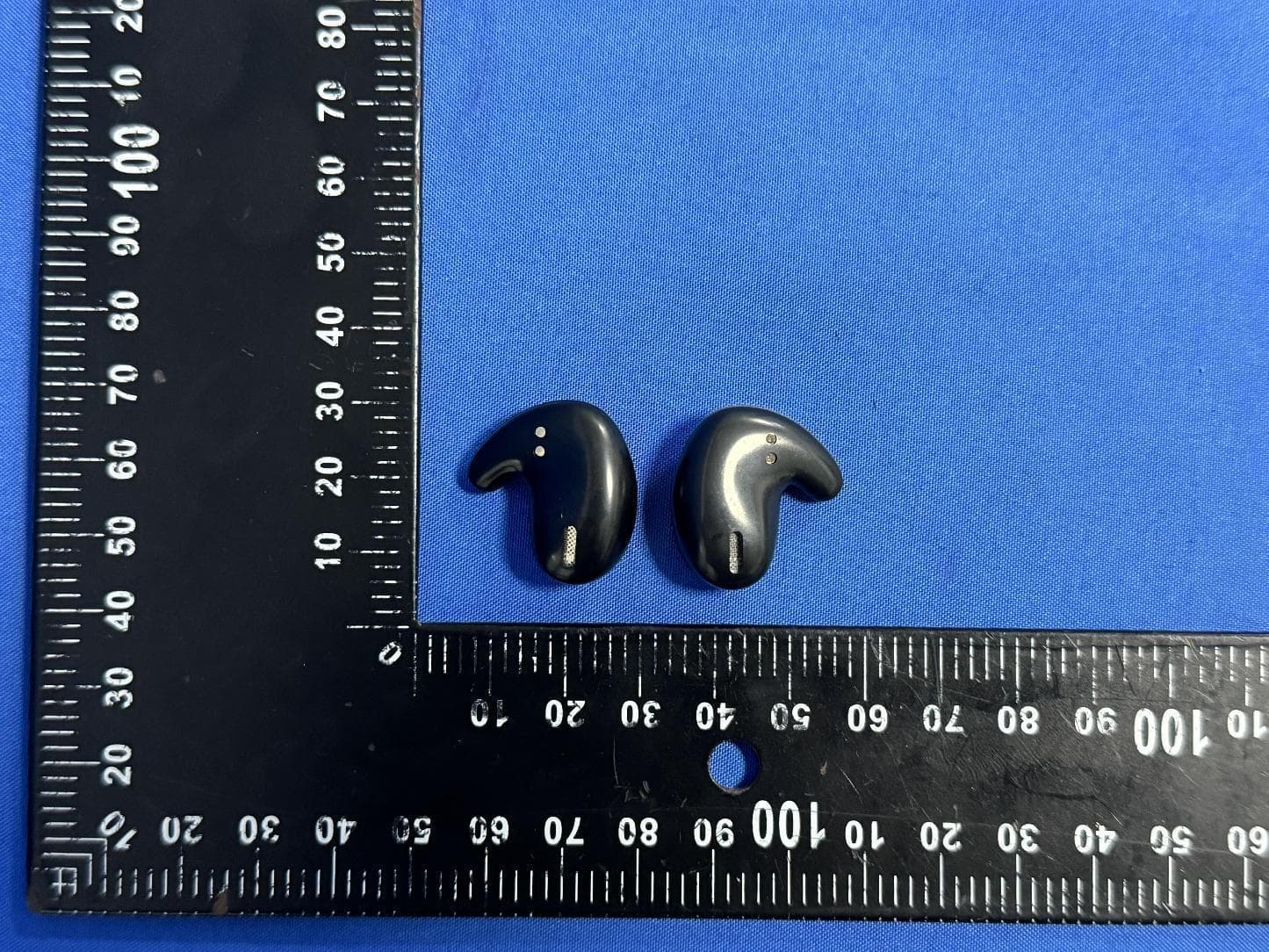

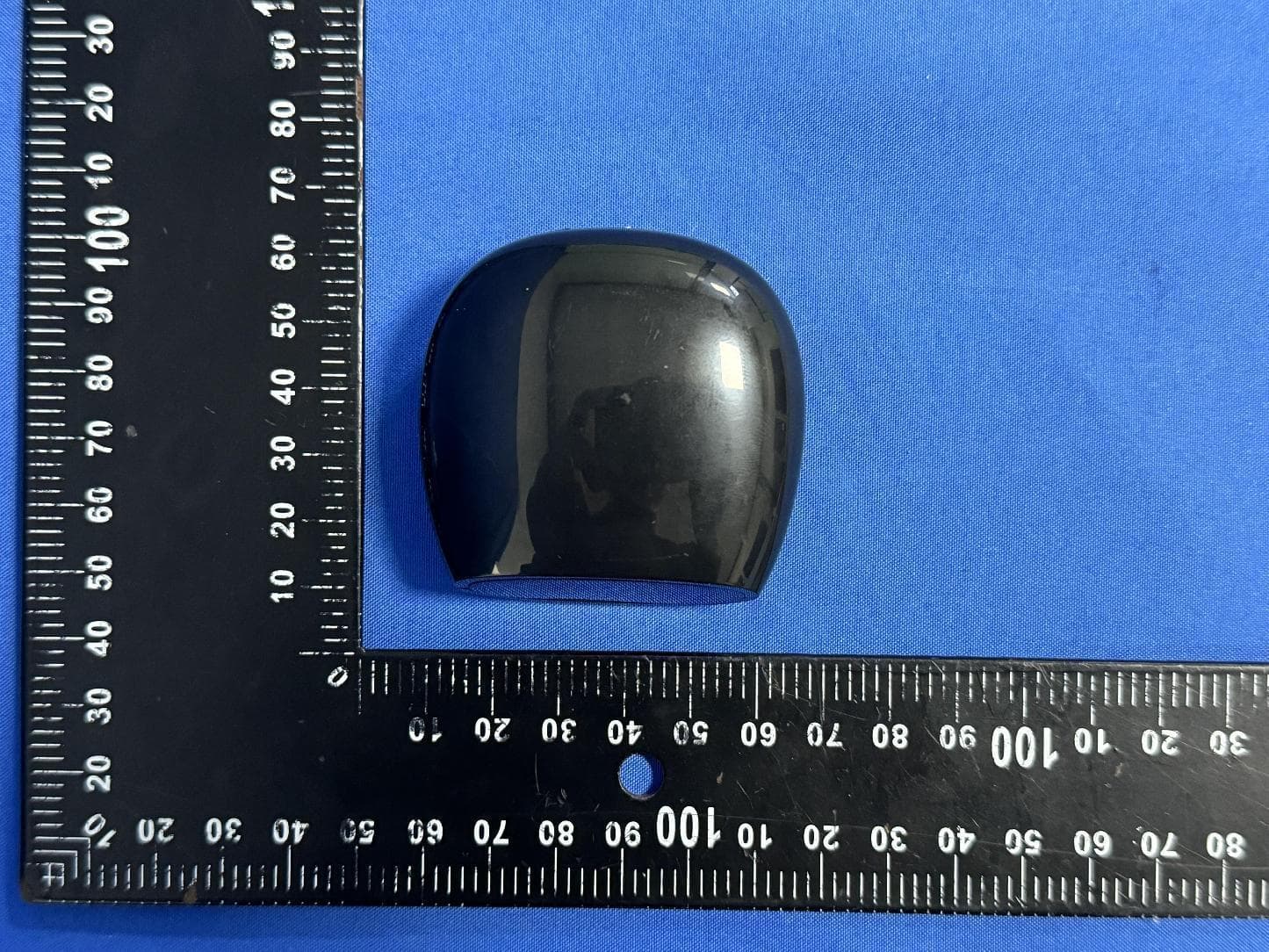

FCCID:2BCJE-MD EUTPHOTOS(ExternalPhotos) FCCID:2BCJE-MD FCCID:2BCJE-MD FCCID:2BCJE-MD FCCID:2BCJE-MD ※※※※※ENDOFREPORT※※※※※

ShenzhenXinkeMeidaCommunicationCo.,Ltd. Labeldeclaration Productdescription:WirelessHeadphones Modelname:MD,MD03,MD04,MD05,MD06,MD41,MD118,MD128,MD138,MD158, MD168,MD188,MD198,MD618,MD638,MD528,MD538,MD558,MD568, MD598,RD,RD03,RD21,RD23,RD31,RD36RD39，RD40,M100,MINI, MINI12,MINI13,MINI14,BT,BT600,BT700,Y29,Y99,P90 FCCID:2BCJE-MD Themeasurementofearphone:Length(25mm)Width(22mm)High(10mm).The earphonesaretoosmallandirregularlyshapedtoprintlabels,sothelabelsare includedintheinstructionmanual. Regards Sincerely Client’ssignature: Client’sname/title:JianchuShen/Manager Contactinformation/address:Building201,No.12,ZhangbeiMeiyingLane,Zhangbei community,LongchengStreet,LonggangDistrict, ShenzhenCity

FCCID:2BCJE-MD EUTPHOTOS(InternalPhotos) FCCID:2BCJE-MD FCCID:2BCJE-MD FCCID:2BCJE-MD FCCID:2BCJE-MD ANT FCCID:2BCJE-MD FCCID:2BCJE-MD ※※※※※ENDOFREPORT※※※※※

FCCID:2BCJE-MD RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093，Unless specificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,by measurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTest ExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, ForBluetooth Mode Max Power (dBm) Tune-up power (dBm) Max Power (mW) Frequency(MHz) Min. Distance (mm) Calc. thresholds limit BR/EDR -0.03 0±1 1.2624415 0.3933.0 SoaSARtestisnotrequired

ProjectNo.: ZKT-240426L4348E Page1 of 103 FCC TEST REPORT FCC ID: 2BCJE-MD ReportNumber. .................................. :ZKT-240426L4348E Dateof Test..........................................:Apr. 10, 2024to Apr. 19, 2024 Dateof issue.........................................:Apr. 19, 2024 Test Result..........................................:PASS TestingLaboratory. .......................... :ShenzhenZKT TechnologyCo., Ltd. Address ............................................... :1/F, No. 101, BuildingB, No. 6, TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................:ShenzhenXinkeMeidaCommunicationCo., Ltd. Address...............................................:Room201, Building2, FreeWoodFactory,No.12,ZhangbeiMeiying Lane,ZhangbeiCommunity,LongchengStreet,LonggangDistrict, Shenzhen Manufacturer's name ...................... :ShenzhenXinkeMeidaCommunicationCo., Ltd. Address ............................................... :Room201, Building2, FreeWoodFactory,No.12,ZhangbeiMeiying Lane,ZhangbeiCommunity,LongchengStreet,LonggangDistrict, Shenzhen Test specification: Standard................................................:FCCCFRTitle 47 Part 15 SubpartC Section15.247 Test procedure.....................................:KDB558074D01 15.247MeasGuidancev05r02 ANSIC63.10:2013 Non-standardtest method ................ : N/A This devicedescribedabovehas beentestedby ZKT , and the test resultsshowthat the equipmentunder test (EUT)is in compliancewith the FCCrequirements.And it is applicableonly to the testedsample identifiedin the report. This reportshallnot be reproducedexceptin full, withoutthe writtenapprovalof ZKT , this documentmay be alteredor revisedby ZKT , personalonly,and shallbe notedin the revisionof the document. Productname.....................................: WirelessHeadphones Trademark...........................................:/ Model/Typereference:MD, MD03,MD04,MD05,MD06,MD41,MD118,MD128,MD138, MD158,MD168,MD188,MD198,MD618,MD638,MD528,MD538, MD558,MD568,MD598,RD, RD03,RD21,RD23,RD31,RD36 RD39，RD40,M100,MINI,MINI12,MINI13,MINI14,BT, BT600, BT700,Y29,Y99,P90 ModelDifference.................... ..........:MD is testedmodel,othermodelsare derivativemodels.The models are identicalin circuit, only differenton the modelnames,appearance color,chargingcaseappearancecolor,chargingcasesize and chargingcaseshape.So the test data of MD can representthe remainingmodels. Ratings..................................................:Chargingbox Input:DC 5 V, 40mA Earphone:DC 3.7 V by battery ProjectNo.: ZKT-240426L4348E Page 2 of 103 Testingprocedureand testinglocation: TestingLaboratory .......................................... :ShenzhenZKT TechnologyCo., Ltd. Address ............................................................ :1/F, No. 101, BuildingB, No. 6, TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China Jim Liu Testedby (name+ signature) ....................... : Tom Zou Reviewer(name+ signature).......................: LakeXieApproved(name+ signature) ....................... : ProjectNo.: ZKT-240426L4348E Page 3 of 103 Tableof Contents Page 1. VERSION...........................................................................................................................................5 2. TEST SUMMARY..............................................................................................................................6 2.1 TESTFACILITY...............................................................................................................................7 2.2 MEASUREMENTUNCERTAINTY...................................................................................................7 3. GENERALINFORMATION...............................................................................................................8 3.1 GENERALDESCRIPTIONOF EUT ................................................................................................8 3.2 Test SetupConfiguration.................................................................................................................9 3.3 SupportEquipment........................................................................................................................10 3.4 Test Mode......................................................................................................................................10 3.5 EQUIPMENTSLISTFORALL TESTITEMS................................................................................11 4. EMC EMISSIONTEST ....................................................................................................................13 4.1 Conductedemissions.....................................................................................................................13 4.1.1POWERLINECONDUCTEDEMISSIONLimits........................................................................13 4.1.2TESTPROCEDURE...................................................................................................................13 4.1.3DEVIATIONFROMTESTSTANDARD......................................................................................13 4.1.4TESTSETUP..............................................................................................................................14 4.1.5EUT OPERATINGCONDITIONS...............................................................................................14 4.2 Radiatedemissions........................................................................................................................15 4.2.1RadiatedEmissionLimits...........................................................................................................15 4.2.2TESTPROCEDURE...................................................................................................................15 4.2.3DEVIATIONFROMTESTSTANDARD...................................................................…

Text truncated - open the document above for the full version.

ProjectNo.: ZKT-240426L4348E Page 74 of 103 PeakPowerNVNT1-DH52480MHzAnt1 PeakPowerNVNT2-DH52402MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 75 of 103 PeakPowerNVNT2-DH52441MHzAnt1 PeakPowerNVNT2-DH52480MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 76 of 103 PeakPowerNVNT3-DH52402MHzAnt1 PeakPowerNVNT3-DH52441MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 77 of 103 PeakPowerNVNT3-DH52480MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 78 of 103 9. HOPPINGCHANNELSEPARATION Test Requirement:FCCPart15C Section15.247(a)(1) Test Method:ANSIC63.10:2013 Receiversetup: RBW=30 KHz,VBW=100KHz,detector=Peak Limit: GFSK, π/4-DQPSK& 8DSK:0.025MHzor 2/3 of the 20dBbandwidth (whicheveris greater) 9.1 Test Setup 9.2 Test procedure 1. Removethe antennafrom the EUT and then connecta low RF cablefrom the antennaport to the spectrum. 2. Set the spectrumanalyzer:RBW= 30kHz.VBW= 100kHz, Span= 2.0MHz.Sweep= auto;Detector Function= Peak.Trace= Max hold. 3. Allowthe traceto stabilize.Use the marker-deltafunctionto determinethe separationbetweenthe peaksof the adjacentchannels.The limit is specifiedin one of the subparagraphsof this SectionSubmitthis plot. 9.3 DEVIATIONFROMSTANDARD No deviation. ProjectNo.: ZKT-240426L4348E Page 79 of 103 9.4 Test Result ModulationTest Channel Separation(MHz) Limit(MHz)Result GFSKLow0.9960.637PASS GFSKMiddle0.9980.627PASS GFSKHigh0.9840.636PASS π/4DQPSKLow0.9860.872PASS π/4DQPSKMiddle1.0040.845PASS π/4DQPSKHigh1.0040.812PASS 8DPSKLow1.0180.841PASS 8DPSKMiddle0.9960.862PASS 8DPSKHigh1.0420.85PASS ProjectNo.: ZKT-240426L4348E Page 80 of 103 Test Graphs CFS NVNT1-DH52402MHzAnt1 CFS NVNT1-DH52441MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 81 of 103 CFS NVNT1-DH52480MHzAnt1 CFS NVNT2-DH52402MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 82 of 103 CFS NVNT2-DH52441MHzAnt1 CFS NVNT2-DH52480MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 83 of 103 CFS NVNT3-DH52402MHzAnt1 CFS NVNT3-DH52441MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 84 of 103 CFS NVNT3-DH52480MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 85 of 103 10. NUMBEROF HOPPINGFREQUENCY Test Requirement:FCCPart15C Section15.247(a)(1)(iii) Test Method:ANSIC63.10:2013 Receiversetup: RBW=100kHz,VBW=300kHz,Frequencyrange=2400MHz-2483.5MHz, Detector=Peak Limit: 15 channels 10.1 Test Setup 10.2 Test procedure 1. Removethe antennafrom the EUT and then connecta low RF cablefrom the antennaport to the spectrum. 2. Set the spectrumanalyzer:RBW= 100kHz.VBW= 300kHz.Sweep= auto;DetectorFunction= Peak. Trace= Max hold. 3. Allowthe traceto stabilize.It may provenecessaryto breakthe spanup to sections.in orderto clearly showall of the hoppingfrequencies.The limit is specifiedin one of the subparagraphsofthis Section. 4. Set the spectrumanalyzer:StartFrequency= 2.4GHz,StopFrequency= 2.4835GHz.Sweep=auto; 10 .3 DEVIATIONFROMSTANDARD No deviation. ProjectNo.: ZKT-240426L4348E Page 86 of 103 10.4 Test Result Test Graphs HoppingNo. NVNT1-DH52402MHzAnt1 HoppingNo. NVNT1-DH52441MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 87 of 103 HoppingNo. NVNT1-DH52480MHzAnt1 HoppingNo. NVNT2-DH52402MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 88 of 103 HoppingNo. NVNT2-DH52441MHzAnt1 HoppingNo. NVNT2-DH52480MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 89 of 103 HoppingNo. NVNT3-DH52402MHzAnt1 HoppingNo. NVNT3-DH52441MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 90 of 103 HoppingNo. NVNT3-DH52480MHzAnt1 ProjectNo.: ZKT-240426L4348E Page 91 of 103 11. DWELLTIME Test Requirement:FCCPart15C Section15.247(a)(1)(iii) Test Method:ANSIC63.10:2013 Receiversetup: RBW=1MHz,VBW=3MHz,Span=0Hz,Detector=Peak Limit: 0.4 Second 11.1 Test Setup 11.2 Test procedure 1. Removethe antennafrom the EUT and then connecta low RF cablefrom the antennaport to the spectrum. 2. Set spectrumanalyzerspan= 0Hz; 3. Set RBW= 1MHzand VBW= 3MHz.Sweep= as necessaryto capturethe entiredwelltime per hopping channel.Set the EUT for DH5,DH3 and DH1 packettransmitting. 4. Use the marker-deltafunctionto determinethe dwelltime.If this valuevarieswith differentmodesof operation(e.g..data rate. modulationformat.etc.).repeatthis test for eachvariation.The limit is specifiedin one of the subparagraphsof this Section.Submitthis plot(s). 11 .3 DEVIATIONFROMSTANDARD No deviation. ProjectNo.: ZKT-240426L4348E Page 92 of 103 11.4 Test Result ModeFrequency (MHz) Pulse Time (ms) Total Dwell Time (ms) Burst Count PeriodTime (ms) Limit (ms) Verdict 1-DH124410.404128.47231831600400Pass 1-DH324411.657265.1216031600400Pass 1-DH524412.905307.9310631600400Pass 2-DH124410.414131.23831731600400Pass 2-DH324411.666258.2315531600400Pass 2-DH524412.914297.22810231600400Pass 3-DH124410.413130.50831631600400Pass 3-DH324411.662255.94815431600400Pass 3-DH524412.913305.86510531600400Pass Remarks: The test period:T= 0.4 Second/Channelx 79 Channel= 31.6 s (1 / 2 / 3)-DH1:Dwelltime (ms) = PulseTime(ms) * [1600/ (2 * 79)] * 31.6s (1 / 2 / 3)-DH3:Dwelltime (ms) = PulseTime(ms) * [1600/ (4 * 79)] * 31.6s (1 / 2 / 3)-DH5:Dwelltime (ms) = PulseTime(ms) * [1600/ (6 * 79)] * 31.6s ProjectNo.: ZKT-240426L4348E Page 93 of 103 Test Graphs DwellNVNT1-DH12441MHzAnt1One Burst DwellNVNT1-DH12441MHzAnt1 Accumulated ProjectNo.: ZKT-240426L4348E Page 94 of 103 DwellNVNT1-DH32441MHzAnt1One Burst DwellNVNT1-DH32441MHzAnt1 Accumulated ProjectNo.: ZKT-240426L4348E Page 95 of 103 DwellNVNT1-DH52441MHzAnt1One Burst DwellNVNT1-DH52441MHzAnt1 Accumulated ProjectNo.: ZKT-240426L4348E Page 96 of 103 DwellNVNT2-DH12441MHzAnt1One Burst DwellNVNT2-DH12441MHzAnt1 Accumulated ProjectNo.: ZKT-240426L4348E Page 97 of 103 DwellNVNT2-DH32441MHzAnt1One Burst DwellNVNT2-DH32441MHzAnt1 Accumulated ProjectNo.: ZKT-240426L4348E Page 98 of 103 DwellNVNT2-DH52441MHzAnt1One Burst DwellNVNT2-DH52441MHzAnt1 Accumulated ProjectNo.: ZKT-240426L4348E Page 99 of 103 DwellNVNT3-DH12441MHzAnt1One Burst DwellNVNT3-DH12441MHzAnt1 Accumulated ProjectNo.: ZKT-240426L4348E Page 100 of 103 DwellNVNT3-DH32441MHzAnt1One Burst DwellNVNT3-DH32441MHzAnt1 Accumulated ProjectNo.: ZKT-240426L4348E Page 101 of 103 DwellNVNT3-DH52441MHzAnt1One Burst DwellNVN…

Text truncated - open the document above for the full version.

LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 1 OF 11 1.6X0.8X0.5 (mm) WiFi/Bluetooth Ceramic Chip Antenna 2. F (MB1608H1) Engineering Specification 1.Product Number eatures (1)Product Type Chip Antenna (2)Size Code 1.6x0.8x0.5mm (3)Type Code H1 (4)Packing Paper &Reel (5)Frequency 2.45GHz 5 4 3 2 1 H1 -R-01 1608 MB Address:Room 613, Building 2, Dori International E-commerce Industrial Park, Futian, Shenzhen TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 2 OF 11 *Stable and reliable in performances *Low temperature coefficient of frequency *Low profile, compact size *RoHS compliance *SMT processes compatible 3. Applications *Bluetooth earphone systems *Hand-held devices when WiFi /Bluetooth functions are needed, e.g., Smart phone. *IEEE802.11 b/g/n *ZigBee *Wireless PCMCIA cards or USB dongle 5-1. Electrical Tabl 4.Description MINGBOchip antenna series are specially designed for WiFi/Bluetooth applications. Based on MINGBO proprietary design and processes, this chip antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5.Electrical Specifications (40x 40 mm 2 ground plane) e Characteristics Specifications Unit Outline Dimensions 1.6x0.8x0.5 mm Working Frequency 2400~2500 MHz VSWR 2 Max. Impedance 50  Polarization Linear Polarization Gain Peak 1.5 (typical) dBi Efficiency 65 (typical) % LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 3 OF 11 5-2. Return Loss & VSWR Return Loss (S 11 ) VSWR(S 11 ) 6. Antenna Dimensions (unit: mm) a. Antenna Dimensions LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 4 OF 11 7. Radiation Pattern (80 x 40 mm 2 ground plane) 7-1. 3D Gain Pattern @ 2442 MHz Z Y X Z X Y Y X X Y Z LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 5 OF 11 7-2. 3D Efficiency Table Frequency( MHz) 2400 2410 2420 2430 2442 2450 2460 2470 2480 2490 2500 Efficiency (dB) -1.4 -1.0 -0.9 -0.7 -0.7 -0.8 -0.9 -1.1 -1.2 -1.3 -1.4 Efficiency (%) 62.8 63.7 64.3 64.4 65.5 65.0 64.0 63.6 63.1 62.6 61.5 Gain (dBi) 1.1 1.2 1.3 1.4 1.5 1.5 1.4 1.3 1.2 1.1 1.1 7-3. 3D Efficiency vs. Frequency 8. Layout Guide a. Solder Land Pattern: Land pattern for soldering (gray marking areas) is as shown below. Depending on Efficiency(%) Frequency(MHz) 25002490248024702460245024422430242024102400 100 90 80 70 60 50 Efficiency vs. Frequency LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 6 OF 11 Customer’s requirement, matching circuit as shown below is also recommended. LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 7 OF 11 Bottom View Unit： mm c. Fine tuning element vs. Center frequency LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 8 OF 11 9. Soldering Conditions a. Typical Soldering Profile for Lead-free Process Time 60-180s 60-150s 20- Pre- 150-200° 217°C 260° Temperature (°C) LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 9 OF 11 Packing (1) Quantity/Reel: 5000 pcs/Reel (2) Plastic tape: LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 10 OF 11 LOTUS ANTENNA TECHNOLOGYCO.,LTD TITLE： 1.6x 0.8 x0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (MB1608H1) Engineering Specification DOCUMENT MB1608H1-01-R REV. NO. A PAGE 11 OF 11 LOTUS ANTENNA TECHNOLOGYCO.,LTD

FCCID:2BCJE-MD EUTTESTPHOTOS
