2BCJZMAGS-1Power Bank

USER MANUAL Operating instructions Product Name Power Bank Model MagS-1 FCC ID 2BCJZMAGS-1 Battery Type Polymer battery Implementation Standards GB/T35590:2017 Capacity 5000mAh Type-C Input 5V/3A; 9V/2A; 12V/1.5AType-C Input 5V/3A; 9V/2A; 12V/1.5A Type-C Output 5V/3A; 9V/2.22A; 12V/1.67A Wireless Output 15W(Max) Size 103*64*9.6mm Weight 115±5g 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. 1. Press the power button to display the remaining power. 2. Power input and output: Use the power cable to connect the power adapter or built-in cable to charge the power bank. Connect the power bank and the device to be charged through the power cable, or use the built-in cable to charge a mobile phone. Function introduction Technical parameters FCC Statement

Shenzhen MOPO Electronic Technology Co., Ltd 2024-08-08 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BCJZMAGS-1 ) [Shenzhen MOPO Electronic Technology Co., Ltd ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Gui bing Cui managers Shenzhen MOPO Electronic Technology Co., Ltd Room 212, Longhai Business Center,Longfeng 1 Road,Longhua Street, Longhua District, Shenzhen, China Shenzhen MOPO Electronic Technology Co., Ltd 2024-08-08 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2BCJZMAGS-1) [Shenzhen MOPO Electronic Technology Co., Ltd ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Gui bing Cui managers Shenzhen MOPO Electronic Technology Co., Ltd Room 212, Longhai Business Center,Longfeng 1 Road,Longhua Street, Longhua District, Shenzhen, China

Attestation Statements (2023-9-18) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (GC: 2BCJZ， Grantee FRN: 0034140020) (Shenzhen MOPO Electronic Technology Co., Ltd), the undersigned, hereby authorize (Lucky Cowboy Global Services, LLC) to act as our designated U.S. agent for service of process,( Shenzhen MOPO Electronic Technology Co., Ltd) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Lucky Cowboy Global Services, LLC) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Shenzhen MOPO Electronic Technology Co., Ltd Contact Name: Gui bing Cui Address:Room 212, Longhai Business Center,Longfeng 1 Road,Longhua Street, Longhua District, Shenzhen, China Telephone No: 15813869069 Email: [email protected] Signature [Gui bing Cui] U.S. Agent Information: Company Name: Lucky Cowboy Global Services, LLC Address: 2213 S. Braeswood Blvd. #12E Houston, TX 77030 USA FRN: 0033510934 Contact Name: Louie Liu Telephone No: +1 (713) 992-3369 Email: [email protected] Signature [Louie Liu]

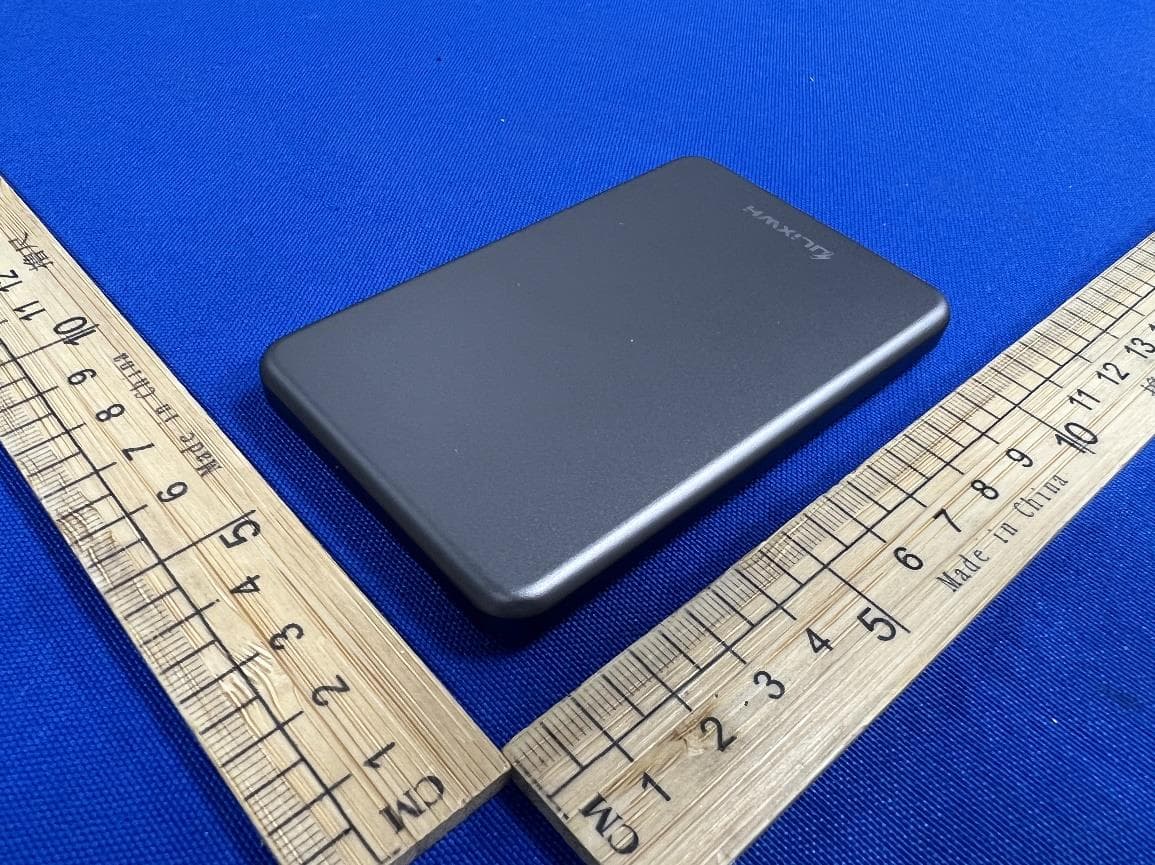

External Internal

Internal ANTENNA

1 / 11 EUT Specification FCC ID: 2BCJZMAGS-1 Characteristics Description Product Name Power Bank Model number MagS-1 Series Model N/A Power Supply DC 9V Operating Frequency Range 110-205KHz Modulation Technique FSK Antenna Type Coil Antenna Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation SAR Evaluation Applicable Standard: FCC Part 1(1.1310) ,Part 2(2.1093) and KDB 680106 D01 RF Exposure Wireless Charging Apps v03 Applicable Requirement: Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: Fixed Installations: fixed location means that the device, including its 2 / 11 antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFR§2.1093). The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/ Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: Occupational/controlled exposure limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when a person is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. The phrase fully aware in the context of applying these exposure limits means that an exposed person has received written and/or verbal information fully explaining the potential for RF exposure resulting from his or her employment. With the exception oftransient persons, this phrase also means that an exposed person has received appropriate training regarding work practices relating to controlling or mitigating his or her exposure. Such training is not required for transient persons, but they must receive written and/or verbal information and notification (for example, using signs) concerning their exposure potential and appropriate means available to mitigate their exposure. The phrase exercise control means that an exposed person is allowed to and knows how to reduce or avoid exposure by administrative or engineering controls and work practices, such as use of personal protective equipment or time averaging of exposure. General population/uncontrolled exposure limits apply in situations in which the general public may be exposed, or in which persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. 3 / 11 Licensees and applicants are responsible for compliance with both the occupational/controlled exposure limits and the general population/uncontrolled exposure limits as they apply to transmitters under their jurisdiction. Licensees and applicants should be aware that the occupational/controlled exposure limits apply especially in situations where workers may have access to areas in very close proximity to antennas and access to the general public may be restricted. In lieu of evaluation with the general population/uncontrolled exposure limits, amateur licensees authorized under part 97 of this chapter and members of his or her immediate household may be evaluated with respect to the occupational/controlled exposure limits in this section, provided appropriate training and information has been provided to the amateur licensee and members of his/her household. Other nearby persons who are not members of the amateur licensee's household must be evaluated with respect to the general population/uncontrolled exposure limits. Test Setup Block Test Procedure 1.Connect the EUT and equipment as above diagram of test configuration. 4 / 11 2.EUT was placed on a table, and the measure probe was placed at a measurement distance of 20cm from the EUT to the center of the probe. 3.Power on the measuring probe, the EUT was set at the maximum field strength emission state. 4.The EUT was put in different directions (Left, Right, Front, Rear, Top and Bottom) toward to the measure probe. The distance from the top of the EUT to the probe is 20CM, and the distance from other directions is 20cm.Measure the value of field strength. 5.Record the worst data of the different directions. Measuring Device And Test Equipment Used Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval  E&H-Field Probe(9kHz-30M Hz) Narda EHP-200A 180ZX11012 Oct. 28, 2023 1 Year Description of Support Device phone ： Manufacturer: Apple Inc. M/N: A2404 S/N: N/A phone ： Manufacturer: Xiaomi M/N: Xiaomi 9 S/N: N/A phone ： Manuf…

Text truncated - open the document above for the full version.

Specification SpecificationNo. 20240708003 EffectiveDate 2024/7/8 CustomerName MOPO ProductTypeWirelessChargingCoil DingzhiNo. TX-DZ43.505.3006-K6.5-L40opendouble-slotting CustomerNo. 【 RoHSCompliantParts 】 EditReviewPermission GuangdongDingzhielectronicTechnologyCo.,LTD Factoryaddress:1stFloor,1231YingbinAvenue,LongmenCounty,HuizhouCity,Guangdong,China Tel:13147097490 Thisacknowledgementmustbesignedandreturnedtothecustomerwithin30daysofreceipt.Ifoverdue,it willberegardedastheproductioninaccordancewiththestandardsofthisacknowledgement. Specification CustomerNameMOPOCustomerNo. DingzhiNo. TX-DZ43.505.3006-K6.5-L40opendouble-slotting SpecificationNo. 20240708003 IssueRevisionRecord VersionsEffectiveDate Reasonforchangingcontent Permission 012024/7/8 NewSpecificationRelease Specification CustomerName MOPO CustomerNo. 34200009 DingzhiNo. TX-DZ43.505.3006-K6.5-L40open double-slotting SpecificationNo. 20240708003 Version 01 ♦、OutlineSize (Unit:mm) A5.3±1.5 B20.5±1.5 C38.5±1.5 D 43.5±1.5 E43.0±1.5 F 40.0±2.0 G3.0±1.5 H1.7±0.4 I 0.60±0.2(Magnetic SheetThickness) (1)WireDiameter:0.08*（24*2P） varnishedwire (2)Numberofcoilswound:10TS (3)Whetherthestartingandending linescross:Yes (4)Wrapcoilwith4mmwidehigh temperaturetape (5)Thecoilandmagneticsheetmustbe stickandcentered (6)magneticsheetwith42roundsof whiteglue ♦ 、ElectricalCharacteristics ParameterSpecificationTestingTestinstrument L0 6.5±10%μH 100KHz/1V ■TH1816B ■TH1816B ■CH-502BC Q>30min 100KHz/1V DCR<95mΩ @25°C ♦、TemperatureGrade OperatingTemperature -40°C~125°C ♦、 MaterialsListing SerialNo.NameMaterialsSpecificationNote 1MagneticSheet43.5*5.3*0.6Topendouble-slottingPC40Mn-Zn 2Cooperwire0.08*(24*2P)VarnishedWire 3High-temperaturetape4MMEco-friendlyAdhesiveTape 4Glue42RoundWhiteGlueEco-friendlyAdhesivePaper 5Tin107HThousandIslandEnvironmentTin 6GlueYellowGlueEco-friendlyAdhesiveGlue EditReviewPermission

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Power Bank Model No.: MagS-1 FCC ID: 2BCJZMAGS-1 Report No.: E04A24070875F00101 Issue Date: August 05, 2024 Prepared for Shenzhen MOPO Electronic Technology Co., Ltd Room 212, Longhai Business Center, Longfeng 1 Road, Longhua Street, Longhua District, Shenzhen, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People ’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. Page 1 of 31 Report No.: E04A24070875F00101 TRF No.: 04-E001-1A Global Testing , Great Quality. VERIFICATION OF COMPLIANCE Applicant: Shenzhen MOPO Electronic Technology Co., Ltd Room 212, Longhai Business Center, Longfeng 1 Road, Longhua Street, Longhua District, Shenzhen, China Manufacturer: DONGGUAN MOPO NEW ENERGY TECH. CO., LTD. Room 701, Floor 7, Building L, Fengzhimei Industrial Zone, golden phoenix Avenue, Fenggang Town,Dongguan City Product Description: Power Bank Trade Mark: ULiXWH Model Number: MagS-1 We hereby certify that: The above equipment was tested by Guangdong Global Testing Technology Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.209(2022). Prepared By: Checked By: Win Alan He Project Engineer Laboratory Leader Approved By: Shawn Wen Laboratory Manager Page 2 of 31 Report No.: E04A24070875F00101 TRF No.: 04-E001-1A Global Testing , Great Quality. Modified Information Version Summary Revision Date Report No. Ver.1.0 Original Report / E04A24070875F00101 Page 3 of 31 Report No.: E04A24070875F00101 TRF No.: 04-E001-1A Global Testing , Great Quality. Table of Contents 1 GENERAL INFORMATION .................................................................................................................................. 4 1.1 PRODUCT DESCRIPTION .................................................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT(S) ................................................................................................................. 5 1.3 TEST METHODOLOGY ........................................................................................................................................ 5 1.4 SPECIAL ACCESSORIES ..................................................................................................................................... 5 1.5 EQUIPMENT MODIFICATIONS ............................................................................................................................. 5 1.6 TEST FACILITY .................................................................................................................................................... 5 2 SYSTEM TEST CONFIGURATION ..................................................................................................................... 6 2.1 EUT CONFIGURATION ....................................................................................................................................... 6 2.2 EUT EXERCISE .................................................................................................................................................. 6 2.3 TEST PROCEDURE ............................................................................................................................................. 6 2.4 CONFIGURATION OF TESTED SYSTEM ............................................................................................................... 7 3 SUMMARY OF TEST RESULTS ......................................................................................................................... 7 4 TEST SYSTEM UNCERTAINTY .......................................................................................................................... 8 5 CONDUCTED EMISSIONS TEST ....................................................................................................................... 9 5.1 MEASUREMENT PROCEDURE ............................................................................................................................ 9 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................................... 9 5.3 MEASUREMENT EQUIPMENT USED .................................................................................................................... 9 5.4 CONDUCTED EMISSION LIMIT ............................................................................................................................ 9 5.5 MEASUREMENT RESULT .................................................................................................................................. 10 5.6 CONDUCTED MEASUREMENT PHOTO .............................................................................................................. 13 6 RADIATED EMISSION TEST............................................................................................................................. 14 6.1 MEASUREMENT PROCEDURE .......................................................................................................................... 14 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................................. 14 6.3 MEASUREMENT EQUIPMENT USED ....................................................…

Text truncated - open the document above for the full version.

Conducted Measurement Photo Radiated Measurement Photos 9kHz-30MHz 30MHz-1GHz
