2BCL8BVBFPOEUPHID Gateway with 2.4GHz, 5Ghz WLAN and BLE

PLT-05543, Rev. A.4 1 June 2022 System components 1 3 2 Terminology 1 WiFi WiFi or Bluetooth Bluetooth 2 3 4 Overview BluFi-UP are gateways with Universal Power Options: • DC power supply 9v-24v • Power Over Ethernet connections. BluFi devices make it easy and cost efficient to cover an area with BLE to internet connectivity to take advantage of centralized management, realtime condition monitoring, or location services with a fraction of the effort required by alternative technologies. HID® BluFi-UP00 Install Guide 1 BluFi™ model BluFi-UP00 – Bluetooth to Eithernet/WiFi Gateway. 2 Bluzone – Cloud Fleet Management and Condition Monitoring dashboard. 3 BEEKs™ Bluetooth Low Energy Beacons. 1 Bluzone – Secure cloud-based SaaS to centrally manage BEEKs via BluFi gateways. Additionally, monitor, store and analyze performance data collected from deployed BEEKs fleet. 2 BluFi Gateway – Receives data from BEEKs over Bluetooth and sends to Bluzone Cloud. 3 BEEKs CM – Sends vibration and temperature data to BluFi. 4 Asset – Equipment to be monitored or tracked Prerequisites • Set up Bluzone account • Download Bluzone mobile app • Additional installation guides are available and can be found at: https://hid.gl/HID-BluFi-installation Best practices • Maximum of 15 – 20 beacons per BluFi for best results • Maximum 20 – 30 meters from beacon to BluFi for best results (distance will decrease for increased interference/ blockages). For RTLS applications, the BEEKS Duress Badge signal must be received by at least three BluFis in the vicinity. Network troubleshooting • 2.4 - 5 GHz WiFi & Ethernet • HTTPS port 443 must be open • DHCP required • 1 Mbps upload speed required • Captive WiFi portals not compatible • Compatible certificate formats: .pem, .der • Some networks may require adding the BluFi MAC address to an allow list Powering Trusted Identities HID® BluFi-UP00 Install Guide PLT-00000, Rev. A 2 Jan. 2023 Error Message Troubleshooting Steps Bluzone could not establish a connection with Gateway via WIFI. 1. Verify if your Wi-Fi supports 2.4 GHz & 5GHz frequency bands. 2. Set your Wi-Fi router to preferred frequency band. 3. Check your Wi-Fi SSID and Password settings. Check your Wi-Fi Name/ Network and Network Password/Security Key to verify they are correct. Also check if your Wi-Fi supports and/or is set to the 2.4 GHz 5GHz frequency bands. The Gateway was unable to connect to the selected Wi-Fi network. Power cycle the Gateway: 1. Unplug the Gateway from the power outlet, wait for 10 seconds. 2. Plug the Gateway into the power outlet and continue with the setup process. Network considerations • BluFi devices are deployed within enterprise grade wireless infrastructures with strict network compliance guidelines. Therefore, these devices may be presented with the following obstacles to connectivity and successful provisioning: • SSID and Password Accuracy – both the SSID and password that are input into the BluFi template must match the network credentials exactly (case-sensitivity included) • Wi-Fi Spectrum Compatibility – BluFi Requires 2.4 GHz & 5 GHz • MAC Address White Listing – Wireless network may require BluFi’s WiFi MAC Address be explicitly added to approved devices table. • Firewall – BluFi’s require open internet access to bluzone. io via port 443 to successfully connect and provision device. • HTTP Proxy – A HTTP proxy may not be used to route/ monitor all outbound internet traffic. Customer networking team will need to whitelist BluFi devices to BYPASS proxy provided direct access to bluzone.io:443 • Certificate Authentication – If a certificate is required, it must be properly formatted and signed. Compatible formats are .pem and .der • No DHCP - BluFi Gateway will fail to provision when host network requires static IP address and DHCP services are not enabled. Resolution, setup segmented VLAN with DHCP. • Slow DHCP – BluFi Gateway may fail to provision using a mobile device when host network has slow issuance of IP addresses via DHCP. If time to acquire IP address lease exceeds 30-60 seconds, mobile application will exceed timeout and return failure response. However, BluFi may succeed if left plugged in and successfully gets assigned IP address. • Slow or Unstable WiFi Network – BluFi may have connectivity issues on overloaded or poor signal WiFi infrastructures. BluFi gateways require a minimum of 2 Mbps “sustained” upload speed to successfully transmit beacon telemetry. • BluFi Excessive Reconnects – BluFi gateway installed in location that is too far from WiFi access point, within area that contains a RF barrier (metal), and/ or within a WiFi zone with too many overlapping access points. • Network Throttling – BluFi Gateway has been installed on cellular based internet access point with assigned upload issues when data plans exceeds subscription levels. • Captive Portal – Host network requires the use of web page based acceptance of terms and conditions to approve access to internet. (Used in Hotels). BluFi gateways are NOT compatible with captive portals. 1. Warning statements and network considerations To prevent possible electrical shock, fire, or personal injury and for safe operation of the product: • Read all safety information before you use the product. • Use the product only as specified, or the protection supplied by the product can be compromised. • Do not use the product if it operates incorrectly. • Carefully read all instructions. • Use this product indoors only. • No user-serviceable parts inside, do not open. • Ultimate disposal of this product should be handled according to national laws and regulations. speed and/ or connection limits. Customer may have Applicable Software • iBeacon (Apple) • Eddystone (Google) • sBeacon (Bluzone) • Fully open and configurable to 3 rd party Beacon protocol Data output to cloud Security • 0.1 to 1 Mbit • RSA Private Public, Bluzone (key vault managed), Unique internal key per individual beacon Warnings RSA Private Public, Bluzon…

Text truncated - open the document above for the full version.

Date: 8/25/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: 2BCL8BVBFPOEUP Applicant (Grantee) FRN: 0022550925 To whom it may concern: Applicant (grantee) HID Global Corporation (“the applicant”) as required by section §2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Matthieu Behroozi HID Global Corporation FCC FRN: 0022550925 600 Corporate Drive , Suite 410 Fort Lauderdale FL33334 USA [email protected] Sincerely yours, Commented [BM1]: UL TCB will be requesting a letter that is less than 12 months old. For letters more than 12 months old we will contact the agent directly before completing the review. Commented [BM2]: Delete for the above referenced FCC ID if the letter covers all products from the grantee

Date: 8/25/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) FCC ID: 2BCL8BVBFPOEUP Applicant (Grantee) FRN: 0022550925 Dear Sir or Madam, Applicant (grantee) HID Global Corporation (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the applicant [is / is not] identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please contact us. Sincerely, Matthieu Behroozi HID Global Corporation 600 Corporate Drive , Suite 410 Fort Lauderdale FL33334 USA [email protected] Sincerely yours, Commented [BM1]: UL TCB will be requesting a letter that is less than 12 months old. For letters more than 12 months old we will contact the agent directly before completing the review.

Date: 8/24/2023 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2BCL8BVBFPOEUP Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, HID Global Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials Block Diagram Operating Description The Applicate believes that publishing the above listed detail would provide their competitors with significant advantage substantially harming both the competitive nature of their product and their financial investment it its creation. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely Matthieu Behroozi HID Global Corporation 600 Corporate Drive, Suite 410 Fort Lauderdale, FL33334 Commented [BM1]: UL TCB will be requesting a letter that is less than 12 months old. For letters more than 12 months old we will contact the agent directly before completing the review.

Date: 12/9/2023 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2BCL8BVBFPOEUP To whom it may concern, Will Damerell, email address [email protected] is acting on behalf HID Global Corporation for the certification of the BluFi product and should be sent all correspondence regarding the FCC certification process. Yours sincerely Matthieu Behroozi HID Global Corporation 600 Corporate Drive, Suite 410 Fort Lauderdale, FL33334 Commented [BM1]: UL TCB will be requesting a letter that is less than 12 months old. For letters more than 12 months old we will contact the agent directly before completing the review.

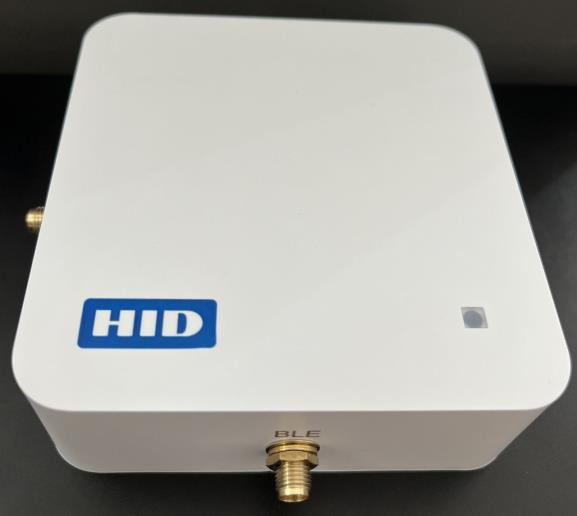

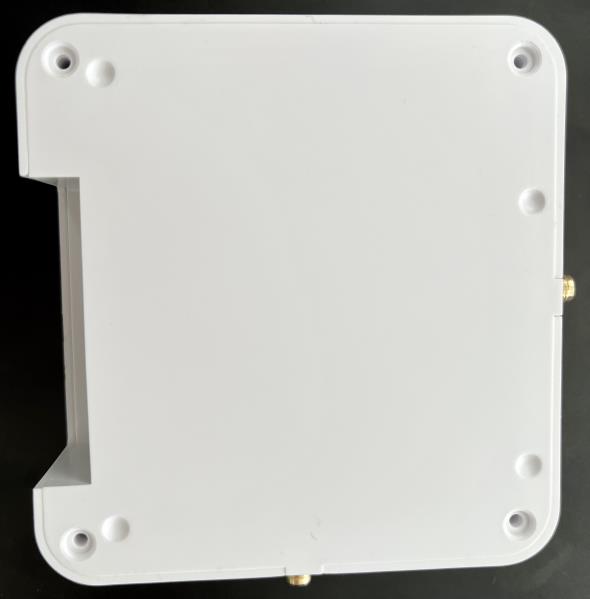

BluFi™ POE 5G top view BluFi™ POE 5G bottom view

Label detail Laser etched on to product

BluFi™ POE 5G PCB top view BluFi™ POE 5G PCB bottom view

TÜV SÜD is a trading name of TUV SUD Ltd Registered in Scotland at East Kilbride, Glasgow G75 0QF, United Kingdom Registered number: SC215164 TUV SUD Ltd is a TÜV SÜD Group Company Phone: +44 (0) 1489 558100 Fax: +44 (0) 1489 558101 www.tuvsud.com/en TÜV SÜD Octagon House Concorde Way Fareham Hampshire PO15 5RL United Kingdom TÜV SÜD SIGNATURE NAME JOB TITLE RESPONSIBLE FOR ISSUE DATE Matthew Russell Chief Engineer Authorised Signatory 06 September 2023 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD document control rules. FCC Accreditation 90987 Octagon House, Fareham Test Laboratory EXECUTIVE SUMMARY The wireless devices described within this report are compliant with the exemption criteria related to human exposure to electromagnetic fields laid out in FCC CFR Title 47 Part 1.1307. RF Exposure Exemption Report HID Global Corporation (US) Model: BluFI-UP00 In accordance with FCC CFR 47 Pt 1.1307 Prepared for: HID Global Corporation (US) 600 Corporate Drive Suite 300 Fort Lauderdale FL 33334 UNITED STATES COMMERCIAL-IN-CONFIDENCE FCC ID: 2BCL8BVBFPOEUP Document 75957186-12 Issue: 02 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD. No part of this document may be reproduced without the prior written approval of TÜV SÜD. © 2023 TÜV SÜD. This report relates only to the actual item/items tested. ACCREDITATION Our UKAS Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our UKAS Accreditation. Results of tests not covered by our UKAS Accreditation Schedule are marked NUA (Not UKAS Accredited). Document 75957186-12 Issue: 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 9 Contents 1 Report Summary .........................................................................................................................2 1.1 Report Modification Record ...........................................................................................................2 1.2 Introduction ....................................................................................................................................2 1.3 Brief Summary of Results .............................................................................................................3 1.4 Product Information .......................................................................................................................4 2 Assessment Details ....................................................................................................................6 2.1 Single RF Source options for determination of exemption............................................................6 2.2 Multiple RF Sources options for determination of exemption. ......................................................7 2.3 Individual Antenna Port Exposure Results ....................................................................................8 2.4 Combined Antenna Port RF Exposure Results FCC 1.1307(b)(3)(ii)(B) ......................................9 Document 75957186-12 Issue: 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 9 1 Report Summary 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 1 First Issue 26-August-2023 2 To correct typographical error to units in table 6 and missing value in table 8 06-September-2023 Table 1 1.2 Introduction Applicant HID Global Corporation (US) Manufacturer HID Global Corporation (US) Model Number(s) BluFI-UP00 Hardware Version(s) 1.4 Software Version(s) WIFI 2015 BLE 451 Specification/Issue/Date FCC 47 CFR Part 1.1307: 2021 Order Number Date 1180900792 30-November-2022 Related Document(s) • KDB 447498 D04 v01 • FCC 47 CFR Part 2.1091: 2021 Document 75957186-12 Issue: 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 of 9 1.3 Brief Summary of Results The wireless devices described within this report are compliant with the exemption criteria related to human exposure to electromagnetic fields laid out in FCC CFR Title 47 Part 1.1307. The calculations shown in this report were made in accordance with the procedures specified in the applied test specification(s). Document 75957186-12 Issue: 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 4 of 9 1.4 Product Information 1.4.1 Technical Description IP television and on-demand video 1.4.2 Transmitter Description The following radio access technologies and frequency bands are supported by the equipment under test. Radio Access Technology Frequency Band (MHz) Minimum Frequency (MHz) Output Power (dBm) Duty Cycle (%) Bluetooth Low Energy 2400 - 2483.5 2402.0 5.0 100.0 2.4 GHz WLAN 2400 - 2483.5 2412.0 12.0 100.0 5 GHz WLAN 5180 - 5825 5180.0 12.0 100.0 Table 2 – Transmitter Description Note: Transmitter power includes upper bounds of uncertainty therefore maximum values are used. 1.4.3 Antenna Description The following antennas are supported by the equipment under test. Radio Access Technology Antenna Model Gain (dBi) Antenna length (cm) Minimum Separation Distance (cm) Bluetooth Low Energy, Embedded (PIFA) 0.0 2.1 20 Bluetooth Low Energy Embedded Circular patch antenna 10.0 11.1 20 Bluetooth Low Energy TE 2344654-1 2.0 3.0 20 2.4 GHz WLAN Embedded (PIFA) 0.0 2.2 20 5 GHz WLAN Embedded (PIFA) 0.0 1.3 20 Table 3 – Antenna Description In the case of more than one type of antenna being supported by the equipment, the calculation is based on the maximum of the antenna gains. If other antennas can be used that have greater gains, the minimum separation distances will need to be recalculated. Note: Antenna gain includes upper bounds of uncertainty therefore maximum values are used. Document 75957186-12 Issue: 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Pa…

Text truncated - open the document above for the full version.

TÜV SÜD is a trading name of TUV SUD Ltd Registered in Scotland at East Kilbride, Glasgow G75 0QF, United Kingdom Registered number: SC215164 TUV SUD Ltd is a TÜV SÜD Group Company Phone: +44 (0) 1489 558100 Fax: +44 (0) 1489 558101 www.tuvsud.com/en TÜV SÜD Snitterfield Road, Bearley, Stratford upon Avon Warwickshire CV37 0EX United Kingdom TÜV SÜD SIGNATURE NAME JOB TITLE RESPONSIBLE FOR ISSUE DATE Matthew Russell Chief Engineer Authorised Signatory 04 September 2023 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD document control rules. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC 47 CFR Part 15B and ICES-003. The sample tested was found to comply with the requirements defined in the applied rules. RESPONSIBLE FOR NAME DATE SIGNATURE Testing Ravi Kishore Darshanam 04 September 2023 FCC Accreditation 330364 Bearley Test Laboratory Industry Canada Accreditation 2932E Bearley Test Laboratory EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with FCC 47 CFR Part 15B: 2021 and ICES-003: Issue 7: 2020 for the tests detailed in section 1.3. FCC and ISED Test Report HID Global Corporation (US) BluFi™ POE 5G with Universal Power, Model: BluFI-UP00 In accordance with FCC 47 CFR Part 15B and ICES-003 Prepared for: HID Global Corporation (US) 600 Corporate Drive Suite 300 Fort Lauderdale FL 33334 UNITED STATES FCC ID: 2BCL8BVBFPOEUP IC: 24824-BVBFPOEUP COMMERCIAL-IN-CONFIDENCE Document 75957186-02 Issue 02 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD. No part of this document may be reproduced without the prior written approval of TÜV SÜD. © 2023 TÜV SÜD. This report relates only to the actual item/items tested. ACCREDITATION Our UKAS Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our UKAS Accreditation. Results of tests not covered by our UKAS Accreditation Schedule are marked NUA (Not UKAS Accredited). Document 75957186-02 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 49 Contents 1 Report Summary ......................................................................................................................... 2 1.1 Report Modification Record ........................................................................................................... 2 1.2 Introduction .................................................................................................................................... 2 1.3 Brief Summary of Results ............................................................................................................. 3 1.4 Declaration of Build Status ............................................................................................................ 4 1.5 Product Information ....................................................................................................................... 5 1.6 Deviations from the Standard ........................................................................................................ 7 1.7 EUT Modification Record .............................................................................................................. 7 1.8 Test Location ................................................................................................................................. 7 2 Test Details .................................................................................................................................. 8 2.1 Radiated Disturbance .................................................................................................................... 8 3 Test Equipment Information .................................................................................................... 47 3.1 General Test Equipment Used .................................................................................................... 47 3.2 Customer Support Equipment ..................................................................................................... 47 4 Incident Reports ........................................................................................................................ 48 5 Measurement Uncertainty ........................................................................................................ 49 Document 75957186-02 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 49 1 Report Summary 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 1 First Issue 04 July 2023 2 Second Issue - Update FCC ID 04 September 2023 Table 1 1.2 Introduction Applicant HID Global Corporation (US) Manufacturer HID Global Corporation (US) Model Number(s) BluFi-UP00 Serial Number(s) 7110257832548623004 Hardware Version(s) 1.4 Software Version(s) WIFI 2015 BLE 451 Number of Samples Tested 1 Test Specification/Issue/Date FCC 47 CFR Part 15B: 2021 ICES-003: Issue 7: 2020 Order Number Date 1180900792 30-November-2022 Date of Receipt of EUT 24-November-2022 Start of Test 02-December-2022 Finish of Test 07-December-2022 Name of Engineer(s) Ravi Kishore Darshanam Related Document(s) ANSI C63.4: 2014 Document 75957186-02 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 of 49 1.3 Brief Summary of Results A brief summary of the tests carried out in accordance with FCC 47 CFR Part 15B and ICES-003 is shown below. Section Specification Clause Test Description Modification State Result Comments/Base Standard FCC ICES Configuration and Mode: DC Powered - BLE Communication Link + Ethe…

Text truncated - open the document above for the full version.

FCC ID: 2BCL8BVBFPOEUP IC: 242824-BVBFPOEUP HID Global Corporation BluFi-UP00 ©2023 Not to be reproduced, except in its entirety, Page 1 of 3 without the Permission of TÜV SÜD Reference: 75957186 PHOTOGRAPHS OF TEST SET UP Figure 1 – Radiated Disturbance - 30 MHz to 1 GHz Figure 2– Radiated Disturbance - 1 GHz to 8 GHz Figure 3 – Radiated Disturbance - 8 GHz to 13 GHz FCC ID: 2BCL8BVBFPOEUP IC: 242824-BVBFPOEUP HID Global Corporation BluFi-UP00 ©2023 Not to be reproduced, except in its entirety, Page 2 of 3 without the Permission of TÜV SÜD Reference: 75957186 Figure 4 – Radiated Disturbance - 18 GHz to 30 GHz FCC ID: 2BCL8BVBFPOEUP IC: 242824-BVBFPOEUP HID Global Corporation BluFi-UP00 ©2023 Not to be reproduced, except in its entirety, Page 3 of 3 without the Permission of TÜV SÜD Reference: 75957186 Figure 5 – Conducted Emissions Lab Testing
