2BCLD-XCUBE4Power Strip

Lumo-X xCube4-NA User Manual Before using the product, please read this carefully. Product Introduction Power Outlet Overload Protection Switch /Indicator Light Plug Indicator Light Power Socket Soil Moisture Port Flood Sensor Port Warning Indicator Light Network Configuration Button /Indicator Light Temp(Ext) Port VPD Sensor Port CO2 Sensor Port xDot Port Explanation of Network Indicator Light Status: l Fast blinking blue light: Wi-Fi EZ mode, waiting for network configuration. l Slow blinking blue light: Hotspot mode, waiting for network configuration. l Steady blue light: Network connected. l Blue light off: Network disconnected. Explanation of Network Configuration Button: l When the network indicator light is blinking, long-pressing for 5 seconds will switch the network configuration mode. l When the network indicator light is steady on or off, long-pressing for 5 seconds will reset the network configuration, and you will need to perform the network setup process again. Product Introduction Important Disclaimer: This product is a precision electronic device. Please do not use it in environments where water exposure is possible. If the product is used in a way that causes malfunction, any resulting issues with product usage, or safety concerns, our company will not be held responsible. Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However. there is no guarantee that interference will not occur in a particular installation. Warning If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help NOTE: This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter RF Exposure Statement To maintain compliance with FCC's RF Exposure guidelines, this equipment should be installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s) must not be co- located or operation in conjunction with any other antenna nr transmitter. Product Name Lumo-X xCube4 Product Model xCube4-NA Specificatons 1800W，15A MAX，120V 2200W，10A MAX，220V Port Output 1200W，10A MAX，120V 2200W，10A MAX，220V Operating Temp 0°C to 40°C Supported Systems Android5.0 or iOS13.0 or higher Wireless Connection Wi-Fi IEEE 802.11 b/g/n 2.4GHz Manufacturer Canbridge Tech Ltd. Service Email [email protected] Service Website www.Lumo-X.com Basic Parameters Quick Setup This product requires an internet connection and can be controlled through the "Lumo-X" app, which supports Android and iOS systems. It can be paired with various Lumo-X environmental sensors and, in combination with backend automatic/timed strategies, can control peripherals such as fans, heaters, and other devices. 1. Power On Connect the power cord to the main unit's power outlet. Plug the power cord into the power source, then turn on the overload protection switch. When the overload protection switch indicator light is illuminated, that the main unit is powered on. 2. Download the App Method 1: Search for "Lumo-X" on Google Play or the App Store and install the App. Method 2: Scan the QR code to download and install the Lumo-X App. Quick Setup 3. Register/Login Account To register, use your email to create an account. After successfully registering, you can log in using either your username or email address. 4. Create a Grow Room Once you've successfully logged in, navigate to the App's main page. Click on the "Weather" tab, and press the "ADD A ROOM" button. Input the room's name and information, then click "NEXT" to create a Grow Room. shaoden 5. Connect xCube On the App's main page, click on the "Weather" tab. At the top of the page, click "Add a Socket" to initiate the network configuration process. Ensure that your phone is connected to a 2.4GHz Wi-Fi network and that the xCube's network configuration indicator light is blinking blue. Follow the app's instructions to proceed. Once successfully connected, the xCube's network configuration indicator light will remain steady blue. Quick Setup Quick Setup 6. Connect Lumo-X Environmental Sensors Refer to the product introduction to connect the appropriate Lumo-X environmental sensor. In the app, you can view real-time sensor data to monitor the environment. For more information and other great products, please visit the following link or scan the QR code. Website: https:/ /www.Lumo-X.com xCommunity: https://community.Lumo-X.com Instagram: https://www.instagram.com/lumoxgrow More Information Website xCommunity Instagram

Canbridge Tech Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Canbridge Tech Ltd. Address: 355 Valleymede Dr.,Richmond Hill, Ontario, L4B 3E8, Canada Product Name: Power Strip FCCID: 2BCLD-XCUBE4 Model(s): xCube4 2.911(d)(5)(i) EquipmentType We, [Canbridge Tech Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Steve Lu Date: Aug. 25, 2023 Title: CEO Company name: Canbridge Tech Ltd. Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Canbridge Tech Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Canbridge Tech Ltd. Address: 355 Valleymede Dr.,Richmond Hill, Ontario, L4B 3E8, Canada Product Name: Power Strip FCCID: 2BCLD-XCUBE4 Model(s): xCube4 2.911(d)(5)(ii) Applicant filing We, [Canbridge Tech Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Steve Lu Date: Aug. 25, 2023 Title: CEO Company name: Canbridge Tech Ltd. Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

CanbridgeTechLtd. 2.911(d)(7)USAAgentv1.4 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:CanbridgeTechLtd. Address:355ValleymedeDr.,RichmondHill,Ontario,L4B3E8,Canada ProductName:PowerStrip FCCID:2BCLD-XCUBE4 Model(s):xCube4 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[CanbridgeTechLtd.](“theapplicant”)designate [USAMEIHUATRADINGINC] NOTE1 forthepurposeofacceptingserviceof processonbehalfoftheapplicant. Applicantconsent:Weacknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeour acceptanceofourobligationtomaintainanagentforserviceofprocessintheUnited Statesfornolessthanoneyearaftereitherwethegranteehavepermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S., orattheconclusionofanyCommission-relatedadministrativeorjudicialproceeding involvingtheequipment,whicheverislater. Agentobligation:Weacknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,orattheconclusionofanyCommission-relatedadministrativeor judicialproceedinginvolvingtheequipment,whicheverislater.

Canbridge Tech Ltd. Agent Authorization Company: Canbridge Tech Ltd. Address: 355 Valleymede Dr.,Richmond Hill, Ontario, L4B 3E8, Canada Product Name: Power Strip Model Number(s): xCube4 Product Description: Power Strip We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Aug. 25, 2023 Name: Steve Lu Title: CEO Company: Canbridge Tech Ltd.

Canbridge Tech Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Aug. 25, 2023 Subject; Request for Confidentiality FCC ID: 2BCLD-XCUBE4 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Steve Lu Title: CEO

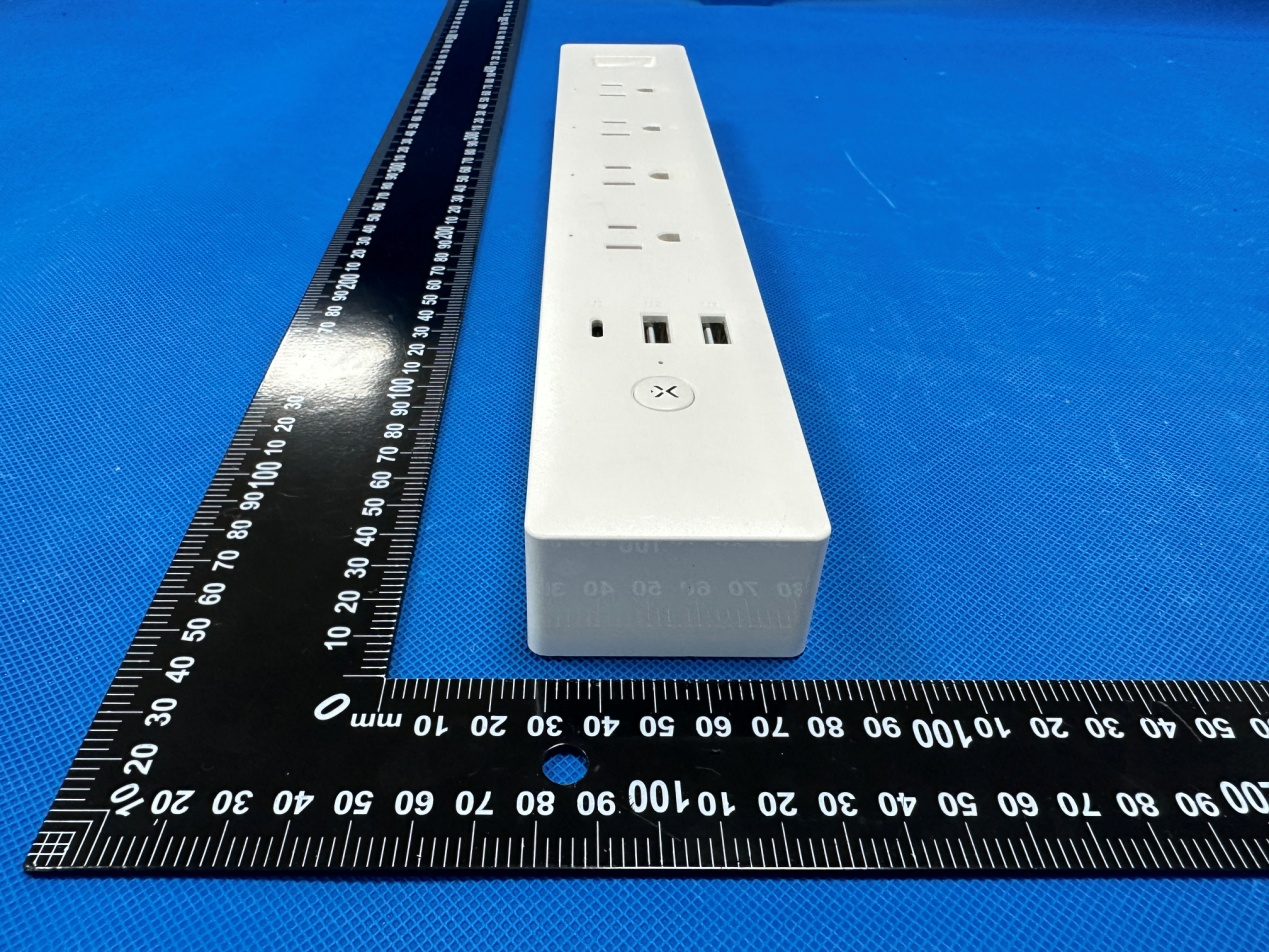

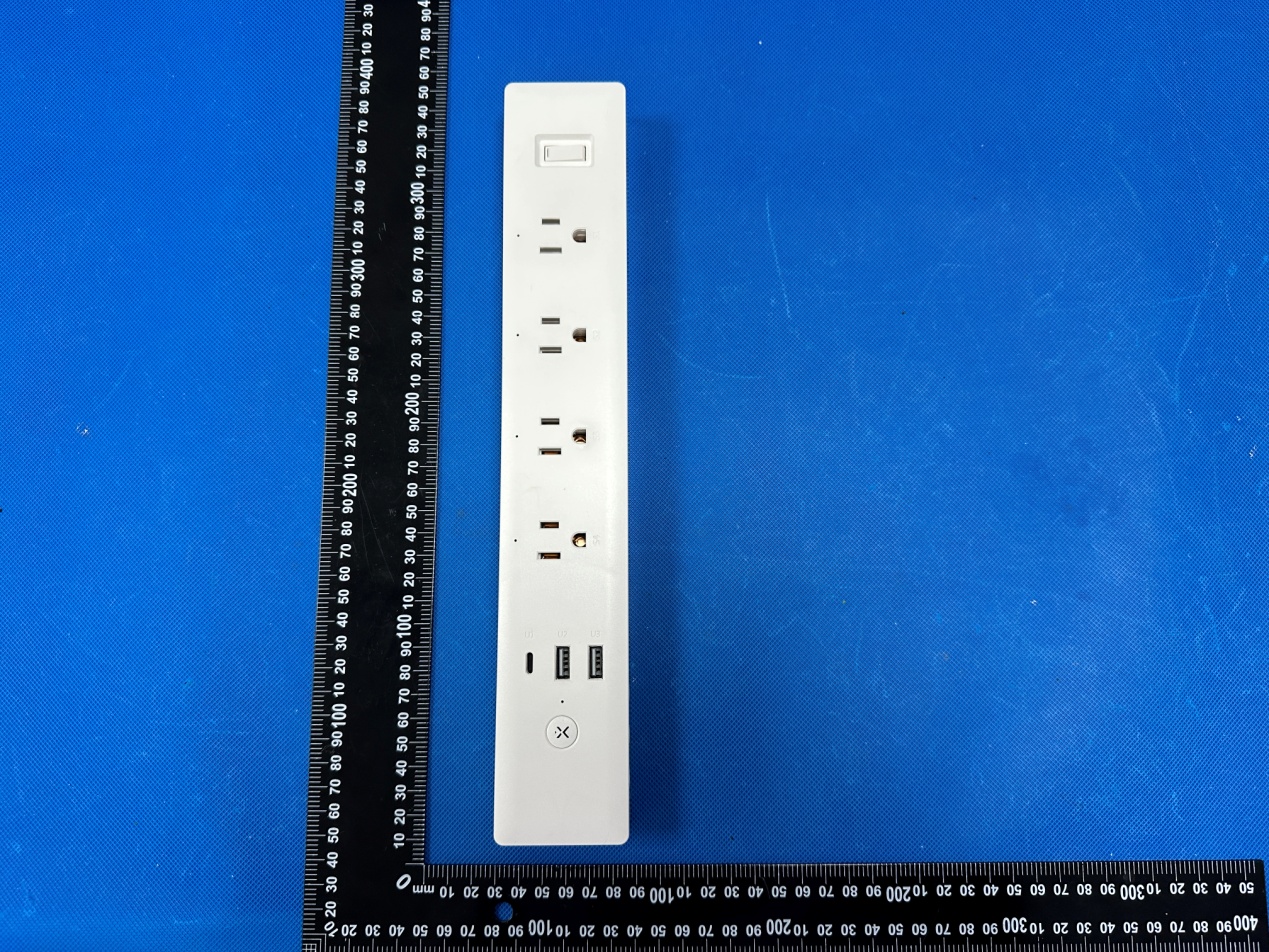

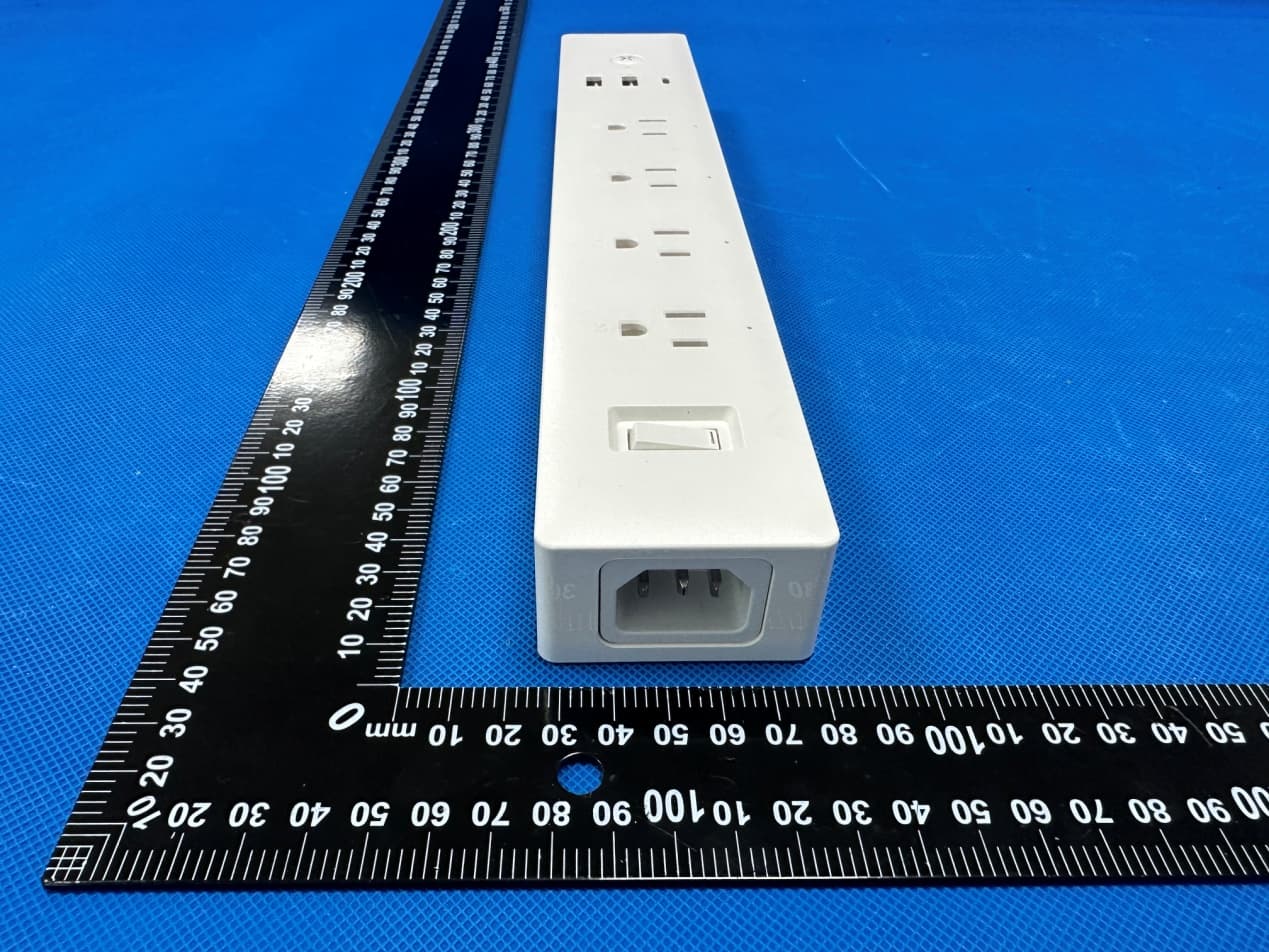

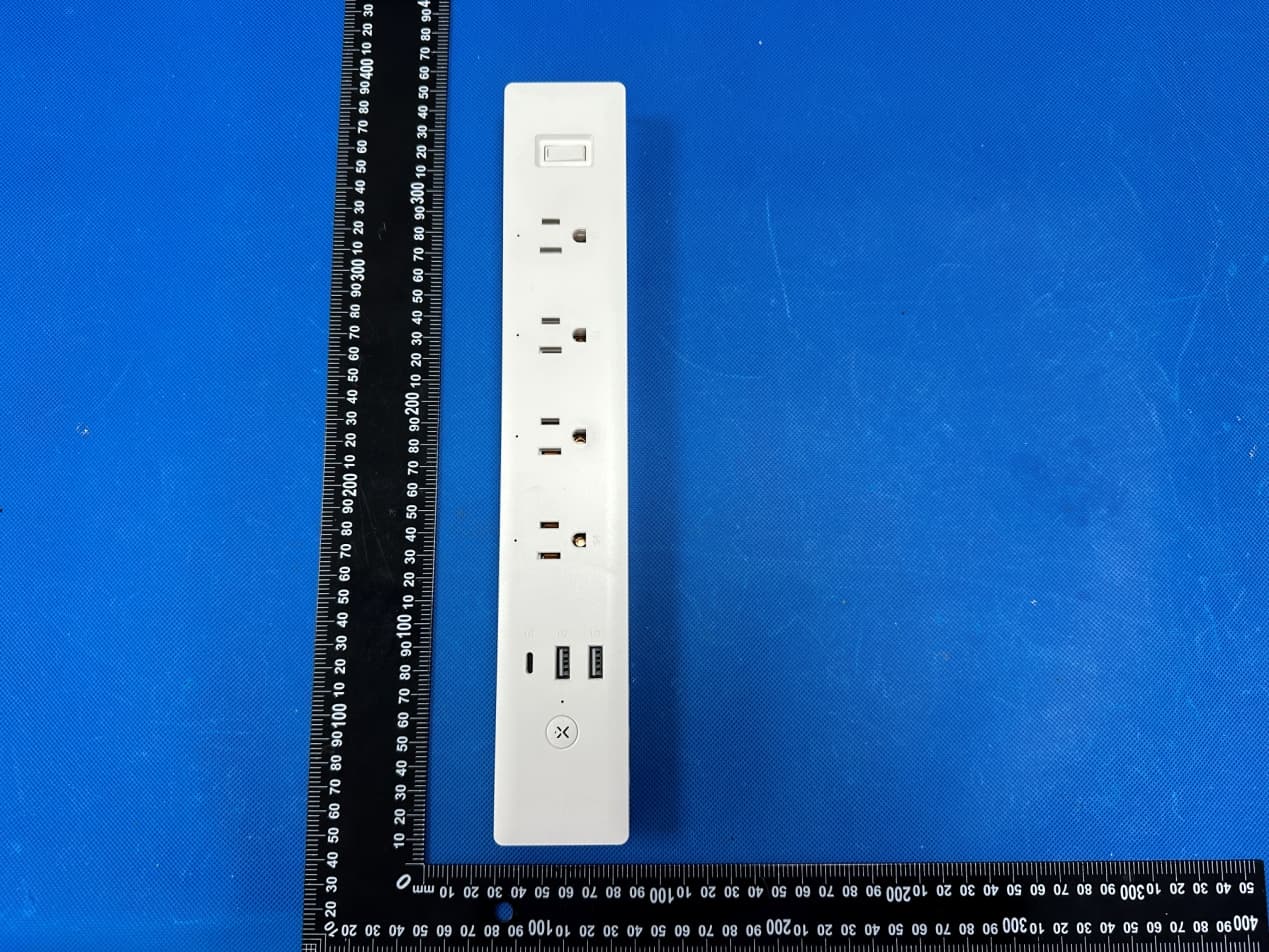

Annex A External Photos Report No.: HK2307133015-E Page 1 of 3 Report No.: HK2307133015-E Page 2 of 3 Report No.: HK2307133015-E Page 3 of 3

FCC ID LABEL: Ca. 10mm x 20mm label location FCC ID: 2BCLD‐XCUBE4

Annex B Internal Photo Report No.: HK2307133015-E Page 1 of 3 Report No.: HK2307133015-E Page 2 of 3 Report No.: HK2307133015-E Page 3 of 3 Antenna

MPE ESTIMATION FCC ID: 2BCLD-XCUBE4 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) WIFI 20.88 20±1(21) 125.89 2.5 1.78 0.0446 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2307133015-E. When the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.0446mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

1. Antenna Information Manufacturer Hangzhou TUYA Model WR3 Type PCB Gain 2.Radiation Pattern 2.5dBi 0 45 90 135 180 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 0 45 90 135 180 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 0 45135 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 0 45135 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 3.Gain table of Antenna 0 45 90 135 180 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 0 45 90 135 180 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 0 45 90 135 180 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 0 45 90 135 180 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 0 45135 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 0 45135 225 270 315 -5 -5 -15 -15 -25 -25 -35 -45-35 1.77 1.56 1.33 1.17 1.34 2.50 1.69 1.42 1.03 1.29 1.14 6.09

Page 1 of 72 Report No.: HK2307133015-E FCC Test Report Test report On Behalf of Canbridge Tech Ltd. For Power Strip Model No.: xCube4 FCC ID: 2BCLD-XCUBE4 Prepared For : Canbridge Tech Ltd. 355 Valleymede Dr.,Richmond Hill, Ontario, L4B 3E8, Canada Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jul. 13, 2023 ~ Aug. 18, 2023 Date of Report: Aug. 18, 2023 Report Number: HK2307133015-E Applican Address . Manufac t Address . Product d Trade Ma Product n Model an d Standard This publi the Shen source o f and will reproduc e Date of Te Date (s) o Date of Is Te s t R e su t’s name ... .................. ture's Nam .................. description rk: ame ............ d/or type re ds ............... ication may zhen HUA fthe materi not assu m ed material est ............. of performan ssue ............ ult ................ Te s Te c Aut ............... : ............... : me ............. : ............... : n ................. : eference . : ............... : y be reprod K Testing T al. Shenzhe me liability due to its p .................. nce of tests .................. .................. sting Engine chnical Man thorized Sig Test Re Canbridge 355 Valley Shenzhen 206, Build Xiangjiaot a Shenzhen Lumo-X Power Str i xCube4 FCC Rule s ANSI C63. uced in wh Technology en HUAK T for damag placement a ............. : ............. : ............. : ............. : eer : nager : gnatory : Page 2 of sult Cert e Tech Ltd. ymede Dr.,R WWCT Ltd ing 1, ZaiM ang Commu , China ip s and Regu .10: 2013 ole or in p a y Co., Ltd. Testing Tech ges resultin and context. Jul. 13, 202 Aug. 18, 20 Pass f72 tification Richmond H d. ao Industria unity, Bantia lations Part art for non-c is acknow hnology Co ng from the 23 ~ Aug. 18 23 (Gary Qi a (Eden H u (Jason Zho Report n Hill, Ontario, al Park, No. an street, L 15 Subpar t commercia wledged as o., Ltd. take e reader's , 2023 an) u) ou) No.: HK230 L4B 3E8, C . 12, Baoji R onggang D t C Section l purposes copyright o es no respo interpreta t 07133015-E Canada Road, istrict, 15.247 as long as owner and nsibility for tion of the Page 3 of 72 Report No.: HK2307133015-E Table of Contents 1. Test Result Summary ............................................................................... 5 1.1. Test Procedures and Results ........................................................................................................... 5 1.2. Information of the Test Laboratory ................................................................................................. 5 1.3. Measurement Uncertainty ................................................................................................................ 6 2. EUT Description ........................................................................................ 7 2.1. General Description of EUT ............................................................................................................. 7 2.2. Carrier Frequency of Channels ........................................................................................................ 8 2.3. Operation of EUT During Testing .................................................................................................... 8 2.4. Description of Test Setup ................................................................................................................. 9 2.5. Description of Support Units ......................................................................................................... 10 3. Genera Information ................................................................................. 11 3.1. Test Environment and Mode .......................................................................................................... 11 3.2. Description of Support Units ......................................................................................................... 13 4. Test Results and Measurement Data .................................................... 14 4.1. Conducted Emission ....................................................................................................................... 14 4.2. Test Result ....................................................................................................................................... 16 4.3. Maximum Conducted Output Power ............................................................................................. 18 4.4. Emission Bandwidth ....................................................................................................................... 20 4.5. Power Spectral Density .................................................................................................................. 26 4.6. Conducted Band Edge and Spurious Emission Measurement .................................................. 33 4.7. Radiated Spurious Emission Measurement ................................................................................. 43 4.8. Antenna Requirement ..................................................................................................................... 69 5. Photograph of Test ................................................................................. 70 6. Photos of the EUT ................................................................................... 72 Page 4 of 72 Report No.: HK2307133015-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Aug. 18, 2023 Jason Zhou Page 5 of 72 Report No.: HK2307133015-E 1. Test Result Summary 1.1. Test Procedures and Results Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247(b)(4) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247(b)(3) PASS 6dB Emission Bandwidth §15.247(a)(2) PASS Power Spectral Density §15.247(e) PASS Band Edge §15…

Text truncated - open the document above for the full version.

Model: xCube4 Radiated Emissions Conducted Emission
