2BCMW-ST-MULC-BLKSurge Protective Device

Item Number: ST-MULC-BLK, ST-MULC8-BLK Rating: 13A / 125V / 1625W Outlets: 2 Joule Rating: 450J USB Ports: 3 USB-C: PD 20W max USB-A1: QC 18W max USB-A2: QC 18W max 3USB use together: 3.1A Max Wireless charging output: 10W(MAX) Product Size: 155*76.5*130.2mm Power cord diameter (mm²): 16# Cord Length: 1.5m/2.5m PVC cord Non-slip pads Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Ideal for general electronics, computer, audio/video, charging smartphones, eReaders, mobile devices ... ST-MULC-BLK, ST-MULC8-BLK Instructions 1. Set the power switch off. Plug the surge protector into a standard grounding wall receptacle by fully inserting the plug and ensure that there are no exposed conductors. 2. Make sure electronic equipment is turned off before plugging into the surge protector outlets. Do not use extension cords to connect equipment to the surge protector. 3. Set the power switch to the “ON” position. The surge protector will now be providing power and surge protection. 4. Connected equipment can now be turned on. USB Charging 3 USB port output allows you to charge up to 3 smartphones at the same time Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

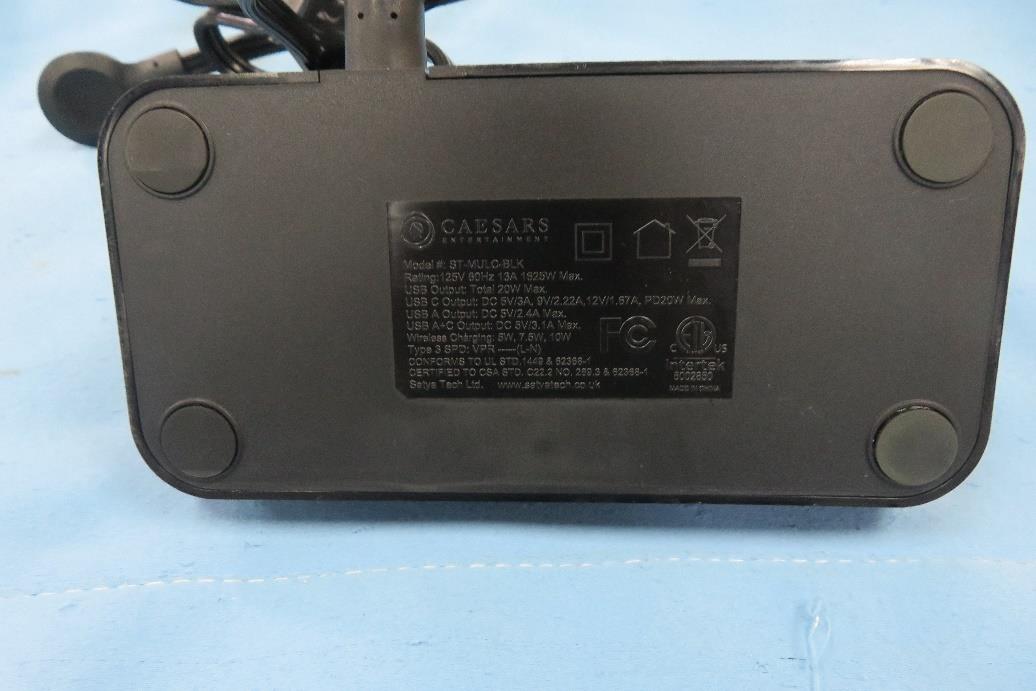

USB T O T AL 20W Max.PD20W CA UTION: Limited f or c harging ITE equipment only! Model #: ST-MULC-BLK Rating:125V 60Hz 13A 1625W Max. USB Output: Total 20W Max. USB C Output: DC 5V/3A, 9V/2.22A,12V/1.67A, PD20W Max. Type 3 SPD: VPR -----(L-N) Wireless Charging: 5W, 7.5W, 10W USB A Output: DC 5V/3A, 9V/2A,12V/1.5A QC18W Max. USB A+C Output: DC 5V/3.1A Max. CONFORMS TO UL STD.1449 & 62368-1 CERTIFIED TO CSA STD. C22.2 NO. 269.3 & 62368-1 ATTENTION: Charge des appareils ITE uniquement. Pour ne pas compromettre la protection contre le risque de choc électrique — Utiliser à l'intérieur seulement Ne pas installer cet appareil s'il n'y a pas au moins 30 pieds (10 mètres) ou plus de fil entre laprise électrique et le panneau de service électrique. Cet appareil dispose d'une protection interne qui déconnectera le composant de protection contre les surtensions mais maintiendra l'alimentation de la charge - désormais non protégée. Si cette situation n'est pas souhaitable pour l'application, suivez les instructions du fabricant pour remplacer l'appareil. CAUTION: Limited for charging ITE equipment only. To Reduce the Risk of Electric Shock — Use only indoors Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the electrical outlet and the electrical service panel. This device features an internal protection that will disconnect the surge protective component but will maintain power to the load – now unprotected. If this situation is undesirable for the application, follow the manufacturer’s instructions for replacing the device. MADE IN CHINA Pantone 6C Pantone 110U White Satya Tech Ltd. www.satyatech.co.uk Model #: ST-MULC-BLK Rating:125V 60Hz 13A 1625W Max. USB Output: Total 20W Max. USB C Output: DC 5V/3A, 9V/2.22A,12V/1.67A, PD20W Max. Type 3 SPD: VPR -----(L-N) Wireless Charging: 5W, 7.5W, 10W USB A Output: DC 5V/3A, 9V/2A,12V/1.5A QC18W Max. USB A+C Output: DC 5V/3.1A Max. CONFORMS TO UL STD.1449 & 62368-1 CERTIFIED TO CSA STD. C22.2 NO. 269.3 & 62368-1 MADE IN CHINA Satya Tech Ltd. www.satyatech.co.uk 60.0 mm 3 5 . 0 m m

Tonghua Intelligent Technology Co., Ltd. TEST REPORT SCOPE OF WORK EMC TESTING–REFER TO PAGE 2 REPORT NUMBER 230824005GZU-003 ISSUE DATE [REVISED DATE] 30-October-2023 [--------------------] PAGES 9 DOCUMENT CONTROL NUMBER © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Version: 21 August 2017 Page 2 of 9 Applicant Name & Address : Tonghua Intelligent Technology Co., Ltd. Sangyuan Industrial zone, Dongcheng district, Dongguan, Guangdong, China Manufacturing Site : Same as applicant Intertek Report No: FCC ID: 230824005GZU-003 2BCMW-ST-MULC-BLK Test standards 47 CFR PART 1, Subpart I, Section 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Sample Description Product : Surge Protective Device Model No. : ST-MULC-BLK, ST-MULC8-BLK, AD6008, TH8065C Electrical Rating : 125VAC, 60Hz, 13A, 1625W USB Output: Total 20W Max. USB C Output: DC 5V/3A, 9V/2.22A,12V/1.67A, PD20W Max. USB A Output: DC 5V/3A, 9V/2A,12V/1.5A QC18W Max. USB A+C Output: DC 5V/3.1A Max Wireless Charging: 5W, 7.5W, 10W Serial No. : Not Labeled Date Received : 22 August 2023 Date Test Conducted : 22 September 2023-28 September 2023 Prepared and Checked By Dean Liu Project Engineer Approved By: Strong Yao Manager TEST REPORT Intertek Report: No: 230824005GZU-003 Version: 21 August 2017 Page 3 of 9 FCC Part 15.225-a CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION .............................................................................................. 5 2.1 PRODUCT DESCRIPTION ........................................................................................................ 5 2.2 TEST FACILITY ...................................................................................................................... 5 2.3 EUT EXERCISING SOFTWARE.................................................................................................. 5 2.4 SPECIAL ACCESSORIES ........................................................................................................... 5 2.5 EQUIPMENT MODIFICATION .................................................................................................. 5 2.6 SUPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 6 3.0 EMF TEST.................................................................................................................. 8 3.1 STANDARD REQUIREMENT .......................................................................................................... 8 3.2 TEST DATA ............................................................................................................................... 9 4.0 TEST EQUIPMENT LIST ............................................................................................... 9 TEST REPORT Intertek Report: No: 230824005GZU-003 Version: 21 August 2017 Page 4 of 9 FCC Part 15.225-a 1.0 TEST RESULT SUMMARY Classification of EUT: Class B Test Item Standard Result EMF 47 CFR PART 1, Subpart I, Section 1.1310 PASS Remark: When determining the test results, measurement uncertainty of tests has been considered. TEST REPORT Intertek Report: No: 230824005GZU-003 Version: 21 August 2017 Page 5 of 9 FCC Part 15.225-a 2.0 General Description 2.1 Product Description Operating Frequency 111-149KHz Type of Modulation: Load modulation Antenna Type Inductive loop coil antenna Power Supply: 125VAC, 60Hz, 13A, 1625W USB Output: Total 20W Max. USB C Output: DC 5V/3A, 9V/2.22A,12V/1.67A, PD20W Max. USB A Output: DC 5V/3A, 9V/2A,12V/1.5A QC18W Max. USB A+C Output: DC 5V/3.1A Max Wireless Charging: 5W, 7.5W, 10W Power cord: wires unscreened cable 2.2 Test Facility Room102/104, No 203, KeZhu Road, Science City, GETDD Guangzhou, China A2LA Certificate Number 0078.10 Intertek Testing Services Shenzhen Ltd. Guangzhou Branch is accredited by A2LA and Listed in FCC website. FCC accredited test labs may perform both Certification testing under Parts 15 and 18 and Declaration of Conformity testing. 2.3 EUT Exercising Software N/A 2.4 Special Accessories N/A 2.5 Equipment Modification Any modifications installed previous to testing by Tonghua Intelligent Technology Co., Ltd. will be incorporated in each production model sold / leased in the United States. No modifications were installed by Intertek Testing Services Shenzhen Ltd. Guangzhou Branch. T…

Text truncated - open the document above for the full version.

Tonghua Intelligent Technology Co., Ltd. TEST REPORT SCOPE OF WORK EMC TESTING–REFER TO PAGE 2 REPORT NUMBER 230824005GZU-001 ISSUE DATE [REVISED DATE] 30-October-2023 [---------------------] PAGES 31 DOCUMENT CONTROL NUMBER FCC Part 15C -d © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Version: 14 December 2022 Page 2 of 31 FCC Part 15C-d Applicant Name & Address : Tonghua Intelligent Technology Co., Ltd. Sangyuan Industrial zone, Dongcheng district, Dongguan, Guangdong, China Manufacturing Site : Same as applicant Intertek Report No: FCC ID: : 230824005GZU-001 2BCMW-ST-MULC-BLK Test standards 47 CFR PART 15 Subpart C:2021 Sample Description Product : Surge Protective Device Model No. : ST-MULC-BLK, ST-MULC8-BLK, AD6008, TH8065C Electrical Rating : 125VAC, 60Hz, 13A, 1625W USB Output: Total 20W Max. USB C Output: DC 5V/3A, 9V/2.22A,12V/1.67A, PD20W Max. USB A Output: DC 5V/3A, 9V/2A,12V/1.5A QC18W Max. USB A+C Output: DC 5V/3.1A Max Wireless Charging: 5W, 7.5W, 10W Serial No. : Not Labeled Date Received : 22 August 2023 Date Test Conducted : 22 September 2023-28 September 2023 Prepared and Checked By Dean Liu Project Engineer Approved By: Strong Yao Manager TEST REPORT Intertek Report No.: 230824005GZU-001 Version: 14 December 2022 Page 3 of 31 FCC Part 15C-d CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION .............................................................................................. 5 2.1 PRODUCT DESCRIPTION ........................................................................................................ 5 2.2 RELATED SUBMITTAL(S) GRANTS ............................................................................................ 5 2.3 TEST METHODOLOGY ........................................................................................................... 5 2.4 TEST FACILITY ...................................................................................................................... 5 3.0 SYSTEM TEST CONFIGURATION .................................................................................. 6 3.1 JUSTIFICATION ..................................................................................................................... 6 3.2 EUT EXERCISING SOFTWARE.................................................................................................. 7 3.3 SPECIAL ACCESSORIES ........................................................................................................... 7 3.4 MEASUREMENT UNCERTAINTY ............................................................................................... 7 3.5 EQUIPMENT MODIFICATION .................................................................................................. 8 3.6 SUPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 8 4.0 RADIATED EMISSION ............................................................................................... 10 5.0 OCCUPIED BANDWIDTH ........................................................................................... 22 6.0 CONDUCTED EMISSION TEST ................................................................................... 25 7.0 TEST EQUIPMENT LIST ............................................................................................. 30 TEST REPORT Intertek Report No.: 230824005GZU-001 Version: 14 December 2022 Page 4 of 31 FCC Part 15C-d 1.0 TEST RESULT SUMMARY Test Item Test Requirement Test Method Result Conducted disturbance voltage at mains ports FCC PART 15 C section 15.207 ANSI C63.10: Clause 6.2 PASS Radiated Emission FCC PART 15 C section 15.209 ANSI C63.10: Clause 6.4 & 6.5 PASS 20dB Bandwidth FCC PART 15 C section 15.215 FCC PART 15 C section 15.215 PASS Remark: When determining the test results, measurement uncertainty of tests has been considered. All models are the same except the model name. ST-MULC-BLK was selected for full testing. TEST REPORT Intertek Report No.: 230824005GZU-001 Version: 14 December 2022 Page 5 of 31 FCC Part 15C-d 2.0 General Description 2.1 Product Description Operating Frequency 111-149KHz Type of Modulation: Load modulation Antenna Type Inductive loop coil antenna Power Supply: 125VAC, 60Hz, 13A, 1625W USB Output: Total 20W Max. USB C Output: DC 5V/3A, 9V/2.22A,12V/1.67A, PD20W M…

Text truncated - open the document above for the full version.

中科爱牧（苏州）物联科技有限公司 Zhongke AIMU (Suzhou) Iot Technology Co. , Ltd. 产 品 规 格 承 认 书 SPECIFICATION FOR APPROVAL ■产品形状和尺寸 Product Apperance & Dimensions ■产品电气特性 Product Electrical characteristics 参数 (Parameter)： 数值(Value) 产品名称（Product name） 无线充电线圈模组 产品编号 (Product number)： D9452A28-50T 绕线方向（Coil direction）: CCW 线材型号 (Coil type)： 0.08*105P 线圈匝数 (Coil Turns)： 9Ts (9ts x 1Layers) 电感 (Inductance)： 上线圈7.0μH/下线圈6.8μH ±10% Q值 (Q Value)： 70 (Min.) 直流电阻 (DC Resistance)： 0.06 Ω (Max.) 测试仪器 (Testing Instrument)： TH2816B @100kHz、1Vrms；TH2512B At 25°C ■更多信息请咨询我们(Contact Us For More Information)。 杨生：15857396935

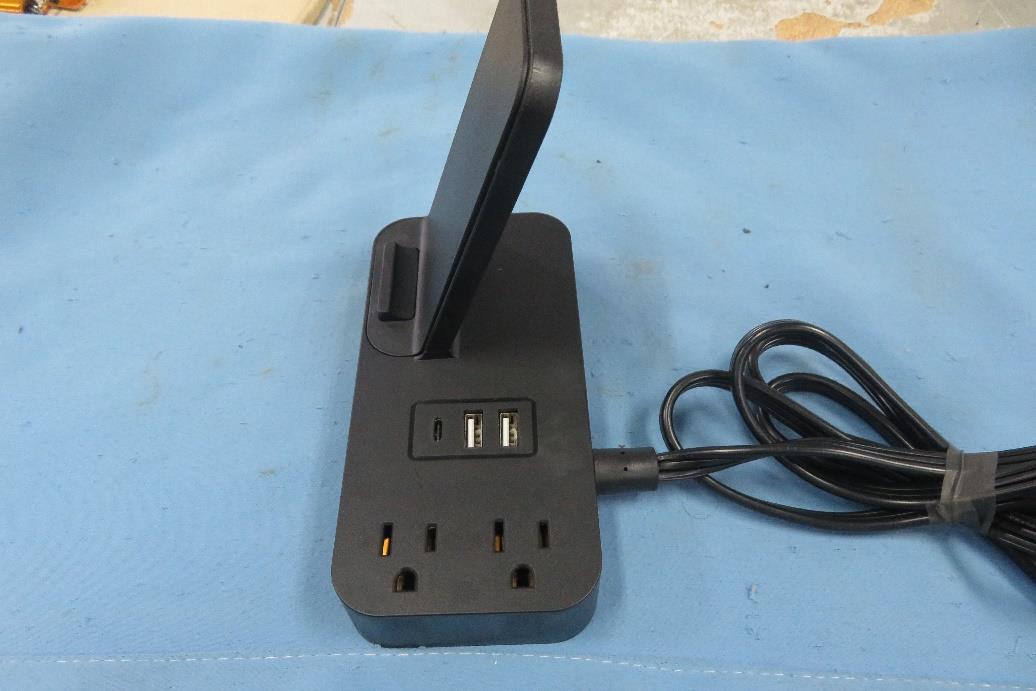

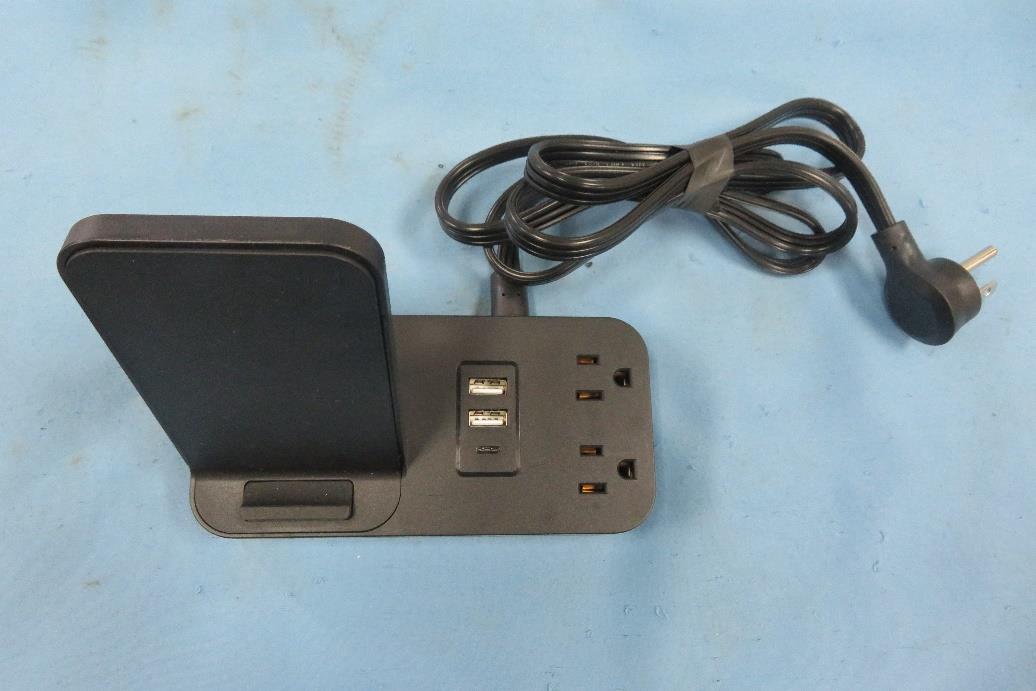

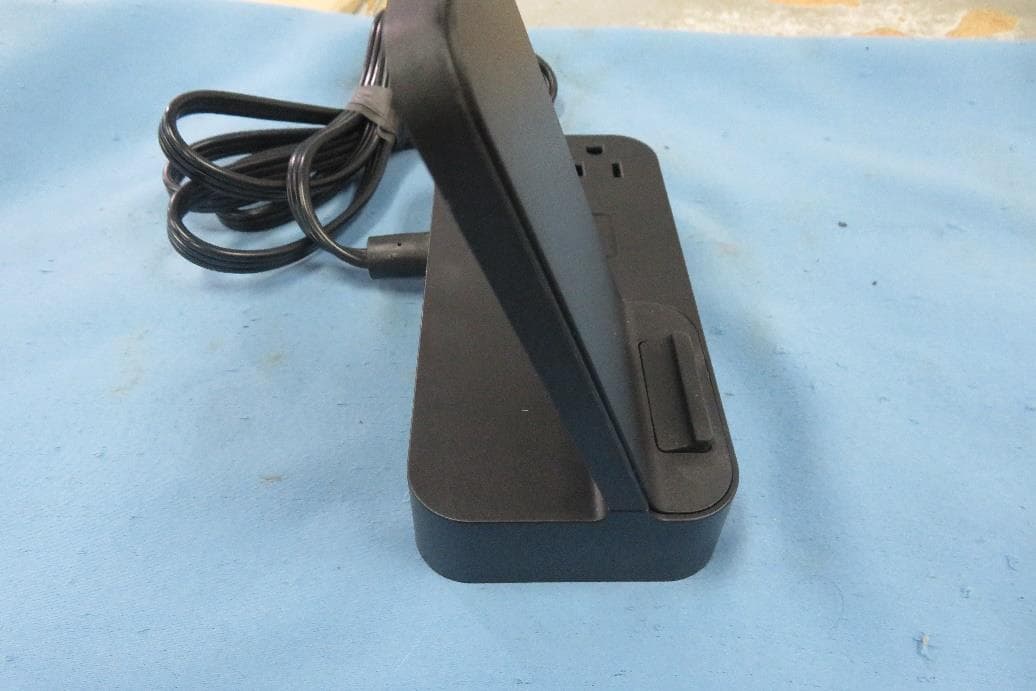

Note: EUT is positioned at the center of the turntable to keep 3 m between the measurement antenna and EUT for the radiated emissions measurements Radiated Emission (9 kHz-30MHz) Radiated Emission (30 MHz-1GHz) Conducted Emission EMF Side 1: Side 2: Side 3: Side 4: Top：
