2BCNP-BS-PADTablet

(Blackshark Technologies (Nanchang) Co., Ltd) (July 9, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BCNP-BS-PAD) [Blackshark Technologies (Nanchang) Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Nick Zhang (Blackshark Technologies (Nanchang) Co., Ltd) (July 9, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BCNP-BS-PAD) [Blackshark Technologies (Nanchang) Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Nick Zhang

Attestation Statements (July 9, 2024) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BCNP-BS-PAD ) (Blackshark Technologies (Nanchang) Co., Ltd), the undersigned, hereby authorize (NEWENERGYER LIMITED) to act as our designated U.S. agent for service of process, (Blackshark Technologies (Nanchang) Co., Ltd) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (NEWENERGYER LIMITED) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Blackshark Technologies (Nanchang) Co., Ltd Contact Name: Nick Zhang Address: R1001, F10 of Floor 3-23, R201 of Building 8 and 9, No.528, Shuanggang West Street, Nanchang City, Jiangxi Province, China Telephone No: 13538214502 Email: [email protected] FRN: 0034166215 Signature [Nick Zhang] U.S. Agent Information: Company Name: NEWENERGYER LIMITED Address: 1818 S Patton Ct, Denver, CO, 80219 Contact Name: CHUN LIU Telephone No: 213 289 5042 Email: [email protected] FRN: 0034665885 Signature [CHUN LIU]

Blackshark Technologies (Nanchang) Co., Ltd Model Difference Data：July 8, 2024 Product description: Tablet Model name: BSA1, BSA2, BSA3, BSA4, BSA5, BSA6, BSA7, BSA8, BSA9, BSA10, BSA11, BSA12, BSA13, BSA14, BSA15, BSA16, BSA17, BSA18, BSA19, BSA20, BSA21, BSA23, BSA24, BSA25, BSA26, BSA27, BSA28, BSA29, BSA30, BSA31, BSA32, BSA33, BSA34, BSA35, BSA36, BSA37, BSA38, BSA39, BSA40 Trade Name: BLACK SHARK FCC ID: 2BCNP-BS-PAD All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Nick Zhang（Product Director） Contact information / address：R1001, F10 of Floor 3-23, R201 of Building 8 and 9, No.528, Shuanggang West Street, Nanchang City, Jiangxi Province, China

Blackshark Technologies (Nanchang) Co., Ltd (July 8, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Tablet / BSA1, BSA2, BSA3, BSA4, BSA5, BSA6, BSA7, BSA8, BSA9, BSA10, BSA11, BSA12, BSA13, BSA14, BSA15, BSA16, BSA17, BSA18, BSA19, BSA20, BSA21, BSA23, BSA24, BSA25, BSA26, BSA27, BSA28, BSA29, BSA30, BSA31, BSA32, BSA33, BSA34, BSA35, BSA36, BSA37, BSA38, BSA39, BSA40 / FCC ID: 2BCNP-BS- PAD) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☒ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☒ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Nick Zhang Title: Product Director

Blackshark Technologies (Nanchang) Co., Ltd (July 8, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Nick Zhang Title: Product Director

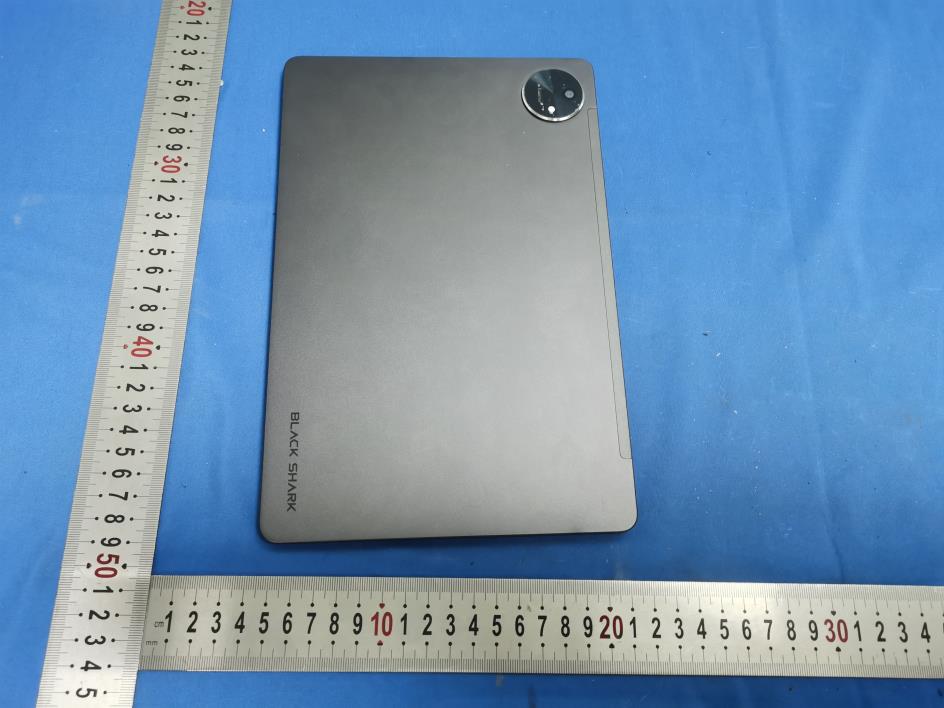

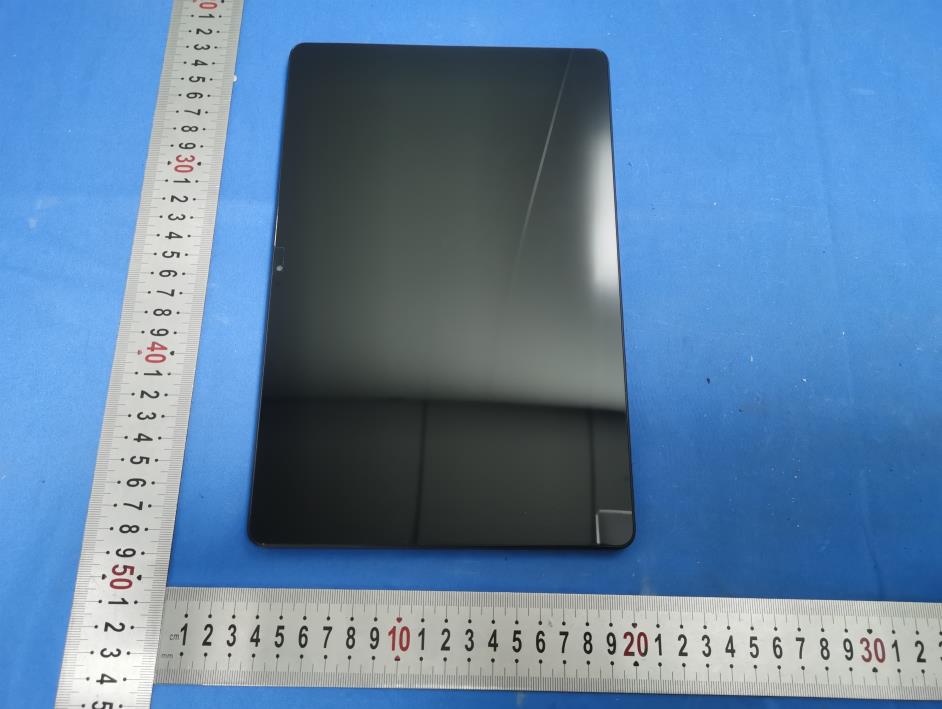

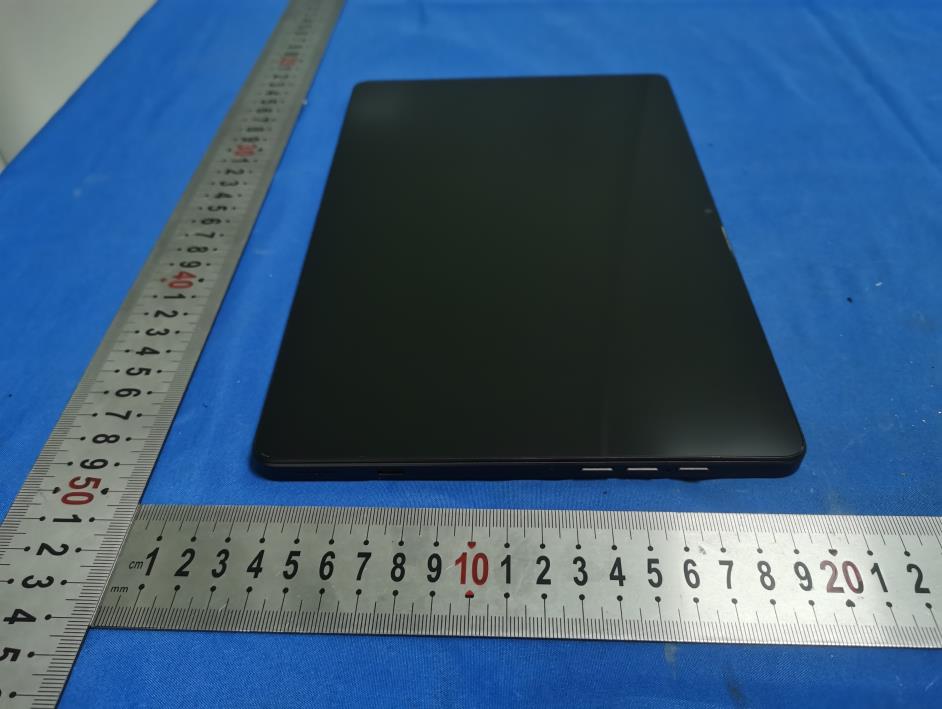

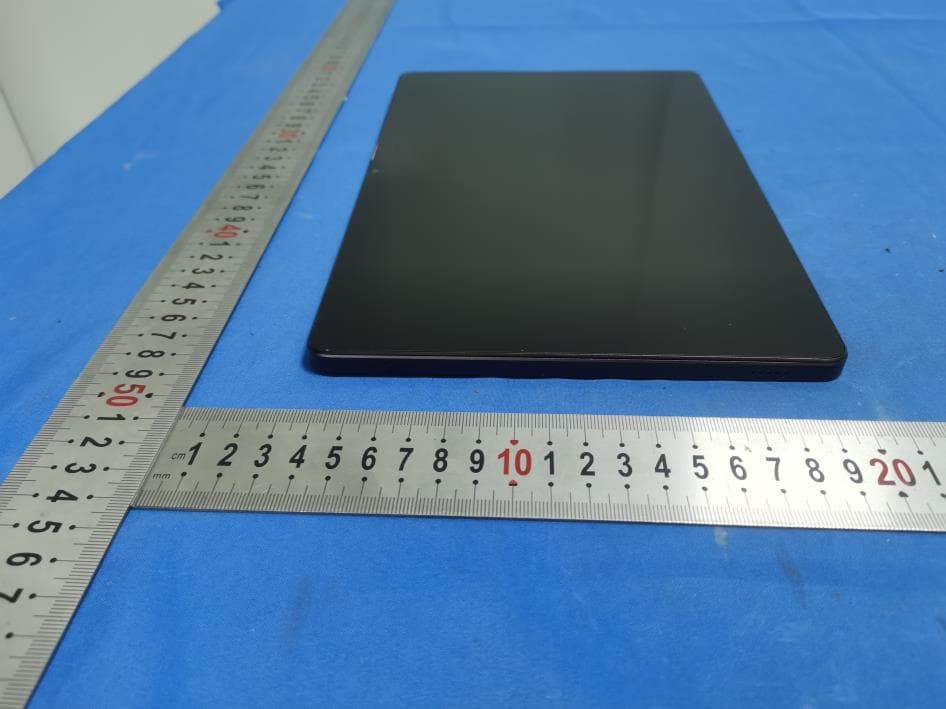

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: BSA1 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

FCC ID LABEL: Label Location: FCC ID: 2BCNP-BS-PAD Model: BSA1

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 92 TEST REPORT Compiled by: Reviewed by: Approved by: Zhang Mao cheng Martin Feng Rita Xiao / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Tablet FCC ID: 2BCNP-BS-PAD Trademark: BLACK SHARK Model Number: BSA1, BSA2, BSA3, BSA4, BSA5, BSA6, BSA7, BSA8, BSA9, BSA10, BSA11, BSA12, BSA13, BSA14, BSA15, BSA16, BSA17, BSA18, BSA19, BSA20, BSA21, BSA22, BSA23, BSA24, BSA25, BSA26, BSA27, BSA28, BSA29, BSA30, BSA31, BSA32, BSA33, BSA34, BSA35, BSA36, BSA37, BSA38, BSA39, BSA40. Prepared For: Blackshark Technologies (Nanchang) Co., Ltd Address: R1001, F10 of Floor 3-23, R201 of Building 8 and 9, No.528, Shuanggang West Street, Nanchang City, Jiangxi Province, China Manufacturer: Blackshark Technologies (Nanchang) Co., Ltd Address: R1001, F10 of Floor 3-23, R201 of Building 8 and 9, No.528, Shuanggang West Street, Nanchang City, Jiangxi Province, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: May. 14, 2024 Sample tested Date: May. 14, 2024 to Jun. 11, 2024 Issue Date: Jun. 11, 2024 Report No.: CTB240611030RH Test Standards FCC 47 CFR Part2(2.1093), FCC 47 CFR Part1( 1.1310) FCC 47 CFR Part1( 1.1307), ANSI/IEEE C95.1-2019 IEEE 1528-2013 & Published RF Exposure KDB Procedures Test Results PASS Remark: This is SAR test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240611030RH Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 92 Contents Page 1 COVER PAGE ......................................................................................................................................... 1 1. VERSION .................................................................................................................................................................. 4 2. PRODUCT INFORMATION AND TEST SETUP............................................................................................... 5 2.1 PRODUCT INFORMATION ................................................................................................................................... 5 3 EQUIPMENT USED DURING TEST ................................................................................................................... 7 3.1 EQUIPMENT LIST ............................................................................................................................................... 7 3.2 TEST EQUIPMENT CALIBRATION ....................................................................................................................... 8 4 SAR INTRODUCTION ........................................................................................................................................... 9 4.1 INTRODUCTION .................................................................................................................................................. 9 4.2 SAR DEFINITION ............................................................................................................................................... 9 5 SAR MEASUREMENT SETUP ........................................................................................................................... 10 5.1 SAR MEASUREMENT SETUP .................................................................................................................... 10 5.2 DASY5 E-FIELD PROBE SYSTEM .................................................................................................................... 11 5.3 PROBE SPECIFICATION ..................................................................................................................................... 11 5.4 ISOTROPIC E-FIELD PROBE .............................................................................................................................. 11 5.5 PHANTOMS ...................................................................................................................................................... 12 5.6 DEVICE HOLDER .............................................................................................................................................. 12 6 SAR TEST PROCEDURE .................................................................................................................................... 14 6.1 SCANNING PROCEDURE ................................................................................................................................... 14 6.2 EXTRAPOLATION ............................................................................................................................................. 17 6.3 TEST POSITION – BODY CONFIGURATIONS ...................................................................................................... 17 7 EXPOSURE LIMIT ............................................................................................................................................... 18 7.1 UNCONTROLLED ENVIRONMENT ..................................................................................................................... 18 7.2 CONTROLLED ENVIRONMENT .......................................................................................................................... 18 8 SYSTEM…

Text truncated - open the document above for the full version.

In Collaboratio n wi th CALIBRATION LABORATORY 尺咚多���中 国认 可 舫CNAS校准 国 际互 认 -:;" - ＾ Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China ...... � 左心、 § 、骂雪 Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Client CTB Certificate No: 223-60014 CALIBRATION CERTIFICATE Object Calibration P「ocedure(s) Calibration date D2600V2 - SN: 1101 FF-211-003-01 Calibration Procedures for dipole validation kits January 12, 2023 This calib「ationCertificate documents the traceab小tyto national standa「ds,which realize the physical units of measu 「ements(SI).The measurements and the uncertainties with confidence p「obab仆ityare given on the following pages and are part of the certificate All calibrations have been conducted in the closed labo「atoryfacility: environment temperature(22士3) ° C and humidity<70%. Calibration Equipment used (M&TE c咄calfor calibration) Primary Standards ID# Cal Date(Calibrated by, Cert巾cateNo.) Scheduled Calibration Power Meter NRP2 106276 May-23 Power sensor NRP6A 101369 May-23 Reference Probe EX3DV4 SN 7600 Nov-23 DAE4 SN 771 Feb-23 Secondary Standards ID# 12-May-22(CTTL, No.J20X02965) 12-May-22(CTTL, No.J20X02965) 30-Nov-22(CTTL-SPEAG, No.Z20-60421) 1 O-Feb-22(CTTL-SPEAG, No.Z20-60017) Cal Date(Calibrated by, Certificate No.) Scheduled Calibration Signal Generate「E4438C MY49071430 25-Feb-22 (CTTL, No.J20X00516) Network Analyzer E5071 C MY46110673 10-Feb-22 (CTTL, No.J20X00515) Feb-23 F eb-23 Name Function Signature Calibrated by: Zhao Jing SAR Te st Engineer it Reviewed by: Lin Hao SAR Test Engineer 啡羌 Approved by: Qi Dianyuan SAR Project Leader 一分三 Issued: January 15, 2023 This calibration certificate shall not be reproduced except in full without written approval of the laboratory Certificate No: Z23-600 I 4 Page I of 6 In Collaboration with 呈 CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Hai小anDistrict, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Glossary: TSL ConvF NIA tissue simulating liquid sensitivity in TSL / NORMx,y,z not applicable or not measu「ed Calibration is Performed According to the Following Standards: a)I EC/IEEE 62209-1528, "Measurement Procedure for The Assessment of Specific Absorption Rate of Human Exposure to Radio Frequency Fields from Hand-held and Body-mounted Wireless Communication Devices- Part 1528: Human Models, Instrumentation and Procedures (Frequency range of 4 MHz to 10 GHz)", October 2020 b)KDB 865664, "SAR Measurement Requirements for 100 MHz to 6 GHz" ． ． ． ． Additional Documentation: c) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: ． Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. ． Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented p arallel to the body axis. ． Feed Point Impedance and Return Loss: These parameters are measured with the dipole positioned under the liquid filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty required. Electrical Delay: One-way delay between the SMA connector and the antenna feed point No uncertainty required. SAR measured: SAR measured at the stated antenna input power. SAR normalized: SAR as measured, normalized to an input power of 1 Wat the antenna connector. SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. The reported uncertainty of measurement is stated as the standard uncertainty of Measurement multiplied by the coverage factor k=2, which for a normal distribution Corresponds to a coverage probability of approximately 95% Certificate No: Z23-60014 Page 2 of 6 In Collabo rati on with CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, I 00191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Measurement Conditions DASY system configuration, as fa DASY Version DASY52 V52.10.4 Extrapolation Advanced Extrapolation Phantom Triple Flat Phantom 5.1 C Distance Dipole Center - TSL 10 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 2600 MHz土1MHz Head TSL parameters The fo Temperature Permittivity Conductivity Nominal Head TSL parameters 22.0 ° C 39.0 1.96 mho/m Measured Head TSL parameters (22 0士0.2) ° C 40.1士6% 1.95 mho/m士6% Head TSL temperature change during test <1.0 ° C －－－－ ---- d a pplied SAR result with Head TSL 3 Condition SAR averaged over 1 cm (1 g) of Head TSL SAR measured 250 mW input power 14.2 W/kg SAR to「 nominalHead TSL parameters no「malizedto 1 W 57.3 W/kg士18.8% (/r-2) 3 Condition SAR averaged over 10 cm (10 g) of Head TSL SAR measured 250 mW input power 6.25 W/kg SAR for nominal Head TSL parameters normalized to 1 W 25.1 W/kg士18.7% (/r-2) Certificate No: Z23-60014 Page 3 of 6 ln Collaborati on with CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, Chma Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Appendix(Additional assessments outside the scope of CNAS L0570) Antenna Parameters with Head TSL Impedance, transfo「med to feed point 48.40-6.46j0 Return Loss - 23.4d8 General Antenna Parameters and Design Electrical Delay (one direction) 1.065 ns After long term use with 1 OOW radiated power, only a slight warming of the dipole near the feed point can be measured. The dipole is made of standard semi rigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps a「e…

Text truncated - open the document above for the full version.

TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Tablet FCC ID: 2BCNP-BS-PAD Trademark: BLACK SHARK Model Number: BSA1, BSA2, BSA3, BSA4, BSA5, BSA6, BSA7, BSA8, BSA9, BSA10, BSA11, BSA12, BSA13, BSA14, BSA15, BSA16, BSA17, BSA18, BSA19, BSA20, BSA21, BSA22, BSA23, BSA24, BSA25, BSA26, BSA27, BSA28, BSA29, BSA30, BSA31, BSA32, BSA33, BSA34, BSA35, BSA36, BSA37, BSA38, BSA39, BSA40. Prepared For: Blackshark Technologies (Nanchang) Co., Ltd Address: R1001, F10 of Floor 3-23, R201 of Building 8 and 9, No.528, Shuanggang West Street, Nanchang City, Jiangxi Province, China Manufacturer: Blackshark Technologies (Nanchang) Co., Ltd Address: R1001, F10 of Floor 3-23, R201 of Building 8 and 9, No.528, Shuanggang West Street, Nanchang City, Jiangxi Province, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: May. 14, 2024 Sample tested Date: May. 14, 2024 to May. 28, 2024 Issue Date: May. 28, 2024 Report No.: CTB240528016RF Test Standards FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test Results PASS Remark: This is WIFI-2.4GHz band radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240528016RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 63 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 4 2. TEST SUMMARY ..................................................... 5 3. MEASUREMENT UNCERTAINTY ....................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ........................... 7 4.1 Product Information ..................................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 7 4.4 Channel List ........................................................... 8 4.5 Test Mode ............................................................. 8 4.6 Test Environment ....................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 9 5.1 Test Facility ............................................................ 9 5.2 Test Instrument Used ................................................... 9 6. AC POWER LINE CONDUCTED EMISSION ............................. 11 6.1 Block Diagram Of Test Setup ........................................... 11 6.2 Limit ................................................................. 11 6.3 Test procedure ........................................................ 11 6.4 Test Result ........................................................... 13 7. RADIATED SPURIOUS EMISSION ..................................... 15 7.1 Block Diagram Of Test Setup ........................................... 15 7.2 Limit ................................................................. 15 7.3 Test procedure ........................................................ 16 7.4 Test Result ........................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ........... 39 8.1 Block Diagram Of Test Setup ........................................... 39 8.2 Limit ................................................................. 39 8.3 Test procedure ........................................................ 39 8.4 Test Result ........................................................... 40 9. COUDUCTED OUTPUT POWER ....................................... 47 9.1 Block Diagram Of Test Setup ........................................... 47 9.2 Limit ................................................................. 47 9.3 Test procedure ........................................................ 47 9.4 Test Result ........................................................... 48 10. 6DB OCCUPIED BANDWIDTH ........................................ 49 10.1 Block Diagram Of Test Setup .......................................... 49 10.2 Limit ................................................................ 49 10.3 Test procedure ....................................................... 49 10.4 Test Result .......................................................... 50 11. POWER SPECTRAL DENSITY ........................................ 55 11.1 Block Diagram Of Test Setup .......................................... 55 11.2 Limit ................................................................ 55 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240528016RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 63 11.3 Test procedure ....................................................... 55 11.4 Test Result .......................................................... 56 12. ANTENNA REQUIREMENT ........................................... 61 13. EUT TEST SETUP PHOTOGRAPHS ................................... 62 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240528016RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 63 1. VERSION Report N o. Issue Date Description Approved CTB240528016RF May. 28, 2024 Original Valid Shenzhen CTB Testing Technology Co., Ltd. Repor…

Text truncated - open the document above for the full version.

深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 天线测试报告 Antenna Test Report TC：美迪飞 MN：PAD6 RF：刘磊确 MD：黄清清 MP：13005478517 1 2 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 测试信息 Test information Main ANT Antenna bandAntenna state Antenna form Matchc hanges Note 2G850/900/1800 FPCPIFANO 3GW1/W5/W8 4G B1/B3/B5/B7/B8/B20/ B28/B38/B39/B40/B41 AUX ANT BT/WIFI2.4/5GFPCPIFANO GPS1.575GFPCPIFANO DIVFPCPIFANO 3 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 测试环境 Test environment 测试项目测试设备 S参数 （S-parameter) 1.电压驻波比(VSWR) 2.回波损耗（Rrtun Loss) 网络分析仪：Agilent8753ES 2.有源测试 (Active) 1.发射功率（TRP) 2.接收灵敏度（TIS） 3.屏灭/屏亮 1.暗室：5*3*3m（3D）Chamber 2.综测仪：Agilent8960 CMW500 3.无源测试 （Passive) 1.天线增益(Gain) 2.天线效率（Efficiency) 1.暗室：5*3*3m（3D）Chamber 2.网络分析仪：Agilent 8753ES CMW500 4 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 天线位置 Antenna position 5 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 匹配电路 Matching circuit 电容（PF）电感（NH） E1(0402) E2(0402) E3(0402) E4(0402) Matching circuit schematic & bit number diagram 6 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 有源测试数据 OTA test data 2G BandGSM850GSM900GSM-1800(DCS)GSM-1900(PCS) Channel128192251162124512698885512660810 TRP(dBm) 24.8325.3326.1326.8327.3827.4525.3126.0925.22 TIS(LCD OFF) -103.07-103.02-105.12 TIS(LCD ON) 3G BandWCDMA-1WCDMA-5WCDMA-8 Channel105621070010838435744004458293730133088 TRP(dBm) 17.117.0217.6216.1416.2516.5816.6717.1816.87 TIS(LCD OFF) -105.85-105.23-102.77 TIS(LCD ON) 4G(FDD 10M) BandFDD-Band 1FDD-Band 3FDD-Band 4FDD-Band 5 Channel 180501830018550192501957519900200002017523050204502052520600 TRP(dBm) 17.4517.8518.3217.8618.1618.1518.8118.9819.3316.5716.7317.14 TIS(LCD OFF) -92.04-92.53-92.18-92.2 TIS(LCD ON) BandFDD-Band 7FDD-Band 8FDD-Band 20FDD-Band 28 Channel208002110021400215002162021750242002430024400272602743527610 TRP(dBm) 16.8516.6916.9718.5918.7717.9816.1816.5516.5916.6516.7316.08 TIS(LCD OFF) -90.31-89-89.5-88.62 TIS(LCD ON) 4G(TDD 20M) BandFDD-Band 38FDD-Band 39FDD-Band 40FDD-Band 41 Channel378503800038150383503845038550387503915039550397504062041490 TRP(dBm) 17.9217.7417.6818.1118.5418.2219.9119.1318.217.76 TIS(LCD OFF) -88.99-88.54-89.9-88.73 TIS(LCD ON) 7 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 802.11b FrequencyTRPTIS 2412 CH1 11Mbps12.51CH1 11Mbps-81.59 2437 CH6 11Mbps12.68CH6 11Mbps-81.52 2467 CH11 11Mbps12.96CH11 11Mbps-81.01 802.11a TRPTIS 5180 CH36 6Mbps10.5CH36 54Mbps-70.05 5300 CH60 6Mbps10.39CH60 54Mbps-70.12 5805 CH161 6Mbps11.25CH161 54Mbps-71.06 WIFI 有源测试数据 WIF Active test data 8 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD WIFI 吞吐量测试 WIF Throughput test 2.4G wifi 吞吐量测试 上行130M 下行 123M 图片 图片 备注 9 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD WIFI 吞吐量测试 WIFI Throughput test 5G wifi 吞吐量测试 上行272M 下行 301M 图片 图片 备注 10 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD GPS搜星测试 GPS star search test The measured effect of GPS cold start is as follows: CN value of more than 40 5+ pieces CN value over 35 5+ pieces 10+ objects are actually located Remark; GPS star search test. It varies by time period and region. The above data is the best data of our test (open area) 11 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Wifi/BT天线实测 Wifi Antenna test WIFI Test environment: Open space Test tool: Wifi Analytical Assistant Test distance: 10m Signal Strength: 2.4G :-51dBm 5G:-54dBm Test results are shown on the right BT Test environment: Open space (channel) Test tool: Bluetooth speaker Test distance: 10/m Results: The music was played smoothly and without noise. 12 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 环境处理 Environmental treatment 13 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 环境处理 Environmental treatment 14 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 环境处理 Environmental treatment 15 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 环境处理 Environmental treatment 16 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Main ANT 无源测试数据 Main ANT Passive test data ANT S11-VSWR&Return Loss Frequency(MHZ) 703960171021702600 VSWR 2.065.831.462.331.27 Return Loss(DB) -9.26-3.02-14.51-7.95-18.33 17 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 18 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 19 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 20 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD G/W/B ANT 无源测试数据 G/W/B ANT Passive test data Frequency(MHZ)15752400250051505850 VSWR 1.291.181.391.962 Return Loss(DB) -17.96-21.31-15.8-9.76-9.54 21 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 22 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 23 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 24 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 25 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 26 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 27

TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in…

Text truncated - open the document above for the full version.
