2BCOM-DJ-260Reader

1 User Manual 1. Product Overview This product is an RFID tag reader that recognizes (ISO11784/85) FDX-B and EMID format electronic tags by wireless reading. It supports data storage and Bluetooth, allowing users to upload data to a computer in real time via a USB cable. It can also connect to a cell phone or computer via Bluetooth for data transfer. 2. Parameters Operating frequency 134.2kHz Tag formats ISO11784/85 FDX-B and EMID Identifying distance 0-20cm (depending on the tag performance) Memory storage 1024 Read time 100ms Charging method USB Charging voltage 5V Certification CE Operating temperature -30°C～70°C Language English Wireless data transmission Bluetooth4.2, 2.4G 2 3. Operating instructions （1）Power on for tag reading Click the button to power on and scan the tag. （2）Tag scanning FDX-B and EMID tags and tag numbers can be scanned and displayed in the sensing area. When no tag is scanned, the message "NO tag" will be displayed after 10 seconds. （3） The device can upload data in real time via USB. After the USB cable is connected to the computer, the "USB" logo symbol will appear in the upper left corner of the LCD and display the charging status. Press and hold the button for 3 seconds to upload the data stored in the device. A maximum of 1024 pieces of data can be uploaded. After the data is uploaded successfully, the interface is as follows. (4) Bluetooth connecting The top left corner of the LCD screen displays the current mode (HID ) and the top right corner displays the current connection status of Bluetooth. In analog keyboard (HID) mode, the Bluetooth name is "260-HID". When Bluetooth connection is pending, the symbolflashes; when Bluetooth connection is successful, the symbol lights up. 3 （5）2.4G USB donggle No other operation is required, plug in the computer terminal connection and use （6）Auto sleep The device automatically shuts down after 120 seconds without any operation. 4. PC software Connect the tag reader to the PC via the USB cable, start the TooL software and click "connecting devices" and perform the appropriate operation. 1. Language: It supports to switch between Chinese and English. 2.Query quantity: query the current quantity of the device. 3.Read data: read the data in the device and display it in the left margin. 4.Export data: Export the data read on the left side to form EXCEL. 5.Delete Data: Clear the data saved in the device. 6.Bluetooth name: customized editing and setting of Bluetooth name is available. 7.Display Binary Settings: FDX-B and EMID formats can be customized to set decimal and hexadecimal display according to different needs. 4 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Guangzhou Dejie Information Technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Guangzhou Dejie Information Technology Co., Ltd Address: Room 406, Chuangqi Building 1, No. 63, Chuangqi, Shilou, Panyu, Guangzhou, China Product Name: Reader FCC ID: 2BCOM-DJ-260 Model(s): DJ-260, DJ-260C, DJ-260BT, DJ-260CSDQ, DJ-260BTSDQ, DJ-200, DJ-200C, DJ-200BT, DJ-180, DJ-180C, DJ-180BT, DJ-180CSDQ, DJ-180BTSDQ, 160 2.911(d)(5)(i) Equipment Type We, [Guangzhou Dejie Information Technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Jiefu Liu Date: Aug. 30, 2023 Title and Company name: Manager; Guangzhou Dejie Information Technology Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Guangzhou Dejie Information Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Guangzhou Dejie Information Technology Co., Ltd Address: Room 406, Chuangqi Building 1, No. 63, Chuangqi, Shilou, Panyu, Guangzhou, China Product Name: Reader FCC ID: 2BCOM-DJ-260 Model(s): DJ-260, DJ-260C, DJ-260BT, DJ-260CSDQ, DJ-260BTSDQ, DJ-200, DJ-200C, DJ-200BT, DJ-180, DJ-180C, DJ-180BT, DJ-180CSDQ, DJ-180BTSDQ, 160 2.911(d)(5)(ii) Applicant filing We, [Guangzhou Dejie Information Technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Jiefu Liu Date: Aug. 30, 2023 Title and Company name: Manager; Guangzhou Dejie Information Technology Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Guangzhou Dejie Information Technology Co., Ltd Section 2 .911 (d)(7) USA Agent for Service of Process Company name: Guangzhou Dejie Information Technology Co., Ltd Address: Room 406, Chuangqi B uilding 1, No. 63, Chuangqi, Shilou, Panyu, Guangzhou, China Product Name: Reader FCCID: 2BCOM-DJ- 260 Model(s):DJ-260, DJ-260C, DJ-260BT, DJ-260CSDQ, DJ-260BTSDQ, DJ-200, DJ-200C, DJ-200BT, DJ-180, DJ-180C, DJ-180BT, DJ-180CSDQ, DJ-180BTSDQ, 160 2.911(d)(7) USA Designated Agent for Service of Process We, [Guangzhou Dejie Information Technology Co., Ltd] ("the applicant") designate [ AOCE Corporation Inc. ] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all mar keting and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administr ative or judicial proceeding involving the equipment, whichever is later. Applicant Company name: Guangzhou Dejie Information Technology Co., Ltd Address: Room 406, Chuangqi Building 1, No. 63, Chuangqi, Shilou, Panyu, Guangzhou, China FCC Grantee Code:2BCOM Contact Name: Jiefu Liu Telephone No: 13570324682 Email: [email protected] 2.911 (d)(7)USA Agent vl.3 o' Signature:J 0 ate"-· Title:Manager Date:2023/8/30 Signature: Title: Manager Date: 2023/8/30 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https: //www. fede ra I register. gov /docu men ts/2 02 3/02/06/2 02 2-2 82 63/protecti ng-agai n st-nation al-security-threats-to-the-communications-supply-chain-through-the 2.911 (d)(7)USA Agent vl.3

Guangzhou Dejie Information Technology Co., Ltd Letter of Authorization Company: Guangzhou Dejie Information Technology Co., Ltd Address: Room 406, Chuangqi Building 1, No. 63, Chuangqi, Shilou, Panyu, Guangzhou, China Product name: Reader Trade name: DEJ Model name: DJ-260, DJ-260C, DJ-260BT, DJ-260CSDQ, DJ-260BTSDQ, DJ-200, DJ-200C, DJ-200BT, DJ-180, DJ-180C, DJ-180BT, DJ-180CSDQ, DJ-180BTSDQ, 160 FCC Identifier: 2BCOM-DJ-260 We authorize MiCOM LabsInc, 575 Boulder Court, Pleasanton, California94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM LabsInc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Jiefu Liu Date: Aug. 30, 2023 Title: Manager Signature of applicant:

< Guangzhou Dejie Information Technology Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Aug. 30, 2023 Subject; Request for Long Term Confidentiality FCC ID: 2BCOM-DJ-260 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jiefu Liu Title: Manager

Guangzhou Dejie Information Technology Co., Ltd Model Difference Declaration To Whom It May Concern, We, Guangzhou Dejie Information Technology Co., Ltd Product Name: Reader Trade Name: DEJ Model Name: DJ-260, DJ-260C, DJ-260BT, DJ-260CSDQ, DJ-260BTSDQ, DJ-200, DJ-200C, DJ-200BT, DJ-180, DJ-180C, DJ-180BT, DJ-180CSDQ, DJ-180BTSDQ, 160 All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: DJ-260. Please contact me if you have any question. Date: 2023.8.30 Name: Jiefu Liu Title: Manager Company: Guangzhou Dejie Information Technology Co., Ltd

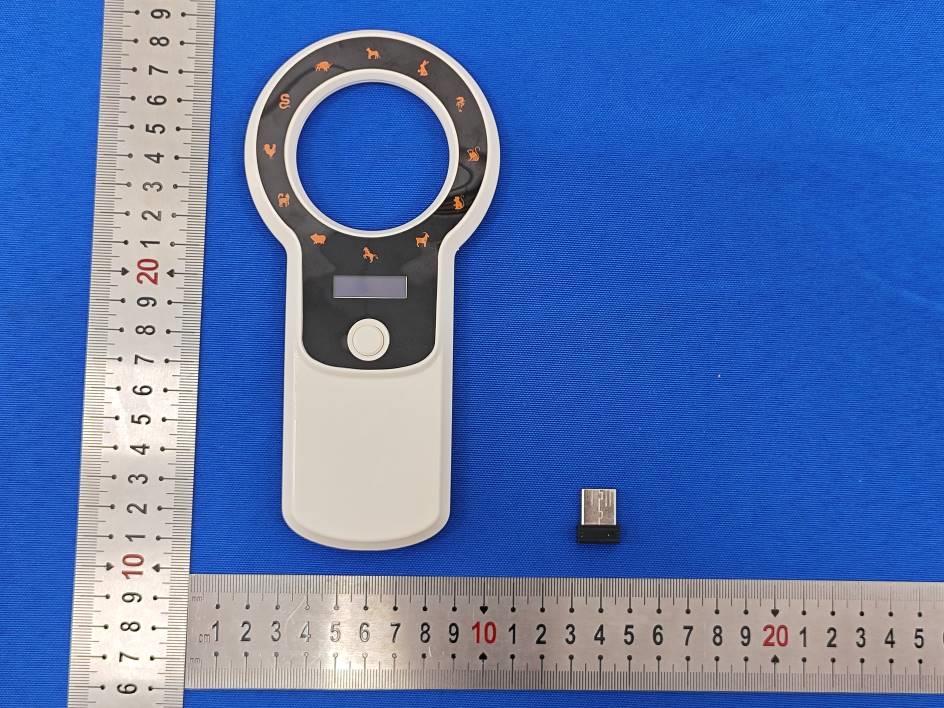

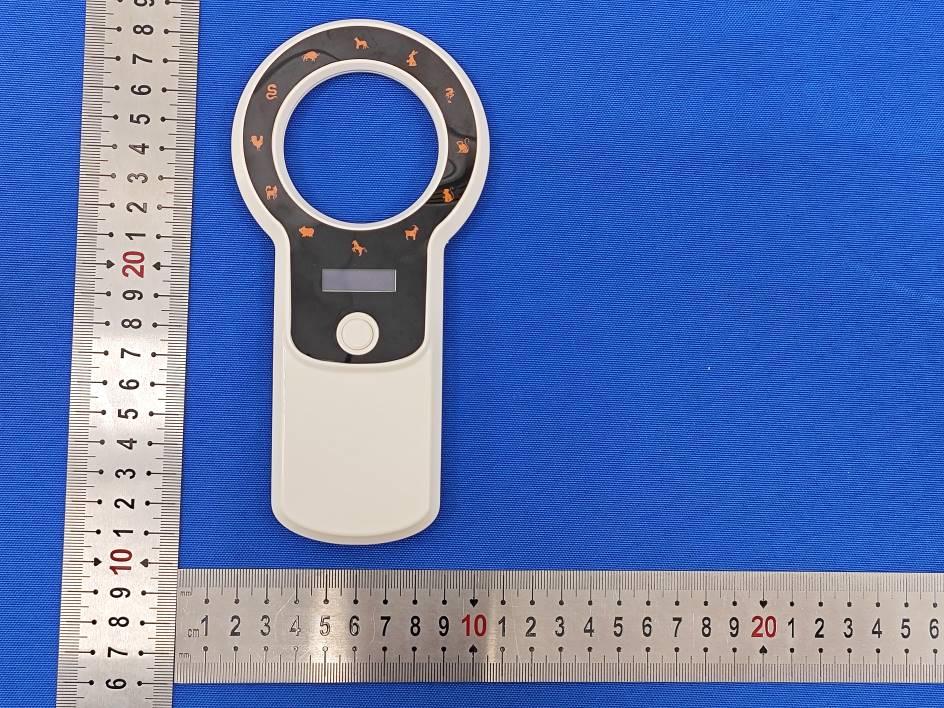

Model: DJ-260 Model: DJ-260 Model: DJ-260 Model: DJ-260

FCC ID LABEL: Label Location: FCC ID: 2BCOM-DJ-260

Model: DJ-260 Model: DJ-260 Coil Antenna Model: DJ-260 PCB Antenna Model: DJ-260 Model: DJ-260

MPE ESTIMATION FCC ID: 2BCOM-DJ-260 1. Limit for Portable Equipment Exposure Frequency 1-g SAR 100MHz-6GHz 3.0 According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] •[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 2. eCFR _47 CFR Part 1 Subpart I -- Procedures Implementing the National Environmental Policy Act of 1969 1.1307 Actions that may have a significant environmental effect, for which Environmental Assessments(EAs) must be prepared. 1.1307(b)(3) Determination of exemption. (i) For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); 2. Estimation Result Worst case: Mode Reading result(dBμV/m) PK Output Power (dBm) Output Power(mW) Test Separation Distance (mm) Measurement Result 1-g SAR BLE 2402MHz 98.49 3.29 2.133 5 0.6612 3.0 2.4G 2420MHz 102.97 7.77 5.984 5 1.8618 3.0 Note: PK Output Power (dBm)= Reading result(dBμV/m)-95.2 PK Output Power = Conducted Power. Conducted Power see the test report BLE: 23081406ER-61; 2.4G: 23081406ER-62. The SAR evaluation is not required. Mode Reading result(dBμV/m) PK Output Power (dBm) Output Power(mW) Measurement Result(mW) Limit (mW) 134.2kHz 84.19 -11.01 0.079 0.079 1 Note: PK Output Power (dBm)= Reading result(dBμV/m)-95.2 PK Output Power = Conducted Power. Conducted Power see the test report 134.2kHz: 23081406ER-63. Note: BLE, 2.4GHz and 134.2KHz antenna cannot work simultaneously. ------The End------

Page 1 of 23 Report No.: 23081406ER-63 FCC RADIO TEST REPORT FCC ID: 2BCOM-DJ-260 Sample : Reader Trade Name : DEJ Main Model : DJ-260 Additional Model : DJ-260C, DJ-260BT, DJ-260CSDQ, DJ-260BTSDQ, DJ-200, DJ-200C, DJ-200BT, DJ-180, DJ-180C, DJ-180BT, DJ-180CSDQ, DJ-180BTSDQ, 160 Report No. : 23081406ER-63 Prepared for Guangzhou Dejie Information Technology Co., Ltd Room 406, Chuangqi Building 1, No. 63, Chuangqi, Shilou, Panyu, Guangzhou, China Prepared by Global United Technology Services Co. Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Page 2 of 23 Report No.: 23081406ER-63 TEST RESULT CERTIFICATION Applicant ............................... : Guangzhou Dejie Information Technology Co., Ltd Address .................................. : Room 406, Chuangqi Building 1, No. 63, Chuangqi, Shilou, Panyu, Guangzhou, China Manufacturer ........................ : Guangzhou Dejie Information Technology Co., Ltd Address .................................. : Room 406, Chuangqi Building 1, No. 63, Chuangqi, Shilou, Panyu, Guangzhou, China Product description Product ...................................... : Reader Trade Name ........................... : DEJ Model Name ........................... : DJ-260, DJ-260C, DJ-260BT, DJ-260CSDQ, DJ-260BTSDQ, DJ-200, DJ-200C, DJ-200BT, DJ-180, DJ-180C, DJ-180BT, DJ-180CSDQ, DJ-180BTSDQ, 160 Test Methods ........................ : FCC Rules and Regulations Part 15 Subpart C Section 15.209 ANSI C63.10: 2013 This device described above has been tested by Global United Technology Services Co. Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval, this document may be altered or revised by Global United Technology Services Co. Ltd., personnel only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Aug. 14, 2023 ~ Aug. 28, 2023 Date of Issue .......................................... : Aug. 29, 2023 Test Result ............................................. : Pass Prepared By: Date: 2023-8-29 Project Engineer Check By: Date: 2023-8-29 Reviewer Page 3 of 23 Report No.: 23081406ER-63 Table of Contents Pages 1 TEST SUMMARY 4 1.1 TEST PROCEDURES AND RESULTS 4 1.2 TEST FACILITY 4 1.3 MEASUREMENT UNCERTAINTY 5 2 GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 CARRIER FREQUENCY OF CHANNELS 7 2.3 TEST MODE 7 2.4 TEST SETUP 7 2.5 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 8 2.6 MEASUREMENT INSTRUMENTS LIST 9 3 CONDUCTED EMISSION 11 3.1 TEST LIMIT 11 3.2 TEST SETUP 11 3.3 TEST PROCEDURE 12 3.4 TEST RESULT 12 4 RADIATED EMISSION 15 4.1 TEST LIMIT 15 4.2 TEST SETUP 17 4.3 TEST PROCEDURE 18 4.4 TEST RESULT 18 5 ANTENNA REQUIREMENT 21 6 PHOTO OF TEST 22 6.1 RADIATED EMISSION 22 6.2 CONDUCTED EMISSION 23 Page 4 of 23 Report No.: 23081406ER-63 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS Item FCC Rules Description Of Test Result 1 FCC Part 15.207 Conducted Emission Pass 2 FCC Part 15.209(a) Radiated Emission Pass 3 FCC Part 15.203 Antenna Requirement Pass 1.2 TEST FACILITY Test Firm : Global United Technology Services Co. Ltd. Address : No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 The test facility is recognized, certified, or accredited by the following organizations: ● FCC—Registration No.: 381383 Designation Number: CN5029 Global United Technology Services Co., Ltd., Shenzhen EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in files. ● IC —Registration No.: 9079A CAB identifier: CN0091 The 3m Semi-anechoic chamber of Global United Technology Services Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing ● NVLAP (LAB CODE:600179-0) Global United Technology Services Co., Ltd., is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP). Page 5 of 23 Report No.: 23081406ER-63 1.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. A. Conducted Measurement: Test Site Method Measurement Frequency Range U, (dB) NOTE UNI ANSI 9KHz ~ 150KHz 2.96 150KHz ~ 30MHz 2.44 B. Radiated Measurement: Test Site Method Measurement Frequency Range U, (dB) NOTE UNI ANSI 9KHz ~ 30MHz 2.50 30MHz ~ 1000MHz 4.80 1000MHz ~ 6000MHz 4.13 Page 6 of 23 Report No.: 23081406ER-63 2 GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product: Reader Trade Name: DEJ Main Model: DJ-260 Additional Model: DJ-260C, DJ-260BT, DJ-260CSDQ, DJ-260BTSDQ, DJ-200, DJ-200C, DJ-200BT, DJ-180, DJ-180C, DJ-180BT, DJ-180CSDQ, DJ-180BTSDQ, 160 Model Difference: All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: DJ-260. FCC ID: 2BCOM-DJ-260 Operation Frequency: 134.2kHz Number of Channels: 1CH Modulation Type: ASK, PSK, FSK Antenna Type: Coil Antenna Antenna Gain: 0dBi Battery: DC 3.7V, 300mAh Adapter: N/A Power Source: DC 5.0V from adapter or DC 3.7V from battery Page 7 of 23 Report No.: 23081406ER-63 2.2 CARRIER FREQUENCY OF CHANNELS Channel List Channel Frequency (kHz) 01 134.2 2.3 TEST MODE NO. TEST MODE DESCRIPTION 1 134.2kHz 2.4 TEST SETUP Operation of EUT during Conducted and Radiation below 1GHz testing: Operation of EUT during Radiation above 1GHz testing: AC Power EUT Adapter EUT Page 8 of 23 Report No.: 23081406ER-63 2.5 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL The…

Text truncated - open the document above for the full version.

Model: DJ-260 Radiated Emission test BLE/2.4G Model: DJ-260 134.2kHz Model: DJ-260 Conducted Emission test BLE/2.4G 134.2kHz Model: DJ-260 RF Conducted
