2BCPKENGYPRO24Smart Phone

Corporacion Favorita C.A.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 25, 2023
Application Purpose: Original Equipment
Date of Application: Sep 25, 2023
Equipment Note: Smart Phone
Frequency Range: 2402.00000000 - 2480.00000000
Company: Corporacion Favorita C.A.
Country: Ecuador

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

CorporacionFavoritaC.A. * theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter September20,2023 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID: 2BCPKENGYPRO24 FRN: 0034184796 Persection2.911(d)(7)oftheFCCrules,(“ CorporacionFavoritaC.A. ”)certifiesthatthe equipmentforwhichauthorizationissoughtisdesignatedtothefollowingU.S.Designated agent*forserviceofprocess: CompanyName: WRTWORLDENTERPRISES PhysicalU.S.CompanyAddress: 11300NW131Street,Miami,FL,33178,UnitedStates Agentname: ZlatyPasternak AgentEmailAddress: [email protected] FRN: 0034261891 Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:DesignatedAgentSigned: (Required,ifdifferenttoApplicant): Signed:Signed: Printedname: StephanieWright Printedname: ZlatyPasternak Title: manger Title: OperationAnalyst Company Name: CorporacionFavoritaC.A. Company Name: WRTWORLDENTERPRISES Date: September20,2023 Date: September20,2023

Attestation Statements

CorporacionFavoritaC.A. CoveredEquipmentCertificationAttestationLetter 9/20/2023 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID: 2BCPKENGYPRO24 ( CorporacionFavoritaC.A. )certifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorization pursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. (CorporacionFavoritaC.A.)certifiesthat,asofthedateofthefilingoftheapplication, theapplicantisnotidentifiedontheCoveredListasanentityproducing“covered” equipment. Signed: Printedname:StephanieWright Title: manger CompanyName: CorporacionFavoritaC.A. Date: 9/20/2023

Cover Letter(s)

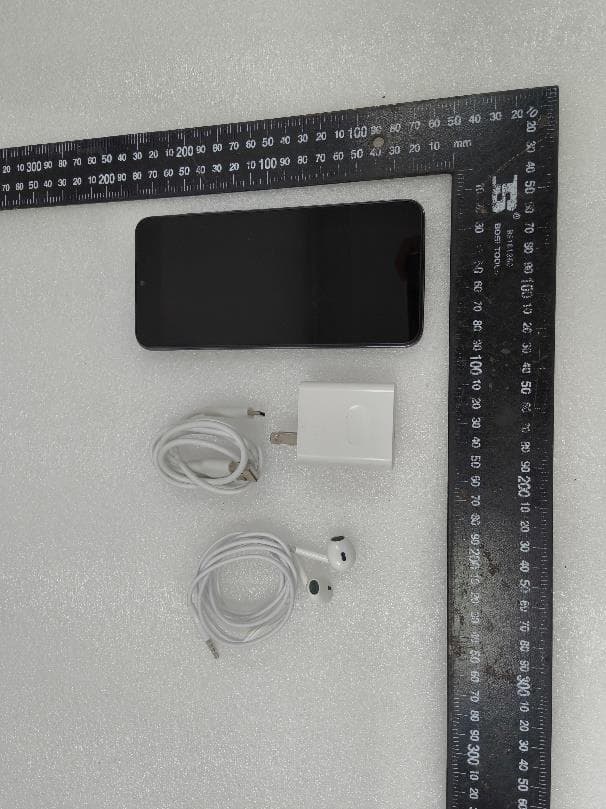

External Photos

External photos

Internal Photos

Internal photos

RF Exposure Info

Page: 1 of 39 TEST REPORT For SAR Report No. ...................................... : CHTEW23090019 Report vertification: Project No. ...................................... : SHT2308070102EW FCC ID ............................................. : 2BCPKENGYPRO24 Applicant’s name ........................... : Corporacion Favorita C.A. Address ............................................. : Ave. General Enriquez s/n y Via Cotogchoa, Quito，Ecuador Test item description .................... : Smart Phone Trade Mark ....................................... : ENGY Model/Type reference ....................... : ENGY Pro 24 Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1: 1999 Edition IEEE Std 1528: 2013 Date of receipt of test sample..........: Aug. 22, 2023 Date of testing..............................: Sep. 07, 2023- Sep. 12, 2023 Date of issue...............................: Sep. 15, 2023 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators:Xiaodong Zhao Supervised by ( position+printedname+signature) ... : Test Engineer: Xiaodong Zhao Approved by ( position+printedname+signature) ... : Manager: Xu Yang Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23090019 Page: 2 of 39 Issued: 2023-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. RF Specification Description 6 3.4. Testing Laboratory Information 7 3.5. Environmental conditions 7 4. Equipments Used during the Test 8 5. Measurement Uncertainty 9 6. SAR Measurement System Configuration 10 6.1. SAR Measurement Set-up 10 6.2. DASY5 E-field Probe System 11 6.3. Phantoms 12 6.4. Device Holder 12 7. SAR Test Procedure 13 7.1. Scanning Procedure 13 7.2. Data Storage and Evaluation 15 8. Position of the wireless device in relation to the phantom 17 8.1. Head Position 17 8.2. Body Position 18 8.3. Hotspot Mode Exposure conditions 18 9. Dielectric Property Measurements & System Check 19 9.1. Tissue Dielectric Parameters 19 9.2. System Check 20 10. SAR Exposure Limits 28 11. Conducted Power Measurement Results and Tune-up 29 12. Antenna Location 32 13. Measured and Reported SAR Results 33 14. SAR Measurement Variability 36 15. Simultaneous Transmission analysis 37 16. Test Setup Photos 38 17. External and Internal Photos of the EUT 39 Report No.: CHTEW23090019 Page: 3 of 39 Issued: 2023-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) Type Test setting PCE WIFI BT Simultaneous TX Head Cheek 0.468 0.068 0.046 0.536 Body-worn Dist.= 10mm 0.946 0.150 0.094 1.096 Hotspot Dist.= 10mm 0.946 0.150 0.094 1.096 Note: 1. This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits (1.6 W/kg@1g) specified in FCC 47 CFR part 2 (2.1093) and IEEE Std C95.1, 2. This device had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and FCC KDB publications. Report No.: CHTEW23090019 Page: 4 of 39 Issued: 2023-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D04 Interim General RF Exposure Guidance v01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 248227 D01 802 11 Wi-Fi SAR v02r02: SAR Measurement Proceduresfor802.11 a/b/g Transmitters 648474 D04 Handset SAR v01r03: SAR Evaluation Considerations for Wireless Handsets 941225 D01 3G SAR Procedures v03r01: SAR Measurement Procedures for 3G Devices 941225 D05 SAR for LTE Devices v02r05: SAR Evaluation Considerations for LTE Devices 941225 D06 Hotspot Mode v02r01: SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities TCB workshop April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2023-09-15 Original Report No.: CHTEW23090019 Page: 5 of 39 Issued: 2023-09-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) 3. Summary 3.1. Clien…

Text truncated - open the document above for the full version.

RF Exposure Info

Appendix Report Appendix clause Result APASS BPASS CPASS Project No. SHT2308070102EW Test sample No. YPHT23080701001_02 Model No. ENGY Pro 24 Start test date 2023/9/7 Finish date 2023/9/12 Temperature 22.7°C Humidity 57% Conducted Power Measurement Results SAR Measurement Results Simultaneous Transmission analysis Test EngineerXiaodong ZhaoAuditor Test Item Appendix:1 of 41 Project No.:SHT2308070102EW Appendix A:Conducted Power Measurement Results-GSM CH128CH190CH251CH128CH190CH251 824.2MHz836.6MHz848.8MHz824.2MHz836.6MHz848.8MHz 33.1033.2232.9833.50-9.0324.0724.1923.9524.47 1Tx slot33.0532.8632.6133.50-9.0324.0223.8323.5824.47 2Tx slots32.3932.5532.2633.00-6.0226.3726.5326.2426.98 3Tx slots30.5430.6930.5331.00-4.2626.2826.4326.2726.74 4Tx slots28.7328.9128.7629.00-3.0125.7225.9025.7525.99 1Tx slot27.2727.1627.0327.50-9.0318.2418.1318.0018.47 2Tx slots27.2527.4327.2827.50-6.0221.2321.4121.2621.48 3Tx slots27.0527.2327.1027.50-4.2622.7922.9722.8423.24 4Tx slots26.7226.9326.7627.00-3.0123.7123.9223.7523.99 CH512CH661CH810CH512CH661CH810 1850.2MHz1880MHz1909.8MHz1850.2MHz1880.0MHz1909.8MHz 30.1430.4230.4130.50-9.0321.1121.3921.3821.47 1Tx slot30.1730.2630.2030.50-9.0321.1421.2321.1721.47 2Tx slots29.5429.7029.6830.00-6.0223.5223.6823.6623.98 3Tx slots27.8527.9827.9828.00-4.2623.5923.7223.7223.74 4Tx slots26.3926.5026.4727.00-3.0123.3823.4923.4623.99 1Tx slot26.3326.5126.4727.00-9.0317.3017.4817.4417.97 2Tx slots26.3326.5326.5427.00-6.0220.3120.5120.5220.98 3Tx slots26.3326.5126.4927.00-4.2622.0722.2522.2322.74 4Tx slots26.3526.5026.4427.00-3.0123.3423.4923.4323.99 GPRS (GMSK) EGPRS (8PSK) Burst Average Power (dBm)Frame-Average Power (dBm) GSM Burst Average Power (dBm)Frame-Average Power (dBm) Tune-up limit (dBm) Tune-up limit (dBm) Division Factors Division Factors Tune-up limit (dBm) Tune-up limit (dBm) GSM850 GSM1900 GSM GPRS (GMSK) EGPRS (8PSK) Appendix: 2/41 Project No.:SHT2308070102EW Appendix A:Conducted Power Measurement Results-WCDMA CH9262CH9400CH9538 1852.4MHz1880MHz1907.6MHz 22.9222.9922.7023.00 22.9523.0222.7323.50 Subtest-122.0022.1722.2522.50 Subtest-221.5521.6821.7722.00 Subtest-321.5721.7021.7822.00 Subtest-421.5621.6821.7922.00 Subtest-119.9920.1520.2320.50 Subtest-220.5120.6920.7621.00 Subtest-321.0121.1721.3221.50 Subtest-420.0620.1520.2420.50 Subtest-521.9422.0922.1922.50 CH4132CH4183CH4233 826.4MHz836.6MHz846.6MHz 23.0022.9622.5323.50 23.0322.9922.5623.50 Subtest-121.7521.6921.3722.00 Subtest-221.3121.2520.8821.50 Subtest-321.3421.2720.9021.50 Subtest-421.3321.2420.8721.50 Subtest-119.8319.7719.3620.00 Subtest-220.2520.1919.8120.50 Subtest-320.7820.7320.3021.00 Subtest-419.8819.7919.4120.00 Subtest-521.8221.7221.3522.00 HSDPA HSUPA Conducted Power (dBm) AMR 12.2K RMC 12.2K Conducted Power (dBm) AMR 12.2K Tune-up limit (dBm) Tune-up limit (dBm) WCDMA Band II WCDMA Band V RMC 12.2K HSDPA HSUPA Appendix: 3/41 Project No.:SHT2308070102EW Appendix A:Conducted Power Measurement Results-LTE Band-width (MHz)ModulationRB allocationRB offsetLowMiddleHigh 023.6623.7524.00 223.8623.9524.15 523.6823.7824.03 023.7623.8523.82 123.7723.8223.84 323.7423.8923.88 6022.7922.8923.0823.50 022.6922.8422.80 222.8923.0822.98 522.7122.8522.79 022.5922.7122.65 122.5922.7122.63 322.5822.6922.63 6021.7921.7421.7722.00 023.4823.6323.79 823.2823.5623.29 1423.1423.4323.33 022.1922.5522.37 422.2022.6822.36 722.1722.7622.33 15022.1922.6922.2523.00 022.5122.1922.56 822.2922.1722.31 1422.2622.2722.27 021.1621.3921.30 421.1621.6421.31 721.1621.5321.27 15021.0421.5021.2422.00 023.0323.1823.22 1223.1923.3123.43 2423.0723.2323.28 022.1522.2122.24 622.1522.2022.27 1322.0922.2322.26 25022.1522.2322.2522.50 022.1822.1322.21 1222.3422.2922.26 2422.2722.1722.11 021.1421.1721.17 621.1421.1621.20 1321.1121.2421.17 25021.1121.2621.2321.50 LTE-FDD Band 2 Conducted Power (dBm) 1.4 3 5 QPSK 16QAM QPSK 16QAM QPSK 16QAM 1 3 1 3 1 8 1 8 1 12 1 12 Tune-up Limit(dBm) 24.50 24.00 23.50 23.00 24.00 23.00 23.00 22.00 23.50 22.50 22.50 21.50 Appendix: 4/41 Project No.:SHT2308070102EW 023.3523.6223.76 2423.3723.4523.47 4923.1623.4723.38 022.2622.5522.35 1222.2822.8022.33 2522.2322.8222.44 50022.2522.7822.3823.00 022.3222.2022.91 2422.4822.3322.50 4922.3722.2022.33 021.3021.6721.31 1221.2821.8021.32 2521.2721.8221.40 50021.2321.7321.3422.00 023.0523.1923.17 3823.1923.2423.24 7423.0723.0923.16 022.2922.0422.36 1822.4422.1422.44 3722.3522.0022.19 75022.3222.3222.4822.50 022.2822.0522.36 3822.4322.1522.45 7422.3522.0022.19 022.2822.0522.36 1822.4522.1722.45 3722.3522.0222.19 75021.2521.2721.3621.50 022.9422.8623.03 4923.3023.2623.51 9922.9922.8523.18 022.1422.0622.43 2522.1322.0822.48 5022.2222.0922.47 100022.1622.0722.4622.50 022.0521.9622.09 4922.4822.3122.43 9922.1221.9722.01 021.1421.1121.43 2521.1521.1121.46 5021.2221.1321.45 100021.1721.0621.4321.50 10 15 20 QPSK 16QAM QPSK 16QAM QPSK 16QAM 1 25 1 25 1 38 1 38 1 50 1 50 24.00 23.00 23.00 22.00 23.50 22.50 22.50 22.50 24.00 22.50 22.50 21.50 Appendix: 5/41 Project No.:SHT2308070102EW Band-width(MHz)ModulationRB allocationRB offsetLowMiddleHigh 022.2522.4622.86 223.0222.5923.06 522.8922.4722.74 022.2322.5522.77 122.2422.5522.75 322.2922.5722.77 6021.3521.5421.8522.00 021.7521.5621.76 221.8721.7321.92 521.0821.6121.73 021.0321.4421.56 121.0421.4321.57 321.0121.4521.58 6020.3520.4420.6121.00 022.8923.0422.87 822.9423.0722.76 1422.9322.7922.73 021.9221.5721.85 421.9321.6021.99 721.9021.6222.06 15021.8221.5322.0222.50 021.8721.9421.79 821.8721.8321.78 1421.8421.6321.79 020.7920.6320.85 420.7920.6220.96 720.7720.6920.94 15020.6820.5121.1021.50 022.7122.9122.64 1222.9122.9622.81 2422.7822.5222.71 021.7121.4521.69 621.7321.4421.72 1321.7221.5121.65 25021.6721.4921.6922.00 021.7421.9221.50 1221.9221.7121.68 2421.7921.4921.60 020.6420.5120.61 620.6420.5120.60 1320.6720.5720.63 25020.6120.5820.6521.00 LTE-FDD Band 4 Conducted Power (dBm) 1.4 3 5 QPSK 16QAM QPSK 16QAM QPSK 16QAM 1 3 1 3 1 8 1 8 1 12 1 12 Tune-up Limit(dBm) 23.50 23.00 22.00 22.00 23.50 22.50 22.00 21.00 23.00 22.00 22.00 21…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/8/2023 GSM850-Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1) (0); Frequency: 836.6 MHz;Duty Cycle: 1:4.10015 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.913 S/m; ε r = 42.775; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.4, 10.4, 10.4) @ 836.6 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Touch Cheek/CH 190/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.217 W/kg Right Touch Cheek/CH 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.173 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.237 W/kg SAR(1 g) = 0.184 W/kg; SAR(10 g) = 0.144 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.218 W/kg 0 dB = 0.218 W/kg = -6.61 dBW/kg Appendix D: SAR Test Data Plots Plot No.1 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/12/2023 GSM1900-Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 1880 MHz; σ = 1.403 S/m; ε r = 41.214; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.64, 8.64, 8.64) @ 1880 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Touch Cheek/CH 661/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0850 W/kg Left Touch Cheek/CH 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.141 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.0990 W/kg SAR(1 g) = 0.061 W/kg; SAR(10 g) = 0.038 W/kg Maximum value of SAR (measured) = 0.0855 W/kg 0 dB = 0.0855 W/kg = -10.68 dBW/kg Appendix D: SAR Test Data Plots Plot No.2 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/12/2023 WCDMA Band II-Head Communication System: UID 0, Generic UMTS (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.403 S/m; ε r = 41.214; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.64, 8.64, 8.64) @ 1880 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Touch Cheek/CH 9400/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0622 W/kg Left Touch Cheek/CH 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.167 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.0760 W/kg SAR(1 g) = 0.046 W/kg; SAR(10 g) = 0.029 W/kg Maximum value of SAR (measured) = 0.0650 W/kg 0 dB = 0.0650 W/kg = -11.87 dBW/kg Appendix D: SAR Test Data Plots Plot No.3 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/8/2023 WCDMA Band V-Head Communication System: UID 0, Generic UMTS (0); Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.908 S/m; ε r = 42.786; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.4, 10.4, 10.4) @ 826.4 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Touch Cheek/CH 4132/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.129 W/kg Right Touch Cheek/CH 4132/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.554 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.145 W/kg SAR(1 g) = 0.107 W/kg; SAR(10 g) = 0.081 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.129 W/kg 0 dB = 0.129 W/kg = -8.90 dBW/kg Appendix D: SAR Test Data Plots Plot No.4 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/12/2023 LTE Band 2-Head Communication System: UID 0, Generic LTE-FDD (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.415 S/m; ε r = 41.206; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.64, 8.64, 8.64) @ 1900 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Touch Cheek/CH 19100/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0641 W/kg Left Touch Cheek/CH 19100/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.914 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.0750 W/kg SAR(1 g) = 0.047 W/kg; SAR(10 g) = 0.030 W/kg Maximum value of …

Text truncated - open the document above for the full version.

RF Exposure Info

Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/12/2023 GSM1900-Body&Hotspot Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 1880 MHz; σ = 1.403 S/m; ε r = 41.214; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.64, 8.64, 8.64) @ 1880 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 661/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.432 W/kg Rear/CH 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.874 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.561 W/kg SAR(1 g) = 0.301 W/kg; SAR(10 g) = 0.165 W/kg Maximum value of SAR (measured) = 0.453 W/kg 0 dB = 0.432 W/kg = -3.64 dBW/kg Appendix D: SAR Test Data Plots Plot No.14 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/12/2023 WCDMA Band II-Body&Hotspot Communication System: UID 0, Generic UMTS (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.403 S/m; ε r = 41.214; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.64, 8.64, 8.64) @ 1880 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 9400/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.619 W/kg Rear/CH 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.563 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.813 W/kg SAR(1 g) = 0.428 W/kg; SAR(10 g) = 0.229 W/kg Maximum value of SAR (measured) = 0.660 W/kg 0 dB = 0.619 W/kg = -2.08 dBW/kg Appendix D: SAR Test Data Plots Plot No.15 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/8/2023 WCDMA Band V-Body&Hotspot Communication System: UID 0, Generic UMTS (0); Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.908 S/m; ε r = 42.786; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.4, 10.4, 10.4) @ 826.4 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 4132/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.180 W/kg Rear/CH 4132/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.65 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.200 W/kg SAR(1 g) = 0.123 W/kg; SAR(10 g) = 0.079 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.169 W/kg 0 dB = 0.180 W/kg = -7.46 dBW/kg Appendix D: SAR Test Data Plots Plot No.16 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/12/2023 LTE Band 2-Body&Hotspot Communication System: UID 0, Generic LTE-FDD (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.415 S/m; ε r = 41.206; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.64, 8.64, 8.64) @ 1900 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 19100/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.532 W/kg Rear/CH 19100/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.363 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.685 W/kg SAR(1 g) = 0.364 W/kg; SAR(10 g) = 0.198 W/kg Maximum value of SAR (measured) = 0.561 W/kg 0 dB = 0.532 W/kg = -2.74 dBW/kg Appendix D: SAR Test Data Plots Plot No.17 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/7/2023 LTE Band 4-Body&Hotspot Communication System: UID 0, Generic LTE-FDD (0); Frequency: 1720 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1720 MHz; σ = 1.363 S/m; ε r = 41.421; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.2°C DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.99, 8.99, 8.99) @ 1720 MHz; Calibrated: 4/17/2023 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 20050/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.635 W/kg Rear/CH 20050/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.244 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.805 W/kg SAR(1 g) = 0.441 W/kg; SAR(10 g) = 0.247 W/kg Maximum value of SAR (measured) = 0.647 W/kg 0 dB = 0.635 W/kg = -1.97 dBW/kg Appendix D: SAR Test Data Plots Plot No.18 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 9/8/2023 LTE Band 5-Body&Hotspot Communication System: UID 0, Generic L…

Text truncated - open the document above for the full version.

RF Exposure Info

Appendix E: DAE and Probe Calibration Certificate 1 of 12 1. DAE4 Calibration Certificate Appendix E: DAE and Probe Calibration Certificate 2 of 12 Appendix E: DAE and Probe Calibration Certificate 3 of 12 Appendix E: DAE and Probe Calibration Certificate 4 of 12 2. Probe Calibration Certificate Appendix E: DAE and Probe Calibration Certificate 5 of 12 Appendix E: DAE and Probe Calibration Certificate 6 of 12 Appendix E: DAE and Probe Calibration Certificate 7 of 12 Appendix E: DAE and Probe Calibration Certificate 8 of 12 Appendix E: DAE and Probe Calibration Certificate 9 of 12 Appendix E: DAE and Probe Calibration Certificate 10 of 12 Appendix E: DAE and Probe Calibration Certificate 11 of 12 Appendix E: DAE and Probe Calibration Certificate 12 of 12

RF Exposure Info

Appendix F: Dipole Calibration Certificate 1 of 42 1.1. D750V3 Dipole Calibration Certificate Appendix F: Dipole Calibration Certificate 2 of 42 Appendix F: Dipole Calibration Certificate 3 of 42 Appendix F: Dipole Calibration Certificate 4 of 42 Appendix F: Dipole Calibration Certificate 5 of 42 Appendix F: Dipole Calibration Certificate 6 of 42 Appendix F: Dipole Calibration Certificate 7 of 42 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head-750 Date of measurement Return-loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary impedance (ohm) Delta (ohm) 2021-01-22 -28.6 53.6 -1.34 2022-01-17 -28.1 -1.75 53.5 0.1 -1.11 0.23 2023-01-15 -28.3 -1.05 53.3 0.3 -1.22 0.12 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5ohm of prior calibration. Therefore the verification result should support extended calibration. Appendix F: Dipole Calibration Certificate 8 of 42 1.2. D835V2 Dipole Calibration Certificate Appendix F: Dipole Calibration Certificate 9 of 42 Appendix F: Dipole Calibration Certificate 10 of 42 Appendix F: Dipole Calibration Certificate 11 of 42 Appendix F: Dipole Calibration Certificate 12 of 42 Appendix F: Dipole Calibration Certificate 13 of 42 Appendix F: Dipole Calibration Certificate 14 of 42 Extended Dipole Calibra…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Stephanie Wright

[email protected]+593 983513765Fax: -

Test Firm

Shenzhen Huatongwei International Inspection Co.,Tony Jiang

[email protected]+86-755-26748078

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.40 GHz - 2.48 GHz	400.00 µW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. This device is approved for use in the handset described in this filing. SAR compliance for body-worn operations is restricted to belt-clips, holsters, or similar accessories that have no metallic component in the assembly and which provide at least 1 cm separation between the device including its antenna and the body of user. End-users must be informed of the body-worn accessory operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are < 0.10 W/kg, 0.15 W/kg, 0.15 W/kg, and 1.10 W/kg, respectively.
