2BCQ3-TABPRO23TABLET
A3 MOBILE SAS
Click to zoom
Application Details
- Equipment Class
- DTS - Digital Transmission System
- Date of Grant
- Sep 21, 2023
- Application Purpose
- Original Equipment
- Date of Application
- Sep 21, 2023
- Equipment Note
- TABLET
- Frequency Range
- 2412.00000000 - 2462.00000000
- Company
- A3 MOBILE SAS
- Country
- Colombia
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
1 User Manual TAB_PRO23 2 1. Introduction 1.1 Specifications Details Description Model TAB_PRO23 Memory 4GB RAM Storage 32GB Built-in Storage Micro SD Support up to 128 GB. Operating System Android TM 11.0 OreoTM Data link WCDMA/GSM Connectivity Wi-Fi 802.11 b/g/n, Micro USB Port, Bluetooth 4.2, USB OTG Function, Sensor G-Sensor Camera 13.0 MP Rear camera with LED Flash and 5.0 MP Front camera Display 10.1inch IPS capacitive Multi-Touch Display 3 Support Video Supports 3G2, 3GP, AVI, MP4, MKV, M2TS, WEBM, MOV Support Image Supports BMP, GIF, JPG, PNG, WBMP Support Audio Supports AAC, AMR, FLAC, MIDI, MP2, MP3, OGG, WAV Battery 5000mAh Li-polymer Battery Charger Rating 100-240V 50/60Hz <0.3A max Output 5.0V--2A Dimension & Weight 240.6 x 167.6 x 9.5mm and 400g 4 2. Read Your Notification Airplane Mode Wi-Fi Bluetooth Headset Mode Do Not Disturb Alarm set USB connected File player Music playback Screenshot captured Voice Search Google Search Battery indication Battery charging Volume - Volume + Back Home Task Event reminder 5 3. Using Features a. Power ON/OFF: Using the Power Key (ON/OFF), you can get the tablet on Standby, to Restart or Shutdown b. Internet: You device’s networking capabilities allow you to access Internet using your browser, through Wi-Fi. c. Gmail: Using the Gmail option, it is possible to communicate with people via E-mails. d. Photos: In the gallery, you can see captured/saved pictures and videos. e. Music: Using the Music Player, you can play your favorite music. The songs saved in your Memory Card can be played using the Music Player of the device. f. Camera: Use the rear and front camera to capture pictures and record videos. 4. Settings Network & Internet 6 Wi-Fi: Select Wi-Fi from settings if you wish to use Wi-Fi for your data connection. Open the Wi-Fi settings screen; select it from the network list. Provide your username or password if required. Data Usage: It provides a graphical representation of data usage for a specified Data Usage cycle through Mobile internet and Wi- Fi. Hotspot & tethering: Slide can be used as a wireless modem for PCs, Tablets and Mobile Phones. VPN: VPN stands for Virtual Private Mode. Using this feature, you can connect to your private network through a public network Airplane Mode: Using this, you can turn the Airplane mode ON/OFF. Connected device Bluetooth ON/OFF: Tick on the Bluetooth checkbox at Settings to turn Bluetooth services ON/OFF. With Bluetooth services on, you can refresh, rename and see the received files. Printing: To print your photos, document, and more from your phone, check to see if your printer’s manufacture has an app on Google TM Play Store, Then touch Apps---->Setting---->Printing to get started 7 Apps & notification Notification: Notifications appear at the top of the screen. You can change the notification alerts settings for applications. Apps: Using this you can manage your applications in Tablet. Battery: It gives you the current battery level, along with the distribution of battery consumption by different apps. Display: Using the options in Display settings, a wallpaper of your choice can be set. There are options like auto-rotate screen and much more. Sound: Select to open the volume control for Media, Alarm and Ringtone. You will also get "Vibrate for calls" and "Do not disturb" options. Voice call Ringtone: Select your ringtones for incoming calls for SIM Default Notification Ringtone: Select a ringtone to use for a notification. Default Alarm Ringtone: Select a ringtone to use for alarm. 8 Other Sounds: You can change the settings here for Dial pad tones, Screen lock sounds, Charging sounds, Touch- sounds and Vibrate on tap. Sound Enhancement: Select BesLoudness for volume booster for speaker. Storage : View and manage the data storage in your Tablet. Security & Location Security: Change the settings of screen lock, SIM card lock, passwords, device administration and Credential storage. Location: You can turn location mode ON/OFF completely, or just change your device's location accuracy mode. Each mode uses different sources to estimate your device’s location. User & accounts Users: Create multiple users for one device. 9 Accounts: You can add new accounts like Gmail, WhatsApp etc., here. Accessibility: These are the settings to help visually impaired users. System Language & Input: Include language settings, keyboard and input methods and so on. Date & Time: Enables you to set your device’s date and time settings. Backup & Reset: If you reset Slide to the settings that were configured at the factory, all of your personal data from internal storage, including information about your Gmail Account, any other accounts, your system and application settings, and any downloaded applications, will be erased. Developer Options: This provides you with the option to customize the device settings. About tablet: This provides the device information like model number, kernel version, build number, android version, etc. 10 5. Applications Gmail: Configure your Gmail account in phone and access your mails. Maps: Use this application to pinpoint the location of the device, search for places, or get directions. Play Movies & TV: Enjoy Movies and TV shows on Play Movies & TV. Some are for rental, some for purchase, and others for both rental and purchase. Play Store: Use this application to purchase and download applications and games that are able to run on your Slide. 11 5. FCC statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de…
Text truncated - open the document above for the full version.
Cover Letter(s)
Sincerely, Name/Title： LUIS CESPITIA HERNANDEZ /ADMINISTRATIVE MANAGER Company: A3 MOBILE SAS Address: CRA 20 13 58 OFIC 509 BOGOTA Colombia Phone: 18027650336 Fax: N/A E-Mail: [email protected]

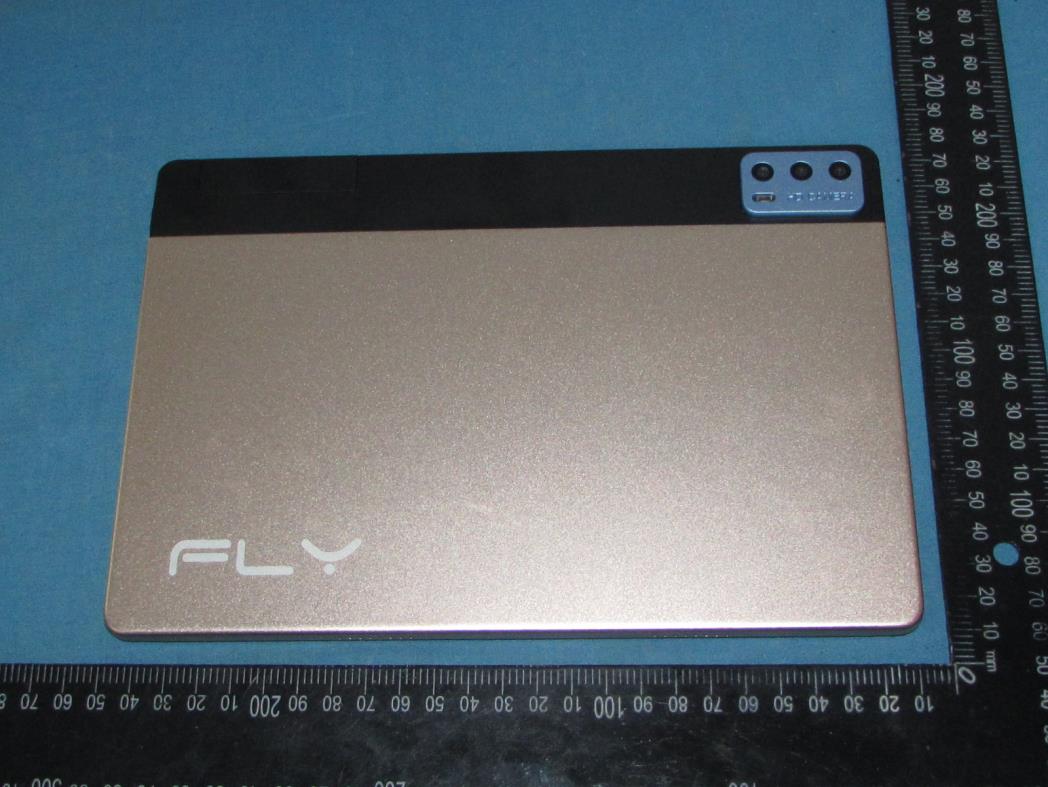

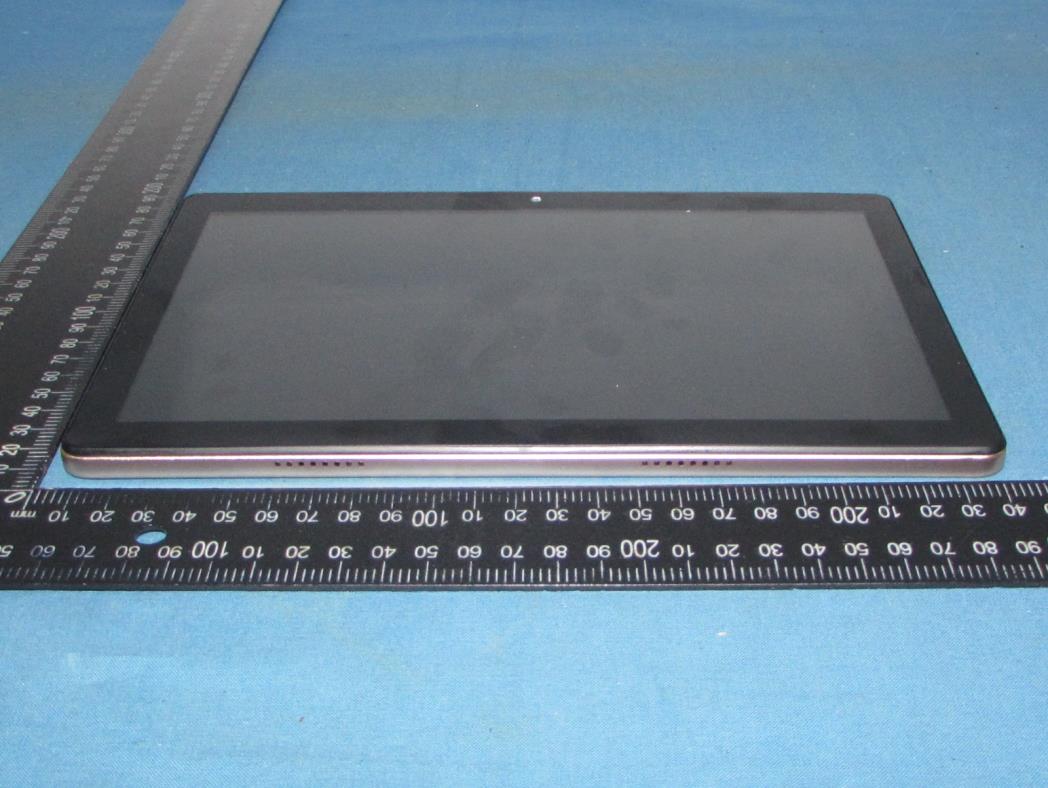

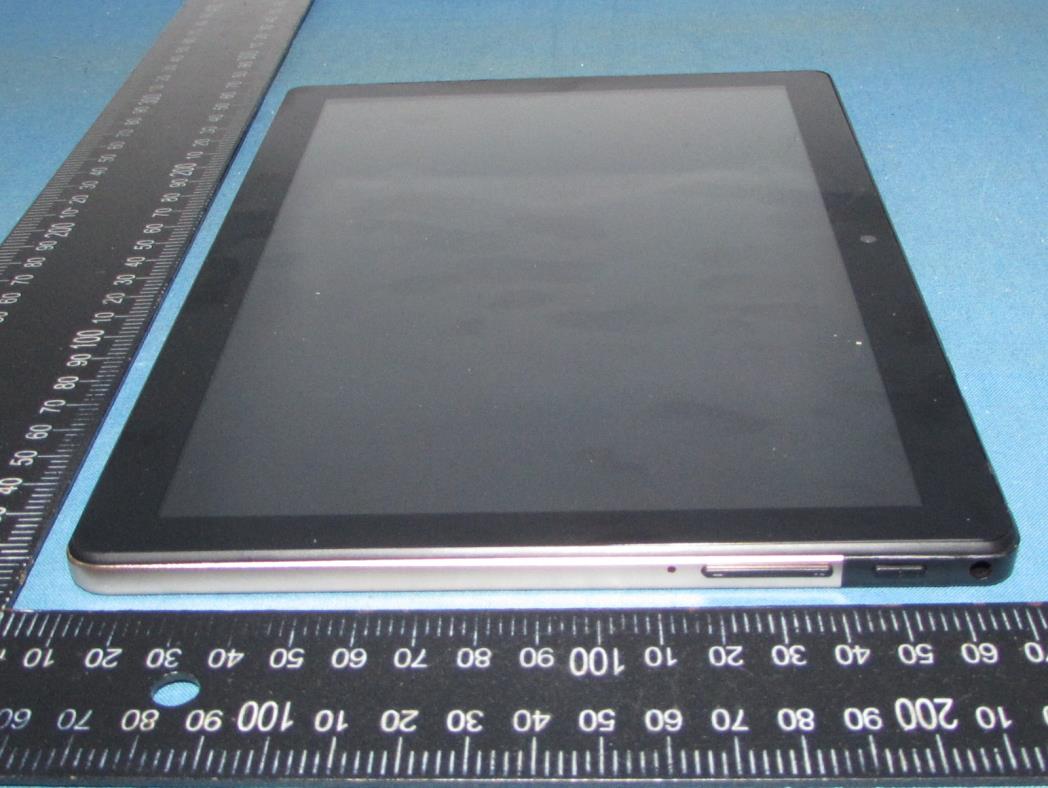

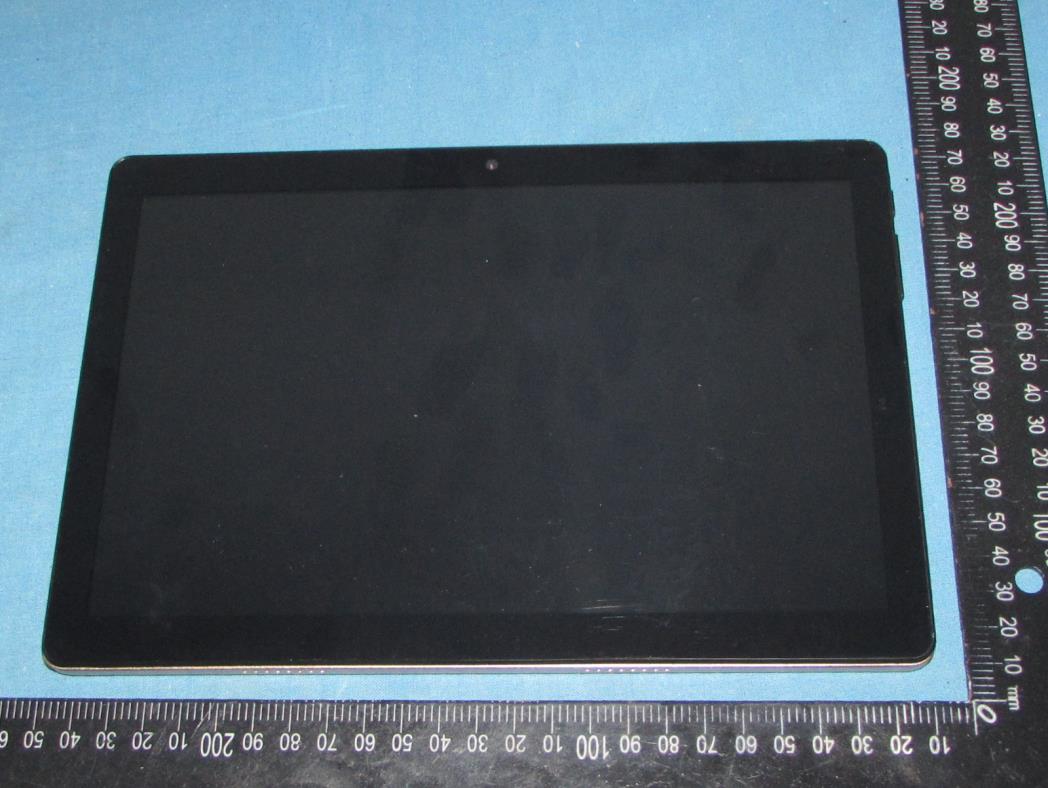

External Photos
Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6
ID Label/Location Info
Label Location: FCC ID: 2BCQ3-TABPRO23
Internal Photos
Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 WiFi/Bluetooth /GNSS antenna WCDMA/ GSM antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Fig.10
RF Exposure Info
!! " !#$ %# &'()*+,$ ! )$ ! - %./-0 10/2 $ !#''/ 3- 3-%% /!0%$ 4- 0 !3 3 . -" 2 -.)%-/- $1- 0 5%-/- $ $.0 %! $ - 0 36 !3!0/%!-3 /- (7- %1/!) /-0 !#8 +9:** 1!';9 <=>?@<ABC<A36 #-#CB=<DE>FABCGC><?=B BHIFEDJ=B)@BKA-@E>KBL*M,<NBFGB0=BO>KCB/EHIEF *M*P+1!. 0 (7/0 <=>?@<A>EFC<AB8+*:&+:*+*' QQR STUVUTWXYZ[\]^_ QW` VaVTbVcb WXdddQW RVQ R IBGKBEeAIB Ee@<H?@<FC<FCAIB<HH@BC>A<A>EF@BeB@BFHBK>KD@EI>?>ABCe@Ef<Fg@BD@ECGHA>EF# hijjkl mnTYSWQop XU`R Y XUYUn p UnWSVXSR YobUY RWpVXVQQR STU Sqrq [sT bStRWc QVbTcRVUTWX` R WRp SVUruvwoYTXxUn yzt qU YUc XQnw WRoY dTUnVruvqrq Y{YU pWXb{mn U YUR YobUYQWa R Sc{VQQR STUVUTWXVR URVQ Vcb UWUn zXU RXVUTWXVb{YU pW |XTUY}z~ !3 !0/ (7>B=C1@E?B <=>?@<A>EF/BDE@A Ref : ACR.41.6.23.BES.A !"# $%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1 ?@AB( CD EFGH IJKLM"NO HF PP NJO Q" R"SRJILK"IT "UK"SO GN VLPP JR GN S ROT WGOFJLO OF" WRGOO"N SSRJX P JV YZ[\ EF" GNVJRM OGJN KJNO GN"I F"R"GN GH OJ Q" LH"I J NP] VJR OF" SLRSJH" VJR WFGKF GO GH HLQMGOO"I NI GH NJO OJ Q" R"P" H"I GN WFJP" JR S RO WGOFJLO WRGOO"N SSRJX P JV YZ[\ ^ M" _LNKOGJN ` O" aG!N OLR" R"S R"I Q] # bcdef ghi jiklmino pnlnqd uF"Kv"I Q] # bcdef ghi jiklmino pnlnqd wSSRJX"I Q] xnll jyhznml gn{ydnzyd| }mdizyd uLHOJM"R ^ M" `GHORGQLOGJN # g~j klkl jz jiklyoyq| y gz HHL" ^ M" ` O" YJIGVGK OGJNH bcdef ghi lmzmno don Ref: ACR.41.6.23.BES.A 2/10/2023 2/10/2023 2/10/2023 2/10/2023 !"# $%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1 ?@AB( CD EFGH IJKLM"NO HF PP NJO Q" R"SRJILK"IT "UK"SO GN VLPP JR GN S ROT WGOFJLO OF" WRGOO"N SSRJX P JV YZ[\ EF" GNVJRM OGJN KJNO GN"I F"R"GN GH OJ Q" LH"I J NP] VJR OF" SLRSJH" VJR WFGKF GO GH HLQMGOO"I NI GH NJO OJ Q" R"P" H"I GN WFJP" JR S RO WGOFJLO WRGOO"N SSRJX P JV YZ[\ ^ _`ab cdef ghi jfkelbi _hbfamiakd ^ ndfop qdkfroiakd sssssssssssssssssssssssssssssssssssssssssssssssssssssss t uohlfrdi uivke t^ wadofaix ssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss t dhaia`aix sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss tt wkyf _ibiakd warai sssssssssssssssssssssssssssssssssssssssssssssssssssss t qhkifkmx sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss t^ kldeofx bi ssssssssssssssssssssssssssssssssssssssssssssssssssssssssss uohlfrdi cdbfioadix z opa{foiakd uohlfrdi hlpih z ^ dhaia`aix ad oaf ssssssssssssssssssssssssssssssssssssssssssssssssssssssssss z wadofaix ssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss | t dhaia`aix ad pa}lae ssssssssssssssssssssssssssssssssssssssssssssssssssssssss ~ qhkifkmx sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss z wahi k }lamrdi ^ Ref: ACR.41.6.23.BES.A !"# $%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1 ?@AB( CD EFGH IJKLM"NO HF PP NJO Q" R"SRJILK"IT "UK"SO GN VLPP JR GN S ROT WGOFJLO OF" WRGOO"N SSRJX P JV YZ[\ EF" GNVJRM OGJN KJNO GN"I F"R"GN GH OJ Q" LH"I J NP] VJR OF" SLRSJH" VJR WFGKF GO GH HLQMGOO"I NI GH NJO OJ Q" R"P" H"I GN WFJP" JR S RO WGOFJLO WRGOO"N SSRJX P JV YZ[\ ^ _ ` abcdeb fghbi jbkl mnop qrs tut mt vu qv wv xm yt uz{|zp}|~~ u u ~oz | ~ yt y~|p} {o}o{ { | w~|{pr z{ y~ o}z{p q~ mos z} {{p}~ mos u mos u mos u ` x vwtuqvt ¡¢ £ ¤¥¦§ ̈ ©ª«¬¦ ª¦ ¬®¥§ ̄ ¥° zpp~z{p } } v v ±² z{ w ³m ² m }z{z~ ́μ¶· ̧ ^ ¹ YZ[ º»Y»¼½¾ ¿JHGM"ORGK À VG"PI RJQ" y~ x{} x{} v{ono|z mos uzÁo | Á}~{z oz }~ ² y~ qos Á}~{z moz }~ mo}z{p }{ os s~ Á}~ o}r  ` à q v v ±² z{ w ³m ² m }z{z~ s~no ~p { s~zp}op ~ } s~ pzo~z}o{Ä o{p|o{ } s~~ z{p pz~zp}~o}op o{}~} z{ } r op } z }o~ zp} pzo~z}o{ z|~ {} s~~ } } ~ {}o{ }z{z~ xv vqÅ q nz|z}o{ } o{z~o}r z { o{ ~ szp |o{ } zn|oÄ s~~ o{ z s~ s } pn~ } ~z{ ÆÇ } ÆÇ vqvvqÅ q {o}ono}r zp}~ } }~ os ~ }~ o{ |o{ z } }s pzo~z}o{ } zo~ z { }o| o |z}o{ o|o |o{ zn|o z |}o{ o{ } }z{z~ Ref: ACR.41.6.23.BES.…
Text truncated - open the document above for the full version.
RF Exposure Info
The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China SAR TEST REPORT Product Name: TABLET Model Name: TAB_PRO23, T-1000, T-900, T-500. FCC ID: 2BCQ3-TABPRO23 Issued For : A3 MOBILE SAS CRA 20 13 58 OFIC 509 BOGOTA, 110111 COLOMBIA Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report Number: LGT23H078HA01 Sample Received Date: Aug. 30, 2023 Date of Test: Sept. 01, 2023 ~ Sept. 07, 2023 Date of Issue: Sept. 08, 2023 Max. SAR (1g): Body:1.038 W/kg Report No.: LGT23H078HA01 Page 2 of 48 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 7 1.3 Test Factory 7 2. Test Standards and Limits 8 3. SAR Measurement System 9 3.1 Definition of Specific Absorption Rate (SAR) 9 3.2 SAR System 9 4. Tissue Simulating Liquids 12 4.1 Simulating Liquids Parameter Check 12 5. SAR System Validation 14 5.1 Validation System 14 5.2 Validation Result 14 6. SAR Evaluation Procedures 15 7. EUT Antenna Location Sketch 16 7.1 SAR test exclusion consider table 17 8. EUT Test Position 21 8.1 Body-worn Position Conditions 21 9. Uncertainty 22 9.1 Measurement Uncertainty 22 10. Conducted Power Measurement 23 10.1 Test Result: 23 11. EUT and Test Setup Photo 26 11.1 EUT Photos 26 11.2 Setup Photos 29 12. SAR Result Summary 32 12.1 Body-worn and Hotspot SAR 32 13. Equipment List 35 Appendix A. System Validation Plots 36 Appendix B. SAR Test Plots 42 Appendix C. Probe Calibration and Dipole Calibration Report 48 Report No.: LGT23H078HA01 Page 3 of 48 Revision History Rev. Issue Date Contents 00 Sept. 08, 2023 Initial Issue Report No.: LGT23H078HA01 Page 4 of 48 TEST REPORT CERTIFICATION Applicant A3 MOBILE SAS Address CRA 20 13 58 OFIC 509 BOGOTA, 110111 COLOMBIA Manufacture Shenzhen Jinhengzhi Technology Co., Ltd. Address 3307, TOWER A,WORLD TRADE PLAZA, FUTIAN, SHENZHEN, CHINA Product Name TABLET Trademark FLY Model Name TAB_PRO23, T-1000, T-900, T-500. Sample number LGT2308069-1 APPLICABLE STANDARDS STANDARD TEST RESULTS ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 (2.1093) IEEE 1528: 2013 PASS Prepared by: Approved by: Zane Shan Engineer Vita Li Manager Report No.: LGT23H078HA01 Page 5 of 48 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name TABLET Trademark FLY Model Name TAB_PRO23 Series Model T-1000, T-900, T-500. Model Difference Only different in model name. Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled Hardware Version B863B_V3.0X Software Version FLY_TECHNOLOGY-TAB_PRO23-9365DAH3N91BOE-8525-230822 Frequency Range GSM 850: 824 ~ 849 MHz PCS 1900: 1850 ~ 1910 MHz WCDMA Band II: 1850 ~ 1910 MHz WCDMA Band V: 824 ~ 849 MHz WLAN 802.11b/g/n20: 2412 MHz ~ 2462 MHz Bluetooth: 2402 ~ 2480 MHz Max. Reported SAR(1g): (Limit:1.6W/kg) Test distance: 0mm Mode Body Worn and Hotspot(W/kg)) GSM 850 1.038 PCS 1900 0.823 WCDMA Band II 0.505 WCDMA Band V 0.509 2.4G WLAN 0.288 Bluetooth 0.091 1-g Sum SAR 1.326 Battery Rated Voltage:3.85V Capacity: 5000mAh Operating Mode: GSM: GSM Voice; GPRS Class 12 WCDMA: RMC, HSDPA, HSUPA Release 6 2.4G WLAN: 802.11b(DSSS): CCK, DQPSK, DBPSK 802.11g(OFDM): BPSK, QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK, QPSK,16-QAM,64-QAM Bluetooth: GFSK +π/4DQPSK+8DPSK BLE: GFSK Antenna Specification GSM/WCDMA: PIFA Antenna Bluetooth: PIFA Antenna WLAN: PIFA Antenna Operating Mode Maximum continuous output Report No.: LGT23H078HA01 Page 6 of 48 SIM Card Only support single SIM Card. Hotspot Mode Support DTM Mode Not Support Report No.: LGT23H078HA01 Page 7 of 48 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Accreditation Certificate FCC Registration No.: 746540 A2LA Certificate No.: 6727.01 IC Registration No.: CN0136 Report No.: LGT23H078HA01 Page 8 of 48 2. Test Standards and Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial- Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D04 v01 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices 5 FCC KDB 865664 D01 v01r04 SAR Measurement 100 MHz to 6 GHz 6 FCC KDB 865664 D02 v01r02 RF Exposure Reporting 7 FCC KDB 941225 D01 v03r01 SAR Measurement Procedures for 3G Devices 8 FCC KDB 941225 D06 v02r01 Hotspot Mode SAR 9 FCC KDB 248227 D01 Wi-Fi SAR v02r02 SAR Considerations for 802.11 Devices 10 FCC KDB 616217 D04 SAR for laptop and tablets v01r02 SAR Evaluation Considerations For Laptop, Notebook, Netbook And Tablet Computers (A). Limits for Occupational/Controlled Ex…
Text truncated - open the document above for the full version.
Test Report
Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 1 页 共 10 页 Antenna datasheet Antenna Sample Confirmation From Vendor name Shenzhen Aihui Technology Co., Ltd Customer name Jay Hong Sample name CZ960RW01 Product model Part Number Sample specifications main antenna; CZ960RW01-3G-AH cable length; 155mm (0.81) two-end stripping wire dipping tin three-in-one; CZ960RW01-WGB- AH thimble type Inspection items Performance testing Performance Visual inspection Total Appearance structure structure other Others Inspection Result remark QA Audit Engineering audits Engineer Audit Chen Yichu Sales Confirm The following is filled in by the customer The following are filled by Customer Customer Evaluation Signation/Stam p by the client by Customer Date: 2023.08.22 - Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 2 页 共 10 页 Antenna Test Report Test unit: Shenzhen Aihui Technology Co., Ltd Test by：ShenZhen Aihui Technology Co.，Ltd material FPC Antenna type Monopole Type Polarization mode Polarization mode Linear Application scenarios Operating frequency band GSM/WCDMA/ 2.4 WiFi/BT/GPS VSWR ≤2 power Power Max：2W impedance Impedance 50Ω gain dBi ≥1dBi Test the equipment Test Equipment HPE5071C、Shielding Room、3D automatic turntable Antenna Description:： 1. Grounding processing and picture description: no 2. Need to change the motherboard to match: no ⚫ Test voltage: 3.6V, check the antenna contact is good before testing. ⚫ The RF cable of the integrated tester is kept in a natural state and can not be curled. Specification:test the specified power level, all indicators must conform to the specifications. Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 3 页 共 10 页 1. Project pictures 2. Test tools 3. Antenna matching circuit 4. S11 test 4.0 S11 Test Method Description 4.1 S11 parameter picture 5. Darkroom test equipment and data 5.0 Test Equipment 5.1 Active Test Data 6. Schematic diagram of antenna assembly 7. Antenna environment treatment 8. Antenna mass production index 9. Structural drawings Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 4 页 共 10 页 1. Project picture None Note: The customer's final verification of antenna performance prototype is kept in our company for at least one year, which is convenient to analyze and solve abnormal situations in the mass production of antennas and ensure the quality of antenna shipments 2. Test tools Purpose: To test the passive parameters of the antenna as accurately as possible. Production method: The hand tool is made of a 50 ohm coaxial cable, one end is connected to the test point at the back of the matching circuit (the front end of the RF test hole) of the mobile phone motherboard, and the other end is connected to the SMA connector. The schematic diagram is as follows: 3. Antenna matching circuit Modify point/Modify E01 E02 E03 Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 5 页 共 10 页 No No No Note: The match is not modified. Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 6 页 共 10 页 4. S11 test 4.0 S11 Test Method Description Test equipment: Network analyzer (E5071C). Test method: Exit a 50 ohm CABLE cable from the instrument test port, use calibration pieces to connect the SMA connector of the handset, and record the return loss and VSWR corresponding to the relevant frequency point. The test diagram is as follows: Test schematic 5. Darkroom test equipment and data 5.0 Test Equipment Test System: Shielded chamber Test environment: temperature 22°C±3°C, humidity 50%±15%. Test equipment: When testing passive data, use the network analyzer AgilentE5071C When testing active data, use the CMW500 Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 7 页 共 10 页 5.1 Antenna active test data 5.1 Antenna passive test data Main antenna Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 8 页 共 10 页 Three-in-one dayline Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 9 页 共 10 页 6.1 Antenna Location 3 in 1 day line Main Skyline Shenzhen Aihui Technology Co., Ltd司 Address: Shenzhen Baoan District Xixiang Gushu Nanchang Community Juxin Science and Technology Industrial Park C 座 402 TEL：0755- 23203435 FAX：0755-23203435 第 10 页 共 10 页 6.2 WIFI/GPS measurement 7. Environmental treatment / None 8.Antenna mass production indicators When the antenna is mass-produced, the VSWR is used as the mass production test standard。 According to the differences of the project itself,The following criteria are given： 10m from the router si gn a l ful l Surfing the Internet is normal GPS searches for stars on the roof of our building There are 1-2 stars with a star value of 4 0, fixed at time 60s, the weather is sunny. Frequency rate Mass production standards 824MHZ -2170MHZ V SW R (PRODUCTION PERFORMANCE) < VSW R…
Text truncated - open the document above for the full version.
Test Report
Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 1 of 19 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: TABLET Trade Mark: FLY Test Model: TAB_PRO23 FCC ID: 2BCQ3-TABPRO23 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.664 2401.664 2402.328 0.5 PASS 2440 0.652 2439.676 2440.328 0.5 PASS 2480 0.632 2479.680 2480.312 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 2 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0325 2401.4938 2402.5263 --- --- 2440 1.0253 2439.4920 2440.5173 --- --- 2480 1.0254 2479.4941 2480.5195 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 4 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 5 of 19 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 -7.59 ≤30 PASS 2440 -6.38 ≤30 PASS 2480 -5.43 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 6 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 7 of 19 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -22.93 ≤8.00 PASS 2440 -21.6 ≤8.00 PASS 2480 -20.72 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 8 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 9 of 19 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -7.87 -66.86 ≤-27.87 PASS High 2480 -5.66 -69.33 ≤-25.66 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 10 of 19 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -7.72 -7.72 --- PASS 30~1000 -7.72 -61.47 ≤-27.72 PASS 1000~26500 -7.72 -50.73 ≤-27.72 PASS 2440 Reference -7.37 -7.37 --- PASS 30~1000 -7.37 -61.73 ≤-27.37 PASS 1000~26500 -7.37 -50.61 ≤-27.37 PASS 2480 Reference -5.59 -5.59 --- PASS 30~1000 -5.59 -61.53 ≤-25.59 PASS 1000~26500 -5.59 -50.11 ≤-25.59 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 12 of 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 13 of 19 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 14 of 19 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BCQ3-TABPRO23 Report No.: TZ230804786-E2 Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] BLE_1M Ant1 2402 0.39 0.62 62.90 2.56 2440 0.40 0.63 63.49 2…
Text truncated - open the document above for the full version.
Contact Information
Applicant
LUIS CESPITIA HERNANDEZ
Test Firm
Shenzhen Tongzhou Testing Co., LTDAndy Zhang
[email protected]+86-755-32902198
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15C | 2.41 GHz - 2.46 GHz | 8.00 mW |
Other Applications from A3 MOBILE SAS
