2BCQKGD03Glow Sleep Easy

Glow Sleep Easy User Manual Glow Sleep Easy User Manual Glow Sleep Easy User Manual The Glow Sleep Easy is the multi-award-winning smart sleep device that combines Red LED Light Therapy, Pink Noise and an Ultrasonic Humidifier to enrich your sleep routine, make settling easier and quicker and reduce night waking. The Glow Sleep Easy Green LED Light helps resolve early waking by letting your little one know when it’s time to start the day. You can also download our Glow Sleep Genie App if you would like some real time assistance with scheduling your day and answering your sleep questions. The Glow Sleep Easy has been designed with safety in mind and to support your little one at every stage of their life. Timer Drainage Outlet Water Tank Main Body Lock Cool Mist Volume Green LED Red LED Cover Glow Sleep Easy User Manual 1x Glow User Manual Product component list (supplied in loose) 1x Glow Sleep Easy unit1x Power Cord G lo w S le e p E a s y U s e r M a n u a l G l ow S l ee p E a s y Glow Sleep Easy User Manual WARNING This Glow Sleep Easy is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User’s Guide, safe to use. Therefore, always read the instructions in this User’s Guide carefully before using the device. Adult assembly is required. Keep small parts away from children when assembling. • This product is not a toy. Do not allow children to play with it. • This Glow Sleep Easy is not a substitute for responsible adult supervision. • Keep this User’s Guide for future reference. • Keep the cords out of reach of children. • Do not cover the Glow Sleep Easy with a towel or blanket. • Test this Glow Sleep Easy and all its functions so that you are familiar with it prior to actual use. • Do not use the Glow Sleep Easy in damp areas or close to water. • Do not install the Glow Sleep Easy in extreme cold or heat, direct sunlight, or close to a heat source. • Only use the power cord provided. Do not use other power cords as this may damage the device. • Do not touch the plug contacts with sharp or metal objects. • Connect the power adapters to easily accessible electrical sockets. • Unplug the appliance during filling and cleaning. • Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp. IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY Glow Sleep Easy User Manual Quick Set up 1. 4. 1. Remove Glow Sleep Easy from box, open lid. Remove Plug. 3. 3. Turn off wall power switch. Connect plug to Glow Sleep Easy, then to the wall socket. Turn on wall power. 4. Fit lid back on unit. 2. 2. Fill humidifier with cold water. Glow Sleep Easy User Manual Quick Set up 5. 6. 7. 8. 1m/3ft away Eye level Download our App to control your Glow Sleep Easy remotely and access special features 5. Your Glow Sleep Easy should be positioned on a side table or stool, eye level. 6. Position 1m or 3ft away from where your child is asleep. 7. They should be able to see it easily when they’re lying down. 8. Press buttons to turn on or download our free app to control remotely. Glow Sleep Easy User Manual 1. Unwrap all components. Remove power cable and any filler from inside the water tub. 2. Stand the base of the Glow on a flat, stable, hard surface 3. If using the humidifier, add water, taking care not to get any water in the air return or power outlet. Fill to your desired time-level but do not fill past Max line. 4. Connect the AC adaptor to the DC socket on the rear of the unit. Then plug the power cord into your wall socket with the power turned off, and lastly turn on the power at the wall. 5. Seek medical advice before using any aromatherapy. If using Glow Dreaming oils, add water to the tank (fill up to max line depending on how many hours its required to run) and essential oil according to your child’s age group, as outlined in the manual. Please do not exceed the recommended dosage. 6. Fit the lid over the base. There is a locking feature that requires a gentle push and twist. An audible click will be heard when lid is shut. Once locked in place the lid cannot be removed unless twisted. Always fit the lid before you turn the unit on. Getting Started - General Operation Download our App to control your Glow Sleep Easy remotely and access special features. Glow Sleep Easy User Manual Getting Started - General Operation (R ed Light) (Green Light)(Pink Noise) Sleep LED Switching between defaults to level 1 Button Press Awake LEDVolume 1 0 2 3 Humidifier + Duration Timer contr ols all functions Once the reservoir is empty, only the humidifier will turn off, all other functions will remain on. 2hr 4hr On Off OffOffOff Glow Sleep Easy User Manual 7. Press the Sleep LED button to turn the Red LED Light on to the dimmest setting. Press again to change the brightness: there are 3 brightness settings. To turn the Red Light off, simply hold the button down. Switching off the Sleep LED button will not affect any other settings. 8. Press the Awake LED button to turn the Green LED Light on to the dimmest setting. Press again to change the brightness: there are 3 brightness settings. To turn the Green Light off, simply hold the button down. Switching off the Awake LED button will not affect any other settings. 9. Press the Volume button to turn on the Pink Noise to the softest setting. Press again to change the volume: there are 3 volume settings. To turn the Pink Noise off, simply hold the button down. Switching off the Volume button will not affect any other settings. 10. Press the Humidifier button to turn on the Cool Mist to the 2 hour timer. Press the button again to extend the timer to 4 hours, and press a third time to let the humidifier run until the water tank is nearly empty (no timer). a. W…

Text truncated - open the document above for the full version.

Attestation Statements -US agent Company name: Address: suite 113, 377 New South Head Road, Double Bay 2028, Australia FRN: 0034032631 Contact Name: Aloni Benau Telephone No: +61423022878 Email: [email protected] Signature [name] ： Aloni Benau U.S. Agent Information: Company name: Baihetian Innovative Solutions Address: 6837 Chase Rd Dearborn, MI 48126 FRN: 0033401605 Contact Name: Kenneth Young Telephone No: 313-395-3113 Email: [email protected] Signature [name] ： Kenneth Young Glow Dreaming Holdings Pty Ltd Applicant Information： Commission-related proceeding involving the equipment. grantee has terminated all marketing and importation or the conclusion of any agent for service of process, provides an agent for no less than one year after the (Baihetian Innovative Solutions) accepts the responsibility to act as designated U.S. any Commission-related proceeding involving the equipment. after the grantee has terminated all marketing and importation or the conclusion of Dreaming Holdings Pty Ltd accepts to maintain an agent for no less than one year Innovative Solutions) to act as our designated U.S. agent for service of process,Glow Glow Dreaming Holdings Pty Ltd the undersigned, hereby authorize (Baihetian RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BCQKGD03) Columbia, MD 21046, USA 7435 Oakland Mills Road Authorization and Evaluation Division TO: Federal Communications Commission 2023-09-27

Glow Dreaming Holdings Pty Ltd 2023-08-14 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BCQKGD03) The applicant: Glow Dreaming Holdings Pty Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Print name: Aloni Benau Title: Director Signature: Glow Dreaming Holdings Pty Ltd 2023-08-14 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BCQKGD03) The applicant: Glow Dreaming Holdings Pty Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Print name: Aloni Benau Title: Director Signature:

Glow Dreaming Holdings Pty Ltd Agent Authorization Letter 2023-08-14 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (The Hong Kong Standards and Testing Centre Limited) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Print name: Aloni Benau Title: Director Signature:

Glow Dreaming Holdings Pty Ltd Long Term Confidentiality Request Letter Date: 2023-08-14 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Glow Sleep Easy MODEL: GD03 FCC ID: 2BCQKGD03 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (block diagram/schematics /operational description ) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Print name: Aloni Benau Title: Director Signature:

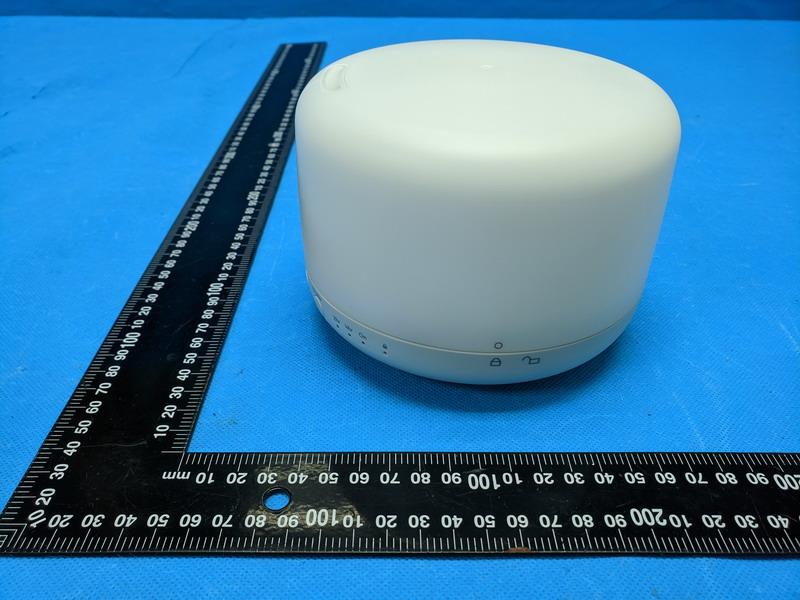

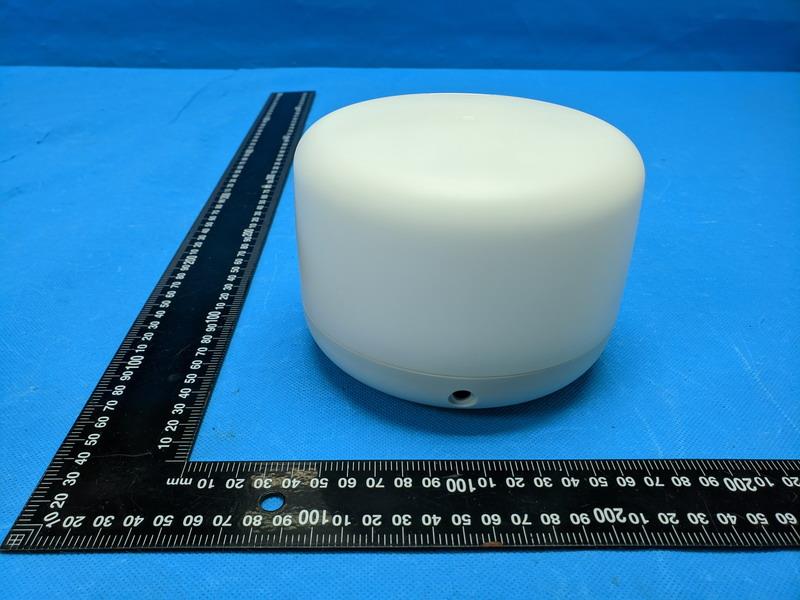

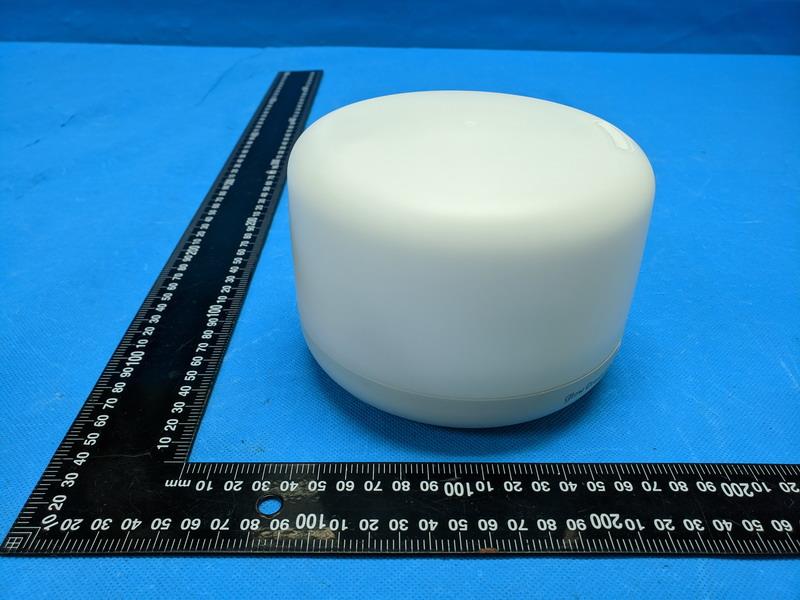

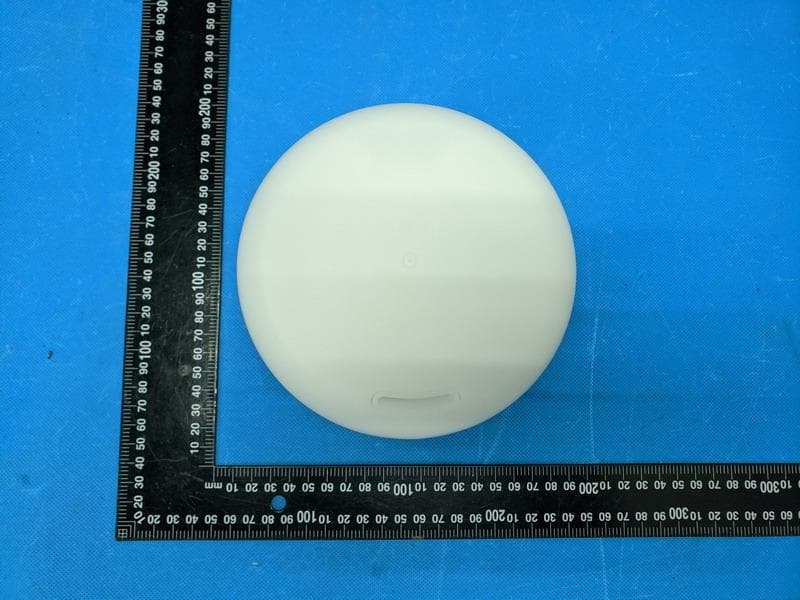

1 External Photo FCC ID: 2BCQKGD03 View of The Product View of The Product 2 View of The Product View of The Product 3 View of The Product View of The Product 4 View of The Product View of The Product

PRELIMINARY DESIGN PU LI JUAN EWIG COPYRIGHT @ 2023-ALL DISTRIBUTION UNDER NDA NON-DISCLOSURE AGREEMENT Rev 01 27 SEP-2023 P/N:774-GLO00201-555-9 :50#PET,, ,RoHS :85.5x32.5mm, :Pantone 319C, : product code + build month + batch numberSO# material:50#white PET,high and low temperature testing,RoHS Attach location:Product size:85.5x32.5mm, Color:Pantone 319C, Surface disposal:Matt PP lamination. product code + build month + batch number refer to SO#. GLO002 Sleep Easy Label 85.5mm 32.5mm GLO002:(Product Code is:GD03) Build Month format is: MMYY (example, today would be 0823:PMC) Batch Number is x3 digits 001 (example, first batch is 001:3, ) Example:GD03-0823-001

1 Internal Photo FCC ID: 2BCQKGD03 Inner View of the EUT adapter of the EUT 2 Inner View of the EUT Inner View of the EUT 3 Inner circuit top view Inner circuit top view 4 Inner View of the EUT Inner View of the EUT 5 BT antenna

RF Exposure Test Requirement: FCC 47CFR 15.247(i) FCC ID: 2BCQKGD03 Test Date: 2023-08-07 Mode of Operation: BT Tx mode Requirements: In 15.247(i), an equipment shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the limits in §§ 1.1310 and 2.1093 of this chapter. Applications to the Commission for construction permits, licenses to transmit or renewals thereof, equipment authorizations or modifications in existing facilities must contain a statement confirming compliance with the limits unless the facility, operation, or transmitter is categorically excluded, as discussed below. Technical information showing the basis for this statement must be submitted to the Commission upon request. According to KDB447498 D04 General RF Exposure Guidance v01, Appendix B B.2 Blanket 1 mW Blanket Exemption The 1 mW Blanket Exemption of § 1.1307(b)(3)(i)(A) applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power of no more than 1mW, regardless of separation distance. Result: The Maximum ERP = 0.569mW (at frequency = 2.480GHz) < 1mW (ERP=EIRP-2.15=-2.448)

Antenna specification 1. Antenna describe: Antenna plate PCB Antenna Make name/model name F Antenna Antenna gain 0dBi Frequency range 2.402GHz-2.480GHz Connector type direct Location of mearement(company name) Dongguan Q & S Electronic Manufacturing Company Limited No.2,North 3rd Street, Xiangmang West Road, Qingxi Town, Dongguan City, Guangdong Province, China. 2.External view drawing: Picture of antenna 3. Antenna Radiation Pattern 3.1.Radiation [email protected] Total Average Gain:0.0dbi 3.2.Radiation [email protected] Total Average Gain:0.0dbi 3.3.Radiation [email protected] Total Average Gain:0.0dbi

Test Report Date : 2023-09-27 Page 1 of 40 No. : HMD2370010 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant : Glow Dreaming Holdings Pty Ltd Suite 113, 377 New South Head Road, Double Bay, NSW, Australia, 2028 Supplier / Manufacturer : Glow Dreaming Holdings Pty Ltd Suite 113, 377 New South Head Road, Double Bay, NSW, Australia, 2028 Description of Sample(s) : Submitted sample(s) said to be Product: Glow Sleep Easy Brand Name: Glow Dreaming Model No.: GD03 FCC ID: 2BCQKGD03 Date Samples Received : 2023-07-27 Date Tested : 2023-07-27 to 2023-08-07 Investigation Requested : Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2017 and ANSI C63.10:2013 for FCC Certification. Conclusions : The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks : Bluetooth DTS (GFSK) Test by Susu _______________________________ Dr.CHAN Kwok Hung, Brian Authorized Signatory Test Report Date : 2023-09-27 Page 2 of 40 No. : HMD2370010 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 40 Content Page 2 of 40 1.0 General Details 1.1 Test Laboratory Page 3 of 40 1.2 Equipment Under Test [EUT] Page 3 of 40 Description of EUT operation 1.3 Date of Order Page 3 of 40 1.4 Submitted Sample(s) Page 3 of 40 1.5 Test Duration Page 3 of 40 1.6 Country of Origin Page 3 of 40 1.7 RF Module Details Page 4 of 40 1.8 Antenna Details Page 4 of 40 1.9 Channel List Page 4 of 40 2.0 Technical Details 2.1 Investigations Requested Page 5 of 40 2.2 Test Standards and Results Summary Page 6 of 40 3.0 Test Results 3.1 Emission Page 7-35 of 40 Appendix A List of Measurement Equipment Page 36 of 40 Appendix B Photograph(s) of Product Page 37-40 of 40 Test Report Date : 2023-09-27 Page 3 of 40 No. : HMD2370010 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate, New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Glow Sleep Easy Manufacturer: Glow Dreaming Holdings Pty Ltd Suite 113, 377 New South Head Road, Double Bay, NSW, Australia, 2028 Brand Name: Glow Dreaming Model Number: GD03 . Rating: 24Vd.c. by Adaptor The AC/DC adaptor was provided by the applicant with following details: Brand name: N/A, Model no.: MP12-240065-AX, Input: 100-240Va.c. 50/60Hz 0.4A Max, Output: 24Vd.c. 0.65A 15.6W 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Glow Sleep Easy. The transmission signal is digital modulated with channel frequency range 2402-2480MHz. The R.F. signal was modulated by IC; the type of modulation used was digital transmission Modulation. 1.3 Date of Order 2023-07-27 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2023-07-27 to 2023-08-07 1.6 Country of Origin China Test Report Date : 2023-09-27 Page 4 of 40 No. : HMD2370010 The Hong Kong Standards and Testing Centre Limited Head Office: 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Unit B, 10/F, Block 1, Tai Ping Industrial Centre, No. 57 Ting Kok Road, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.7 RF Module Details Module Model Number: Nrf52810 Module FCC ID: N/A Module Transmission Type: Bluetooth 5.0 BLE Modulation: GFSK Data Rates: 1Mbps Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: Integrated antenna Antenna Gain: 0.0dBi 1.9 Channel List Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 20 2442 1 2404 21 2444 2 2406 22 2446 3 2408 23 2448 4 2410 24 2450 5 2412 25 2452 6 2414 26 2454 7 2416 27 2456 8 2418 28 2458 9 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 …

Text truncated - open the document above for the full version.

1 Test Photo FCC ID: 2BCQKGD03 Measurement of Radiated Emission Test Set Up (9kHz – 30MHz) Measurement of Radiated Emission Test Set Up (30MHz to 1000MHz) 2 Measurement of Radiated Emission Test Set Up (Above 1000MHz) Measurement of Conducted Emission Test Set Up
