2BCQL-M9Bluetooth speaker

Connect 2. After open the phone Bluetooth, Click the <M9> to P airing 1. Long press for 2s to power on Bluetooth Device nameK30 > key functions Schlüsselfunktionen Bluetooth Device name Available Devices M9 Nova7 > Bluetooth Device nameK30 > Bluetooth Device name Available Devices M9 Nova7 > 1. Keep the product away from extremely hot and cold environments, it will damage the battery and circuit. 2. Avoid liquid immersion into the product. 3. Do not disassemble the product. 4. Do not use concentrated chemical products or detergents to clean the product. 5. Use only 5V/1A power supply. Connecting the power supply voltage too high may cause serious damage. 6. Do not randomly discard or place the product near fire or high temperature to avoid the danger of explosion. Safety Instructions 1. Halten Sie das Produkt von extrem heißen und kalten Umgebungen fern, da dies den Akku und den Schaltkreis beschädigen kann. 2. Vermeiden Sie das Eintauchen von Flüssigkeiten in das Produkt. 3. Zerlegen Sie das Produkt nicht. 4. Verwenden Sie keine konzentrierten chemischen Produkte oder Reinigungsmittel, um das Produkt zu reinigen. 5. Verwenden Sie nur 5V/1A Netzteil. Das Anschließen der Versorgungsspannung zu hoch kann schwere Schäden verursachen. 6. Das Produkt nicht willkürlich entsorgen oder in der Nähe von Feuer oder hohen Temperaturen platzieren, um Explosionsgefahr zu vermeiden. Sicherheitshinweise Power on/off： Press and hold “①” 2s Change Lights： Click “①” Reset： Press and hold “①” 8s Play/Pause: Click “②” Adjust Volume: Click “③”/“④” Switch Song: Press and hold the “③”/“④” 2s Answer/Hang up: Click “②” Reject Call: Press and hold “②”3s Voice Assistant： Press and hold “②” 2s Bluetooth/U disk/TF card Function Switching： Click “⑤” TWS： Press and hold “⑤” 2s Disconnect Bluetooth: Press and hold “⑤” 5s  Support free replacement of damaged products. (No need to return damaged products) Scan the code to enter our website （xtikland.com） to activate the warranty within 14 days after receiving the product. Email: [email protected] WhatsApp： +86 13242960237 Facebook：facebook.com/Tiklands     Please activate 2-year warranty within 14 days   ① ② ③ ⑤ ④ Verbinden

Bitte aktivieren Sie die 2-Jahres-Garantie innerhalb von 14 Tagen Deutsch Unterstützen Sie den kostenlosen Ersatz beschädigter Produkte. (Beschädigte Produkte müssen nicht zurückgegeben werden)   Scannen Sie den Code, um unsere Website ( xtikland.com) aufzurufen und die Garantie innerhalb von 14 Tagen nach Erhalt des Produkts zu aktivieren. Email: [email protected] WhatsApp： +86 13242960237 Facebook：facebook.com/Tiklands Ein-/Ausschalten: Halten Sie „①“ 2 Sekunden lang gedrückt Lichter ändern: Klicken Sie auf „①“ Zurücksetzen： Halten Sie „①“ 8 Sekunden lang gedrückt Wiedergabe/Pause: Klicken Sie auf „②“ Lautstärke einstellen: Klicken Sie auf „③“/„④“ Song wechseln: Halten Sie „③“/„④“ 2 Sekunden lang gedrückt Annehmen/Auflegen: Klicken Sie auf „②“ Anruf ablehnen: Halten Sie „②“ 3 Sekunden lang gedrückt Sprachassistent: Halten Sie „②“ 2 Sekunden lang gedrückt Funktionsumschaltung: Klicken Sie auf „⑤“ TWS: Halten Sie „⑤“ 2 Sekunden lang gedrückt Bluetooth trennen: Halten Sie „⑤“ 5 Sekunden lang gedrückt 1. Zum Einschalten 2 Sekunden lang drücken 2. Nachdem Sie die Bluetooth-Funktion des Telefons geöffnet haben, klicken Sie auf <M9> zum Koppeln Cont ac t@e vatmas ter .com Cont ac t@e vatmas ter .com Cont ac t@e vatmas ter .com Cont ac t@e vatmas ter .com ① ② ③ ⑤ ④ FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Wanlian Da industry and trade Co., LTD 401, Jiahui Business Center, 1213 Guanlan Street, Guanlan Road, Longhua New District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/09/01 U.S. Agent Designation Shenzhen Wanlian Da industry and trade Co., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BCQL-M9): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Wanlian Da industry and trade Co., LTD Shenzhen Wanlian Da industry and trade Co., LTD with the FRN [0034192419] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Jianchang Ma Manager Shenzhen Wanlian Da industry and trade Co., LTD Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Jianchang Ma/Manager Company: Shenzhen Wanlian Da industry and trade Co., LTD Address: 401, Jiahui Business Center, 1213 Guanlan Street, Guanlan Road, Longhua New District, Shenzhen China Phone: 15012669958 Fax: N/A E-Mail: [email protected]

Label and Location Size: L: 2.0cm*W: 1.5cm Label and Location Model No.: M9 FCC ID : 2BCQL-M9

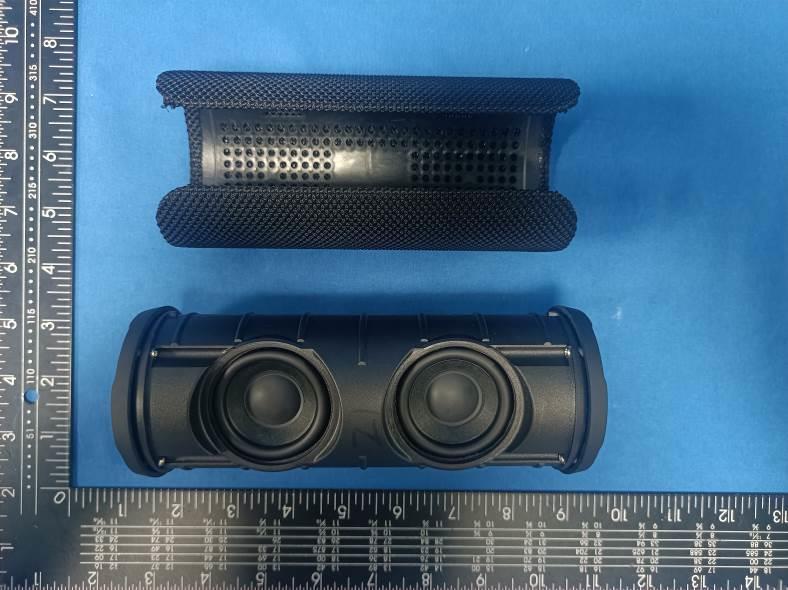

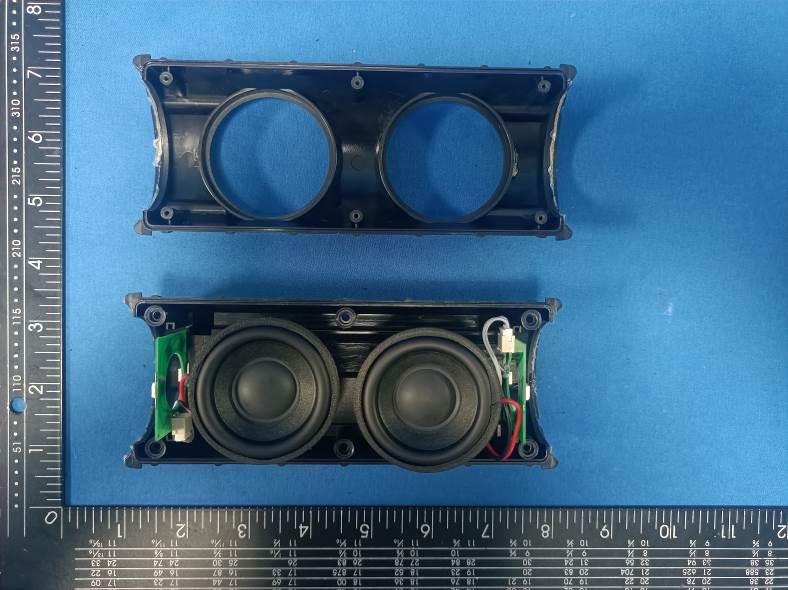

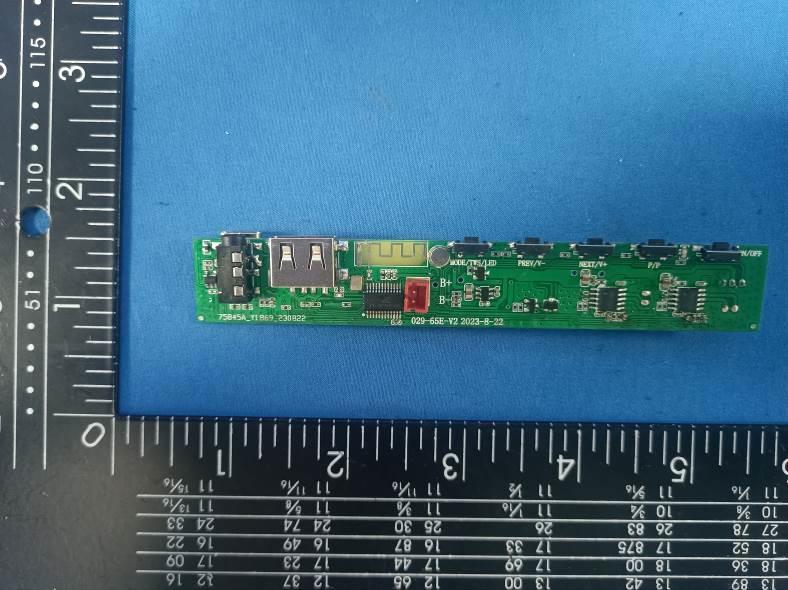

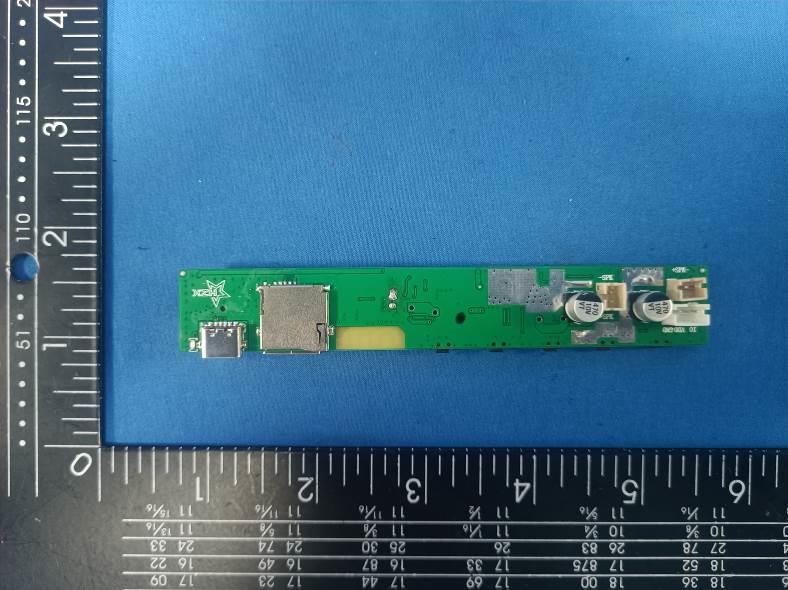

FCC ID: 2BCQL-M9 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BCQL-M9 Photo 4 Photo 5 Photo 6 BT PCB Antenna FCC ID: 2BCQL-M9 Photo 7 Photo 8 Photo 9 FCC ID: 2BCQL-M9 Photo 10 Photo 11 Photo 12 FCC ID: 2BCQL-M9 Photo 13 Photo 14 Photo 15 FCC ID: 2BCQL-M9 Photo 16 Photo 17

RF Exposure evaluation FCC ID: 2BCQL-M9 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 1.0 1.2589 0.3941<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23082801201 2BCQL-M9 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 31, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Wanlian Da industry and trade Co., LTD Address ............................................ : 401, Jiahui Business Center, 1213 Guanlan Street, Guanlan Road, Longhua New District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth speaker Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Wanlian Da industry and trade Co., LTD Model/Type reference ...................... : M9 Listed Models .................................. : M1 ,M2, M3, M4, M5, M6, M7, M8, M10, M11, M12, M13, M14, M15, M16, M17, M18, M19, M20 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA23082801201 Page 2 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth speaker Model /Type : M9 Listed Models : M1 ,M2, M3, M4, M5, M6, M7, M8, M10, M11, M12, M13, M14, M15, M16, M17, M18, M19, M20 Applicant : Shenzhen Wanlian Da industry and trade Co., LTD Address : 401, Jiahui Business Center, 1213 Guanlan Street, Guanlan Road, Longhua New District, Shenzhen, China Manufacturer : Shenzhen Wanlian Da industry and trade Co., LTD Address : 401, Jiahui Business Center, 1213 Guanlan Street, Guanlan Road, Longhua New District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23082801201 Page 3 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Output Power 19 4.4 20dB Bandwidth 20 4.5 Frequency Separation 23 4.6 Number of hopping frequency 25 4.7 Time of Occupancy (Dwell Time) 27 4.8 Out-of-band Emissions 30 4.9 Antenna Requirement 37 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 38 6 P H O T O S O F T H E E U T ........................................................... 39 Report No.: CTA23082801201 Page 4 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA23082801201 Page 5 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou…

Text truncated - open the document above for the full version.

FCC ID: 2BCQL-M9 Test Setup Photos of the EUT
