2BCQN-SMS-T27Bluetooth Headset

用户姓名 联系电话 商家名称 邮 箱邮 编 通讯地址 用 户 信 息 联系地址 联系电话 生产日期 邮 编 销售日期 销售商盖章 销 售 信 息 维修次数 第一次 第二次 第三次 第四次 维修单位名称 维修原因 (维修机构填写) 维修时间 保修卡 Name Contact number The shop's name Mail Zip code Address U s e r I n f o Address Contact number Production Date Zip code Sales date Seller stamp S a l e s i n f o r m a t i o n Number of repairs first Second Third Fourth Maintenance unit name Maintenance reason (Repair agency) Repair time WARRANTY CARD WIRELESS EARBUDS PRODUCT MANUAL 真无线蓝牙耳机使用说明书 开机 关机状态:长按3秒触摸区域 手动开机 开机状态:长按5秒触摸区域 手动关机 关机 手机打开蓝牙搜索设备名连接即可使用 (超过5分钟无连接耳机会自动关机) 连接设备 播放/暂停/接听电话/挂断电话----单击触摸区域 切换下一曲----双击触摸区域 切换上一曲----三击触摸区域 拒绝来电----长按2秒触摸区域 操作控制 (左右耳均可) 用中英文提示音,默认英文,未连接状态5连击切换提示音. 提示音 耳机开机红蓝灯交替闪烁 连上手机关闭耳机灯光 低电时有低电提示红色灯光 关机播报提示音时,红灯快闪, 灯光 充电电流30ma 首次连接手机不要最大音量. 手机调整音量后同步跟随手机系统. 来电提示音同步手机铃声 注意 Automatic pairing at boot Earbuds pairing You can use the mobile phone to turn on the Bluetooth to search for the device name to connect. (The headset will automatically shut down if it is not connected for more than 5 minutes) Connect digital equipment Play/pause/answer/end call----click on the touch area Switch to the next song----double-click the touch area Switch to the previous song----three-click the touch area Voice assistant----long press the touch area for 2 seconds Reject the call----long press the touch area for 2 seconds Operation control (both left and right ears) Boot up Shutdown status: Press and hold for 3 seconds to manually turn on the touch area Shut down Power on status: Press and hold for 5 seconds to manually turn off the touch area Use both Chinese and English prompt tones, default to English, and switch between 5 combo clicks when connected Reminder sound The red and blue lights flicker alternately when the headphones are turned on Connect your phone and turn off the headphone light When the battery is low, there is a red light indicating low battery When the shutdown broadcast prompt sounds, the red light flashes quickly, Pilot lamp Charging current 30ma Just don't use the maximum volume when connecting your phone for the first time Synchronize with the phone system after adjusting the volume Incoming call reminder tone synchronization with phone ringtone Notice 用Type-C充电线连接耳机到5V电源适配器。 (温馨提示：耳机电池电量低于3.3V 开始播报低电提醒(声音提示：低电 请充电)，红灯闪烁（10%电量开始提醒） Connect the earphones to the 5V power adapter with a Type-C charging cable.(Warm tip: When the headset battery is less than 3.3V, it will broadcast a reminder of low battery (sound tip: battery low).Red light flashing (10% battery starts to remind) FCCSTATEMENT: ThisdevicecomplieswithPart15oftheFCCRules.Operationissubject tothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. Warning:Changesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser'sauthoritytooperatethe equipment. NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththe limitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules. Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipment generatesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguarantee thatinterferencewillnotoccurinaparticularinstallation.Ifthisequipment doescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuseris encouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp. RFwarningstatement: ThedevicehasbeenevaluatedtomeetgeneralRFexposure requirement.Thedevicecanbeusedinportableexposurecondition withoutrestriction.

- Shantou AIRUIKA Electronics Co., LTD - The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 1/10/2024 U.S. Agent Designation [Shantou AIRUIKA Electronics Co., LTD] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: [2BCQN-SMS-T27]): Name and company of U.S. agent: USA MEIHUA TRADING INC Physical U.S. address of agent: 5379 Pine Valley Ct Boulder CO 80301 United States FRN of U.S. agent: 0033406166 Email address of U.S. agent: [email protected] [USA MEIHUA TRADING INC] acknowledges their obligation to accept service of process on behalf of [Shantou AIRUIKA Electronics Co., LTD]. [Shantou AIRUIKA Electronics Co., LTD] with the FRN [0034192526] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanentl y terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm th e above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature [Name] Zhiwei Weng [Title] Manager [Company] Shantou AIRUIKA Electronics Co., LTD Signature [Name of U.S. agent] Harley Quinn [Title of U.S. agent] Manager [Company of U.S. agent] USA MEIHUA TRADING INC 48_[mo del] US_Agent_2.911(d)(7) - U, V04

Shantou AIRUIKA Electronics Co., LTD The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 1/10/2024 To whom it may concern: We, [Shantou AIRUIKA Electronics Co., LTD], hereby certi fy that the equipment for which authorization is sought (FCC ID: [2BCQN-SMS-T27]) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the fi lin g of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist ) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature [Name] Zhiwei Weng [Title] Manager [Company] Shantou AIRUIKA Electronics Co., LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V02

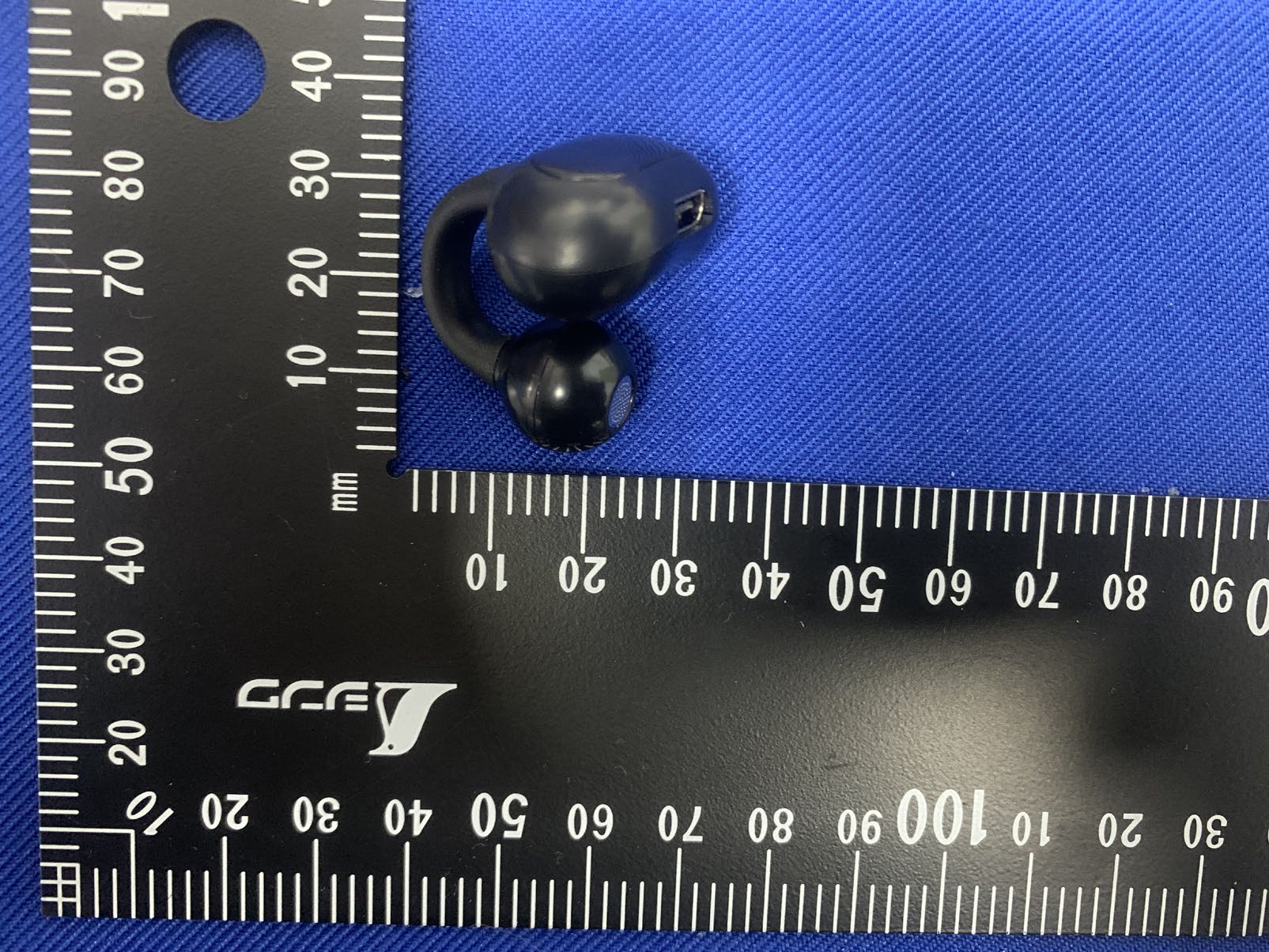

Page 1 of 4 Report No.: 8135EU122703W-AB ANNEX B EXTERNAL PHOTOS PHOTO 1 PHOTO 2 SMS-T27 T33 Page 2 of 4 Report No.: 8135EU122703W-AB PHOTO 3 PHOTO 4 Page 3 of 4 Report No.: 8135EU122703W-AB PHOTO 5 PHOTO 6 Page 4 of 4 Report No.: 8135EU122703W-AB PHOTO 7 PHOTO 8 --- End ---

Label Location On EUT Label FCC ID: 2BCQN-SMS-T27

Page 1 of 3 Report No.: 8135EU122703W-AC ANNEX C INTERNAL PHOTOS PHOTO 1 PHOTO 2 Ceramic Antenna Page 2 of 3 Report No.: 8135EU122703W-AC PHOTO 3 PHOTO 4 Page 3 of 3 Report No.: 8135EU122703W-AC PHOTO 5 PHOTO 6 --- End ---

RF EXPOSURE EVALUATION FCC ID: 2BCQN-SMS-T27 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR eva luation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 2402 2.14 2.14±1 3.14 5 0.639 3 BDR&EDR 2441 2.26 2.26±1 3.26 5 0.662 3 2480 2.07 2.07±1 3.07 5 0.639 3 2402 4.30 4.30±1 5.30 5 1.050 3 2441 4.65 4.65±1 5.65 5 1.148 3 2480 4.22 4.22±1 5.22 5 1.048 3 Test Results: PASS.

Page 1 of 41 Report No.: 8135EU122703W-AD ANNEX D Test Report For Project No.: 8135EU122703W Client: Shantou AIRUIKA Electronics Co., LTD Manufacturer: Shantou AIRUIKA Electronics Co., LTD Product Description: Bluetooth Headset / SMS-T27 Test Engineer: Test Date: 2024-01-02 Page 2 of 41 Report No.: 8135EU122703W-AD Test Summary Item Result Duty Cycle Pass Bandwidth Pass Maximum Conducted Output Power Pass Carrier Frequency Separation Pass Number of Hopping Frequencies Pass Time of Occupancy (Dwell Time) Pass Unwanted Emissions In Non-restricted Frequency Bands Pass Page 3 of 41 Report No.: 8135EU122703W-AD 1. Duty Cycle 1.1 Ant1 1.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) GFSK SISO 2402 DH5 2.884 3.750 76.91 1.14 0.03 2441 DH5 2.884 3.750 76.91 1.14 0.03 2480 DH5 2.884 3.749 76.93 1.14 0.03 Pi/4DQPSK SISO 2402 2DH5 2.894 3.751 77.15 1.13 0.03 2441 2DH5 2.894 3.751 77.15 1.13 0.03 2480 2DH5 2.895 3.751 77.18 1.12 0.03 Page 4 of 41 Report No.: 8135EU122703W-AD 1.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 5 of 41 Report No.: 8135EU122703W-AD GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 6 of 41 Report No.: 8135EU122703W-AD Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 7 of 41 Report No.: 8135EU122703W-AD 2. Bandwidth 2.1 OBW 2.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result GFSK SISO 2402 DH5 1 0.824 Pass 2441 DH5 1 0.824 Pass 2480 DH5 1 0.823 Pass Pi/4DQPSK SISO 2402 2DH5 1 1.176 Pass 2441 2DH5 1 1.173 Pass 2480 2DH5 1 1.175 Pass Page 8 of 41 Report No.: 8135EU122703W-AD 2.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 9 of 41 Report No.: 8135EU122703W-AD GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 10 of 41 Report No.: 8135EU122703W-AD Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 11 of 41 Report No.: 8135EU122703W-AD 2.2 20dB BW 2.2.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result GFSK SISO 2402 DH5 1 0.937 Pass 2441 DH5 1 0.939 Pass 2480 DH5 1 0.935 Pass Pi/4DQPSK SISO 2402 2DH5 1 1.295 Pass 2441 2DH5 1 1.299 Pass 2480 2DH5 1 1.294 Pass Page 12 of 41 Report No.: 8135EU122703W-AD 2.2.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 13 of 41 Report No.: 8135EU122703W-AD GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 14 of 41 Report No.: 8135EU122703W-AD Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 15 of 41 Report No.: 8135EU122703W-AD 3. Maximum Conducted Output Power 3.1 Power 3.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 2.14 <=30 Pass 2441 DH5 2.26 <=30 Pass 2480 DH5 2.07 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 4.30 <=20.97 Pass 2441 2DH5 4.65 <=20.97 Pass 2480 2DH5 4.22 <=20.97 Pass Page 16 of 41 Report No.: 8135EU122703W-AD 3.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 17 of 41 Report No.: 8135EU122703W-AD GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 18 of 41 Report No.: 8135EU122703W-AD Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 19 of 41 Report No.: 8135EU122703W-AD 4. Carrier Frequency Separation 4.1 Ant1 4.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.020 0.939 >=0.939 Pass Pi/4DQPSK SISO HOPP 2DH5 1.001 1.299 >=0.866 Pass Page 20 of 41 Report No.: 8135EU122703W-AD 4.1.2 Test Graph GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 21 of 41 Report No.: 8135EU122703W-AD 5. Number of Hopping Frequencies 5.1 HoppNum 5.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass Page 22 of 41 Report No.: 8135EU122703W-AD 5.1.2 Test Graph GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 23 of 41 Report No.: 8135EU122703W-AD 6. Time of Occupancy (Dwell Time) 6.1 Ant1 6.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.382 31.600 320 122.240 <=400 Pass DH3 1.640 31.600 159 260.760 <=400 Pass DH5 2.888 31.600 115 332.120 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.392 31.600 320 125.440 <=400 Pass 2DH3 1.650 31.600 158 260.700 <=400 Pass 2DH5 2.898 31.600 120 347.760 <=400 Pass Page 24 of 41 Report No.: 8135EU122703W-AD 6.1.2 Test Graph GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV Page 25 of 41 Report No.: 8135EU122703W-AD GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV Page 26 of 41 Report No.: 8135EU122703W-AD GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 27 of 41 Report No.: 8135EU122703W-AD Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Page 28 of 41 Report No.: 8135EU122703W-AD Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Page 29 of 41 Report No.: 8135EU122703W-AD Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 30 of 41 Report No.: 8135EU122703W-AD 7. Unwanted Emissions In Non-restricted Frequency Bands 7.1 Ref 7.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 1.90 2441 DH5 1 2.01 2480 DH5 1 1.84 Pi/4DQPSK SISO 2402 2DH5 1 1.73 2441 2DH5 1 2.21 2480 2DH5 1 1.86 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. Page 31 of 41 Report No.: 8135EU122703W-AD 7.1.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_…

Text truncated - open the document above for the full version.

TEST REPORT Report No.: 8135EU122703W Applicant: Shantou AIRUIKA Electronics Co., LTD Address: Sixth Street, Zhongtai West District, Hengshan Village, Gurao Town, Chaoyang, Shantou City, Guangdong Province, China Product Name: Bluetooth Headset Model No.: SMS-T27, T33, YX06, YX07, YX08 Trademark: N/A FCC ID: 2BCQN-SMS-T27 Test Standard(s): 47 CFR Part 15 Subpart C Date of Receipt: Dec. 27, 2023 Test Date: Dec. 27, 2023 – Jan. 02, 2024 Date of Issue: Jan. 10, 2024 ISSUED BY: SHENZHEN EU TESTING LABORATORY LIMITED Prepared by: Reviewed and Approved by: ____________________ _____________________ Mikey Zhu/ Engineer Sally Zhang/ Manager Page 2 of 39 Report No.: 8135EU122703W TRF No.: FCC Part 15.247 (A01) Revision Record Report Version Issued Date Description Status V0 Jan. 10, 2024 Original Valid Page 3 of 39 Report No.: 8135EU122703W TRF No.: FCC Part 15.247 (A01) Table of Contents 1 COVER PAGE .................................................................................................................................. 1 2 GENERAL INFORMATION ...................................................................................................................... 5 2.1 APPLICANT INFORMATION .................................................................................................................. 5 2.2 MANUFACTURER INFORMATION .......................................................................................................... 5 2.3 FACTORY INFORMATION ..................................................................................................................... 5 2.4 GENERAL DESCRIPTION OF E.U.T. ..................................................................................................... 5 2.5 TECHNICAL INFORMATION OF E.U.T. .................................................................................................. 6 3 TEST SUMMARY ...................................................................................................................................... 7 3.1 TEST STANDARD ............................................................................................................................... 7 3.2 TEST VERDICT ................................................................................................................................... 7 3.3 TEST LABORATORY ........................................................................................................................... 7 4 TEST CONFIGURATION .......................................................................................................................... 8 4.1 TEST ENVIRONMENT .......................................................................................................................... 8 4.2 TEST EQUIPMENT .............................................................................................................................. 8 4.3 DESCRIPTION OF SUPPORT UNIT ........................................................................................................ 9 4.4 TEST MODE ...................................................................................................................................... 9 4.5 MEASUREMENT UNCERTAINTY ........................................................................................................... 9 4.6 DEVIATION FROM STANDARDS ........................................................................................................... 9 4.7 ABNORMALITIES FROM STANDARD CONDITION ................................................................................... 9 5 TEST ITEMS ........................................................................................................................................... 10 5.1 ANTENNA REQUIREMENT .................................................................................................................. 10 5.1.1 Test Requirement .............................................................................................................. 10 5.1.2 Antenna Anti-Replacement Construction .......................................................................... 10 5.1.3 Antenna Gain .................................................................................................................... 10 5.2 CONDUCTED EMISSION AT AC POWER LINE ..................................................................................... 11 5.2.1 Test Requirement .............................................................................................................. 11 5.2.2 Test Setup Diagram .......................................................................................................... 11 5.2.3 Test Procedure .................................................................................................................. 11 5.2.4 Test Data ........................................................................................................................... 11 5.3 OCCUPIED BANDWIDTH ................................................................................................................... 14 5.3.1 Test Requirement .............................................................................................................. 14 5.3.2 Test Setup Diagram .......................................................................................................... 14 5.3.3 Test Procedure .................................................................................................................. 15 5.3.4 Test Data ........................................................................................................................... 15 5.4 MAXIMUM CONDUCTED OUTPUT POWER .......................................................................................... 16 5.4.1 Test Requirement .............................................................................................................. 16 5.4.2 Test Setup Diagram ....................…

Text truncated - open the document above for the full version.

version01 Shantou AIRUIKA Electronics Co., LTD Declaration concerning Antenna Specification It i s hereby declared that the product Model No.: SMS-T27, T33, YX06, YX07, YX08 FCC ID: 2BCQN-SMS-T27 fulfill s the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Ceramic antenna type(s) described below: Model No. of antenna: RANT2012F245X07 Type of antenna: Ceramic Antenna Gain of the antenna: 1.7 dBi Frequency range: 2400-2484MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shantou AIRUIKA Electronics Co., LTD Address: Sixth Street, Zhongtai West District, Hengshan Village, Gurao Town, Chaoyang, , City: Shantou City ZIP / Postal code: Country: Guangdong Province, China Place: Place: Date: 2024-01-10 Signature:

2.4GHz 2012 Chip Antenna: RANT2012F245X07 Dimension(mm) L2.05+-0.10 W1.20+-0.10 T0.65+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245X07 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=07 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain1.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration 咏成國際科技有限公司電話 :13530576606 RAINInternationalTechnologyCo.,Ltd. 7/F,BuildingF,ZhichuangPark,Tong'an,Gushu,Shenzhen 2.4GHz 2012 Chip Antenna: RANT2012F245X07 EvaluationBoardReference PCBDimensionAntennaLayoutReferenceUnit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2450MHz2500MHz Efficiency70.56%75.25%71.01% 2.4GHz 2012 Chip Antenna: RANT2012F245X07 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 ReliabilityTabl 2.4GHz 2012 Chip Antenna: RANT2012F245X07 e TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz 2012 Chip Antenna: RANT2012F245X 2.4GHz 2012 Chip Antenna: RANT2012F245X07 07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 1NewDatashee2022/10/15t

Page 1 of 2 Report No.: 8135EU122703W-AA ANNEX A TEST SETUP PHOTOS PHOTO 1 Photo of Power Line Conducted Emission Test PHOTO 2 Photo of Radiated Emission Test (Below 1GHz) Page 2 of 2 Report No.: 8135EU122703W-AA PHOTO 3 Photo of Radiated Emission Test (Above 1GHz) --- End ---
