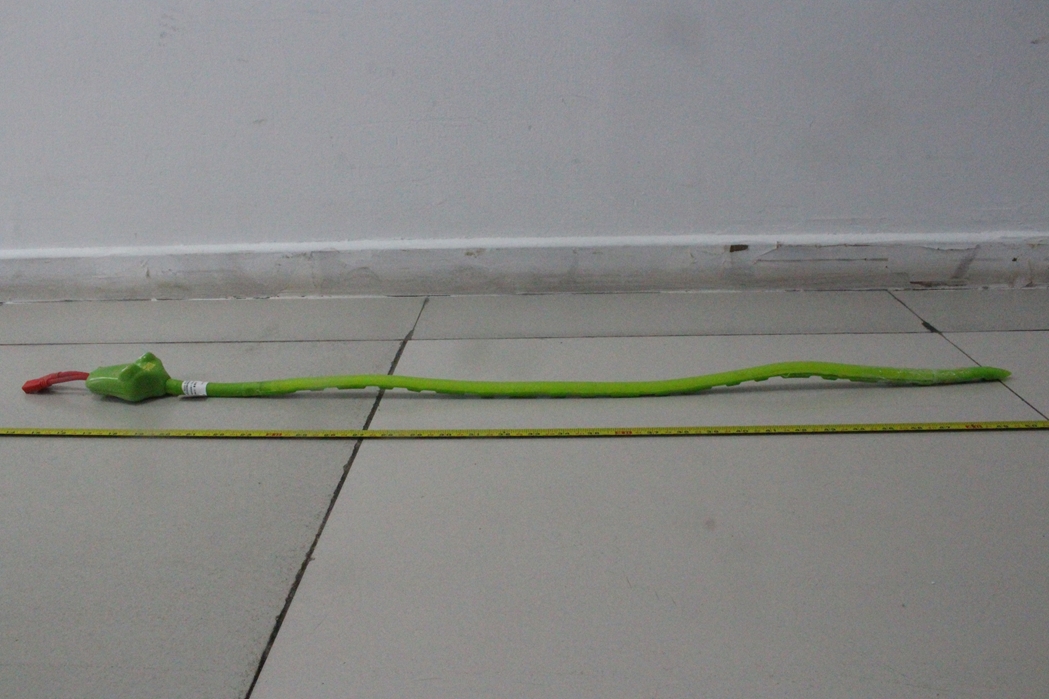

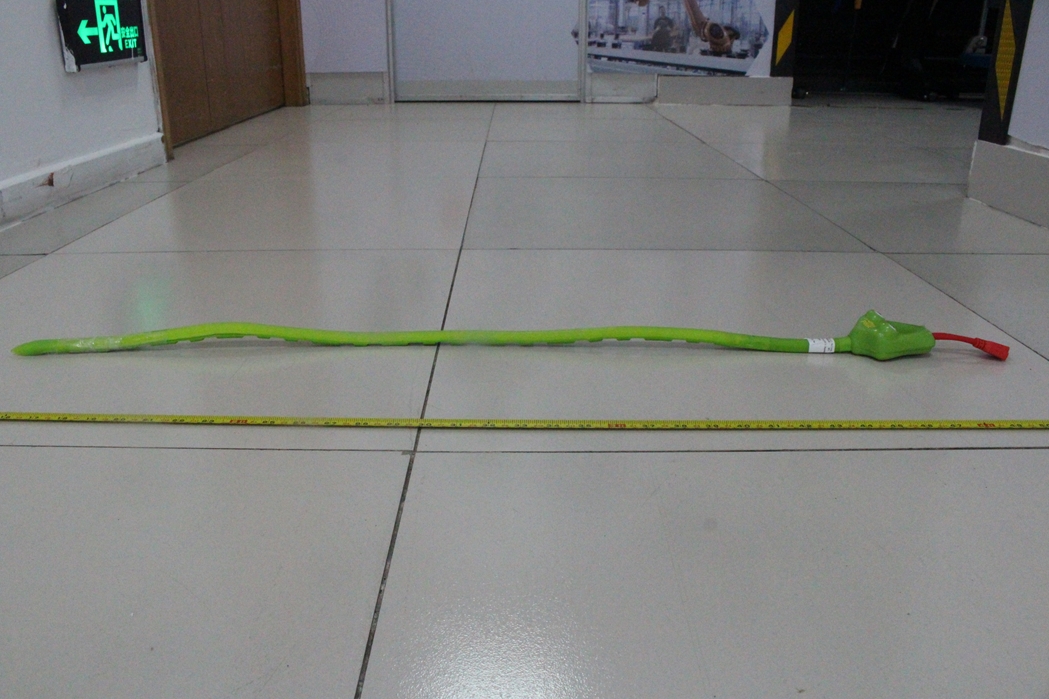

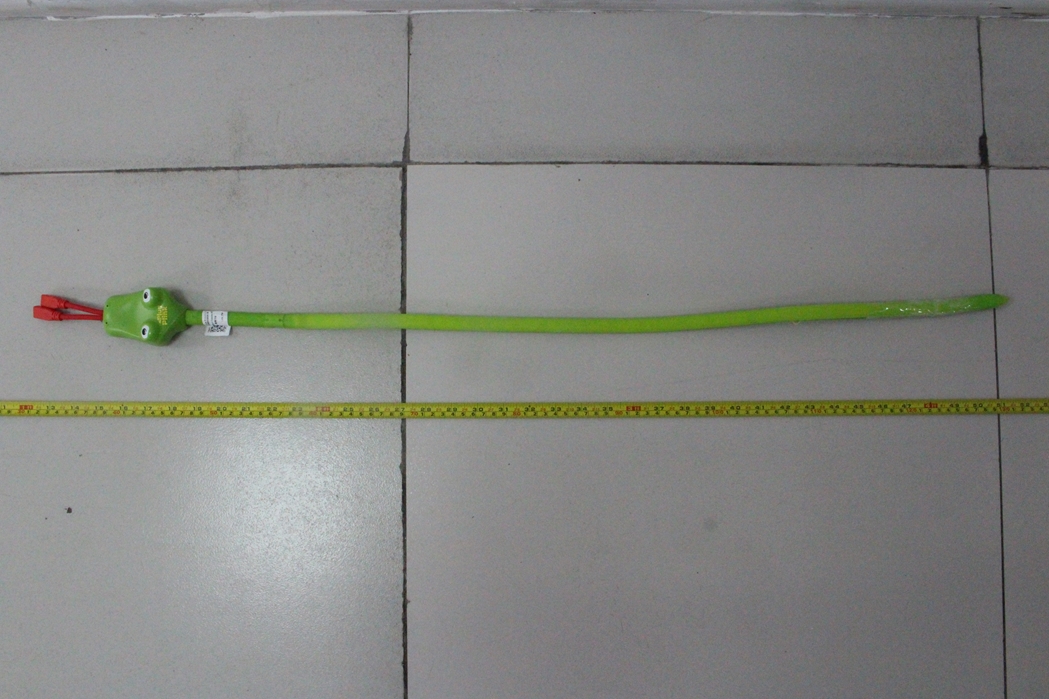

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 1 of 4 Appendix External Photos for GZCR2309000908LM SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 4 of 4

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 1 of 3 Appendix Internal Photos for GZCR2309000908LM SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 2 of 3 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 3 of 3

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR230900090803 Page: 1 of 9 FCC ID: 2BCTI-KS4OV5 Ricky Liu Manager RF EXPOSURE EVALUATION REPORT Application No.: GZCR2309000908LM Applicant:Foshan City Shunde District Ouliang Model Company Limited Address of Applicant:4 Floor # 33 Rong Gang Road, Rong Gui, Shunde, Foshan, Guandong, PRC Manufacturer:Foshan City Shunde District Ouliang Model Company Limited Address of Manufacturer:4 Floor # 33 Rong Gang Road, Rong Gui, Shunde, Foshan, Guandong, PRC Factory:Foshan City Shunde District Ouliang Model Company Limited Address of Factory:4 Floor # 33 Rong Gang Road, Rong Gui, Shunde, Foshan, Guandong, PRC Equipment Under Test (EUT): EUT Name:Keysnake Model No.: Keysnake 4 Octave Trade Mark:Keysnake Standard(s) : 47 CFR Part 1.1310 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2023-09-01 Date of Evaluation: 2023-09-20 to 2023-09-20 Date of Issue: 2023-10-18 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR230900090803 Page: 2 of 9 Revision Record VersionReport No.DateRemark 01GZCR2309000908032023-10-18Original Authorized for issue by: Jim Li/Project Engineer Vico Cui/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR230900090803 Page: 3 of 9 2Evaluation Summary Radio Spectrum Technical Requirement ItemStandardMethodRequirementResult RF Exposure KDB447498 D01 General RF Exposure Guidance v06 KDB447498 D01 General RF Exposure Guidance v06 47 CFR Part 1.1310Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR230900090803 Page: 4 of 9 3Contents Page 1Cover Page...............................................................................................................................................1 2Evaluation Summary................................................................................................................................3 3Contents....................................................................................................................................................4 4General Information.................................................................................................................................5 4.1Details of E.U.T.................................................................................................................................5 4.2Evaluating Location...........................................................................................................................5 4.3Facility...............................................................................................................................................6 4.4Deviation from Standards..................................................................................................................6 4.5Abnormalities from Standard Conditions...........................................................................................6 5Technical Requirements Specification..................................................................................................7 5.1General Description of Applied Standards........................................................................................7 5.2RF Exposure Evaluation....................................................................................................................7 5.2.1Limit & Test Method......................................................................................................................7 5.2.2Conclusion....................................................................................................................................8 6EUT Constructional Details (EUT Photos).............................................................................................9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR230900090803 Page: 5 of 9 4General Information 4.1Details of E.U.T. Power supply:DC 5 V Cable(s):Type-C Port x2(One for power supply, the other for connected to laptop) Operation Frequency:2402MHz to 2480MHz Bluetooth Version:V5.0 LE Modulation Type:GFSK Number of Channels:40 Channel Spacing:2MHz Antenna Type:Integral Antenna Antenna Gain:2.12dBi Max Antenna Number:1 4.2Evaluating Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR230900090803 Page: 6 of 9 4.3Facility The facility is recognized, certified, or accredited by the following organizations: ● ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian/New Zealand Regulatory Compliance Mark (RCM). ● SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory as a supplier of EMC TESTING SERVICES and SAFETY TESTING SERVICES. ● FCC Recognized Accredited Test Firm(Registration No.: 486818) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been accredited and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Designation Number: CN5016, Test Firm Registration Number: 486818. ● ISED (Registration No.: 4620B, CAB …

Text truncated - open the document above for the full version.

Approval sheet Page 1 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 MULTILAYER CERAMIC ANTENNA RFANT Series – RoHS Compliance 2 .4 GHz ISM Band Working Frequency P/N: RFANT3216120A5T Series *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 FEATURES 1. Surface Mounted Devices with a small dimension of 3.2 X 1.6 X1.2 mm 3 meet future miniaturization trend. 2. LTCC process 3. High stability in Temperature / Humidity Change APPLICATIONS 1 . 2.4GHz ISM band RF applications 2.Bluetooth, Wireless, HomeRF CONSTRUCTION DIMENSIONS Figure Symbol Dimension (mm) L 3.20 ± 0.20 W 1.60 ± 0.10 T 1.20 ± 0.10 a 0.25 ± 0.15 1. Feeding 2. Identification Mark 3.Soldering terminal W T E a a Approval sheet Page 3 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 Ground Soldering Pad 50 ΩTransmission Line Unit : mm 19.4 Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 45mm 20mm Series 1 Series 2 Ground Soldering Pad 50 ΩTransmission Line Unit : mm 19.4 Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 45mm 20mm Series 1 Series 2 ELECTRICAL CHARACTERISTICS RFANT3216120A5T Specification Working Frequency Range 2450 ± 50 MHz Fc (GHz) 2.9 Gain (dBi) 2 (Typical) VSWR 2 max. Series 1 6.8nH Matching component value Series 2 - Operation Temperature -40 ̊C ~ +85 ̊C * This frequency must be adjusted to 2.45GHz with matching circuit. SOLDER LAND PATTERN DESIGN Figure 1.66 0.8 2.3 1.63 6 3.43 1.6 6 1.36 0.36 0.88 0.34 1.88 1.83 0.8 0.54 1.66 0.8 2.3 1.63 6 3.43 1.6 6 1.36 0.36 0.88 0.34 1.88 1.83 0.8 0.54 Approval sheet Page 4 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 Antenna on Test Board ( Thickness 1.2mm) Antenna S11 on Test Board Antenna VSWR on Test Board E 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND E Approval sheet Page 5 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RFANT3216120A5T antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Vertical Horizontal Y - Z Plane Average Gain= 0.891 dBi Peak Gain = 2.12dBi Average Gain = 0.64 dBi Peak Gain= -6.07dBi Average Gain=-11.62dBi X - Z Plane Average Gain= -1.846 dBi Peak Gain= -7.78 dBi Average Gain= -11.97dBi Peak Gain= 0.96 dBi Average Gain= -2.29 dBi X - Y Plane Average Gain= -2.556 dBi Peak Gain= -9.41 dBi Average Gain= -15.54dBi Peak Gain= 1.40 dBi Average Gain= -2.78 dBi GROUND X Y Z GROUND X Y Z X Y Z Approval sheet Page 6 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 RELIABILITY TEST Test item Test condition / Test method Specification Solderability JIS C 0050-4.6 JESD22-B102D *Solder bath temperature：235 ± 5°C *Immersion time：2 ± 0.5 sec *Solder：Sn3Ag0.5Cu for lead-free At least 95% of a surface of each terminal electrode must be covered by fresh solder. Leaching (Resistance to dissolution of metallization) IEC 60068-2-58 *Solder bath temperature：260 ± 5°C *Leaching immersion time：30 ± 0.5 sec *Solder : SN63A Loss of metallization on the edges of each electrode shall not exceed 25%. Resistance to soldering heat JIS C 0050-5.4 *Preheating temperature：120~150°C, 1 minute. *Solder temperature：270±5°C *Immersion time：10±1 sec *Solder：Sn3Ag0.5Cu for lead-free Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Loss of metallization on the edges of each electrode shall not exceed 25%. Drop Test JIS C 0044 *Height：75 cm *Test Surface：Rigid surface of concrete or steel. *Times：6 surfaces for each units；2 times for each side. No mechanical damage. Samples shall satisfy electrical specification after test. Adhesive Strength of Termination JIS C 0051- 7.4.3 *Pressurizing force： 5N(≦0603)；10N(>0603) *Test time：10±1 sec No remarkable damage or removal of the termination. Bending test JIS C 0051- 7.4.1 The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1 mm/s per second until the deflection becomes 1mm/s and then pressure shall be maintained for 5±1 sec. Measurement to be made after keeping at room temperature for 24±2 hours No mechanical damage. Samples shall satisfy electrical specification after test. Approval sheet Page 7 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 Temperature cycle JIS C 0025 1. 30±3 minutes at -40°C±3°C, 2. 10~15 minutes at room temperature, 3. 30±3 minutes at +85°C±3°C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Vibration JIS C 0040 *Frequency：10Hz~55Hz~10Hz(1min) *Total amplitude：1.5mm *Test times：6hrs.(Two hrs each in three mutually perpendicular directions) No mechanical damage. Samples shall satisfy electrical specification after test. High temperature JIS C 0021 *Temperature：85°C±2°C *Test duration：1000+24/-0 hours Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Humidity (steady conditions) JIS C 0022 *Humidity：90% to 95% R.H. *Temperature：40±2°C *Time：1000+24/-0 hrs. Measurement to be made after keeping at room temperature for 24±2 hrs ※ 500hrs measuring the first data then 1000hrs data No mechanical damage. Samples shall satisfy electrical specification after test. Low temperature JIS C 0020 *Temperature：-40°C±2°C *Test duration：1000+24/-0 hours Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Approval sheet Page 8 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 SOLDERING CONDITION Typical examples of soldering processes that provide …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 1.1 Report No.: GZCR230900090802 Page: 1 of 53 FCC ID: 2BCTI-KS4OV5 Ricky Liu Manager TEST REPORT Application No.: GZCR2309000908LM Applicant:Foshan City Shunde District Ouliang Model Company Limited Address of Applicant:4 Floor # 33 Rong Gang Road, Rong Gui, Shunde, Foshan, Guandong, PRC Manufacturer:Foshan City Shunde District Ouliang Model Company Limited Address of Manufacturer:4 Floor # 33 Rong Gang Road, Rong Gui, Shunde, Foshan, Guandong, PRC Factory:Foshan City Shunde District Ouliang Model Company Limited Address of Factory:4 Floor # 33 Rong Gang Road, Rong Gui, Shunde, Foshan, Guandong, PRC Equipment Under Test (EUT): EUT Name:Keysnake Model No.: Keysnake 4 Octave Trade Mark:Keysnake Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2023-09-01 Date of Test: 2023-09-08 to 2023-09-20 Date of Issue: 2023-10-18 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 1.1 Report No.: GZCR230900090802 Page: 2 of 53 Revision Record VersionReport No.DateRemark 01GZCR2309000908022023-10-18Original Authorized for issue by: Jim Li/Project Engineer Vico Cui/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 1.1 Report No.: GZCR230900090802 Page: 3 of 53 2Test Summary Radio Spectrum Technical Requirement ItemStandardMethodRequirementResult Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part ItemStandardMethodRequirementResult Conducted Emissions at AC Power Line (150kHz-30MHz) ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 11.12 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2013) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 1.1 Report No.: GZCR230900090802 Page: 4 of 53 3Contents Page 1Cover Page...............................................................................................................................................1 2Test Summary..........................................................................................................................................3 3Contents....................................................................................................................................................4 4General Information.................................................................................................................................6 4.1Details of E.U.T.................................................................................................................................6 4.2Description of Support Units..............................................................................................................6 4.3Measurement Uncertainty.................................................................................................................6 4.4Test Location.....................................................................................................................................7 4.5Test Facility.......................................................................................................................................7 4.6Deviation from Standards..................................................................................................................7 4.7Abnormalities from Standard Conditions...........................................................................................7 5Equipment List.........................................................................................................................................8 6Radio Spectrum Technical Requirement.............................................................................................11 6.1Antenna Requirement......................................................................................................................11 6.1.1Test Requirement:.......................................................................................................................11 6.1.2Conclusion..................................................................................................................................11 7Radio Spectrum Matter Test Results...................................................................................................12 7.1Conducted Emissions at AC Power Line (150kHz-30MHz).............................................................12 7.1.1E.U.T. Operation.........................................................................................................................12 7.1.2Test Mode Description................................................................................................................12 7.1.3Test Setup Diagram..........................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 1 of 3 Appendix Test Setup Photo for GZCR230900090802 Test Model No.: Keysnake 4 Octave SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 2 of 3 Test Setup Photo Conducted Emissions at AC Power Line (150kHz-30MHz) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 3 of 3 Radiated Emissions which fall in the restricted bands & Radiated Spurious Emissions
