2BCTY-NT800-H26Wireless Bluetooth 2D Barcode Scanner

Items List： Wireless Bluetooth 2D Barcode Scanner 蓝牙 蓝牙 开放检测 仅让已配对的设备检测到 设备名称 Honor 6X 接收的文件 已配对的设备 NP100S80C8 可用设备 停止 更多 HID Keyboard 蓝牙 蓝牙 开放检测 仅让已配对的设备检测到 设备名称 Honor 6X 接收的文件 已配对的设备 NP100S80C8 可用设备 HID Keyboard 停止 更多 设置 蓝牙 蓝牙 现在可被发现为"****的iphone”. 设备 HID Keyboard 请前往Watch应用配对Apple Watch和iPhone. 蓝牙配对请求 “HID Keyboard"想与您的iphone 配对。 取消 配对 W i n d o w s Windows Bluetooth wireless connect to computer Bluetooth adapters support windows XP/win8/win10/Mac0S etc. operation system. Support using without drivers(plug and play). Bluetooth adapter Instruction of bluetooth Adapter indicator light Blue LED flashing(on/off ration 1:1): Searching the sign of the scanner Red LED keeps on : Successful connection. You 'll hear the sound of a drop after 5 seconds. Red LED keeps on , blue light on and off quickly: Successfully receive the message from the scanner Rich decoding types Completely independent intellectual property Up to 30 million times button life 2600mAh big capacity Li-ion Wholebody shockproof dropresistance design Extremely comfortable operating handle feeling 16Mb mass storage Deep sleep technology no boot press-and-scan Connect with Android mobiles wirelessly via bluetooth Enter bluetooth setup , search signal then click HID Keyboard. You 'll get HID Keyboard in the device after successful connection. Open related APP/QQ/Wechat, you can get the barcode in the input box after scanning. Connect with IOS mobiles wirelessly via bluetooth Enter bluetooth setup , searching signal then click HID Keyboard. Click “pairing” then connect with HID Keyboard Open related APP, you can get the barcode in the input box after scanning. Barcode Scanner X1 USB Cable X1 Quick User Guide X1 Warranty Card X1 Bluetooth Adapter X1 Power Adapter (Optional) Warning: 1 Please remove the power and all cables under thunderstorm weather condition,to avoid damage from thunder and lightning. 2 Keep away from heat sources, please ensure sufficient air circulation. 3 Pay attention that the scanner is waterproof during storage,transportation and running. 4 Please use DC 5V1A power adapter offered by the authorised producer. The product specifications and consultations mentioned in this manual are for reference only and are subject to change without prior notice. Unless there is a special agreement, this manual is only used as guidance. All statements and information in this manual will not constitute guarantees of any kind. The company reserves the right to interpret this manual.. Know Bluetooth 2D Barcode Scanner Directly connect usb cable to windows Bluetooth red light 1D 2D barcode scanner gun integrates high- performance processor and decoding board, fast decoding and high- precision reading ability. It can effectively resist ambient light interference, easily read paper, goods and other media barcodes, also can scan barcodes on mobile phone, computer, TV, display,etc. Compared with similar products, scanning distance is greatly improved. It also boots fast scanning speed, powerful reading performance with high accuracy. Scan Window Scan Button USB Interface Buzzer Hole LED Indicator USB cable direct connecting supports WindowsXP/win7/win8/ win10/Mac 0S etc operating systems. Disclaimer The company does not undertake any responsibilities for losses caused by natural disasters (such as earthquakes, floods, etc.) beyond the scope of our responsibility. The company also assumes no responsibility for any loss in any case (including loss resulting from the use of user manual) accompanied by the use of this product, such as: loss of company profits, reputation loss, business interruption, or lose / change of stored data, etc., and any special, incidental, consequential or indirect loss resulting from this. The company accepts no liability for loss arising from misuse communication hardware or software unspecified by the company. The company does not provide any forms of guarantees and technical supports for information, data, files or other products and services obtained through using this product. The company does not assume any forms of guarantees and technical support responsibilities for the third-party software used through this product. W e l c o m e t o u s e N y e a r O f f i c e P r o d u c t s W e l c o m e t o u s e N y e a r O f f i c e P r o d u c t s W e l c o m e t o u s e N y e a r O f f i c e P r o d u c t s *Open EAN-8 Close EAN-8 *EAN-13Open Close EAN-13 *CodabarOpen Close Codabar *Code 39Open Close Code 39 *Code 93Open Close Code 93 *Code 128Open Close Code 128 *UPC-AOpen Close UPC-A *UPC-E0Open CloseUPC-E0 *UPC-E1Open CloseUPC-E1 Open Interleaved 2 of 5 *Interleaved 2 of 5Close Open Industrial 2 of 5 *Industrial 2 of 5Close Open Matrix 2 of 5 *Matrix 2 of 5Close Open Code 11 *Code 11Close Open MSI *MSIClose Open QR Code*Close QR Code OpenPDF417* Close PDF417 *Open Data Matrix Close Data Matrix UseInvoiceMode *DisenableInvo- iceMode Five minutes automatic shutdow Half-hour automatic shutdown Turn on/off sound Clear FLASH Open inventory Close inventory Add Return CR End character Output GBK format Chinese Output UNICODE format Chinese Add carriage return + line feed Add TAB (HT) Turn on 2D Empty storage area Open PDF417* Close PDF417 Scanner light Scanner buzzer Function barcode remarks Each type of barcode has its own unique properties. The module can be adapted to this through the setup code in this chapter.These properties change. The fewer types of barcodes that are enabled to enable reading, the faster the module can read. You can disable the type of barcodes that the module will not read, which can be used to improve the performance of the module. Restore factory value Note: After scanning 1 stagnates 5 seconds to sweep 2 Common Function Barcodes Note: This scanner can only be paired and connected to a mobile phone if it is connected via Bluetooth. If it is replaced.The mobile phone needs to scan "Erase Pair" and then pair the connection. Wipe out pairing The blue light is on and off quickly: The bar…

Text truncated - open the document above for the full version.

Xi'an Those Years Technology Network Co., Ltd Room 11608, Building 2, Wanxiang International Center, Shuangdu Road, Xi'anYanta District 710000 Shaanxi Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/09/20 U.S. Agent Designation Xi'an Those Years Technology Network Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BCTY-NT800-H26): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Xi'an Those Years Technology Network Co., Ltd Xi'an Those Years Technology Network Co., Ltd with the FRN [0034227272] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature XINSHENG WU Manager Xi'an Those Years Technology Network Co., Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： XINSHENG WU/Manager Company: Xi'an Those Years Technology Network Co., Ltd Address: Room 11608, Building 2, Wanxiang International Center, Shuangdu Road, Xi'anYanta District Shaanxi Province China Phone: 86-18691869070 Fax: N/A E-Mail: [email protected]

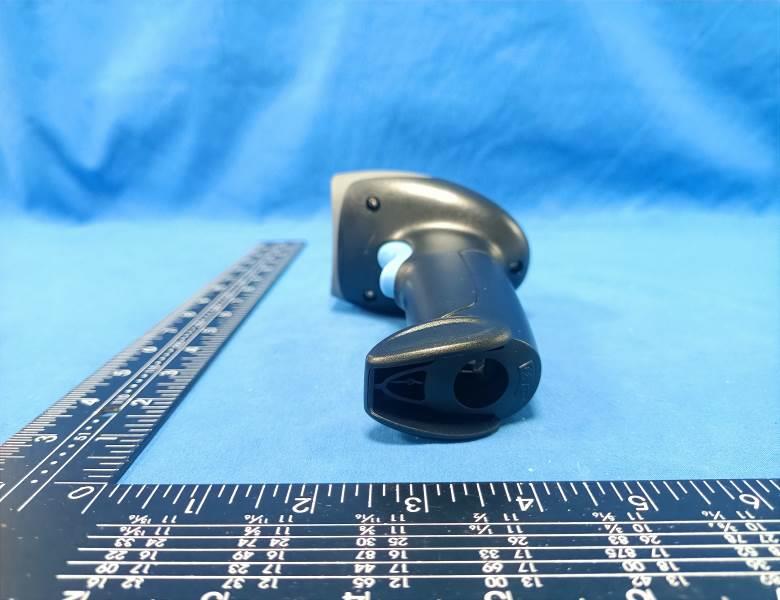

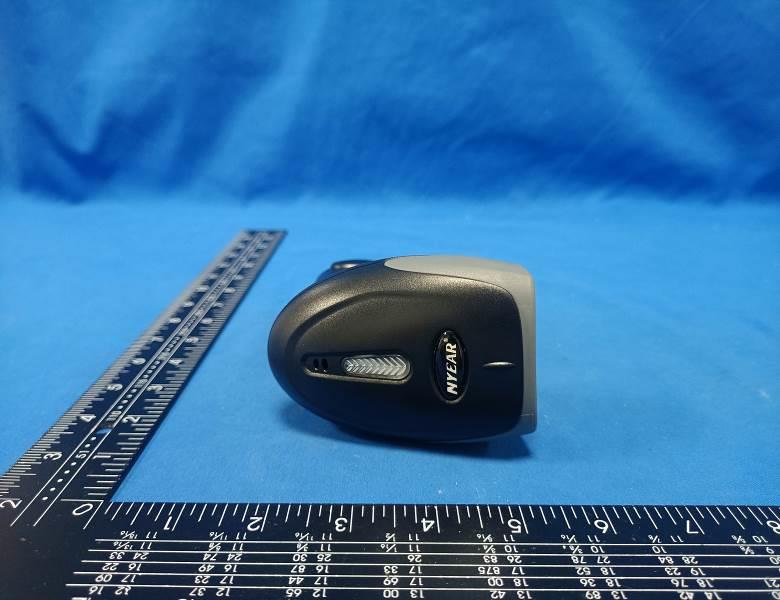

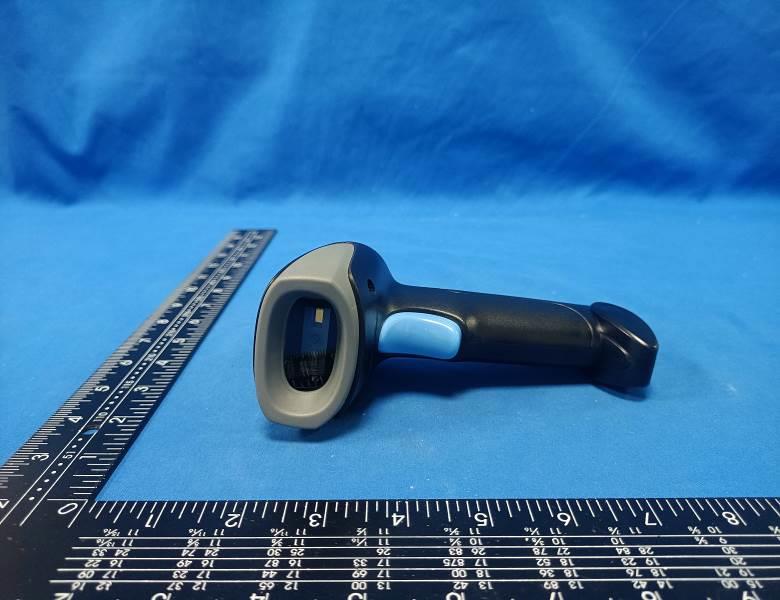

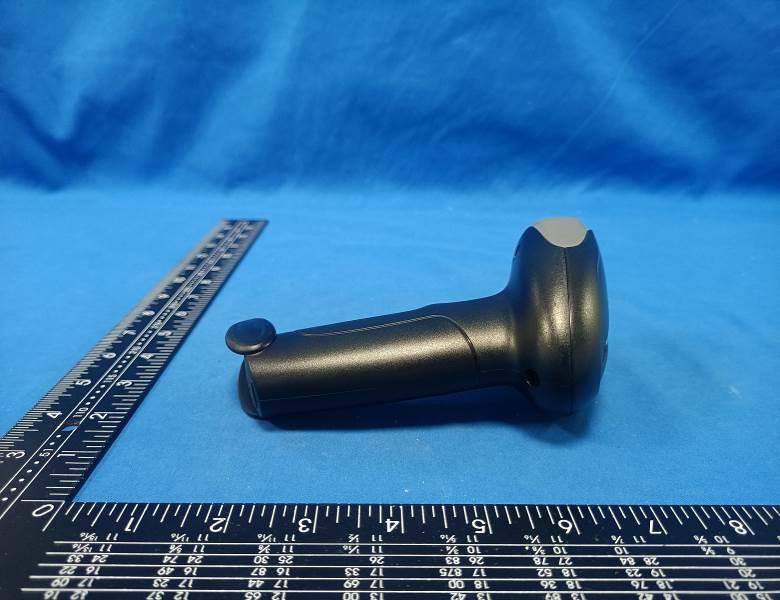

FCC ID: 2BCTY-NT800-H26 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BCTY-NT800-H26 Photo 4 Photo 5 Photo 6 FCC ID: 2BCTY-NT800-H26 Photo 6

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BCTY-NT800-H26

FCC ID: 2BCTY-NT800-H26 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 BLE PCB Antenna FCC ID: 2BCTY-NT800-H26 Photo 4 Photo 5 Photo 6 FCC ID: 2BCTY-NT800-H26 Photo 7 Photo 8 Photo 9 FCC ID: 2BCTY-NT800-H26 Photo 10 Photo 11 Photo 12 FCC ID: 2BCTY-NT800-H26 Photo 13 Photo 14 Photo 15 FCC ID: 2BCTY-NT800-H26 Photo 16

RF Exposure evaluation FCC ID: 2BCTY-NT800-H26 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance BLE GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 2.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 4.0 2.5119 0.7863<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model NT800-H26 Frequency range 2400-2500MHz Manufacturer Xi'an Those Years Technology Network Co., Ltd ANT Peak Gain 0.50 dBi 2. Antenna Photo: Length: 14.71mm Width: 3.21mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : CTA23090401301 2BCTY-NT800-H26 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Sep. 11, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Xi'an Those Years Technology Network Co., Ltd Address ............................................ : Room 11608, Building 2, Wanxiang International Center, Shuangdu Road, Xi'anYanta District 710000 Shaanxi Province, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................... : Wireless Bluetooth 2D Barcode Scanner Trade Mark ....................................... : Nyear Manufacturer .................................... : Xi'an Those Years Technology Network Co., Ltd Model/Type reference....................... : NT800-H26 Listed Models .................................. : NT800-BWF, NT900-BWF, NT1000-BWF, NT100-H Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA23090401301 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless Bluetooth 2D Barcode Scanner Model /Type : NT800-H26 Listed Models : NT800-BWF, NT900-BWF, NT1000-BWF, NT100-H Applicant : Xi'an Those Years Technology Network Co., Ltd Address : Room 11608, Building 2, Wanxiang International Center, Shuangdu Road, Xi'anYanta District 710000 Shaanxi Province, China Manufacturer : Xi'an Those Years Technology Network Co., Ltd Address : Room 11608, Building 2, Wanxiang International Center, Shuangdu Road, Xi'anYanta District 710000 Shaanxi Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23090401301 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 30 6 P H O T O S O F T H E E U T ............................................................. 31 Report No.: CTA23090401301 Page 4 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA23090401301 Page 5 of 38 …
