2BCU2-H1Air Conduction Headphone

Air Conduction Headphone H1 E-mail: [email protected] Website: www.anewbee.com User Manual Thank you for choosing our product. Please read this user manual carefully and follow relevant rules before using the product to ensure correct, safe usage and keep it in good condition. I. Product Overview This is an air conduction headphone that provides an extra comfortable and safe wearing experience. It gives totally clear calls and superior sound quality even in noisy environ- ment. In addition, this headphone has a stylish appearance and long battery life, which is a great choice for sports, hiking and driving. II. Product Description Speaker Headphone Charging Contact Point Headphone Indicator III. Packing List User manual×1 Headphone×1 Charging cable×1 IV. Wearing Instruction Hang the ear hook on the left ear and right ear separately. Make sure the sound outlet is aligned with the ear canal to achieve the optimal sound quality. V. Usage and Operation 1. Pairing Press and hold the multifunctional key for 3 seconds to turn on the headphone and the headphone will emit the voice prompt of "power on". Later, the headphone will emit the voice prompt of "pairing", it means the headphone is in pairing state. Open the Bluetooth function of cellphone to search for Bluetooth devices, find "H1" in the list of Bluetooth devices and click to connect. When hearing the voice prompt of “connected”, it means the connection is successful and the headphone indicator goes out. When using the headphone again, it automatically connects to the last device. If there is no paired device within 5 minutes, the headphone will automatically turn off. If the pairing fails, please delete all pairing records of "H1". Turn off the Bluetooth function of cellphone, then turn on the Bluetooth function again and search. 2. Two Devices Connection This headphone can connect to two smartphones at the same time. Operation Steps: After successfully connecting to phone A, turn off the Bluetooth function of phone A and headphone. Next, restart the headphone and connect to phone B. Then turn on the Bluetooth function of phone A, find the “H1” in the list of Bluetooth devices and click to connect. ( NOTE: Although the headphone can connect to two phones at the same time, only one of the phones can play music through H1. ) 3. Touch Function Description NOTE: Only the right side headphone has touch control function. 4. Headphone Indicator / Voice Prompt 5. Restore Factory Settings If the headphone is abnormal in use, please restore it to factory settings. Operation: Click the multifunctional key eight times consecutively. When hearing the voice prompt “pairing”, it means the headphone has been restored to factory settings. 6. Charge the Headphone The headphone emits the voice prompt of "low battery" and the headphone indicator keeps flashing slowly in red, indicating that the headphone is on low battery state. Please charge the headphone immediately. Connect the pogopin of the charging cable to the headphone charging contact point to charge the headphone. When charging, the headphone indicator is red. When fully charged, the headphone indicator turns blue. NOTE: When charging, please keep the headphone charging contact point dry and no foreign body. VI. Product Specifications • Product model: H1 • Version: V5.3 • Supported protocol: HFP/HSP/A2DP/AVRCP • Speaker specification: Φ16.2mm • Transmission range: 10m • Battery capacity: 100mAh • Charging time: 1.5 hours • Charging method: magnetic pogopin • Playback time: about 6 hours • Standby time: about 6 months • Working temperature: -5~50 • Waterproof level: IPX5 VII. Common Problems 1.The headphone cannot be turned on. —— Please try to charge it first, then try to turn on the headphone when the battery is sufficient. Check whether the headphone indicator is red when charging. —— Make sure the position of touch control is correct. 2.The connection is abnormal. —— Please restore the headphone to factory settings and reconnect it. ( Click the multifunctional key eight times consecutively. When hearing the voice prompt “pairing”, the headphone has been disconnected. ) 3.The headphone cannot be charged. —— Please try to replace another 5V output power adapter to charge. —— Make sure the headphone charging contact point is dry and no foreign body. Microphone Multifunctional Key Ear Hook Cable Thank you for choosing our product. Please read this user manual carefully and follow relevant rules before using the product to ensure correct, safe usage and keep it in good condition. I. Product Overview This is an air conduction headphone that provides an extra comfortable and safe wearing experience. It gives totally clear calls and superior sound quality even in noisy environ- ment. In addition, this headphone has a stylish appearance and long battery life, which is a great choice for sports, hiking and driving. II. Product Description Speaker Headphone Charging Contact Point Headphone Indicator III. Packing List User manual×1 Headphone×1 Charging cable×1 IV. Wearing Instruction Hang the ear hook on the left ear and right ear separately. Make sure the sound outlet is aligned with the ear canal to achieve the optimal sound quality. V. Usage and Operation 1. Pairing Press and hold the multifunctional key for 3 seconds to turn on the headphone and the headphone will emit the voice prompt of "power on". Later, the headphone will emit the voice prompt of "pairing", it means the headphone is in pairing state. Open the Bluetooth function of cellphone to search for Bluetooth devices, find "H1" in the list of Bluetooth devices and click to connect. When hearing the voice prompt of Bluetooth Bluetooth H1 DEVICES Connected < Settings ! “connected”, it means the connection is successful and the headphone indicator goes out. When using the headphone again, it automatically connects to the last device. If there is no paired device within 5 minutes, the headphone will automatically turn off. If the pairing fails,…

Text truncated - open the document above for the full version.

Shenzhen Shigu Technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Shenzhen Shigu Technology Co., Ltd Address: 9G, Fumingge, Huifu Garden, Buji Dafen Village, Longgang District, Shenzhen, China Product Name: Air Conduction Headphone FCCID: 2BCU2-H1 Model(s): H1, H2, H3, H4, H5, H6, H7, H8, H9, H10, H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25 2.911(d)(5)(i) EquipmentType We, [Shenzhen Shigu Technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Hu Wensen Date: Sept. 14, 2023 Title: manager Company name: Shenzhen Shigu Technology Co., Ltd Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Shigu Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Shigu Technology Co., Ltd Address: 9G, Fumingge, Huifu Garden, Buji Dafen Village, Longgang District, Shenzhen, China Product Name: Air Conduction Headphone FCCID: 2BCU2-H1 Model(s): H1, H2, H3, H4, H5, H6, H7, H8, H9, H10, H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Shigu Technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Hu Wensen Date: Sept. 14, 2023 Title: manager Company name: Shenzhen Shigu Technology Co., Ltd Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenShiguTechnologyCo.,Ltd 2.911(d)(7)USAAgentv1.3 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:ShenzhenShiguTechnologyCo.,Ltd Address:9G,Fumingge,HuifuGarden,BujiDafenVillage,LonggangDistrict, Shenzhen,China ProductName:AirConductionHeadphone FCCID:2BCU2-H1 Model(s):H1,H2,H3,H4,H5,H6,H7,H8,H9,H10,H11,H12,H13,H14,H15,H16, H17,H18,H19,H20,H21,H22,H23,H24,H25 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[ShenzhenShiguTechnologyCo.,Ltd](“theapplicant”)designate[GSS SERVICEINC]NO TE1 forthepurposeofacceptingserviceofprocessonbehalfofthe applicant. Applicantconsent:WeAcknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeour acceptanceofourobligationtomaintainanagentforserviceofprocessintheUnited Statesfornolessthanoneyearaftereitherthegranteehaspermanentlyterminated allmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolving theequipment,whicheverislater. Agentobligation:WeAcknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,ortheconclusionofanyCommission-relatedadministrativeorjudicial proceedinginvolvingtheequipment,whicheverislater. ShenzhenShiguTechnologyCo.,Ltd 2.911(d)(7)USAAgentv1.3 USAAgent Companyname:GSSSERVICEINC Address:6547NAcademyBlvd#2266 ColoradoSpringsCo80918USA FCCRegistrationNumber(FRN):0033402082 ContactName:MichouxLogan TelephoneNo:001-949-2990192 Email:[email protected] Applicant Companyname:ShenzhenShigu TechnologyCo.,Ltd Address:9G,Fumingge,HuifuGarden, BujiDafenVillage,LonggangDistrict, Shenzhen,China FCCGranteeCode:2BCU2 ContactName:HuWensen TelephoneNo:13428693948 Email:[email protected] Signature: Title: Signature: Title:manager Date:Sept.14,2023Date:Sept.14,2023 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Shenzhen Shigu Technology Co., Ltd Agent Authorization Company: Shenzhen Shigu Technology Co., Ltd Address: 9G, Fumingge, Huifu Garden, Buji Dafen Village, Longgang District, Shenzhen, China Product Name: Air Conduction Headphone Model Number(s): H1, H2, H3, H4, H5, H6, H7, H8, H9, H10, H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25 Product Description: Air Conduction Headphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Sept. 14, 2023 Name: Hu Wensen Title: manager Company: Shenzhen Shigu Technology Co., Ltd

Shenzhen Shigu Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Sept. 14, 2023 Subject; Request for Confidentiality FCC ID: 2BCU2-H1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Hu Wensen Title: manager

Shenzhen Shigu Technology Co., Ltd Model Difference Declaration To Whom It May Concern, We, Shenzhen Shigu Technology Co., Ltd (Air Conduction Headphone); Model Number: H1, H2, H3, H4, H5, H6, H7, H8, H9, H10, H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25 Model Difference: All model’s the function, software and electric circuit are the same, only with a product model named different. Test sample model: H1. Please contact me if you have any question. Signature: Date: Sept. 14, 2023 Name: Hu Wensen Title: manager

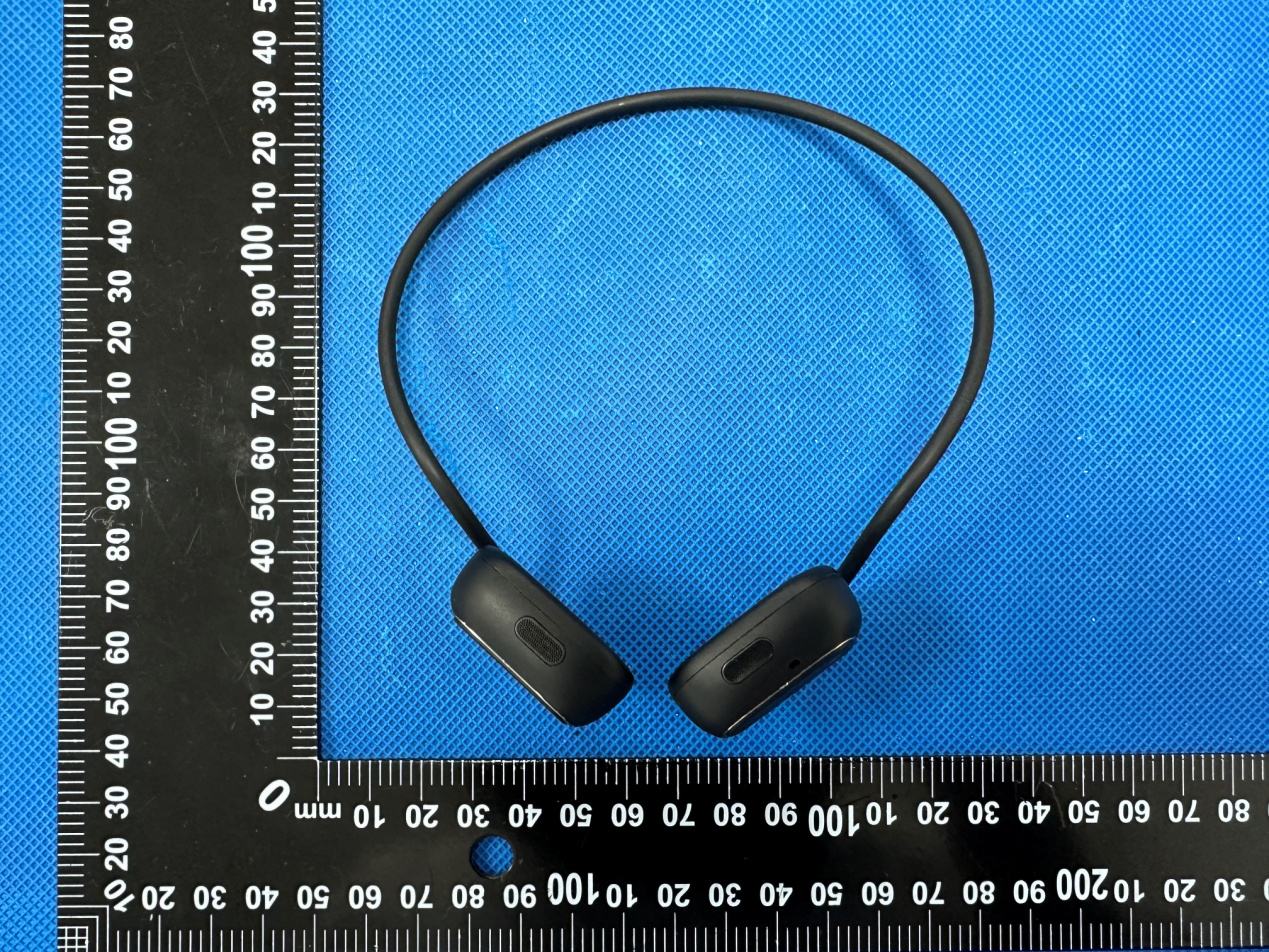

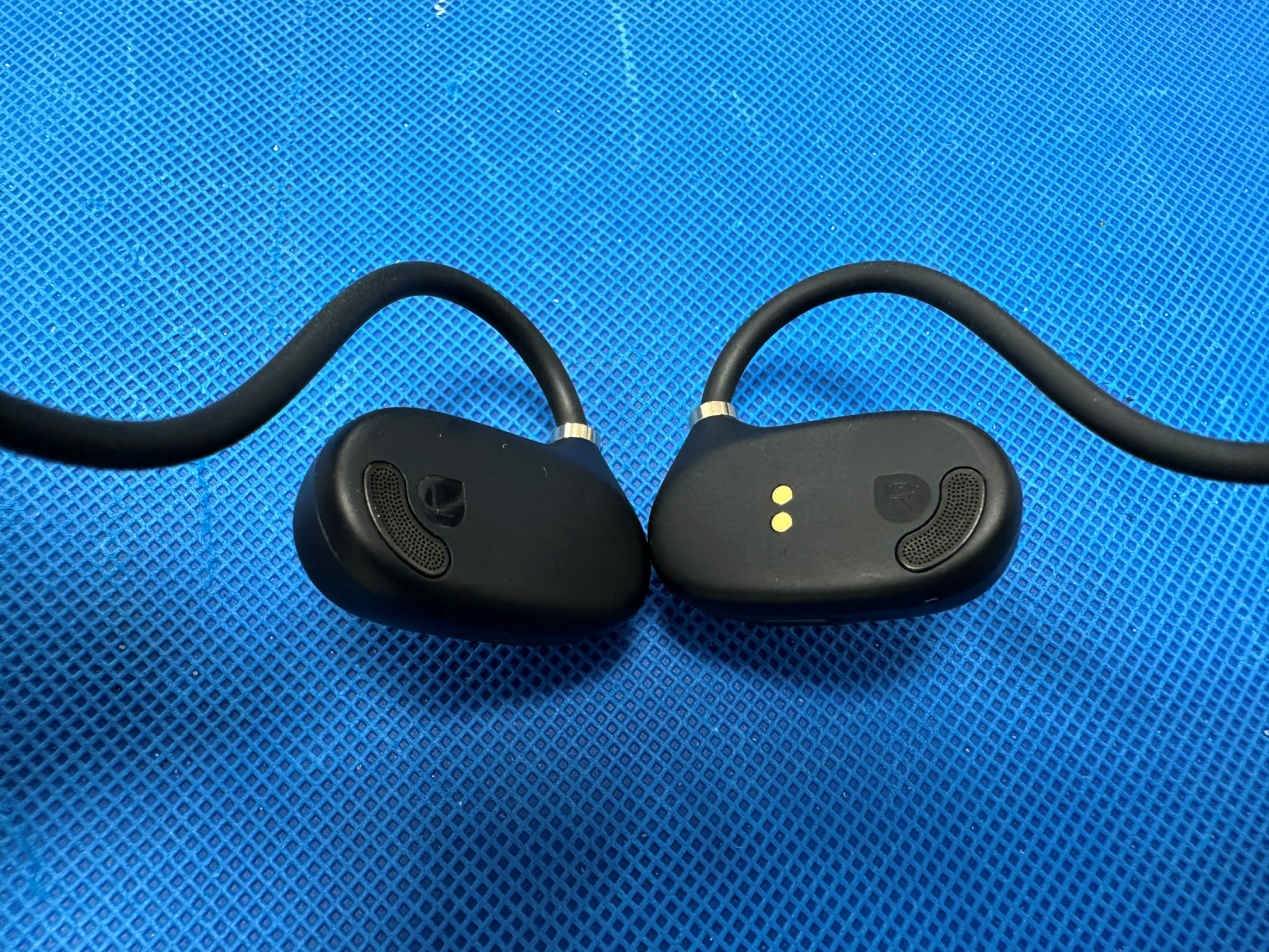

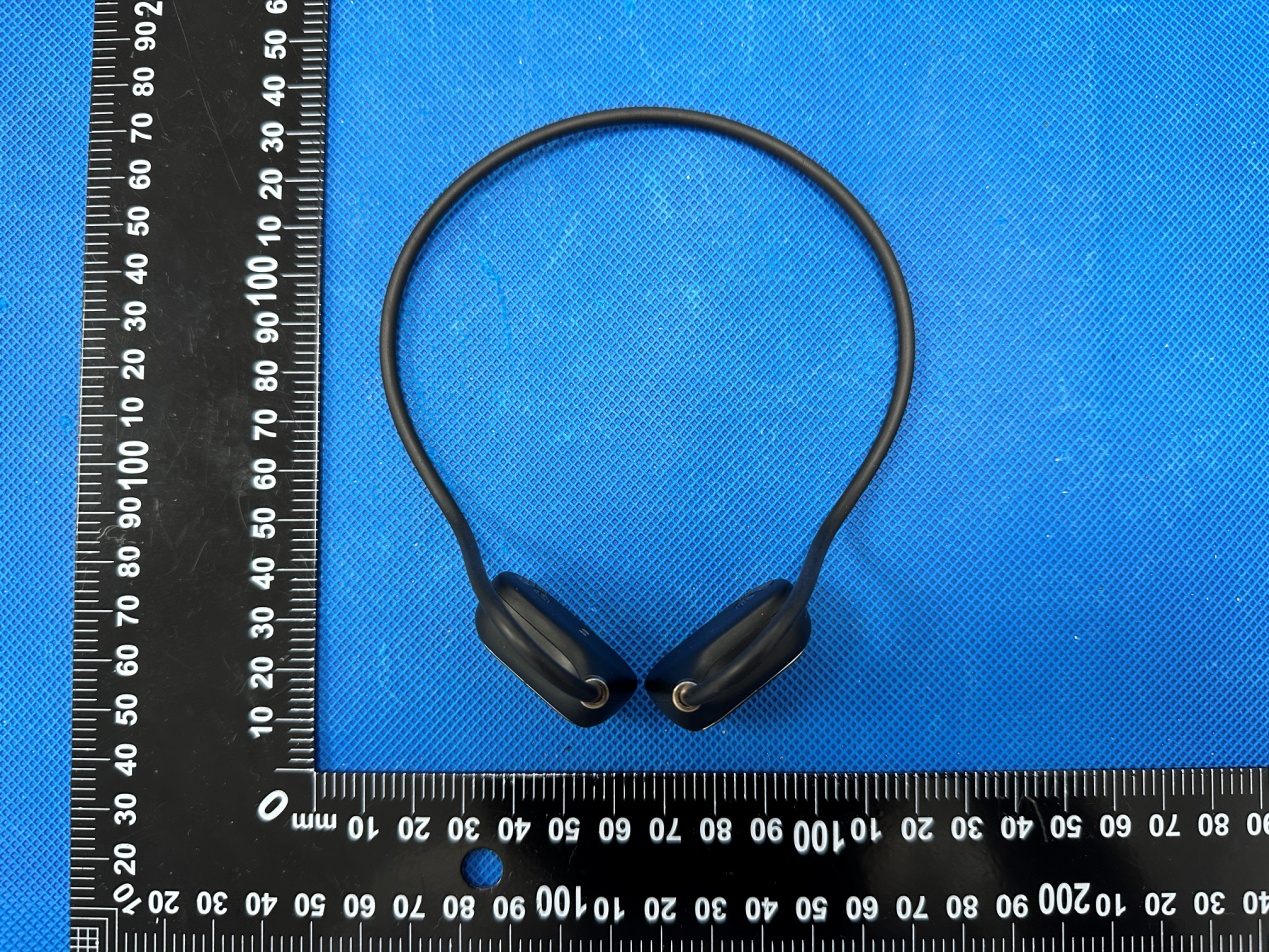

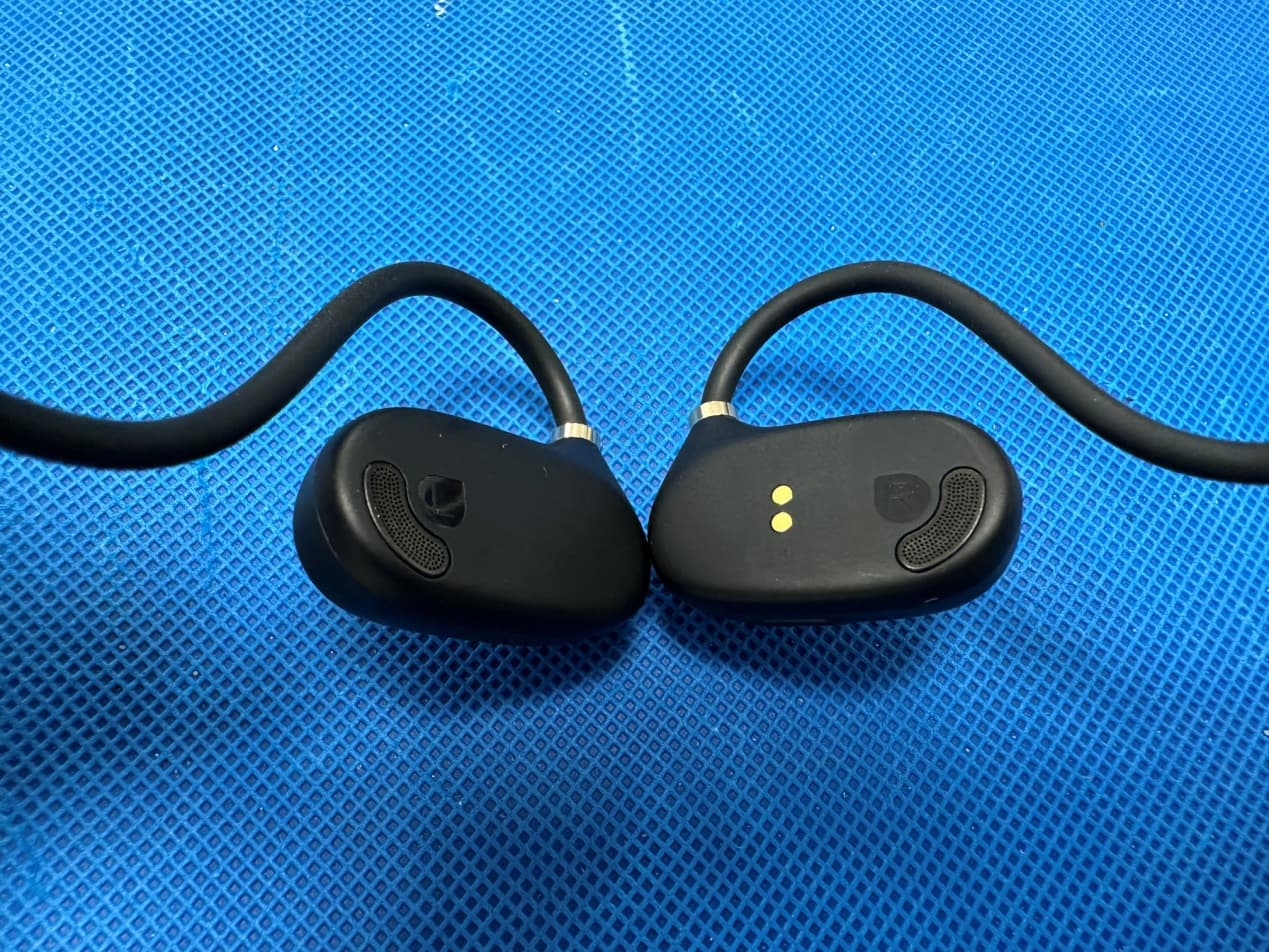

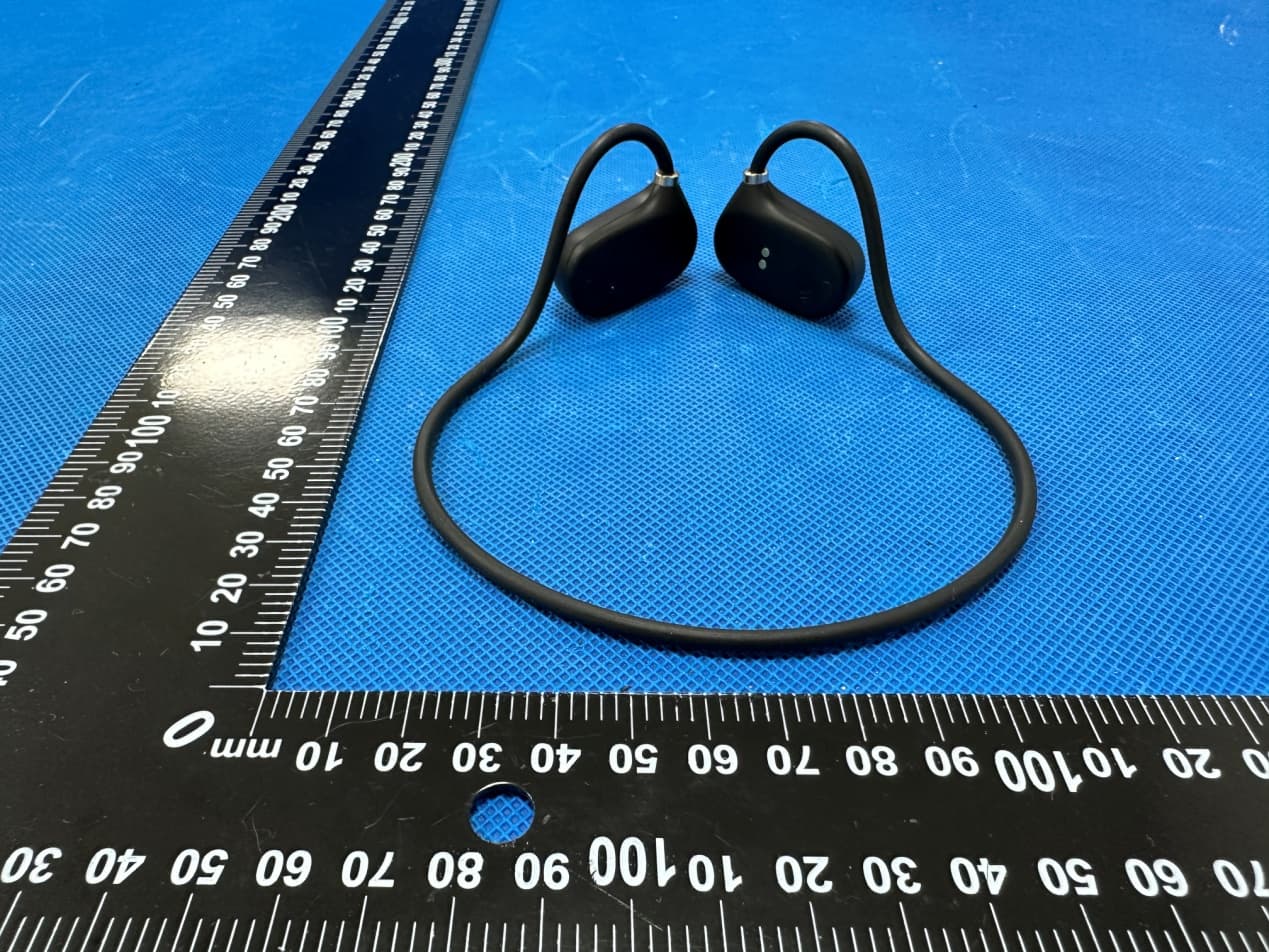

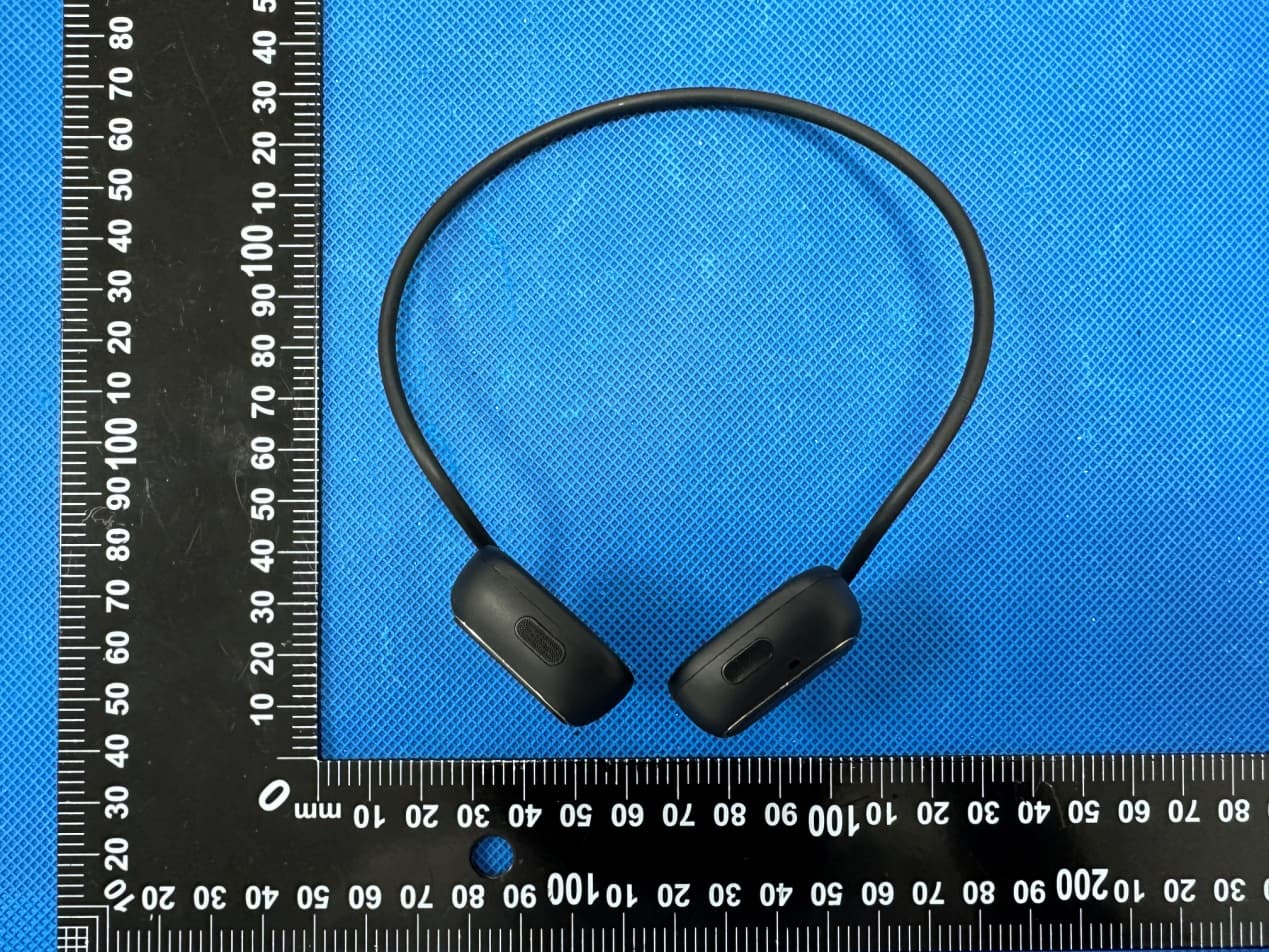

Annex A External Photos Report No.: HK2309014061-E Page 1 of 4 Report No.: HK2309014061-E Page 2 of 4 Report No.: HK2309014061-E Page 3 of 4 Report No.: HK2309014061-E Page 4 of 4

FCC ID LABEL: Ca. 3mm x 10mm label location FCC ID: 2BCU2‐H1

Annex B Internal Photo Report No.: HK2309014061-E Page 1 of 3 Report No.: HK2309014061-E Page 2 of 3 Antenna Report No.: HK2309014061-E Page 3 of 3

FCC RF Exposure EUT Description: Air Conduction Headphone Model No.: H1 FCC ID: 2BCU2-H1 1. Limits According t o KDB 447498 D01 General RF Exposure Guidance v01 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Expos ure Evaluation Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separati on distance mm Result Limit SAR Test Exclusion BT 0.47 0±1(1) 1.26 5 0.39023 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2309014061-E, antenna gain=2dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.39023 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 1 OF 10 3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification 1. Product Number 2. Features *Stable and reliable in performances *Low temperature coefficient of frequency *Low profile, compact size *RoHS compliance *SMT processes compatible (1)Product Type Chip Antenna (2)Size Code 3.6x1.2x0.5mm (3)Type Code F8 (4)Packing Paper bag packaging (5)Frequency 2.45GHz YF 3216 F8 R 2G4502 1 2 3 4 5 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 2 OF 10 3. Applications *Bluetooth earphone systems *Hand-held devices when WiFi /Bluetooth functions are needed, e.g., Smart phone. *IEEE802.11 b/g/n *ZigBee *Wireless PCMCIA cards or USB dongle 4. Description Ying feng chip antenna series are specially designed for WiFi/Bluetooth applications. Based on yingfeng proprietary design and processes, this chip antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5. Electrical Specifications (40 x 40 mm 2 ground plane) 5-1. Electrical Table Characteristics Specifications Unit Outline Dimensions 3.2x1.6x0.5 mm Working Frequency 2400~2500 MHz VSWR 2 Max. Impedance 50  Polarization Linear Polarization Gain Peak 2 (typical) dBi Efficiency 73 (typical) % 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 3 OF 10 5-2. Return Loss & VSWR Return Loss (S 11 ) Smith Chart(S 11 ) 6 Outline Dimensions of Antenna & Evaluation Board (unit: mm) 6-1. Antenna Dimensions Configuration and Dimensions: 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 4 OF 10 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 5 OF 10 7.Radiation Pattern (40x 40 mm 2 ground plane) 7-1. 3D Gain Pattern @ 2450 MHz Z X Y Y X Z 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 6 OF 10 、 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 7 OF 10 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 8 OF 10 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 9 OF 10 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : harry Designed by : andy Checked by : andy Approved by：oliver TITLE：3.2x1.6 x 0.5mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300K) Engineering Specification DOCUMENT YF3216F8R2G4502 REV. NO. B PAGE 10 OF 10

Page 1 of 48 Report No.: HK2309014061-E FCC Test Report FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen Shigu Technology Co., Ltd For Air Conduction Headphone Model No.: H1, H2, H3, H4, H5, H6, H7, H8, H9, H10, H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25 FCC ID: 2BCU2-H1 Prepared For : Shenzhen Shigu Technology Co., Ltd 9G, Fumingge, Huifu Garden, Buji Dafen Village, Longgang District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Sept. 01, 2023 ~ Sept. 08, 2023 Date of Report: Sept. 08, 2023 Report Number: HK2309014061-E Page 2 of 48 Report No.: HK2309014061-E Test Result Certification Applicant’s Name .................. : Shenzhen Shigu Technology Co., Ltd Address .................................. : 9G, Fumingge, Huifu Garden, Buji Dafen Village, Longgang District, Shenzhen, China Manufacture's Name ............. : Shenzhen Shigu Technology Co., Ltd Address .................................. : 9G, Fumingge, Huifu Garden, Buji Dafen Village, Longgang District, Shenzhen, China Product Description Trade Mark ............................. : N/A Product Name ........................... : Air Conduction Headphone Model and/or type reference...: H1, H2, H3, H4, H5, H6, H7, H8, H9, H10, H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25 Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .................................... . Date (s) of Performance of Tests .... . Sept. 01, 2023 ~ Sept. 08, 2023 Date of Issue .................................... Sept. 08, 2023 Test Result ........................................ Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 48 Report No.: HK2309014061-E Table of Contents Page 1. Summary .............................................................................................................................................................. 5 1.1. Test Standards ......................................................................................................................................................... 5 1.2. Test Description ....................................................................................................................................................... 5 1.3. Information of the Test Laboratory ......................................................................................................................... 6 1.4. Statement of the Measurement Uncertainty .......................................................................................................... 6 2. General Information ............................................................................................................................................. 7 2.1. Environmental Conditions ....................................................................................................................................... 7 2.2. General Description of EUT ..................................................................................................................................... 7 2.3. Description of Test Modes and Test Frequency ....................................................................................................... 8 2.4. Equipments Used during the Test ............................................................................................................................ 9 2.5. Related Submittal(s) / Grant (s) ............................................................................................................................. 10 2.6. Modifications ........................................................................................................................................................ 10 2.7. Description of Test Setup ....................................................................................................................................... 10 2.8. Description of support units .................................................................................................................................. 11 3. Test Conditions and Results ................................................................................................................................. 12 3.1. Conducted Emissions Test ..................................................................................................................................... 12 3.2. Radiated Emissions and Band Edge ....................................................................................................................... 15 3.3. Maximum Peak Conducted Output Power ............................................................................................................ 26 3.4. 20dB Bandwidth .................................................................................................................................................... 27 3.5. Frequency Separation ........................................................................................................................................... 30 3.6. Number of Hopping Frequency ............................................................................................................................. 32 3.7. Time of Occupancy (Dwell Time) ..........................................................................…

Text truncated - open the document above for the full version.

Model: H1 Radiated Emission Conducted Emission
