2BCUQ-DH301BBluetooth Wireless Headset

   DH301B Bluetooth W ireless Headset Quick Start DH301B Bluetooth Wireless Headset English Volume -/Next Track Mute Button Power/Bluetooth USB-C P ort Call Button Busylight Volume +/Previous Track 1. In the Box DH301B Bluetooth W ireless Headset DB10 Charging Stand USB Cable Quick Start*1 Safety Information & Declaration*1 2. Power ON/OFF Push the power button down to power ON the headset, and push the power button up to power OFF the headset. Power Power ON Powe r OFF 3. Pairing Push the power button down fully and release to turn on Bluetooth and enter auto-reconnect mode. Push the power button down fully for 1.5s to enter pairing mode. Bluetoot h 8. LED Indicator Event Headset power off Busylight Incoming call Headset power on Solid Red 3s Flashing R ed Solid Green 3s In call Solid Red Battery below 20% Flashing Red 5 times Note: When the power of the headset drops below 20%, there will be sound notifications. Please charge DH30 as soon as possible. Charging Started Batte ry belo w 20% Headset Busylight Battery belo w 80% Solid Green Flashing Red Battery above 80% Flashing Green USB Charing Charing Stand   7. Busylight Control Simultaneously press and hold the Volume +/- buttons for 1.5s to turn on/off the Busylight. Play / Pause P ress Reject call Answer / Ha ng up Press Double-press Redial Double-press 9. Charge Tel: +86-755-2640-2199 EMail: [email protected] Web: www.fanvil.com Fanvil Link Technology Co., Ltd. © 2025 FANVIL Link Technology Co., Ltd. All rights reserved. No parts of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, photocopying, recording, or otherwise, for any purpose, without the express written permission of FANVIL Link Technology Co., Ltd. Please scan the QR code to see the User Manual. 5. Mute Control Mute button 6. Call Button Call Button Mute Unmute Ro tate it upwards/downwards You can connect the headset to the PC, mobile device or IP Phone via bluetooth. Event Headset Busylight Pairing Connected Disconnected Flashing Red & Blue Solid Blue 3s Flashing Blue 5 times LED Indicator Connect the headset to your device via USB cable to enable simultaneous charging and audio calls. 4. USB Mode FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. * RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

U.S. AGENTLETTEROF ATTESTATION Date: 2025-09-23 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BCUQ-DH301B Fanvil Link Technology Co.,LTD certifies that, as of the date of the filing of the application, EMCTEK is our designated U.S. agent for service of process for the above referenced FCC ID. Fanvil Link Technology Co.,LTD accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. EMCTEK accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: EMCTEK Address: 11788 Big Canyon Lane, San Diego, CA 92131 USA FRN: 0037012671 Tel.:+1 858 401 9073 Email: [email protected] Signed by (printed name): Fang Liu Applicant: Fanvil Link Technology Co.,LTD Address: 13th Floor, Building 2, Runzhi R&D Center, Xin'an Street, Bao'an District, Shenzhen, Guangdong, China FRN: 0034227223 Tel: +86 15089240223 Email: [email protected] Signed by (printed name): Mengjiao Hu Signature: PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)Wehereby acknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.bothpartiesmaintaintherequirementsofthisagreementfornolessthanoneyearafterthe granteehasterminatedallmarketingandimportationortheconclusionofanyCommission- relatedproceedinginvolvingtheequipment. iii.Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,the granteeisobligatedtonotifytheFCCwithin30daysviathegrantingTCB.

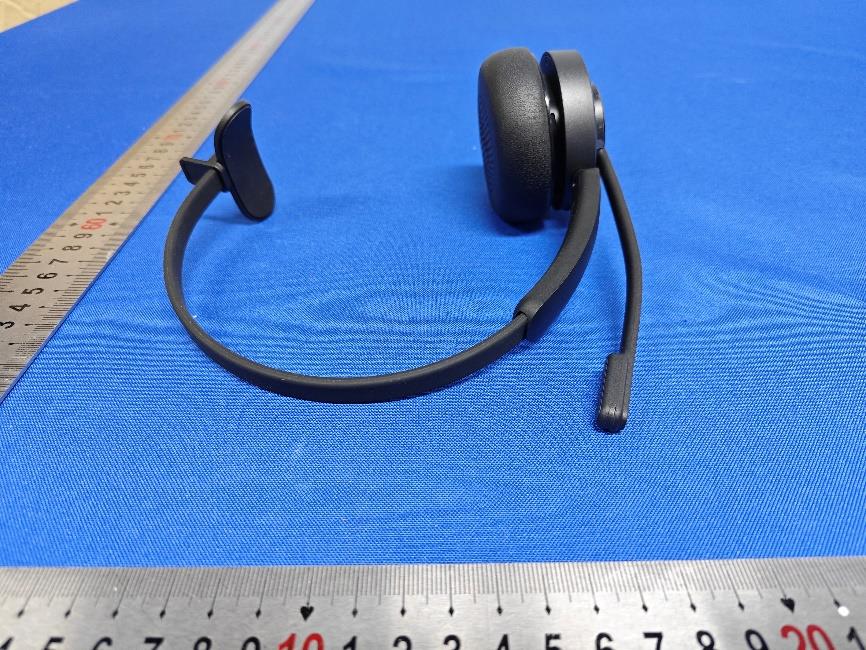

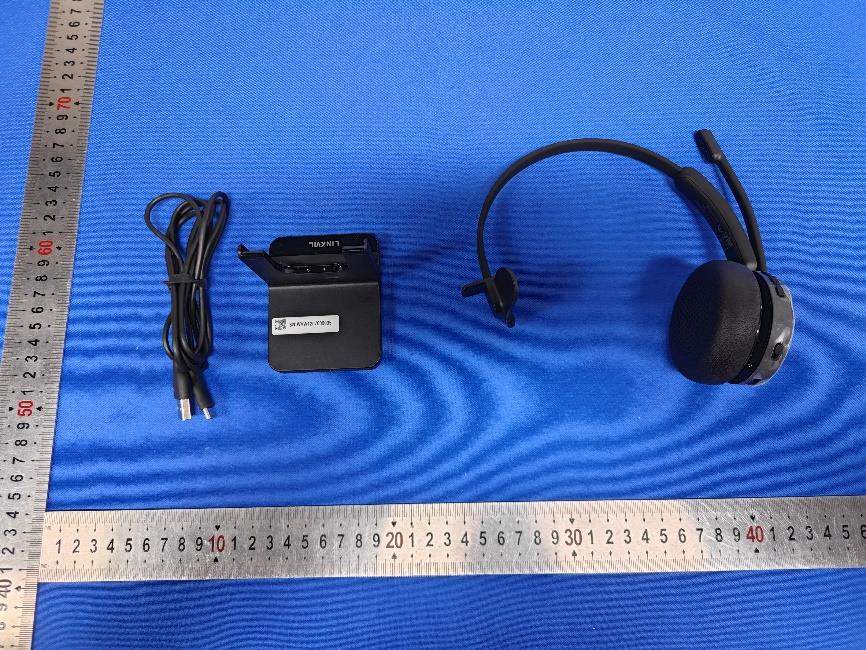

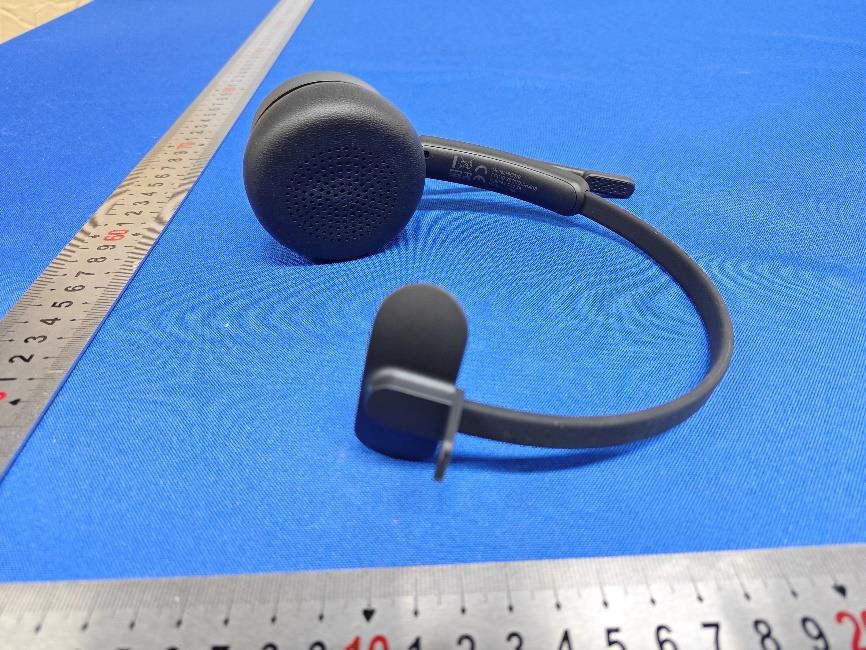

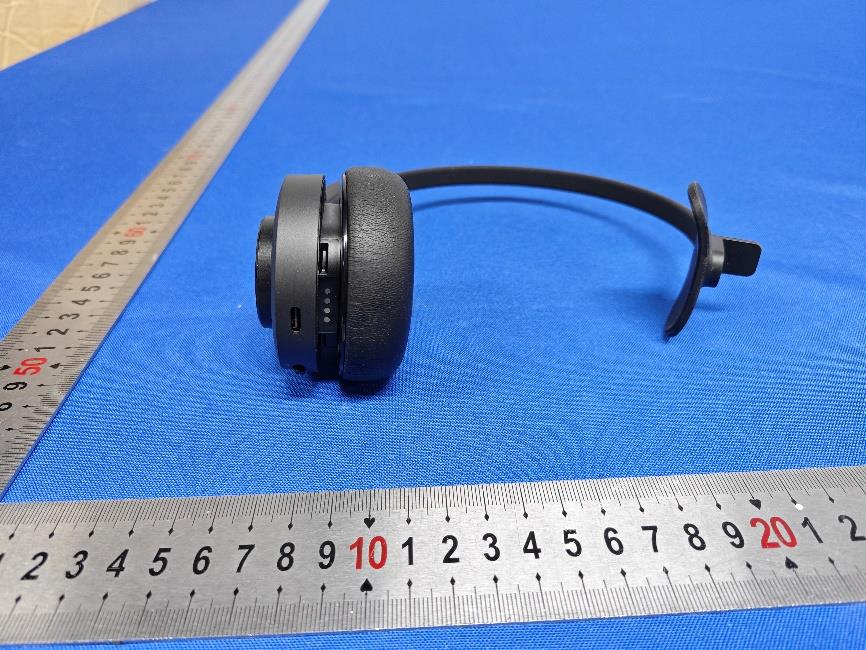

FCC ID: 2BCUQ-DH301B External Photos FCC ID: 2BCUQ-DH301B FCC ID: 2BCUQ-DH301B

FCC ID:2BCUQ-DH301B

FCC ID: 2BCUQ-DH301B Internal photos FCC ID: 2BCUQ-DH301B Antenna

Page 1 of 7 Report No.: AiTSZ-250909017FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : Bluetooth Wireless Headset Brand Name : Model : DH301B Series Model : N/A FCC ID : 2BCUQ-DH301B Applicant : Fanvil Link Technology Co.,LTD Address : 13th Floor, Building 2, Runzhi R&D Center, Xin'an Street, Bao'an District, Shenzhen, Guangdong, China Manufacturer : Fanvil Link Technology Co.,LTD Address : 13th Floor, Building 2, Runzhi R&D Center, Xin'an Street, Bao'an District, Shenzhen, Guangdong, China Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Sep 09, 2025 Date of Test : Sep 09, 2025~ Sep 15, 2025 Issued Date : Sep 16, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 7 Report No.: AiTSZ-250909017FW2 Report Revise Record Report Version Issued Date Notes M1 Sep 16, 2025 Initial Release Page 3 of 7 Report No.: AiTSZ-250909017FW2 Contents 1 GENERAL INFORMATION ....................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................ 6 2.1 APPLICABLE STANDARD .................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTSZ-250909017FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: Bluetooth Wireless Headset Model/Type reference: DH301B Serial Model: N/A Power Supply: DC 3.7V from battery or DC 5V from external circuit Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-250909017-1(Normal sample) AiTSZ-250909017-2(Engineer sample) Bluetooth: Supported type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: PCB antenna Antenna gain: 3.51dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual.. Page 5 of 7 Report No.: AiTSZ-250909017FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program …

Text truncated - open the document above for the full version.

Page 1 of 35 Report No.: AiTSZ-250909017FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Bluetooth Wireless Headset Brand Name : Model : DH301B Series Model : N/A FCC ID : 2BCUQ-DH301B Applicant : Fanvil Link Technology Co.,LTD Address : 13th Floor, Building 2, Runzhi R&D Center, Xin'an Street, Bao'an District, Shenzhen, Guangdong, China Manufacturer : Fanvil Link Technology Co.,LTD Address : 13th Floor, Building 2, Runzhi R&D Center, Xin'an Street, Bao'an District, Shenzhen, Guangdong, China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Sep 09, 2025 Date of Test : Sep 09, 2025~ Sep 15, 2025 Issued Date : Sep 16, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 35 Report No.: AiTSZ-250909017FW1 Report Revise Record Report Version Issued Date Notes M1 Sep 16, 2025 Initial Release Page 3 of 35 Report No.: AiTSZ-250909017FW1 Contents 1 TEST SUMMARY .................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION ....................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ......................................................................................................................... 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK OUTPUT POWER ................................................................................................................................. 20 3.4 20DB BANDWIDTH ..................................................................................................................................................... 21 3.5 OCCUPIED BANDWIDTH ............................................................................................................................................... 22 3.6 FREQUENCY SEPARATION ............................................................................................................................................. 23 3.7 NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 24 3.8 TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 25 3.9 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 26 3.10 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 28 3.11 ANTENNA REQUIREMENT ............................................................................................................................................. 29 4 TEST SETUP PHOTOGRAPHS OF EUT .................................................................................................................... 30 5 PHOTOS OF EUT ......................................…

Text truncated - open the document above for the full version.

SHENZHEN LINRONG TECHNOLOGY CO.,LTD Page 1 Confirmation of products Designer：SHENZHEN LINRONG TECHNOLOGY CO.,LTD ADD：Floor 3, building 1, LianJian Industrial Park, Huarong Road, Dalang street, Longhua District, Shenzhen Customer Fanvil Technology Company.Ltd Project Name DH301B Version A.1 Date 2025-08-20 Project NO. 34.10.06.001 Customer P/N FLL200B Frequency Range 2400~2500MHz Notes Designed By Yu Wang Zhenwei Chen Qukui tian Approved By Runjie Xie Clients’ Approval SHENZHEN LINRONG TECHNOLOGY CO.,LTD Page 2 Index 1. Specifications ················································································ 3 2. Electric specifications ······································································ 3 2-1 Matching circuit diagram ······························································· 3 3. VSWR Testing ··············································································· 3 3-1 Testing connection ········································································· 3 3-2 VSWR ························································································ 3 3-3 Testing data ················································································· 4 4. Test the efficiency of the antenna .................................... ...................4 4-1 Testing field ················································································· 4 4-2 Testing results.........................................................................................5 5. Environmental treatment..................................................................................5 6. Mechanical Dimension Drawing ···························································· 6 SHENZHEN LINRONG TECHNOLOGY CO.,LTD Page 3 1、Specification This report mainly provides the testing conditions of various electric and structural performance parameters for cell phone antenna ----DH301B Picture 1 shows the antenna designed by LR. 2 、Matching circuit diagram 3、 VSWR Testing 3.1 Testing connection The VSWR testing devices are connected in sequence: Agilent5071C Network Analyzer →Testing Cable → Customer-providing Devices. 3.2 VSWR The following table expresses the VSWR value of antenna’s two edges of its frequency range. With regard to the relevant diagram of VSWR DH301B VSWR Frequency (MHz) 2400 2450 2500 VSWR 1.20 1.31 2.19 SHENZHEN LINRONG TECHNOLOGY CO.,LTD Page 4 3.3 Testing data DH301B antenna VSWR 3.4Antenna 3D pattern 2400MHz 2450MHz 2500MHz 4.1 Testing field LR Microwave Anechoic Chamber ：testing frequency ranges from 400MHz to 6GHz and the 40cm diameter spherical quite zone, the chamber provides less than －90dB reflectivity from 400MHz—6GHz. SHENZHEN LINRONG TECHNOLOGY CO.,LTD Page 5 4.2 Testing results The following table indicates the testing results related to Power and Sensitivity in Microwave Anechoic Chamber，concerning the relative diagram. DH301B antenna passive data： Freq(MHz) Gain(dBi) Efficiency(%) Freq(MHz) Gain(dBi) Efficiency(%) 2300 1.41 43.12 2460 3.00 51.64 2310 1.47 44.82 2470 3.23 51.95 2320 1.60 45.73 2480 3.37 51.91 2330 1.75 46.28 2490 3.45 51.78 2340 1.97 47.02 2500 3.51 52.13 2350 2.20 47.74 2510 3.45 51.58 2360 2.41 48.87 2520 3.30 50.49 2370 2.51 50.06 2530 3.24 50.06 2380 2.51 50.38 2540 3.14 50.06 2390 2.43 51.36 2550 3.11 50.07 2400 2.37 52.33 2560 3.22 50.20 2410 2.35 52.44 2570 3.33 50.35 2420 2.42 52.77 2580 3.45 49.74 2430 2.53 52.51 2590 3.61 48.91 2440 2.68 52.30 2600 3.75 48.37 2450 2.82 51.97 DH301B Active data： TRP TIS 0 2.95 -85.00 39 2.90 -86.46 78 2.82 -87.49 5、Environmental treatment Original complete machine environment status SHENZHEN LINRONG TECHNOLOGY CO.,LTD Page 6 6、 Mechanical Dimension Drawing

Page 1 of 16 Report No.: AiTSZ-250909017FW1 Duty Cycle Test Result Modulation Packets Channel On Time (ms) Period (ms) Duty Cycle (%) Duty Cycle (linear) Duty Cycle Factor (dB) 1/T GFSK DH5 0 2.904 3.748 77.48 0.7748 1.1081 0.3444 39 2.904 3.748 77.48 0.7748 1.1081 0.3444 78 2.904 3.748 77.48 0.7748 1.1081 0.3444 π/4DQPSK 2-DH5 0 2.910 3.748 77.64 0.7764 1.0991 0.3436 39 2.910 3.748 77.64 0.7764 1.0991 0.3436 78 2.910 3.748 77.64 0.7764 1.0991 0.3436 8DPSK 3-DH5 0 2.910 3.748 77.64 0.7764 1.0991 0.3436 39 2.910 3.748 77.64 0.7764 1.0991 0.3436 78 2.912 3.748 77.69 0.7769 1.0963 0.3434 Test Graphs GFSK(DH5)_Channel 0 GFSK(DH5)_Channel 39 GFSK(DH5)_Channel 78 π/4DQPSK(2-DH5)_Channel 0 Page 2 of 16 Report No.: AiTSZ-250909017FW1 π/4DQPSK(2-DH5)_Channel 39 π/4DQPSK(2-DH5)_Channel 78 8DPSK(3-DH5)_Channel 0 8DPSK(3-DH5)_Channel 39 8DPSK(3-DH5)_Channel 78 Page 3 of 16 Report No.: AiTSZ-250909017FW1 Conducted Output Power Test Result Modulation Packet Type Channel Peak Output Power (dBm) Limit (dBm) Result GFSK DH5 0 2.43 ≤30 PASS 39 3.06 PASS 78 3.48 PASS π/4DQPSK 2-DH5 0 5.04 ≤20.97 PASS 39 5.61 PASS 78 6.21 PASS 8DPSK 3-DH5 0 5.63 PASS 39 6.27 PASS 78 6.65 PASS Test Graphs Peak Output Power GFSK_Channel 0 Peak Output Power GFSK_Channel 39 Peak Output Power GFSK_Channel 78 Peak Output Power π/4DQPSK_Channel 0 Page 4 of 16 Report No.: AiTSZ-250909017FW1 Peak Output Power π/4DQPSK_Channel 39 Peak Output Power π/4DQPSK_Channel 78 Peak Output Power 8DPSK_Channel 0 Peak Output Power 8DPSK_Channel 39 Peak Output Power 8DPSK_Channel 78 Page 5 of 16 Report No.: AiTSZ-250909017FW1 20dB Bandwidth Test Result Modulation Channel Center Frequency (MHz) 20 dB Bandwidth (MHz) GFSK 0 2402 MHz 0.9500 39 2441 MHz 0.9800 78 2480 MHz 0.9400 π/4DQPSK 0 2402 MHz 1.280 39 2441 MHz 1.280 78 2480 MHz 1.280 8DPSK 0 2402 MHz 1.300 39 2441 MHz 1.310 78 2480 MHz 1.300 Test Graphs GFSK_DH5_Channel 0 GFSK_DH5_Channel 39 GFSK_DH5_Channel 78 π/4DQPSK_2-DH5_Channel 0 π/4DQPSK_2-DH5_Channel 39 π/4DQPSK_2-DH5_Channel 78 Page 6 of 16 Report No.: AiTSZ-250909017FW1 8DPSK_3-DH5_Channel 0 8DPSK_3-DH5_Channel 39 8DPSK_3-DH5_Channel 78 Page 7 of 16 Report No.: AiTSZ-250909017FW1 Carrier Frequencies Separation Test Result Modulation Packet Left Center frequency (MHz) Right Center frequency (MHz) Hopping Frequency Separation (MHz) Limit (MHz) Result GFSK DH5 2440.1149 2440.7723 0.6575 0.653 PASS π/4DQPSK 2-DH5 2440.0675 2441.1056 1.0381 0.853 PASS 8DPSK 3-DH5 2439.9522 2440.9277 0.9755 0.873 PASS Test Graphs GFSK π/4DQPSK 8DPSK Page 8 of 16 Report No.: AiTSZ-250909017FW1 Number Of Hopping Channel Test Result Modulation Packet Number of Hopping Channel Limit Result GFSK DH5 79 15 PASS π/4DQPSK 2-DH5 79 15 PASS 8DPSK 3-DH5 79 15 PASS Test Graphs Low End Spectrum Channel Hopping Plot GFSK High End Spectrum Channel Hopping Plot GFSK Low End Spectrum Channel Hopping Plot π/4DQPSK High End Spectrum Channel Hopping Plot π/4DQPSK Low End Spectrum Channel Hopping Plot 8DPSK High End Spectrum Channel Hopping Plot 8DPSK Page 9 of 16 Report No.: AiTSZ-250909017FW1 Dwell Time Test Result Modulation Packet Channel Pulse Width (ms) Number of Pulses in 31.6 seconds Dwell Time (ms) Limit (ms) Result GFSK DH1 Hopping 0.3996 316 126.27 < 400 PASS DH3 1.656 170 281.52 PASS DH5 2.912 98 285.38 PASS π/4DQPSK 2-DH1 0.4080 316 128.93 PASS 2-DH3 1.656 163 269.93 PASS 2-DH5 2.912 111 323.23 PASS 8DPSK 3-DH1 0.4080 315 128.52 PASS 3-DH3 1.680 159 267.12 PASS 3-DH5 2.912 111 323.23 PASS Test Graphs Pulse Width GFSK_DH1 Number of Pulses in 31.6 seconds GFSK_DH1 Pulse Width GFSK_DH3 Number of Pulses in 31.6 seconds GFSK_DH3 Page 10 of 16 Report No.: AiTSZ-250909017FW1 Pulse Width GFSK_DH5 Number of Pulses in 31.6 seconds GFSK_DH5 Pulse Width π/4DQPSK_2-DH1 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH1 Pulse Width π/4DQPSK_2-DH3 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH3 Pulse Width π/4DQPSK_2-DH5 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH5 Page 11 of 16 Report No.: AiTSZ-250909017FW1 Pulse Width 8DPSK_3-DH1 Number of Pulses in 31.6 seconds 8DPSK_3-DH1 Pulse Width 8DPSK_3-DH3 Number of Pulses in 31.6 seconds 8DPSK_3-DH3 Pulse Width 8DPSK_3-DH5 Number of Pulses in 31.6 seconds 8DPSK_3-DH5 Page 12 of 16 Report No.: AiTSZ-250909017FW1 Conducted Out Of Band Emission Test Result Non-Hopping Modulation Packet Channel OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) Over Limit (dB) Result GFSK DH5 0 2397.50 -49.520 -17.94 -31.580 PASS 2400.00 -53.140 -17.94 -35.200 PASS 4803.60 -41.342 -17.94 -23.402 PASS 39 4882.30 -39.697 -17.39 -22.307 PASS 78 2483.50 -53.450 -16.94 -36.510 PASS 7439.85 -41.834 -16.94 -24.894 PASS π/4DQPSK 2-DH5 0 2397.50 -49.293 -18.13 -31.163 PASS 2400.00 -51.500 -18.13 -33.370 PASS 4804.30 -42.966 -18.13 -24.836 PASS 39 9763.93 -42.703 -17.35 -25.353 PASS 78 2483.50 -55.480 -16.8 -38.680 PASS 7439.85 -43.624 -16.8 -26.824 PASS 8DPSK 3-DH5 0 2397.40 -48.416 -17.77 -30.646 PASS 2400.00 -51.770 -17.77 -34.000 PASS 4804.30 -42.066 -17.77 -24.296 PASS 39 4881.67 -41.648 -16.98 -24.668 PASS 78 2483.50 -55.060 -16.58 -38.480 PASS 24972.5 -49.580 -16.58 -33.000 PASS Hopping Modulation Packet Channel OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) Over Limit (dB) Result GFSK DH5 Hopping 2398.70 -56.342 -17.98 -38.362 PASS 2400.00 -57.110 -17.98 -39.130 PASS 2483.50 -51.420 -16.81 -34.610 PASS π/4DQPSK 2-DH5 2400.00 -54.330 -17.91 -36.420 PASS 2483.50 -56.570 -16.93 -39.640 PASS 8DPSK 3-DH5 2397.40 -51.934 -17.43 -34.504 PASS 2400.00 -52.840 -17.43 -35.410 PASS 2483.50 -49.010 -16.59 -32.420 PASS Test Graphs Page 13 of 16 Report No.: AiTSZ-250909017FW1 Out Of Band Emission GFSK_DH5_Channel 0 Out Of Band Emission π/4DQPSK_2-DH5_Channel 0 30.0 MHz - 25000.0 MHz GFSK_DH5_Channel 0 30.0 MHz - 25000.0 MHz π/4DQPSK_2-DH5_Channel 0 Out Of Band Emission GFSK_DH5_Channel 39 Out Of Band Emission π/4DQPSK_2-DH5_Channel 39 30.0 MHz - 25000.0 MHz GFSK_DH5_Channel 39 30.0 MHz - 25000.0 MHz π/4DQPSK_2-DH5_Channel 39 Page 14 of 16 …

Text truncated - open the document above for the full version.

FCC ID: 2BCUQ-DH301B FCC ID: 2BCUQ-DH301B
