2BCV3-V2Pet Sensor System

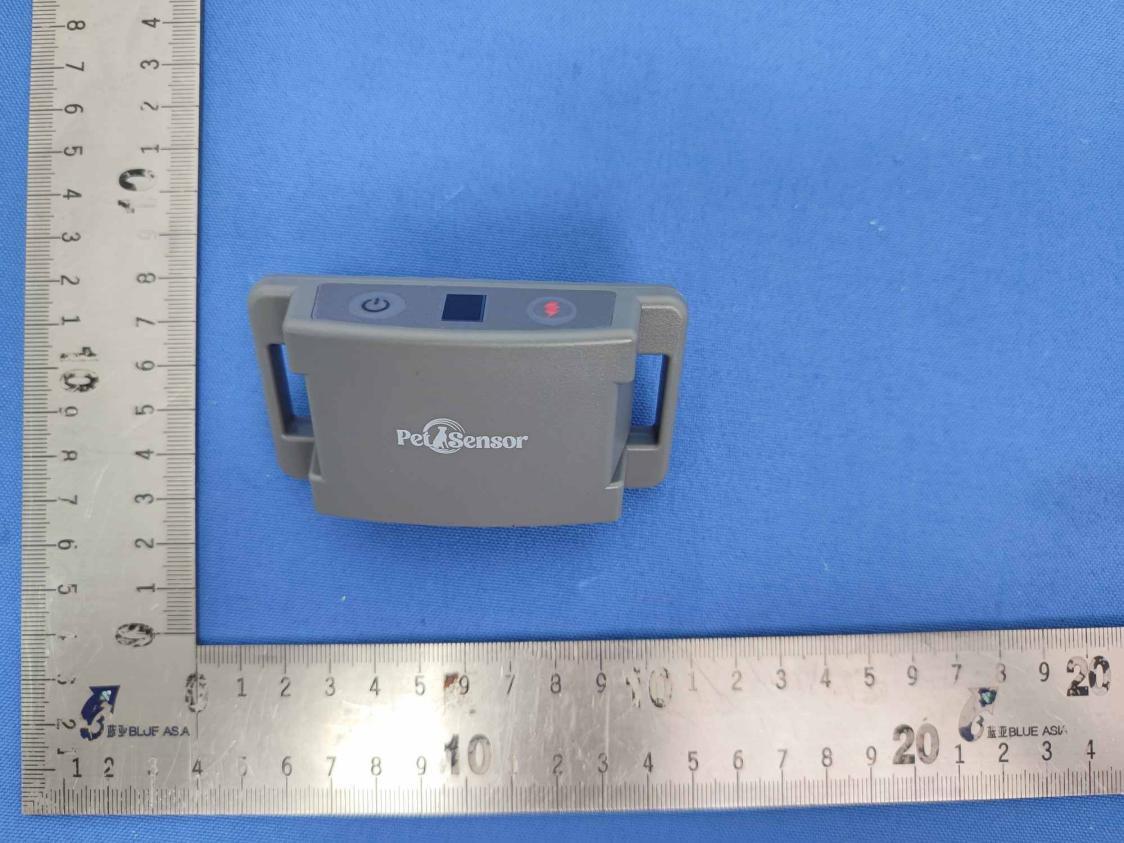

Operation: The unit has 2 pushbuttons. When viewed from the front with the shock terminals pointing downward, the MODE switch is on the right and the SHOCK Pet Sensor System User Manual (V2) level is on the left. Turn the unit on by pressing and holding the MODE button for 2-3 seconds. The middle horizontal segment of the display will blink once every 2 seconds when the unit is powered on. To turn the unit off, press and hold the MODE button for 2-3 seconds. The display will stop blinking. To enable and select different shock levels, first press the MODE button. The display will show a number between 0 and 9. The number 0 indicates that the shock feature is disabled. A number between 1 and 9 indicates that the shock feature is enabled with 1 being the lowest shock voltage (80 volts) and 9 being the highest shock voltage (160 volts). To change the level press the SHOCK pushbutton (left pushbutton) to increment the shock level. To disable the shock feature, repeatedly press the SHOCK pushbutton until the number 0 is displayed. Once the desired shock number is selected, pressing the MODE pushbutton will return the LED display to the flashing of the middle segment, or the display will automatically return the the flashing display after 5 seconds if no pushbuttons are pressed. Alarm State: When the unit is flashing the middle segment of the LED display, the unit is actively listening the beacon tags. If an area protection tag is received, the unit enters the alarm state. The unit emits an audible beeping tone and the vibrator vibrates for 3 seconds. If the shock level is enabled, any settings other than 0, the shock voltage is generated during the 4th second. This 4 second pattern repeats for 3 times at which time the shock stops, but the tone and vibration continue as long as the pet remains in the area. The shocking will only begin again if the pet leaves the area for a minimum of 60 seconds. Test Mode: While the unit is on, pressing both pushbuttons simultaneously will generate a sequence of test shocks at the currently selected shock level for 10 seconds. If the shock is disabled, meaning the the shock level is 0, no shock will be generated. The tone buzzer and vibrator also are active during test mode. Other Notes: The range (size of detection area) is fixed at approximately 3 to 6 feet. Objects near the tag can influence the shape and size of the protection area. Metal objects can block the tag signal if placed in front of the tag. If the pet runs too fast through the protected area, it may not detect the pet's beacon. The beacons only send data on the order of 3 times per second. The battery will last more than 8 hours under normal use before requiring charging. Provisions have been put into the system so that the detection range can be increased or decreased by adjusting the beacon's transmit power settings. This is done by using the FeasyBeacon app on a smart phone. It is not user friendly, but allows for experimentation of the system. It would be possible to make our own app to allow easy modifications to the detection area. Battery Charging: Any common 5 volt phone charger will charge the unit. A USB-C cable is required. When the unit's battery is low, the letter 'L' will flash on the display instead the of the middle segment. To charge the unit, plug the AC adapter into the unit. The display will show the letter 'C' to indicate that it is charging the battery. Once the unit is fully charged, the display will show the letter 'F' to indicate that the battery is fully charged. Any time that the unit is unplugged from the AC adapter, the unit will enter the ON state and the display will blink the middle segment. It is possible to turn off the unit while it is charging so that nothing is displayed. It will continue to charge while in this state. If the unit is off and then plugged into a charger, nothing will be displayed even though it is charging. Battery charging time from a completely discharged battery is less than 4 hours. Beacons: To turn the beacon ON, press and hold the switch for 3 seconds. The LED will blink 3 times. To turn the beacon OFF, press and hold the switch for 3 seconds. The LED will blink once. If no LED is illuminated from pressing the pushbutton switch, the battery may be dead. The beacons use a standard CR2032 battery and can be changed by unsnapping the two halves of their plastic case using a small flat blade screwdriver. The battery life is estimated to be greater than 6 months. *RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device mu…

Text truncated - open the document above for the full version.

WhisterGSLLC CoveredEquipmentCertificationAttestationLetter 4/15/2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ATTN.:ReviewingEngineer FCCID:2BCV3-V2 WhisterGSLLC(“theapplicant”)certifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorization pursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. WhisterGSLLC(“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredList(asaspecificallynamed entityoranyofitssubsidiariesoraffiliates)asanentityproducing“covered”equipment. WhisterGSLLC(“theapplicant”)certifiesthattheequipmentforwhichauthorizationis soughtdoesnotincludecybersecurityoranti-virussoftwareproducedorprovidedby KasperskyLab,Inc.oranyofitssuccessorsandassignees,includingequipmentwith integratedKasperskyLab,Inc.(oranyofitssuccessorsandassignees)cybersecurityor anti-virussoftwarepursuanttoDA-24-886andKDB986446D01CoveredEquipment GuidancesectionB(2a). Signed: Printedname:JesusGonzalezPereda Title:Member CompanyName:WhisterGSLLC Date:4/15/2026

* theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 4/15/2026 TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTN.:ReviewingEngineer FCCID:2BCV3-V2 FRNofapplicant:0034233767 Persection2.911(d)(7)oftheFCCrules,WhisterGSLLCFRN:0034233767(“theapplicant”) certifiesthattheequipmentforwhichauthorizationissoughtisdesignatedtothefollowingU.S. agent*forserviceofprocess: CompanyName:WhisterGSLLC FCCRegistrationNumber(FRN):0034233767 PhysicalU.S.CompanyAddress:7300VistalmarStreet,CoralGables,FL33143 ContactPerson: JesusGonzalezPereda Tel:7862522019 AgentEmailAddress:[email protected] Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:AgentSigned(ifdifferentfromApplicant): Signed: Printedname:JesusGonzalezPereda Title:Member CompanyName:WhisterGSLLC Date:4/15/2026 Printedname:JesusGonzalezPereda Title:Member CompanyName:WhisterGSLLC Date:4/15/2026

DATE:2026/4/15 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointBlueAsiaofTechnicalServices(Shenzhen)Co.,LtdAnd BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen, GuangdongProvince,China(NameofAgentcompanynameandaddress)toactasour agentinthepreparationofthisapplicationforequipmentcertification.Icertifythat submitteddocumentsproperlydescribethedeviceorsystemforwhichequipment certificationissought.Ialsocertifythateachunitmanufactured,importedormarketed,as definedintheFederalCommunicationsCommission’sregulationswillhaveaffixedtoita labelidenticaltothatsubmittedforapprovalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,I acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification, stillresideswithWhisterGSLLCAnd 7300VistalmarStreet,CoralGables,FL33143 (ApplicantNameandaddress) <Signature> Name ： JesusGonzalezPereda Title：Member Company ： WhisterGSLLC

Date2026-4-15 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeComplianceTesting,LLCtoactonourbehalfinallmatters relatingtoapplicationforequipmentauthorization,includingthesigningofalldocumentsrelatingto thesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothedenialof benefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21 U.S.C.853(a). Sincerely, <Signature> Name：JesusGonzalezPereda Title ： Member Company：WhisterGSLLC

DATE2026/4/15 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:_2BCV3-V2___________ ProductName:_PetSensorSystem__________ RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommission’srules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics  Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> Name：JesusGonzalezPereda Title ： Member Company：WhisterGSLLC

ModelNo.: V2

Product:PetSensorSystem FCCID:2BCV3-V2 Model:V2

ModelNo.: V2

Website:www.cblueasia.com Tel:+86-755-23059481 Email:[email protected] ThetestreportiseffectiveonlywithbothsignatureandspecializedstampandTheresult(s)showninthisreportreferonlytothesample(s)tested.Without writtenapprovalofBlueAsia,thisreportcan ’ tbereproducedexceptinfull.Theresultsdescribedinthisreportdonotrepresentthequalityorcharacteristicsofthe sampledbatch,nordotheyrepresentanysimilaroridenticalproductsthatarenotexplicitlystated. RFExposure Applicant:WhisterGSLLC Address:7300VistalmarStreet,CoralGables,FL33143 ProductName:PetSensorSystem BrandMark:N/A Model:V2 Seriesmodel:N/A ReportNumber:BLA-EMC-202603-A6403 FCCID:2BCV3-V2 DateofReceipt:Mar.17,2026 DateofTest:Mar.17,2026toMar.30,2026 TestStandard: 47CFRPart15,Part1.1307 47CFRPart15,Part2.1091 KDB447498D04GeneralRFExposureGuidancev01 TestResult:Pass Compiledby:Reviewby:Approvedby: IssuedDate:Mar.30,2026 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Address: No.41,SouthofBeihuanRoad,ShangwuCommunity,Shiyan Subdistrict,Bao'anDistrict,Shenzhen,Guangdong,China ReportNo.:BLA-EMC-202603-A6403 Page 2 of 7 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.1 TableofContents 1Generalinformation......................................................................................................................................................4 1.1Generalinformation.................................................................................................................................................4 1.2GeneraldescriptionofEUT.....................................................................................................................................4 2Laboratoryandaccreditations....................................................................................................................................5 3RFExposureComplianceRequirement.....................................................................................................................6 3.1StandardRequirement............................................................................................................................................6 3.2Limits.......................................................................................................................................................................6 3.3Result.......................................................................................................................................................................7 ReportNo.:BLA-EMC-202603-A6403 Page 3 of 7 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.1 ReviseRecord VersionNo.DateDescription 01Mar.30,2026Original ReportNo.:BLA-EMC-202603-A6403 Page 4 of 7 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.1 1Generalinformation 1.1Generalinformation ApplicantWhisterGSLLC Address7300VistalmarStreet,CoralGables,FL33143 ManufacturerShenzhenOmniIntelligentTechnologyCo.,Ltd Address 11thFloor,31stBuilding,LianChuangScienceTech 21stBulanRoad,NanwanStreet,Longgang ShenzhenCity,GuangdongProvince FactoryN/A AddressN/A 1.2GeneraldescriptionofEUT ProductnamePetSensorSystem Modelno.V2 SeriesmodelN/A DifferencesofSeries model N/A Powersupplyoradapter information DC3.7V HardwareversionD540PSS_0.1 Softwareversion8A_V1.1.10B Engineersampleno.BLA-EMC-202603-A64 Note:Foramoredetaileddescription,pleaserefertoSpecificationorUser’sManualsuppliedby theapplicantand/ormanufacturer. ForBLE OperationFrequency2402MHz-2480MHz ModulationTypeGFSK Ratedata1Mbps ChannelSpacing2MHz NumberofChannels40 AntennaTypePCBantenna AntennaGain0.8dBi(Providedbycustomer) ReportNo.:BLA-EMC-202603-A6403 Page 5 of 7 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.1 2Laboratoryandaccreditations Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: Companyname:BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd. Address: No.41,SouthofBeihuanRoad,ShangwuCommunity,Shiyan Subdistrict,Bao’anDistrict,Shenzhen,Guangdong,China CNASaccreditedNo.:L9788 A2LACert.No.:5071.01 FCCDesignationNo.:CN1252 TestFirmRegistrationNumber:923526 ISEDCABidentifierNo.:CN0028 CompanyNumber:24243 Telephone:+86-755-28682673 FAX:+86-755-28682673 ReportNo.:BLA-EMC-202603-A6403 Page 6 of 7 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.1 3RFExposureComplianceRequirement 3.1StandardRequirement Accordingto447498D04InterimGeneralRFExposureGuidancev01 StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurement ornumericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThreshold condition,listedbelow,issatisfied. 3.2Limits ReportNo.:BLA-EMC-202603-A6403 Page 7 of 7 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.1 3.3Result CalculatedResultandLimit(WORSECASEISASBELOW) Mode Frequency (MHz) MaxOutput power(dBm) MaxOutput power(mW) Ant gain (dBi) Evaluation ERP(dBm) Evaluation ERP(mW) Distance (cm) Limitof Pth(mW) Result BLE1M 2402-2.2910.590.8-3.6410.43203060.00Pass ERP=MaxOutputpower+Antgain-2.15 ----ENDOFREPORT---- Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,theresult(s)showninthisreportrefer onlytothesample(s)tested.WithoutwrittenapprovalofBlueAsia,thisreportcan’tbereproducedexceptinfull.

RFspecification BluetoothPCBprintedantenna CompanyName：ShenzhenOmnilntelligentTechnologyCo.,LTD Address:11thFloor,Building31,PhaseIII,LianchuangTechnologyPark,NanwanStree t,LonggangDistrict,Shenzhen,Guangdong,China FrequencyRange(MHz)：2400-2500 Bandwidth(MHz)：100 InputImpendence(Ω)：50 Gain(dBi)：0.8 V.S.W.R：<2 Antennasizechart RFspecification

Website:www.cblueasia.com Tel:+86-755-23059481 Email:[email protected] ThetestreportiseffectiveonlywithbothsignatureandspecializedstampandTheresult(s)showninthisreportreferonlytothesample(s)tested.Without writtenapprovalofBlueAsia,thisreportcan ’ tbereproducedexceptinfull.Theresultsdescribedinthisreportdonotrepresentthequalityorcharacteristicsofthe sampledbatch,nordotheyrepresentanysimilaroridenticalproductsthatarenotexplicitlystated. TestReport Applicant:WhisterGSLLC Address:7300VistalmarStreet,CoralGables,FL33143 ProductName:PetSensorSystem BrandMark:N/A Model:V2 Seriesmodel:N/A ReportNumber:BLA-EMC-202603-A6402 FCCID:2BCV3-V2 DateofReceipt:Mar.17,2026 DateofTest:Mar.17,2026toMar.30,2026 TestStandard:47CFRPart15,SubpartC15.247 TestResult:Pass Compiledby:Reviewby:Approvedby: IssuedDate:Mar.30,2026 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Address:No.41,SouthofBeihuanRoad,ShangwuCommunity,Shiyan Subdistrict,Bao'anDistrict,Shenzhen,Guangdong,China ReportNo.:BLA-EMC-202603-A6402 Page 2 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 TableofContents 1Generalinformation......................................................................................................................................................5 1.1Generalinformation.................................................................................................................................................5 1.2GeneraldescriptionofEUT.....................................................................................................................................5 2Testsummary................................................................................................................................................................6 3TestConfiguration........................................................................................................................................................7 3.1Testmode................................................................................................................................................................7 3.2OperationFrequencyeachofchannel....................................................................................................................7 3.3Testchannel.............................................................................................................................................................8 3.4ConfigurationdiagramofEUT.................................................................................................................................9 3.5Auxiliaryequipment...............................................................................................................................................10 3.6Testenvironment...................................................................................................................................................10 4Laboratoryinformation..............................................................................................................................................11 4.1Laboratoryandaccreditations...............................................................................................................................11 4.2Measurementuncertainty......................................................................................................................................11 5Testequipment............................................................................................................................................................12 6Testresult....................................................................................................................................................................14 6.1Antennarequirement.............................................................................................................................................14 6.2ConductedemissionsatACpowerline(150kHz-30MHz)..................................................................................15 6.3ConductedpeakoutputPower..............................................................................................................................19 6.4Minimum6dBbandwidth.......................................................................................................................................20 6.5Powerspectrumdensity........................................................................................................................................21 6.6ConductedBandEdgesMeasurement.................................................................................................................22 6.7Conductedspuriousemissions.............................................................................................................................24 6.8Radiatedspuriousemissions................................................................................................................................26 6.9Radiatedemissionswhichfallintherestrictedbands..........................................................................................37 7AppendixA..................................................................................................................................................................44 7.1MaximumPKConductedOutputPower...............................................................................................................44 7.2-6dBBandwidth.....................................................................................................................................................46 7.3OccupiedChannelBandwidth...............................................................................................................................48 7.4MaximumPowerSpectralDensityLevel......................................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202603-A6402 Page 21 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 6.5Powerspectrumdensity TestStandard47CFRPart15,SubpartC15.247(d) TestMethod ANSI C63.10-2020+Cor.1-2023+C63.10a-2024+ErratatoC63.10a-2024 Clause11.10.2 TestMode(Pre-Scan)TX TestMode(FinalTest)TX 6.5.1Limit ≤8dBminany3kHzbandduringanytimeintervalofcontinuoustransmission 6.5.2Testsetup 6.5.3Testdata Pass:PleaserefertoappendixAfordetails ReportNo.:BLA-EMC-202603-A6402 Page 22 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 6.6ConductedBandEdgesMeasurement TestStandard47CFRPart15,SubpartC15.247(d) TestMethod ANSI C63.10-2020+Cor.1-2023+C63.10a-2024+ErratatoC63.10a-2024 Clause11.13 TestMode(Pre-Scan)TX TestMode(FinalTest)TX 6.6.1Limit Inany100kHzbandwidthoutsidethefrequencybandinwhichthespreadspectrumordigitally modulatedintentionalradiatorisoperating,theradiofrequencypowerthatisproducedbythe intentionalradiatorshallbeatleast20dBbelowthatinthe100kHzbandwidthwithinthebandthat containsthehighestlevelofthedesiredpower,basedoneitheranRFconductedoraradiated measurement,providedthetransmitterdemonstratescompliancewiththepeakconductedpower limits. IfthetransmittercomplieswiththeconductedpowerlimitsbasedontheuseofRMSaveraging overatimeinterval,aspermittedunderparagraph(b)(3)ofthissection,theattenuationrequired underthisparagraphshallbe30dBinsteadof20dB. Attenuationbelowthegenerallimitsspecifiedin§15.209(a)isnotrequired. Inaddition,radiatedemissionswhichfallintherestrictedbands,asdefinedin§15.205(a),must alsocomplywiththeradiatedemissionlimitsspecifiedin§15.209(a)(see§15.205(c)). 6.6.2Testsetup ReportNo.:BLA-EMC-202603-A6402 Page 23 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 6.6.3Testdata Pass:PleaserefertoappendixAfordetails ReportNo.:BLA-EMC-202603-A6402 Page 24 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 6.7Conductedspuriousemissions TestStandard47CFRPart15,SubpartC15.247(d) TestMethod ANSI C63.10-2020+Cor.1-2023+C63.10a-2024+ErratatoC63.10a-2024 Clause11.11 TestMode(Pre-Scan)TX TestMode(FinalTest)TX 6.7.1Limit Inany100kHzbandwidthoutsidethefrequencybandinwhichthespreadspectrumordigitally modulatedintentionalradiatorisoperating,theradiofrequencypowerthatisproducedbythe intentionalradiatorshallbeatleast20dBbelowthatinthe100kHzbandwidthwithinthebandthat containsthehighestlevelofthedesiredpower,basedoneitheranRFconductedoraradiated measurement,providedthetransmitterdemonstratescompliancewiththepeakconductedpower limits. IfthetransmittercomplieswiththeconductedpowerlimitsbasedontheuseofRMSaveraging overatimeinterval,aspermittedunderparagraph(b)(3)ofthissection,theattenuationrequired underthisparagraphshallbe30dBinsteadof20dB. Attenuationbelowthegenerallimitsspecifiedin§15.209(a)isnotrequired. Inaddition,radiatedemissionswhichfallintherestrictedbands,asdefinedin§15.205(a),must alsocomplywiththeradiatedemissionlimitsspecifiedin§15.209(a)(see§15.205(c)). 6.7.2Testsetup ReportNo.:BLA-EMC-202603-A6402 Page 25 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 6.7.3Testdata Pass:PleaserefertoappendixAfordetails ReportNo.:BLA-EMC-202603-A6402 Page 26 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 6.8Radiatedspuriousemissions TestStandard47CFRPart15,SubpartC15.247(d) TestMethod ANSI C63.10-2020+Cor.1-2023+C63.10a-2024+ErratatoC63.10a-2024 Clause6.4,6.5,6.6 TestMode(Pre-Scan)TX TestMode(FinalTest)TX 6.8.1Limit Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above9605003 Remark:TheemissionlimitsshownintheabovetablearebasedonmeasurementsemployingaCISPR quasi-peakdetectorexceptforthefrequencybands9-90kHz,110-490kHzandabove1000MHz.Radiated emissionlimitsinthesethreebandsarebasedonmeasurementsemployinganaveragedetector,thepeakfield strengthofanyemissionshallnotexceedthemaximumpermittedaveragelimitsspecifiedabovebymorethan20 dBunderanyconditionofmodulation. ReportNo.:BLA-EMC-202603-A6402 Page 27 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 6.8.2Testsetup Below1GHz： 30MHz-1GHz： Above1GHz： ReportNo.:BLA-EMC-202603-A6402 Page 28 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 6.8.3Procedure a)Forbelow1GHz,theEUTwasplacedonthetopofarotatingtable0.8metersabovethegroundat a3or10metersemi-anechoicchamber.Thetablewasrotated360degreestodeterminethe positionofthehighestradiation. b)Forabove1GHz,theEUTwasplacedonthetopofarotatingtable1.5metersabovethegroundat a3meterfully-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionof thehighestradiation. c)TheEUTwasset3or10metersawayfromtheinterference-receivingantenna,whichwasmounted onthetopofavariable-heightantennatower. d)Theantennaheightisvariedfromonemetertofourmetersabovethegroundtodeterminethe maximumvalueofthefieldstrength.Bothhorizontalandverticalpolarizationsoftheantennaare settomakethemeasurement. e)Foreachsuspectedemission,theEUTwasarrangedtoitsworstcaseandthentheantennawas tunedtoheightsfrom1meterto4meters(forthetestfrequencyofbelow30MHz,theantennawas tunedtoheights1meter)andtherotatabletablewasturnedfrom0degreesto360degreestofind themaximumreading. f)Thetest-receiversystemwassettoPeakDetectFunctionandSpecifiedBandwidthwithMaximum HoldMode. g)IftheemissionleveloftheEUTinpeakmodewas10dBlowerthanthelimitspecified,thentesting couldbestoppedandthepeakvalues…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202603-A6402 Page 41 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 [Testmode:TXlowchannel];[Polarity:Vertical];[Power:DC3.7V] TestResult:Pass ReportNo.:BLA-EMC-202603-A6402 Page 42 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 [Testmode:TXHighchannel];[Polarity:Horizontal];[Power:DC3.7V] TestResult:Pass ReportNo.:BLA-EMC-202603-A6402 Page 43 of 61 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected]：V1.3 [Testmode:TXHighchannel];[Polarity:Vertical];[Power:DC3.7V] TestResult:Pass…

Text truncated - open the document above for the full version.
