2BCVJ-LC-AS20ShortCam_Lite

1 ShortCam Lite User Guide Shenzhen Launch Digital Technology Co.,Ltd 1 Model:LC-AS20 Manufacturer:Shenzhen Launch Digital Technology Co.,Ltd Address：Block B, Floor 5, Building F2, TCL Science Park, No.1001 Zhongshan Garden Road, Xili Street, Nanshan District, Shenzhen Service hotline:4001-386-389 turn 2 Website:http://www.launchdigital.net/ ShortCam Lite使用指南 2 CONTENTS 一、Product Overview and Features ......................................................................... 1 1.1. Product Overview .................................................................................. 1 1.2. Product Features ................................................................................... 1 二、Equipment Instructions.................................................................................... 2 三、Software Installation and Functional Interface Description ...................................... 3 3.1 PC client operating environment requirements: ......................................... 3 3.2 PC client download and installation .......................................................... 3 3.3 PC client function interface description ..................................................... 3 3.4 Mobile App Running System Requirements ............................................... 5 3.5 Mobile App Download and Installation ..................................................... 5 3.6 Mobile App Functional Interface Description ............................................. 6 四、PCB Diagnostics Detailed Operating Instructions .................................................. 8 五、Packing List .................................................................................................. 9 六、Product Version Upgrade & Technical Support .................................................... 9 七、 FCC warning ................................................................................................ 9 ShortCam Lite使用指南 3 ShortCam LiteUser Guide 1 1、Product Overview and Features 1.1. Product Overview ShortCam Lite is a single-light infrared thermal imaging inspection tool for cell phone motherboard repair, can quickly locate the PCBA short circuit, leakage of faulty components, support for multi-platform use, can efficiently solve the traditional leakage detection methods with low efficiency, operational difficulties and other issues. 1.2. Product Features  High-definition thermal imaging, details are more clear, support one-key speed check function, fast and accurate positioning of high-temperature device location;  Equipped with WIFI function, which supports multi-platform client connection such as iPhone, Android cell phone and laptop;  Infrared camera is removable, can be mounted on the microscope through a special bracket, simple operation, multi-purpose;  Bracket can be flexibly telescoped to adjust the height, easy to store, comprehensively enhance the user experience, to meet the needs of different scenarios. Product Specifications Specifications of Infrared Thermal Imaging Camera ShortCam Lite Detector type Uncooled VOx detector Resolution 256*192 Wavelength range 7.5~13.5 um FOV 25°*18° Temperature Measurement Range -20°C~550°C Temperature Measurement Distance 5cm~25cm Temperature Measurement Accuracy ±5°C or ±5% (take maximum) Interface and Display Functions Display mode Whitehot/Hotmetal/Rainbow Connection Methods Type-C Image Storage Formats JPG Physical property Product Size/Weight 116*52*150mm/186 g Installation Plug and play, no installation required Input supply voltage 5V DC Power wastage 2.5W Storage temperature range -20°C~60°C Working environment 3°C~45°C, 95% relative humidity ShortCam LiteUser Guide 2 2、Equipment Instructions 1, Unpack the ShortCam Lite, and count the components according to the packing list (the components mainly include the host device and Type-C cable); 2、Prop up the base of the ShortCam Lite main unit to stabilize it on a flat surface, and stretch the stand upward to the desired height; 3、Use the Type-C cable to connect the computer and ShortCam Lite, the blue light of the power indicator flashes, the indicator stabilizes to a constant state in about 25s, and the image can be displayed normally on the ShortCam Lite software. 4, According to the different heights, you can turn the focus ring for clarity adjustment, if you need to use with a microscope, you can directly remove the thermal imaging camera, use the Type-C cable power supply can be used on the microscope. 5, The product supports WIFI connection, cell phones or computers can be used at the same time through the WIFI connection, WIFI hotspot name ShortCam Lite_XXXXX, where XXXXX for the product serial number after 5, such as the product serial number for the 8000E22040485288, the WIFI hotspot name is ShortCam_Lite_85288, and the WIFI password is 12345678. The product schematic is as follows: Power switch and indicator thermal imaging camera focus ring Bracket and base section ShortCam LiteUser Guide 3 3、Software Installation and Functional Interface Description 3.1 PC client operating environment requirements: ShortCam Lite software has certain requirements for computer configuration, ShortCam Lite client software can run smoothly if the following requirements are met Computer CPU processor: I3 5th generation or above. Memory size: 8G and above Operating system: Windows 7/Windows 10/Windows 11 3.2 PC client download and installation 1. The PC client software can be downloaded by opening the official website of Lancel (http://www.launchdigital.net/), clicking "Service and Support" -> "Download Center", and then selecting Click "Service & Support"->"Download Center" and select "ShortCam Lite PC Client Software" to download; 2, Decompression of the installation package, the implementation of ShortCam Lite client installation software, according to the prompts in turn click on the next step, after the installation is complete can be used normally; 3.3 PC client function interface description Clie…

Text truncated - open the document above for the full version.

Declaration on model difference We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; The difference is only in model names. Production name Trade name Model no. ShortCam_Lite N/A LC-AS20,LY-AS20 Confirmed by：Guangdong Laureii Intelligent Technology Co., Ltd Signature : Date: 2023/09/19 Name: Youya Mo Title: Technical engineer Company: Guangdong Laureii Intelligent Technology Co., Ltd

(Guangdong Laureii Intelligent Technology Co., Ltd) (2023.9.19) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BCVJ-LC-AS20 [Guangdong Laureii Intelligent Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Client’s signature: Client’s name / title: Youya Mo / Technical engineer (Guangdong Laureii Intelligent Technology Co., Ltd) (2023.9.19) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BCVJ-LC-AS20 [Guangdong Laureii Intelligent Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Client’s signature: Client’s name / title : Youya Mo / Technical engineer

Guangdong Laureii Intelligent Technology Co., Ltd 2023.09.19 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: ShortCam_Lite MODEL : LC-AS20,LY-AS20 FCC ID: 2BCVJ-LC-AS20 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Youya Mo / Technical engineer Contact information / address: Room 215,Building 7,Zhangqi Technology,Business Incubator,No.70, Torch Development Zone, Zhongshan,City, Guangdong,China

Guangdong Laureii Intelligent Technology Co., Ltd 2023/09/19 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: ShortCam_Lite MODEL : LC-AS20,LY-AS20 FCC ID: 2BCVJ-LC-AS20 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Youya Mo / Technical engineer Contact information / address: Room 215,Building 7,Zhangqi Technology,Business Incubator,No.70, Torch Development Zone, Zhongshan,City, Guangdong,China

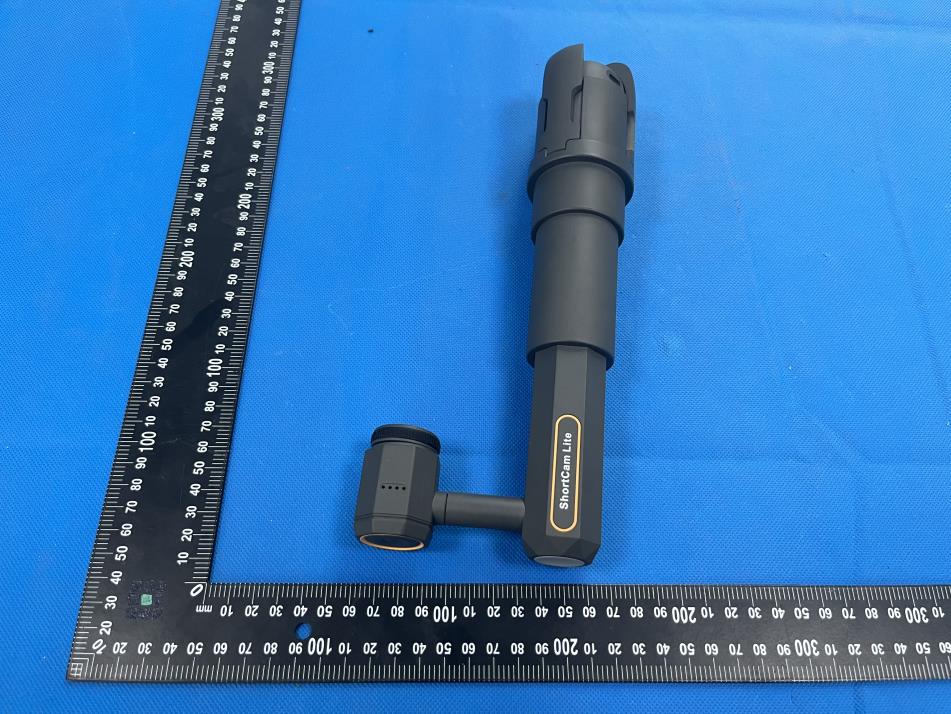

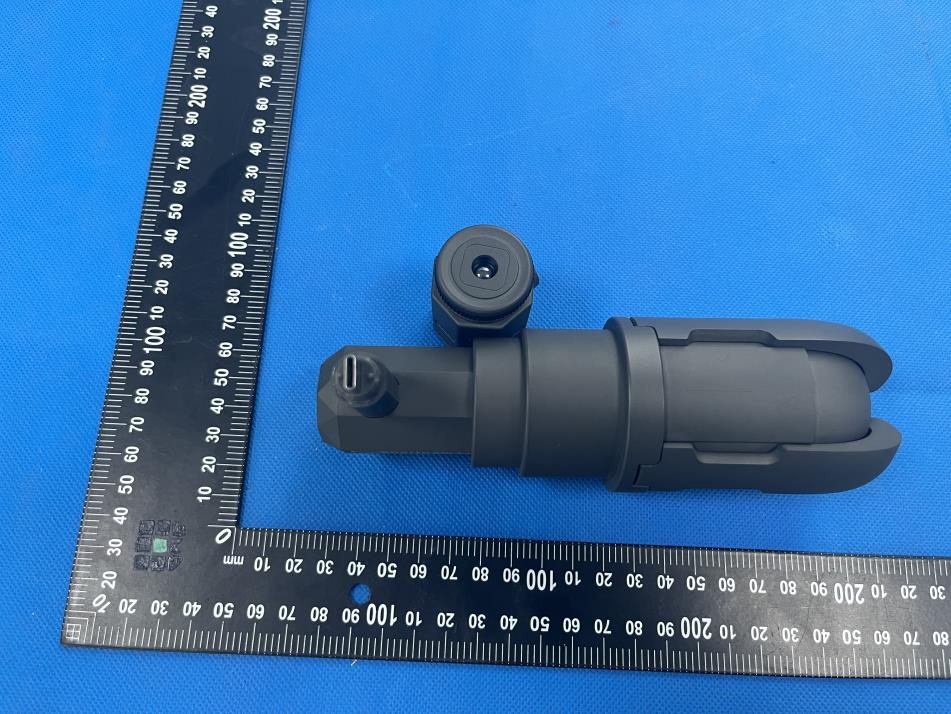

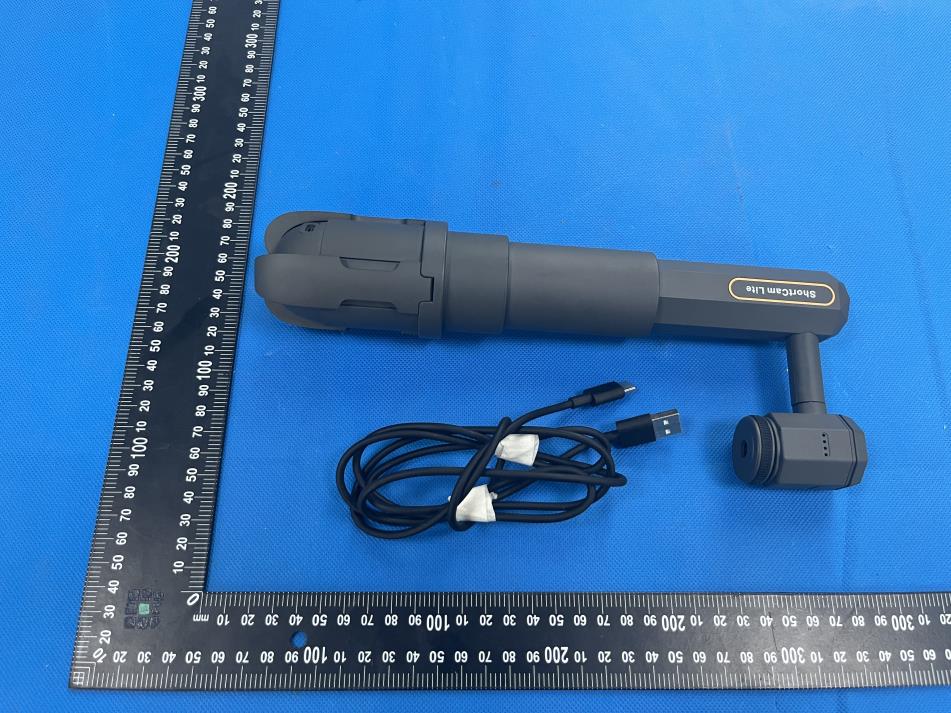

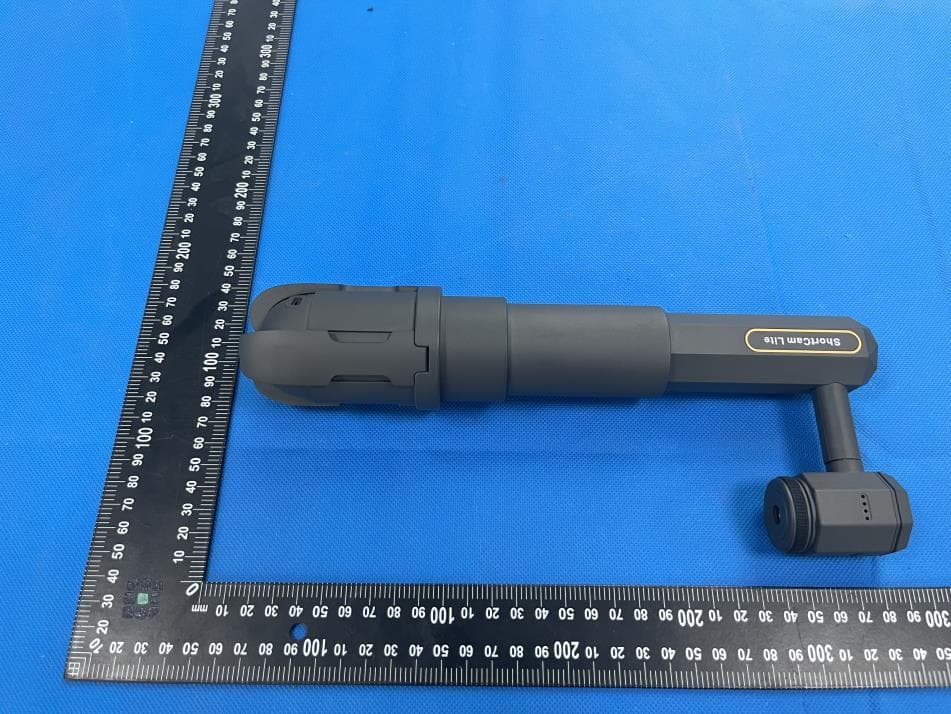

External Photos

Size:20*20mm Model : LC-AS20 FCC ID: 2BCVJ-LC-AS20 Label location

Internal Photos ANT

FCC ID: 2BCVJ-LC-AS20 RF exposure evaluation According to§15.247(i), §1.1307 and KDB447498, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. General frequency and separation-distance dependent MPE-based effective radiated power (ERP) thresholds are in Table B.1 [Table 1 of §1.1307(b)(1)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. For mobile devices that are not exempt per Table B.1 [Table 1 of §1.1307(b)(1)(i)(C)] at distances from 20 cm to 40 cm and in 0.3 GHz to 6 GHz, evaluation of compliance with the exposure limits in §1.1310 is necessary if the ERP of the device is greater than ERP20cm in Formula (B.1) [repeated from §2.1091(c)(1); also in §1.1307(b)(1)(i)(B)]. According to FCC Part 2.1091 and § 1.1307(b)(3)(i)(C) , this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 , the simple calculation as below: WIFI Antenna Gain: 4dBi Conducted Transmit Power Max: = 15.88 dBm =38.72 mW EIRP=15.88dBm + 4dBi=19.88dBm ERP= 19.88-2.15dB= 17.73dBm The maximun output power specified is: 17.73 dBm (59.29 mW) The MPE limit is 19.2R 2 (768mW) for general population and uncontrolled exposure in the 2.4GHz frequency range according to FCC Part 1.1307(b)(3)(i)(C). As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons.

2.4GHzDipoleFPCANT Specification 联络人：夏建军手机：13798358430 QQ:1811757148网址：www.lb-link.net邮箱：[email protected] 深圳总部：深圳市光明区华强创意产业园1A栋11楼（邮编：518107） 深圳工厂：深圳市龙华区观澜街道观澜章阁科技园C栋 江西工厂：江西省赣州市定南县高新开发区必联工业园 SHENZHENBILIANELECTRONICCO.,LTD Add:10~11/F,Building1A,Huaqiangideapark,Guangmingdistrict,Shenzhen.Guangdong,China Web:www.b-link.net.cn 1http://www.b-link.net.cn RevisionHistory RevisionSummaryReleaseDate 1.0Firstrelease2023-07-30 ProductName:2.4GHzDipoleFPCAnt Frequency:2.4~2.5GHz Revision:V1.0 CustomerApproval: Company: Title: Signature:Date: BL-linkApproval: Title: Signature:Date: 2http://www.b-link.net.cn 1.Introduction Thisantennasupport2.4GHzfrequency.DesignedbydipoleantennatheoryAlmost Omni-directionalradiationforfarfield. Goodportmatching,lowreturnloss,highefficiencycanmakecommunicationmoreeasily. 1.1Features OperatingFrequencies:2400~2500MHz Radiation:Omni-directionalradiation Modulationsupport:WLAN/BT/ZIGBEE ConnecttohostthroughIPEXconnectors 1.2Applications IPCamera STB SmartTV Screenthrower Intelligenthomefurnishing Otherdeviceswhichneedtobesupportedbywirelessnetwork 3http://www.b-link.net.cn 1.3GeneralSpecifications ProductName2.4GHzDipoleFPCantenna Frequency2400~2500MHz Modulationsupport WLAN/BT/ZIGBEE VSWR<=2 Returnloss<=-8dB RadiationOmni-directional Gain（peak） Polarizatio 4dBi nLinear AdmittedPower2W ConnectorIPEX1 Efficiency40%~70% CableRFΦ1.13cableandlengthis40mm 2.MechanicalSpecifications AntennamadebyFPCmaterialandfixedtocustomer’sproductshellbybottomsideadhesive, ThenthroughIPEX1connectorconnectmainboardRFsignalport. RFΦ1.13cablelength40mm. 4http://www.b-link.net.cn 3.S-parameter Returnloss:<=-8dB VSWR:<=2 5http://www.b-link.net.cn 4.Radiationparameter 4.1Gainandefficiency FrequencyGainefficiency 2400~2500MHz45%~701~4dBi% 4.2RadiationPattern 2G3Dradiation2GXYplane 2GXZplane2GYZplane
