2BCVP-HL128Wireless Keyboard Case

材质：128g哑粉纸 尺寸：90x130mm 工艺：双面印刷 风琴折

SHENZHEN KEYSCO TECHNOLOGY CO.,LTD U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: LIPONTECH INC. FRN: 0034258103 Contact Name: Lingli Zhang Street Address: 8 The Green A, Dover DE 19901, DELAWARE, USA City/Province/Zip: DELAWARE Telephone No: 6263911395 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date:2023-09-15 Signed by (Printed Name/Title): Lingli Zhang/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: SHENZHEN KEYSCO TECHNOLOGY CO.,LTD Grantee Code: 2BCVP FCC ID : 2BCVP-HL128 Contact Name: Lina Zhu Street Address: 4F, BUILDING D, NO 120, HOU TING 2ND INDUSTRY,SHA JIN STREET,SHENZHEN CITY, China Telephone No: 0755 27858234 Email: [email protected] Applicant Signature: Date: 2023-09-15 Signed by (Printed Name/Title): Lina Zhu/Manager

SHENZHEN KEYSCO TECHNOLOGY CO.,LTD 2023.09.19 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BCVP-HL128 [SHENZHEN KEYSCO TECHNOLOGY CO.,LTD] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Lina Zhu SHENZHEN KEYSCO TECHNOLOGY CO.,LTD 2023.09.19 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BCVP-HL128 [SHENZHEN KEYSCO TECHNOLOGY CO.,LTD] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Lina Zhu

SHENZHEN KEYSCO TECHNOLOGY CO.,LTD 2023.09.19 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wireless Keyboard Case Trademark: N/A MODEL : HL128 HL129, HL130, HL100, HL112, HL118, HL126, HL135, HL136, HL138, HL139, HL158, HL159, HL168, HL169, HL180, HL185, HL186, HL188, A1890 FCC ID : 2BCVP-HL128 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Lina Zhu /Manager Contact information / address: 4F, BUILDING D, NO 120, HOU TING 2ND INDUSTRY,SHA JIN STREET,SHENZHEN CITY, China

SHENZHEN KEYSCO TECHNOLOGY CO.,LTD 2023.09.19 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Lina Zhu /Manager Contact information / address: 4F, BUILDING D, NO 120, HOU TING 2ND INDUSTRY,SHA JIN STREET,SHENZHEN CITY, China

SHENZHEN KEYSCO TECHNOLOGY CO.,LTD Model Difference 2023/9/19 EUT NAME: Wireless Keyboard Case FCC ID: 2BCVP-HL128 MODEL : HL128 HL129, HL130, HL100, HL112, HL118, HL126, HL135, HL136, HL138, HL139, HL158, HL159, HL168, HL169, HL180, HL185, HL186, HL188, A1890 All the model are the same circuit and RF module, except model names and appearance color. Regards Sincerely Client’s signature: Client’s name / title : Lina Zhu /Manager Contact information / address: 4F, BUILDING D, NO 120, HOU TING 2ND INDUSTRY,SHA JIN STREET,SHENZHEN CITY, China

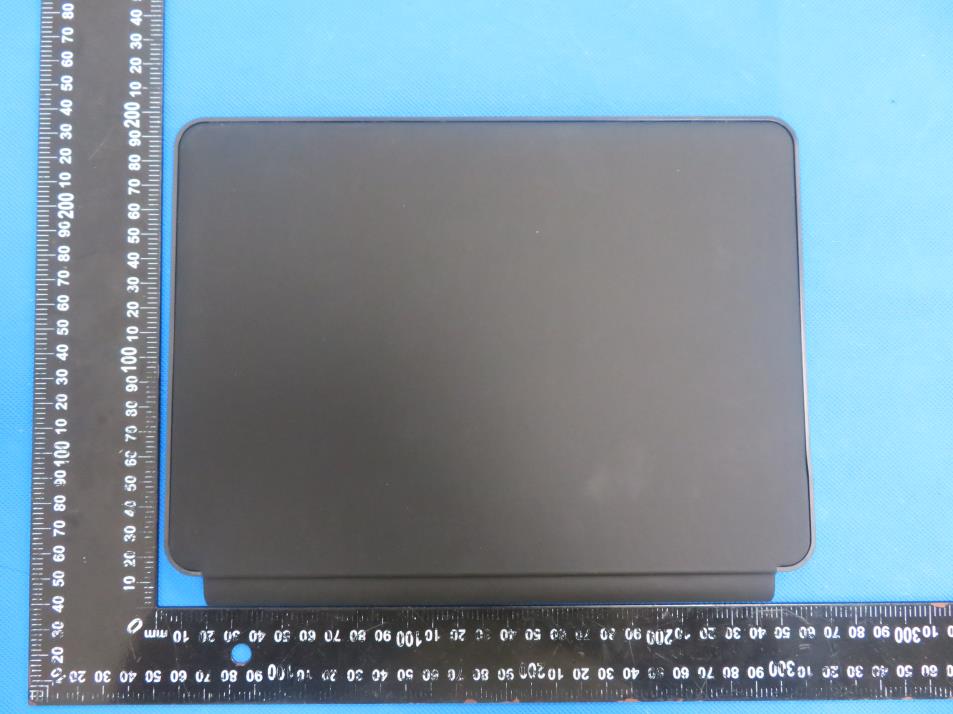

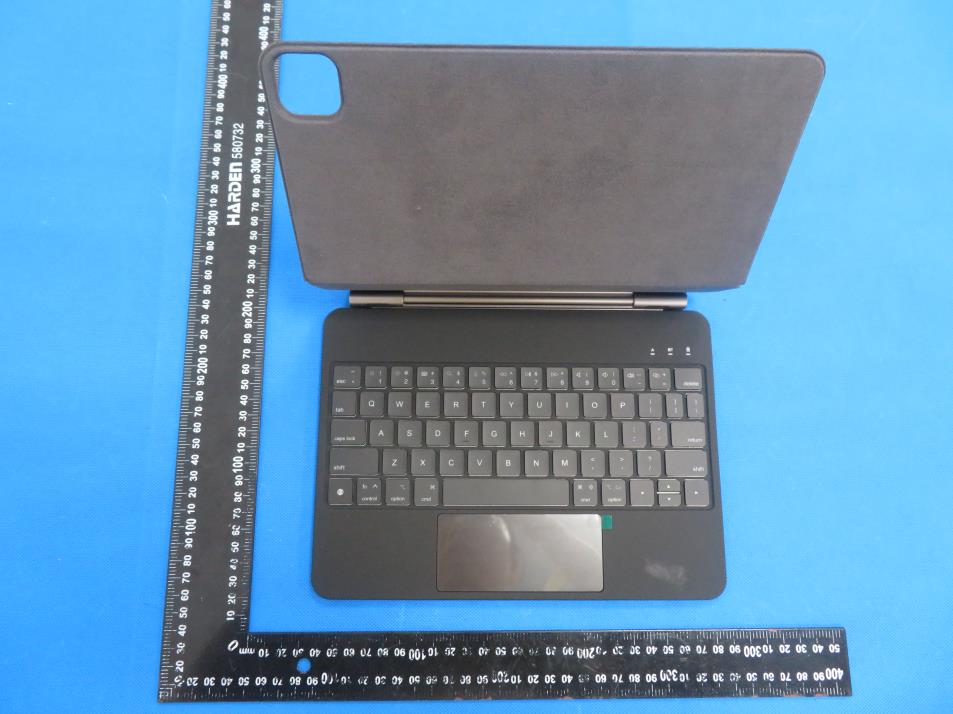

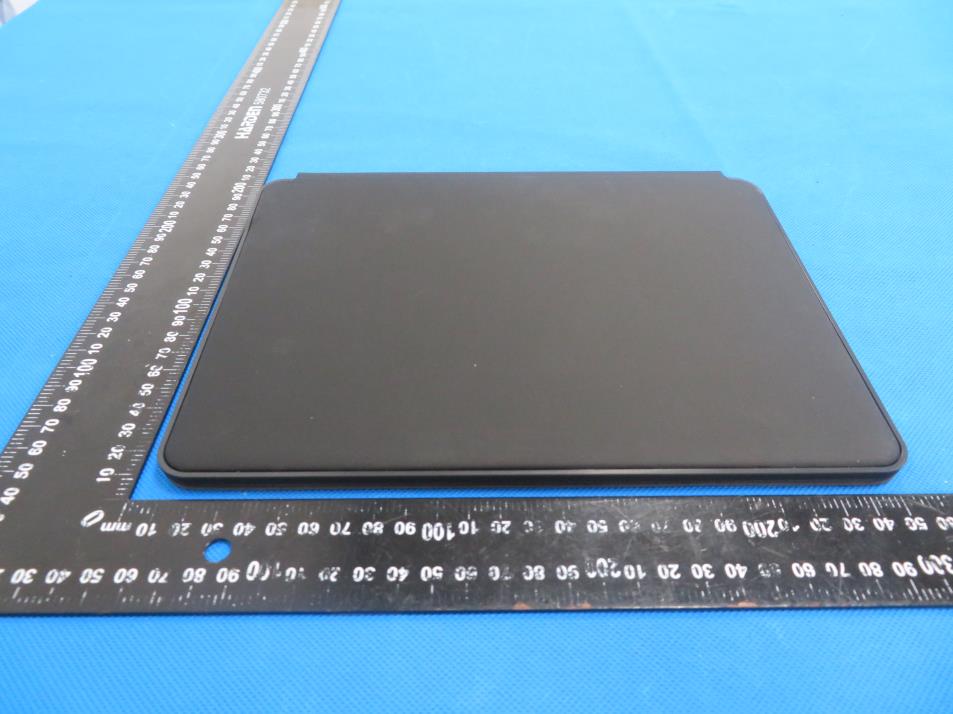

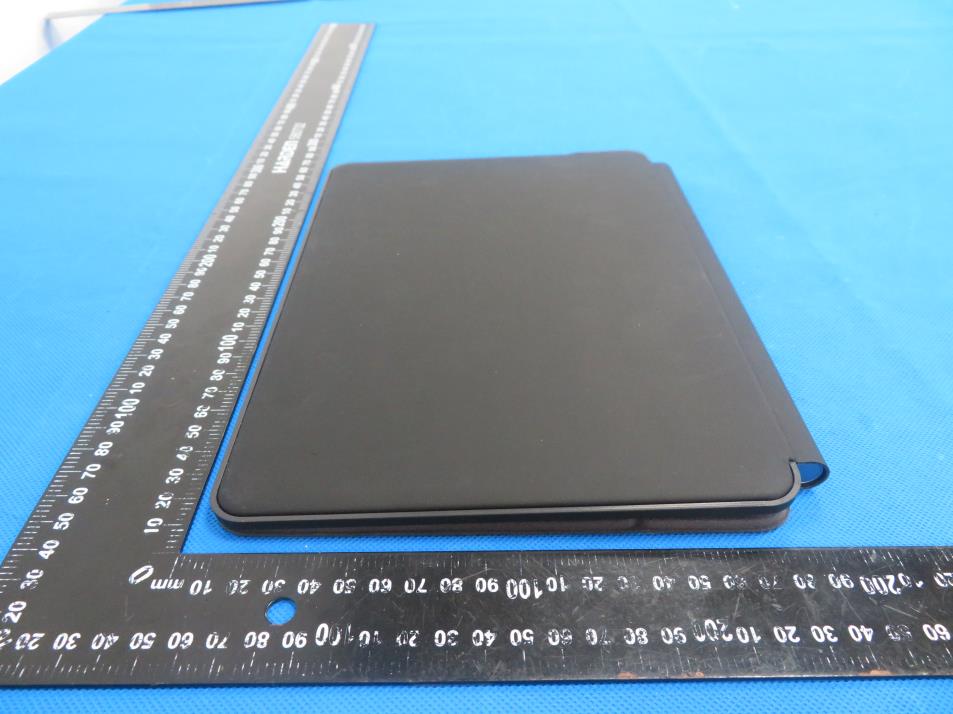

External Photos

Size:10*20mm FCC ID: 2BCVP-HL128 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2BCVP-HL128 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict GFSK 2402 -4.286 21 Pass GFSK 2441 -4.582 21 Pass GFSK 2480 -4.916 21 Pass max possible output power (PK,conducted)：-4±1dBm 1.87dBi logarithmic terms convert to numeric result is nearly 1.538 -3dBm=0.50mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.50/5*√2.402=0.16≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.50/5*√2.441=0.16≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.50/5*√2.48=0.16≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

UCI CENTER FOR RF DESI GN AND CHARACTERIZATION SHENZHEN KEYSCO TECHNOLOGY CO.,LTD 4F, BUILDING D, NO 120, HOU TING 2ND INDUSTRY, SHA JIN STREET, SHENZHEN CITY UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Tested Products.• Antenna 1: integrated antenna. • Frequency = 2.402GHz. • Frequency = 2.441GHz. • Frequency = 2.480GHz. UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Coordinate System Reference: Antenna 1. Top view Side view Z Y X Front view Front viewRear view SMA connector 14mm 6 mm 4mm UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Return Loss: Antenna 1 BW(-10dB) ¡ 13.48% 2 2.2 2.4 2.6 2.8 3 Frequency (GHz) -16-14-12-10 -8-6-4-2 R e t u r n L o s s ( d B ) UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Measurements summary Frequency (GHz) Plane Return Loss (dB) Polarization Gain max. (dBi) θ for Gain max. φ for Gain max. Antenna 1 2.402 XZ -10.90 Vertical -7.8 290 2.402 XZ -10.90 Horizontal 0.786 182 2.402 YZ -10.90 Vertical 1.21 226 2.402 YZ -10.90 Horizontal -7.75 10 2.402 XY -10.90 Vertical -15.4 20 2.402 XY -10.90 Horizontal 0.93 180 2.441 XZ -12.20 Vertical -7.36 318 2.441 XZ -12.20 Horizontal 1.32 180 2.441 YZ -12.20 Vertical 0.981 204 2.441 YZ -12.20 Horizontal -8.23 24 2.441 XY -12.20 Vertical -14.1 -14 2.441 XY -12.20 Horizontal 1.74 180 2.48 XZ -13.80 Vertical -7.95 312 2.48 XZ -13.80 Horizontal 1.81 186 2.48 YZ -13.80 Vertical 0.204 214 2.48 YZ -13.80 Horizontal -8.38 8 2.48 XY -13.80 Vertical -15.8 12 2.48 XY -13.80 Horizontal 1.87 180

No.：BCTC/RF-EMC-007 Page: 1 of 49 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2308541113E Applicant: SHENZHEN KEYSCO TECHNOLOGY CO.,LTD Product Name: Wireless Keyboard Case Model/Type Reference: HL128 Tested Date: 2023-09-05 to 2023-09-07 Issued Date: 2023-09-07 Report No.: BCTC2308541113E No.：BCTC/RF-EMC-007 Page: 2 of 49 Edition：B.0 FCC ID:2BCVP-HL128 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Keyboard Case Trademark: N/A Model/Type Ref.: HL128 HL129, HL130, HL100, HL112, HL118, HL126, HL135, HL136, HL138, HL139, HL158, HL159, HL168, HL169, HL180, HL185, HL186, HL188, A1890 Prepared For: SHENZHEN KEYSCO TECHNOLOGY CO.,LTD Address: 4F, BUILDING D, NO 120, HOU TING 2ND INDUSTRY,SHA JIN STREET,SHENZHEN CITY, China Manufacturer: SHENZHEN KEYSCO TECHNOLOGY CO.,LTD Address: 4F, BUILDING D, NO 120, HOU TING 2ND INDUSTRY,SHA JIN STREET,SHENZHEN CITY Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-09-05 Sample Tested Date: 2023-09-05 to 2023-09-07 Issue Date: 2023-09-07 Report No.: BCTC2308541113E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Kelsey Tan/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2308541113E No.：BCTC/RF-EMC-007 Page: 3 of 49 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test procedure .................................................................................................... 25 8.4 EUT operating Conditions ................................................................................... 25 8.5 Test Result .......................................................................................................... 26 9. Spurious RF Conducted Emissions ..................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.…

Text truncated - open the document above for the full version.

Report No.: BCTC2308541113E No.：BCTC/RF-EMC-007 Page: 47 of 49 Edition：B.0 17. EUT Test Setup Photographs Conducted Emission Radiated Measurement Photos Report No.: BCTC2308541113E No.：BCTC/RF-EMC-007 Page: 48 of 49 Edition：B.0
