2BCW7-GA-AUDIO1Audio cajon

2023.9.7.箱鼓音箱MANUAL 翻译 产品使用手册：MANUAL 产品介绍：INTRODUCTION ThanksforyourattentioninGA-AudiowithGECKOlogo,whichisupdatedandcomeswiththe pickup, moreover, it can be used with the amplifier and Musical Instruments, More Powerful andpenetrationoftheTone,suitsforthePlayingofFamily,Indoororoutdoor. 产品介绍：DIMENSION 面板功能介绍：INTRODUCTIONOFTHEFUNCTION ①[MIC] InputofMIC,supportsfortheJackwith6.35TS ②[GUIATR] InputofGuitar,supportsfor6.35TS ③[INMIC] InputfortheCajon ④[GAIN]GaincontrolofMicrophone ⑤[GAIN] GaincontrolofGuitar ⑥[GAIN] GaincontrolofCajon ⑦[BASS] VolumecontrolofMicrophone ⑧[BASS] VolumecontrolofGuitar ⑨[BASS]VolumecontrolofCajon ⑩[TREBLE] VolumecontrolofMicrophone ⑪[MIDDLE] VolumecontrolofGuitar ⑫[TREBLE] VolumecontrolofCajon ⑬[REVERB] ControlofMicrophone ⑭[TREBLE] VolumecontrolofGuitar ⑮[REVERB] ControlofCajon ⑯[USB]SupportsforFAT32TFcardholds512M-32G ⑰[REVERB]ControlforCajon ⑱[LINK]ThejackoftheRecording ⑲[HEADPHONE]InputofHeadphone ⑳[HP-VOL]VolumecontrolofHeadphone ㉑[OUT] Theoutputandcanbeconnectedwiththeamplifier ㉒[BT]PowerswitchofBluetooth,Pressonceisforturningon,it’soffwhenbounceup. ㉓[BT-VOL]VolumecontrolofBluetooth ㉔Thechargingport,ONLYfortheElectricCurrentwhichisaround15V3A ㉕[MASTER]MasterVolumeControl ㉖[POWER] PowerSwitch ㉗ChargingIndicatorlight ㉘BatteryLeverIndicatorlight ㉙PowerIndicatotlightofCajon 操作及提示说明：USINGBRIEFGUIDANCEANDTIPS 鼓箱开关按钮 按下为开启，指示灯常亮蓝色；弹起为关闭，指示灯灭 PowerSwitchofCajon Pressonceisforturningon,it’soffwhenbounceup. 蓝牙连接（ios/安卓） 请打开手机/平板设备的蓝牙，连接“GECKOAudio”即可播放音频。连接成功后，蓝牙指示 灯常亮蓝色 ConnectionofBluetooth(IOS/Android) PleaseTurnontheBluetoothofthephone/iPad,youcanenjoythetrackormusicwhen connectedthenameof“GECKOAudio”. AfterconnectingtheBluetooth,theindicatorlight willbeonBLUE. 充电及提示 电池指示灯满格表示电量已经充满，低电量时不会满格，充电时，充电指示灯蓝色闪烁 （请使用充电电压15V/3A的充电器） ChargingandTips ThebatteryisinFullbarwhentheindicatorlightisfull,whileit’sinLow-batterywhenthelight isnotfull,thelightblinkswhencharging. Tips: WhenChargingisinneeds,pleaseusethechargercomesaround15V3A. PARAMETER MODEL GA-Audio1 RatedOutputPower 60W/4Ω PeakOutputPower 100W ACAdapter 15V/3A FrequencyResponse(-3dB)40-HZ-20KHZ BatterySpecification12V/6.6AH StaticPowerConsumption X BatteryPowerConsumption X 性能参数：FunctionParameter 过载源电动势（V）OverloadElectromotiveForce 主声道，正常工作条件，440Hz，1%失真 MainChannel,NormalWorkingCondition,440Hz,1%Distortion 信噪比（S/N）SIGNAL-NOISERATIO(SNRorS/N) 额定条件，输入440Hz，4Ω*1，THD1%A计权 RatedCondition,Input440Hz,4Ω*1,1%THD(Totalharmonicdistortion)A-Weighted 额定源电动势（mV）RetedElectromotiveForce 主声道，正常工作条件，440Hz，1%失真 MainChannel,NormalWorkingCondition,440Hz,1%Distortion 总谐波失真（%）Totalharmonicdistortion(%) 主声道，正常工作条件，440Hz，A计权 MainChannel,NormalWorkingCondition,440Hz,A-Weighted 频率响应（dBr）FrequencyResponse(dBr) 主声道，正常工作条件，70Hz-1KHz-20KHz MainChannel,NormalWorkingCondition,70Hz-1KHz-20KHz 噪声(mV)Noise(mV) 额定条件A计权，4Ω*1 RatedCondition, A-Weighted,4Ω*1 耳机输出(mV)OutputofHeadphone(mV) 额定工作条件，32Ω负载 RatedCondition,Overload32Ω 线路输出(mV)LineOutput(mV) 额定工作条件，10KΩ负载 RatedCondition,Overload10KΩ CH1A/CH2A/CH3A(XLR平衡输入）CH1A/CH2A/CH3A(XLRBalancedInput） CH1B/CH2B/CH3B(6.35TS输入）CH1B/CH2B/CH3B(6.35TSInput） CH4/5CH4/5 高增益HighGain 低增益LowGain AUXAUX 以上规格仅供参考，因产品不断改进，设计规格和功能可能有所更改，恕不另行通知。 All theAbove Specificationare only for reference, there’s Withoutpriornotice if the design, specifi cationandFunctionmaybechangedorupdated.SAFETYPRECAUTION ①Pleasereadthemanualbeforeusingitindetailed. ②Theunitisprecisionelectronicproduct,itwillberegardtogiveupthewarrantyifit’srefitit byself. ③PleasekeepitinDrycondition. ④Pleasenoteandcheckthepowersituationoftheunit8hoursbeforetheperformance,to makesuretheequipmentcanbeused,pleasechargeitimmediatelyifthepowerisnotenough andturnoffitafterusedit. Forbetterprotectingthebattery,pleasechargeiteverytwoor threemonthsifyoudon’tuseitinalongtime,pleasedonotkeepinturningonthepower. ⑤ifitneedstobecharged,pleasedousetheadaptersuppliedwiththisunit,andmakesure thesafety,pleasedonotuseanotheradaptertochargeit. ⑥ThisproductmaintainstheAnti-shockprotectioncircuit,turningon/offismorethanevery 10seconds,forbetterprotectit,pleasedonotturnon/offitfrequent. WARNING Connecttheplugoftheamptotheplugoutlet,pleaseensureitshouldbeearthed. PleaseDon’tdisassemble(orrefitinanyways)theamporitsadaptor. PleaseDon’ttrytofixthisunitorchangeanypartsinside(unlessit’sshownthespecific instructionguidingyoutodoso).PleasecontactyourwholesalerordistributororSKYSONIC companywhentheampneedstoberepaired. PleaseDon’tputtheunitintheplacesasfollows: 1.theplaceintheextremelytemperature. 2.MoistureCondition. 3.Theplacesinsteamedandfluegascondition. Pleasekeeptheampinthestandardlevelandensureitsstability.Andneverputitonthe standsthatcouldbeswayedorslantingsurface. Pleasediscardtheusedbatteriesinthecertainplacesaccordingtoyourrelativezone. Theampmustbeusedtheadaptorsuppliedwithit.Besides,tobesurethecablevoltage matchestheinputvoltagemarkedontheACAdaptor. OtherACAdaptorhandledifferent polarityorbedesignedfordifferentvoltage,ifweusethem,itmightbedamagedouramp. PleaseDon’ttwistorbendthecable,evenputtheheavythingsontoit,itmightbebrokenthe cableandoccurredthecomponentcutandashortcircuit,thedamagedcablemightcausefire orelectricshock. Whateverthisunitusedaloneorcombinedwiththepreamp,earphoneorloudspeaker,might beprobablyproducingthesoundlevelthatcouldbecausedpermanenthearingimpairment. Pleasedon’thandleitforalongtimeinthehighvolumeoratalevelisuncomfortable.You havetostopusingtheampifthere’sanyhearingimpairmentorearinghumming. WARNING Whenevertheremightbethunderandlightningaroundyourarea,pleaseunplugtheadaptor andkeepthepoweroff. Pleasekeeptheobjects(e.g.flammablematerial,coin,pins),oranykindofliquids(water,soft drinksetc.)awayfromtheamp. Pleasebethesupervisorwhilethechildneedstobeoperatetheunit,untilthechildcantotally doaccordingtotheinstruction. Pleasekeepitawayfromthehighheating,e.g.sunlightorfireorthelike. Pleasecontactyourdistributorbeforeusethisunitnotinyourcountry(differentvoltage) PleasekeeptheunitandtheACadaptorindry. PleaseholdtheblackplasticpositionwhenyouplugintoorremovetheACAda…

Text truncated - open the document above for the full version.

GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD No. 8, Zone B, Economic DevelopmentZone, Ruihao Street, Zheng'an County,Zunyi City, Guizhou Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-1-12 To whom it may concern: We,GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2BCW7-GA-AUDIO1) is not “covered”equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist ) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Jin rong Zhao Manager GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD 62_[model]CoveredEqu_2.911(d)(5)(i)and(ii)-U,V03

GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD No. 8, Zone B, Economic Development Zone, Ruihao Street, Zheng'an County, Zunyi City, Guizhou Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-1-12 U.S. Agent Designation GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTDacknowledges their consent for the following contact located in the United States to act as their agent for service of process forthe equipment for which authorization is sought (FCC ID:2BCW7-GA-AUDIO1): Name and company of U.S. agent:ACT Lab LLC Physical U.S. address of agent:3280 East 59th Street Long Beach, CA 90805 United States FRN of U.S. agent:0033465568 Email address of U.S. agent:[email protected] ACT Lab LLCacknowledges their obligation to accept service of process on behalf ofGUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD. GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTDwith the FRN[0034254672]accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature JinrongZhao Manager GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD Signature Scott Huber Senior Technical Director ACT Lab LLC 48_[model]US_Agent_2.911(d)(7)-U,V05

GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD No. 8, Zone B, Economic Development Zone, Ruihao Street, Zheng'an County,Zunyi City, Guizhou Province, China Date: 2024-1-22 FCC ID: 2BCW7-GA-AUDIO1 Dear Sir/Madam, We, GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD. Hereby declares the following statement for Federal Communications Commission, All PCB boards and circuit diagrams are the same, the only difference is the model name.: Product name: Audio cajon Model no.: GA-audio1, GA-audio2, GA-audio3 Sincerely, Name/Title： Jin rong Zhao/Manager Company: GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD Address: No.8,ZoneB,EconomicDevelopmentZone,RuihaoStreet, Zheng'an County, Zunyi City, Guizhou Province, China Phone: 15818750927 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-1-12> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BCW7-GA-AUDIO1GA-audio1 For the product stated above, we request that the following information beheld confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jin rong Zhao/Manager Company: GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD Address: No.8,ZoneB,EconomicDevelopmentZone,RuihaoStreet, Zheng'an County, Zunyi City,GuizhouProvince,China Phone: 15818750927 Fax: N/A E-Mail: [email protected]

GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD No.8,ZoneB,EconomicDevelopmentZone,RuihaoStreet,Zheng'anCounty,Zunyi City, Guizhou Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-1-12 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BCW7-GA-AUDIO1 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed onfollowing website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title ： Jin rong Zhao/Manager Company: GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD Address: No. 8, Zone B, Economic Development Zone, Ruihao Street, Zheng'an County, Zunyi City,GuizhouProvince,China Phone: 15818750927 Fax: N/A E-Mail: [email protected]

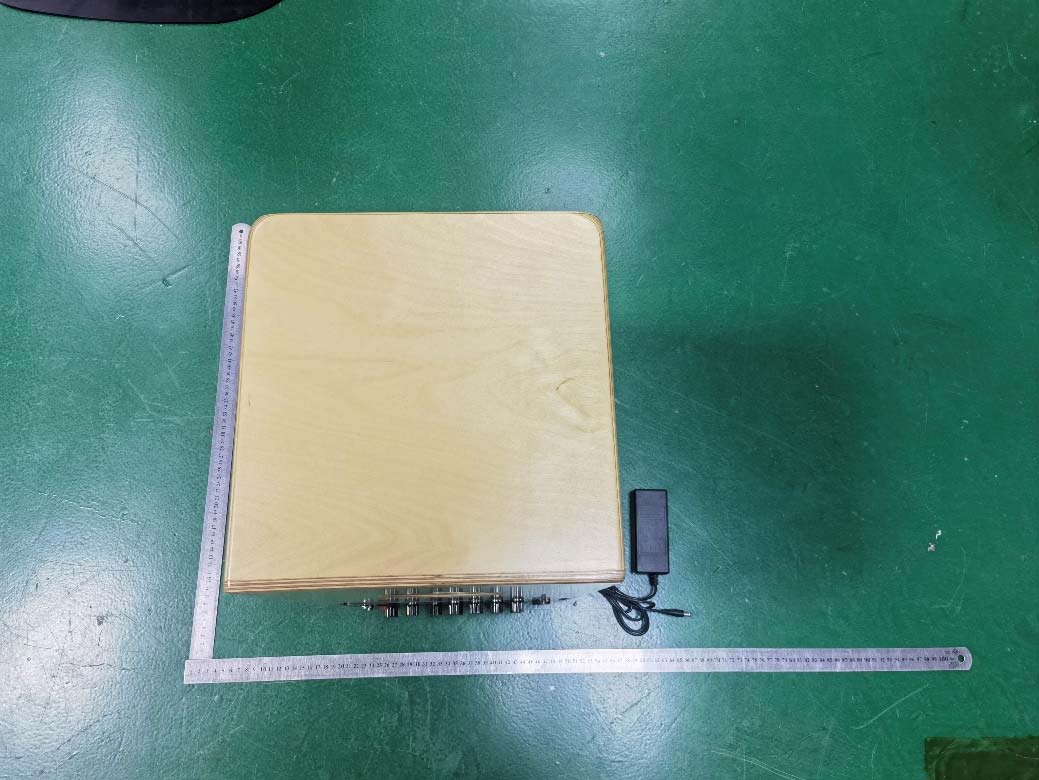

FCC ID: 2BCW7-GA-AUDIO1 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2BCW7-GA-AUDIO1 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2BCW7-GA-AUDIO1 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of Adapter

FCC ID: 2BCW7-GA-AUDIO1 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Appearance of PCB FCC ID: 2BCW7-GA-AUDIO1 TB-RF-074-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Antenna FCC ID: 2BCW7-GA-AUDIO1 TB-RF-074-1.0 Photo 11 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202307-0030-6 Page: 1 of 3 TB-RF-075-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2BCW7-GA-AUDIO1 1. Client Information Applicant : GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD Address : No. 8, Zone B, Economic Development Zone, Ruihao Street, Zheng'an County, Zunyi City, Guizhou Province, China Manufacturer : GUIZHOU GECKO MUSICAL INSTRUMENT CO., LTD Address : No. 8, Zone B, Economic Development Zone, Ruihao Street, Zheng'an County, Zunyi City, Guizhou Province, China 2. General Description of EUT EUT Name : Audio cajon Models No. : GA-audio1, GA-audio2, GA-audio3 Model Different : All PCB boards and circuit diagrams are the same, the only difference is the model name. Product Description : Operation Frequency: Bluetooth&LE 5.0: 2402MHz~2480MHz Number of Channel: 79/40 channels Antenna Gain: 2.66dBi Ceramic Antenna Power Rating : Adapter: NYT1503000 Input: AC 100~240V-50/60Hz Output: DC 15V, 3A Li-ion Polymer Battery : 12.6V by 6.6Ah Rechargeable Li-ion battery Software Version : V1.0 Hardware Version : V1.0 Connecting I/O Port(S) : : Please refer to the User's Manual Remark : the evaluation report used the EUT(202307-0030-3-2#). Report No.: TBR-C-202307-0030-6 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 2. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 3. Simultaneous transmission MPE Considerations According to KDB447498: All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 Report No.: TBR-C-202307-0030-6 Page: 3 of 3 TB-RF-075-1.0 4. Test Result: Bluetooth LE & Bluetooth worst reported. Mode Frequency (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Limit of Power Density (mW/ cm 2 ) (S) BLE 2402 -2.55 -2±1 -1 2.66 20 0.0003 1 2440 -3.71 -3±1 -1 2.66 20 0.0003 1 2480 -4.4 -4±1 -2 2.66 20 0.0002 1 GFSK 2402 -2.53 -2±1 -1 2.66 20 0.0003 1 2441 -3.73 -3±1 -2 2.66 20 0.0002 1 2480 -4.4 -4±1 -2 2.66 20 0.0002 1 π /4-DQP SK 2402 -0.3 0±1 1 2.66 20 0.0005 1 2441 -1.48 -1±1 0 2.66 20 0.0004 1 2480 -2.29 -2±1 -1 2.66 20 0.0003 1 8-DPSK 2402 -0.02 0±1 1 2.66 20 0.0005 1 2441 -1.54 -1±1 0 2.66 20 0.0004 1 2480 -1.82 -1±1 0 2.66 20 0.0004 1 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For 2.4WIFI:2412~2462 MHz and Bluetooth LE MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.0005 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. 6. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----

Approval sheet Page 1 of 9 ASC_RFANT5220110A0T_V13 Sep. 2012 MULTILAYER CERAMIC ANTENNA RFANT Pb free Series – RoHS Compliance Halogens Free Product 2.4 GHz ISM Band Working Frequency P/N: RFANT5220110A0T *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 9 ASC_RFANT5220110A0T_V13 Sep. 2012 FEATURES 1. Surface Mounted Devices with a small dimension of 5.2 x 2.0 x 1.1 mm 3 meet future miniaturization trend. 2. Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product. 3. High Stability in Temperature / Humidity Change APPLICATIONS 1. Bluetooth 2. Wireless LAN 3. HormRF 4. ISM band 2.4GHz wireless applications DESCRIPTION Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b and Bluetooth TM typically located on this unlicensed frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfil the friendly usage for antenna, this antenna has been designed to a typical 150MHz bandwidth through Walsin’s advanced LTCC (Low Temperature Co-fired Ceramic) technology and superior product design via 3D EM Simulation Skill. This antenna has a rectangular ceramic body with a tiny dimension of 5.2x 2.0 x 1.1 mm 3 meet the future SMT automation and miniaturization requirements on modern portable devices. CONSTRUCTION Identification mark Soldering terminal W T C W T C Feeding Identification mark Soldering terminal W T C W T C Feeding DIMENSIONS Figure Symbol Dimension L 5.20 ± 0.20 mm W 2.00 ± 0.20 mm T 1.15 ± 0.10 mm A 0.40 ± 0.25 mm Approval sheet P age 3 of 9 ASC_RFANT5220110A0T_V13 Sep. 2012 SOLDER LAND PATTERN DESIGN Figure ELECTRICAL CHARACTERISTICS RFANT5220110A0T Specification Working Frequency Range 2.4 GHz ～ 2.5GHz Gain 2.66 dBi (Typical) VSWR 2 max. Polarization Linear Azimuth Bandwidth Omni-directional Impedance 50Ω Rated Power (max.) 3 Watts Maximum Input Power 5 Watts for 5 minutes Operation Temperature -40 ̊C ~ +85 ̊C Remark: The specification is defined based on the test board dimension as in below Approval sheet Page 4 of 9 ASC_RFANT5220110A0T_V13 Sep. 2012 Antenna on Test Board ( FR4 Thickness 0.8mm) Antenna S11 on Test Board Bandwidth >150MHzBandwidth >150MHz Empty Area Empty Area 18x9 mm 50Ω ΩΩ ΩFeed line GROUND 30x18 mm 1mm 3.3mm 1.5mm WTC 2.5mm 18mm Empty Area Empty Area 18x9 mm 50Ω ΩΩ ΩFeed line GROUND 30x18 mm 1mm 3.3mm 1.5mm WTC 2.5mm 18mm Approval sheet Page 5 of 9 ASC_RFANT5220110A0T_V13 Sep. 2012 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RFANT5220110A0T antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Vertical Horizontal Y - Z Plane Average Gain= -0.82 dBi Peak Gain = 1.69 dBi Average Gain =-3.22 dBi Peak Gain= -5.42 dBi Average Gain=-8.98 dBi X - Z Plane Average Gai n=-0.91 dBi Peak Gain= -5.97 dBi Average Gain=-3.24dBi Peak Gain= 2.66 dBi Average Gain= -8.61 dBi X - Y Plane Average Gain= -0.68 dBi Peak Gain= -5.97 dBi Average Gain=-3.12 dBi Peak Gain= 2.59 dBi Average Gain= -9.24 dBi Y Z WTC X Y Z WTC X Y Z WTC X Y Z WTC X Y Z WTC X Y Z WTC X z Y z Y z X z X X Y X Y Empty Area GROUND 30x18 mm WTC X Y Z Empty Area GROUND 30x18 mm WTC X Y Z X Y Z Approval sheet Page 6 of 9 ASC_RFANT5220110A0T_V13 Sep. 2012 RELIABILITY TEST Test item Test condition / Test method Specification Solderability JIS C 0050-4.6 JESD22-B102D *Solder bath temperature：235 ± 5°C *Immersion time：2 ± 0.5 sec *Solder：Sn3Ag0.5Cu for lead-free At least 95% of a surface of each terminal electrode must be covered by fresh solder. Leaching (Resistance to dissolution of metallization) IEC 60068-2-58 *Solder bath temperature：260 ± 5°C *Leaching immersion time：30 ± 0.5 sec *Solder : SN63A Loss of metallization on the edges of each electrode shall not exceed 25%. Resistance to soldering heat JIS C 0050-5.4 *Preheating temperature：120~150°C, 1 minute. *Solder temperature：270±5°C *Immersion time：10±1 sec *Solder：Sn3Ag0.5Cu for lead-free Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Loss of metallization on the edges of each electrode shall not exceed 25%. Drop Test JIS C 0044 *Height：75 cm *Test Surface：Rigid surface of concrete or steel. *Times：6 surfaces for each units；2 times for each side. No mechanical damage. Samples shall satisfy electrical specification after test. Adhesive Strength of Termination JIS C 0051- 7.4.3 *Pressurizing force： 5N(≦0603)；10N(>0603) *Test time：10±1 sec No remarkable damage or removal of the termination. Bending test JIS C 0051- 7.4.1 The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1 mm/s per second until the deflection becomes 1mm/s and then pressure shall be maintained for 5±1 sec. Measurement to be made after keeping at room temperature for 24±2 hours No mechanical damage. Samples shall satisfy electrical specification after test. Approval sheet Page 7 of 9 ASC_RFANT5220110A0T_V13 Sep. 2012 Temperature cycle JIS C 0025 1. 30±3 minutes at -40°C±3°C, 2. 10~15 minutes at room temperature, 3. 30±3 minutes at +85°C±3°C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Vibration JIS C 0040 *Frequency：10Hz~55Hz~10Hz(1min) *Total amplitude：1.5mm *Test times：6hrs.(Two hrs each in three mutually perpendicular directions) No mechanical damage. Samples shall satisfy electrical specification after test. High temperature JIS C 0021 *Temperature：85°C±2°C *Test duration：1000+24/-0 hours Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Sam…

Text truncated - open the document above for the full version.

FCC ID: 2BCW7-GA-AUDIO1 TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2BCW7-GA-AUDIO1 TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
