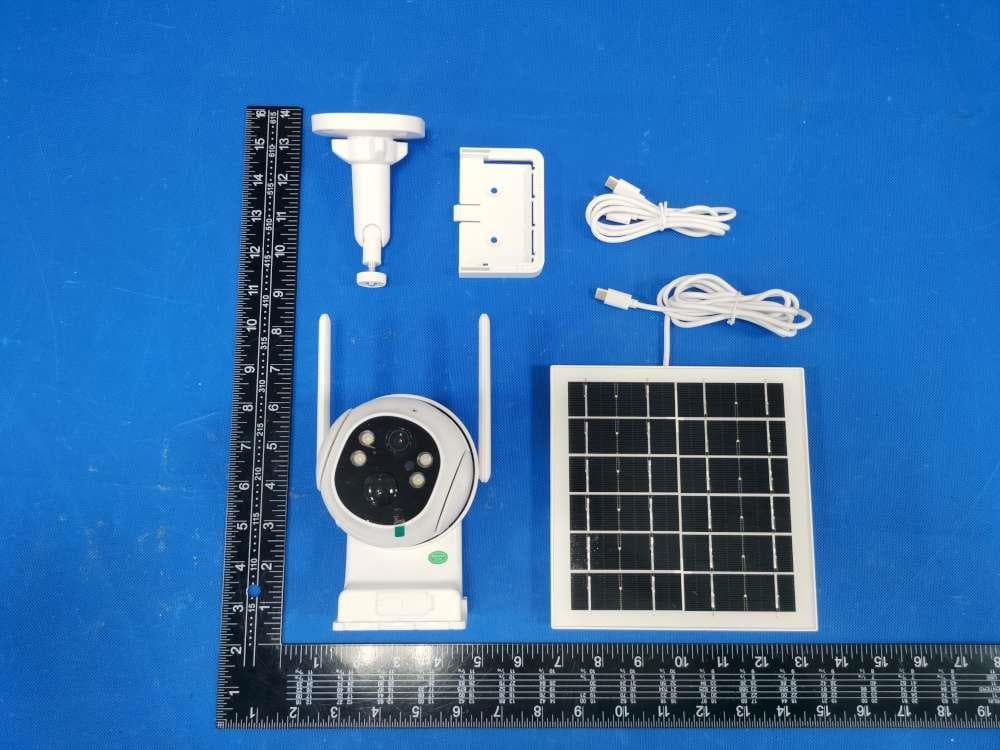

2BCZI-TQ6Low power solar cell camera

★APP download and installation operation Register New Account and Login★ Automatic configuration | Wireless network ★ ●Bluetooth pairing for internet connectivity ●To set up mobile tracking ●To set up dual-light perimeter alarm ●Set the humanoid warning alarm function 01 02 03 04/05 06 07 08 Please follow the method on pages 1-5 with "★" stars to match first. operation Low power solar cell camera V2023-3.0 There are Differences Between Pictures and Products, Please Refer To Actual Ones >01< >02< Scan The ‘QR Code’ To Download Method One You Can Use Any ‘Scan’ Program To Scan The ‘QR Code’ Below To Download The APP. 1. Open APP ‘iCSee’,click ‘Sign Up’,and sign up a new account with your phone number/email(Fig.3) 2. After registering successfully,enter the username/email and password you just registered to login. 3. You can also use WeChat,Facebook ,Line or ‘Visitor Login’ to login in the APP. Please Click ‘Regular Download’,Neither ‘Safe Download’ Nor ‘High-Speed Download’ Method Two iOS System: Search in APP Store (Fig.1 )‘iCSee’ Android System: Searchin APP market(Fig.2 ) ‘iCSee’ Fig.2[Android System] Fig.3 Note For Android Syetem Fig.1 [iOS System] iC See iC See 30.09/M iC See iC See x Login Sign Up Login China mainland +86 > 18923895909 ********** Username Password Forget Password? Visitor Login WeChat Fa cebook Sign Up WeChat Facebook Visitor Login APP Download and Lnstallation Register New Account and Login 1. The paired mobile phone must be connected to your router WiFi network; (Only 2.4GHZ is Supported) 2. Click the ‘+’ Sign(Fig.4) in the upper right corner of main APP interface,click ‘WiFi Camera’(Fig.5) and follow the device voice prompt(Click ‘Next’). 3. To ‘Router Setting’ interface to choose the WiFi Router and enter the password (Fig.6),Click ‘’ to enter ‘Scan Code Pairing Confirm instruction’ interface. Note: Please power on the camera first before the configuration >04<>05< Fig.4Fig.5Fig.6Fig.7 Fig.8 4. After Scanning the code,set the password according to the prompt,and and proceed to the next step 5. After paring,newly added camera will be showed in the list, connecting successfully(Fig.7) 6.C lick to view,operate,and make settings (Fig.8) Add Device Search the devices Add device manually WiFi Camera WiFi VIOT St ation DVR/NVR Shared with me 4G Camera 4G Discover below devices Other ways to pair and add device + Smart Device + Click”+”button to add device Device Mobile Storage Me Cloud + Device Mobile Storage Me Cloud Smart Device ... Smart Cameracnnh Online Share Settings Smart Alarm Events Settings Monitor Video Playback Intercom Snapshot Steering control Picture quality switch Cloud Storage Light Control Automatic tracking switch Screen Switching Multiple pictures Horizontal scr een flip Video recording Camera_314a 55.02KB/S Cloud Playback Auto Tracking 2022-06-12 11:14:12 CAM01 FHD Purchase cloud storage to upload alarm recordings to cloud! Local Record Night Vision & Alarm Set Light Alarm Event recording to the microSD card after you have inser ted a microSD card Purchase Router Setting Confirm 2.4Ghz5Ghz Failed to connect to WiFi? WiFi Password *Select a Wi-Fi with stable and strong signal,fill in the correct Wi-Fi password. WiFi Camera WiFi (WiFi Camera) WiFi Connection 2.4Ghz5Ghz *Only 2.4GHZ is Supported >03< ●Before pairing, please turn on the power button of the device. Once you hear the camera say it indicates a successful "Start quick setup," wake-up and you can proceed to the next step. ●Please know clearly interface and buttons of cameras before using. Solar Panel Charging Indicator Diagram Power Switch Location for TQ2/TQ3/TQ5 Battery camera switch operation Solar energy [optional] Solar panel inter face DC5V OFF/O N Solar charging por t type-c 5V charging por t Power switch button DC5V OFF /O N This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna. FCC WARNING >06< To set up mobile tracking Fig.9Fig.10 Night Vision & Alarm Set Light Alarm Auto Tracking Local Record Event recording to the microSD card after you have inser ted a microSD card Camera_314a 55.02KB/S 2022-06-12 11:14:12 CAM01 FHD Cancelar Sensitivity High Return to watch position 5Min Auto Tracking Start tracking from the current position, and it will return to current position when finish tracking. Night Vision & Alarm Set Light Alarm Auto Tracking Local Record Event recor…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: UGK-LVMUNITEDINC FRN: 0033476375 Contact Name: Jimmychen Address: 6547NAcademyBlvd#2266,ColoradoSprings,CO80918 Telephone No: 001-323-51 04660 Email: [email protected] Applicant: Company name: Shenzhen heiyingweishi Nuctech Industrial Co. Grantee code: 2BCZI FCC ID: 2BCZI-TQ6 FRN: 0034275123 Contact Name: Cai bingwei Address: 6th Floor, Haoting Industrial Building, Xianan Third Industrial Zone, Changchun North Road, Gongming Street Office, Guangming New District, Shenzhen Telephone: 13316812615 Fax: 13316812615 E-mail: [email protected] [Shenzhen heiyingweishi Nuctech Industrial Co.] certifies that, as of the date of this filing of the application with the TCB, [UGK-LVMUNITEDINC] is our designated US agent for service of process for the above referenced FCC ID. [Shenzhen heiyingweishi Nuctech Industrial Co.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [UGK-LVMUNITEDINC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/09/23 Applicant’s Name: Cai bingwei US Agent for Service of Process’s Name: Jimmychen Title: Manager Title: Manager Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen heiyingweishi Nuctech Industrial Co. Grantee code: 2BCZI FCC ID: 2BCZI-TQ6 FRN: 0034275123 Contact Name: Cai bingwei Address: 6th Floor, Haoting Industrial Building, Xianan Third Industrial Zone, Changchun North Road, Gongming Street Office, Guangming New District, Shenzhen Telephone: 13316812615 Fax: 13316812615 E-mail: [email protected] i. [Shenzhen heiyingweishi Nuctech Industrial Co.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shenzhen heiyingweishi Nuctech Industrial Co.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen heiyingweishi Nuctech Industrial Co.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered List as an entity producing “covered”equipment . Date: 2023/09/23 Applicant’s Name: Cai bingwei Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Shenzhen heiyingweishi Nuctech Industrial Co. Product Similarity Declaration Company: Shenzhen heiyingweishi Nuctech Industrial Co. Address: 6th Floor, Haoting Industrial Building, Xianan Third Industrial Zone, Changchun North Road, Gongming Street Office, Guangming New District, Shenzhen Product Name: Low power solar cell camera Model Number: TQ6 TQ1, TQ2, TQ3, TQ4, TQ5, TQ7, TQ8, TQ9, TQ10, TD1, TD2, TD3, TD4, TD5, TD6, TD7, TD8, TD9, TD10, QQ1, QQ2, QQ3, QQ4, QQ5, QQ7, QQ8, QQ9, QQ10, PQ1, PQ2, PQ3, PQ4, PQ5, PQ6, PQ7, PQ8, PQ9, PT1, PT2, PT3, PT4, PT5, PT6, PT7, PT8, PT9, PT10, P1, P2, P3, P4, P5, P6, P7, P8, P9, P10, P20, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 FCC Identifier: 2BCZI-TQ6 We (Shenzhen heiyingweishi Nuctech Industrial Co.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name and appearance color. Client’s signature Name: Cai bingwei Date: 2023-09-23 Title: Manager Signature of applicant:

Shenzhen heiyingweishi Nuctech Industrial Co. 1/1 Letter of Authorization Company: Shenzhen heiyingweishi Nuctech Industrial Co. Address: 6th Floor, Haoting Industrial Building, Xianan Third Industrial Zone, Changchun North Road, Gongming Street Office, Guangming New District, Shenzhen Product Name: Low power solar cell camera Model Number: TQ6 TQ1, TQ2, TQ3, TQ4, TQ5, TQ7, TQ8, TQ9, TQ10, TD1, TD2, TD3, TD4, TD5, TD6, TD7, TD8, TD9, TD10, QQ1, QQ2, QQ3, QQ4, QQ5, QQ7, QQ8, QQ9, QQ10, PQ1, PQ2, PQ3, PQ4, PQ5, PQ6, PQ7, PQ8, PQ9, PT1, PT2, PT3, PT4, PT5, PT6, PT7, PT8, PT9, PT10, P1, P2, P3, P4, P5, P6, P7, P8, P9, P10, P20, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 FCC Identifier: 2BCZI-TQ6 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Cai bingwei Date: 2023-09-23 Title: Manager Signature of applicant:

Shenzhen heiyingweishi Nuctech Industrial Co. 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-09-23 Subject: Request for Confidentiality FCC ID: 2BCZI-TQ6 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Name: Cai bingwei Date: 2023-09-23 Title: Manager Signature of applicant:

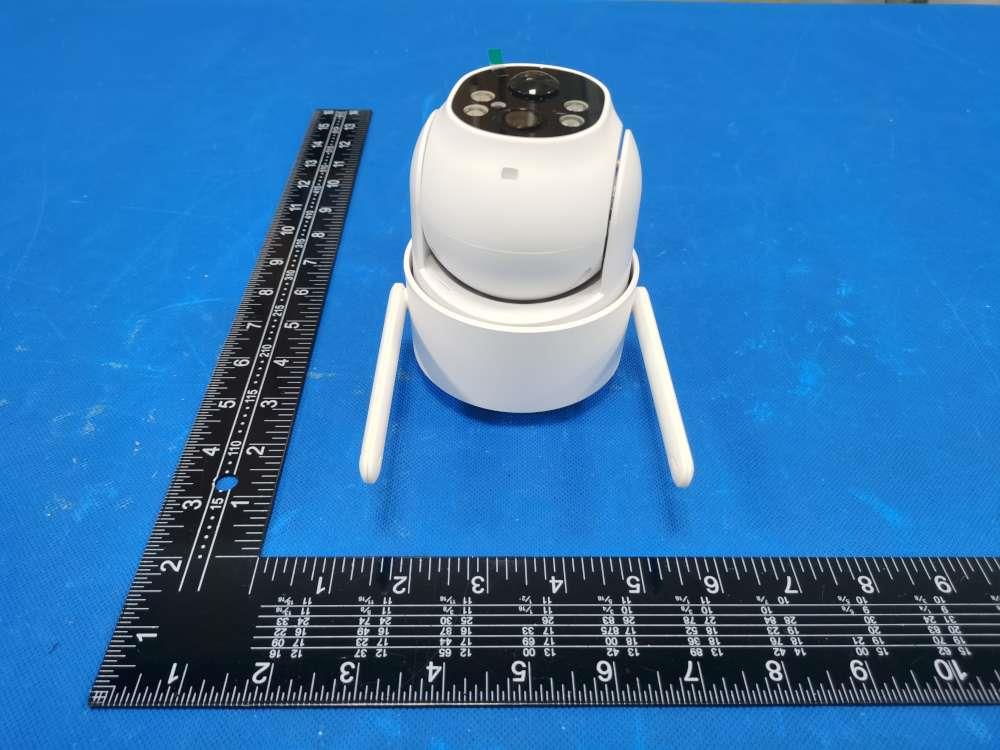

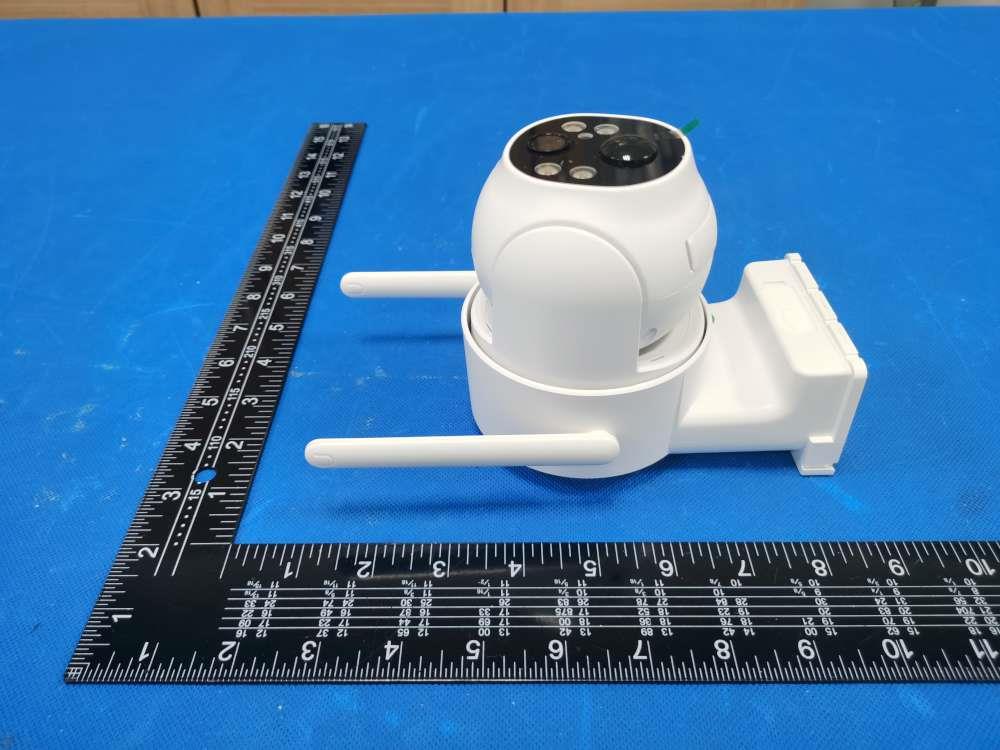

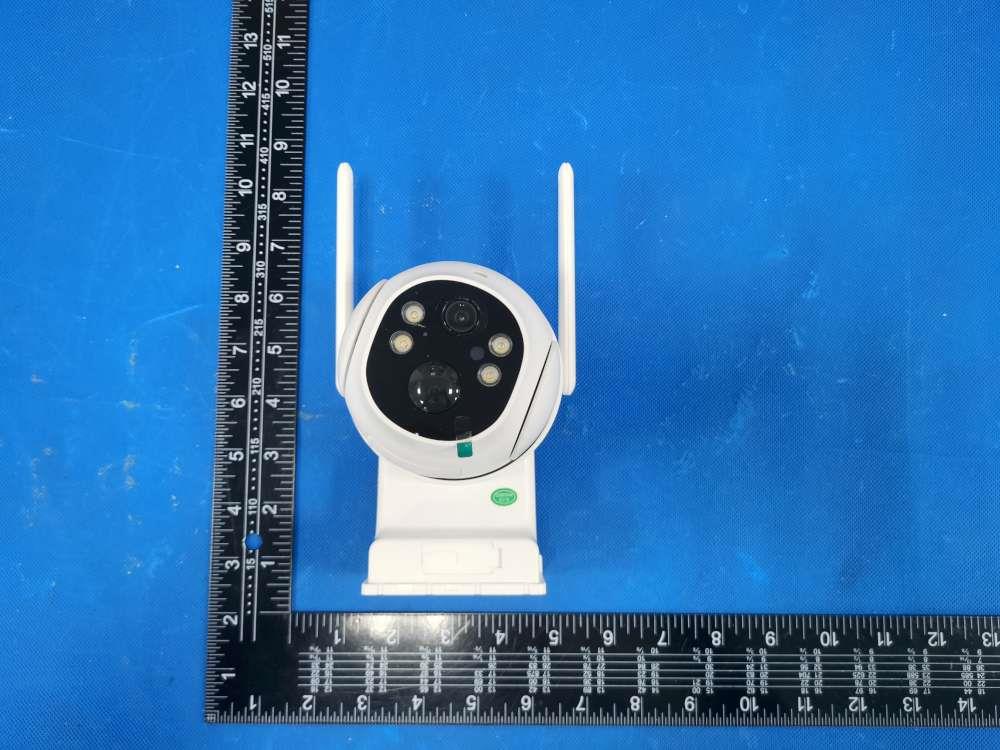

ANT These antennas are not connected to the RF chip and are only decorative.

Size: 14*12mm M/N: TQ6 FCC ID: 2BCZI-TQ6 Label location

FCC ID: 2BCZI-TQ6 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in KDB 447498 D01 V06 and 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation wifi 2.4G mode Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 16.453 44.1876 0.01127 1.0 PASS 802.11g 13.368 21.7170 0.00554 1.0 PASS 802.11n HT20 14.364 27.3149 0.00697 1.0 PASS 802.11n HT40 13.75 23.7137 0.00605 1.0 PASS Remark: antenna gain=1.08dBi

Summary Antenna Specification ITEMANT SPEC Model Name2.4G ANT MAX. Gain 1.08dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length38.20mm Manufacture Shenzhen heiyingweishi Nuctech Industrial Co. Antenna Photo & Length (mm) ÏÚ 2‹ Œøº∑ø ̈∑±≤ Ω∏øÆøΩ ̈ªÆ∑≠ ̈∑Ω≠ ±∫ ø≤ ̈ª≤≤ø PHI 0° PHI90° THETA90 ° Frequency VNA (MHz) Gain (Peak) (dBi) 2400MHz0.0403503 2410MHz0.0886264 2420MHz0.267381 2430MHz0.193012 2440MHz0.26366 2450MHz0.0723139 2460MHz0.36895 2470MHz0.551525 2480MHz0.640702 2490MHz1.05232 2500MHz1.08443

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 56 FCC Part 15C Test Report FCC ID: 2BCZI-TQ6 Applicant: Shenzhen heiyingweishi Nuctech Industrial Co. Address: 6th Floor, Haoting Industrial Building, Xianan Third Industrial Zone, Changchun North Road, Gongming Street Office, Guangming New District, Shenzhen Manufacturer: Shenzhen heiyingweishi Nuctech Industrial Co. Address: 6th Floor, Haoting Industrial Building, Xianan Third Industrial Zone, Changchun North Road, Gongming Street Office, Guangming New District, Shenzhen EUT: Low power solar cell camera Trade Mark: N/A Model Number: TQ6 TQ1, TQ2, TQ3, TQ4, TQ5, TQ7, TQ8, TQ9, TQ10, TD1, TD2, TD3, TD4, TD5, TD6, TD7, TD8, TD9, TD10, QQ1, QQ2, QQ3, QQ4, QQ5, QQ7, QQ8, QQ9, QQ10, PQ1, PQ2, PQ3, PQ4, PQ5, PQ6, PQ7, PQ8, PQ9, PT1, PT2, PT3, PT4, PT5, PT6, PT7, PT8, PT9, PT10, P1, P2, P3, P4, P5, P6, P7, P8, P9, P10, P20, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 Date of Receipt: Sep. 14, 2023 Test Date: Sep. 14, 2023 - Sep. 20, 2023 Date of Report: Sep. 20, 2023 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2013 Test Result: Pass Report Number: DL-202309200041E Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 56 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 EUT OPERATING CONDITIONS 15 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8 TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 29 3.4.1 APPLICABLE STANDARD 29 3.4.2 TEST PROCEDURE 29 3.4.3 DEVIATION FROM STANDARD 29 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 56 Table of Contents Page 3.4.4 TEST SETUP 29 3.4.5 EUT OPERATION CONDITIONS 29 3.4.6 TEST RESULTS 29 4 . AVERAGE OUTPUT POWER 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . POWER SPECTRAL DENSITY TEST 37 5.1 APPLIED PROCEDURES / LIMIT 37 5.1.1 TEST PROCEDURE 37 5.1.2 DEVIATION FROM STANDARD 37 5.1.3 TEST SETUP 37 5.1.4 EUT OPERATION CONDITIONS 37 5.1.5 TEST RESULTS 38 6 . 6DB BANDWIDTH TEST 41 6.1 APPLIED PROCEDURES / LIMIT 41 6.1.1 TEST PROCEDURE 41 6.1.2 DEVIATION FROM STANDARD 41 6.1.3 TEST SETUP 41 6.1.4 EUT OPERATION CONDITIONS 41 6.1.5 TEST RESULTS 42 7 . ANTENNA REQUIREMENT 45 7.1 STANDARD REQUIREMENT 45 7.2 EUT ANTENNA 45 8 . TEST SEUUP PHOTO 46 9 . EUT PHOTO 48 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 56 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.205, 15.247(d) Band Edge Emission& Conducted Spurious Emissions PASS 15.247(b) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) Test Facility: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 56 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: Low power solar cell camera Trademark N/A Model No.: TQ6 TQ1, TQ2, TQ3, TQ4, TQ5, TQ7, TQ8, TQ9, TQ10, TD1, TD2, TD3, TD4, TD5,…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 41 of 56 6. 6DB BANDWIDTH TEST 6.1 APPLIED PROCEDURES / LIMIT FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range(MHz) Result 15.247(a)(2) Bandwidth >= 500KHz (6dB bandwidth) 2400-2483.5 PASS 6.1.1 TEST PROCEDURE 1. Set RBW = 100 kHz. 2. Set the video bandwidth (VBW) ≥RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 20 dB relative to the maximum level measured in the fundamental emission. 6.1.2 DEVIATION FROM STANDARD No deviation. 6.1.3 TEST SETUP 6.1.4 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 2.3 Unless otherwise a special operating condition is specified in the follows during the testing. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 42 of 56 6.1.5 TEST RESULTS Test Channel 6dB Bandwidth (MHz) Limit (MHz) Result 802.11b Low 7.407 0.5 Pass Middle 7.962 0.5 Pass High 7.865 0.5 Pass 802.11g Low 15.731 0.5 Pass Middle 15.052 0.5 Pass High 15.044 0.5 Pass 802.11n HT20 Low 16.256 0.5 Pass Middle 12.621 0.5 Pass High 15.046 0.5 Pass 802.11n HT40 Low 28.817 0.5 Pass Middle 33.753 0.5 Pass High 33.875 0.5 Pass Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 43 of 56 802.11b 802.11g 2412MHz 2412MHz 2437MHz 2437MHz 2462MHz 2462MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 44 of 56 802.11n HT20 802.11n HT40 2412MHz 2422MHz 2437MHz 2437MHz 2462MHz 2452MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 45 of 56 7. ANTENNA REQUIREMENT 7.1 STANDARD REQUIREMENT 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 7.2 EUT ANTENNA The EUT antenna is External Antenna, It comply with the standard requirement. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 46 of 56 8. TEST SEUUP PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 47 of 56 Conducted Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 48 of 56 9. EUT PHOTO Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 49 of 56 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 50 of 56 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 51 of 56 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 52 of 56 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 53 of 56 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 54 of 56 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 55 of 56 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230920041E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 56 of 56 ※※※※※ END OF REPORT ※※※※※

Radiated Measurement Photos Conducted Measurement Photos
