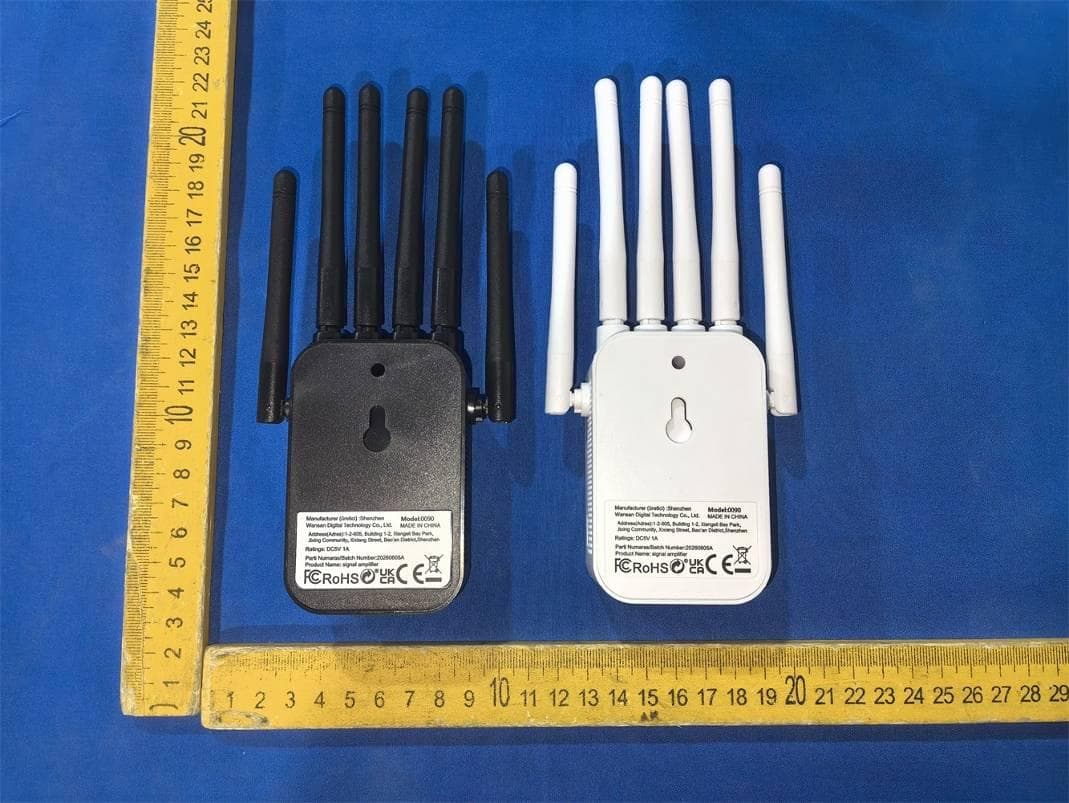

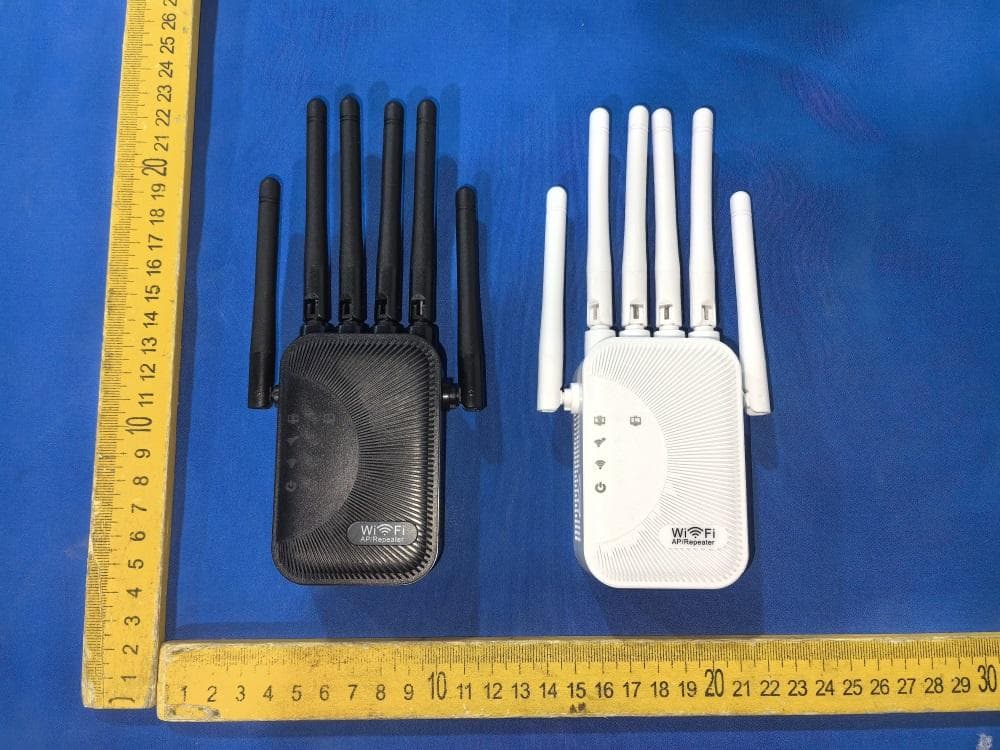

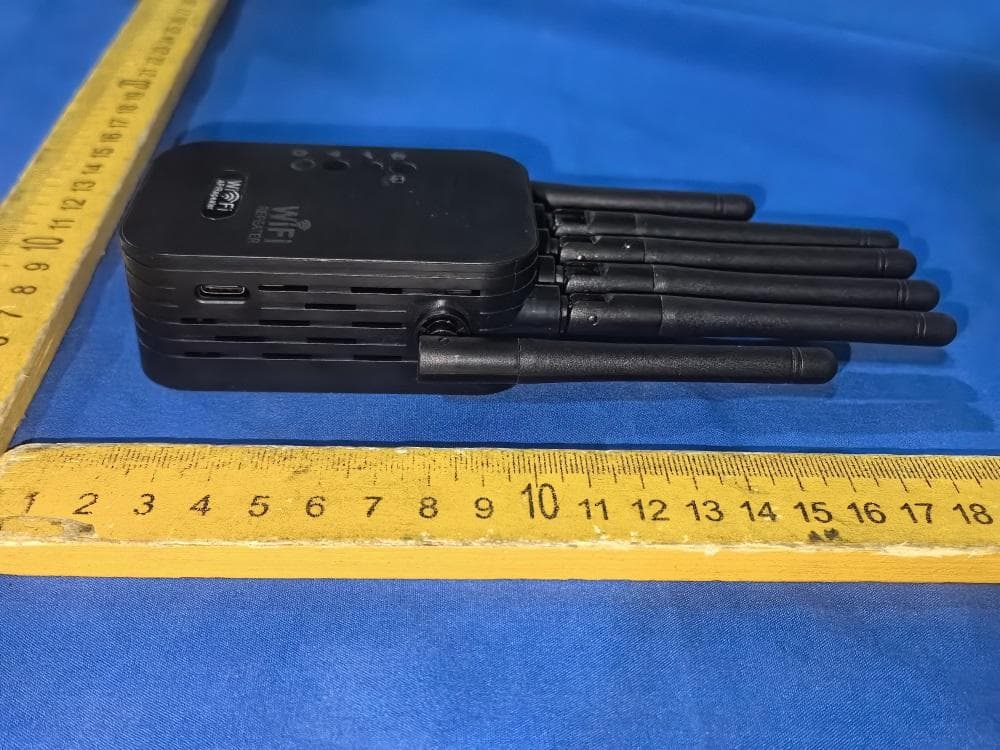

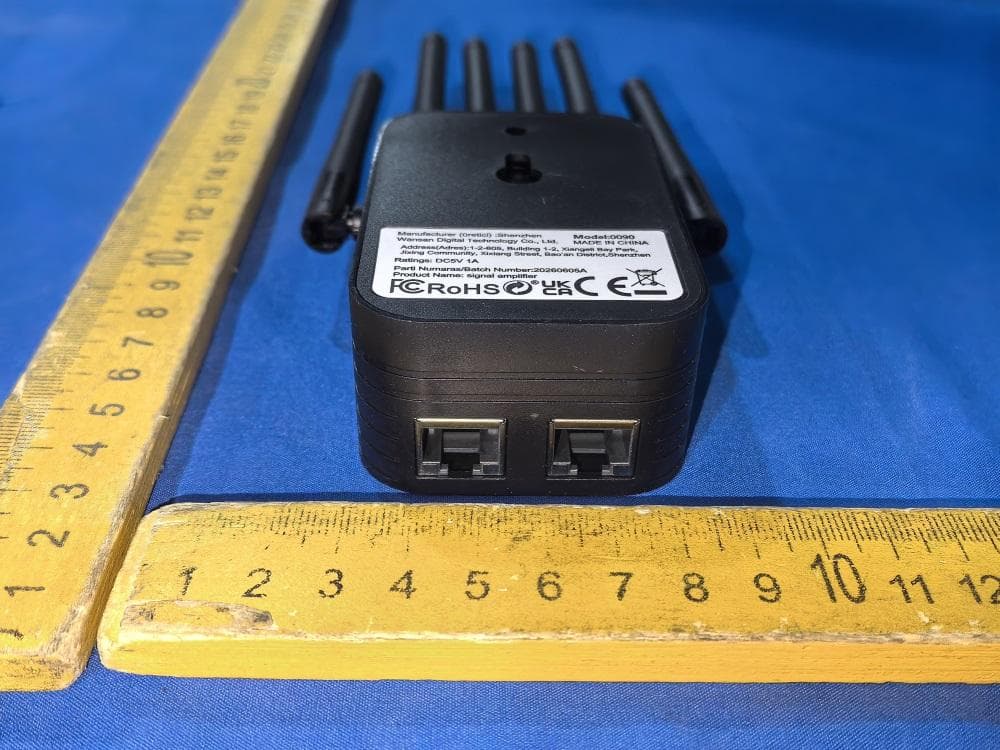

2BD24-R001Wifi Repeater

The product only supports extender and AP modes, and does not support routing mode. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC ID: 2BD24-R001 Fig. 1 Fig. 2 FCC ID: 2BD24-R001 Fig. 3 Fig. 4

FCC ID: 2BD24-R001 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BD24-R001 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3

Page 1 of 37 MAXLAB Testing Co.,Ltd. Report No.: MAX260806110P02-R01 FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : MAX260806110P02-R01 FCC ID............................................. : 2BD24-R001 Compiled by ( position+printed name+signature) . : Engineer/ Cindy Zheng Supervised by ( position+printed name+signature) . : Manager/Haley Wen Approved by ( position+printed name+signature) . : RF Manager/ Vivian Jiang Date of issue .................................... : Aug.18, 2026 Testing Laboratory Name .............. : MAXLAB Testing Co.,Ltd. Address ............................................ : 1/F, Building B, Xinshidai GR Park,Shiyan Street, Bao'an District, Shenzhen,Guangdong, 518052, People’s Republic of China Applicant’s name ............................ : Shenzhen Nanyang Network Technology Co., Ltd. Address ............................................ : A308, Jinbolong Industrial Factory, Huayun Road Longhua Street, Longhua District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 MAXLAB Testing Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the MAXLAB Testing Co.,Ltd.is acknowledged as copyright owner and source of the material. MAXLAB Testing Co.,Ltd.takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wifi Repeater Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Nanyang Network Technology Co., Ltd. Model/Type reference ...................... : R001 Listed Models .................................. : T001, L001 Modulation Type ............................... : 802.11b/802.11g/802.11n Operation Frequency ........................ : From 2412MHz to 2462MHz Rating ............................................... : Input: DC 5.0V/1.0A Result ............................................... : PASS MAXLAB Testing Co.,Ltd. Report No.: MAX260806110P02-R01 Page 2 of 37 TEST REPORT Equipment under Test : Wifi Repeater Model /Type : R001 Series Model No. T001, L001 Model Declaration : All the models are electrical identical including the same software parameter and hardware design, same mechanical structure and design, the only difference is the model named, appearance and Color different. Applicant : Shenzhen Nanyang Network Technology Co., Ltd. Address : A308, Jinbolong Industrial Factory, Huayun Road Longhua Street, Longhua District, Shenzhen, China Manufacturer : Shenzhen Nanyang Network Technology Co., Ltd. Address : A308, Jinbolong Industrial Factory, Huayun Road Longhua Street, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. MAXLAB Testing Co.,Ltd. Report No.: MAX260806110P02-R01 Page 3 of 37 Contents 1 T E S T S T A N D A R D S ........................................................................ 4 2 S U M M A R Y ................................................................................... 5 2.1 General Remarks .......................................................................................................................................... 5 2.2 Product Description ..................................................................................................................................... 5 2.3 Equipment Under Test ................................................................................................................................. 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................. 5 2.5 EUT operation mode .................................................................................................................................... 6 2.6 Block Diagram of Test Setup ...................................................................................................................... 6 2.7 Related Submittal(s) / Grant (s) ................................................................................................................... 6 2.8 Modifications ................................................................................................................................................ 6 3 T E S T E N V I R O N M E N T .................................................................... 7 3.1 Address of the test laboratory .................................................................................................................... 7 3.2 Test Facility ................................................................................................................................................... 7 3.3 Environmental conditions ........................................................................................................................... 7 3.4 Test Description ........................................................................................................................................... 8 3.5 Statement of the measurement uncertainty .............................................................................................. 9 3.6 Equipments Used during the Test ............................................................................................................ 10 4 T E S T C O N D I T I O N S A N D R E S U L T S .................................................. 12 4.1 AC Power Conducted Emission ................................................................................................................ 12 4.2 Radiated Emission ....................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2BD24-R001 1 Case No. : MAX260806110P02-R01 Ambient Condition: 25°C,45%RH, Test Date: 2026.8.01-2026.8.17 Test Engineer: Cindy Zheng AppendixA.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.320 2406.840 2417.160 0.5 PASS 2437 10.320 2431.840 2442.160 0.5 PASS 2462 10.320 2456.840 2467.160 0.5 PASS 11G Ant1 2412 16.360 2403.920 2420.280 0.5 PASS 2437 16.400 2428.800 2445.200 0.5 PASS 2462 16.360 2453.840 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.480 2403.240 2420.720 0.5 PASS 2437 17.520 2428.200 2445.720 0.5 PASS 2462 17.480 2453.280 2470.760 0.5 PASS 11N40SISO Ant1 2422 36.160 2404.000 2440.160 0.5 PASS 2437 36.160 2418.920 2455.080 0.5 PASS 2452 36.320 2433.760 2470.080 0.5 PASS FCC ID: 2BD24-R001 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2BD24-R001 3 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2BD24-R001 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2BD24-R001 5 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2BD24-R001 6 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2BD24-R001 7 AppendixA.2: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 12.98 ≤30.00 PASS 2437 14.08 ≤30.00 PASS 2462 14.91 ≤30.00 PASS 11G Ant1 2412 16.05 ≤30.00 PASS 2437 17.40 ≤30.00 PASS 2462 18.08 ≤30.00 PASS 11N20SISO Ant1 2412 15.05 ≤30.00 PASS 2437 18.07 ≤30.00 PASS 2462 17.86 ≤30.00 PASS 11N40SISO Ant1 2422 14.94 ≤30.00 PASS 2437 17.45 ≤30.00 PASS 2452 16.58 ≤30.00 PASS FCC ID: 2BD24-R001 8 AppendixA.3: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -20.01 ≤8.00 PASS 2437 -18.97 ≤8.00 PASS 2462 -18.21 ≤8.00 PASS 11G Ant1 2412 -19.21 ≤8.00 PASS 2437 -18.45 ≤8.00 PASS 2462 -17.38 ≤8.00 PASS 11N20SISO Ant1 2412 -19.91 ≤8.00 PASS 2437 -16.75 ≤8.00 PASS 2462 -16.95 ≤8.00 PASS 11N40SISO Ant1 2422 -21.24 ≤8.00 PASS 2437 -18.18 ≤8.00 PASS 2452 -20.73 ≤8.00 PASS FCC ID: 2BD24-R001 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2BD24-R001 10 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2BD24-R001 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2BD24-R001 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2BD24-R001 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2BD24-R001 14 AppendixA.4:Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 -0.41 -45.13 ≤-20.41 PASS High 2462 1.66 -48.9 ≤-18.34 PASS 11G Ant1 Low 2412 -4.98 -42.61 ≤-24.98 PASS High 2462 -3.11 -48.6 ≤-23.11 PASS 11N20SISO Ant1 Low 2412 -6.14 -43.49 ≤-26.14 PASS High 2462 -3.22 -48.31 ≤-23.22 PASS 11N40SISO Ant1 Low 2422 -9.06 -44.02 ≤-29.06 PASS High 2452 -7.65 -47.55 ≤-27.65 PASS FCC ID: 2BD24-R001 15 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCC ID: 2BD24-R001 16 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 FCC ID: 2BD24-R001 17 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 FCC ID: 2BD24-R001 18 FCC ID: 2BD24-R001 19 AppendixA.5:Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.63 -0.63 --- PASS 30~1000 -0.63 -60.42 ≤-20.63 PASS 1000~26500 -0.63 -47.52 ≤-20.63 PASS 2437 Reference 0.58 0.58 --- PASS 30~1000 0.58 -60.62 ≤-19.42 PASS 1000~26500 0.58 -47.27 ≤-19.42 PASS 2462 Reference 1.07 1.07 --- PASS 30~1000 1.07 -60.1 ≤-18.93 PASS 1000~26500 1.07 -47.32 ≤-18.93 PASS 11G Ant1 2412 Reference -5.89 -5.89 --- PASS 30~1000 -5.89 -60.68 ≤-25.89 PASS 1000~26500 -5.89 -47.62 ≤-25.89 PASS 2437 Reference -4.60 -4.60 --- PASS 30~1000 -4.60 -60.92 ≤-24.6 PASS 1000~26500 -4.60 -47.65 ≤-24.6 PASS 2462 Reference -3.71 -3.71 --- PASS 30~1000 -3.71 -60.42 ≤-23.71 PASS 1000~26500 -3.71 -46.67 ≤-23.71 PASS 11N20SISO Ant1 2412 Reference -7.30 -7.30 --- PASS 30~1000 -7.30 -60.89 ≤-27.3 PASS 1000~26500 -7.30 -47.54 ≤-27.3 PASS 2437 Reference -3.41 -3.41 --- PASS 30~1000 -3.41 -59.64 ≤-23.41 PASS 1000~26500 -3.41 -48.27 ≤-23.41 PASS 2462 Reference -4.40 -4.40 --- PASS 30~1000 -4.40 -60.74 ≤-24.4 PASS 1000~26500 -4.40 -47.57 ≤-24.4 PASS 11N40SISO Ant1 2422 Reference -9.97 -9.97 --- PASS 30~1000 -9.97 -60.86 ≤-29.97 PASS 1000~26500 -9.97 -47.99 ≤-29.97 PASS 2437 Reference -6.88 -6.88 --- PASS 30~1000 -6.88 -60.84 ≤-26.88 PASS 1000~26500 -6.88 -47.64 ≤-26.88 PASS 2452 Reference -7.67 -7.67 --- PASS 30~1000 -7.67 -60.4 ≤-27.67 PASS 1000~26500 -7.67 -47.68 ≤-27.67 PASS FCC ID: 2BD24-R001 20 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 FCC ID: 2BD24-R001 21 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 FCC ID: 2BD24-R001 22 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 FCC ID: 2BD24-R001 23 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference FCC ID: 2BD24-R001 24 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference FCC ID: 2BD24-R001 25 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 FCC ID: 2BD24-R001 26 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 FCC ID: 2BD24-R001 27 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 FCC ID: 2BD24-R001 28 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 FCC ID: 2BD24-R001 29 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference FCC ID: 2BD24-R001 30 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference FCC ID: 2BD24-R001 31 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 FCC ID: 2BD24-R001 32 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 FCC ID: 2BD24-R001 33 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 FCC ID: 2BD24-R001 34 11N40SISO_Ant1_2452_1000~26500 FCC ID: 2BD24-R001 35 AppendixA.6: Duty Cycle Test Result TestM…

Text truncated - open the document above for the full version.

FCC ID: 2BD24-R001 1 Case No. : MAX260806110P02-R01 Ambient Condition: 25°C,45%RH, Test Date: 2026.8.01-2026.8.17 Test Engineer: Cindy Zheng AppendixA.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 10.320 2406.840 2417.160 0.5 PASS 2437 10.320 2431.840 2442.160 0.5 PASS 2462 10.320 2456.840 2467.160 0.5 PASS 11G Ant2 2412 16.440 2403.840 2420.280 0.5 PASS 2437 16.440 2428.800 2445.240 0.5 PASS 2462 16.520 2453.760 2470.280 0.5 PASS 11N20SISO Ant2 2412 17.560 2403.200 2420.760 0.5 PASS 2437 17.600 2428.120 2445.720 0.5 PASS 2462 17.360 2453.280 2470.640 0.5 PASS 11N40SISO Ant2 2422 36.160 2404.000 2440.160 0.5 PASS 2437 36.160 2418.920 2455.080 0.5 PASS 2452 36.240 2433.920 2470.160 0.5 PASS FCC ID: 2BD24-R001 2 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 FCC ID: 2BD24-R001 3 11G_Ant2_2412 11G_Ant2_2437 FCC ID: 2BD24-R001 4 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 FCC ID: 2BD24-R001 5 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 FCC ID: 2BD24-R001 6 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 FCC ID: 2BD24-R001 7 AppendixA.2: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant2 2412 12.88 ≤30.00 PASS 2437 14.07 ≤30.00 PASS 2462 14.92 ≤30.00 PASS 11G Ant2 2412 16.15 ≤30.00 PASS 2437 17.35 ≤30.00 PASS 2462 17.98 ≤30.00 PASS 11N20SISO Ant2 2412 15.11 ≤30.00 PASS 2437 18.18 ≤30.00 PASS 2462 17.95 ≤30.00 PASS 11N40SISO Ant2 2422 15.04 ≤30.00 PASS 2437 17.46 ≤30.00 PASS 2452 16.48 ≤30.00 PASS FCC ID: 2BD24-R001 8 AppendixA.3: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant2 2412 -20.31 ≤8.00 PASS 2437 -18.96 ≤8.00 PASS 2462 -18.18 ≤8.00 PASS 11G Ant2 2412 -18.98 ≤8.00 PASS 2437 -18.30 ≤8.00 PASS 2462 -16.72 ≤8.00 PASS 11N20SISO Ant2 2412 -19.68 ≤8.00 PASS 2437 -17.69 ≤8.00 PASS 2462 -17.00 ≤8.00 PASS 11N40SISO Ant2 2422 -21.45 ≤8.00 PASS 2437 -19.08 ≤8.00 PASS 2452 -20.99 ≤8.00 PASS FCC ID: 2BD24-R001 9 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 FCC ID: 2BD24-R001 10 11G_Ant2_2412 11G_Ant2_2437 FCC ID: 2BD24-R001 11 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 FCC ID: 2BD24-R001 12 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 FCC ID: 2BD24-R001 13 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 FCC ID: 2BD24-R001 14 AppendixA.4:Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant2 Low 2412 -0.47 -44.79 ≤-20.47 PASS High 2462 1.72 -49.5 ≤-18.28 PASS 11G Ant2 Low 2412 -5.00 -41.57 ≤-25 PASS High 2462 -3.06 -48.57 ≤-23.06 PASS 11N20SISO Ant2 Low 2412 -6.02 -41.28 ≤-26.02 PASS High 2462 -2.96 -49.09 ≤-22.96 PASS 11N40SISO Ant2 Low 2422 -9.01 -44.75 ≤-29.01 PASS High 2452 -7.97 -47.57 ≤-27.97 PASS FCC ID: 2BD24-R001 15 Test Graphs 11B_Ant2_Low_2412 11B_Ant2_High_2462 11G_Ant2_Low_2412 FCC ID: 2BD24-R001 16 11G_Ant2_High_2462 11N20SISO_Ant2_Low_2412 FCC ID: 2BD24-R001 17 11N20SISO_Ant2_High_2462 11N40SISO_Ant2_Low_2422 11N40SISO_Ant2_High_2452 FCC ID: 2BD24-R001 18 FCC ID: 2BD24-R001 19 AppendixA.5:Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant2 2412 Reference -0.53 -0.53 --- PASS 30~1000 -0.53 -60.63 ≤-20.53 PASS 1000~26500 -0.53 -47.3 ≤-20.53 PASS 2437 Reference -0.15 -0.15 --- PASS 30~1000 -0.15 -60.23 ≤-20.15 PASS 1000~26500 -0.15 -47.5 ≤-20.15 PASS 2462 Reference 1.44 1.44 --- PASS 30~1000 1.44 -59.64 ≤-18.56 PASS 1000~26500 1.44 -47.41 ≤-18.56 PASS 11G Ant2 2412 Reference -5.80 -5.80 --- PASS 30~1000 -5.80 -60.73 ≤-25.8 PASS 1000~26500 -5.80 -47.9 ≤-25.8 PASS 2437 Reference -3.91 -3.91 --- PASS 30~1000 -3.91 -60.37 ≤-23.91 PASS 1000~26500 -3.91 -47.89 ≤-23.91 PASS 2462 Reference -3.63 -3.63 --- PASS 30~1000 -3.63 -60.29 ≤-23.63 PASS 1000~26500 -3.63 -47.55 ≤-23.63 PASS 11N20SISO Ant2 2412 Reference -7.04 -7.04 --- PASS 30~1000 -7.04 -60.44 ≤-27.04 PASS 1000~26500 -7.04 -47.58 ≤-27.04 PASS 2437 Reference -4.29 -4.29 --- PASS 30~1000 -4.29 -60.17 ≤-24.29 PASS 1000~26500 -4.29 -47.51 ≤-24.29 PASS 2462 Reference -3.20 -3.20 --- PASS 30~1000 -3.20 -60.23 ≤-23.2 PASS 1000~26500 -3.20 -47.11 ≤-23.2 PASS 11N40SISO Ant2 2422 Reference -9.70 -9.70 --- PASS 30~1000 -9.70 -59.8 ≤-29.7 PASS 1000~26500 -9.70 -47.91 ≤-29.7 PASS 2437 Reference -7.54 -7.54 --- PASS 30~1000 -7.54 -59.41 ≤-27.54 PASS 1000~26500 -7.54 -47.3 ≤-27.54 PASS 2452 Reference -8.37 -8.37 --- PASS 30~1000 -8.37 -60.66 ≤-28.37 PASS 1000~26500 -8.37 -47.69 ≤-28.37 PASS FCC ID: 2BD24-R001 20 Test Graphs 11B_Ant2_2412_0~Reference 11B_Ant2_2412_30~1000 11B_Ant2_2412_1000~26500 FCC ID: 2BD24-R001 21 11B_Ant2_2437_0~Reference 11B_Ant2_2437_30~1000 FCC ID: 2BD24-R001 22 11B_Ant2_2437_1000~26500 11B_Ant2_2462_0~Reference 11B_Ant2_2462_30~1000 FCC ID: 2BD24-R001 23 11B_Ant2_2462_1000~26500 11G_Ant2_2412_0~Reference FCC ID: 2BD24-R001 24 11G_Ant2_2412_30~1000 11G_Ant2_2412_1000~26500 11G_Ant2_2437_0~Reference FCC ID: 2BD24-R001 25 11G_Ant2_2437_30~1000 11G_Ant2_2437_1000~26500 FCC ID: 2BD24-R001 26 11G_Ant2_2462_0~Reference 11G_Ant2_2462_30~1000 11G_Ant2_2462_1000~26500 FCC ID: 2BD24-R001 27 11N20SISO_Ant2_2412_0~Reference 11N20SISO_Ant2_2412_30~1000 FCC ID: 2BD24-R001 28 11N20SISO_Ant2_2412_1000~26500 11N20SISO_Ant2_2437_0~Reference 11N20SISO_Ant2_2437_30~1000 FCC ID: 2BD24-R001 29 11N20SISO_Ant2_2437_1000~26500 11N20SISO_Ant2_2462_0~Reference FCC ID: 2BD24-R001 30 11N20SISO_Ant2_2462_30~1000 11N20SISO_Ant2_2462_1000~26500 11N40SISO_Ant2_2422_0~Reference FCC ID: 2BD24-R001 31 11N40SISO_Ant2_2422_30~1000 11N40SISO_Ant2_2422_1000~26500 FCC ID: 2BD24-R001 32 11N40SISO_Ant2_2437_0~Reference 11N40SISO_Ant2_2437_30~1000 11N40SISO_Ant2_2437_1000~26500 FCC ID: 2BD24-R001 33 11N40SISO_Ant2_2452_0~Reference 11N40SISO_Ant2_2452_30~1000 FCC ID: 2BD24-R001 34 11N40SISO_Ant2_2452_1000~26500 FCC ID: 2BD24-R001 35 AppendixA.6: Duty Cycle Test Result TestMo…

Text truncated - open the document above for the full version.

FCC ID: 2BD24-R001 1 Case No. : MAX260806110P02-R01 Ambient Condition: 25°C,45%RH, Test Date: 2026.8.01-2026.8.17 Test Engineer: Cindy Zheng AppendixA.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.320 2406.840 2417.160 0.5 PASS 2437 10.320 2431.840 2442.160 0.5 PASS 2462 10.320 2456.840 2467.160 0.5 PASS 11G Ant1 2412 16.360 2403.880 2420.240 0.5 PASS 2437 16.320 2428.840 2445.160 0.5 PASS 2462 16.440 2453.800 2470.240 0.5 PASS 11N20SISO Ant1 2412 17.560 2403.200 2420.760 0.5 PASS 2437 17.600 2428.160 2445.760 0.5 PASS 2462 17.440 2453.240 2470.680 0.5 PASS 11N40SISO Ant1 2422 36.160 2404.000 2440.160 0.5 PASS 2437 36.160 2418.920 2455.080 0.5 PASS 2452 36.160 2433.920 2470.080 0.5 PASS FCC ID: 2BD24-R001 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2BD24-R001 3 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2BD24-R001 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2BD24-R001 5 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2BD24-R001 6 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2BD24-R001 7 AppendixA.2: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 12.93 ≤30.00 PASS 2437 14.21 ≤30.00 PASS 2462 15.05 ≤30.00 PASS 11G Ant1 2412 16.26 ≤30.00 PASS 2437 17.54 ≤30.00 PASS 2462 18.14 ≤30.00 PASS 11N20SISO Ant1 2412 15.18 ≤30.00 PASS 2437 18.29 ≤30.00 PASS 2462 18.04 ≤30.00 PASS 11N40SISO Ant1 2422 15.12 ≤30.00 PASS 2437 17.59 ≤30.00 PASS 2452 16.70 ≤30.00 PASS FCC ID: 2BD24-R001 8 AppendixA.3: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -20.09 ≤8.00 PASS 2437 -18.97 ≤8.00 PASS 2462 -18.06 ≤8.00 PASS 11G Ant1 2412 -18.79 ≤8.00 PASS 2437 -18.01 ≤8.00 PASS 2462 -17.71 ≤8.00 PASS 11N20SISO Ant1 2412 -19.06 ≤8.00 PASS 2437 -16.75 ≤8.00 PASS 2462 -16.94 ≤8.00 PASS 11N40SISO Ant1 2422 -21.81 ≤8.00 PASS 2437 -19.12 ≤8.00 PASS 2452 -21.38 ≤8.00 PASS FCC ID: 2BD24-R001 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2BD24-R001 10 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2BD24-R001 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2BD24-R001 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2BD24-R001 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2BD24-R001 14 AppendixA.4:Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 -0.35 -44.99 ≤-20.35 PASS High 2462 1.84 -48.87 ≤-18.16 PASS 11G Ant1 Low 2412 -4.72 -41.47 ≤-24.72 PASS High 2462 -3.00 -48.85 ≤-23 PASS 11N20SISO Ant1 Low 2412 -6.16 -42.94 ≤-26.16 PASS High 2462 -3.14 -48.73 ≤-23.14 PASS 11N40SISO Ant1 Low 2422 -8.96 -44.69 ≤-28.96 PASS High 2452 -7.64 -46.83 ≤-27.64 PASS FCC ID: 2BD24-R001 15 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCC ID: 2BD24-R001 16 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 FCC ID: 2BD24-R001 17 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 FCC ID: 2BD24-R001 18 FCC ID: 2BD24-R001 19 AppendixA.5:Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.88 -0.88 --- PASS 30~1000 -0.88 -60.44 ≤-20.88 PASS 1000~26500 -0.88 -48.23 ≤-20.88 PASS 2437 Reference 0.60 0.60 --- PASS 30~1000 0.60 -60.67 ≤-19.4 PASS 1000~26500 0.60 -47.79 ≤-19.4 PASS 2462 Reference 1.49 1.49 --- PASS 30~1000 1.49 -60.49 ≤-18.51 PASS 1000~26500 1.49 -47.61 ≤-18.51 PASS 11G Ant1 2412 Reference -5.66 -5.66 --- PASS 30~1000 -5.66 -59.79 ≤-25.66 PASS 1000~26500 -5.66 -47.32 ≤-25.66 PASS 2437 Reference -4.06 -4.06 --- PASS 30~1000 -4.06 -60.22 ≤-24.06 PASS 1000~26500 -4.06 -46.47 ≤-24.06 PASS 2462 Reference -3.67 -3.67 --- PASS 30~1000 -3.67 -60.32 ≤-23.67 PASS 1000~26500 -3.67 -47.42 ≤-23.67 PASS 11N20SISO Ant1 2412 Reference -6.45 -6.45 --- PASS 30~1000 -6.45 -60.29 ≤-26.45 PASS 1000~26500 -6.45 -47.5 ≤-26.45 PASS 2437 Reference -3.57 -3.57 --- PASS 30~1000 -3.57 -60.36 ≤-23.57 PASS 1000~26500 -3.57 -47.76 ≤-23.57 PASS 2462 Reference -4.12 -4.12 --- PASS 30~1000 -4.12 -59.47 ≤-24.12 PASS 1000~26500 -4.12 -47.8 ≤-24.12 PASS 11N40SISO Ant1 2422 Reference -9.53 -9.53 --- PASS 30~1000 -9.53 -60.56 ≤-29.53 PASS 1000~26500 -9.53 -47.81 ≤-29.53 PASS 2437 Reference -7.14 -7.14 --- PASS 30~1000 -7.14 -60.42 ≤-27.14 PASS 1000~26500 -7.14 -48.01 ≤-27.14 PASS 2452 Reference -8.06 -8.06 --- PASS 30~1000 -8.06 -60.9 ≤-28.06 PASS 1000~26500 -8.06 -47.12 ≤-28.06 PASS FCC ID: 2BD24-R001 20 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 FCC ID: 2BD24-R001 21 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 FCC ID: 2BD24-R001 22 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 FCC ID: 2BD24-R001 23 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference FCC ID: 2BD24-R001 24 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference FCC ID: 2BD24-R001 25 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 FCC ID: 2BD24-R001 26 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 FCC ID: 2BD24-R001 27 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 FCC ID: 2BD24-R001 28 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 FCC ID: 2BD24-R001 29 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference FCC ID: 2BD24-R001 30 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference FCC ID: 2BD24-R001 31 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 FCC ID: 2BD24-R001 32 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 FCC ID: 2BD24-R001 33 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 FCC ID: 2BD24-R001 34 11N40SISO_Ant1_2452_1000~26500 FCC ID: 2BD24-R001 35 AppendixA.6: Duty Cycle Test Result Tes…

Text truncated - open the document above for the full version.

Manufacturer Xiong chuang lian Electronics Co.,Ltd Address 4th Floor, Building 3, Yungu Industrial Park, No. 5 Yungu Street, Xikeng Village, Yuanshan Subdistrict, Longgang District, Shenzhen City, Guangdong Province Model R001 Antenna type External antenna Antenna Gain 2.00dBi for 2.4G 1.Test equipment and conditions: 1.1.Network Analyzer 1.2.Communication test equipment 1.3.Test system 1.4.Matching circuit 2.Test Data: 2.1. Standing wave ratio 2.2.Efficiency 2.3.Directivity diagram 3.Antenna drawing:

MAX Testing Co.,Ltd.Report No.: MAX260806110P02-R02RF RF TEST REPORT Report Reference No. ..................... : MAX260806110P02-R02RF FCC ID. ............................................ : 2BD24-R001 Compiled by ( position+printed name+signature) .. : Engineer/ Cindy Zheng Supervised by ( position+printed name+signature) .. : Manager/Haley Wen Approved by ( position+printed name+signature) .. : RF Manager/ Vivian Jiang Date of issue ..................................... : Aug.18, 2026 Testing Laboratory Name .............. : MAXLAB Testing Co.,Ltd. Address ............................................. : 1/F, Building B, Xinshidai GR Park,Shiyan Street, Bao'an District, Shenzhen,Guangdong, 518052, People’s Republic of China Applicant’s name ............................ : Shenzhen Nanyang Network Technology Co., Ltd. Address ............................................. : A308, Jinbolong Industrial Factory, Huayun Road Longhua Street, Longhua District, Shenzhen, China Test specification ........................... : Standard ........................................... : KDB 447498 D01 General RF Exposure Guidance v06 MAXLAB Testing Co.,Ltd.All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the MAXLAB Testing Co.,Ltd.is acknowledged as copyright owner and source of the material. MAXLAB Testing Co.,Ltd.takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wifi Repeater Trade Mark........................................ : N/A Manufacturer ..................................... : Shenzhen Nanyang Network Technology Co., Ltd. Model/Type reference ....................... : R001 Listed Models ................................... : T001, L001 Modulation ....................................... : OFDM Frequency .......................................... From 2412 - 2462MHz Rating ............................................... : Input: DC 5.0V/1.0A Result ................................................ : PASS MAX Testing Co.,Ltd.Report No.: MAX260806110P02-R02RF RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) According to KDB 447498 D01 General RF Exposure Guidance v06, Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. MAX Testing Co.,Ltd.Report No.: MAX260806110P02-R02RF EUT Specification Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Others BT:2402-2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna gain (Max) ANT1 used for WIFI TX/RX, 2.00 dBi(Max.) for 2.4G Band ANT2 used for WIFI TX/RX, 2.00 dBi(Max.) for 2.4G Band. ANT3 used for WIFI TX/RX, 2.00 dBi(Max.) for 2.4G Band Evaluation applied MP…

Text truncated - open the document above for the full version.
