2BD43-H8Full Color Smart Screen TWS Wireless Headset

ShenzhenXinyin Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 3, 2024 FCC ID: 2BD43-H8 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing ShenzhenXinyin Technology Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing ShenzhenXinyin Technology Co., Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: ShenzhenXinyin Technology Co., Ltd Address: Floor A3,Building B5, Anle Industrial Zone, No.172 Hangcheng Avenue, Baoan District, Shenzhen China Contact Person: Yangbo Duan Tel.: +86-13717098776 Email: [email protected] Sincerely, Signature:

ShenzhenXinyin Technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: July 3, 2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BD43-H8 ShenzhenXinyin Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: ShenzhenXinyin Technology Co., Ltd FRN: 0034614065 Address: Floor A3,Building B5, Anle Industrial Zone, No.172 Hangcheng Avenue, Baoan District, Shenzhen China Signature: Contact Person: Yangbo Duan Tel: +86-13717098776 Email: [email protected]

ShenzhenXinyin Technology Co., Ltd Date: July 2, 2024 Product Model Number: H8 FCC ID: 2BD43-H8 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Yangbo Duan Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-13717098776 On behalf of: ShenzhenXinyin Technology Co., Ltd

ShenzhenXinyin Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 3, 2024 Subject; Request for Confidentiality FCC ID: 2BD43-H8 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yangbo Duan Title: Manager

2.4GHz 1608 Chip Antenna: RANT2012F245X5 _ Application: WLAN, 802.11b/g, Bluetooth, WLAN, etc... Features SMD, high reliability, ultra Impact, Omni-directional... Part number Information RANT2012F245X5 (A) (B) (C) (D)(E) (F) Electrical Specification Dimension and Terminal Configuration No.Terminal Name 1Feeding/GNG 2GND/Feeding (A)Product TypeChip Antenna (B) Size Code 2.05x1.2mm( ± 0.1mm) (C) MaterialHigh K material (D) Frequency2.4 ~ 2.5GHz (E) Feeding modePIFA & Single Feeding (F) Antenna type SMD ANT Working Frequency Range2400 ~2500 MHz Bandwidth120 MHz (Min.) Peak Gain2.7 dBi (Typ.) Impedance50 Ohm Return loss10 dB ( Min) PolarizationLinear Azimuth BeamwidthOmni-directional Operation Temperature( °C )-40 ~85 °C Resistance to Soldering Heats 10sec. ( @ 280 °C ) TerminationNi / Au (Leadless) Dimension (mm) L 2.05 ± 0.10 W 1.2±0.10 T 0.65±0.10 電話 :13530576606 TEL: 13530576606 ShenzhenXinyin Technology Co., Ltd Floor A3,Building B5, Anle Industrial Zone, No.172 Hangcheng Avenue, Baoan District, Shenzhen China 2.4GHz 1608 Chip Antenna: RANT2012F245X5 _ 1 Evaluation BoardReference 2.4GHz1608ChipAntenna:RANT2012F245X5 _ ElectricalCharacteristics ReturnLoss&Radiation ELECTRICALCHARACTERISTICSS11 Radiation Pattern 2.4GHz1608ChipAntenna:RANT2012F245X5 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 2.4GHz1608ChipAntenna:RANT2012F245X5 _ ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz3216ChipAntenna:RANT2012F245X5 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic

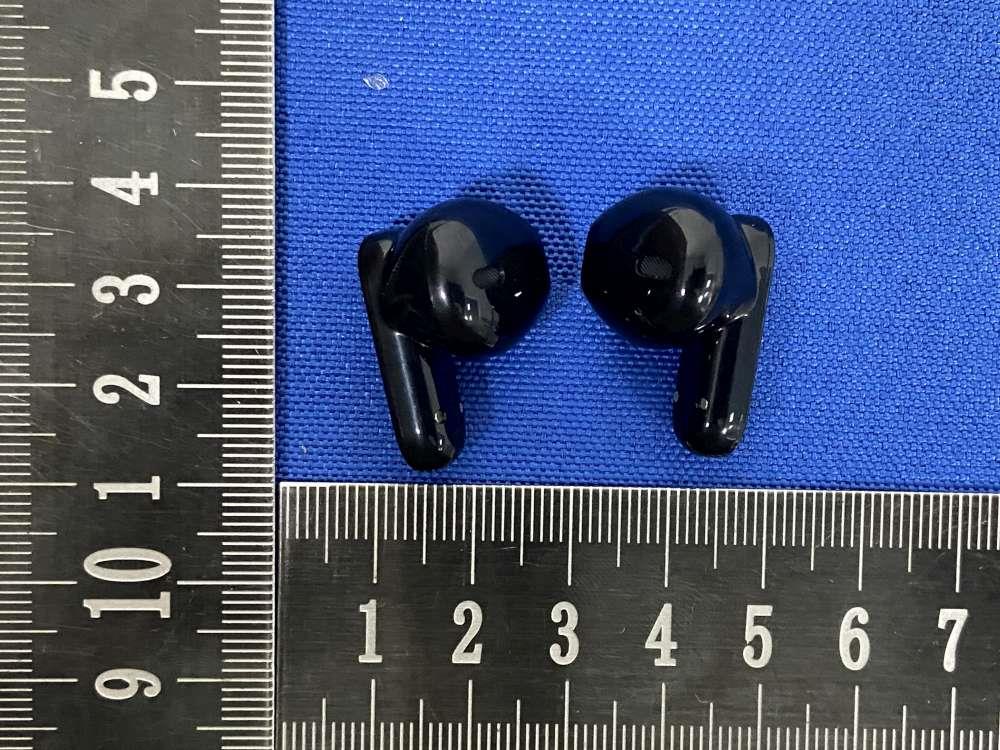

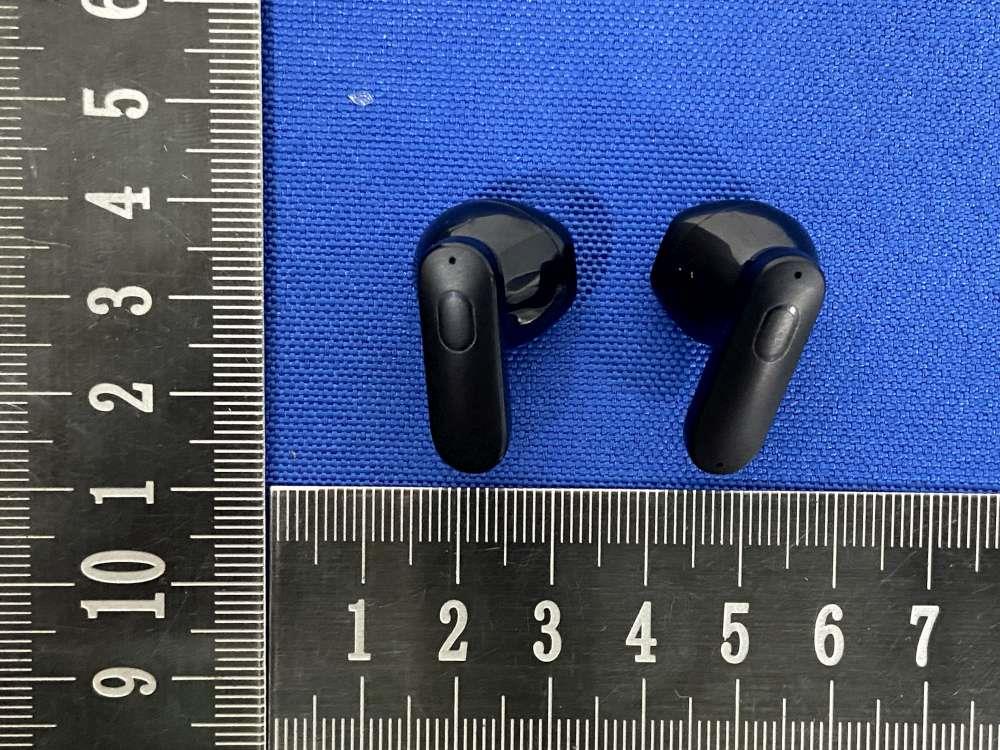

Report No: SSP24060119-1E FCC ID: 2BD43-H8 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24060119-1E FCC ID: 2BD43-H8 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24060119-1E FCC ID: 2BD43-H8 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP24060119-1E FCC ID: 2BD43-H8 Annex of Test Report EUT View 7

Report No: SSP24060119-1E FCC ID: 2BD43-H8 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

FCC ID: 2BD43-H8 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 3.14 3(±1) 4 2.51 2480 5 0.790550 3.0 So a SAR test is not required

CCUT Testing & Certification Report No: SSP24060119-1E FCC Test Report Page 1 of 47 FCC TEST REPORT FCC ID: 2BD43-H8 Report No. : SSP24060119-1E Applicant : ShenzhenXinyin Technology Co., Ltd Product Name : Full Color Smart Screen TWS Wireless Headset Model Name : H8 Test Standard : FCC Part 15.247 Date of Issue : 2024-06-25 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24060119-1E FCC Test Report Page 2 of 47 Test Report Basic Information Applicant..................................: ShenzhenXinyin Technology Co., Ltd Address of Applicant...............: Floor A3,Building B5, Anle Industrial Zone, No.172 Hangcheng Avenue, Baoan District, Shenzhen China Manufacturer..........................: ShenzhenXinyin Technology Co., Ltd Address of Manufacturer........: Floor A3,Building B5, Anle Industrial Zone, No.172 Hangcheng Avenue, Baoan District, Shenzhen China Product Name.........................: Full Color Smart Screen TWS Wireless Headset Brand Name.............................: - Main Model..............................: H8 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-06-17 to 2024-06-18 Test Result...............................: PASS Tested By ................................: (Colin Chen) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24060119-1E FCC Test Report Page 3 of 47 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................8 2. Summary of Test Results .............................................................................................................................................9 3. Antenna Requirement ............................................................................................................................................... 10 3.1 Standard and Limit.............................................................................................................................................. 10 3.2 Test Result .......................................................................................................................................................... 10 4. Conducted Emissions ................................................................................................................................................ 11 4.1 Standard and Limit.............................................................................................................................................. 11 4.2 Test Procedure.................................................................................................................................................... 11 4.3 Test Data and Results .......................................................................................................................................... 12 5. Radiated Emissions ................................................................................................................................................... 15 5.1 Standard and Limit.............................................................................................................................................. 15 5.2 Test Procedure.................................................................................................................................................... 15 5.3 Test Data and Results .......................................................................................................................................... 17 6. Band-edge Emissions(Radiated) ............................................................................................................................ 21 6.1 Standard and Limit.............................................................................................................................................. 21 6.2 Test Procedure.................................................................................................................................................... 21 6.3 Test Data and Results ......................................................…
