2BD5O-LK2313Multifunctional Camera

LK2313MultifunctionalCameraProductManual Thankyouforchoosingourlatestsportscamera--theLK2313.This productisamultifunctionalcamerathatintegrateshigh-definitionphotography,video recording,audiorecording,andWi-Ficonnectivity.Itisprimarilydesignedfor cycling,outdoorsports,security,andothermultifunctionalscenarios,boastingan exquisiteappearance.Itenablesyoutosharejoyfulmomentswithyourfamilyand friends. I.DescriptionofAppearanceandButtonFunctions 1.DisplayScreen2.Wi-FiOn/OffButton 3.Wi-FiOn/OffButton4.ResetSwitch 5.ScrollDownButton6.BackButton 7.MicrophonePort8.ChargingIndicatorLight 9.TYPE-CPort10.Bottom1/4ScrewHole 11.FileDisplayButton12.ScrollUpButton 13.ConfirmButton14.MenuButton 15.PowerButton16.RecordandSaveButton 17.OperationIndicatorLight18.InfraredAuxiliaryLight 19.MainCamera20.InfraredAuxiliaryLight 21.RecordandSaveButton22.Back1/4ScrewHoleandMagneticBackClip 23.SpeakerPort 1.DisplayScreen Usedtodisplaytheoperationalstatusoftheproduct. 2.Wi-FiOn/OffButton ToactivateWi-Fi,downloadtheRoadcamorDVRunningappfromtheapplicationplatform. Whilethedeviceispoweredon,pressandholdtheWi-Fibuttonfor3seconds.Thescreenwill displaythedevice'sWi-Finameandpassword.Ablueindicatorlightwillilluminatenearthetop ofthescreen,indicatingthatWi-Fiisenabled.Followtheappinstructionstocompletethe connection. 3.NightVisionSwitch Innormaloperatingmode,ifshootingconditionsarepoor,andinfraredlightassistanceis needed,brieflypresstheNightVisionswitch.Thisactivatestheinfraredauxiliarylight,rendering thescreeninblack-and-whitenightvisionmode. 4.ResetSwitch Iftheproductfreezesormalfunctionsforanyreason,useapinorotherobjecttopressthe resetswitchseveraltimestorestoretheproducttoitsfactorysettings. 5.ScrollDownButton Afterenteringthemainmenu,usethescrolldownbuttontonavigatedownwardsthroughthe menuoptions.Similarly,wheninsub-menus,thisbuttonfacilitatesdownwardnavigationthrough theoptions,oppositetothefunctionalityofthescrollupbutton. 6.BackButton Inthemainmenu,ashortpressofthebackbuttonnavigatesbacktothepreviousmenulevel. Inphotomode,ashortpressofthebackbuttonaccessesphotosettings. 7.MicrophonePort Usedforaudiorecordingduringvideorecordingoraudiorecordingmodes. 8.ChargingIndicatorLight Whentheproductischarging,thisindicatorlightremainsredtoindicatechargingisin progress.Thelightgoesoffwhenthebatteryisfullycharged. 9.TYPE-CPort TheTYPE-Cportisusedforchargingwhenthebatteryisloworforconnectingtoacomputer toaccessfiles.Note:Whenaccessingfiles,thedevicemustbeconnectedtoacomputertoenter USBmode. 10.Bottom1/4ScrewHole Thisholeisa1/4-inchthreadedscrewhole,allowinguserstoattachtripodsorother extensiondevicesforconvenience. 11.FileDisplayButton Pressingthisbuttononceentersphotomode,enablingyoutotakepictures.Pressingit againdisplaysthephotos,videos,andrecordingsalreadycapturedbythedevice.Shortpresses allowyoutoselectthedesiredfolder,navigatethroughfilesusingthescrollupanddown buttons,andconfirmselectionwiththeOKbutton. 12.PageUpButton Afterenteringthemainmenu,usethePageUpbuttontonavigateupwardsthroughthe menuoptions.Similarly,wheninsub-menus,thisbuttonfacilitatesupwardnavigationthrough theoptions,oppositetothefunctionalityoftheScrollDownbutton. 13.ConfirmButton Usedtoconfirmselectedmenuoptions,aswellastoconfirmtakingphotosinphoto mode. 14.MenuButton PressingtheMenu(M)buttonbrieflyentersthemenuinterface,allowingyoutoadjust variousparametersandsettingsofthedevice.Navigatethroughthemenuoptionsusingthe scrollupanddownbuttons,andconfirmselectionswiththeOKbutton. 15.PowerButton Thisbuttonpowersthedeviceonoroff.Ashortpressturnsthescreenoff,whilealong pressof3secondspowersthedeviceonoroff. 16.RecordandSaveButton Pushingthisbuttonupwardsactivatesvideorecordingmode.Aredlightblinksonceper secondnearthetopleftofthescreen,indicatingthatthedeviceisrecording.Recordedfilesare savedbydefaulttotheTFcard.Pushingthebuttondownwardssavesthecurrentvideofile, withasteadyredlightnearthetopofthescreenindicatingthatthedeviceisinstandbymode. 17.OperationIndicatorLight Differentoperationalstatesoftheproductareindicatedbyvariouslights. 18/20.InfraredAuxiliaryLight Providesinfraredassistancewhenlightingconditionsareinsufficientorduringnight visionmode. 19.MainCamera Theprimarycamerausedforframingshotsduringphotographyorvideorecording. 21.RecordandSaveButtonforAudio Withthedevicepoweredon,pushingtheRecordbuttonupwardsinitiatesautomaticaudio recording.Pushingitdownwardssavesthecurrentaudiorecordingfile,whichcanbeaccessed bypressingtheFileDisplaybutton. 22.Back1/4ScrewHoleandMagneticBackClip Similartothebottomscrewhole,thisisastandard1/4-inchscrewholewithanembedded strongmagnet.Itallowsthedevicetobeattachedtoothermagneticsurfaceswhenneeded. 23.SpeakerPort Usedforplayingbackvideooraudiorecordingscapturedbythedevice. II.ProductOverview ◆ BasicSpecifications 1.FunctionTypeMultifunctionalCamera 2.Brand/ModelLK2313 3.ColorBlack/Silver 4.Material/ProcessPC+ABSMaterialwithMatteFinish 5. ApplicationCyclingRecording,OutdoorSports,LawEnforcementRecording 6. AppRoadcamorDVRunning 7.WaterproofIP65Water-resistantforDailyLife 8.Dimensions105*41*23mm 9.Weight57g(CameraOnly),210g(IncludingPackaging) ◆SystemParameters 1 ImageResolution1080P 2 LensParameters4G 3.Resolution1080P@30fps 4AudioCompressionAAC 5VideoCompressionH.264 6InfraredLights940 7 VideoFormatMP4 8 MaximumFrame Rate 30fps 9WirelessConnectionBuilt-in2.4GHzWIFI,supports802.11b/g/n,built-inantenna 10ScreenSize1.47inches 11.VideoDisplay On-devicepreview,APPoperation,wirelessvideooutput,supportsreal-time preview/playbackonAndroid/iOSdevices 12.MicrophoneBuilt-inhigh-sensitivitymicrophone 13. BatteryCapacity600mAh ◆ Accessories 1.CableOneTYPE-CPowerCable 2.MagneticBackClipBuilt-inHigh-StrengthMagnet 3.UserManualNeutralInstructionManual ◆ElectricalParameters 1. VoltageRange+5V,1.5AInput 2. Screen-OnOperating Current ≤ 160mA 3. Wi-FiConnected Current ≤ 200mA 4 Screen-OffOperating Current ≤ 100mA 5StandbyCurrent5mA@DC+5V 6 Operating Environment -20 ° Cto+60 ° C 7 StorageTemperature-20°Cto+60°C III.Precautions 1.Beforeusingthisdevice,…

Text truncated - open the document above for the full version.

Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd 08‐19‐2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BD5O‐LK2313) [Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Shouye Li Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd 08‐19‐2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID : 2BD5O‐LK2313) [Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Shouye Li

Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd Block A, 4th Floor, Building 3, Gushu Guteng, First Industrial Zone, Xixiang, Baolan District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/12/8 U.S. Agent Designation Name and company of U.S. agent: GSS SERVICE INC Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltdacknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BD5O- LK2313): Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd with the FRN [0034627612] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Shouye Li General manager Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd Agent Authorization Letter 2024-08-19 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Shouye Li Position: manager Company Name: Shenzhen Leku Zhichuang Electronic TechnologyCo., Ltd Address: Block A, 4th Floor, Building 3, Gushu Guteng, First Industrial Zone, Xixiang, Baolan District, Shenzhen,China Tel / Fax 13828869537 E‐Mail: [email protected]

ShenzhenLekuZhichuangElectronicTechnologyCo.,Ltd LongTermConfidentialityRequestLetter 2024-08-19 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:CONFIDENTIALITYREQUESTFOR(FCCID:2BD5O-LK2313) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459of CFR47.Wehaverequestedthatthe -e.g.Blockdiagram -e.g.SCH -e.g.OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublicreview. Theabovedocumentsarecompanyproprietaryinformationthatcouldnevergetinto thepossessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Name:ShouyeLi Position:manager CompanyName:ShenzhenLekuZhichuangElectronicTechnologyCo.,Ltd Address:BlockA,4thFloor,Building3,GushuGuteng,FirstIndustrialZone,Xixiang, BaolanDistrict,Shenzhen,China Tel/Fax13828869537 E-Mail:[email protected]

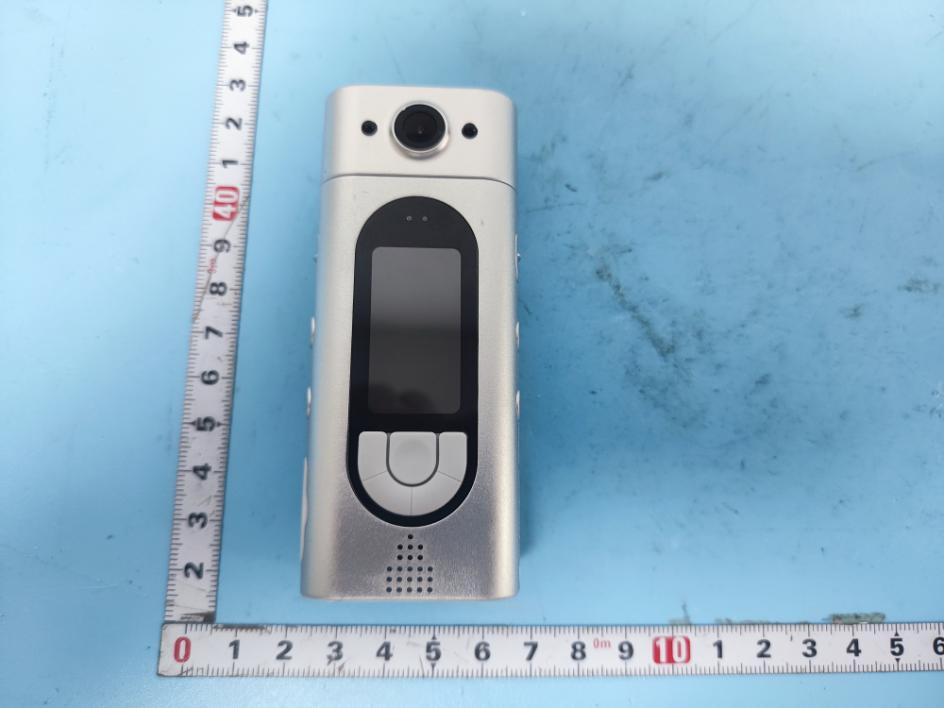

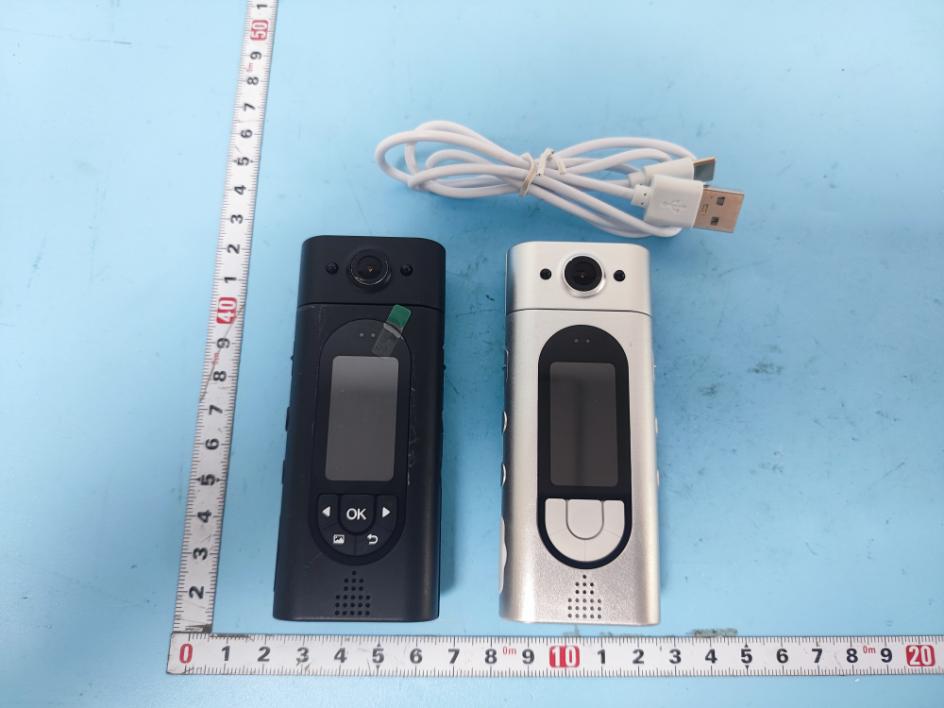

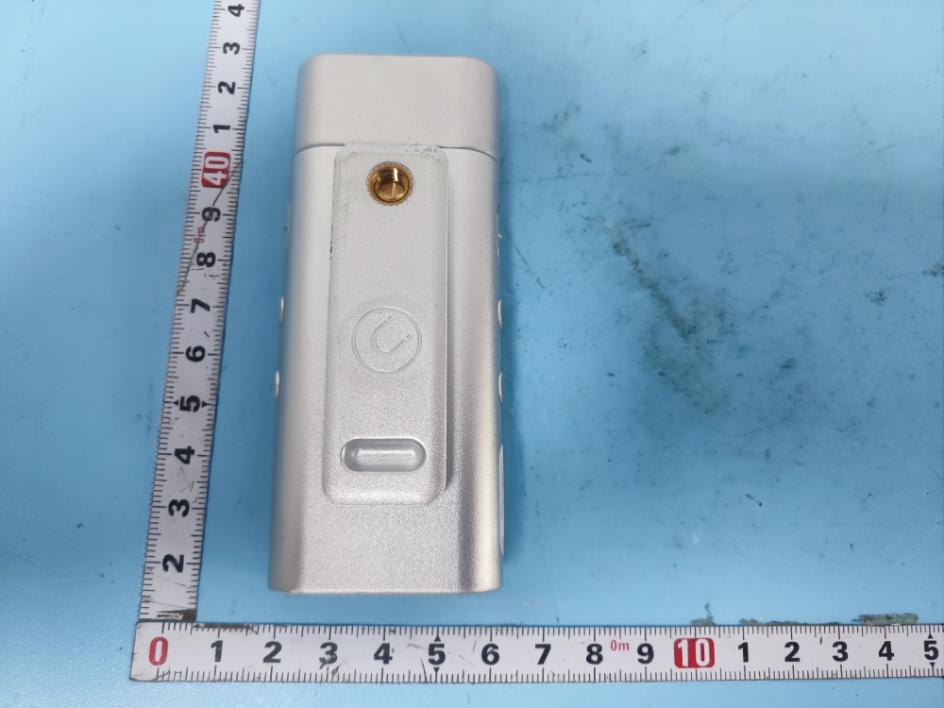

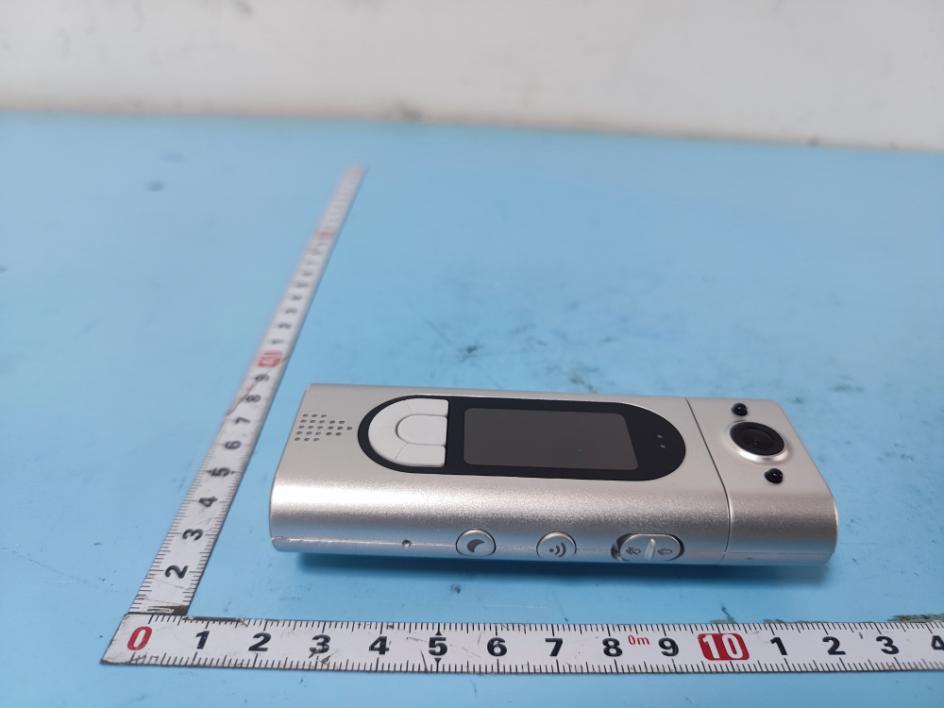

Model No.: LK2313 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: LK2313 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: LK2313 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: LK2313

Label: Productname:MultifunctionalCamera Mode:LK2313 FCCID:2BD5O-LK2313 Labellocation

Model No.: LK2313 Page 1 of 4 INTERNAL PHOTO OF SAMPLE INTERNAL PHOTO OF SAMPLE Model No.: LK2313 Page 2 of 4 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Model No.: LK2313 Page 3 of 4 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB WIFI antenna Model No.: LK2313 Page 4 of 4

ShenzhenMostTechnologyServiceCo.,Ltd. EastA,1floorofNewAolinFactorybuiding,LangshanErlu,NorthDistrict, Hi-techIndustryPark,Nanshan,Shenzhen,Guangdong,China RFExposureEvaluationReport ReportReferenceNo. ....................... : FCCID.. ............................................... : MTEB24080203-H 2BD5O-LK2313 Compiledby (position+printedname+signature)..:FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature) .. : ManagerYvetteZhou Dateofissue ......................................... :Aug.15,2024 RepresentativeLaboratoryName . :ShenzhenMostTechnologyServiceCo.,Ltd. Address.................................................: No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname ............................... :ShenzhenLekuZhichuang,ElectronicTechnologyCo.,Ltd Address ................................................. : BlockA,4thFloor,Building3,GushuGuteng,First IndustrialZone,Xixiang,BaolanDistrict,Shenzhen Testspecification/Standard ............ : 47CFRPart1.1307;47CFRPart1.1310 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator ...................................... :ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenMostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenMostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription ........................ : MultifunctionalCamera TradeMark............................................: N/A Model/Typereference ......................... : LK2313 ListedModels......................................:N/A ModulationType..................................:b:DSSS,CCK g/n:BPSK,QPSK,QAM OperationFrequency..........................:From2412MHzto2462MHz HardwareVersion.................................V1.0 SoftwareVersion...................................V1.0 Rating.....................................................: DC3.7VbyBattery DC5VbyUSBPort Result.....................................................:PASS ReportNo.:MTEB24080203-HPage 2 of 5 TESTREPORT EquipmentunderTest:MultifunctionalCamera Model/Type:LK2313 ListedModels:N/A RemarkN/A Applicant:ShenzhenLekuZhichuang,ElectronicTechnologyCo.,Ltd Address: BlockA,4thFloor,Building3,GushuGuteng,First IndustrialZone,Xixiang,BaolanDistrict,Shenzhen Manufacturer:ShenzhenLekuZhichuang,ElectronicTechnologyCo.,Ltd Address : BlockA,4thFloor,Building3,GushuGuteng,First IndustrialZone,Xixiang,BaolanDistrict,Shenzhen TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB24080203-HPage 3 of 5 1.RevisionHistory RevisionIssueDateRevisionsRevisedBy 00 2024.08.15 InitialIssueAlisaLuo ReportNo.:MTEB24080203-HPage 4 of 5 2.SAREvaluation 2.1RFExposureComplianceRequirement 2.1.1StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 4.3.1.StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurementor numericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThresholdcondition,listed below,issatisfied. 2.1.2Limits AccordingtoFCCPart1.1310:Thecriterialistedinthefollowingtableshallbeusedtoevaluatethe environmentimpactofhumanexposuretoradiofrequency(RF)radiationasspecifiedinpart1.1307(b) F=FrequencyinMHz FriisFormula Friistransmissionformula:Pd=(Pout*G)/(4*Pi*R 2 )Where Pd=powerdensityinmW/cm 2 Pout=outputpowertoantennainmW G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaandthetotalpower inputtotheantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. ReportNo.:MTEB24080203-HPage 5 of 5 2.1.3EUTRFExposure WIFI2.4G 802.11b Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2412MHz)15.7015.70±116.7 Middle(2437MHz)15.9615.96±116.96 Highest(2462MHz)13.7613.76±114.76 802.11g Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2412MHz)15.2415.24±116.24 Middle(2437MHz)15.9215.92±116.92 Highest(2462MHz)15.4715.47±116.47 802.11n(H20) Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2412MHz)16.0216.02±117.02 Middle(2437MHz)16.7316.73±117.73 Highest(2462MHz)16.1816.18±117.18 WIFI2.4G Worstcase: 802.11n(H20) Channel Maximum tune-upPower (dBm) Maximumtune-up Power (MW) AntennaGain (dBi) Power Density atR=20 cm (mW/cm2) LimitResult Middle(2437MHz)17.73 59.292 0.0191.0 Pass Note:1)RefertoreportMTEB24080203-RforEUTtestMaxConductedaverageOutputPowervalue. Note:2)Pd=(Pout*G)/(4*Pi*R 2 )=(59.29*1.58)/(4*3.1416*20 2 )=0.019 .......................THEENDOFREPORT.........................

ShenzhenMostTechnologyServiceCo.,Ltd. No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark,Nanshan, Shenzhen,Guangdong,China. FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID.................................................: MTEB24080203-R 2BD5O-LK2313 Compiledby (position+printedname+signature) .. :FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature) .. : ManagerYvetteZhou Dateofissue ......................................... :Aug.15,2024 RepresentativeLaboratoryName . :ShenzhenMostTechnologyServiceCo.,Ltd. Address.................................................: No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname...............................:ShenzhenLekuZhichuang,ElectronicTechnologyCo.,Ltd Address.................................................: BlockA,4thFloor,Building3,GushuGuteng,First IndustrialZone,Xixiang,BaolanDistrict,Shenzhen Testspecification .............................. : Standard................................................:FCCPart15.247 TRFOriginator ...................................... :ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen MostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.Shenzhen MostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................: MultifunctionalCamera TradeMark ............................................ : N/A Model/Typereference ......................... : LK2313 ListedModels......................................:N/A ModulationType..................................:b:DSSS g/n:OFDM OperationFrequency..........................:From2412MHzto2462MHz Rating ..................................................... : DC3.7VbyBattery DC5VbyUSBPort Hardwareversion.................................:V1.0 Softwareversion.................................:V1.0 Result.....................................................:PASS ReportNo.:MTEB24080203-RPage 2 of 45 TESTREPORT EquipmentunderTest:MultifunctionalCamera Model/Type:LK2313 ListedModels:N/A RemarkN/A Applicant: ShenzhenLekuZhichuang,ElectronicTechnologyCo.,Ltd Address: BlockA,4thFloor,Building3,GushuGuteng,First IndustrialZone,Xixiang,BaolanDistrict,Shenzhen Manufacturer:ShenzhenLekuZhichuang,ElectronicTechnologyCo.,Ltd Address : BlockA,4thFloor,Building3,GushuGuteng,First IndustrialZone,Xixiang,BaolanDistrict,Shenzhen TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB24080203-RPage 3 of 45 Contents 1REVISIONHISTORY...........................................................................................................................4 2TESTSTANDARDS..............................................................................................................................5 3SUMMARY.................................................................................................................................................6 3.1GeneralRemarks..........................................................................................................................................6 3.2ProductDescription.....................................................................................................................................6 3.3EquipmentUnderTest.................................................................................................................................6 3.4ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................6 3.5EUToperationmode.....................................................................................................................................6 3.6BlockDiagramofTestSetup.......................................................................................................................7 3.7TestItem(EquipmentUnderTest)Description*........................................................................................7 3.8AuxiliaryEquipment(AE)Description........................................................................................................7 3.9AntennaInformation*...................................................................................................................................7 3.10RelatedSubmittal(s)/Grant(s).................................................................................................................7 3.11Modifications...............................................................................................................................................8 3.12EUTconfiguration.......................................................................................................................................8 4TESTENVIRONMENT........................................................................................................................9 4.1Addressofthetestlaboratory....................................................................................................................9 4.2TestFacility...................................................................................................................................................9 4.3Environmentalconditions............................................................................................................................9 4.4TestDescription..........................................................................................................................................10 4.5Statementofthemeasurementuncertainty..…

Text truncated - open the document above for the full version.

ReportNo.:MTEB24080203-RPage 38 of 45 APPENDIXIV.99%Bandwidth TestResult ModeChannelAnt. CenterFrequency (MHz) 99%BW(MHz) IEEE802.11b 1 0 241210.113 6243711.421 11246211.327 IEEE802.11g 1241216.574 6243716.436 11246216.498 IEEE802.11n_20 1241217.812 6243717.697 11246217.764 TestGraphs IEEE802.11b_Channel1_20MHz_Antenna0IEEE802.11b_Channel6_20MHz_Antenna0 IEEE802.11b_Channel11_20MHz_Antenna0IEEE802.11g_Channel1_20MHz_Antenna0 IEEE802.11g_Channel6_20MHz_Antenna0IEEE802.11g_Channel11_20MHz_Antenna0 ReportNo.:MTEB24080203-RPage 39 of 45 IEEE802.11n_Channel1_20MHz_Antenna0IEEE802.11n_Channel6_20MHz_Antenna0 IEEE802.11n_Channel11_20MHz_Antenna0 ReportNo.:MTEB24080203-RPage 40 of 45 APPENDIXV.6dBBandwidth TestResult ModeChannelAnt. Center Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result IEEE802.11b 1 0 24127.324 ≥0.5 PASS 624376.784PASS 1124627.018PASS IEEE802.11g 1241215.74PASS 6243715.73PASS 11246215.69PASS IEEE 802.11n_20 1241216.92PASS 6243717.15PASS 11246217.01PASS TestGraphs IEEE802.11b_Channel1_20MHz_Antenna0IEEE802.11b_Channel6_20MHz_Antenna0 IEEE802.11b_Channel11_20MHz_Antenna0IEEE802.11g_Channel1_20MHz_Antenna0 IEEE802.11g_Channel6_20MHz_Antenna0IEEE802.11g_Channel11_20MHz_Antenna0 ReportNo.:MTEB24080203-RPage 41 of 45 IEEE802.11n_Channel1_20MHz_Antenna0IEEE802.11n_Channel6_20MHz_Antenna0 IEEE802.11n_Channel11_20MHz_Antenna0 ReportNo.:MTEB24080203-RPage 42 of 45 APPENDIXVI.ConductedOutOfBandEmission TestResult ModeChannelAnt. OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) OverLimit (dB) Result IEEE 802.11b 1 0 2398.53-31.079-11.09-19.989PASS 2400.00-41.979-11.09-30.889PASS 4820.60-51.793-11.09-40.703PASS 7232.20-50.594-11.09-39.504PASS 9664.30-52.233-11.09-41.143PASS 24957.5-35.671-11.09-24.581PASS 6 4875.55-49.931-11.23-38.701PASS 7317.05-50.863-11.23-39.633PASS 9765.42-51.477-11.23-40.247PASS 24953.8-34.726-11.23-23.496PASS 11 2483.50-41.585-19.39-22.195PASS 4924.24-42.200-19.39-22.810PASS 7393.84-51.021-19.39-31.631PASS 9853.44-50.982-19.39-31.592PASS 24314.6-36.188-19.39-16.797PASS IEEE 802.11g 1 2400.00-32.743-20.87-11.873PASS 4824.98-52.185-20.87-31.315PASS 7232.15-50.459-20.87-29.589PASS 9640.57-52.731-20.87-31.861PASS 24927.6-36.232-20.87-15.362PASS 6 4881.17-50.994-20.24-30.754PASS 7318.30-51.438-20.24-31.198PASS 9758.56-52.364-20.24-32.124PASS 24905.1-35.586-20.24-15.346PASS 11 2483.50-40.380-20.75-19.630PASS 4923.62-49.135-20.75-28.385PASS 7400.70-51.875-20.75-31.125PASS 9864.06-51.991-20.75-31.241PASS 24942.6-35.783-20.75-15.033PASS IEEE 802.11n_20 1 2400.00-30.711-21.53-9.181PASS 4804.38-51.968-21.53-30.438PASS 7240.89-50.800-21.53-29.270PASS 9646.81-51.480-21.53-29.950PASS 24913.9-35.695-21.53-14.165PASS 6 4877.42-50.387-20.23-30.157PASS 7303.32-51.306-20.23-31.076PASS 9742.32-51.184-20.23-30.954PASS 24915.7-35.233-20.23-15.003PASS 11 2483.50-38.932-20.89-18.042PASS 4931.73-50.323-20.89-29.433PASS 7405.07-51.733-20.89-30.843PASS 9864.06-50.562-20.89-29.672PASS 24988.1-35.266-20.89-14.376PASS TestGraphs In-BandReferenceLevel IEEE802.11b_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel1_20MHz_Antenna0 ReportNo.:MTEB24080203-RPage 43 of 45 30.0MHz-25000.0MHz IEEE802.11b_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel6_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel11_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel1_20MHz_Antenna0 ReportNo.:MTEB24080203-RPage 44 of 45 30.0MHz-25000.0MHz IEEE802.11g_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel6_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel11_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel1_20MHz_Antenna0

ReportNo.:MTEB24080203-RPage 45 of 45 30.0MHz-25000.0MHz IEEE802.11n_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel6_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel11_20MHz_Antenna0 **********************EndofReport**********************

Approval sheet深圳市顺达成科技有限公司 RFECA Series – RoHS Compliance CERAMIC ANTENNA Halogens Free Product 2.4 GHz ISM Band Working Frequency P/N: SDC3216060A2 *Contents in this sheet are subject to change without prior notice . Page 1 of 9SDC3216060A2April 2017 Approval sheet深圳市顺达成科技有限公司 FEATURES 1. Surface Mounted Devices with a small dimension of 3.2 X 1.6 X 0.6 mm 3 meet future miniaturization trend. 2. LTCC process. 3. High stability in Temperature / Humidity Change. 4. Superb performance to place on the middle of PCB edge and excellent peak/ average gain observed by field test application. APPLICATIONS 1. ISM Band 2.4GHz applications. 2. Bluetooth.. CONSTRUCTION PINConnection 1Feeding 2Soldering terminal DIMENSIONS Figure SymbolDimension (mm) L3.10 ± 0.20 W1.60 ± 0.20 T0.60±0.10 A0.25 ± 0.20 Page 2 of 9SDC3216060A2April 2017 Approval sheet深圳市顺达成科技有限公司 SOLDER LAND PATTERN DESIGN Type-1: Empty Space 8.0mm x 3.0 mm Figure (Empty Space 8.0 mm x 3.0 mm) The limited size for ECA3216 isL>30mm and D>6mm Land Pattern TYPE-1 TEST BOARD ELECTRONIC CHARACTERISTICS ItemSpecification Working Frequency Range2.4GHz~2.4835GHz (Note-1) Gain 2dBi(Typical) VSWR 2.0 max. Polarization Linear Azimuth Beamwidth Omni-directional Impedance 50  *Note 1.Central Frequency should be defined after customers’ application approval. Page 3 of 9SDC3216060A2April 2017 Approval sheet深圳市顺达成科技有限公司 Type-2: Empty Space 6.3mm x 4.0 mm Figure (Empty Space 6.3 mm x 4.0 mm) The limited size for ECA3216 isL>30mm and D>6mm Land Pattern TYPE-2 TEST BOARD ELECTRONIC CHARACTERISTICS ItemSpecification Working Frequency Range2.4GHz~2.4835GHz (Note-1) Gain 2dBi(Typical) VSWR 2.0 max. Polarization Linear Azimuth Beamwidth Omni-directional Impedance 50  *Note 1. Central Frequency should be defined after customers’ application approval. Page 4 of 9SDC3216060A2April 2017 Approval sheet深圳市顺达成科技有限公司 Antenna on Type-1 Test Board ( Empty Space 8x3 mm &Thick ness 0.8mm) Antenna S11 on Type-1 Test Board -11.0208 dB @ 2.40 GHz -17.0222 dB @ 2.45 GHz -10.7612 dB @ 2.50 GHz Antenna VSWR on Type-1 Test Board 1.782 @ 2.40 GHz 1.328 @ 2.45 GHz 1.816 @ 2.50 GHz Page 5 of 9SDC3216060A2April 2017 Approval sheet深圳市顺达成科技有限公司 Antenna on Type-2 Test Board ( Empty Space 6.3x4 mm &Thick ness 0.8mm) Antenna S11 on Type-2 Test Board -14.6741 dB @ 2.40 GHz -20.2120 dB @ 2.45 GHz -11.4374 dB @ 2.50 GHz Antenna VSWR on Type-2 Test Board 1.453 @ 2.40 GHz 1.216 @ 2.45 GHz 1.732 @ 2.50 GHz Page 6 of 9SDC3216060A2April 2017 Approval sheet深圳市顺达成科技有限公司 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of…
