2BD5Z-KT05Remote control

KT 05-4 metal two-key remote control instruction manual 1. Product Parameter the key technical indexes: Operating voltage: DC 3-6V Operating current: 12 mA Operating frequency: 433 MHz Emission power: 10 mW Reference distance: 50 m (open field without interference) Frequency deviation: ± 0.2 MHz Transmission rate: 50- -60 KHZ Appearance dimensions: 60 * 31 * 11mm Oscillation resistance: 270-330K Encoding mode: 1527 learning code (first key is 1 0001 and second key is 2 0010) Battery model: CR2016 2 or CR2032 1 Each remote control has its own address code, so the remote control is an individual, will not cause mutual interference phenomenon. applied range Home, shopping mall security alarm; electric vehicle, car, motorcycle vehicle alarms, various door and window controls and other industrial controls. 2. product picture 3. direction for use 1. Press the remote control button. The remote control LED light is on, and the code is sent successfully. 4. matters need attention 1. When the voltage of the remote control is insufficient, please change the battery in time (when the battery voltage of the remote control is insufficient, the remote control distance generally becomes close). 2. When using wireless electronic products, attention should be paid to avoid metal masks, large electronic equipment, electromagnetic field and other strong interference sources, to avoid the remote control and the receiving distance is short or unable to work normally. 3. Do not use this electronic product abnormally. Abnormal use will reduce the performance and life of the product, and serious damage to the product will also bring hidden dangers to your safety. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street,Longgang District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-16 To whom it may concern: We, Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2BD5Z-KT05) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Wang Thomas Manager Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Qiai Wireless Electronic Commerce Co., Ltd 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street, Longgang District, Shenzhen,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/07/13 U.S. Agent Designation Shenzhen Qiai Wireless Electronic Commerce Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BD5Z-KT05): Name and company of U.S. agent: TRANS-PAC CHINA LLC Physical U.S. address of agent: 3715 S 182nd Street, C120 Seatac,WA 98188-9993 US Seatac, WA 98188 United States FRN of U.S. agent: 0033472614 Email address of U.S. agent: [email protected] Shenzhen Qiai Wireless Electronic Commerce Co., Ltd acknowledges their obligation to accept service of process on behalf of GUANGZHOU BESTLEAD CO.,LIMITED Shenzhen Qiai Wireless Electronic Commerce Co., Ltd with the FRN [0034631382] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Wang Thomas Manager Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd Signature Lisa Lee PM TRANS-PAC CHINA LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd Add: 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street,Longgang District, Shenzhen China Date: 2024-7-16 FCC ID: 2BD5Z-KT05 Dear Sir/Madam, We, Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Remote control Model no.: KT05, KT29-ABCD, KT29-KG, KT29W, KT29, KT28, KT01, KT1000, KT1002, KT1004, KT1008, KT300, KT200, KT201, KT202, KT301, KT190U, KT3000, KT4000, KT400, KT500, KT800, KT600, KT11, KT02, KT03, KT06, KT08, KT17, KT18, KT19, KT28, KT23,KT24, KT25, KT26, KT27 Sincerely, Name/Title： Wang Thomas/Manager Company: Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd Address: 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street,Longgang District, Shenzhen China Phone: 18300044258 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-7-16> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BD5Z-KT05 KT05 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Wang Thomas/Manager Company: Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd Address: 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street,Longgang District, Shenzhen China Phone: 18300044258 Fax: N/A E-Mail: [email protected]

Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street,Longgang District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-16 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BD5Z-KT05 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Wang Thomas/Manager Company: Shenzhen Qiai Wireless Electronic Commerce Co.,Ltd Address: 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street,Longgang District, Shenzhen China Phone: 18300044258 Fax: N/A E-Mail: [email protected]

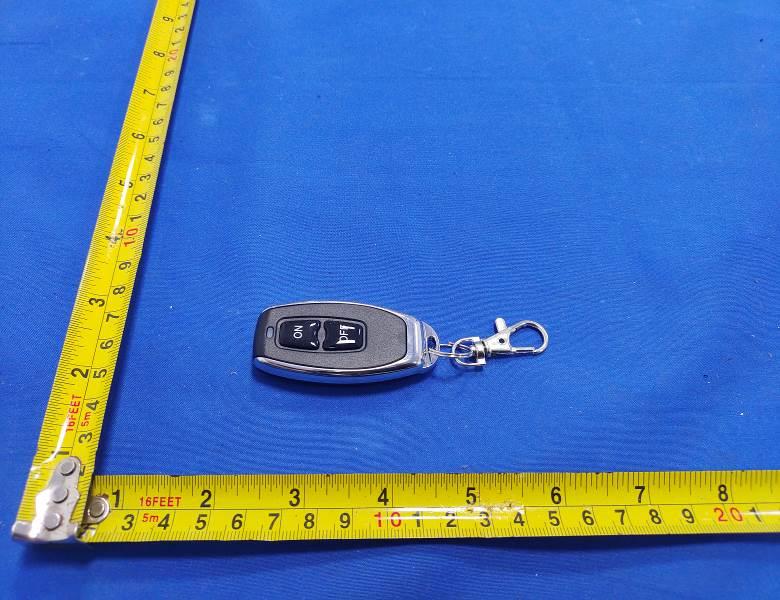

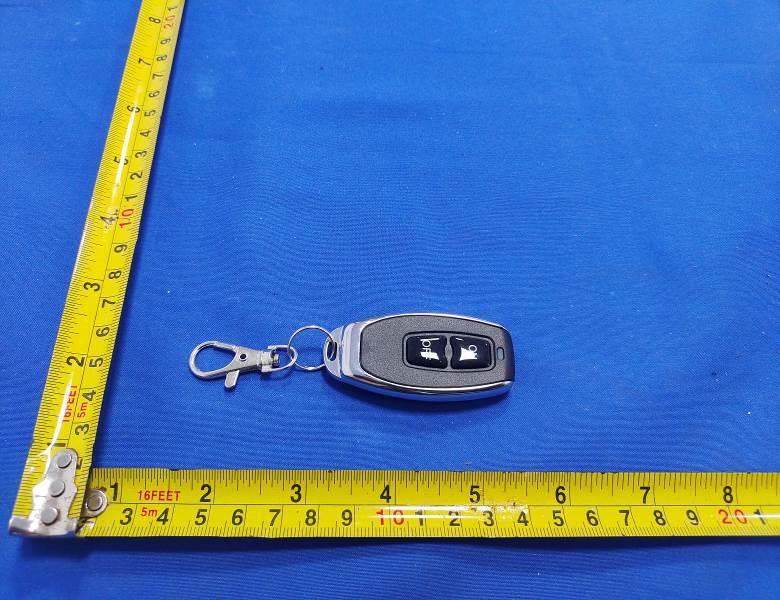

FCC ID: 2BD5Z-KT05 External Photos of the EUT FCC ID: 2BD5Z-KT05

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BD5Z-KT05

FCC ID: 2BD5Z-KT05 Internal Photos of the EUT FCC ID: 2BD5Z-KT05 ANT FCC ID: 2BD5Z-KT05

RF Exposure evaluation FCC ID: 2BD5Z-KT05 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 433.90MHz 88.38 -6.88 -6.0±1 -5.0 Note: EIRP=E-104.8+20logD, D=3 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW SRD 0.433 5 -5.0 0.3162 0.0416<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model KT05 Frequency range 2400MHz-2500 MHz Manufacturer Shenzhen Qiai Wireless Electronic Commerce Co., Ltd Gain 0.42 dBi 2. Antenna Photo: Length:6.44mm Width:2.07mm Length:6.44mm Length:6.44mm Length:6.03mm Length:6.03mm Length:6.03mm Length:20.33mm

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. .................... : FCC ID. ........................................... : CTA24061301201 2BD5Z-KT05 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Lushan Kong Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 18, 2024 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Qiai Wireless Electronic Commerce Co., Ltd Address ............................................ : 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.231 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Remote Control Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Qiai Wireless Electronic Commerce Co., Ltd Model/Type reference ...................... : KT05 Listed Models .................................. : KT29-ABCD, KT29-KG, KT29W, KT29, KT28, KT01, KT1000, KT1002, KT1004, KT1008, KT300, KT200, KT201, KT202, KT301, KT190U, KT3000, KT4000, KT400, KT500, KT800, KT600, KT11, KT02, KT03, KT06, KT08, KT17, KT18, KT19, KT28, KT23,KT24, KT25, KT26, KT27 Modulation ....................................... : ASK Frequency ......................................... 433.90MHz Ratings ............................................. : DC 3.0-6.0V From battery Result ............................................... : PASS Report No.: CTA24061301201 Page 2 of 23 T E S T R E P O R T Equipment under Test : Remote control Model /Type : KT05 Listed Models : KT29-ABCD, KT29-KG, KT29W, KT29, KT28, KT01, KT1000, KT1002, KT1004, KT1008, KT300, KT200, KT201, KT202, KT301, KT190U, KT3000, KT4000, KT400, KT500, KT800, KT600, KT11, KT02, KT03, KT06, KT08, KT17, KT18, KT19, KT28, KT23,KT24, KT25, KT26, KT27 Applicant : Shenzhen Qiai Wireless Electronic Commerce Co., Ltd Address : 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Qiai Wireless Electronic Commerce Co., Ltd Address : 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24061301201 Page 3 of 23 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 15 4.4 Deactivation Time 16 4.5 Antenna Requirement 17 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 18 6 P H O T O S O F T H E E U T ........................................................... 19 Report No.: CTA24061301201 Page 4 of 23 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24061301201 Page 5 of 23 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jun. 11, 2024 Testing commenced on : Jun. 11, 2024 Testing concluded on : Jun. 18, 2024 2.2 Product Description Product Name: Remote Control Model/Type reference: KT05 Power supply: DC 3.0-6.0V From battery Testing sample ID： CTA240613012-1# (Engineer sample), CTA240613012-2#(Normal sample) Modulation: ASK Operation frequency: 433.90MHz Channel number: 1 Antenna type: PCB antenna Antenna gain: 0.42 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.0-6.0V From battery 2.4 Short description of the Equipment under Test (EUT) This is a Remote Control. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup EUT DC 6.0V From battery Report No.: CT…
