2BD6F-LCY-2001OUTDOOR BLUETOOTH SPEAKER AMBIENT LIGHT

OUTDOOR BLUETOOTH SPEAKER AMBIENT LIGHT USER MANUAL ITEM DESCRIPTION Power Button Bluetooth Connection Key Pause/Play Button Handle Item body Lampshade Previous Next Light control knob ITEM SPECIFICATION Name:Outdoor Bluetooth Speaker AmbientLight ModelNo:LCY-2001 BatteryCapacity:3.7V/5200mAh ChargingVoltage:5VDC 2A ChargingTime:5-6hours Duration:6~8hours LEDPower:3W SpeakerPower:5W Driver Unit size: Diameter 50mm 5W FrequencyResponse:150Hz-20KHz Impedance:40Ω Connectingway:ByBluetooth OperatingTemperature:0-60Degrees ItemWeight:830g Battery:Lithium battery ProductSize:120x130x250mm FEATURES Bluetooth Connecting, Wireless Bondage. Bluetooth V5.2+EDR version, More lower power-saving mode, leaving behind the traditional bondage of connectivity, enjoy unlimited music fun. Enhanced Bass, Powerful 2-inch full-range diaphragm speakers, music reproduction thoroughly, more clear and smooth performance. Candle Light, Romantic Atmosphere Adjustable candlelight to create a romantic atmosphere, can also provide clear white light illumination, illuminating the environment around the ground; easy to observe. Lithium-ion Power Supply, Long Battery Life Built-in high-capacity lithium polymer battery, to meet the all-day standby anytime, anywhere to enjoy the music. Power Indicator, Intuitive Operation Blue LED power indicator is convenient for Bluetooth connection // Red and green dual indicator is convenient for lithium battery charging management. INSTRUCTIONS Bluetooth Connection Step 1:Bluetooth Connection 1、Press the power button to turn on the device. Long press the power button for 3 seconds, the power symbol shows blue light, there will be voice prompts: do, come, mimi, hair, prompting the power on. Bluetooth symbol at the blue light flashing refined, that the speaker has been Bluetooth search status. Step 2: Start The Bluetooth Function Enter the "Settings" of the device that needs to be connected to the Bluetooth speaker, look for the "Wireless and Network" related section, find the "Bluetooth" option, click on "Bluetooth" to start the Bluetooth function. Bluetooth" to start the Bluetooth function. Step 3: Search For Bluetooth Devices Enter the "Bluetooth Settings" option, execute the "Scan for Bluetooth devices" command. When the scanning is completed, the name of the searched Bluetooth device will be displayed in "Bluetooth Devices". Step 4: Match And Confirm Connection When "IT22" appears in the Bluetooth device list of the connected device, it means the Bluetooth speaker has been found. Please click on the Bluetooth device "IT22", a few seconds after the device will be automatically paired successfully, the speaker will send out a "ding dong" sound prompts "Bluetooth connection successful" voice prompts. At this time, the bluetooth stops flashing, the speaker to work. General state to see the Bluetooth device search connection takes a few seconds, depending on the specific circumstances of the cell phone brand and Bluetooth program. (Some devices require input device matching value "1234", or "0000", to pairing success.) Step 5: Connection Completed At this time, the user through the audio source device playback software to play audio files, LCY2001 Bluetooth digital speakers will show the best side of the music. Bluetooth Off Long press the power button for 3 seconds, there is a beep sound hair, microphone, to, do and blue light off, the speaker off. Music Controls Light Adjustment Previous Song Button Short press " " to play the previous song/long press >0.5 sec. to decrease the volume Pause/Play Button Short press " " to play pause / long press > 0.5 sec mode switching Next key Short press " " to play the next song/long press>0.5 seconds volume incremental Warm tips: Bluetooth connection status, users can control the music playback through the audio device or speaker button, more simple and convenient. Step 1: Turn on the light Turn the knob to the right, after the ding sound, the light will turn on, and the light yellow light will become brighter slowly until all the light is white. Step 2: light off Turn the knob to the left, the light will be dimmed until the ding sound is over, then turn off the switch. CHARGING USE 1, The use of randomly attached USB cable for lithium battery charging, MICRO USB cable end connected to the speaker "DC5V" slot, USB end connected to the computer corresponding slot can be lithium battery charging. 2、After the charging starts, the power indicator light will show red, indicating that the charging work is normal. When charging is full, it will show green light. USB TYPE-C charging port. Use a USB power supply that can supply power at DC 5V,1A. If you use a power adapter to supply power, you should purchase an adapter that has obtained 3C certification and meets the standard requirements. PRECAUTIONS 1、Read and understand all safety guidelines. 2、Obey all warning and guideline information labeled on the product. 3、Please use a charging device that can provide an output DC voltage of 5V/1 A to avoid damage to the device. 4、Products with built-in lithium polymer battery, when not in use, please turn off the power. 5、Do not let the product suffer from rain, moisture, dripping or splashing any liquid. 6、Do not let the product near the high temperature heat source, not high temperature baking or blow-drying 7、Do not let the product dropped or hit, or apply heavy pressure on it. TROUBLESHOOTING Power on and off automatically:Battery power is insufficient, please charge it and use it. Playing automatically shut down or restart: the battery is insufficient to cause low voltage can not play, please charge and then use. No sound from speakers: check if the volume is on; long press the next song button to increase the volume. No function or wrong function of buttons:Turn off the phone and restart it. Unable to connect Bluetooth function: firstly, make sure whether to open the Bluetooth function, secondly, there is no Bluetooth device searching, and finally, make sure…

Text truncated - open the document above for the full version.

Guangzhou Mingshi Electrical Appliance Co., Ltd Room 607 and 608, Unit 2, No. 59 Fenghuang South Road, Huadu District, Guangzhou City, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/12/20 U.S. Agent Designation Guangzhou Mingshi Electrical Appliance Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BD6F-LCY-2001): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Guangzhou Mingshi Electrical Appliance Co., Ltd Guangzhou Mingshi Electrical Appliance Co., Ltd with the FRN [0034632364] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature May Hu Manager Guangzhou Mingshi Electrical Appliance Co., Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： May Hu/Manager Company: Guangzhou Mingshi Electrical Appliance Co., Ltd Address: Room 607 and 608, Unit 2, No. 59 Fenghuang South Road, Huadu District, Guangzhou City China Phone: 18924675176 Fax: N/A E-Mail: [email protected]

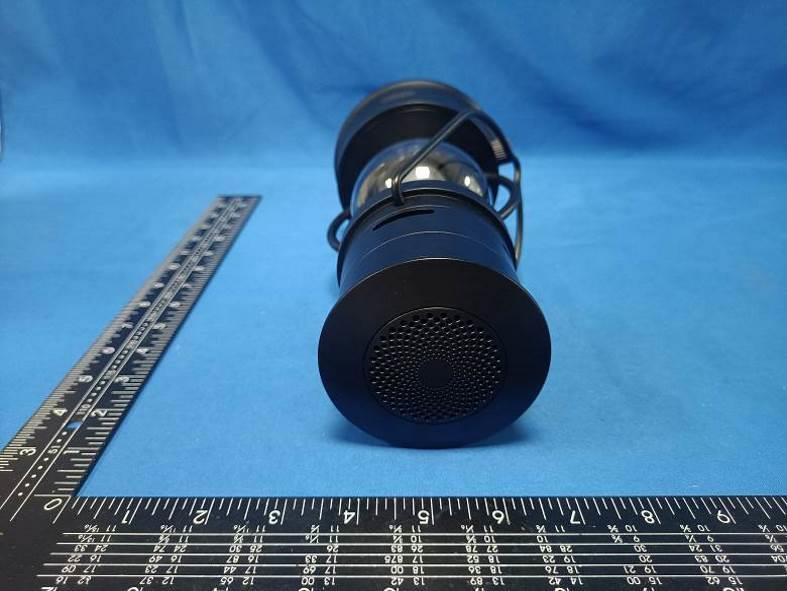

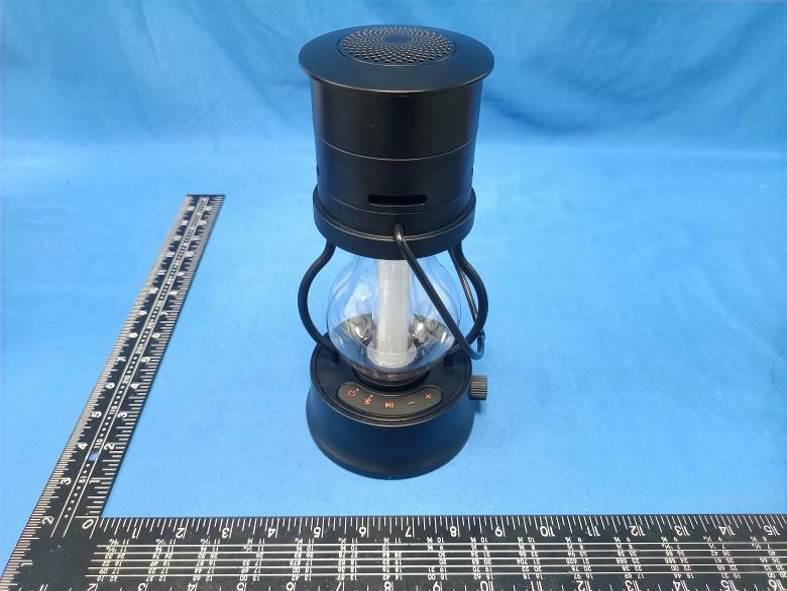

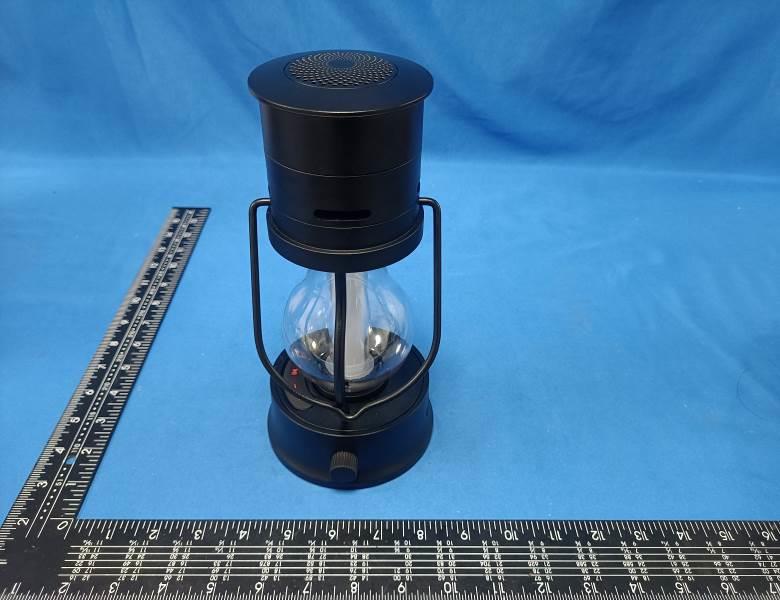

FCC ID: 2BD6F-LCY-2001 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BD6F-LCY-2001 Photo 4 Photo 5 Photo 6

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: LCY-2001 FCC ID : 2BD6F-LCY-2001

FCC ID: 2BD6F-LCY-2001 = Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BD6F-LCY-2001 = Photo 4 Photo 5 Photo 6 FCC ID: 2BD6F-LCY-2001 = Photo 7 Photo 8 Photo 9 FCC ID: 2BD6F-LCY-2001 = Photo 10 Photo 11 Photo 12 BT PCB Antenna FCC ID: 2BD6F-LCY-2001 = Photo 13 Photo 14 Photo 15 FCC ID: 2BD6F-LCY-2001 = Photo 16 Photo 17 Photo 18

RF Exposure evaluation FCC ID: 2BD6F-LCY-2001 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 2.0 2.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 4.0 2.5119 0.7863<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Inverted F Antenna Specification Summary ITEM ANT SPEC 2.4G ANTModel Name Horizontal Vertical 2400MHz2400MHz 2400MHz2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 -0.58dBi MAX. Gain Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) 2400MHz 2500MHz Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA23121100201 2BD6F-LCY-2001 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Dec. 15, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Guangzhou Mingshi Electrical Appliance Co., Ltd Address ............................................ : Room 607 and 608, Unit 2, No. 59 Fenghuang South Road, Huadu District, Guangzhou City, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: OUTDOOR BLUETOOTH SPEAKER AMBIENT LIGHT Trade Mark ....................................... : Manufacturer .................................... : Guangzhou Mingshi Electrical Appliance Co., Ltd Model/Type reference....................... : LCY-2001 Listed Models .................................. : N/A Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA23121100201 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : OUTDOOR BLUETOOTH SPEAKER AMBIENT LIGHT Model /Type : LCY-2001 Listed Models : N/A Applicant : Guangzhou Mingshi Electrical Appliance Co., Ltd Address : Room 607 and 608, Unit 2, No. 59 Fenghuang South Road, Huadu District, Guangzhou City, China Manufacturer : Guangzhou Mingshi Electrical Appliance Co., Ltd Address : Room 607 and 608, Unit 2, No. 59 Fenghuang South Road, Huadu District, Guangzhou City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23121100201 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 31 Report No.: CTA23121100201 Page 4 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA23121100201 Page 5 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-…
