2BD6V-PHAST1NAwagguracy pet smart tracker

Pet Habit & Activity Smart Tracker Data & Connectivity English Warning Statement IP67 Water & Dust Resistance Instant Sync Habit & Activity Tracking with High-Sensitivity IMU Sensor Main Components USB Type-C Port Outdoor Activity Sensor Product OverviewTechnical Specifications & Key Features •Built-in eSIM · No physical SIM needed •Multi-band 4G LTE Cat.1 Supported •Bluetooth 5.0 BLE + Wi-Fi Scanning Withstands splashes, rain and sand •Pulse Trend Tracking: High-sensitivity components and algorithms designed to mitigate fur interference for consistent pulse trend observation. •Smart Behavioral Analysis: Intelligent algorithms for analyzing activity, sleep, posture, and vitality insights. • Activity Tracking & Calorie Burn Estimation: Daily movement tracking and estimated calorie expenditure. •Built-in UV Sensor: Helps manage outdoor playtime for balanced sun exposure. •Pet-Specific Design: The pulse sensor utilizes an adaptive algorithm specifically designed for pets. DO NOT use it on humans or non-living surfaces. Important Notes / Disclaimers NOT A MEDICAL DEVICE. This product is a general wellness device and is not intended for medical use. All data (including pulse and activity insights) is provided for daily reference only. Due to sync intervals and environmental factors, data may not be displayed in absolute real-time. This device should not be used for medical diagnosis or to replace professional veterinary advice. Smart Location Tracking •Smart Wi-Fi Fence on surrounding Wi-Fi fingerprint •Multi-system GNSS support (GPS/BeiDou/GLONASS/ other satellite modes) •Fast, accurate indoor & outdoor pet locating Owner’s Voice Care •Remote voice messages to comfort, guide or recall your pets Battery & Endurance •High-performance rechargeable lithium battery •USB Type-C Charging •Long battery life within 3 working modes ◦Daily Mode: Up to 3 - 6 Days ◦Activity Mode: Up to 16 hours ◦Emergency Tracking Mode: Up to 8 hours *Actual battery life varies by carrier service, signal strength and working mode Indicator Light Power Button Speaker Pulse Sensor Device SN FCC IDXXXXX-PHAST1NA IC IDXXXXX-PHAST1NA Installation & Usage FCC warning statementsIC warning statements a. Insert the collar or harness strap through the silicone case as shown in Fig 1. b. Insert the PHAST 1 NA device into the case from the indicated direction in Fig 2. Fig 1 Fig 2 In the Box Wagguracy PHAST 1 NA DeviceUSB Type-C Charging Cable Silicone Protective CaseUser Manual Warranty Card d. Ensure the LED indicator, device SN, and sensor windows align properly as shown in Fig 4. e. Adjust the collar so the pulse sensor rests firmly against your pet’s neck or shoulder area shown in Fig 5. c. Stretch the rear pocket of the case and fit the device snugly inside as shown in Fig 3. Fig 1 Fig 3 Fig 5 Guide for Wagguracy Mobile APP •Prepare Your APP ◦Download and install the Wagguracy app from the Apple App Store (iOS) or Google Play (Android). ◦Log in the APP with your account or create an account for the first access. ◦Press and hold the side button of PHAST 1 to power it on. When the indicator light flashes blue, the device is ready for pairing. ◦When in paring mode, make sure your phone’s Bluetooth is turned on, and keep the PHAST 1 close to your phone. Regional Compatibility Note •Wagguracy PHAST 1 NA is for use only in North America (i.e., the United States and Canada) and may not be functional outside this region. Cautions •Do N OT charge while the device is being worn. •Prevent pets from biting the device or silicone case. •Habit and activity features are dedicatedly designed for cats and dogs only — not for human use. Care Notes •Use certified USB Type-C chargers and keep the port dry before charging. •Remove before bathing and avoid long-term immersion. •Dispose of the device according to local battery and electronics regulations. Specifications •Battery Type: Lithium-ion Battery •Rated Capacity: 800mAh •Charging Input: 5V 0.5A •Pairing Your PHAST 1 ◦Enter the device SN to bind your device and activate the eSIM plan and recharge before expiration. •Activate Your eSIM Plan ◦Follow the steps in the app to complete pairing. ◦To pair with a new phone, repeat the same action. Modes & Status Works Properly Emergency Mode Battery Lower 30% Charging Charging Complete Ready for Pairing Light Signal Green Flashing Blue & Purple Alternating Orange Flashing Green Slow Breathing Green Steady Blue Flashing Meaning PHAST 1 NA is working properly PHAST 1 NA is currently charging PHAST 1 NA has completed charging PHAST 1 NA is in Unpaired status PHAST 1 NA is in Emergency Mode for pet’s finding PHAST 1 NA 's battery is running low and needs to charge LED Indicator Guide The Wagguracy PHAST 1 comes with helpful light signals in various colors to indicate its working mode or status. Please refer to the following breakdown PHAST 1 NA is unable to charge. Please contact our after-sales service: [email protected] PHAST 1 NA is currently not connected to a 4G network properly due to weak signal, carrier service unavailable or plan expiration. PHAST 1 NA's battery is currently running critically low and will cycle 5 times, then shut down. Modes & Status Light SignalMeaning Weak 4G Signal or No-Service Red Flashing Purple Flashing Red Steady Critically low battery (auto-shutdown after power-on) Unable to charge ◦Input pet type, name, breed, birthday, gender, spayed/neutered and weight to create your pet’s profile, which can help our embedded AI analyze your pet’s pulse, activity, behavior and energy usage with more accuracy. •Set Up Your Pet’s Profile •For more features and tips, please visit the in-app User Guide and FAQs. ◦When activating PHAST 1 for the first time, please put the device near a window for a smoothier GNSS satellite searching and initiation. The initiation may take 30 seconds to several minutes depending on signal strength of GNSS system. ◦For a smarter tracking, you can build up your “Smart Wi-Fi Fence” to receive instant aler…

Text truncated - open the document above for the full version.

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: Companyname:HOPEKCORPORATIONINC FRN:0034562900 ContactName:YangyangXu Address:16755CoyoteBushDrUnit84,SanDiego,CA92127UnitedStates TelephoneNo:561-875-9826 Email:[email protected] Applicant: Companyname:PETAVERSEPTE.LTD. GranteeCode:2BD6V FCCID:2BD6V-PHAST1NA FRN:0034636183 ContactName:SunPeijun Address:8TEMASEKBOULEVARD,#42-01,SUNTECTOWERTHREE, SINGAPORE038988 TelephoneNo: +65.90507745 FaxNo: / Email: [email protected] PETAVERSEPTE.LTD.certifiesthat,asofthedateofthisfilingoftheapplicationwiththeTCB, [HOPEKCORPORATIONINC]isourdesignatedUSagentforserviceofprocessfortheabove referencedFCCID.PETAVERSEPTE.LTD.acceptstomaintainanagentfornolessthanone yearafterthegranteehasterminatedallmarketingandimportationortheconclusionofany commissionrelatedproceedinginvolvingequipment.[HOPEKCORPORATIONINC]accepts, asofthedateofthefilingoftheapplication,theobligationofthedesignatedUSagentfor serviceofprocessfortheabovereferenceFCCID. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,and clause§2.911. TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. Date:2026-04-16 Applicant’sName:SunPeijunUSAgent’sName:YangyangXu Title:CEOTitle:Manager Signature:Signature:

PETAVERSE PTE.LTD. April 16, 2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BD6V-PHAST1NA [PETAVERSE PTE.LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Sun Peijun PETAVERSE PTE.LTD. April 16, 2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BD6V-PHAST1NA [PETAVERSE PTE.LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Sun Peijun

PETAVERSE PTE.LTD. 4/16/2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product Name: wagguracy pet smart tracker FCC ID: 2BD6V-PHAST1NA Model(s): PHAST1 NA To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Schematic Diagram, Block Diagram, Operational Description, Tune Up Procedure) required to be submitted with this application be permanently withheld from public review. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market Please contact me if there is any information you may need. Sincerely, Signature: April 16, 2026 Name Sun Peijun Position CEO Company Name PETAVERSE PTE.LTD. Address 8 TEMASEK BOULEVARD, #42-01, SUNTEC TOWER THREE, SINGAPORE 038988 Tel +65.90507745 Fax / Email [email protected]

PETAVERSE PTE.LTD. 4/16/2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen PSI Testing Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely, Signature: April 16, 2026 Name Sun Peijun Position CEO Company Name PETAVERSE PTE.LTD. Address 8 TEMASEK BOULEVARD, #42-01, SUNTEC TOWER THREE, SINGAPORE 038988 Tel +65.90507745 Fax / Email [email protected]

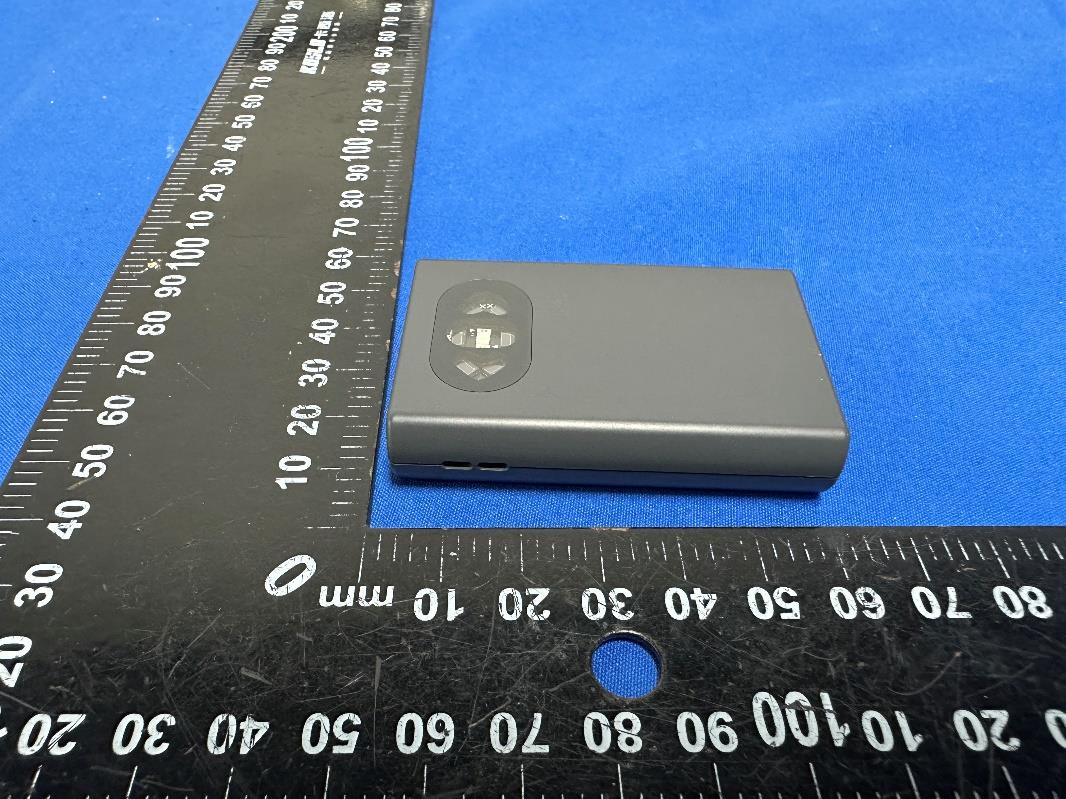

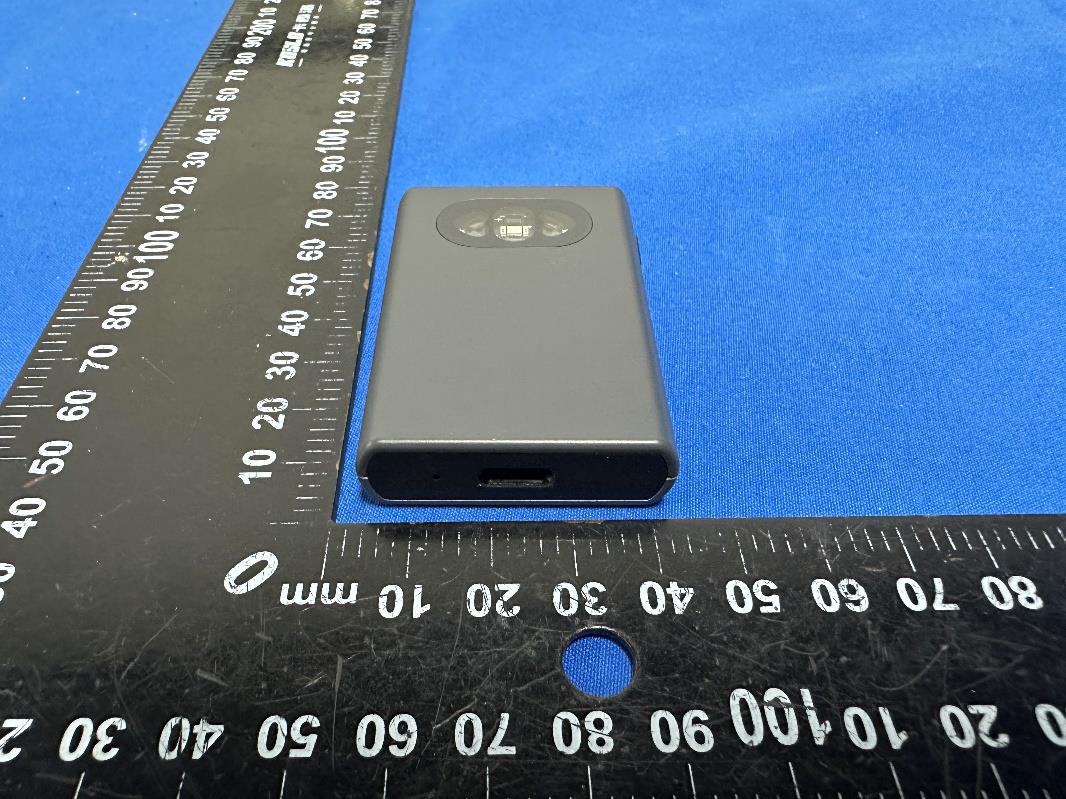

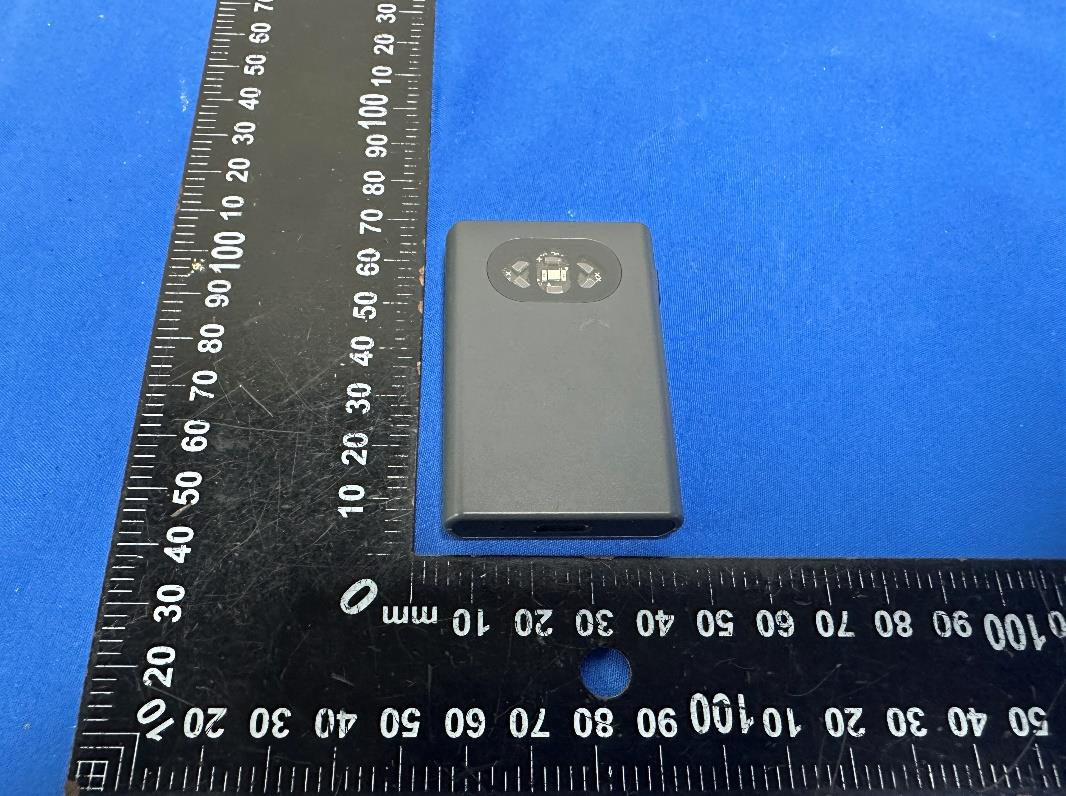

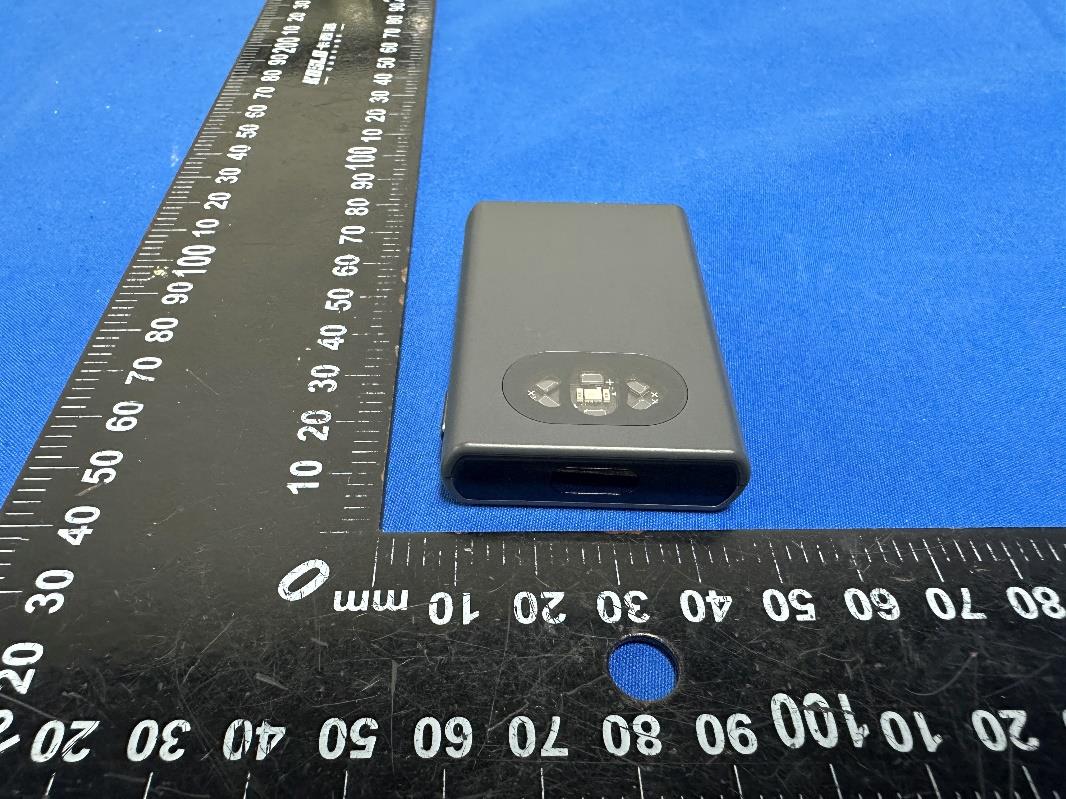

Page 1 of 4 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix II external photos FCC ID: 2BD6V-PHAST1NA Page 2 of 4 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 3 of 4 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 4 of 4 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ------End------

Label and Location Material: Silk-screen Font color: White Size: L: 2cm*W: 0.6cm Label and Location W FCC ID: 2BD6V-PHAST1NA IC ID: 31814-PHAST1NA Model No.: PHAST1 NA HVIN: PHAST1 NA L

Page 1 of 9 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix III internal photos FCC ID: 2BD6V-PHAST1NA Page 2 of 9 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China BT ANT GNSS ANT WWAN Diversity ANT WWAN Main ANT Page 3 of 9 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 4 of 9 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 5 of 9 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 6 of 9 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 7 of 9 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 8 of 9 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 9 of 9 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ------End------

序号物料描述子项单位用量位置号 1 T552_MB ， 0.7mmPcs 1 PCB 2 BEAD FERRITE,0603,1K/100MHz,0.8A,0.3ohmPcs 1 B200 3 BEAD FERRITE,0805,120ohm/121M DCR0.03Ω,CURRENT 3APcs 1 B300 4 CAP-CERAMIC,0201,C0G,50V,1.5pF,+/-0.1pFPcs 1 C207 5 CAP-CERAMIC,0603,X5R,10V,10uF,+/-10%Pcs 9 C204,C213,C217,C600,C701, C702,C912,C914,C916 6 CAP-CERAMIC,0201,X5R,6.3V,0.1uF,+/-10%Pcs 13 C205,C240,C242,C306,C312, C316,C322,C601,C911,C913, C915,C917,C918 7 CAP-CERAMIC,0201,C0G,50V,33pF,+/-5%Pcs 5 C208,C305,C313,C314,C315 8 CAP-CERAMIC,0201,X5R,6.3V,2.2uF,+/-20%Pcs 12 C209,C211,C212,C214,C215, C216,C218,C219,C220,C221, C222,C223 9 CAP-CERAMIC,0201,X7R,10V,10nF,+/-10%Pcs 3 C210,C300,C336 10 CAP-CERAMIC,0201,X5R,6.3V,0.22uF,+/-20%Pcs 3 C229,C230,C232 11 CAP-CERAMIC,0201,X5R,6.3V,1uF,+/-20%Pcs 23 C233,C241,C334, C335,C509,C511,C512,C514, C515,C516,C517,C518,C519, C522,C523,C524,C525,C901, C902,C909,C910,C243,C244 12 CAP-CERAMIC,0201,C0G,25V,15pF,+/-5%Pcs 1 C231 13 CAP-CERAMIC,0201,C0G,25V,10pF,+/-5%Pcs 1 C304 14 100UF,6.3V,CASE-B-3528Pcs 1 C307 15 RES-DISCRETE,0201,0ohm,+/-5%,1/20WPcs 22 R202,R207,R208,R209,R210,R211,R212,R213,R214,R215,R216,R312,C327,R500,R503,R504,R505,R300,R313,C333,C329,R905 16 CAP-CERAMIC,0201,C0G,50V,100pF,+/-5%Pcs 5 C500,C502,C504,C505,C520 17 IND_RF,0201,2.2nH,0.25ohm,0.29A,+/-0.2nHPcs 1 C501 18 CAP-CERAMIC,0201,X5R,6.3V,33nF,+/-10%Pcs 1 C503 19 CAP-CERAMIC,0201,X7R,25V,1nF,+/-10%Pcs 3 C506,C602,C603 20 CAP-CERAMIC,0201,C0G,50V,12pF,+/-5%Pcs 2 C507,C508 21 CAP-CERAMIC,0402,X5R,6.3V,1uF,+80/-20%Pcs 1 C703 22 CAP-CERAMIC,0402,X5R,6.3V,10uF,+/-20%Pcs 3 C903,C905,C906 23 CAP-CERAMIC,0402,X5R,6.3V,4.7uF,+/-20%Pcs 1 C908 24 TVS,ESD Diode,Bi-directional，7V,15V,0.2pf,X3DFN2Pcs 5 D301,D500,D801,D802,D803 25 LED，RGB，1923xSMD ,R6GHB1,1.5x1.6x0.6Pcs 2 D201,D202 26 DIODE Schottky Barrier Diode,VR=40V,VF=0.6V,IF=1A,DFN1006Pcs 2 D304,D305 27 TVS,ESD Diode,700W,6.4V,11.6V,1.6*1.0*0.6mmPcs 1 D700 28 TVS,4-Channel Low Capacitance Dual-Voltage ESD and Surge Protection Array,6P QFN 1.8*2.0*0.55mmPcs 1 D705 29 RF SAW Filter, GPS/GNSS 1583MHZ UNBAL 50/50 IL=1.2DB 1109Pcs 1 FL500 30 CONN_SPRING,C_2336713,H=1.45mmPcs 7 J0201,J0202,J0301,J0302, J0303,J0500,J0501 31 CONN SPRING,KIDOSPK,SMT,1.5*3.3*1.5mm KIDOSPKPcs 2 J0601,J0602 32 BTB socket,6pin，H0.6，Pitch0.35mm,3.3mm*1.88mmPcs 1 J701 33 CONN_SPRING,818012564,2.2x1.2x1.05mmPcs 4 J0701,J0702,J0703,J0704 34 BTB socket,30pin，H0.6，Pitch0.35mm,7.5mmx1.88mmPcs 1 J901 35 IND_RF,0201,2.0nH,0.23ohm,0.3A,+/-0.1nHPcs 1 L200 36 IND_Power,2.0X1.6X1.0mm,10uH,Rdc:0.68mohm,0.65A,+/-20%Pcs 1 L201 37 IND_Power,2.0X1.6X1.0mm,2.2uH,0.142ohm,1.7A,+/-20%Pcs 3 L202,L203,L901 38 IND_RF,0201,9.1nH,0.6ohm,0.3A,+/-3%Pcs 1 L501 39 IND_RF,0201,10nH,0.8ohm,0.16A,+/-5%Pcs 3 L504,C303,C328 40 IND_RF,0201,1.8nH,0.15ohm,0.38A,+/-0.1nHPcs 1 L506 41 IND_Power,0603,2.2uH,0.25ohm,0.3A,+/-20%Pcs 1 L902 42 NPN ，IC=200mA，VCEO=40VPcs 2 Q201,Q304 43 MOSFET, N-Channel,Vds=20V,Id=0.75A,Rds=450mohm,SOT883 1.05x0.65x0.55mmPcs 2 Q300,Q301 44 MOSFET, P-channel,Vds=-20V,Id=-2A,Rds=130mohm,dfn1006-3L, 1.0× 0.6×0.55mmPcs 1 Q302 45 DUAL MOSFET,VRRM=-30V,IFRM=-2A,PD=150mW,SOT-523Pcs 1 Q303 46 RES-DISCRETE,0201,4.7K,+/-1%,1/20WPcs 5 R200,R201,R222,R804,R309 47 RES-DISCRETE,0201,100K,+/-1%,1/20WPcs 9 R306,R239,R240,R241,R242,R243, R244,R245,R246 48 RES-DISCRETE,0201,220K,+/-1%,1/20WPcs 1 R220 49 RES-DISCRETE,0201,1M,+/-1%,1/20WPcs 2 R221,R902 50 RES-DISCRETE,0201,1K,+/-1%,1/20WPcs 9 R223,R800,R801,R802,R803, R808,R814,R818,R819 51 RES-DISCRETE，0201,10K,±5%,1/20W,0.26 mmPcs 8 R231,R232,R310,R311,R501, R502,R511,R701 52 RES-DISCRETE,0201,100ohm,+/-5%,1/20WPcs 6 R233,R236,R234,R235,R237,R238 53 RES-DISCRETE,0201,15K,+/-1%,1/20WPcs 1 R301 54 RES-DISCRETE,0201,22R,+/-5%,1/20WPcs 3 R302,R303,R304 55 RES-DISCRETE,0201,47K,+/-5%,1/20WPcs 2 R600,R601 56 RES-DISCRETE,0402,0ohm,+/-5%,1/16WPcs 6 R204,R602,R603,B901,B902,B903 57 RES-DISCRETE,0201,5.6K,+/-1%,1/20WPcs 1 R702 58 RES-DISCRETE,0201,30K,+/-1%,1/20WPcs 1 R703 59 RES-DISCRETE,020,160K,+/-1%,1/20WPcs 1 R704 60 RES-DISCRETE,0201,2kohm,+/-1%,1/20WPcs 1 R705 61 RES-DISCRETE,0201,10ohm,+/-5%,1/20WPcs 2 R816,R817 62 RES-DISCRETE,0201,249K,+/-1%,1/20WPcs 1 R903 63 BT+MCU，FR5092E/7mm×7mm/QFN68Pcs 1 U200 64 IC SENSOR,6-AXIS,BMI270/1.71~3.6V/V/±2000/dps/12 bit/16 bit/SPI/I2C/LGA-12L/3.0x2.5x0.83mmPcs 1 U201 65 NOR FLASH 128M,1.65-2V,-40°C-85°C，120MHZ WSON8(6*5mm)Pcs 1 U203 66 IC LED driver，I2C，16 way BLN，4.0mm x 4.0mm x 0.8mm，TQFN4X4-24LPcs 1 U204 67 EG800Q-NA Module 109PIN 15.8X17.7mm H2.4mm ROPcs 1 U301 68 NA-IC eUICC MODULE, QFN8,5*6,H0.9,-0.3-5.5VPcs 1 U302 69 IC RF SP4T,GPIO,Ant Switch,LGA 1.1*1.5*0.36mmPcs 1 U303 70 LDO/2.8 V/2%/300 mA/400 mW/UTDFN-1x1-4L/ 1.0x1.0/1.*1.0*0.6mm/4 kV/1Pcs 1 U304 71 IC LNA for GNSS, 6Pin SOT1230 1.1*0.9*0.45mmPcs 1 U500 72 IC GPS Device,BGA73L,3.8mm*4.2mm*0.84mmPcs 1 U501 73 ICAudio SPK PA,80% efficiency,1.5mm×1.5mm*0.6mm 8Ω/1.67WPcs 1 U601 74 IC,Load switch,Iq=15nA,Imax=1.5A,WLCSP[4],0.76*0.76*0.5Pcs 1 U607 75 IC Linear Charger,DFN2*2-8L,4.2/4.35/4.4/4.45V，up to 1APcs 1 U700 76 OCP/OVP,Low on-resistance: typical 120mΩ,2.5V-28V INPUT,2A MAX,DFN8,2*2*0.6mmPcs 1 U701 77 ADPD6000,PPG HRM,HR,HRV,SpO2DS WLCSP36 2.6*2.6*0.595（mm）Pcs 1 U901 78 IC DCDC,600mA,VIN 2.2-5.5V,VOUT 1.2-3.3V,WLCSP-8-0.9*1.6mmPcs 1 U902 79 BOOST/5V/300 mA/400 mW/WLCSP-1.245×0.88-6B/4 kV/Pcs 1 U903 80 LDO/3.3 V/2%/300 mA/400 mW/UTDFN-1x1-4L/ 1.0x1.0/1.*1.0*0.6mm/4 kV/1Pcs 2 U904,U205 81 IC CRYSTAL-2016-24MHZ-8PF， -40°C = -/+20PPM/（25°C= -/+10PPM）Pcs 1 X200 82 IC CRYSTAL,26MHz,0.5PPM,SMD XTAL,2.0x1.6x0.8mmPcs 1 X500 83 IC CRYSTAL,32.768KHz, 1.50X3.20X0.75mmPcs 1 Y500 84 T552_GPS+BT_SHD,C7521，T=0.2mm,33.60*21.0*1.5TPcs 1 SH1 85 IND_RF,0201，33nH,2.2ohm,0.12A,+/-3%Pcs 1 C330 86 IND_RF,0201,15nH,0.7ohm,0.25A,+/-5%Pcs 1 C331

FCC ID: 2BD6V-PHAST1NA Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) KDB Test Methodology: KDB 447498 D01 v06. 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2BD6V-PHAST1NA Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China 3. Result Mode Frequency (MHz) Prediction distance (cm) RF output power(Max) (dBm) Tune-up power (Max) MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW BT LE 2412~2462 20 0.74 1 1.2589 0.0004 1.0000 Yes LTE B2 1850~1910 20 23.52 24 251.1886 0.0301 1.0000 Yes LTE B4 1710~1755 20 23.75 24 251.1886 0.0245 1.0000 Yes LTE B5 824~849 20 23.80 24 251.1886 0.0120 0.5493 Yes LTE B12 699.7~715.3 20 23.72 24 251.1886 0.0083 0.4660 Yes LTE B13 779.5~784.5 20 23.77 24 251.1886 0.0095 0.5200 Yes LTE B66 1710~1780 20 23.80 24 251.1886 0.0245 1.0000 Yes 2.4G BT LE: Internal antenna, Maximum Gain is 1.67dBi. LTE: Maximum Gain is -2.2dBi for LTE Band 2 Maximum Gain is -3.1dBi for LTE Band 4 Maximum Gain is -6.2dBi for LTE Band 5 Maximum Gain is -7.8dBi for LTE Band 12 Maximum Gain is -7.2dBi for LTE Band 13 Maximum Gain is -3.1dBi for LTE Band 66 Maximum Simultaneous transmission MPE Ratios for BT+WWAN Max MPE ratio WIFI /Limit Max MPE ratio WWAN /Limit ∑MPE ratios Limit Result 0.0004 0.0245 0.0249 1 PASS Conclusion: Then SAR evaluation is not required.

1.Antenna Description Antenna Plate Omni-directional Market Name T552_ANT_LDS Antenna Max. Gain 1.67dBi Frequency Range 2400-2483.5MHz Connect Type Spring Antenna Type LDS 2.Size of Antenna 3. VSWR VSWR&Input impedance: Frequnce: VSWR 2.400Ghz 1.38 2.480Ghz 1.24 4. .Radiation Pattern

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Page 1 of 61 Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2BD6V-PHAST1NA On Behalf of PETAVERSE PTE.LTD. Pet Habits & Activity Smart Tracker Model No.: PHAST1 NA Prepared for : PETAVERSE PTE.LTD. Address : 8 TEMASEK BOULEVARD, #42-01, SUNTEC TOWER THREE, SINGAPORE Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Report Number : psi2601014-C01-R11 Date of Receipt : January 27, 2026 Date of Test : January 28, 2026-March 16, 2026 Date of Report : March 18, 2026 Version Number : V0 Page 2 of 61 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results ----------------------------------------------------------------------------------- 6 1.1. Description of Standards and Results --------------------------------------------------------------------------- 6 2. General Information --------------------------------------------------------------------------------------------------------- 7 2.1. Description of Device (EUT) --------------------------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) -------------------------------------------------------------------------------------- 8 2.3. Tested Supporting System Details-------------------------------------------------------------------------------- 8 2.4. Block Diagram of Connection Between EUT and Simulators ---------------------------------------------- 8 2.5. Test Mode Description ----------------------------------------------------------------------------------------------- 9 2.6. Software test version and power setting information--------------------------------------------------------- 9 2.7. Test Conditions ------------------------------------------------------------------------------------------------------ 10 2.8. Test Facility ----------------------------------------------------------------------------------------------------------- 10 2.9. Measurement Uncertainty ---------------------------------------------------------------------------------------- 10 2.10. Test Equipment List ------------------------------------------------------------------------------------------------ 11 3. Spurious Emission --------------------------------------------------------------------------------------------------------- 12 3.1. Test Limits ------------------------------------------------------------------------------------------------------------ 12 3.2. Block Diagram of Test setup ------------------------------------------------------------------------------------- 13 3.3. Test Procedure ------------------------------------------------------------------------------------------------------ 14 3.4. Test Results ---------------------------------------------------------------------------------------------------------- 15 4. Power Line Conducted Emission ------------------------------------------------------------------------------------- 22 4.1. Test Limits ------------------------------------------------------------------------------------------------------------ 22 4.2. Test Procedure ------------------------------------------------------------------------------------------------------ 22 4.3. Test Setup ------------------------------------------------------------------------------------------------------------ 22 4.4. Test Results ---------------------------------------------------------------------------------------------------------- 23 5. Out-of-band Emissions --------------------------------------------------------------------------------------------------- 26 5.1. Test Limits ------------------------------------------------------------------------------------------------------------ 26 5.2. Test Procedure ------------------------------------------------------------------------------------------------------ 26 5.3. Test Setup ------------------------------------------------------------------------------------------------------------ 26 5.4. Test Results ---------------------------------------------------------------------------------------------------------- 26 6. Conducted Maximum Output Power --------------------------------------------------------------------------------- 37 6.1. Test limits ------------------------------------------------------------------------------------------------------------- 37 6.2. Test Procedure ------------------------------------------------------------------------------------------------------ 37 6.3. Test Setup ------------------------------------------------------------------------------------------------------------ 37 6.4. Test Results ---------------------------------------------------------------------------------------------------------- 38 7. Peak Power Spectral Density ------------------------------------------------------------------------------------------- 42 7.1. Test limits ------------------------------------------------------------------------------------------------------------- 42 7.2. Test Procedure ------------------------------------------------------------------------------------------------------ 42 7.3. Test Setup ------------------------------------------------------------------------------------------------------------ 42 7.4. Test Results ---------------------------------------------------------------------------------------------------------- 42 8. Occupied Bandwidth -------------------------------------------…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix I Test Setup Photo FCC ID: 2BD6V-PHAST1NA Spurious Radiation Emissions Test (<1G) Spurious Radiation Emissions Test (＞1G) Page 2 of 2 Report No.: psi2601014-C01-R11 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Conduction Emissions Test . RF Conduction Test ------End------
