2BD8A-B20Robot Vacuum

Robot Vacuum Operation Manual Read this operation manual carefully before using the product, and store the manual safely. Scan the QR code for manuals in multiple languages 2 3 4 5 5 7 8 11 14 15 16 17 19 19 21 22 23 23 Table of contents Safety instructions Warning Caution Product overview Main unit Two-in-one water tank and mopping module Charging Station Product installation Installation of mopping module Installation and APP Connection Quick Connection Slow Connection Turning on/off and cleaning modes Indicator status description Device disassembly and cleaning Disassembly and cleaning of rolling brush components Disassembly and cleaning of side brush Disassembly and cleaning of the two-in-one water tank and filter Disassembly and cleaning of mop Troubleshooting FAQs Technical data Disposal Warranty and limitations of liability 1 Safety instructions Please read the manual before use. Warning: To avoid injury to yourself and others, and to avoid unnecessary property damage, read carefully before using the product and observe the following “Safety instructions”. The safety instructions are divided into two sections, “Warning” and “Caution”. The “Warning” and “Caution” sections contain important information for safe use of the product and must be followed. 1. Do not use this product in wet places such as bathrooms or near water sources; 2. Do not use it to clean up liquids, matches and wet garbage; 3. Do not pull out/insert the power cord plug or touch the socket with wet hands; 4. Do not use damaged power plugs or loose sockets; 5. Do not use the main unit to clean flammable liquids such as kerosene, gasoline, objects with sparks, toner cartridges, toner and other combustible dust; do not use the device near the above items, or in environments with flammable and explosive gases to avoid fires; 6. Do not disassemble, repair, or modify the product on your own, to avoid fire, injury, or damage, except for the replacement of consumables in accordance with the manual; 7. Do not charge non-rechargeable batteries. Please use an AC power supply with a rated voltage rather than a generator or a DC power supply to avoid fire hazards and electric shocks; 8. Please use a dry cloth to clean the dust on the plug regularly to avoid a fire hazard caused by poor insulation and other reasons; 9. Please make sure to insert the plug firmly to avoid electric shock, short circuits, and fire; 10. Please immediately cut off the power and stop using the device in case of any malfunction to avoid smoke, fire, or electric shock; 11. If the device deforms, overheats abnormally, emits a burning smell, or makes an unusual noise during charging or use, immediately disconnect the power supply and unplug the device. Place it in an open and non-flammable area to ensure safety. Faulty products shall be replaced and repaired by the manufacturer or its maintenance specialist to avoid danger; 12. Please make sure to pull the plug from the power socket before conducting any cleaning and maintenance to avoid electric shock and injury; 13. If the rolling brush malfunctions during use, please first turn off the power button and immediately check whether the rolling brush is entangled with hair or other long fibres, and clean it in a timely manner; 14. Do not spray water on the product body and plug, or immerse them in water; Important safety instructions to prevent death or serious injury from incorrect operations. Warning Warning Important safety instructions to prevent minor injury or device damage from incorrect operation. Caution 2 1. Do not use this device outdoors, on non-flat surfaces, or in commercial or industrial environments; 2. Do not use the product in environments without protective fencing (such as duplex floors, open balconies, furniture tops); 3. Do not use it in environments above ˫, below 0˫, or where there is any liquid or sticky substance on the floor; 4. Do not block the air outlet to avoid deformation, malfunction, or fire caused by overheating; 5. Do not drag the device to avoid scratching the floor; 6. Do not swing the device or allow young children to play with it to avoid injury or damage to the device; 7. Do not drop the device or collide it with other objects, or apply pressure to it to avoid fire or electric shocks caused by malfunctions; 8. Make sure to install the rolling brush and filter before using the device to avoid damage to the motor and device; 9. Check whether the power cord is intact before charging; 10. Before using the robot vacuum and mop combo for the first time or replacing the designated filter, turn off the main power and ensure the filter is properly installed; 11. Used battery packs should be properly disposed off. Do not discard them randomly; 12. Before using the product, arrange the desks, chairs, household items, floor objects, etc. neatly, and clear power cords and small items laying on the ground to avoid the product being blocked during cleaning; 13. When the machine is running, keep curtains and tablecloths away from the ground, and keep the carpet flat, so as to prevent the product from being blocked during operation and causing damage to your valuables; 14. Before the first use, make sure all room doors are open for the device to build a complete home map; Caution 15. When pulling out the plug, please make sure to hold the insulated part of the power cord and do not pull the power cord directly; 16. The battery is a sealed unit, and there is no safety hazard under normal circumstances; If liquid leaks out of the battery in extreme cases, it may cause irritation or burns. If you accidentally come into contact with the liquid, take the following instructions: ΍ skin contact - wash with soapy water; Ύ eye contact - immediately rinse with water for at least 15 minutes and seek medical help; 17. This device is not suitable for children or individuals with poor physical, sensory, and mental abilities or those who lack relevant experience and knowledge. Please provide supe…

Text truncated - open the document above for the full version.

ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi Room 2809, Building 1, Hengda City Plaza, No. 17 Huancheng South Road, Ma'antang Community, Bantian Street, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/01/09 U.S. Agent Designation ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BD8A-B20): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi with the FRN [0034641068] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Chris Yao Manager ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Chris Yao/Manager Company: ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi Address: Room 2809, Building 1, Hengda City Plaza, No. 17 Huancheng South Road, Ma'antang Community, Bantian Street, Longgang District, Shenzhen China Phone: 13316589049 Fax: N/A E-Mail: [email protected]

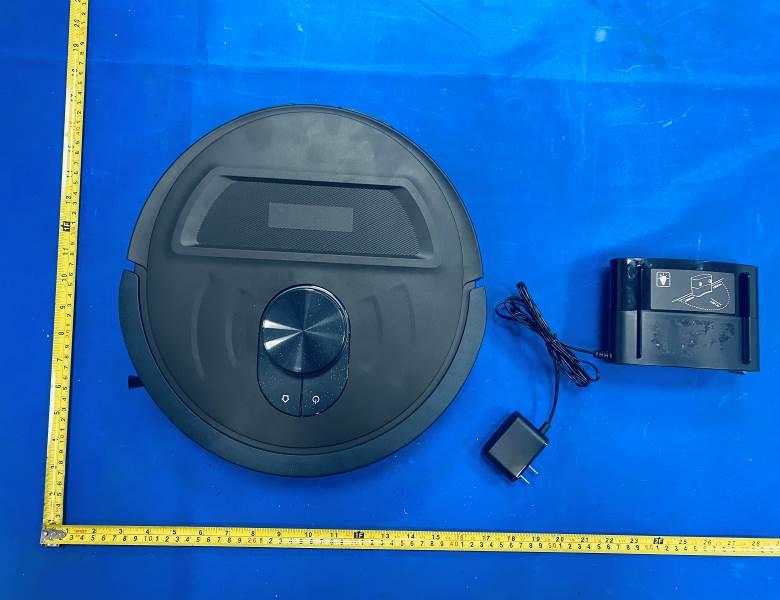

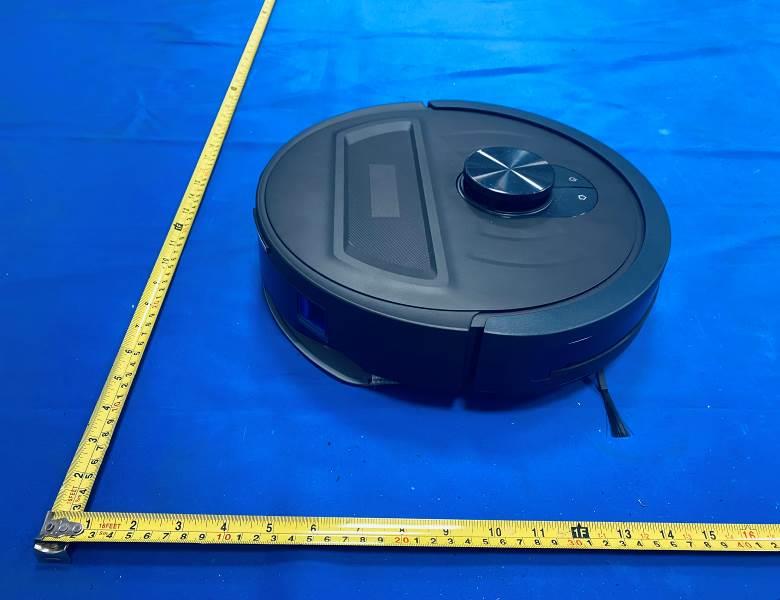

FCC ID: 2BD8A-B20 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BD8A-B20 Photo 4 Photo 5 Photo 6 FCC ID: 2BD8A-B20 Photo 7

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BD8A-B20

FCC ID: 2BD8A-B20 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BD8A-B20 Photo 4 Photo 5 Photo 6 FCC ID: 2BD8A-B20 Photo 7 Photo 8 Photo 9 BT/2.4G WIFI PCB Antenna FCC ID: 2BD8A-B20 Photo 10 Photo 11 Photo 12 FCC ID: 2BD8A-B20 Photo 13 Photo 14

RF Exposure evaluation FCC ID: 2BD8A-B20 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information B20 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB Antenna 1.176dBi for 2400-2500MHz; 2.4GWIFI / PCB Antenna 1.176dBi for 2400-2500MHz 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.176dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 3.0 1.9953 1.176 1.3110 0.0005 1.0000 2.4GWIFI 13.0 19.9526 1.176 1.3110 0.0052 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch Report No.: SEWM2209000167OA01 Rev.00 Page: 1 of 15 ANTENNA PASSIVE TEST REPORT Application No. SEWM2209000167OA Applicant DewertOkin Technology Group Co., Ltd. Manufacturer DewertOkin Technology Group Co., Ltd. Product Name Antenna Model No. RF24G Standards ANSI/IEEE Std 149-2008 Date Initial Sample(s) Received 2022.09.20 Testing Start Date 2022.09.21 Testing Finish Date 2022.09.21 Report Issue Date 2022.09.22 * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Prepared by Reviewed By Approved by SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch Report No.: SEWM2209000167OA01 Rev.00 Page: 2 of 15 Revision Version Report No. Version Date Memo SEWM2209000167OA01 00 2022/09/22 Initial creation of report SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch Report No.: SEWM2209000167OA01 Rev.00 Page: 3 of 15 TABLE OF CONTENTS 1 GENERAL INFORMATION .................................................................................................... 4 1.1 Testing Laboratory................................................................................................................................ 4 1.2 Details of Applicant .............................................................................................................................. 4 1.3 Details of Manufacturer ....................................................................................................................... 4 1.4 General Description of EUT ................................................................................................................... 5 1.5 Test Procedure ..................................................................................................................................... 5 1.6 Test Specification ................................................................................................................................. 6 1.7 Laboratory Environment....................................................................................................................... 6 2 OTA MEASUREMENTS SYSTEM CONFIGURATION ...................................................... 7 2.1 Test Configuration ................................................................................................................................ 7 2.2 Test Measurement ................................................................................................................................ 7 3 TEST EQUIPMENT LIST ........................................................................................................ 8 4 MEASUREMENT UNCERTAINTY ........................................................................................ 9 5 TEST RESULTS ..................................................................................................................... 10 5.2 3-D Antenna Pattern .............................................................................................................................. 11 6 THE EUT AND TEST CONFIGURATION......................................................................... 14 SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch Report No.: SEWM2209000167OA01 Rev.00 Page: 4 of 15 1 General Information 1.1 Testing Laboratory Test Lab SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch Address South of No. 6 Plant, No. 1, Runsheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone Contact Panta Sun Tel. +86(0)512-62990300 Fax +86(0)512-62990300 E-mail [email protected] 1.2 Details of Applicant Applicant’s Name DewertOkin Technology Group Co., Ltd. Applicant’s Address Room 247, Floor 6, Jiaxing Photovoltaic Science and Innovation Park, No.1288, Kanghe Road, Xiuzhou District, Jiaxing City, Zhejiang Province, China. Contact Eva Zhang Tel. 15156691493 Fax N/A E-mail [email protected] 1.3 Details of Manufacturer Manufacturer’s Name DewertOkin Technology Group Co., Ltd. Manufacturer’s Address No.465, Xinnanyang Road, Wangjiangjing Development Zone, Xiuzhou District, Jiaxing City, Zhejiang Province, China. Contact Eva Zhang Tel. 15156691493 Fax N/A E-mail [email protected] SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch Report No.: SEWM2209000167OA01 Rev.00 Page: 5 of 15 1.4 General Description of EUT Device Description: Antenna Device Manufacturer: DewertOkin Technology Group Co., Ltd. Device Model: RF24G Hardware Version: GA Software Version: 1.1 1.5 Test Procedure Testing is performed according to the ANSI/IEEE Std 149-2008. SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch Report No.: SEWM2209000167OA01 Rev.00 Page: 6 of 15 1.6 Test Specification Identity Document Title ANSI/IEEE Std 149-2008 IEEE Standard Test Procedures for Antennas 1.7 Laboratory Environment Temperature Min. =19°C，Max. = 25°C Relative humidity Min. =40%，Max. =72% Shield effect 0.7-6GHz > 100dB Ground resistance <0.5 SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch Report No.: SEWM2209000167OA01 Rev.00 Page: 7 of 15 2 OTA Measurements System Configuration 2.1 Test Configuration Conical-Cut method is used to measure the antenna 3D GAIN of EUT in OTA qualified anechoic chamber. Equipment Under Test (EUT) geometry centre vertical projection at the centre of platform, the distance from EUT to measurement antenna is 1.5m 2.2 Test Measurement Spherical coordinate system SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch Report No.: SEWM2209000167OA01 Rev.00 Page: 8 of 15 3 Test Equipment List Type of Equipment Model Number Manufacture Calibration Date Valid Period Network Analyzer ZNB8 S/N 103535 R&S 2022-03-10 2023-03-09 Switch Control System OSP 130 S/N 100358 R&S N/A N/A MAPS Controller 2090 S/N 114576 ETS-Lindgren L.P. N/A N/A Test Software EMQuest™ REV 1.14 Build 31654 ETS-Lindgren L.P N/A N/A Full Anechoic Wireless Test chamber ETS-L…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA23112700101 2BD8A-B20 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Dec. 22, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi Address ............................................ : Room 2809, Building 1, Hengda City Plaza, No. 17 Huancheng South Road, Ma'antang Community, Bantian Street, Longgang District, Shenzhen, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: Robot Vacuum Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi Model/Type reference....................... : B20 Listed Models .................................. : B20 Plus, B20 Plus+, B20 Pro, B20 Pro+, B20 Max, B20 Max+, B20 PURE, B20 Ultra, B20 MaxV, L20, L20 Plus, L20 Plus+, L20 Pro, L20 Pro+, L20 Max, L20 Max+, L20 PURE, L20 Ultra, L20 MaxV Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 14.4V From battery and DC 20.0V From external circuit Result................................................ : PASS Report No.: CTA23112700101 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Robot Vacuum Model /Type : B20 Listed Models : B20 Plus, B20 Plus+, B20 Pro, B20 Pro+, B20 Max, B20 Max+, B20 PURE, B20 Ultra, B20 MaxV, L20, L20 Plus, L20 Plus+, L20 Pro, L20 Pro+, L20 Max, L20 Max+, L20 PURE, L20 Ultra, L20 MaxV Applicant : ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi Address : Room 2809, Building 1, Hengda City Plaza, No. 17 Huancheng South Road, Ma'antang Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer : ShenZhenShiPeiAoZhuoYueKeJiYouXianGongSi Address : Room 2809, Building 1, Hengda City Plaza, No. 17 Huancheng South Road, Ma'antang Community, Bantian Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23112700101 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 31 Report No.: CTA23112700101 Page 4 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. AN…

Text truncated - open the document above for the full version.

Report No.: CTA23112700102 Page 29 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11b 802.11g Reference Reference CH011 CH01 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA23112700102 Page 30 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA23112700102 Page 31 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA23112700102 Page 32 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 3GHz -25GHz Report No.: CTA23112700102 Page 33 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.: CTA23112700102 Page 34 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 1.176 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23112700102 Page 35 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA23112700102 Page 36 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Reference to the test report No. CTA23112700101 ********************** End of Report **********************

FCC ID: 2BD8A-B20 Test Setup Photos of the EUT
