2BD8N-5380Bluetooth 2D Barcode Scanner

Wireless Bluetooth 2D Scanner 5380 KEY FEATURES ● Low power consumption, high performance ● Comprehensive reading of all mainstream 1-D, 2-D code ● Quickly read the bar code on the phone screen ● Supports RS232 interface and USB interface ● Cross laser Aimer automatically lights up to facilitate quick align- ment of the bar code to be solved �D / �DHigh speed scanBig visionFast decodingScreen scan Customized Motion tolerance 2M/S 1.5M Large batteryDrop Ingress Protection IP54 Mechanical Performance Dimension Weight Power Supply/ Electric Current Resolution 1280 p(H) x 1080 p(V) Light SourceAimer: Red Cross Laser ; illumination: 4000K White LED Field of View 40°(H) x 34°(V) Scan AnglePitch ±65° Yaw 360° Roll ±60° Environment Symbology Operating Temperature 32°F ~ 122°F / 0°C ~ 50°C 1D 2D Code 128, Code 39, Code 93, EAN-8, EAN-13, UPC-E, UPC-A, GS1-128, Codabar, Interleaved 2 of 5, GS1 DataBar Endurance Time 11H Charging Time Support fast charging, the whole charging time is 2.5H, and the single battery charging time is 2H Wireless Technology Bluetooth 5.0, SPP 5380 Specifications Intelligent identification, smart vision, industrial vision sensor provider All specification and designs are subject to change without notice. V.04.20260205 TEL：���-���-���� E-MAIL:[email protected] WEB: www.isuperlead.com ADD: SuperLead Headquarters Building, �� Fujingtian Road, Suzhou Industrial Park, Suzhou City, Jiangsu Province Suzhou SuperMax Smart System Co.,Ltd. Symbol Contrast ≥25% InterfaceRS232, USB COM, USB HID Keyboard, USB POS Motion Tolerance 2m/s Working Distance100m Drop Withstand drop 1.5m on concrete Humidity 5% ~ 95%RH, no condensation Ingress Protection IP54 Ambient Light Immunity86,000 Lux. PDF417, QR Code, Micro QR, Data Matrix Storage Temperature -40°F ~ 158°F / -40°C ~ 70°C 188mm x 90mm x 70mm 262g 3.7 VDC / 2600mA 5380 Specifications Intelligent identification, smart vision, industrial vision sensor provider All specification and designs are subject to change without notice. V.04.20260205 TEL：���-���-���� E-MAIL:[email protected] WEB: www.isuperlead.com ADD: SuperLead Headquarters Building, �� Fujingtian Road, Suzhou Industrial Park, Suzhou City, Jiangsu Province Suzhou SuperMax Smart System Co.,Ltd. Typical Depth of Field Code 39 (3.13 mil)45mm-120mm LensSR Code 39 (3.9 mil)35mm-150mm Code 39 (5.13 mil)40mm-240mm Code 39 (20 mil)25mm-650mm UPC-A (13 mil)30mm-450mm PDF (6.88 mil)10mm-260mm DM (10 mil)10mm-260mm QR (20 mil)10mm-470mm Dimension (unit: mm) 93 103 134 94 134 103 90 70 94 191 103 70 134 191 172 94 �mm-��mm �mm-��mm ��mm-��mm ��mm-���mm �mm-��mm ��mm-���mm �mm-���mm �mm-��mm HD Federal Communications Commission (FCC) Statement. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide Reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of·1 the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by may void the FCC authorization to operate this device.Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RF exposure statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Suzhou Supermax Smart System Co.,Ltd. Add: No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, China Date: 2026/4/17 FCC ID: 2BD8N-5380 Dear Sir/Madam, We, Suzhou Supermax Smart System Co.,Ltd. Hereby declares the following statement for Federal Communications Commission, Only the appearance color and model are different, while the PCB board, circuit, structure and interior are the same. Product name: Bluetooth 2D Barcode Scanner Model no.: 5380, X81-*, X81, X80, X80-*, X81PE, X82, X82-*, X82P, X82PE, ICW9X81, ICW9X82-*, ICW9X82, ICW9X81P, ICW9X81-*, ICW9X81PE, ICW9X82P, ICW9X82PE, X61, X62, ICW9X61, ICW9X62, X61E, X61-*, X62E, X61-*, 21**, 2108, 2108BT, BT2130, 22**, 2200, 2208, 2200HS, 2200BT, 26**, 2600, 2600N, 2600NHS, 2620, 2620BT, 28**, 2800, 2830, 2330, 33**, 3300, 51**, 5100, 5102, 5108, 5100HS, 5120HS, 5130, 5130HS, 5130BT, 5190, 52**, 5200, 5203HS, 5230, 5208, 5280, 53**, 5300, 5301, 5308, 5330, 5331, 5380, 5608, 72**, 7200, 7202, 7201, 7209, 7290, 7250, 73**, 7330, 7350, 7301, 77**, 7700, 7708, 78**, 7800, 8160, 820V, 5308Ex, 5380Ex, 11**, 1120, 1600, 2102, 2230, 23**, 2300, 24**, 2400, 31**, 3100, 3102, 41**, 4100, 4108, 4108WP, 42**, 4200, 4205, 4210, 43**, 4300, 44**, 4400, 61**, 6102, 6105, 6160, 6150, 70**, 7022, 71**, 7110, 7120, 7130, 7132, 7138, 7139, 7150, 7160, 7161, 7163, 7166, 7167, 7167FC, 7168, 7169, 7180, 7181, 7181, 7182, 7183, 7190, 7299, 7299S, 76**, 7600, 7707, 72BS, 72CJ, 73MINI, 73IS, WS71, 81**, 8100, RS32, FS02, C2**, C20DE, C25E, ICW5**, ICW50, ICW6**, ICW60S, ICW62, ICW64, ICW7**, ICW70, ICW70I, ICW74, ICE74XP, ICW75, ICW76, V3**, V30, V30E, X2**, X20, X23, X25, X26, X27L, X30, X35, ICW50DE, ICW72, ICW74P, ICW74EPro, ICW76Pro, ICW95208, ICW95280, ICW9820V, ICW98160, ICWV2000, ICWV7000, IA280,S5**, S5020MC, SV5**, SV5020MA, SV6000, SV7000, SV7050, ICW5**, ICW5020MC, ICWV5*, ICWV5020MC, ICW7*, ICW7020MC, ICWV7*, ICWV7020MC, ICWV7024,SV2**, SV2000, VC-S**, VC-S3, VC-ICW**, VC-ICW2, HC**, HC835, HC845, HC855, H200 Sincerely, Suzhou Supermax Smart System Co.,Ltd. Add: No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, China c Name/Title： Jason Zhang Company: Suzhou Supermax Smart System Co.,Ltd. Address: No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, China Phone: 0512-62655385 Fax: 0512-62655385 E-Mail: [email protected]

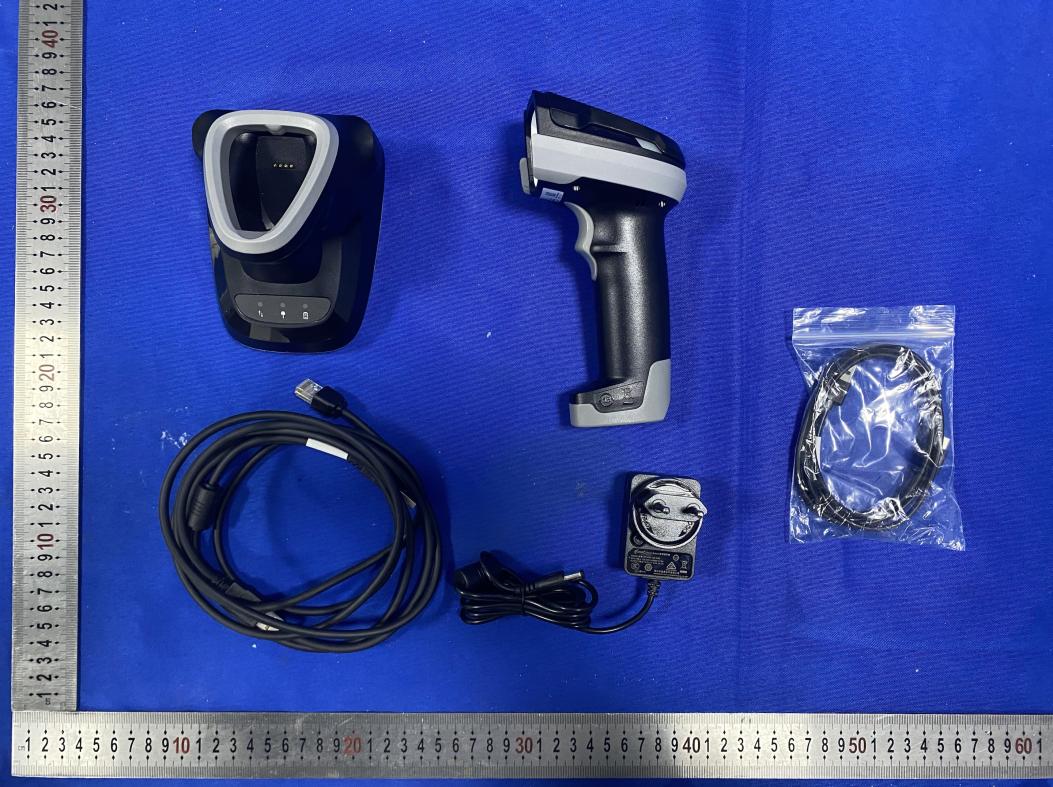

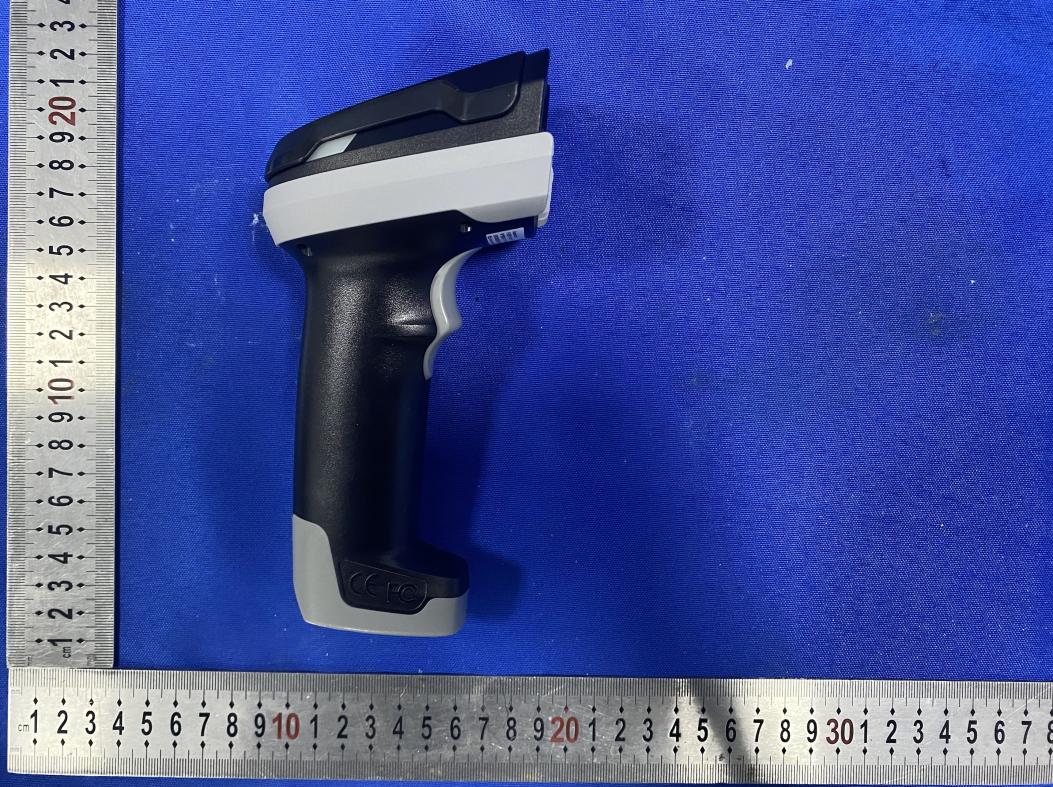

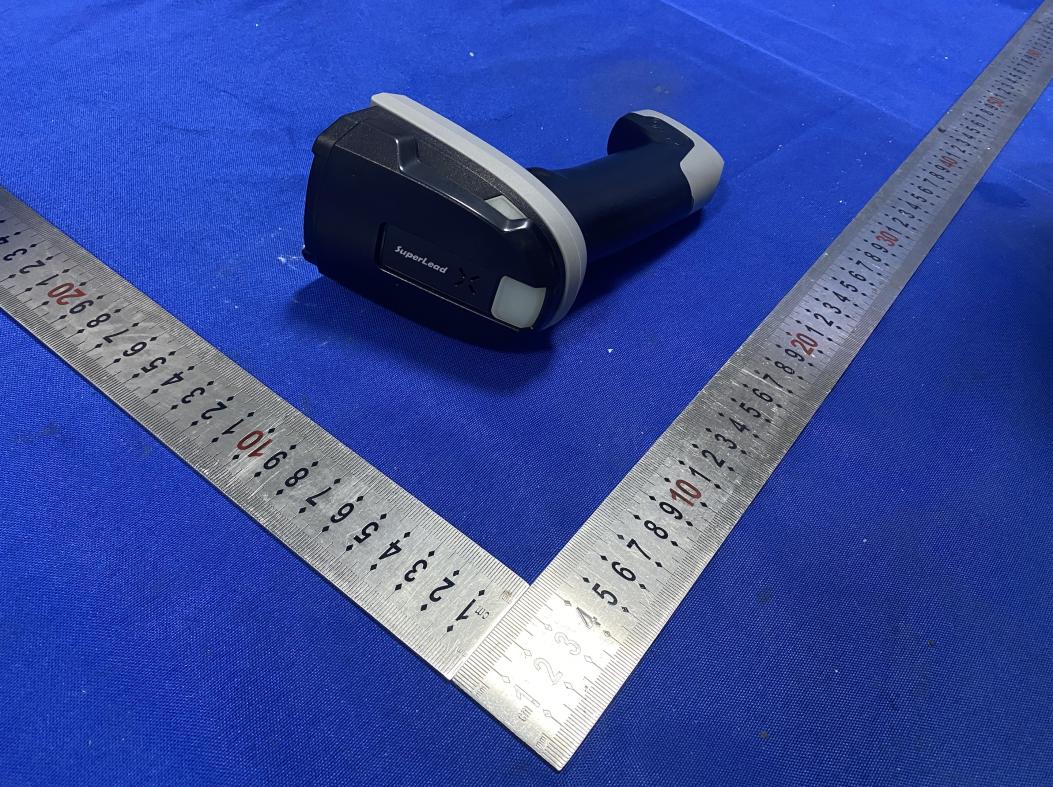

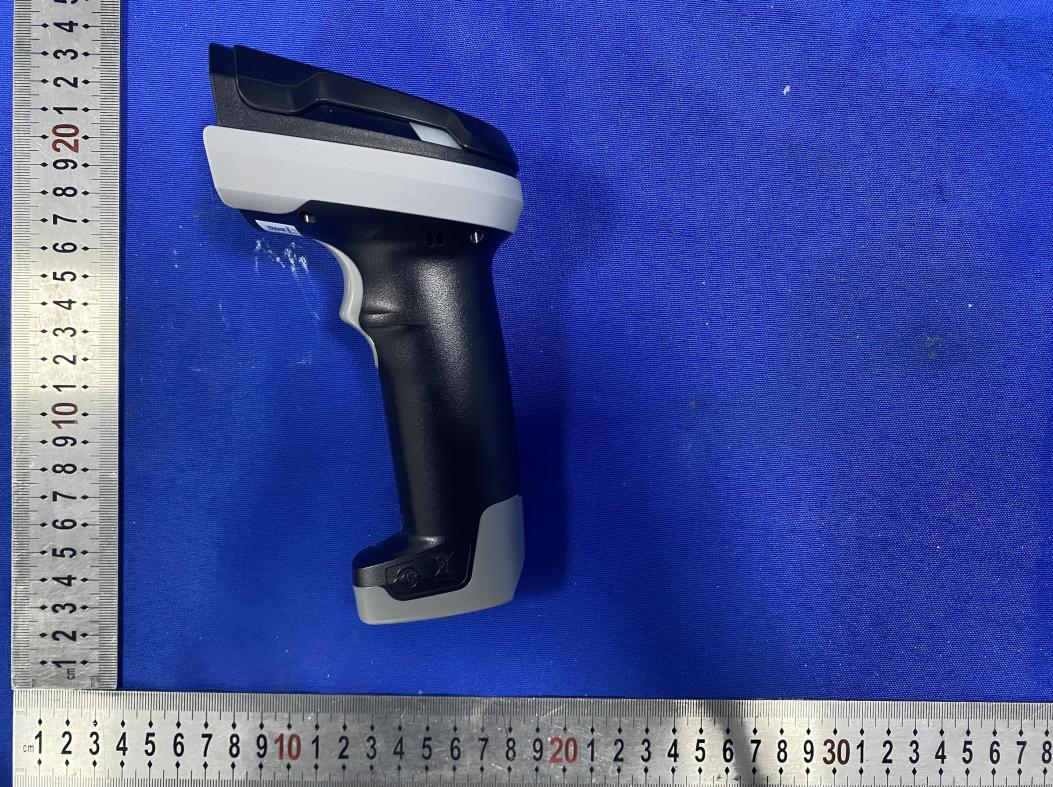

FCC ID: 2BD8N-5380 Page 1 of 3 Report No.: CTL2601213021-WF External Photos of EUT FCC ID: 2BD8N-5380 Page 2 of 3 Report No.: CTL2601213021-WF FCC ID: 2BD8N-5380 Page 3 of 3 Report No.: CTL2601213021-WF

FCC ID Label Information Label location: FCC ID: 2BD8N-5380 Model：5380

FCC ID: 2BD8N-5380 Page 1 of 8 Report No.: CTL2601213021-WF Internal Photos of EUT Bluetooth Antenna FCC ID: 2BD8N-5380 Page 2 of 8 Report No.: CTL2601213021-WF FCC ID: 2BD8N-5380 Page 3 of 8 Report No.: CTL2601213021-WF FCC ID: 2BD8N-5380 Page 4 of 8 Report No.: CTL2601213021-WF FCC ID: 2BD8N-5380 Page 5 of 8 Report No.: CTL2601213021-WF FCC ID: 2BD8N-5380 Page 6 of 8 Report No.: CTL2601213021-WF FCC ID: 2BD8N-5380 Page 7 of 8 Report No.: CTL2601213021-WF FCC ID: 2BD8N-5380 Page 8 of 8 Report No.: CTL2601213021-WF

Shenzhen CTL Testing Technology Co., Ltd. Tel:+86-755-89486194 E-Mail:[email protected] RF Exposure evaluation Report Reference No. ................ : CTL2601213021-WFH Compiled by: (printed name+signature) Andy Su Reviewed by: (printed name+signature) Happy Guo Approved by: (printed name+signature) Ivan Xie Product Name ............................. : Bluetooth 2D Barcode Scanner Model/Type reference ................ : 5380 List Model(s) ............................... : Please look at page 2. Trade Mark .................................. : Superlead FCC ID ......................................... : 2BD8N-5380 Applicant’s name ....................... : Suzhou Supermax Smart System Co.,Ltd. Address of applicant .................. : No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, China Test specification ....................... : Standard ...................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2017-01 Date of receipt of test item ........ : Mar 17, 2026 Date of Test ............................... : Mar 17, 2026-Mar 31, 2026 Date of Issue .............................. : Apr 02, 2026 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 12 Report No.: CTL2601213021-WFH TEST REPORT Test Report No. : CTL2601213021-WFH Apr 02, 2026 Date of issue Product Name : Bluetooth 2D Barcode Scanner Sample No : CTL260121302002,CTL260121302003, CTL260121302005, CTL260121302006 Model /Type : 5380 Listed Models : X81-*, X81, X80, X80-*, X81PE, X82, X82-*, X82P, X82PE, ICW9X81, ICW9X82-*, ICW9X82, ICW9X81P, ICW9X81-*, ICW9X81PE, ICW9X82P, ICW9X82PE, X61, X62, ICW9X61, ICW9X62, X61E, X61-*, X62E, X61-*, 21**, 2108, 2108BT, BT2130, 22**, 2200, 2208, 2200HS, 2200BT, 26**, 2600, 2600N, 2600NHS, 2620, 2620BT, 28**, 2800, 2830, 2330, 33**, 3300, 51**, 5100, 5102, 5108, 5100HS, 5120HS, 5130, 5130HS, 5130BT, 5190, 52**, 5200, 5203HS, 5230, 5208, 5280, 53**, 5300, 5301, 5308, 5330, 5331, 5380, 5608, 72**, 7200, 7202, 7201, 7209, 7290, 7250, 73**, 7330, 7350, 7301, 77**, 7700, 7708, 78**, 7800, 8160, 820V, 5308Ex, 5380Ex, 11**, 1120, 1600, 2102, 2230, 23**, 2300, 24**, 2400, 31**, 3100, 3102, 41**, 4100, 4108, 4108WP, 42**, 4200, 4205, 4210, 43**, 4300, 44**, 4400, 61**, 6102, 6105, 6160, 6150, 70**, 7022, 71**, 7110, 7120, 7130, 7132, 7138, 7139, 7150, 7160, 7161, 7163, 7166, 7167, 7167FC, 7168, 7169, 7180, 7181, 7181, 7182, 7183, 7190, 7299, 7299S, 76**, 7600, 7707, 72BS, 72CJ, 73MINI, 73IS, WS71, 81**, 8100, RS32, FS02, C2**, C20DE, C25E, ICW5**, ICW50, ICW6**, ICW60S, ICW62, ICW64, ICW7**, ICW70, ICW70I, ICW74, ICE74XP, ICW75, ICW76, V3**, V30, V30E, X2**, X20, X23, X25, X26, X27L, X30, X35, ICW50DE, ICW72, ICW74P, ICW74EPro, ICW76Pro, ICW95208, ICW95280, ICW9820V, ICW98160, ICWV2000, ICWV7000, IA280,S5**, S5020MC, SV5**, SV5020MA, SV6000, SV7000, SV7050, ICW5**, ICW5020MC, ICWV5*, ICWV5020MC, ICW7*, ICW7020MC, ICWV7*, ICWV7020MC, ICWV7024,SV2**, SV2000, VC-S**, VC-S3, VC-ICW**, VC-ICW2, HC**, HC835, HC845, HC855, H200 Applicant : Suzhou Supermax Smart System Co.,Ltd. Address : No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, China Manufacturer : Suzhou Supermax Smart System Co.,Ltd. Address : No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, China V1.0 Page 3 of 12 Report No.: CTL2601213021-WFH The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 4 of 12 Report No.: CTL2601213021-WFH ** Modified History ** Revision Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release Apr 02, 2026 CTL2601213021-WFH Tracy Qi V1.0 Page 5 of 12 Report No.: CTL2601213021-WFH Contents 1 GENERAL INFORMATION .......................................................................................................................................... 6 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 1.2 PRODUCT DESCRIPTION ................................................................................................................................................. 6 1.3 TEST FACILITY .............................................................................................................................................................. 7 1.4 EUT CONFIGURATION ................................................................................................................................................... 7 1.5 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 8 2 METHOD OF MEASUREMENT ................................................................................................................................... 9 2.1 APPLICABLE STANDARD.................................................................................................................................................. 9 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 9 3 CONDUCTED POWER RESULTS ........................................................…

Text truncated - open the document above for the full version.

1 ANTE NNA DESIGN The PCB antenna on the CC2511 USB dongle reference design is a meandered Inverted F Antenna (IFA). The IFA was designed to match an impedance of 50 ohm at 2.45 GHz. Thus no additional matching components are necessary. 1.1 Design Goals The reflection at the feed point of the antenna determines how much of the applied power is delivered to the antenna. A reflection of less than -10 dB across the 2.4 GHz ISM band, when connected to a 50 ohm s ource, was a design goal. Reflection of less than -10 dB, or VSWR less than 2, ensures that more than 90% of the available power is delivered to the antenna. Bandwidth is in this document defined as the frequency band where more than 90% of the available power is delivered to the antenna. Another design goal was to fit the size of the PCB antenna on a USB dongle and to obtain good performance also when the dongle is connected to a computer. 1.2 Simulation IE3D from Zeland, which is an electromagnetic simulation tool, was used to design the antenna. The accuracy of the simulation is controlled by the mesh. An increase of the mesh increases the simulation time. Thus, for initial simulations mesh = 1 should be used. When a fairly good result is achieved a higher mesh should be used to obtain more accurate results. Comparison of simulation and measurement results shows that the measured reflection is between the result obtained with mesh = 5 and mesh = 1; s ee Figure 2 for details. Figure 2: Comparison of Simulation and Measurements Results Manufacturer: Suzhou Supermax Smart System Co.,Ltd. Address: No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, China Operation frequency: 2400MHz~2500MHz Antenna gain: 5.3 dBi 2 TEST RESULTS Reflection, radiation pattern and variation of output power across a wide frequency band were measured to verify the performance of the PCB antenna. Measurements of the dongle in free space and when connected to a laptop were performed to verify that the antenna is suitable both for USB dongle designs and in a standalone application. Free space is in this document interpreted as a measurement performed without connecting the dongle to a computer. In such a measurement the dongle is only powered by a battery. 2.1 Reflection All the reflection measurements were performed with a network analyzer c onnected to a semi-rigid coax cable, which was soldered to the feed point of the antenna. Because of the small size antenna and the small ground plane this kind of measurements is heavily affected by the presence and placement of the coax cable. This influence can result in a small uncertainty in resonance frequency and measured reflection. Typically different placement of the semi-rigid coax cable could change the resonance frequency with 5 -10 MHz and the reflection with 3 - 4 dB. Figure 4: Influence of Plastic Encapsulation and Test Pins A small part on the CC2511 USB dongle PCB is equipped with test pins. These are intended for use during development. This part of the PCB will typically be omitted in a final application. The red and green graph on Figure 4 shows that removing this part of the PCB has a small impact on the performance. Figure 4 also shows that plastic encapsulation of the dongle will shift the resonance frequency to a lower frequency. This can be compensated by making the antenna slightly shorter. The size of the ground plane affects the performance of the PCB antenna. Connecting the USB dongle to a computer increases the size of the ground plane and thus the performance is affected. Figure 5 shows how the performance is affected when the USB dongle is connected to a laptop. In free space the antenna has a bandwidth of approximately 250 MHz. When the USB dongle is connected to the laptop the bandwidth is reduced to around 100 MHz, which still is enough to cover the whole 2.4 GHz ISM band. Figure 5: Comparison of Performance 2.2 Radiation Pattern The radiation pattern for the antenna implemented on the CC2511 USB dongle reference design has been measured in an anechoic chamber. Figure 7 through Figure 12 shows radiation patterns for three planes, XY, XZ and YZ, measured with vertical and horizontal polarization. All these measurement were performed without connecting the dongle to a c omputer. Figure 13 and Figure 14 shows the radiation pattern when the dongle is connected to a laptop. All measurements were performed with 0 dBm output power. Figure 6 shows how the different radiation patters are related to the positioning of the antenna. XY plane YZ plane XZ plane Figure 6: How to Relate the Antenna to the Radiation Patterns Figure 7: USB Dongle XY Plane Figure 8: USB Dongle XY Plane Figure 9: USB Dongle XZ Plane Figure 10: USB Dongle XZ Plane Figure 11: USB Dongle YZ Plane Figure 12: USB Dongle YZ Plane Figure 13: USB Dongle in Laptop XY Plane Figure 14: USB Dongle in Laptop XY Plane 2.3 Output Power To make a realistic bandwidth measurement of the antenna a small test program was us ed. The tes t program stepped the center frequency of a carrier from 2.3 to 2.8 GHz. This bandwidth meas urement was also done to verify the result from the reflection measurements, described in section 5.1. The output power was measured using max hold on a spectrum analyzer. CC2511 was programmed for 0 dBm output power and the antenna was horizontally oriented and directed towards the receiving antenna. This corresponds to 0° in the XY plane on Figure 6. The bandwidth measurements were not performed with a c orrection factor on the spectrum analyzer. Thus, the results in Figure 15 and Figure 16 only show the relative changes in output power and not the actual level. Figure 15 shows the bandwidth of the antenna when the dongle is not connected to a computer. The res ult shows that the antenna has a variation in output power of less than 3 dB acros s a frequency band of more than 350 MHz. This demonstrates that the antenna has a broadband characteristic. Maximum output power is measured to be at 2.54 GHz. Thus if the s…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2601213021-WF01 Compiled by: (printed name+signature) Andy Su Reviewed by: (printed name+signature) Happy Guo Approved by: (printed name+signature) Ivan Xie Product Name ............................. : Bluetooth 2D Barcode Scanner Model/Type reference ................ : 5380 List Model(s) ............................... : Please look at page 2. Trade Mark .................................. : Superlead FCC ID ......................................... : 2BD8N-5380 Applicant’s name ....................... : Suzhou Supermax Smart System Co.,Ltd. Address of applicant .................. : No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, China Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Mar 17, 2026 Date of Test Date ........................ : Mar 17, 2026-Mar 31, 2026 Date of Issue .............................. : Apr 02, 2026 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 47 Report No. CTL2601213021-WF01 TEST REPORT Test Report No. : CTL2601213021-WF01 Apr 02, 2026 Date of issue Equipment under Test : Bluetooth 2D Barcode Scanner Sample No : CTL260121302002, CTL260121302003, CTL260121302005, CTL260121302006 Model /Type : 5380 Listed Models : X81-*, X81, X80, X80-*, X81PE, X82, X82-*, X82P, X82PE, ICW9X81, ICW9X82-*, ICW9X82, ICW9X81P, ICW9X81-*, ICW9X81PE, ICW9X82P, ICW9X82PE, X61, X62, ICW9X61, ICW9X62, X61E, X61-*, X62E, X61-*, 21**, 2108, 2108BT, BT2130, 22**, 2200, 2208, 2200HS, 2200BT, 26**, 2600, 2600N, 2600NHS, 2620, 2620BT, 28**, 2800, 2830, 2330, 33**, 3300, 51**, 5100, 5102, 5108, 5100HS, 5120HS, 5130, 5130HS, 5130BT, 5190, 52**, 5200, 5203HS, 5230, 5208, 5280, 53**, 5300, 5301, 5308, 5330, 5331, 5380, 5608, 72**, 7200, 7202, 7201, 7209, 7290, 7250, 73**, 7330, 7350, 7301, 77**, 7700, 7708, 78**, 7800, 8160, 820V, 5308Ex, 5380Ex, 11**, 1120, 1600, 2102, 2230, 23**, 2300, 24**, 2400, 31**, 3100, 3102, 41**, 4100, 4108, 4108WP, 42**, 4200, 4205, 4210, 43**, 4300, 44**, 4400, 61**, 6102, 6105, 6160, 6150, 70**, 7022, 71**, 7110, 7120, 7130, 7132, 7138, 7139, 7150, 7160, 7161, 7163, 7166, 7167, 7167FC, 7168, 7169, 7180, 7181, 7181, 7182, 7183, 7190, 7299, 7299S, 76**, 7600, 7707, 72BS, 72CJ, 73MINI, 73IS, WS71, 81**, 8100, RS32, FS02, C2**, C20DE, C25E, ICW5**, ICW50, ICW6**, ICW60S, ICW62, ICW64, ICW7**, ICW70, ICW70I, ICW74, ICE74XP, ICW75, ICW76, V3**, V30, V30E, X2**, X20, X23, X25, X26, X27L, X30, X35, ICW50DE, ICW72, ICW74P, ICW74EPro, ICW76Pro, ICW95208, ICW95280, ICW9820V, ICW98160, ICWV2000, ICWV7000, IA280,S5**, S5020MC, SV5**, SV5020MA, SV6000, SV7000, SV7050, ICW5**, ICW5020MC, ICWV5*, ICWV5020MC, ICW7*, ICW7020MC, ICWV7*, ICWV7020MC, ICWV7024,SV2**, SV2000, VC-S**, VC-S3, VC-ICW**, VC-ICW2, HC**, HC835, HC845, HC855, H200 Applicant : Suzhou Supermax Smart System Co.,Ltd. Address : No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, China Manufacturer : Suzhou Supermax Smart System Co.,Ltd. Address : No.18 Fujingtian Road, Suzhou Industrial Park , Jiangsu, V1.0 Page 3 of 47 Report No. CTL2601213021-WF01 China Test result Pass * *In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 4 of 47 Report No. CTL2601213021-WF01 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release Apr 02, 2026 CTL2601213021-WF01 Tracy Qi V1.0 Page 5 of 47 Report No. CTL2601213021-WF01 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 6 1.1. TEST STANDARDS ..................................................................................................................................................... 6 1.2. TEST DESCRIPTION ........................................................................................................................................................ 6 1.3. TEST FACILITY .............................................................................................................................................................. 7 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 7 2. GENERAL INFORMATION .......................................................................................................................................... 9 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 9 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 9 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY ..........................…

Text truncated - open the document above for the full version.

V1.0 Page 46 of 47 Report No. CTL2601213021-WF01 V1.0 Page 47 of 47 Report No. CTL2601213021-WF01 ********************** End of Report **********************

Shenzhen CTL Testing Technology Co., Ltd. Fl.A1, Bldg.A3, No.2533 GuanGuang Road, Fenghuang Community Fenghuang Street, Guangming District, Shenzhen, Guangdong, PR.C Tel: +86-755-89486194 E-mail: [email protected] Page 1 / 33 Annex for Bluetooth Low Energy Test Report No.: CTL2601213021-WF01 TABLE OF CONTENTS 1. Duty Cycle ......................................................................................................................................... 3 1.1 Test Result ............................................................................................................................... 3 1.1.1 Ant1 ................................................................................................................................ 3 1.2 Test Graph ................................................................................................................................ 4 1.2.1 Ant1 ................................................................................................................................ 4 2.1 Test Result ............................................................................................................................... 8 2.1.1 OBW ............................................................................................................................... 8 2.1.2 6dB BW .......................................................................................................................... 8 2.2 Test Graph ................................................................................................................................ 9 2.2.1 OBW ............................................................................................................................... 9 3. Maximum Conducted Output Power ................................................................................................ 17 3.1 Test Result ............................................................................................................................. 17 3.1.1 Power ........................................................................................................................... 17 4. Maximum Power Spectral Density ................................................................................................... 18 4.1 Test Result ............................................................................................................................. 18 4.1.1 PSD .............................................................................................................................. 18 4.2 Test Graph .............................................................................................................................. 19 4.2.1 PSD .............................................................................................................................. 19 5.1 Test Result ............................................................................................................................. 23 Shenzhen CTL Testing Technology Co., Ltd. Fl.A1, Bldg.A3, No.2533 GuanGuang Road, Fenghuang Community Fenghuang Street, Guangming District, Shenzhen, Guangdong, PR.C Tel: +86-755-89486194 E-mail: [email protected] Page 2 / 33 5.1.1 Ref ................................................................................................................................ 23 5.1.2 CSE .............................................................................................................................. 23 5.2 Test Graph .............................................................................................................................. 24 5.2.1 Ref ................................................................................................................................ 24 Annex for Bluetooth Low Energy Test Report No.: CTL2601213021-WF01 FCC ID: 2BD8N-5380 Page 3 / 33 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.170 2.503 86.70 0.62 0.11 2440 2.167 2.500 86.68 0.62 0.03 2480 2.165 2.500 86.60 …
