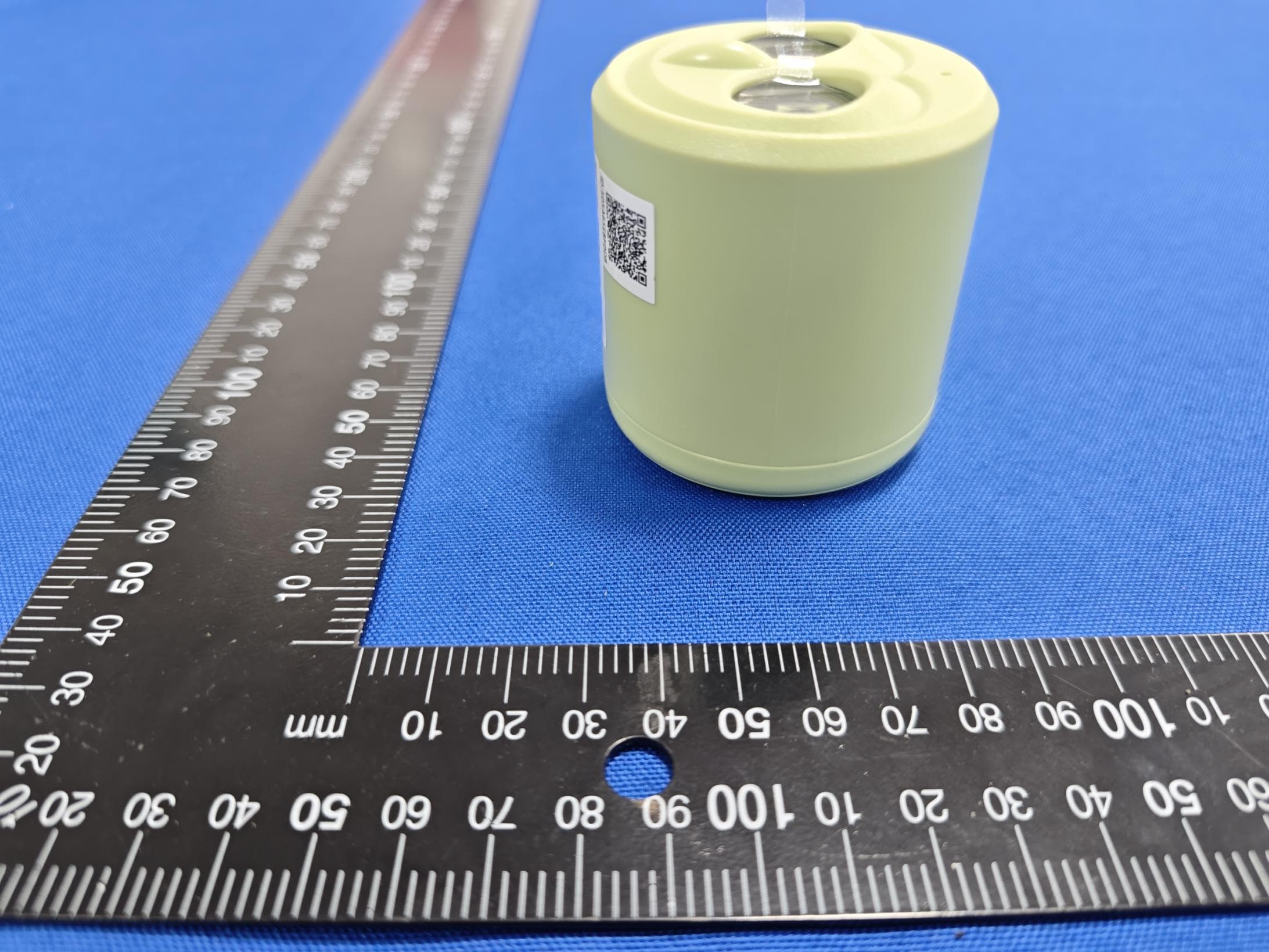

Shenzhen BANTEK Testing Co., Ltd. Page 1 of 5 Report No.: BTEK230923004AE Appendix EUT Photos for BTEK230923004AE Shenzhen BANTEK Testing Co., Ltd. Page 2 of 5 Report No.: BTEK230923004AE EUT Constructional Details (EUT Photos) Shenzhen BANTEK Testing Co., Ltd. Page 3 of 5 Report No.: BTEK230923004AE Shenzhen BANTEK Testing Co., Ltd. Page 4 of 5 Report No.: BTEK230923004AE Shenzhen BANTEK Testing Co., Ltd. Page 5 of 5 Report No.: BTEK230923004AE

________________________________________________________________________________ _________ LABEL AND LOCATION Label Location

Shenzhen BANTEK Testing Co., Ltd. Page 1 of 5 Report No.:BTEK230923004AE Appendix EUT Photos for BTEK230923004AE Shenzhen BANTEK Testing Co., Ltd. Page 2 of 5 Report No.: BTEK230923004AE EUT Constructional Details (EUT Photos) ANT Shenzhen BANTEK Testing Co., Ltd. Page 3 of 5 Report No.: BTEK230923004AE Shenzhen BANTEK Testing Co., Ltd. Page 4 of 5 Report No.: BTEK230923004AE Shenzhen BANTEK Testing Co., Ltd. Page 5 of 5 Report No.: BTEK230923004AE

地址(ADD)：深圳市宝安区留仙大道1号安通达工业园4栋5楼 电话（TEL）：0755-8603101186030933传真(FAX)：0755-86033315 网址（WEB）：www.shenzhenguyang.com 产品规格承认书 Productspecificationsacknowledgment 承认厂商 ： (Recognizedmanufacturers) 制造厂商 ： Shenzhen Guyang Communication Technology CO., LTD （ Manufacturer ） 产品名称 ： WIFI Bar ant （ Description ） （ ProductType 产品型号 ： WIFI2.4/5.8G Double frequency pantong color number 9U bar antenna 5DB-nickel-plated inner needle ） The Supplier acknowledges the signature column table makerassessorapproved The Client acknowledges the signature column assessorapproved 地址(ADD)：深圳市宝安区留仙大道1号安通达工业园4栋5楼网址(WEB)：www.shenzhenguyang.com 电话(TEL)：0755-86031011/86037033传真(FAX)：0755-86033315 第 2 页 共 6 页 一、产品技术参数 主要技术指标 Maintechnicalspecifications 频率范围 （MHZ） 2400~2500\ 5150~5850 FrequencyRange (MHZ) 2400~2500\ 5150~5850 特性阻抗(Ω) 50Impedance(Ω)50 增益(dBi) Gain(dBi 5 ) 输出电压 驻波 5 比 ≤1.92 VSWR ≤1.92 最大功率 10WAdmittedPower10W 极化方式 垂直极化PolarizationLinear,Vertical 连接方式 SMAConnectorTypeSMA 物理性能PhysicalProperties 天线本体材料 TPEEAntennaBaseTPEE 工作温度 -20 °C ~+65 °C OperatingTemp-20 °C ~+65 °C 保存温度 -40°C~+85°CStorageTemp-40°C~+85°C 地址(ADD)：深圳市宝安区留仙大道1号安通达工业园4栋5楼网址(WEB)：www.shenzhenguyang.com 电话(TEL)：0755-86031011/86037033传真(FAX)：0755-86033315 第 3 页 共 6 页 二、成品图： 地址(ADD)：深圳市宝安区留仙大道1号安通达工业园4栋5楼网址(WEB)：www.shenzhenguyang.com 电话(TEL)：0755-86031011/86037033传真(FAX)：0755-86033315 第 4 页 共 6 页 三、测试报告 3.1：网络分析仪测试报告: 3.2：暗室2D、3DRaditationPattern 2.4GHzGain:4.52dBiEfficiency:70.15% 2.45GHzGain:4.64dBiEfficiency:73.23% 地址(ADD)：深圳市宝安区留仙大道1号安通达工业园4栋5楼网址(WEB)：www.shenzhenguyang.com 电话(TEL)：0755-86031011/86037033传真(FAX)：0755-86033315 第 5 页 共 6 页 2.5GHzEfficiency:74.09Gain: 5 .00dBi% 5.15GHzGain:4.58dBiEfficiency:70.86% 5.35GHzGain:4.65dBiEfficiency:70.49% 5.75GHzEfficiency:71.61Gain: 5 .00dBi% 地址(ADD)：深圳市宝安区留仙大道1号安通达工业园4栋5楼网址(WEB)：www.shenzhenguyang.com 电话(TEL)：0755-86031011/86037033传真(FAX)：0755-86033315 第 6 页 共 6 页 5.825GHzGain:4.68dBiEfficiency:72.37%

Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE002 Page: 1 of 45 FCC ID: 2BD9Q-HIBIRD TEST REPORT Application No.: BTEK230923004AE Applicant: Camojojo, INC. Address of Applicant: 3311 S RAINBOW STE 105, Las Vegas, NV, 89146, USA Manufacturer: Camojojo, INC. Address of Manufacturer: 3311 S RAINBOW STE 105, Las Vegas, NV, 89146, USA Factory: SY Electronic Technical Co.,Ltd. Address of Factory: 5th floor, 4th Bldg, Antongda Industrial Park, 1 Liuxian 3rd Rd, Baoan Dist., Shenzhen, China Equipment Under Test (EUT): EUT Name: Bird Feeder Camera Model No.: hibird Trade Mark: Standard(s) : 47 CFR Part 15, Subpart E 15.407 Date of Receipt: 2023-10-31 Date of Test: 2023-10-31 to 2023-12-18 Date of Issue: 2023-12-18 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE002 Page: 2 of 45 Revision Record Version Chapter Date Modifier Remark 01 2023-12-18 Original Authorized for issue by: Elma Yang/ Project Engineer Carl Yang /Reviewer Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE002 Page: 3 of 45 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.203 Pass Transmission in the Absence of Data N/A 47 CFR Part 15, Subpart E 15.407 (c) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart E 15.407 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 & Subpart E 15.407 b(9) Pass Duty Cycle KDB 789033 II B 1 KDB 789033 D02 II B 1 Pass 99% Bandwidth KDB 789033 II D N/A Pass 26dB Emission bandwidth KDB 789033 D02 II C 1 47 CFR Part 15, Subpart E 15.407 (a) Pass Minimum 6 dB bandwidth (5.725- 5.85 GHz band ) KDB 789033 D02 II C 2 47 CFR Part 15, Subpart E 15.407 (e) Pass Maximum Conducted output power KDB 789033 D02 II E 47 CFR Part 15, Subpart E 15.407 (a) Pass Power spectrum density KDB 789033 D02 II F 47 CFR Part 15, Subpart E 15.407 (a) Pass Radiated Emissions (Below 1GHz) KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & Subpart E 15.407(b) Pass Radiated Emissions (Above 1GHz) KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & Subpart E 15.407(b) Pass Radiated Emissions which fall in the restricted bands KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & Subpart E 15.407(b) Pass Frequency Stability ANSI C63.10 (2013) Section 6.8 47 CFR Part 15, Subpart E 15.407 (g) Pass Transmitter Power Control KDB 789033 D02 II E 47 CFR Part 15, Subpart E 15.407 (h)(1) Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE002 Page: 4 of 45 3 Contents Page 1 Cover Page ................................................................................................................................................ 1 2 Test Summary ................................................................................................................................................. 3 3 Contents .......................................................................................................................................................... 4 4 General Information ....................................................................................................................................... 6 4.1 Details of E.U.T. ........................................................................................................................................ 6 4.2 Description of Support Units ..................................................................................................................... 6 4.3 Measurement Uncertainty ......................................................................................................................... 7 4.4 Test Location ............................................................................................................................................. 8 4.5 Deviation from Standards .......................................................................................................................... 8 4.6 Abnormalities from Standard Conditions .................................................................................................. 8 5 Equipment List ................................................................................................................................................ 9 6 Radio Spectrum Technical Requirement ................................................................................................... 11 6.1 Antenna Requirement ............................................................................................................................. 11 6.1.1 Test Requirement: ........................................................................................................................... 11 6.1.2 Conclusion ....................................................................................................................................... 11 6.2 Transmission in the Absence of Data ..................................................................................................... 12 6.2.1 Test Requirement: ........................................................................................................................... 12 6.2.2 Conclusion ....................................................................................................................................... 12 7 Radio Spectrum Matter Test Results .......................................................................................................... 13 7.1 Conducted Emissions at AC Power Line (150kHz-30MHz) ..........................................................…

Text truncated - open the document above for the full version.

Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE004 Page: 1 of 25 FCC ID: 2BD9Q-HIBIRD DFS TEST REPORT Application No.: BTEK230923004AE Applicant: Camojojo, INC. Address of Applicant: 3311 S RAINBOW STE 105, Las Vegas, NV, 89146, USA Manufacturer: Camojojo, INC. Address of Manufacturer: 3311 S RAINBOW STE 105, Las Vegas, NV, 89146, USA Factory: SY Electronic Technical Co.,Ltd. Address of Factory: 5th floor, 4th Bldg, Antongda Industrial Park, 1 Liuxian 3rd Rd, Baoan Dist., Shenzhen, China Equipment Under Test (EUT): Product Name: Bird Feeder Camera Model No.: hibird Trade Mark: Standard(s) : 47 CFR Part 15, Subpart E 15.407 KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 KDB 905462 D04 Operational Modes for DFS Testing New Rules v01 Date of Receipt: 2023-10-31 Date of Test: 2023-10-31 to 2023-12-18 Date of Issue: 2023-12-18 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. . Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE004 Page: 2 of 25 Revision Record Version Chapter Date Modifier Remark 01 2023-12-18 Original Authorized for issue by: Elma Yang/ Project Engineer Carl Yang /Reviewer Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE004 Page: 3 of 25 2 Test Summary Item Tested Bandwidth and Channel Limit Result Bandwidth (MHz) / mode Frequency (MHz) / Channel No. Channel Availability Check Time 20/ 802.11a 5260 / 52 ≥ 60sec N/A U-NII Detection Bandwidth 20 / 802.11a 5260 / 52 > 100% of the U-NII 99% transmission power bandwidth N/A Statistical Performance Check 20 / 802.11a 5260 / 52 Type 1 ~ 4 ≥ 60% Type 1 ~ 4 and 5 ≥ 80% Type 6 ≥ 70% N/A Channel Move Time 20 / 802.11a 5260 / 52 ≤ 10sec Pass Channel Closing Transmission Time 20 / 802.11a 5260 / 52 ≤ 200ms + aggregate of 60ms over remaining 10sec period Pass Non-Occupancy Period Test 20 / 802.11a 5260 / 52 ≥ 30 minutes Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. Timing plots are required with calculations demonstrating a minimum channel loading of approximately 17% or greater. Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE004 Page: 4 of 25 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 Test Summary ................................................................................................................................................. 3 3 Contents .......................................................................................................................................................... 4 4 General Information ....................................................................................................................................... 5 4.1 Details of E.U.T. ........................................................................................................................................ 5 4.2 Description of Support Units ..................................................................................................................... 6 4.3 Measurement Uncertainty ......................................................................................................................... 6 4.4 Test Location ............................................................................................................................................. 7 4.5 Deviation from Standards .......................................................................................................................... 7 4.6 Abnormalities from Standard Conditions .................................................................................................. 7 5 Equipment List ................................................................................................................................................ 8 6 Requirements and Parameters for DFS test ................................................................................................ 9 6.1 Applicability of DFS requirements ............................................................................................................. 9 6.2 DFS Detection Thresholds ...................................................................................................................... 10 6.3 DFS Response Requirements ................................................................................................................ 10 6.4 RADAR TEST WAVEFORMS ................................................................................................................. 11 6.4.1 Short Pulse Radar Test Waveforms ................................................................................................ 11 6.4.2 Long Pulse Radar Test Waveforms ................................................................................................. 13 6.4.3 Frequency Hopping Radar Test Waveforms ................................................................................... 13 7 Calibration of Radar Waveform ................................................................................................................... 15 7.1 Radar Waveform Calibration Procedure ................................................................................................. 15 7.2 Conducted Calibration Setup .................................................................................................................. 15 7.3 Radar Waveform Calibration Result ........................................................................................................ 16 8 DFS Test Results .......................................................................................................................................... 20 8.1 In-Service Monitoring for Channel Move Time, Channel Closing Trans…

Text truncated - open the document above for the full version.

Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 1 of 40 Appendix UNII-1 Wi-Fi 5G Test Dat5GWIFI Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 2 of 40 1. -26dB and 99% Emission Bandwidth Condition Antenna Modulation Frequency(MHz) - 26dB_Emission_Bandwidth(MHz) Occupied Bandwidth(MHz) NVNT ANT1 802.11a 5180.00 21.77 17.72 NVNT ANT1 802.11a 5200.00 21.53 16.45 NVNT ANT1 802.11a 5240.00 21.50 16.44 NVNT ANT1 802.11n(HT20) 5180.00 21.69 17.71 NVNT ANT1 802.11n(HT20) 5200.00 21.63 17.73 NVNT ANT1 802.11n(HT20) 5240.00 21.60 17.78 NVNT ANT1 802.11ac(VHT20) 5180.00 21.62 17.73 NVNT ANT1 802.11ac(VHT20) 5200.00 21.70 17.73 NVNT ANT1 802.11ac(VHT20) 5240.00 21.77 17.68 99%_OCB_NVNT_ANT1_802_11a_5180 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 3 of 40 -26BW_NVNT_ANT1_802_11a_5180 99%_OCB_NVNT_ANT1_802_11a_5200 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 4 of 40 -26BW_NVNT_ANT1_802_11a_5200 99%_OCB_NVNT_ANT1_802_11a_5240 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 5 of 40 -26BW_NVNT_ANT1_802_11a_5240 99%_OCB_NVNT_ANT1_802_11n(HT20)_5180 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 6 of 40 -26BW_NVNT_ANT1_802_11n(HT20)_5180 99%_OCB_NVNT_ANT1_802_11n(HT20)_5200 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 7 of 40 -26BW_NVNT_ANT1_802_11n(HT20)_5200 99%_OCB_NVNT_ANT1_802_11n(HT20)_5240 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 8 of 40 -26BW_NVNT_ANT1_802_11n(HT20)_5240 99%_OCB_NVNT_ANT1_802_11ac(VHT20)_5180 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 9 of 40 -26BW_NVNT_ANT1_802_11ac(VHT20)_5180 99%_OCB_NVNT_ANT1_802_11ac(VHT20)_5200 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 10 of 40 -26BW_NVNT_ANT1_802_11ac(VHT20)_5200 99%_OCB_NVNT_ANT1_802_11ac(VHT20)_5240 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 11 of 40 -26BW_NVNT_ANT1_802_11ac(VHT20)_5240 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 12 of 40 2. Duty Cycle Condition Antenna Modulation Frequency (MHz) Duty cycle(%) Duty_factor NVNT ANT1 802.11a 5180.00 61.54 2.11 NVNT ANT1 802.11a 5200.00 64.29 1.92 NVNT ANT1 802.11a 5240.00 64.29 1.92 NVNT ANT1 802.11n(HT20) 5180.00 57.14 2.43 NVNT ANT1 802.11n(HT20) 5200.00 61.54 2.11 NVNT ANT1 802.11n(HT20) 5240.00 64.29 1.92 NVNT ANT1 802.11ac(VHT20) 5180.00 53.85 2.69 NVNT ANT1 802.11ac(VHT20) 5200.00 53.85 2.69 NVNT ANT1 802.11ac(VHT20) 5240.00 61.54 2.11 Duty_Cycle_NVNT_ANT1_802_11a_5180 Duty_Cycle_NVNT_ANT1_802_11a_5200 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 13 of 40 Duty_Cycle_NVNT_ANT1_802_11a_5240 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_5180 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 14 of 40 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 15 of 40 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_5200 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_5240 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 16 of 40 Duty_Cycle_NVNT_ANT1_802_11ac(VHT20)_5180 Duty_Cycle_NVNT_ANT1_802_11ac(VHT20)_5200 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 17 of 40 Duty_Cycle_NVNT_ANT1_802_11ac(VHT20)_5240 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 18 of 40 3. Maximum Conducted Output Power Condition Antenna Modulation Frequency (MHz) Conducted Power(dBm) Duty factor(dB) Total Power(dBm) limit(dBm) Result NVNT ANT1 802.11a 5180.00 4.89 2.11 7.00 24 Pass NVNT ANT1 802.11a 5200.00 8.45 1.92 10.37 24 Pass NVNT ANT1 802.11a 5240.00 8.65 1.92 10.57 24 Pass NVNT ANT1 802.11n(HT20) 5180.00 8.01 2.43 10.44 24 Pass NVNT ANT1 802.11n(HT20) 5200.00 8.43 2.11 10.54 24 Pass NVNT ANT1 802.11n(HT20) 5240.00 8.66 1.92 10.58 24 Pass NVNT ANT1 802.11ac(VHT20) 5180.00 7.27 2.69 9.96 24 Pass NVNT ANT1 802.11ac(VHT20) 5200.00 7.37 2.69 10.06 24 Pass NVNT ANT1 802.11ac(VHT20) 5240.00 7.49 2.11 9.60 24 Pass Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 19 of 40 4. Power Spectral Density Condition Antenna Modulation Frequency (MHz) PSD(dBm/MHz) Duty factor(dB) Total PSD(dBm/MHz) limit(dBm) Result NVNT ANT1 802.11a 5180.00 -6.20 2.11 -4.09 11 Pass NVNT ANT1 802.11a 5200.00 -2.33 1.92 -0.41 11 Pass NVNT ANT1 802.11a 5240.00 -1.73 1.92 0.19 11 Pass NVNT ANT1 802.11n(HT20) 5180.00 -2.68 2.43 -0.25 11 Pass NVNT ANT1 802.11n(HT20) 5200.00 -2.58 2.11 -0.47 11 Pass NVNT ANT1 802.11n(HT20) 5240.00 -2.42 1.92 -0.50 11 Pass NVNT ANT1 802.11ac(VHT20) 5180.00 -3.79 2.69 -1.10 11 Pass NVNT ANT1 802.11ac(VHT20) 5200.00 -3.54 2.69 -0.85 11 Pass NVNT ANT1 802.11ac(VHT20) 5240.00 -3.23 2.11 -1.12 11 Pass Power_Spectral_Density_NVNT_ANT1_802_11a_5180 Power_Spectral_Density_NVNT_ANT1_802_11a_5200 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 20 of 40 Power_Spectral_Density_NVNT_ANT1_802_11a_5240 Power_Spectral_Density_NVNT_ANT1_802_11n(HT20)_5180 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 21 of 40 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 22 of 40 Power_Spectral_Density_NVNT_ANT1_802_11n(HT20)_5200 Power_Spectral_Density_NVNT_ANT1_802_11n(HT20)_5240 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 23 of 40 Power_Spectral_Density_NVNT_ANT1_802_11ac(VHT20)_5180 Power_Spectral_Density_NVNT_ANT1_802_11ac(VHT20)_5200 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 24 of 40 Power_Spectral_Density_NVNT_ANT1_802_11ac(VHT20)_5240 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 25 of 40 5. Bandedge Condition Antenna Modulation TX_Frequency (MHz) Max. Mark Frequency(MHz) Spurious level(dBm) limit(dBm) Result NVNT ANT1 802.11a 5180.00 5149.00 -40.49 -27 Pass NVNT ANT1 802.11a 5240.00 5374.80 -43.98 -27 Pass NVNT ANT1 802.11n(HT20) 5180.00 5149.20 -35.10 -27 Pass NVNT ANT1 802.11n(HT20) 5240.00 5409.00 -44.10 -27 Pass NVNT ANT1 802.11ac(VHT20)…

Text truncated - open the document above for the full version.

Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 1 of 36 Appendix UNII-2A Wi-Fi 5G Test Dat5GWIFI Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 2 of 36 1. -26dB and 99% Emission Bandwidth Condition Antenna Modulation Frequency(MHz) - 26dB_Emission_Bandwidth(MHz) Occupied Bandwidth(MHz) NVNT ANT1 802.11a 5260.00 21.62 16.47 NVNT ANT1 802.11a 5300.00 21.68 16.45 NVNT ANT1 802.11a 5320.00 21.59 16.45 NVNT ANT1 802.11n(HT20) 5260.00 21.65 17.74 NVNT ANT1 802.11n(HT20) 5300.00 21.90 17.73 NVNT ANT1 802.11n(HT20) 5320.00 22.06 17.71 NVNT ANT1 802.11ac(VHT20) 5260.00 21.55 17.72 NVNT ANT1 802.11ac(VHT20) 5300.00 21.80 17.74 NVNT ANT1 802.11ac(VHT20) 5320.00 21.54 17.74 99%_OCB_NVNT_ANT1_802_11a_5260 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 3 of 36 -26BW_NVNT_ANT1_802_11a_5260 99%_OCB_NVNT_ANT1_802_11a_5300 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 4 of 36 -26BW_NVNT_ANT1_802_11a_5300 99%_OCB_NVNT_ANT1_802_11a_5320 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 5 of 36 -26BW_NVNT_ANT1_802_11a_5320 99%_OCB_NVNT_ANT1_802_11n(HT20)_5260 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 6 of 36 -26BW_NVNT_ANT1_802_11n(HT20)_5260 99%_OCB_NVNT_ANT1_802_11n(HT20)_5300 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 7 of 36 -26BW_NVNT_ANT1_802_11n(HT20)_5300 99%_OCB_NVNT_ANT1_802_11n(HT20)_5320 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 8 of 36 -26BW_NVNT_ANT1_802_11n(HT20)_5320 99%_OCB_NVNT_ANT1_802_11ac(VHT20)_5260 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 9 of 36 -26BW_NVNT_ANT1_802_11ac(VHT20)_5260 99%_OCB_NVNT_ANT1_802_11ac(VHT20)_5300 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 10 of 36 -26BW_NVNT_ANT1_802_11ac(VHT20)_5300 99%_OCB_NVNT_ANT1_802_11ac(VHT20)_5320 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 11 of 36 -26BW_NVNT_ANT1_802_11ac(VHT20)_5320 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 12 of 36 2. Duty Cycle Condition Antenna Modulation Frequency(MHz) Duty cycle(%) Duty_factor NVNT ANT1 802.11a 5260.00 64.29 1.92 NVNT ANT1 802.11a 5300.00 60.00 2.22 NVNT ANT1 802.11a 5320.00 64.29 1.92 NVNT ANT1 802.11n(HT20) 5260.00 61.54 2.11 NVNT ANT1 802.11n(HT20) 5300.00 57.14 2.43 NVNT ANT1 802.11n(HT20) 5320.00 61.54 2.11 NVNT ANT1 802.11ac(VHT20) 5260.00 61.54 2.11 NVNT ANT1 802.11ac(VHT20) 5300.00 53.85 2.69 NVNT ANT1 802.11ac(VHT20) 5320.00 53.85 2.69 Duty_Cycle_NVNT_ANT1_802_11a_5260 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 13 of 36 Duty_Cycle_NVNT_ANT1_802_11a_5300 Duty_Cycle_NVNT_ANT1_802_11a_5320 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 14 of 36 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_5260 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_5300 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 15 of 36 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_5320 Duty_Cycle_NVNT_ANT1_802_11ac(VHT20)_5260 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 16 of 36 Duty_Cycle_NVNT_ANT1_802_11ac(VHT20)_5300 Duty_Cycle_NVNT_ANT1_802_11ac(VHT20)_5320 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 17 of 36 3. Maximum Conducted Output Power Condition Antenna Modulation Frequency (MHz) Conducted Power(dBm) Duty factor(dB) Total Power(dBm) limit(dBm) Result NVNT ANT1 802.11a 5260.00 9.04 1.92 10.96 24 Pass NVNT ANT1 802.11a 5300.00 8.55 2.22 10.77 24 Pass NVNT ANT1 802.11a 5320.00 8.57 1.92 10.49 24 Pass NVNT ANT1 802.11n(HT20) 5260.00 9.00 2.11 11.11 24 Pass NVNT ANT1 802.11n(HT20) 5300.00 8.53 2.43 10.96 24 Pass NVNT ANT1 802.11n(HT20) 5320.00 8.33 2.11 10.44 24 Pass NVNT ANT1 802.11ac(VHT20) 5260.00 8.13 2.11 10.24 24 Pass NVNT ANT1 802.11ac(VHT20) 5300.00 7.53 2.69 10.22 24 Pass NVNT ANT1 802.11ac(VHT20) 5320.00 7.74 2.69 10.43 24 Pass Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 18 of 36 4. Power Spectral Density Condition Antenna Modulation Frequency (MHz) PSD(dBm/MHz) Duty factor(dB) Total PSD(dBm/MHz) limit(dBm) Result NVNT ANT1 802.11a 5260.00 -1.50 1.92 0.42 11 Pass NVNT ANT1 802.11a 5300.00 -2.36 2.22 -0.14 11 Pass NVNT ANT1 802.11a 5320.00 -2.21 1.92 -0.29 11 Pass NVNT ANT1 802.11n(HT20) 5260.00 -2.16 2.11 -0.05 11 Pass NVNT ANT1 802.11n(HT20) 5300.00 -2.83 2.43 -0.40 11 Pass NVNT ANT1 802.11n(HT20) 5320.00 -2.67 2.11 -0.56 11 Pass NVNT ANT1 802.11ac(VHT20) 5260.00 -2.98 2.11 -0.87 11 Pass NVNT ANT1 802.11ac(VHT20) 5300.00 -3.43 2.69 -0.74 11 Pass NVNT ANT1 802.11ac(VHT20) 5320.00 -3.59 2.69 -0.90 11 Pass Power_Spectral_Density_NVNT_ANT1_802_11a_5260 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 19 of 36 Power_Spectral_Density_NVNT_ANT1_802_11a_5300 Power_Spectral_Density_NVNT_ANT1_802_11a_5320 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 20 of 36 Power_Spectral_Density_NVNT_ANT1_802_11n(HT20)_5260 Power_Spectral_Density_NVNT_ANT1_802_11n(HT20)_5300 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 21 of 36 Power_Spectral_Density_NVNT_ANT1_802_11n(HT20)_5320 Power_Spectral_Density_NVNT_ANT1_802_11ac(VHT20)_5260 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 22 of 36 Power_Spectral_Density_NVNT_ANT1_802_11ac(VHT20)_5300 Power_Spectral_Density_NVNT_ANT1_802_11ac(VHT20)_5320 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 23 of 36 5. Bandedge Condition Antenna Modulation TX_Frequency (MHz) Max. Mark Frequency(MHz) Spurious level(dBm) limit(dBm) Result NVNT ANT1 802.11a 5260.00 5058.52 -43.69 -27 Pass NVNT ANT1 802.11a 5320.00 5350.20 -41.49 -27 Pass NVNT ANT1 802.11n(HT20) 5260.00 5042.84 -43.07 -27 Pass NVNT ANT1 802.11n(HT20) 5320.00 5350.20 -36.15 -27 Pass NVNT ANT1 802.11ac(VHT20) 5260.00 5052.64 -43.52 -27 Pass NVNT ANT1 802.11ac(VHT20) 5320.00 5350.20 -37.98 -27 Pass Bandedge_NVNT_ANT1_802_11a_5260 Shenzhen BANTEK Testing Co.,…

Text truncated - open the document above for the full version.

Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 1 of 40 Appendix UNII-2C Wi-Fi 5G Test Dat5GWIFI Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 2 of 40 1. -26dB and 99% Emission Bandwidth Condition Antenna Modulation Frequency(MHz) - 26dB_Emission_Bandwidth(MHz) Occupied Bandwidth(MHz) NVNT ANT1 802.11a 5500.00 21.54 16.44 NVNT ANT1 802.11a 5600.00 21.60 16.44 NVNT ANT1 802.11a 5700.00 21.55 16.44 NVNT ANT1 802.11n(HT20) 5500.00 22.00 17.74 NVNT ANT1 802.11n(HT20) 5600.00 21.80 17.75 NVNT ANT1 802.11n(HT20) 5700.00 21.90 17.76 NVNT ANT1 802.11ac(VHT20) 5500.00 21.90 17.71 NVNT ANT1 802.11ac(VHT20) 5600.00 21.75 17.73 NVNT ANT1 802.11ac(VHT20) 5700.00 21.67 17.70 99%_OCB_NVNT_ANT1_802_11a_5500 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 3 of 40 -26BW_NVNT_ANT1_802_11a_5500 99%_OCB_NVNT_ANT1_802_11a_5600 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 4 of 40 -26BW_NVNT_ANT1_802_11a_5600 99%_OCB_NVNT_ANT1_802_11a_5700 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 5 of 40 -26BW_NVNT_ANT1_802_11a_5700 99%_OCB_NVNT_ANT1_802_11n(HT20)_5500 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 6 of 40 -26BW_NVNT_ANT1_802_11n(HT20)_5500 99%_OCB_NVNT_ANT1_802_11n(HT20)_5600 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 7 of 40 -26BW_NVNT_ANT1_802_11n(HT20)_5600 99%_OCB_NVNT_ANT1_802_11n(HT20)_5700 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 8 of 40 -26BW_NVNT_ANT1_802_11n(HT20)_5700 99%_OCB_NVNT_ANT1_802_11ac(VHT20)_5500 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 9 of 40 -26BW_NVNT_ANT1_802_11ac(VHT20)_5500 99%_OCB_NVNT_ANT1_802_11ac(VHT20)_5600 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 10 of 40 -26BW_NVNT_ANT1_802_11ac(VHT20)_5600 99%_OCB_NVNT_ANT1_802_11ac(VHT20)_5700 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 11 of 40 -26BW_NVNT_ANT1_802_11ac(VHT20)_5700 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 12 of 40 2. Duty Cycle Condition Antenna Modulation Frequency (MHz) Duty cycle(%) Duty_factor NVNT ANT1 802.11a 5500.00 64.29 1.92 NVNT ANT1 802.11a 5600.00 64.29 1.92 NVNT ANT1 802.11a 5700.00 64.29 1.92 NVNT ANT1 802.11n(HT20) 5500.00 57.14 2.43 NVNT ANT1 802.11n(HT20) 5600.00 57.14 2.43 NVNT ANT1 802.11n(HT20) 5700.00 57.14 2.43 NVNT ANT1 802.11ac(VHT20) 5500.00 61.54 2.11 NVNT ANT1 802.11ac(VHT20) 5600.00 58.33 2.34 NVNT ANT1 802.11ac(VHT20) 5700.00 61.54 2.11 Duty_Cycle_NVNT_ANT1_802_11a_5500 Duty_Cycle_NVNT_ANT1_802_11a_5600 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 13 of 40 Duty_Cycle_NVNT_ANT1_802_11a_5700 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_5500 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 14 of 40 Shenzhen BANTEK Testing Co., Ltd. Report No.: BTEK230923004AE Page: 15 of 40 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_5600 Duty_Cycle_NVNT_ANT1_802_11n(HT20)_5700 Shenzhen BANTEK Testing Co., Ltd. Report No.:…
