2BD9Z-CAST-LB540Self-Cleaning Cat Litter Box

Dongguan Cactus Science & Technology Co.,Ltd 3/F, A Bul Jingtian Industrial Park, Nanya Village, Daojiao Town, Dongguan China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/12/26 U.S. Agent Designation Dongguan Cactus Science & Technology Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BD9Z-CAST-LB540): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Dongguan Cactus Science & Technology Co.,Ltd Dongguan Cactus Science & Technology Co.,Ltd with the FRN [0034656264] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Cao Yongzhi Manager Dongguan Cactus Science & Technology Co.,Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Cao Yongzhi/Manager Company: Dongguan Cactus Science & Technology Co.,Ltd Address: 3/F, A Bul Jingtian Industrial Park, Nanya Village, Daojiao Town, Dongguan China Phone: 15920020358 Fax: N/A E-Mail: [email protected]

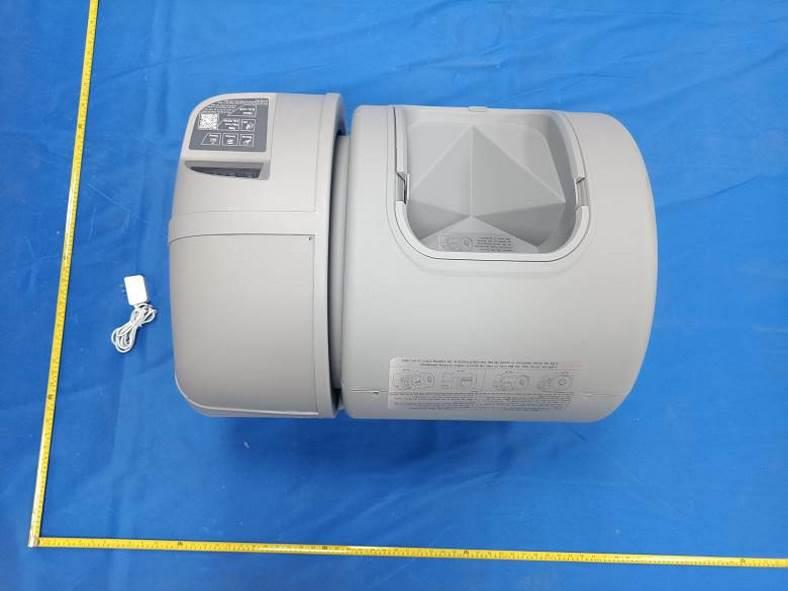

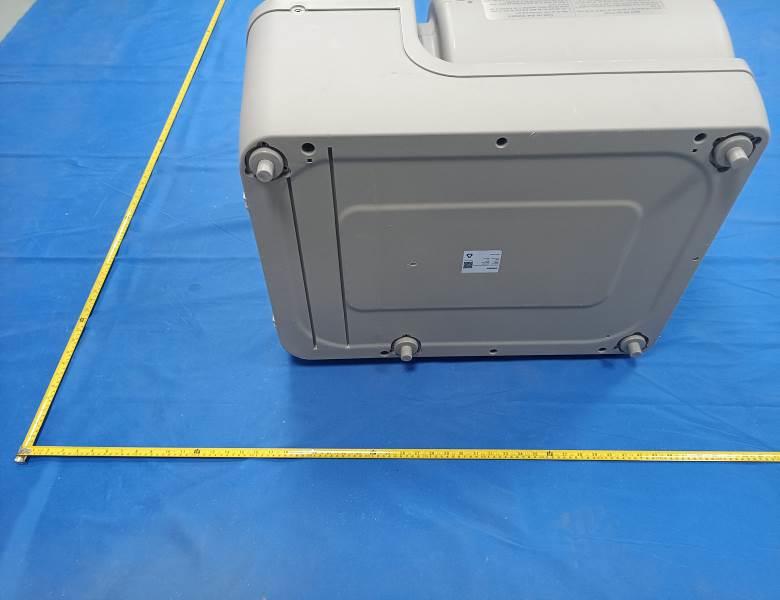

FCC ID: 2BD9Z-CAST-LB540 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BD9Z-CAST-LB540 Photo 4 Photo 5 Photo 6 FCC ID: 2BD9Z-CAST-LB540 Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BD9Z-CAST-LB540

FCC ID: 2BD9Z-CAST-LB540 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BD9Z-CAST-LB540 Photo 4 Photo 5 Photo 6 FCC ID: 2BD9Z-CAST-LB540 Photo 7 Photo 8 Photo 9 FCC ID: 2BD9Z-CAST-LB540 Photo 10 Photo 11 Photo 12 FCC ID: 2BD9Z-CAST-LB540 Photo 13 Photo 14 Photo 15 FCC ID: 2BD9Z-CAST-LB540 Photo 16 Photo 17 Photo 18 FCC ID: 2BD9Z-CAST-LB540 Photo 19 Photo 20 Photo 21 FCC ID: 2BD9Z-CAST-LB540 Photo 22 Photo 23 Photo 24 FCC ID: 2BD9Z-CAST-LB540 Photo 25 Photo 26 Photo 27 FCC ID: 2BD9Z-CAST-LB540 Photo 28 Photo 29 Photo 30 2.4G WIFI/5.8G WIFI PCB Antenna FCC ID: 2BD9Z-CAST-LB540 Photo 31

RF Exposure evaluation FCC ID: 2BD9Z-CAST-LB540 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information CAST-LB540 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PCB antenna 1.95dBi for 2400-2500MHz 5.8GWIFI / PCB antenna 2.64dBi for 5745-5825MHz 5. Manufacturing Tolerance 2.4GWIFI Mode Max. Peak Conducted Output Power (dBm) Max. tune-up 2.4GWIFI 13.39 13±1 5.8GWIFI Mode Max. Average Conducted Output Power (dBm) Max. tune-up 5.8GWIFI 12.73 13±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 14.0 25.1189 1.95 1.5668 0.0078 1.0000 5.8GWIFI 14.0 25.1189 2.64 1.8365 0.0092 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Shenzhen South Star Technology Co. Ltd. Shanghai South Star Technology Co. Ltd. SPECIFICATION FOR APPROVAL CUSTOMER : PART NAME : PART NO. : NDX NO. : REV. : Shenzhen southstar technology.co.,LTD 深圳市南斗星科技有限公司 Address：No.1606,Build C6,HengFeng industrial city,xixiang street,baoan district,Shenzhen Shenzhen southstar technology co., LTD. Shanghai branch 深圳市南斗星科技有限公司上海分公司 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai WBR3D PCB Antenna 2.4G- 5.8G TUYA CONTENTS Item Description Page 1. ... ...............天线规格表........................1 2. ....................测试报告 ..........................3~11 Antenna Assembly Specification(With housing) 1.Electrical Properties 1.1 Frequecy range.............................................2.412~2.472GHz 1.2 Impedance.......................................................50Ω Norminal 1.3 VSWR ................................................................ ...<2 1.4 Radiation................................................................Omni 1.5 Gain(Peak).............................................................1dBi 1.6 Polarization............................................................Linear 1.7 Admitted Power.....................................................1W 1.8 Connector...............................................................MHF 2.Physical Properties 2.1 Working Temperature.........................................-20°C~+65°C 2.2 Storage Temperature...........................................-30°C~+75°C Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai Antenna Design for 2.4G-5.8G Document NumberNDX-1908020 Released Date20/08/2019 AuthorMingchao Zhang Review ByZhongyi Zhao Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai Revised History DateVersionRevised Recored 20/08/20191.00 1st Released Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai 1.Antennas' setup and enviroment With housing 板载2.4G-5.8G Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai 2.Analyzer Measurement 2.1 Ant 2.4G -5.8G S11 VSWR Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai 3.Gain & Patterns test results 3.1 Measurement setting 示范XYZ轴坐标 Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai 3.2 Ant 2.4G 3D Patterns Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai 3.2 Ant 5.8G 3D Patterns Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai 3.2 Ant 2.4G WIFI 2D Patterns Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai 3.2 Ant 5.8G WIFI 2D Patterns Shenzhen South Star Technology Co. Ltd. 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai 4. 2.4G WIFI Peak Gain & Efficiency FreqEffiEffiGain (MHz)(%)(dB)(dBi) 240021.72-6.630.47 241024.64-6.081.17 242027.86-5.551.95 243026.18-5.821.71 244024.58-6.091.5 245023.27-6.331.17 246024.25-6.151.22 247021.7-6.630.55 248019.44-7.11-0.22 249016.86-7.73-1.02 510032.86-4.831.22 520039.24-4.061.97 530032.14-4.931.08 540054.54-2.632.64 550033.93-4.691.6 560034.27-4.650.65 570030.77-5.12-0.76 580035.7-4.47-0.84

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23121200701 2BD9Z-CAST-LB540 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 21, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Dongguan Cactus Science & Technology Co.,Ltd Address ............................................ : 3/F, A Bul Jingtian Industrial Park, Nanya Village, Daojiao Town, Dongguan China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Self-Cleaning Cat Litter Box Trade Mark ....................................... : DAKERES, Lohhuby, Mintakawa, Cegimus, UPFAS, Lohhuby, Mintakawa, Cegimus, UPFAS Manufacturer .................................... : Dongguan Cactus Science & Technology Co.,Ltd Model/Type reference ...................... : CAST-LB540 Listed Models .................................. : CAST-LB540A, CAST-LB540B, CAST-LB540C, CAST-LB540D, CAST-LB540E, CAST-LB500, CAST-LB500A, CAST-LB500B, CAST-LB500C, CAST-LB500D, CAST-LB500E, CAST-LB540A, CAST-LB540B, CAST-LB540C, CAST-LB540D, CAST-LB540E, CAST-LB500, CAST-LB500A, CAST-LB500B, CAST-LB500C, CAST-LB500D, CAST-LB500E Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA23121200701 Page 2 of 48 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Self-Cleaning Cat Litter Box Model /Type : CAST-LB540 Listed Models : CAST-LB540A, CAST-LB540B, CAST-LB540C, CAST-LB540D, CAST-LB540E, CAST-LB500, CAST-LB500A, CAST-LB500B, CAST-LB500C, CAST-LB500D, CAST-LB500E, CAST-LB540A, CAST-LB540B, CAST-LB540C, CAST-LB540D, CAST-LB540E, CAST-LB500, CAST-LB500A, CAST-LB500B, CAST-LB500C, CAST-LB500D, CAST-LB500E Applicant : Dongguan Cactus Science & Technology Co.,Ltd Address : 3/F, A Bul Jingtian Industrial Park, Nanya Village, Daojiao Town, Dongguan China Manufacturer : Dongguan Cactus Science & Technology Co.,Ltd Address : 3/F, A Bul Jingtian Industrial Park, Nanya Village, Daojiao Town, Dongguan China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23121200701 Page 3 of 48 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 P H O T O S O F T H E E U T ........................................................... 36 Report No.: CTA23121200701 Page 4 of 48 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according …

Text truncated - open the document above for the full version.

FCC ID: 2BD9Z-CAST-LB540 Test Setup Photos of the EUT
