2BDA2-AK102Smart Watch

FCCStatement Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference, and(2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfor aClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation.Thisequipmentgeneratesusesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions,maycauseharmfulinterferencetoradiocommunications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp.Thedevice hasbeenevaluatedtomeetgeneralRFexposurerequirement. Thedevicecanbeusedinportableexposureconditionwithoutrestricti 3 ChargingandActivation a.Connectthewatchchargingcabletoa5V-1Aadapterandplugit in.Ensureproperalignmentofthecablewiththemetalcontactpins onthebackcoverofthewatch.Thebuilt-inmagnetswill automaticallyattachtothecorrectpolesforcharging. b.lfthewatchisnewlyreceivedorhasnotbeenusedforalong time,thebatterymaybeina0voltageprotectionstate.Chargethe watchforatleast15minutestoaccumulateenoughpower toactivateit.Thebuilt-inmagnetswillautomaticallyattachtothe correctpolesforcharging. c.ltisrecommendedtochargethedeviceonceamonth.Keepthe devicefullychargedandpowe!itoffwhennotinusetoensure longevityandoptimalperformance. 4 AppDownload ①Downloadthe"FitCloudPro"appfromtheAppStoreor GooglePlay. ②ScanQRcodetodownload. PairasFollows-l0S a.UponfirstuseoftheFitCloudProapp,enableittoaccess Bluetooth,wirelessdata,andnotificationsonyourcompatible smartphonebygrantingallnecessarypermissionsthroughyour phone'ssettings. 5 b.Usetheappwith"VisitAsGuest"or"Signln" 6 ConnectingBluetooth-l0S a.Select'SearchNow'todiscoverandconnecttothewatch Bluetoothdevice.andtarthewatchto'agree'grantaccessand completthepairingprocess. b."AllowBluetoothPairing"and"AllowNotifications” 7 SettingUpFitCloudProAppon Android:PermissionsandAgreement a."Agree"FitCloudProPrivacyPolicy&UserAareement,Loginor UseWithoutAccount: b.FillinyourpersonalinformationandSearch/connectnearby permissionsBluetoothrequest 8 C.AllowFitCloudProtodiscoverandconnecttathewatch devices.Tapthewatchandselectagreetograntaccessand completethepairingprocess. d.AllowBluetoothpairingrequestsandAccesstoContacts: **** 9 TurningonPushNotifications a.Notethatthewatchcannotreceivenotificationswhenthephone isinDoNotDisturbmode. b.Ensurethemobilephone'sBluetoothis active,theFitCloudProappisrunning,andthe watchisconnectedtothephone'sBluetooth. c.Makesurethatnotificationsarevisibleon thenotificationbarofyourphone, 10 Turningonweatherlocator TurnontheweatherreportsfeatureintheFitCloudProapptogetweather forecasts. SettingtheDisplayUnitoftheWatch 11 Setting/DownloadWatchFaces a.Pressandholdthewatchfacefor2secondsthenquicklyswipeto switchbetweenwatchfaces b.DownloadwatchfacesthroughFitCloudPro'swatchfaceUl market.NotethatonlyonewatchfaceUlcanbesavedata timeAnewdownloadwillreplacethepreviouslysavedwatchface Ul. 12 c.Displayingtouchscreenfunctionality Messages Dial Menu ControlCenter 13 ResettingtheWatch ftheexercise,sleep,andheartratedataareinaccurate,oriftheBluetooth connectionorcallfunctionalityfails,tryresettingthewatchasshownbelowand rebind.Alternatively,youcanresetorupdatethefirmwarethroughtheapp! Turningon/offCallAudioand MediaAudio a.TaptoenableordisableBluetoothCalling. Settings System Reset 14 b.Topreventthewatchfromplayingmediasoundsor making/answeringcalls,simplyturnoffthemediaaudioandcall audiosettings. WatchConnectionStatus Note:ThewatchispairedwiththeiOSsystemapp,allowing messagereminderseveniftheappisclosed.However,forAndroid phonestheappmustbeopentoreceivemessagereminders. BTCallandAPP Disconnected APPConnected BTCallConnected APPConnected BTCallDisconnected 15 AddingandSyncingFavotiteContacts a.AddcontactstothewatchviaFitCloudPro b.NotesomephonesrequiremanualactivationofBluetooth contactsyncingduetoprivacyconsiderations 16 GPSWatchConnecttoAPPtoImprovePositioningAccuracy InstructionManual a.APPPairingandSynchronization(Key:UpdateA-GPS) 1)Watch:Restorefactorysettings(optional,toresolveinterference fromolddata)→Enterpairingmode. Phone:Openthecorrespondingapp(FitCloudPro)→Adddevice→ FollowthepromptstocompleteBluetoothpairing. 2).Mustdobeforeeachexercise(30seconds–2minutes) OpentheAPP→Connectthewatch→Syncimmediately(update today'sA-GPS) Thewatchenterssportsmode(running/cycling/hiking)→waitfor locationtobedetermined b.PreparationBeforeConnectingtheApp(Mandatory) 1).Environmentalrequirements Gotoanopen,unobstructedarea(suchasaplayground,park,or rooftop),awayfromtallbuildings,trees,metal,tunnels,andunder bridges. Thewatchdialshouldfaceupandbewornontheoutsideofthe wristtoavoidthearmorsleeveblockingtheGPSantenna 2).PhoneSettings TurnonBluetooth,Wi-Fi,location(high-accuracymode),and mobilenetwork EnsuretheAPP:Locationpermissionalwaysallowed,runsinthe background,auto-start,unlimitedpower-savingpolicy 17 3).Basicwatchinspection Battery≥50%(Lowbatterymaycausethrottlingandinaccurate positioning) Restartthewatch(cleartemporarylocationcache) c.Apreciseguideforuseindifferentscenarios 1).Beforestarting:Standstillonopengroundfor30–60seconds, waituntilyourpositionisstablebeforebeginning Route:Avoidhigh-risecanyons,densetreeshade,andunder overpasses Wearing:Withthedialfacingup,ontheoutsideofthewri…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Herland International Trading Inc FRN: 0036324101 Contact Name: Jianfeng Gao Address: 1370 Valley Vista Dr Ste 200 Diamond Bar California 91765-3921 Telephone No: 001-909-772-1888 Email: [email protected] Applicant: Company name: Shenzhen Wo Kosun Electronic Technology Co., Ltd. Product Description: Smart Watch Grantee code: 2BDA2 FCC ID: 2BDA2-AK102 FRN: 0034395285 Contact Name: Yucheng Zhang Address: 6F.Hua-yu Technology Building.Niu lan qian xin Vallage Industrial area,Minzhi ,LonghuaDistrict shenzhen City，518131 China Telephone No: 13686292011 Email: [email protected] [Shenzhen Wo Kosun Electronic Technology Co., Ltd.] certifies that, as of the date of this filing of the application with the TCB, [Herland International Trading Inc] is our designated US agent for service of process for the above referenced FCC ID. [Shenzhen Wo Kosun Electronic Technology Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [Herland International Trading Inc] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2026/05/19 Applicant’s Name: Yucheng Zhang US Agent’s Name: Jianfeng Gao Title: Manager Title: Manager Signature Signature

Attestation Statement. Old Code: C5266091 24 New Code: 00015544 Ed.3 Change reason: FRN is added to the Applicant information section. 1/1 Shenzhen Wo Kosun Electronic Technology Co., Ltd. TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen Wo Kosun Electronic Technology Co., Ltd. Grantee code: 2BDA2 FCC ID: 2BDA2-AK102 FRN: 0034395285 Contact Name: Yucheng Zhang Address: 6F.Hua-yu Technology Building.Niu lan qian xin Vallage Industrial area,Minzhi ,LonghuaDistrict shenzhen City，518131 China Telephone No: 13686292011 Fax No: Email: [email protected] i. [Shenzhen Wo Kosun Electronic Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shenzhen Wo Kosun Electronic Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen Wo Kosun Electronic Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2026/05/19 Applicant’s Name: Yucheng Zhang Title: Manager Signature: 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Shenzhen Wo Kosun Electronic Technology Co., Ltd. Code 00018768 Ed. 1 Item 1. The device is able to install software/program installation? ☐ Yes, go to Item 2. ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky cybersecurity or anti-virus software. Item 2. Technical Requirements for Kaspersky Cybersecurity Software: # General Requirements (For all Devices) Yes / No or N/A Comments 1 Internet connection for activation and updates (For all Operating Systems) N/A Device Smart Watch Company name Shenzhen Wo Kosun Electronic Technology Co., Ltd. Grantee code 2BDA2 FCC ID 2BDA2-AK102 FRN 0034395285 Contact name Yucheng Zhang Address 6F.Hua-yu Technology Building.Niu lan qian xin Vallage Industrial area,Minzhi ,LonghuaDistrict shenzhen City，518131 China Telephone number 13686292011 E-mail [email protected] Chipset/module information RTL8773EWE Operating System (if applicable) N/A Storage Capacity (hard drive or other permanent memory storage, if applicable) N/A 2 # General Requirements (For Windows Devices) Yes / No or N/A Comments 1 Storage: 1500 MB free space on the hard drive N/A 2 Operating System: Microsoft Windows 8, 8.1, 10 & 11 Home / Pro / Enterprise Microsoft Windows 7 Starter / Home Basic & Premium / Professional / Ultimate SP1 or higher N/A 3 Processor: 1 GHz or higher (x86 or x64) N/A 4 Memory (RAM)1 GB (32-bit) or 2 GB (64-bit) N/A 5 Screen Resolution: Minimum resolution of 1024 x 768 N/A # General Requirements (For macOS devices) Yes / No or N/A Comments 1 Operating System macOS® 13 – 14 N/A 2 Memory (RAM)4 GB N/A 3 Storage: 3455 MB free space on the hard drive N/A # General Requirements (For Android Devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: Android™ 10 – 14 N/A 3 Screen Resolution: Minimum resolution of 320 x 480 N/A # General Requirements (for iOS devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: iOS® 17 N/A # General Requirements (For Linux system) Yes / No or N/A Comments 3 1 Hard drive: 1 GB of free space N/A 2 CPU: Intel Pentium 1 GHz or higher N/A 3 RAM: 1 GB N/A 4 Minimum software requirements: AlmaLinux OS 8 or later; AlterOS 7.5 or later; Astra Linux Common Edition 2.12 or later; CentOS 6.7 or later; Debian GNU/Linux 10.0 or later; EulerOS 2.0 or later; Oracle Linux 7.3 or later ; Red Hat Enterprise Linux 6.7 or later ; Rocky Linux 8.5 or later ; SUSE Linux Enterprise Server 12.5 or later; Ubuntu 12.04 or later ; Uncom OS Home / Business / Education / Enterprise 2.2 or later; ALT Linux Workstaton / Workstation K / Server / Education 8 or later; ROSA Linux Workstation / Server 12 or later ; RED OS 7.3 and later ; N/A After reviewed the technical requirements, is the device capable of supporting the installation of Kaspersky software? ☐ Yes, go to Item 3. ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky software Item 3. Connectivity Capabilities: 4 # Physical Interface Purpose Justification 1 1 # Wireless Interface Purpose Justification 1 1 After the review of this items, the device: ☒ Cannot support installation of any cybersecurity or anti-virus software on the covered list. ☐ Potentially can operate with any cybersecurity or anti-virus software on the covered list – additional third- party proof is provided to demonstrate compliance with requirements as of 2.911(d)5(i),(ii) – “Proof of Compliance with Covered List Software Requirements” of this document applies ignature: Name: Yucheng Zhang Date:2026-05-19 1 The justification field is used to justify why the software cannot be received through that interface. Check the annex for more indications.

TCB CALL página 1 File FCC ID: 2BDA2-AK102 Please upload an exhibit that explains how does the TCB verify the new agent information: 1- Is the address of the agent a valid physical US mailing address (not a US post office box, not a virtual mailbox, not P.O. Boxes, not a vacant lot, not a public building, etc.) ○ We have checked if the address exists in a real and potential building (Google maps) + official US register, after this verification and the evidence below we can guarantee the following: not a US post office box not a virtual mailbox not P.O. Boxes not a vacant lot not a public building(note) ► We checked the FCC FRN Search based on the information provided by the grantee. On the official register from : Search | California Secretary of State TCB CALL página 2 TCB CALL página 3 TCB CALL página 4 TCB CALL página 5 TCB CALL página 6 TCB CALL página 7 TCB CALL página 8 ► CONCLUSION by TCB: The ASOP defined and provided by grantee is VALID and confirmed. Therefore the exhibit "C5266091_X23_Ed1_US_Agent_Letter" included in the file is ok. 2- Is the agent physically located at that valid US address such that the agent can be legally served at that address? Yes , check above 3- Has the listed agent clearly agreed in writing to serve as the agent for the grantee at that address? Yes, it is included in the exhibit "C5266091_X23_Ed1_US_Agent_Letter" >

C5266091_X10_Ed.2 1/1 Shenzhen Wo Kosun Electronic Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2026.05.19 Subject: Request for Confidentiality FCC ID: 2BDA2-AK102 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, C5266091_X10_Ed.2 1/1 Signature: Name: Yucheng Zhang Title: Manager 2026.05.19

C5266091_X8_Ed.1 1/1 Letter of Authorization Shenzhen Wo Kosun Electronic Technology Co., Ltd. Company: Shenzhen Wo Kosun Electronic Technology Co., Ltd. Address: 6F.Hua-yu Technology Building.Niu lan qian xin Vallage Industrial area,Minzhi ,LonghuaDistrict shenzhen City，518131 China Product Name: Smart Watch Model Number: AK102, AK119 FCC Identifier: 2BDA2-AK102 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Yucheng Zhang Date: 2026.05.19 Title: Manager Signature of applicant:

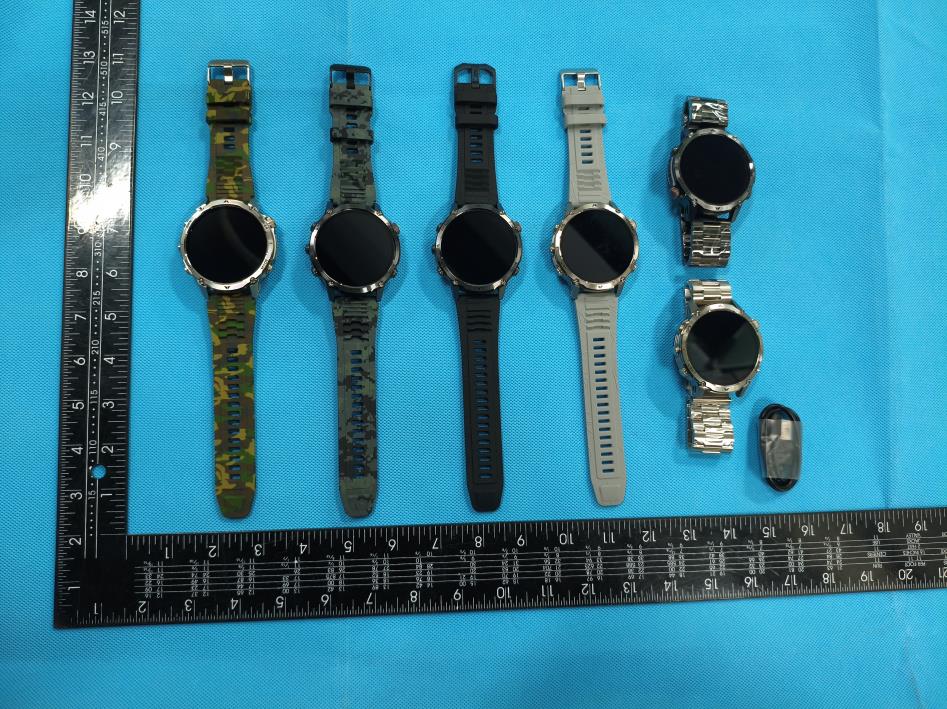

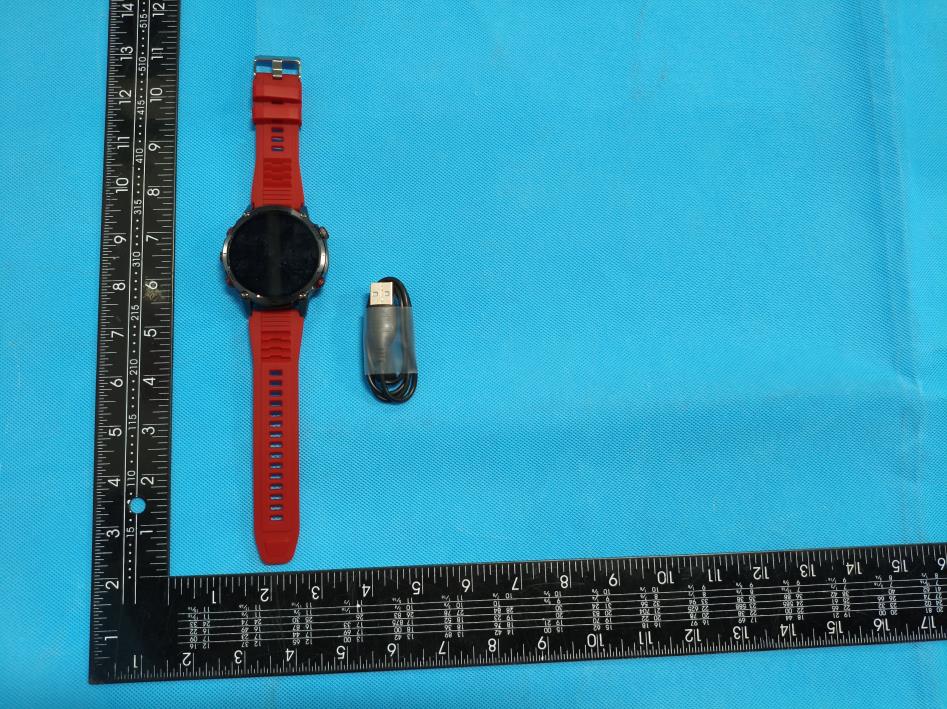

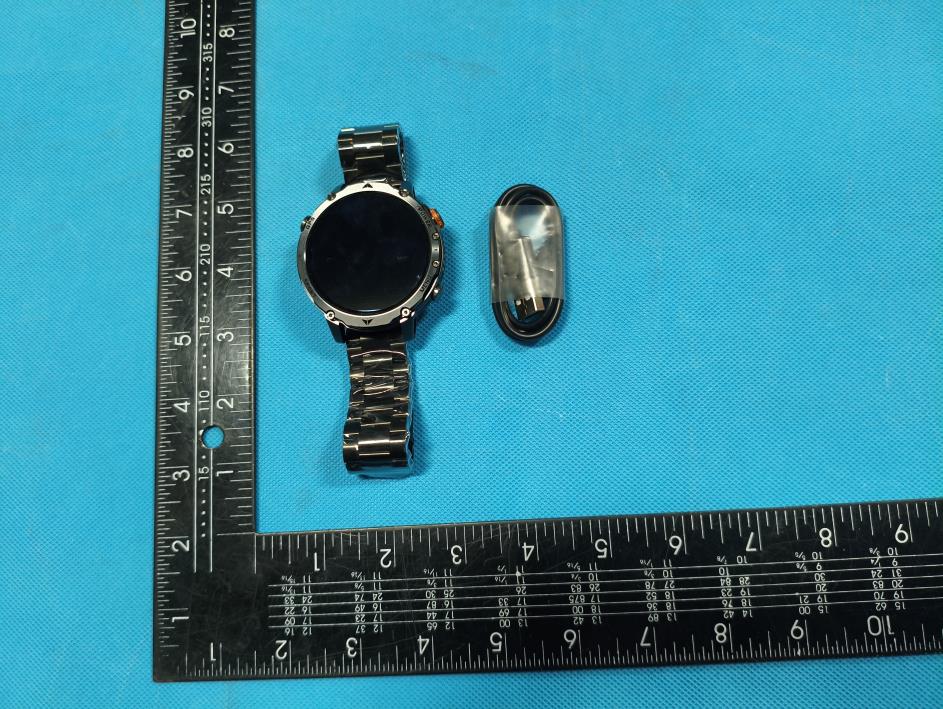

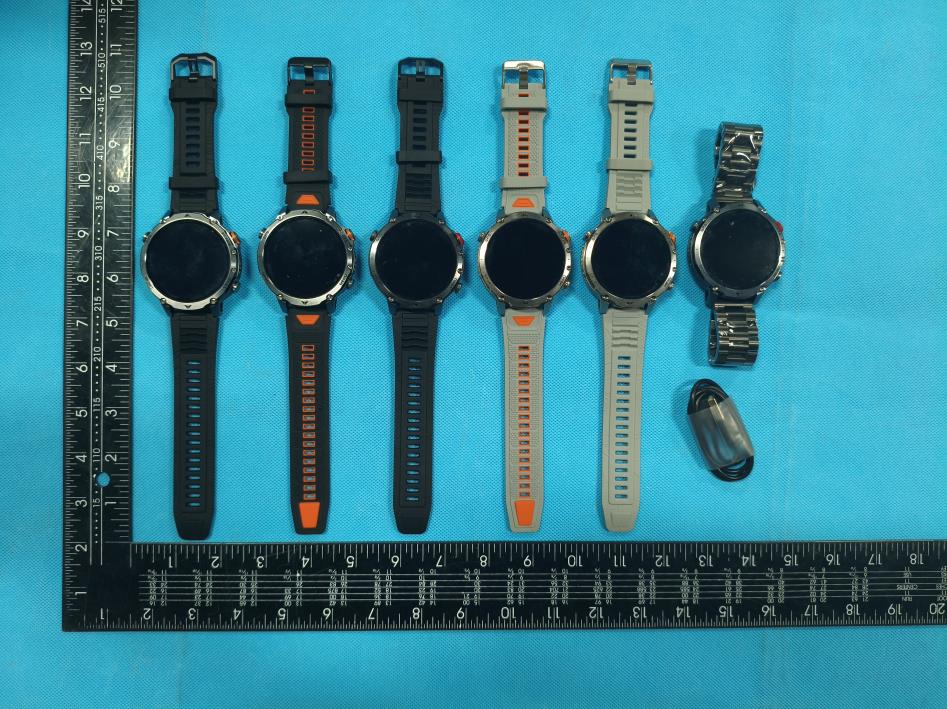

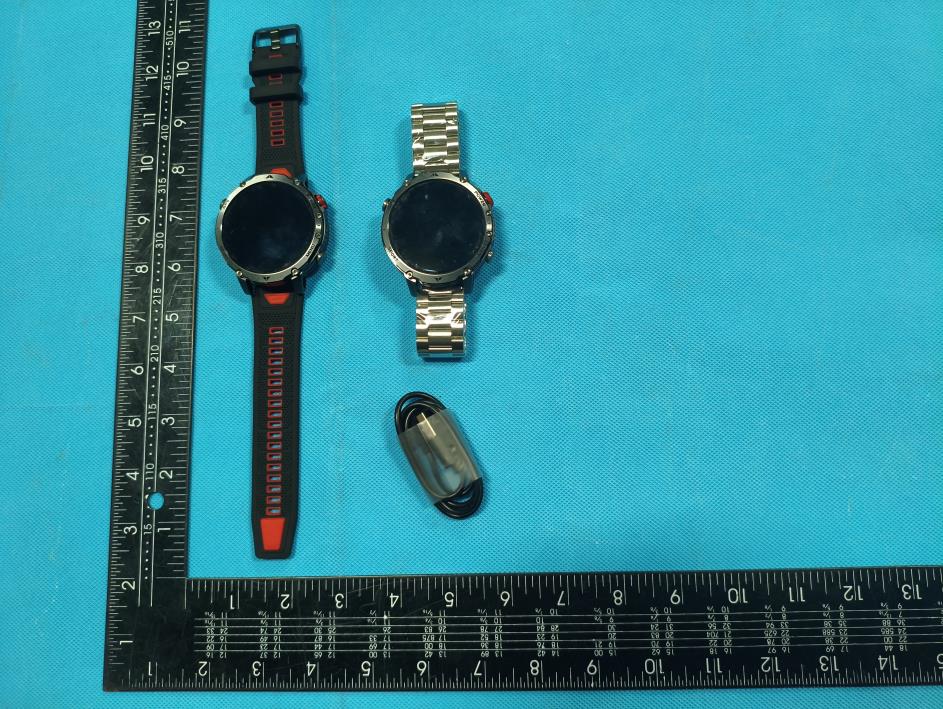

Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 ※※※※※ END OF REPORT ※※※※※

Size: 12*6mm Model: AK102 FCC ID: 2BDA2-AK102 Label location

Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 ANT Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2-AK102 ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BDA2-AK102 RF Exposure Evaluation According to KDB 447498 D01 V06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, Mw) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest Mw and mm before calculation The result is rounded to one decimal place for comparison EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Here, BT Test Mode Conducted power (dBm) Max tune-up (Mw) Frequency (MHz) Min. distance(mm) Calc. thresholds limit BLE -5.923 0.256 2404 5 0.08 3.0 So a SAR test is not required

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260414031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 41 FCC Part 15C Test Report FCC ID: 2BDA2-AK102 Applicant: Shenzhen Wo Kosun Electronic Technology Co., Ltd. Address: 6F. Hua-yu Technology Building. Niu lan qian xin Vallage Industrial area, Minzhi, LonghuaDistrict shenzhen City, 518131 China Manufacturer: Shenzhen Wo Kosun Electronic Technology Co., Ltd. Address: 6F. Hua-yu Technology Building. Niu lan qian xin Vallage Industrial area, Minzhi, LonghuaDistrict shenzhen City, 518131 China Product Name: Smart Watch Trade Mark: N/A Model Number: AK102, AK119 Date of Receipt: Apr. 14, 2026 Test Date: Apr. 14, 2026 – Apr. 29, 2026 Date of Report: Apr. 29, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10-2020+Cor 1-2023 Test Result: Pass Report Number: DLE-260414031R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260414031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 41 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 11 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 EUT OPERATING CONDITIONS 15 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8 TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 21 3.3.1 TEST REQUIREMENT: 21 3.3.2 TEST PROCEDURE 21 3.3.3 DEVIATION FROM TEST STANDARD 21 3.3.4 TEST SETUP 22 3.3.5 EUT OPERATING CONDITIONS 22 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 25 3.4.1 APPLICABLE STANDARD 25 3.4.2 TEST PROCEDURE 25 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260414031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 41 Table of Contents Page 3.4.3 DEVIATION FROM STANDARD 25 3.4.4 TEST SETUP 25 3.4.5 EUT OPERATION CONDITIONS 26 3.4.6 TEST RESULTS 26 4 . PEAK OUTPUT POWER 29 4.1 APPLIED PROCEDURES / LIMIT 29 4.1.1 TEST PROCEDURE 29 4.1.2 DEVIATION FROM STANDARD 29 4.1.3 TEST SETUP 29 4.1.4 EUT OPERATION CONDITIONS 29 4.1.5 TEST RESULTS 30 5 . POWER SPECTRAL DENSITY TEST 33 5.1 APPLIED PROCEDURES / LIMIT 33 5.1.1 TEST PROCEDURE 33 5.1.2 DEVIATION FROM STANDARD 33 5.1.3 TEST SETUP 33 5.1.4 EUT OPERATION CONDITIONS 33 5.1.5 TEST RESULTS 34 6 . 6DB BANDWIDTH TEST 37 6.1 APPLIED PROCEDURES / LIMIT 37 6.1.1 TEST PROCEDURE 37 6.1.2 DEVIATION FROM STANDARD 37 6.1.3 TEST SETUP 37 6.1.4 EUT OPERATION CONDITIONS 37 6.1.5 TEST RESULTS 38 7 . ANTENNA REQUIREMENT 41 7.1 STANDARD REQUIREMENT 41 7.2 EUT ANTENNA 41 8 . TEST SETUP PHOTO 41 9 . EUT PHOTO 41 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260414031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 41 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(c) Radiated Spurious Emission PASS 15.205 Band Edge Emission PASS 15.247(b) Peak Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2MHz 9 Power Spectral Density ±0.3dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260414031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 41 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: Smart Watch Trade Mark: N/A Model Number: AK102, AK119 Test Model: AK102 Model Difference: All models are same as the samples except appearance, model name and appearance color, they have the same structure and circuit. Operation Frequency: 2402~2480MHz Channel numbers: 40 Channels Data Rate: 1/2 Mbps Channel separation: 2MHz Modulation technology: GFSK Antenna Type: Internal Antenna Antenna gain: -8.14 dBi Power supply: Input: DC 5V Battery: DC 3.8V No…

Text truncated - open the document above for the full version.

Area F, 4th Floor, Block A, Junxiangda No. 9, Right Side of Tong'an Road, Nanlian Community, Nant Subdistrict, Nanshan District, Shenzhen City Address: Frequency/MhzEfficiency / %Gain/dBi 24004.2-8.49 24104.21-8.49 24204.33-8.5 24304.38-8.44 24404.4-8.35 24504.66-8.29 24604.8-8.2 24705.01-8.14 24804.7-8.25 24904.65-8.26 25004.29-8.3

Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2- AK102 EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BDA2- AK102 Conducted Measurement Photos RF conducted test ※※※※※ END OF REPORT ※※※※※
