2BDA8-BLB-AA1970BSecond Battery

User's Manual BLB-AA1970B BASMANtechnology.Co.,Ltd ▒ Main Function ⚫Toys, watches, electric toothbrushes, and other small appliances batteries ⚫It has the same function as a disposable battery and can be recharged using a dedicated charger ⚫Check the battery level through the dedicated app ⚫Battery capacity: 1850mAh ⚫LED when charging the battery ⚫Protection for overheating, overcharging, and over-discharge ⚫Function for overpower shutdown (failure prevention) RECHARGEABLE LI-ION BATTERY 1.5V AA TYPE Blutooth Communication lithium-ion rechargeable battery 1.5V lithium-ion battery that can be recharged anytime, anywhere by connecting to a dedicated charger with AA type BLB-AA1970B Battery TypeSingle Cell Li-ion Battery ModelBLB-AA1970B (1.5V 1850mAh 2775mWh) Battery Size50.0mm X 14.0mm (H X D) ApperanceWhite and Blue Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. “Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment”. “This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” “In order to comply with FCC RF Exposure requirements, this device must be installed to provide at least 0.5 cm separation from the human body at all times.

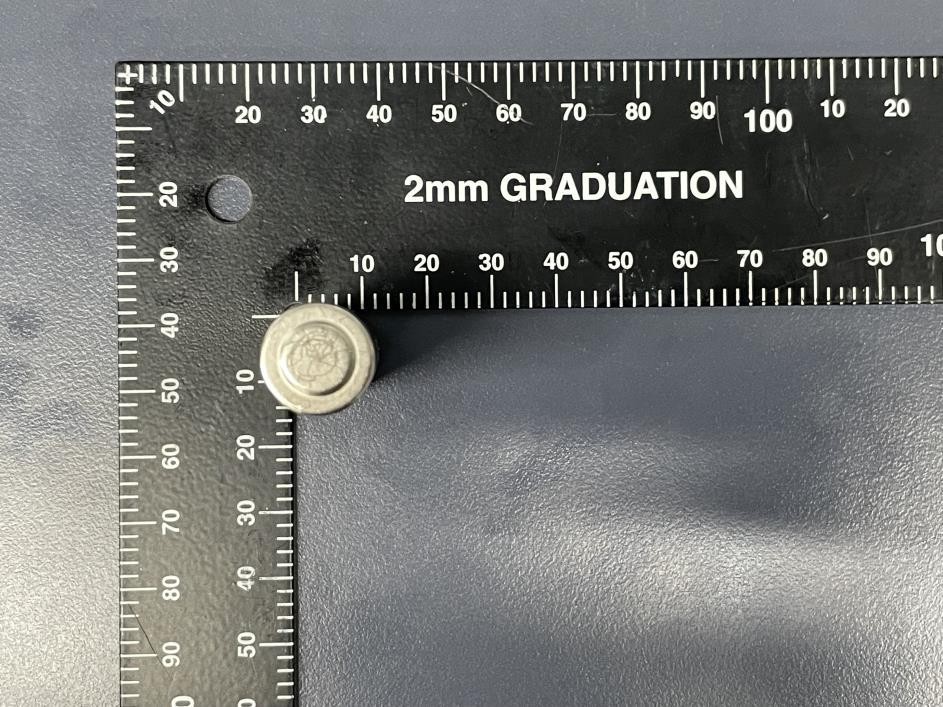

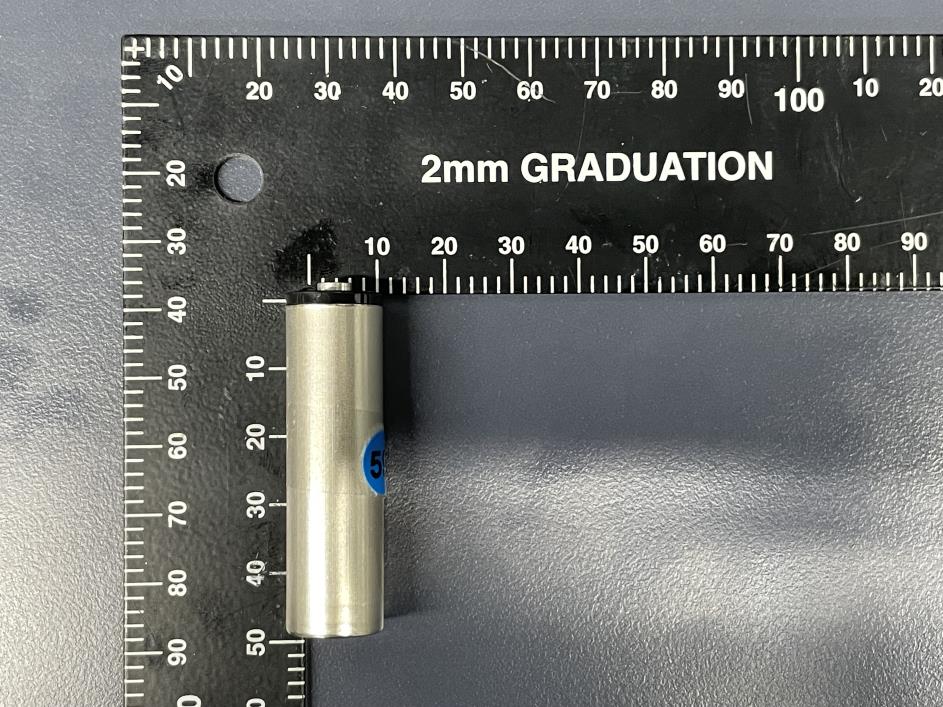

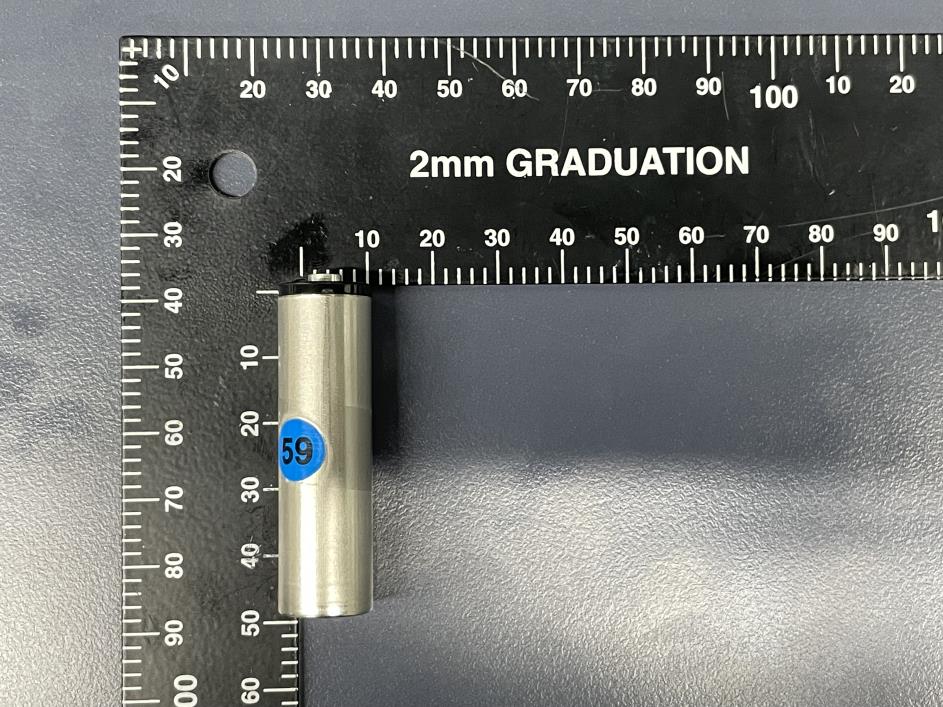

Photographs (External) < Top > < Bottom > Photographs (External) < Side-1 > < Side-2 > Photographs (External) < Side-3 > < Side-4 >

Label and Location : Second Battery Model name : BLB-AA1970B FCC ID : 2BDA8-BLB-AA1970B Label : Location :

Photographs (Internal) <IN 1> <IN 2> Photographs (Internal) <IN 3>

FCC ID: 2BDA8-BLB-AA1970B TRF-FCC&IC-RF_Rev.0.1 Nemko Korea Co., Ltd. Page 1 of 6 Nemko Korea Co., Ltd. 165-51, Yurim-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17042, Republic of Korea. TEL :+82 31 330-1700 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Project No. : NK-23-R-354 Dates of receipt : November 17, 2023 Applicant : BASMANtechnology Dates of Issue : November 24, 2023 #661, 150, JOJEONG-DAERO, HANAM- SI, GYEONGGI-DO, 12930, South Korea Test Site : Nemko Korea Co., Ltd. Model: BLB-AA1970B Additional Model(s): - EUT Type: Second Battery Classification: Digital Transmission Systems (DTS) Date of Test: - Applied Standard: KDB 447498 D01 The device bearing the brand name and model specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : Yonghwan Kim Reviewed By : Hoonpyo Lee Test Engineer Technical Manager FCC ID: 2BDA8-BLB-AA1970B Applicant : BASMANtechnology Brand Name - FCC ID: 2BDA8-BLB-AA1970B TRF-FCC&IC-RF_Rev.0.1 Nemko Korea Co., Ltd. Page 2 of 6 Revision History Rev. Issue Date Revisions Revised By 00 November 24, 2023 Initial issue Yonghwan Kim FCC ID: 2BDA8-BLB-AA1970B TRF-FCC&IC-RF_Rev.0.1 Nemko Korea Co., Ltd. Page 3 of 6 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................... 4 1.1 Location ............................................................................................................................................................ 4 1.2 Accreditation and listing ................................................................................................................................... 4 2. EUT INFORMATION ......................................................................................................................... 5 2.1 Specifications ................................................................................................................................................... 5 3. Maximum Permissible Exposure .................................................................................................... 6 FCC ID: 2BDA8-BLB-AA1970B TRF-FCC&IC-RF_Rev.0.1 Nemko Korea Co., Ltd. Page 4 of 6 1. INTRODUCTION 1.1 Location Nemko Korea Co.,Ltd 165-51, Yurim-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17042, Republic of Korea. Phone : 82-31-330-1700 Fax : 82-31-322-2332 1.2 Accreditation and listing Accreditation type Accreditation number CAB Accreditation for DOC Designation No. KR0026 FCC ID: 2BDA8-BLB-AA1970B TRF-FCC&IC-RF_Rev.0.1 Nemko Korea Co., Ltd. Page 5 of 6 2. EUT INFORMATION 2.1 Specifications EUT Type Second Battery Model Name BLB-AA1970B Frequency of Operation 2 402 MHz ~ 2 480 MHz Output Power (Conducted) -2.95 dBm Number of Channels 40 CH Modulations GFSK Antenna Gain (peak) 1.0 dBi Antenna Setup 1TX / 1RX EUT Rated Voltage 3.3 Vdc Remarks The above RF information of EUT is referred to the RF test report. Report No. 23-068261-01-1a / KTL FCC ID: 2BDA8-BLB-AA1970B TRF-FCC&IC-RF_Rev.0.1 Nemko Korea Co., Ltd. Page 6 of 6 3. Maximum Permissible Exposure RF Exposure Limit According to KDB 447498D01 v06: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is <5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Device category : Portable device Transmitting mode : Single transmitting Max. transmitting frequency : 2 480 MHz Min. test separation distance : 5 mm Max. Antenna Gain : 1.0 dBi Max. Average power : -2.95 dBm Max. power with turn-up tolerance : -1.00 dBm 0.79 mW For this device: 0.79 mW[maximum average output power]/5 mm[minimum separation distance] x √2.48 GHz = 0.25 Note. The calculation result was rounded to one decimal place for comparison. Test Result : This is less than 3.0 for 1-g SAR. SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. END REPORT

TEST REPORT 23-068261-01-1b Page of Pages : ( 1 )/( 36 ) 2. This document is valid only in its original document, and any reproduced copies and electronic copies are not valid. 1. This report is limited to samples submitted by the applicant and is prohibited from being used for legal or other reasons of dispute. (Signature) Note : Technical ManagerTested by Affirmation 87, Digital-ro 26-gil, Guro-gu, Seoul, KOREA Tel.+82-2-860-1417 Fax. +82-2-860-1459 (Signature) FP104-07-00 2023. 11. 28. Kim YoungHyunName : CHO SUNG KYUName : 7. Test Results : 6. Test Standard/Method :CFR47, FCC Part 15 Subpart C, ANSI C63.10_2013 2023. 11. 01. ~ 2023. 11. 27. 4. Date of Test : Remark : prototypeSerial Number : BASMANtechnology Co.,LtdManufacturer : Second BatteryDescription : 3. Test Sample FCC Certification 2. Use of Report : 2023. 10. 24.Date of Receipt : Iteco #660/661, 150, Jojeong-daero, Hanam-si, Gyeonggi-do, KoreaAddress : Name : 1. Client BASMANtechnology Co.,Ltd - Report No. : Model Name : BLB-AA1970B Refer to the attached test results (“Original" means all the reports provided by the KTL including the security procedures.) 3. You can check the contents of the report by scanning the 2D Barcode below. The identity of original reports can be checked in the "Confirm original report" window of the customer's homepage (customer.ktl.re.kr). 5. Location of Test : 4. This report is not related to KS Q ISO/IEC 17025 & KOLAS Accreditation. ■ KTL Permanent Test Lab(Address : 87, Digital-ro 26-gil, Guro-gu, Seoul, KOREA) □ On Site Testing FP104-08-00 Report No. : 23-068261-01-1b Page of Pages ( 2 )/( 36 ) Revision History Report No. Description Revised date 23-068261-01-1 Original release 2023-11-22 23-068261-01-1a Modify FCC ID 2023-11-23 23-068261-01-1b Add tested voltage, CAB identifier 2023-11-28 FP104-08-00 Report No. : 23-068261-01-1b Page of Pages ( 3 )/( 36 ) TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N S 4 1.1 Testing Laboratory 4 1.2 Applicant (Client) 4 1.3 Equipment (EUT) 4 1.4 Technical specifications 5 2. S U M M A R Y O F T E S T R E S U L T S 7 2.1 Measurement uncertainty 8 3. T E S T R E S U L T S 9 3.1 Antenna Requirements 9 3.2 6 dB Bandwidth 10 3.3 Output Power 12 3.4 Power Spectral Density 14 3.5 Conducted Spurious Emissions 16 3.6 Radiated Measurement 19 3.7 AC Power line Conducted Emissions 34 4. T E S T E Q U I P M E N T 36 FP104-08-00 Report No. : 23-068261-01-1b Page of Pages ( 4 )/( 36 ) 1. GENERAL INFORMATIONS 1.1 Testing Laboratory Testing Place Korea Testing Labortory (KTL) 87, Digital-ro 26-gil, Guro-gu, Seoul , Korea (08389) FCC registration number 0033369398 CAB identifier KR0009 Test Engineer Kim Younghyun Telephone number +82 2 860 1417 Facsimile number +82 2 860 1459 E-mail address [email protected] 1.2 Applicant (Client) Name BASMANtechnology Co.,Ltd Address Itech #660/661, 150 , Jojeong-daero, Hanam-si, Gyeonggi-do, Korea, 12930 Manufacturer BASMANtechnology Co.,Ltd Manufacturer Address Itech #660/661, 150 , Jojeong-daero, Hanam-si, Gyeonggi-do, Korea, 12930 1.3 Equipment (EUT) Name Second Battery Model Name BLB-AA1970B FCC ID 2BDA8-BLB-AA1970B IC Number N/A Operating Frequency 2 402 MHz ~ 2 480 MHz Number of channels 40 Type of Modulation GFSK Nominal Voltage 3.7 VDC Tested Voltage 3.3 VDC Hardware Version Ver 0.2 Software Version Ver 0.2 Antenna Designation Chip Antenna Antenna Gain 1.0 dBi Serial No. Prototype FP104-08-00 Report No. : 23-068261-01-1b Page of Pages ( 5 )/( 36 ) 1.4 Technical specifications This device contains the following capabilities: Bluetooth Low Energy, FHSS (GFSK) Ch. Frequency (MHz) 01 2 402 02 2 404 03 2 406 04 2 408 05 2 410 06 2 412 07 2 414 08 2 416 09 2 418 10 2 420 11 2 422 12 2 424 13 2 426 14 2 428 15 2 430 16 2 432 17 2 434 18 2 436 19 2 438 20 2 440 21 2 442 22 2 444 23 2 446 24 2 448 25 2 450 26 2 452 27 2 454 28 2 456 FP104-08-00 Report No. : 23-068261-01-1b Page of Pages ( 6 )/( 36 ) 29 2 458 30 2 460 31 2 462 32 2 464 33 2 466 34 2 468 35 2 470 36 2 472 37 2 474 38 2 476 39 2 478 40 2 480 FP104-08-00 Report No. : 23-068261-01-1b Page of Pages ( 7 )/( 36 ) 2. SUMMARY OF TEST RESULTS Name of Test FCC Rules Test Condition Test Result 6 dB Bandwidth 15.247(a)(2) Conducted PASS Maximum Peak Output Power 15.247(b)(3) PASS Peak Power Spectral Density 15.247(e) PASS Conducted Spurious Emission 15.247(d) PASS AC Power line Conducted Emissions 15.207 PASS Radiated Spurious Emissions 15.205, 15.209 Radiated PASS Radiated Restricted Band Edge 15.247(d), 15.205, 15.209 PASS N/A – Not Applicable Note 1 : The EUT is powered by DC. Note 2 : All modes of operation and data rates were investigated. The test results shown in the following sections represent the worst case emissions. Note 3 : The analyzer plots shown in this section were all taken with a correction table loaded into the analyzer. The correction table was used to account for the losses of the cables and attenuators used as part of the system to connect the EUT to the analyzer at all frequencies of interest Note 4 : All antenna port conducted emissions testing was performed on a test bench with the antenna port of the EUT connected to the spectrum analyzer through calibrated cables and attenuators * Modifications required for compliance No modifications were implemented by KTL. All results in this report pertain to the un-modified sample provided to KTL. FP104-08-00 Report No. : 23-068261-01-1b Page of Pages ( 8 )/( 36 ) 2.1 Measurement uncertainty The measurement uncertainties shown below were calculated in accordance with the requirements of ANSI C63.10_2013 All measurement uncertainty values are shown with a coverage factor of k=2 to indicated a 95 % level of confidence. The measurement data shown herein meets of exceeds the U CISPR measurement uncertainty values specified in CISPR 16-4-2 and thus, can be compared directly to specified limits to determine compliance. Parameter Expanded uncertainty Conducted Frequency 1 176.02 Hz Conducted Occupied Bandwidth 3 465.554 …

Text truncated - open the document above for the full version.

Ultra-Miniature 2.4GHz Chip antenna 0.37mm max Thickness P/N 2450AT07A0100 Detail Specification:Page 1 of 5 Evaluation Board No. L±± 1 W±± 2 T 3 a 4 b c Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved P/N Suffix Packing Style "High Frequency Ceramic Solutions" 2W max. (CW) 50 Ω 10/12/2020 Average Gain (dBi typ.) Peak Gain (dBi typ.) Part Number2450AT07A0100 2400 - 2500 1.0 (XZ-Total) Frequency (MHz) 6.5 dB min. 0.014 max -1.5 (XZ-Total) Function Feed Return Loss -40 to +125°C Terminal Configuration Recommended Storage Conditions of unused product on T&R +5 ~ +35 °C Humidity 45~75%RH 18 months max. 0.004 0.004 mmIn 0.50 Mechanical Dimensions Input Power GND GND +0.1/-0.05 Feed+0.1/-0.05 +0.1/-0.05 0.10 0.37 max 0.25 0.08 0.15 Ver 3.1 Operating Temperature General Specifications 1.000.100.039 Impedance 0.003 0.010 +.004/-.006 +.004/-.006 +.004/-.0060.006 0.020 Part Number Explanation 2450AT07A0100-EB1SMA Bulk (loose) Suffix = Se.g. 2450AT07A0100S TraySuffix = Te.g. 2450AT07A0100T 1 2 34 L W a b c T Ultra-Miniature 2.4GHz Chip antenna 0.37mm max Thickness P/N 2450AT07A0100 Detail Specification:Page 2 of 5 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved Ver 3.1 "High Frequency Ceramic Solutions" 10/12/2020 Mounting Considerations Test Board-Top View (Units in mm) Land Solder 0.9 4.0 0.4 0.3 0.3 0.7 1.2 0.25 1.5 5.0 3 .0 Feed line Matching circuit No Ground (Yellow area) GND Plane * 0.1 1 23 4 It is recommended that the designer leave available slots for a "pi" (shunt-series-shunt) network. The antenna matching network values above are used when antenna is mounted on Johanson's evaluation board. Matching components will vary depending on PCB design. Let us help you tune our antenna on your new layout, contact our RF Applications Eng. Team at: https://www.johansontechnology.com/ask-a-question *Line width should be designed to maintain 50Ω impedance matching characteristics. Units: mm Ultra-Miniature 2.4GHz Chip antenna 0.37mm max Thickness P/N 2450AT07A0100 Detail Specification:Page 3 of 5 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 10/12/2020 Ver 3.1 Layout Guidelines and EVB Specifications No ground (Yellow area) Ground Pi matching network recommended Feed 3 5 20 40 Test Board-Top View (Units in mm) 40 20 Ground clearance (Yellow area) 3 5 Test Board-Bottom View (Units in mm) To order a pre-tuned evaluation board with SMA connector click here: https://www.johansontechnology.com/request-a-sample Reference p/n: 2450AT07A0100-EB1SMA To request the layout files go to: https://www.johansontechnology.com/ask-a-question Ground Ultra-Miniature 2.4GHz Chip antenna 0.37mm max Thickness P/N 2450AT07A0100 Detail Specification:Page 4 of 5 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 10/12/2020 Ver 3.1 Typical Radiation Patterns @25C YZ‐plane XZ‐plane XY‐plane θ +Z (θ= 0°) +Y (θ= 90°) -Y -Z θ +Z (θ= 0°) +X (θ= 90°) -X -Z φ +X (φ= 0°) -X +Y (φ= 90°) -Y +Z +Z +Y +Y +X +X -Y -X -X -Z -Z -Y Ultra-Miniature 2.4GHz Chip antenna 0.37mm max Thickness P/N 2450AT07A0100 Detail Specification:Page 5 of 5 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved https://www.johansontechnology.com/tape-reel-packaging https://www.johansontechnology.com/ipcsoldering-profile https://www.johansontechnology.com/rohs-compliance Ver 3.1 "High Frequency Ceramic Solutions" 10/12/2020 Typical Electrical Performance (T=25°C) Packaging information Soldering Information Antenna layout and tuning techniques (How to obtain the new antenna matching values) https://www.johansontechnology.com/tuning Antenna layout review, tuning, and characterization services https://www.johansontechnology.com/ipc-antenna-services RoHS Compliance https://www.johansontechnology.com/msl-rating MSL Info Return Loss / Without Matching Circuits 2.12.22.32.42.52.62.72.82.92.03.0 -20 -15 -10 -5 -25 0 freq, GHz dB(S(1,1)) m1 m2 m3 m1 freq= dB(S(1,1))=-5.100 2.370GHz m2 freq= dB(S(1,1))=-20.709 2.450GHz m3 freq= dB(S(1,1))=-5.437 2.530GHz To download antenna s-parameters, please go to: https://www.johansontechnology.com/antennas
