2BDAL-RC-50Bluetooth voice remote control

The product name is Bluetooth voice remote control model name is RC-50 Product description: instructions device name：RC-50 While holding down the【back】and【home】buttons on the remote control for approximately 3 seconds, the working indicator light flashes, indicating that the pairing mode has been entered. Turn on the host's Bluetooth - click on the host's Bluetooth - search for devices - connect to the device named "RC-50" and complete the connection. During the Bluetooth pairing process, the indicator light flashes. If the pairing is successful, the light will remain on for 3 seconds; if the pairing fails after 60 seconds, the light will go out (after the pairing broadcast ends, it enters a low-power state). power alarm When the battery power is lower than 2.2V, Every time the user presses a key, Press any key, the red light flflashes for 3s, and the frequency is 1Hz Back connection When there is pairing information, press any key to send the corresponding infrared code. The reconnection is successful, and the indicator light remains on for 3 seconds (the reconnection broadcast time is less than 5 seconds, and it enters a low-power state after the reconnection broadcast ends). 4.Bluetooth unpairing Press the shortcut key on the remote control to deactivate the Bluetooth pairing. If the deactivation is successful, the indicator light will remain on for 3 seconds.. After the Bluetooth connection is established and the device is in standby mode, press the button that sends the Bluetooth code. The Bluetooth broadcast will be a directional broadcast and the TV will reconnect normally. (Bluetooth is not connected. Pressing any key cannot send non-directional broadcasting. Only the designated pairing key can send non-directional broadcasting.) After the Bluetooth connection, back+home disconnects the Bluetooth connection but does not clear the pairing information (a Bluetooth directional broadcast is sent after the Bluetooth is disconnected). 6. sleep and wake up Bluetooth sleep mode: The Bluetooth sleep time is ≥1 hour. When Bluetooth is in sleep mode, the function is normal: When operating the remote control in Bluetooth sleep mode, the first key press can normally respond to the infrared function, and the second key press can normally respond to the Bluetooth function. 7. OTA When the TV is turned on, the upgrade fifile of the remote controller is detected. If the upgrade fifile exists, the remote controller performs OTA upgrade, and the LED lamp flflashes. At this time, the remote controller can't be used, and any buttons don't respond. After the upgrade is successful, the LED light stops flflashing, and the remote controller can be used normally at this time. If the upgrade fails, it will be detected and upgraded again at the next boot. After OTA fails, the LED light stops flflashing, and the remote controller returns to the old version for normal operation. 8. PID/VID vendor:0x0B7A.product:1489 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Huizhou Wanzhisheng New Energy Technology CO., LTD 2-3F, 1st Workshop (Jingtai Group), 51 Dongxin Ave, Dongjiang Tech Park, Huicheng, Huizhou, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/05/19 U.S. Agent Designation Huizhou Wanzhisheng New Energy Technology CO., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDAL-RC-50): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Huizhou Wanzhisheng New Energy Technology CO., LTD with the FRN [0034391102] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Youchang Chen PM Huizhou Wanzhisheng New Energy Technology CO., LTD Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

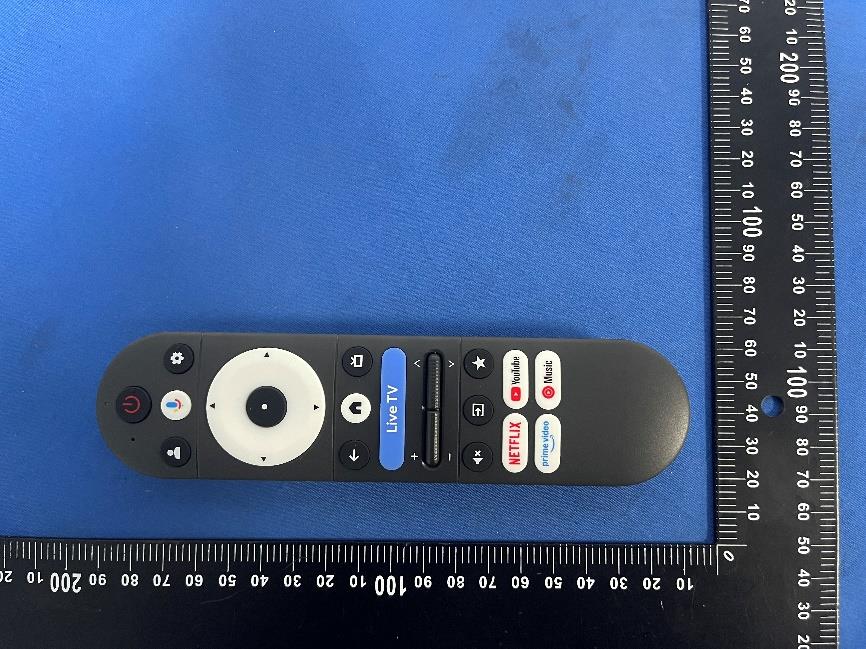

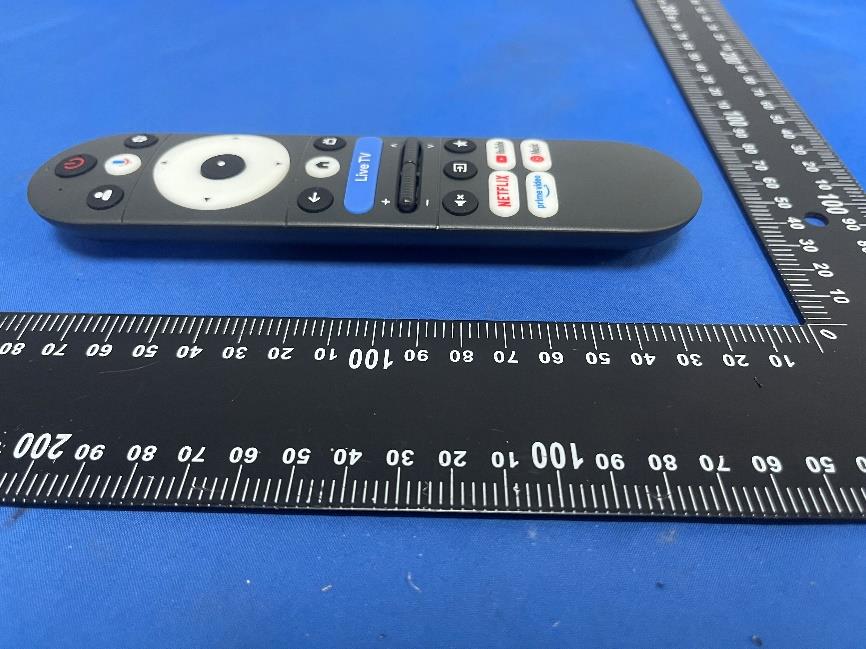

FCC ID: 2BDAL-RC-50 External Photos of the EUT FCC ID: 2BDAL-RC-50

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BDAL-RC-50

FCC ID: 2BDAL-RC-50 Internal Photos of the EUT FCC ID: 2BDAL-RC-50 BLE ANT FCC ID: 2BDAL-RC-50

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. .................... : FCC ID. ........................................... : CTA26042800702 2BDAL-RC-50 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 09, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Huizhou Wanzhisheng New Energy Technology CO., LTD Address ........................................... : 2-3F, 1st Workshop (Jingtai Group), 51 Dongxin Ave, Dongjiang Tech Park, Huicheng, Huizhou, China Standard .......................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth voice remote control Trade Mark ....................................... : N/A Manufacturer .................................... : Huizhou Wanzhisheng New Energy Technology CO., LTD Model/Type reference ...................... : RC-50 Listed Models ................................... : N/A Ratings ............................................. : 3V 0.5A Result ............................................... : PASS Report No.: CTA26042800702 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth voice remote control Model /Type : RC-50 Listed Models : N/A Applicant : Huizhou Wanzhisheng New Energy Technology CO., LTD Address : 2-3F, 1st Workshop (Jingtai Group), 51 Dongxin Ave, Dongjiang Tech Park, Huicheng, Huizhou, China Manufacturer : Huizhou Wanzhisheng New Energy Technology CO., LTD Address : 2-3F, 1st Workshop (Jingtai Group), 51 Dongxin Ave, Dongjiang Tech Park, Huicheng, Huizhou, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042800702 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26042800702 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S …

Text truncated - open the document above for the full version.

1.天线类型及天线尺寸 板载天线 2. 测试方法及测试标准 3.仪器列表及校准日期 4.天线无源测试数据 Manufacturer:Huizhou Wanzhisheng New Energy Technology CO., LTD Address:2-3F, 1st Workshop (Jingtai Group), 51 Dongxin Ave, Dongjiang Tech Park, Huicheng, Huizhou, China 5. 天线增益测试图 (2D,3D) 及数据 6. 测试配置图 7. 测试软件

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26042800701 2BDAL-RC-50 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: May 09, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Huizhou Wanzhisheng New Energy Technology CO., LTD Address ...........................................: 2-3F, 1st Workshop (Jingtai Group), 51 Dongxin Ave, Dongjiang Tech Park, Huicheng, Huizhou, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Bluetooth voice remote control Trade Mark ......................................: N/A Manufacturer ...................................: Huizhou Wanzhisheng New Energy Technology CO., LTD Model/Type reference .....................: RC-50 Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: 3V 0.5A Result ..............................................: PASS Report No.: CTA26042800701 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth voice remote control Model /Type : RC-50 Listed Models : N/A Applicant : Huizhou Wanzhisheng New Energy Technology CO., LTD Address : 2-3F, 1st Workshop (Jingtai Group), 51 Dongxin Ave, Dongjiang Tech Park, Huicheng, Huizhou, China Manufacturer : Huizhou Wanzhisheng New Energy Technology CO., LTD Address : 2-3F, 1st Workshop (Jingtai Group), 51 Dongxin Ave, Dongjiang Tech Park, Huicheng, Huizhou, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042800701 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results ........................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BDAL-RC-50 Company : Huizhou Wanzhisheng New Energy Technology CO., LTD EUT : Bluetooth voice remote control Model Number : RC-50 Report No. : CTA26042800701 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.636 2401.692 2402.328 0.5 PASS 2440 0.656 2439.688 2440.344 0.5 PASS 2480 0.636 2479.696 2480.332 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0042 2401.5190 2402.5232 --- --- 2440 1.0087 2439.5170 2440.5257 --- --- 2480 1.0085 2479.5176 2480.5261 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -6.17 ≤30 PASS 2440 -6.17 ≤30 PASS 2480 -6.20 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -21.71 ≤8.00 PASS 2440 -22.18 ≤8.00 PASS 2480 -21.57 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -6.26 -58.24 ≤-26.26 PASS High 2480 -7.08 -57.14 ≤-27.08 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -8.55 -8.55 --- PASS 30~1000 -8.55 -68.1 ≤-28.55 PASS 1000~26500 -8.55 -50.58 ≤-28.55 PASS 2440 Reference -8.13 -8.13 --- PASS 30~1000 -8.13 -67.41 ≤-28.13 PASS 1000~26500 -8.13 -49.4 ≤-28.13 PASS 2480 Reference -8.02 -8.02 --- PASS 30~1000 -8.02 -68.27 ≤-28.02 PASS 1000~26500 -8.02 -48.49 ≤-28.02 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.46 2.00 1.80 38.54 ≤54 PASS AV 2375.600 -58.8 2.00 1.80 40.20 ≤54 PASS AV 2390.000 -59.61 2.00 1.80 39.39 ≤54 PASS Peak 2310.000 -50.87 2.00 0.00 46.33 ≤74 PASS Peak 2384.840 -48.73 2.00 0.00 48.47 ≤74 PASS Peak 2390.000 -51.53 2.00 0.00 45.67 ≤74 PASS High 2480 AV 2483.500 -59.06 2.00 1.80 39.94 ≤54 PASS AV 2485.040 -58.26 2.00 1.80 40.74 ≤54 PASS AV 2500.000 -59.39 2.00 1.80 39.61 ≤54 PASS Peak 2483.500 -49.81 2.00 0.00 47.39 ≤74 PASS Peak 2499.440 -48.57 2.00 0.00 48.63 ≤74 PASS Peak 2500.000 -51.14 2.00 0.00 46.06 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

FCC ID: 2BDAL-RC-50 Test Setup Photos of the EUT
