2BDAW-OSMWF1433 Remote control

(Shenzhen OSM Technology Co.,Ltd.) (October 24, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BDAW-OSMWF1) [Shenzhen OSM Technology Co.,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Donghai zhang (Shenzhen OSM Technology Co.,Ltd.) (October 24, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BDAW-OSMWF1) [Shenzhen OSM Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Donghai zhang

Shenzhen OSM Technology Co.,Ltd. Model Difference Data：October 24, 2023 Product description: 433 Remote control Model name: OSM-WF-1, OSM-WF-2, OSM-WF-3 Trade Name: N/A FCC ID: 2BDAW-OSMWF1 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Donghai zhang（manager） Contact information / address：Room 202, Building 2, No. 1, Xiangxing Road, Buyong Cammunity, Shajing Street, Baoan District, Shenzhen, Guangdong, China

Shenzhen OSM Technology Co.,Ltd. (October 24, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (433 Remote control / OSM-WF-1, OSM-WF-2, OSM-WF-3/ FCC ID: 2BDAW-OSMWF1) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Donghai zhang Title: manager

Shenzhen OSM Technology Co.,Ltd. (October 24, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Donghai zhang Title: manager

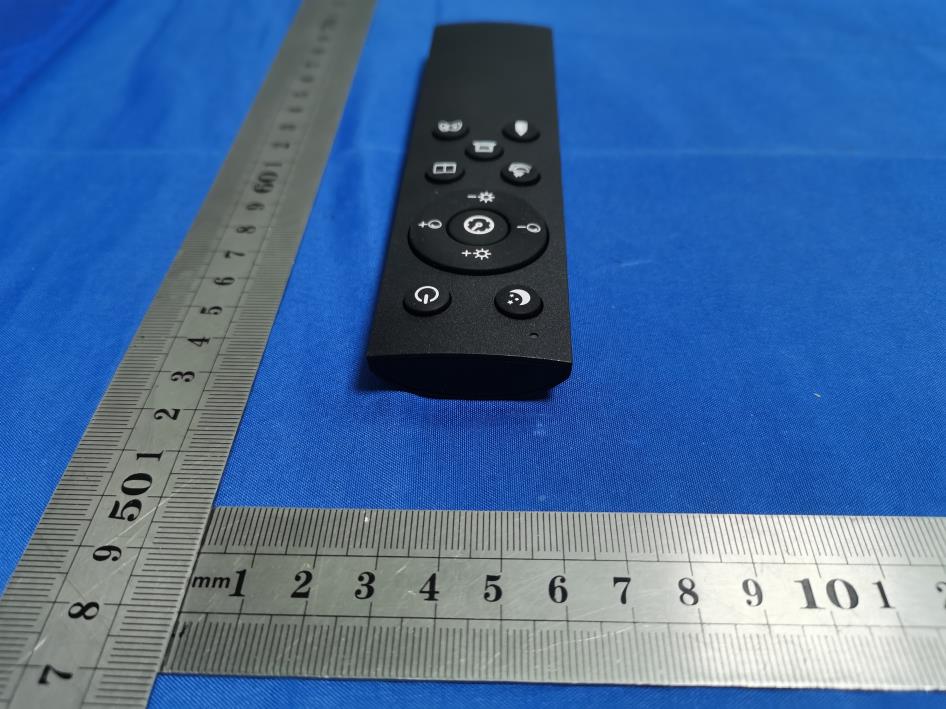

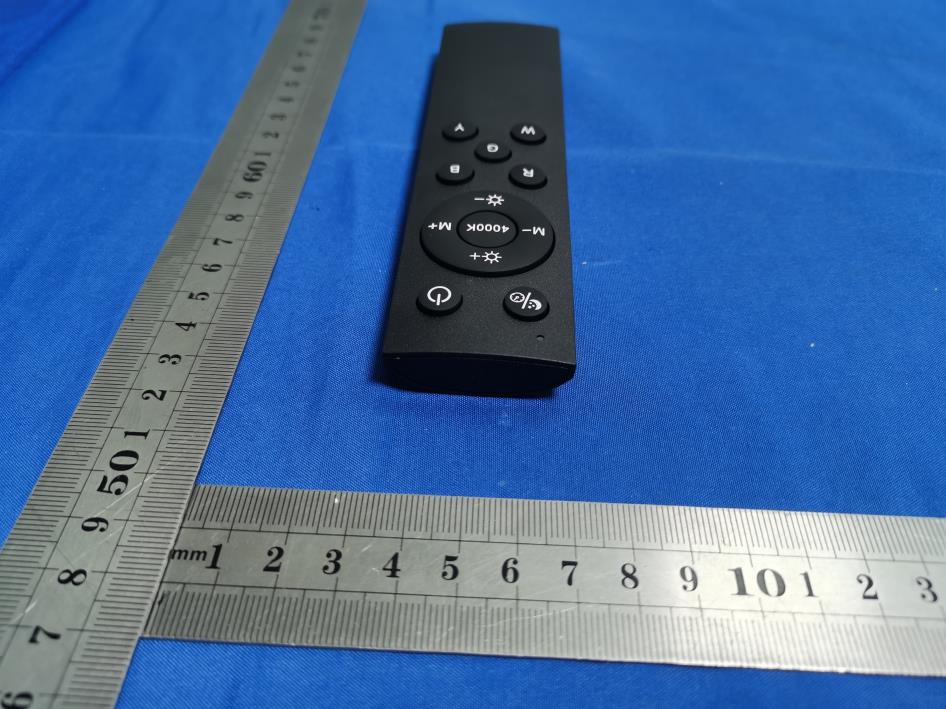

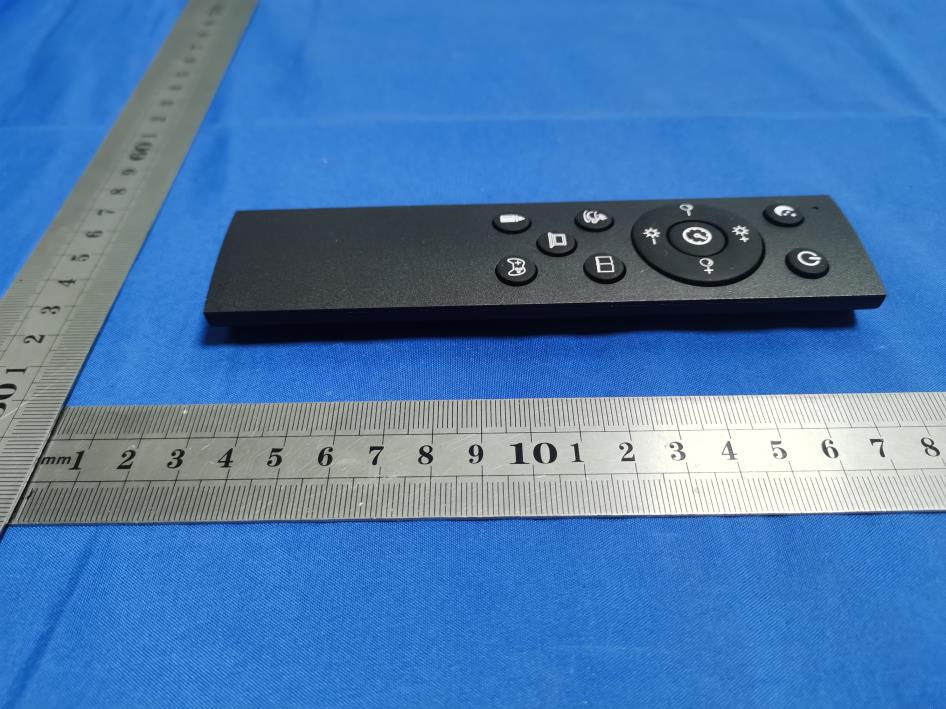

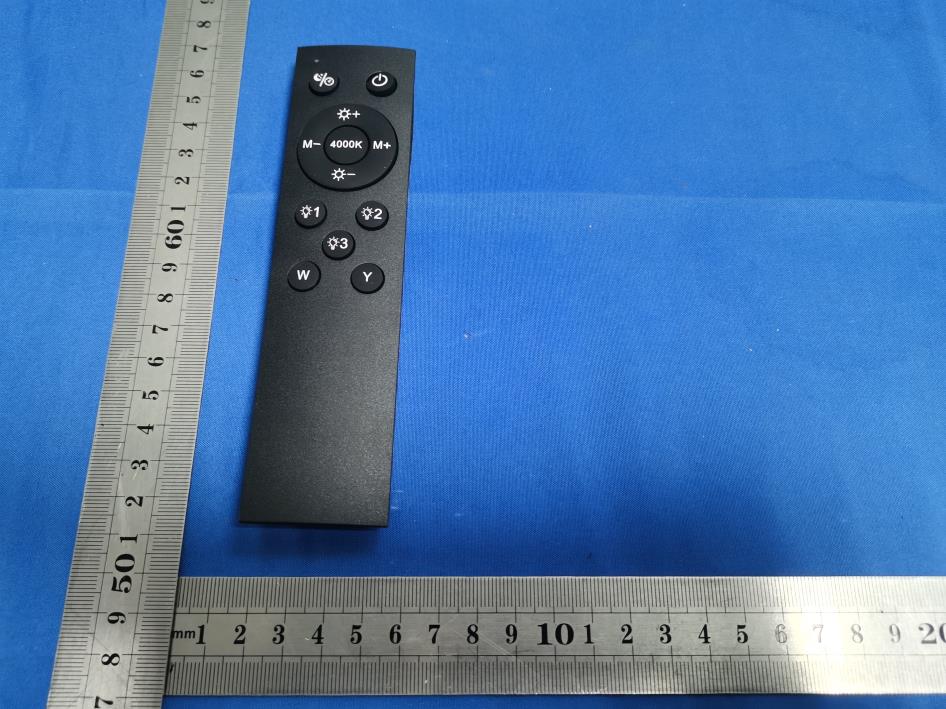

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 9 External Photos Model: OSM-WF-1 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 9 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 9 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 9 Model: OSM-WF-2 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 9 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 6 of 9 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 7 of 9 Model: OSM-WF-3 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 8 of 9 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 9 of 9

FCC ID LABEL: Label Location: FCC ID: 2BDAW-OSMWF1 Model No.: OSM-WF-1

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 9 Internal Photos Model: OSM-WF-1 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 9 ANT Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 9 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 9 Model: OSM-WF-2 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 9 ANT Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 6 of 9 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 7 of 9 Model: OSM-WF-3 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 8 of 9 ANT Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 9 of 9

Shenzhen CTB Testing Co., Ltd. FCC ID: 2BDAW-OSMWF1 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion ASK 0.43392 -18.41 0.01 -18±1 -17.00 0.02 <5 0.00263 3.00 YES Note:dbm=dbuv/m-95.2+4.7=73.09-95.2+4.7=-17.41dBm(ERP), so the conduct peak power= -17.41-1=-18.41dBm Conclusion: For the max result : 0.00263≤ FCC Limit 3.0 for 1g SAR.

ANT PHTOT All measurements were performed radiated and therefore additional antenna gain documentation is not required.

TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report r Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: 433 Remote control FCC ID: 2BDAW-OSMWF1 Trademark: N/A Model Number: OSM-WF-1, OSM-WF-2, OSM-WF-3 Prepared For: Shenzhen OSM Technology Co.,Ltd. Address: Room 202, Building 2,No. 1, Xiangxing Road, Buyong Cammunity, Shajing Street, Baoan District,Shenzhen, Guangdong, China Manufacturer: Shenzhen OSM Technology Co.,Ltd. Address: Room 202, Building 2,No. 1, Xiangxing Road, Buyong Cammunity, Shajing Street, Baoan District,Shenzhen, Guangdong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Oct. 08, 2023 Sample tested Date: Oct. 08, 2023 to Oct. 12, 2023 Issue Date: Oct. 12, 2023 Report No.: CTB231012005RFX Test Standards FCC Part15.231 ANSI C63.10:2013 Test Results PASS Remark: This is 433.93MHz radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB231012005RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 25 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Test Mode ........................................................................................................................................ 7 4.5 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 10 6.1 Block Diagram Of Test Setup ......................................................................................................... 10 6.2 Limit ................................................................................................................................................ 10 6.3 Test procedure ............................................................................................................................... 10 6.4 Test Result ..................................................................................................................................... 11 7. RADIATED EMISSION ................................................................................................................. 12 7.1 Block Diagram Of Test Setup ......................................................................................................... 12 7.2 Limit ................................................................................................................................................ 12 7.3 Test procedure ............................................................................................................................... 13 7.4 Test Result ..................................................................................................................................... 14 8. DWELL TIME ................................................................................................................................ 20 8.1 Block Diagram Of Test Setup ......................................................................................................... 20 8.2 Limit ................................................................................................................................................ 20 8.3 Test procedure ............................................................................................................................... 20 8.4 Test Result ..................................................................................................................................... 21 9. OCCUPIED BANDWIDTH ............................................................................................................ 22 9.1 Block Diagram Of Test Setup ......…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 1 Model: OSM-WF-1 Radiated Emission Below 1G Above 1G
