2BDC7-T1Smart Watch

智能手环 使用说明书 正确佩戴 手环以尺骨茎突后佩戴最佳 根据调节孔调好适合手腕的大小；扣上腕带扣。 传感器要紧贴皮肤，避免移动 给手环充电 初次使用确保手环电量正常,若低电不能正常开机,请连接充电器对 设备进行充电。 在手机上安装手环APP 扫描二维码或进入APP Store、应用宝下载并安装APP Android/IOS 系统要求：Android 5.0及以上； iOS9.0及以上；支持蓝牙4.0。 设备连接 首次使用，需连接APP进行校准，连接成功后手环会自动同步时间 打开手机系统蓝牙开关→进入app设备模块设置→点击“绑定设备， 体验更多功能”进入，会自动搜索到附近手环蓝牙设备，找到手环设 备并与连接。 配对成功后，APP端会弹出引导页，根据指引跳转到手机系统蓝 牙搜索找到ewatch Audio设备并连接，连接成功后即可拨打/接听电 话和听音乐（备注：如果手机系统蓝牙一直搜索不到ewatch Audio 设备，请进入Dual mode菜单下设置为开启，未连接ewatch Audio 设备是不能拨打电话的。） APP会自动保存手环蓝牙地址,APP打开或在后台运行,都会自动 搜索并连接手环; 安卓手机使用要读取联系人信息等所有通知权限和手机设置中赋 予APP后台运行。 手环功能说明 待机页面往下滑进入通知提醒，往上滑进入控制中心。 待机页面左右滑动可循环切换表盘。 手环重置设备此功能会清除手环所有数据（如计步）。  切换到心率三合一界面进入开始测试，心率三合一界面60s超时 自动灭屏（心率和血压需手环硬件支持）。 时钟界面 与手机同步后，手环会自动校准时间； 待机页面左右滑动可循环切换表盘 计步 运动步数 佩戴手环，记录每天运动步数，可查看当前实时步数。 距 离 根据行走步数，估算运动距离。 卡 路里 根据行走步数，估算消耗的卡路里 心率、血压、血氧三合一 进入心率三合一测试界面等待数秒后，显示当前心率、血压、血氧的 测试结果。此功能需要手环支持心率、血压传感器。 拨号 拨号盘可拨打电话（备注：手机同时需要连接ewatch Audio设备） 电话本 在APP中添加8个常用联系人，手环与APP蓝牙连接成功后，联系 人即可同步到手环电话本里显示，点击联系人即可拨打电话（备注： 手机同时需要连接ewatch Audio设备） 音乐控制 手环可控制切换上一曲，下一曲，暂停/开始播放。（备注：使用此 功能手机需要连接ewatch Audio设备） 双模开关 需要打开此开关，手机才能搜索到ewatch Audio设备，手环开机后5分 钟内手机如果没有连接ewatch Audio设备，开关会自动关闭，再次使用 时需要手动打开。 多运动 所有运动模式可以记录跳绳消耗的卡路里和持续时间。 睡眠模式 入睡时，手环会自动进入睡眠监测模式；自动检测您整晚深睡/浅睡/ 清醒次数,计算您的睡眠质量; 手环端只显示深睡/浅睡/睡眠总时 长，APP端可查看睡眠数据详情。 注意：佩戴手环入睡才会有睡眠数据且从晚上10点开始检测睡眠， 入睡3/4小时睡眠数据可以边睡边同步到app中。 信息模式 信息菜单可以查看最新消息内容 秒表功能 进入秒表点击开始按钮开始计时，点击暂停按钮停止，点击重置按 钮清除掉计时。 自定义表盘 需连接APP获取表盘设置，可选择推荐表盘/默认表盘/相册自定义表 盘进行同步到手环 APP功能及设定 个人信息 进入APP后请先设定个人信息 设置→个人信息，可设置性别-年龄-身高-体重-距离 您也可以设置您的每日目标步数，监控每日的完成情况。 应用推送 短信提醒： 连接状态下，如果开启了短信提醒功能，当有短信时手环上会震 动提醒。 其他提醒： 连接状态下，如果开启了此功能，则当有微信、QQ,Facebook等消息 时，手环会震动提醒,并显示app接收到的内容（需赋予APP获取系 统通知的权限，手环端能显示20-40个字数）。 注意：来电提醒系统默认开启，无开关选择项(来电推送需要连接 ewatch Audio设备） 其他功能： 开启震动设置此功能，则当有来电，信息或其他提醒时，手环会震动， 若关闭，则手环只会有屏幕提醒而不震动，以免打扰。 Android用户温馨提示: 使用提醒功能时需要设置为允许"LEFUN"后台运行；建议在 权限管理中添加"LEFUN"为信任并打开所有权限。 闹钟设置 连接状态下，可进行8个闹钟的设置，设置后，会同步给手环；支持 离线闹钟，在同步成功后，即使APP未连接，手环也会按设定时间提 醒。 寻找手环 连接状态下，点击“寻找手环”选项，手环会发出震动。 遥控拍照 连接状态下，从手环端启动拍照或APP端进入遥控拍照界面，摇一摇 /翻腕/触摸手环，倒计时3秒后自动拍照请允许APP访问相册以保存 自拍的照片。 久坐提醒 设置是否开启久坐提醒功能，您可设置提醒时间间隔，若在设定 时间内长时间坐着，则手环会提醒。 抬手亮屏 开启此功能当手环息屏状态下，抬起手腕将屏幕转向自己即可点 亮屏幕，放下屏幕会灭 勿扰模式 开启勿扰模式此功能，您可设置勿扰时间段，在设定时间段内手 环停止接收通知消息，以免提醒消息打扰 设备重置 设置重置此功能会清除手环所有数据（如计步） FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. smart watch user's Guide Wear it properly The bracelet is best worn a�er the ulnar styloid Adjust the size of the wrist according to the adjustment hole; buckle the wrist strap buckle. The sensor should be close to the skin to avoid moving Charge the bracelet Use it for the first �me to ensure that the ba�ery is in normal condi�on. If the power is not turned on normally, please connect the charger to charge the device. Install the bracelet app on your phone Scan the QR code or go to the App Store, app download and install the app. Android/IOS System requirements: Android 5.0 and above; iOS9.0 and above; support for Bluetooth 4.0. Device connec�on For the first use, you need to connect the APP for calibra�on. A�er the connec�on is successful, the bracelet will automa�cally synchronize the �me. Turn on the Bluetooth switch of the mobile phone system → enter the app device module se�ngs → click “Bind device, experience more features” to enter, it will automa�cally search for nearby Bluetooth devices on the bracelet, find and connect the bracelet device.  According to the instruc�ons, jump to the mobile phone system Bluetooth search to find the ewatch Audio device and connect it. A�er the connec�on is successful, you can make / receive calls and listen to music (Note: If the mobile phone system Bluetooth has not been searched ewatch Audio equipment, please enter the Dual mode menu and set it to On, you cannot make calls without connec�ng the ewatch Audio equipment.)  and the APP will open and run in the background, and will automa�cally search and connect the bracelet; Android phones use all no�fica�on permissions to read contact informa�on and give the app background running in the phone se�ngs. Bracelet func�on descrip�on Slide down the standby page to enter the no�fica�on reminder, and slide up to enter the control center Swipe le� or right on the standby page to cycle through the dials  Bracelet reset device This func�on will clear all data of the bracelet (such as step coun�ng)  Switch to the heart rate three-in-one interface to start the test, heart rate three-in-one interface 60s �meout automa�cally offscreen (heart rate and blood pr…

Text truncated - open the document above for the full version.

1/1 TO: Office Feder 7435 Colum US A Comp Conta FRN: Addr e Telep Email Appl Com p Produ Gran FCC FRN Conta Addre Shenz Telep Email [She filing desig [She less impo equi of t h proc The U outlin § 2.9 The A Equip Dat e Appl Title Signa US Ag e of Enginee ral Commun 5 Oakland Mi mbia, MD 21 Agent for pany Name: act Name: ess: phone No: l: icant: pany name: S uct Descriptio ntee code: 2B ID: 2BDC7- :003440944 act Name:yu ess:F3.83C31 zhen,China phone No:134 l:134289717 enzhen Ton g of the ap gnated US enzhen Ton than one ortation or pment. [C he applica cess for the US Agent fo ned in the FC 11. Applicantis a pment Autho e: 2023/10/ icant’s Nam :project man ature gent for Se ering Techno ications Com lls Road 1046 r Service o CLF Impor David Che 00334896 8 1312 17th (949)254- 2 market@c Shenzhen To on: Smart W BDC7 -T1 41 cheng tong 15A, 3rd Floo 428971777 [email protected] ngshi Tech pplication S agent for ngshi Tech e year af r the concl LF Import ation, the e above ref r Service of CC Equipmen aware of an rization Prog /27 me: yuche nager ervice of ology mmission of Process rt and Export n 83 Street #69 2565 lfimportexp o ongshi Techn Watch or, Tianjing B m hnology Co with the T r service o hnology Co fter the g lusion of a and Expor obligation ference FC Process is a nt Authorizat nd agrees to gram, Report eng tong ProcessL s: t Limited 2,Denver,C O ort.com nology Co., L Building Tian o., Ltd] ce TCB, [CLF of process o., Ltd] ac grantee ha any comm rt Limited] of the d e CC ID. aware of and tion Program o comply wi t and Order F US Ag Title: Signa ETTER OF O 80202,Unit Ltd n'an Commun ertifies tha Import an for the ab ccepts to m as termin ission rela accepts, a esignated d agrees to c , Report and th the requ FCC 22-84, a gent’s Nam ature F ATTESTA e States nity, Futian D at, as of th nd Export bove refer maintain a ated all m ated procee as of the da US agent comply with d Order FCC irements o u and clause § me: ATION District, he date of Limited] is renced FCC n agent fo marketing eding invo ate of the for servi c the require 22-84, and c utlined in the 2.911. f this s our C ID. or no and olving filing ce of ments clause e FCC

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen Tongshi Technology Co., Ltd Product Description: Smart Watch Grantee code: 2BDC7 FCC ID: 2BDC7-T1 Contact Name: yucheng tong Address: F3.83C315A, 3rd Floor, Tianjing Building Tian'an Community, Futian District, Shenzhen, China Telephone No: 13428971777 Fax No: / Email: [email protected] i. [Shenzhen Tongshi Technology Co., Ltd ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shenzhen Tongshi Technology Co., Ltd ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen Tongshi Technology Co., Ltd ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2023/11/02 Applicant’s Name: yucheng tong Title: project manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Shenzhen Tongshi Technology Co., Ltd Product Similarity Declaration Product name: Smart Watch Model name: T1, T11, T15, T21, T31, T37, T188, T41, T81, T65, T67, T61, T83, TB35, TB39, TB37, TB56, TB57, TB58, T344, T12, T169S, T386, T16, T17, T18, T83B, T24, T25, T26, T31, T51, TB49, T66, TB36B, T68, T88, T188, T115, T111, T201-W, T47, T118, T32, T48, T202, T63, TB50, TB53, T168 FCC ID: 2BDC7-T1 We (Shenzhen Tongshi Technology Co., Ltd ) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name are different. Signature: Name: yucheng tong Title: project manager Address: F3.83C315A, 3rd Floor, Tianjing Building Tian’an Community, Futian District, Shenzhen, China Date: 2023-11-02

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Shenzhen Tongshi Technology Co., Ltd Address: F3.83C315A, 3rd Floor, Tianjing Building Tian’an Community, Futian District, Shenzhen, China Product Name: Smart Watch Model Number: T1, T11, T15, T21, T31, T37, T188, T41, T81, T65, T67, T61, T83, TB35, TB39, TB37, TB56, TB57, TB58, T344, T12, T169S, T386, T16, T17, T18, T83B, T24, T25, T26, T31, T51, TB49, T66, TB36B, T68, T88, T188, T115, T111, T201-W, T47, T118, T32, T48, T202, T63, TB50, TB53, T168 FCC Identifier: 2BDC7-T1 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: yucheng tong 2023-11-02 Title: project manager Signature of applicant:

C5266091_X10_Ed.2 1/1 Shenzhen Tongshi Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-11-02 Subject: Request for Confidentiality FCC ID: 2BDC7-T1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: yucheng tong Title: project manager

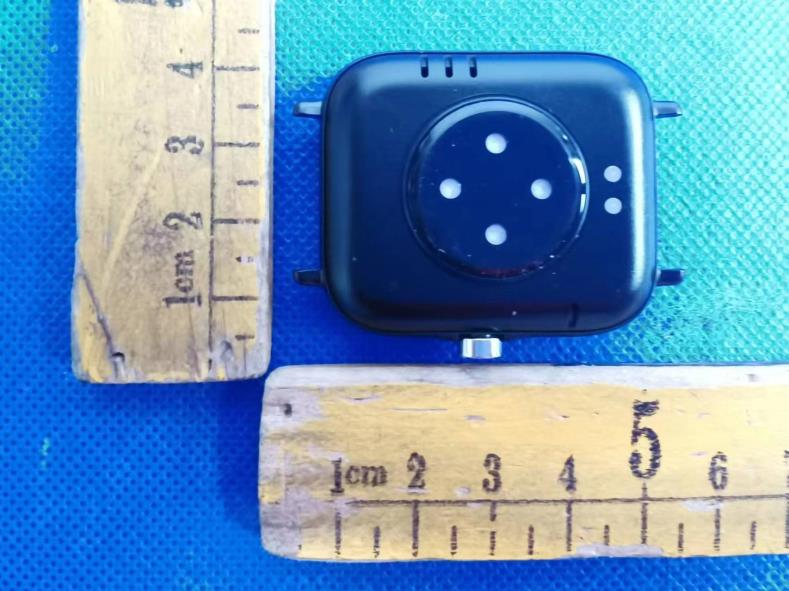

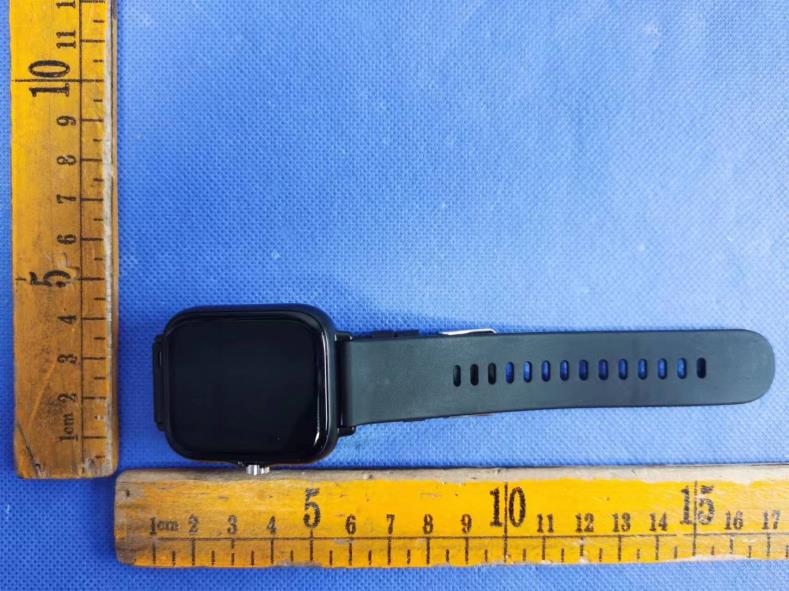

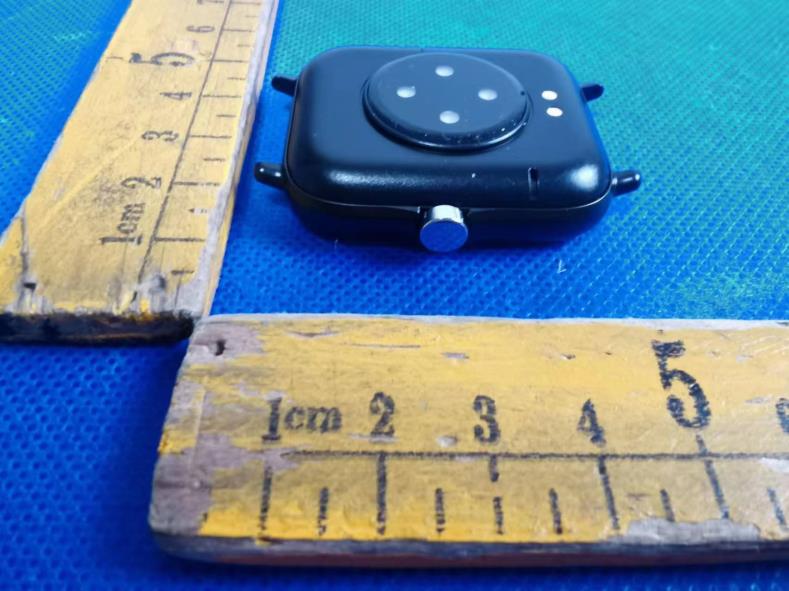

GTSL2023100299 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 4 Product Name: Smart Watch Test Model No.: T1 EUT Constructional Details GTSL2023100299 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 4 GTSL2023100299 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 4 GTSL2023100299 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 4 ------End------

FCC ID: 2BDC7-T1

GTSL2023100299 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 2 Product Name: Smart Watch Test Model No.: T1 EUT Constructional Details Antenna GTSL2023100299 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 2 ------End------

FCC ID: 2BDC7-T1 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, For Bluetooth Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 3.65 2.317 2402 5 0.718 3.0 So a SAR test is not required

Shenzhen First Line Cable Co. LTD Address: Building 21, Wanfeng 98 Industrial City, Shajing Street, Baoan District, Shenzhen City Antenna Specification for Approval Model NO.: TS 01 Antenna size

GTSL2023100299 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 2 Product Name: Smart Watch Test Model No.: T1 Test Setup Photo Radiated Emission GTSL2023100299 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 2 Conducted Emission ------End------
