2BDCA-PG-025Soundbar

AUX PG-025 USB, FM Indicator 1 3 4 5 1G-32G 14V white white white white white 2 Outputpower:30W(mainunit) Speakerunit:2 " ×2(mainunit) Sensitivity:＞60dB Frequencyrange:50Hz~16KHz SNR:＞80dB 1.Open the battery cover as shown in the above figure. 2.Insert a new battery. 3.Replace the cover. Caution Used batteries should be recycled. Keep out of children’s reach. DO NOT use new and old batteries together. Change both the batteries at the same time. When not using the remote control for a long time,remove the batteries from the unit. Warning:All batteries(packed or in use)must not be exposed to high temperature such as direct sunshine or fire. 1.ON/OFF 2.MUTE 3. 4.PREV 5. 6.OPT 7.BT PLAY/PAUSE DECREASE VOLUME 8.MODE 9. 10. 11. 12.NEXT 13. 14.EQ REPEAT ARC AUX INCREASE VOLUME 1 2 3 4 5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 4 5 User Manual + M Power Adapter HDMI Cable AUX Cable Optical Cable Please read the instruction manual carefully before use and keep it in a safe place for future reference. IMPORTANT SAFEGUARDS Before use, ensure that the mains voltage corresponds to the rating of the unit. Place the unit in a cool, dry and clean place, free from vibrations. Do not place any objects such as vases full of liquid, on top of the unit. If liquid or a foreign object enters the unit, stop using it immediately, turn it off and remove the plug from the mains supply. Keep the unit away from direct sunlight. Handle the unit with care. Warning: There is uninsulated "dangerous high voltage" in the unit. To prevent electric shock, do not remove the cover or the rear plate yourself. Do not open the housing or try to repair the unit yourself otherwise the warranty will become invalid. Repairs or other operations must be conducted by a professional. When removing the plug from the mains supply or connecting or disconnecting the cable, do not pull on the power cable, rather grasp the plug/connector firmly. Make sure the power is off before connecting or disconnecting. When the unit is off, please remove the plug from the mains supply. Only use a soft, dry cloth to clean the unit. In extreme cases, mild detergents poured onto a soft cloth can be used to remove stubborn dirt. Never use volatile chemicals such as benzine or paint thinners as these will damage the unit. This unit can only be used in environments under elevation of 2000m, otherwise there may be potential safety hazards. Do not use the unit in tropical climates. otherwise there may be a safety risk. Do not block the vents otherwise the unit may overheat. TECHNICAL PARAMETERS If the problem still cannot be resolved after going through the above checks, please contact a qualified technician. FEATURES ACCESSORIES BLUETOOTH Battery Installation Rear Panel Top Panel 1. On/Off 2. Prev/Decrease Volume 3. Play/Pause 4. Next/Increase Volume 5. Mode Rear Panel - Wiring Diagram Dear Customer, OPERATING INSTRUCTIONS AC 230V~ DC 14V ARC USB AUX OPTICAL DC IN ARC USB AUX OPTICAL DC IN ARC USB AUX OPTICAL DC IN ARC USB AUX OPTICAL DC IN ARC USB AUX OPTICAL DC IN + M 2.0CH SOUNDBAR 风琴折页（143X210MM) TROUBLESHOOTING Check the adaptor connection to the unit as well as mains supply. Check whether the unit is turned on. Check whether the correct audio source has been selected. ut interface and AUX input interface of the unit. to AUX mode after which the white indicator will light up or show after which the white indicator will blink Turn on the Bluetooth on your device and search for PG-025. Once found, click on it to pair. Please note that the unit will automatically connect to this device (after one successful connection) in the future as long as the Bluetooth setting is turned on on both the unit and the device. EnsurethatyourUSBisstoredwithMP3audio. unit. Insert a USB memory device to the USB port white Previous/Next Track. the other unit. mode, after which the white indicator will light up . Make sure the audio setting of the sound source is set to HDMI. 1. 2. 3. 1. 2. 3. 4. 1. 2. . accessories Repeat:Repeat single track by pressing Repeat key once or all tracks by pressing 5. Repeat key twice. If the pairing is successful, the unit will make a sound. Mode button Press Mode button repeatedly or the Mode key Use the controls on the unit or remote control to make adjustments. Mode button Press the Mode button repatedly or the AUX Press MODE Button repeatedly, or the Bluetooth A3.5mm audio connecting cable is required (incl uded in the list of accessories) Connect one end of the 3.5mm audio connecting the other end to the 3.5mm white FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving an tenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult …

Text truncated - open the document above for the full version.

i - ETI GROU P LIMITED - Fede『alCommunications Commission Authorization and Evaluation Division Equipment Authorization Brancl1 7435 Oakland Mills Road Columbia, MD 21046 2/26/24 砐·-AqentDesiqnati_Q_n ETI GROUP LIMITED acknowledges their consent for the following contact located in the United States to act as the1「 agent for service of process for the equipment for which authorization is sought (FCC ID: [please insert FCC ID]): 2BDCA-PG-025 Name and company of U.S. agent: Linkwld LLC Physical U.S. address of agent: 1942 Broadway St. STE 314C, Boulder, CO, 80302, US FRN of U.S. agent: 0033625682 Email address of U.S. agent: [email protected] Linkwld LLC acknowledges their obligation to accept service of process on behalf of ETI GROUP LIMITED. ETI GROUP LIMITED with the FRN 0033845314 accepts its obligation to maintain an agent for se八rice of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., o 「 the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under§ 2.911 (d)(7). Sincerely, 己＞ ' fl · (U(J>) 116 C: IUJ.Jy Sfl I号0E-8r Signature [Name] David [Tilie] SALES Wang MANAGER [Company] ETI GROUP LIMITED 飞士多丛 Signature (Name of U.S. agent] Timothy Zhu [Title of U.S. agent] Manager (Company of U.S. agent] linkwld LLC The infonnation provided in this lener is based on the referenced rule parts ofTitlc 47 of the CFR as well as KDB 986446 DOI. An cxpi皿on dale for this lcner does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB.

-ETIGROUPLIMITED- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 3/22/24 Towhomitmayconcern: We,[ETIGROUPLIMITED],herebycertifythattheequipmentforwhichauthorizationissought(FCC ID:[2BDCA-PG-025])isnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [DavidWang] [SalesManager] [ETIGROUPLIMITED] 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

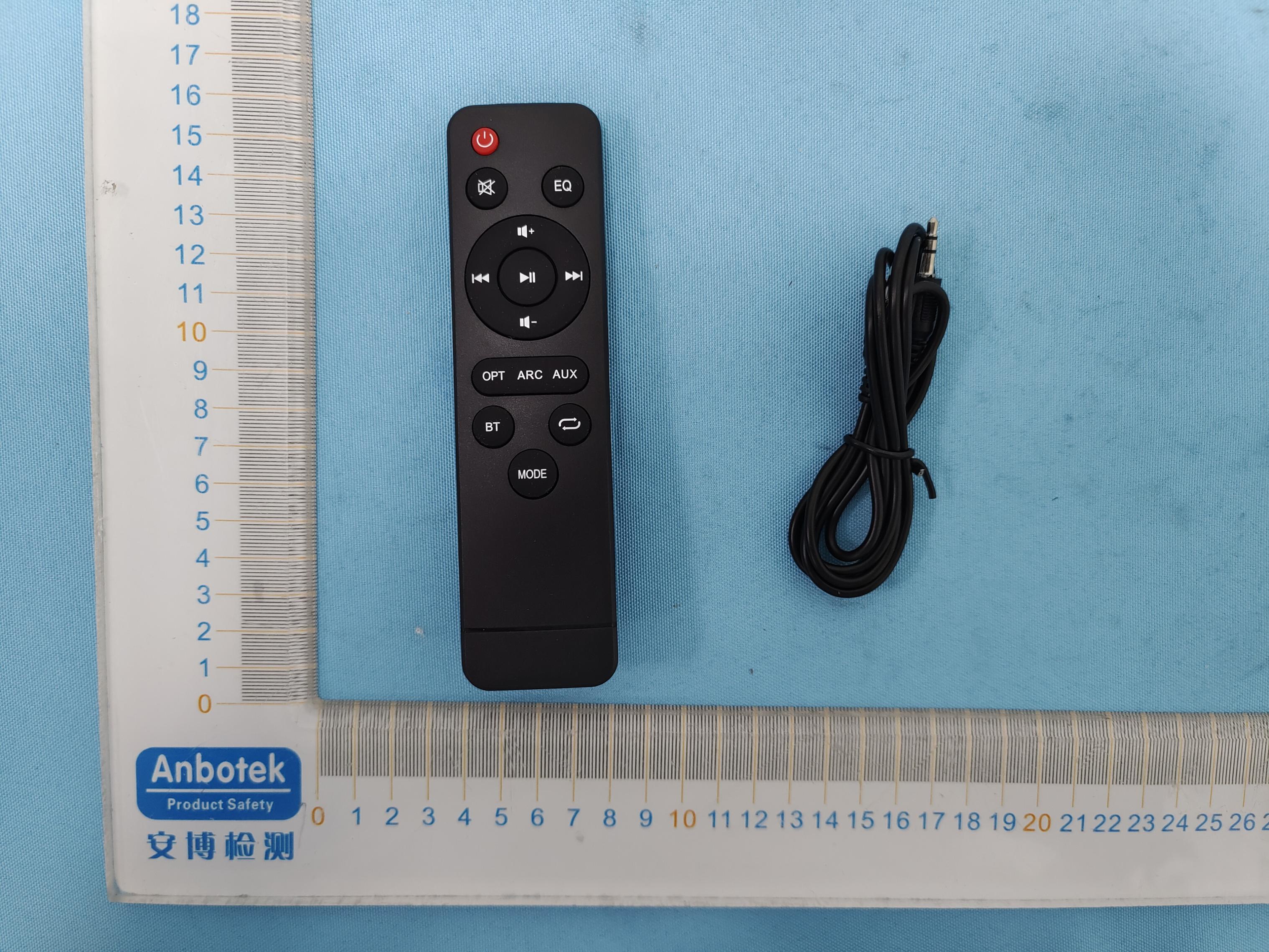

ProjectNo.:18220WC400220Page 1 of 5 AppendixII--ExternalPhotograph ProjectNo.:18220WC400220Page 2 of 5 ProjectNo.:18220WC400220Page 3 of 5 ProjectNo.:18220WC400220Page 4 of 5 ProjectNo.:18220WC400220Page 5 of 5

LabelLocationOnEUT Label

ProjectNo.:18220WC400220Page 1 of 3 AppendixIII--InternalPhotograph ProjectNo.:18220WC400220Page 2 of 3 ProjectNo.:18220WC400220Page 3 of 3 ANT

MAXIMUMPERMISSIBLEEXPOSURE KDB447498D01MobileandPortableDevicesRFExposureProceduresand EquipmentAuthorizationPoliciesv06. AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b) EUTSpecification FCCID2BDCA-PG-025 EUTSoundbar Frequencyband (Operating) BT:2.402GHz~2.480GH WLAN:2.412GHz~2.462GHz RLAN:5.180GHz~5.240GHz RLAN:5.260GHz~5.320GHz RLAN:5.500GHz~5.700GHz RLAN:5.745GHz~5.825GHz Others: DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ ExposureclassificationOccupational/Controlledexposure GeneralPopulation/Uncontrolledexposure AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Max.outputpower6.60dBm(0.0046W) Antennagain(Max)-0.68dBi EvaluationappliedMPEEvaluation SAREvaluation LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm 2 ) AverageTime (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/150030 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R2) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainMw G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdthelimitofMPE.Ifweknowthemaximumgainoftheantennaandtotal powerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. MaxMeasurementResult Operating Mode Measured Power Tuneup tolerance Max.Tune upPower Antenna Gain Powerdensity at20cm Powerdensity Limits (mW/cm2) (dBm)(dBm)(dBm)(dBi)(mW/cm2) BDR+EDR6.606.60±17.60-0.680.00101 Result:NoStandaloneSARtestisrequired.

Page1of52 AppendixTestData ReportNo.:18220WC40022001TestSampleNo.:1-2-2 StartTestDate:2024.2.5FinishTestDate:2024.2.5 TestEngineer:Auditor: Temperature:25.4 °C RelativeHumidity:47% Pressure:101kPa AppendixA:20dBEmissionBandwidth TestResult TestModeAntennaFrequency[MHz] 20db EBW[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH5Ant1 24020.9392401.5742402.513------ 24410.9422440.5742441.516------ 24800.9542479.5712480.525------ 2DH5Ant1 24021.3292401.3672402.696------ 24411.3382440.3612441.699------ 24801.3292479.3672480.696------ 3DH5Ant1 24021.2932401.3882402.681------ 24411.3142440.3822441.696------ 24801.2842479.4062480.690------ Page2of52 TestGraphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page3of52 2DH5_Ant1_2402 2DH5_Ant1_2441 Page4of52 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Page5of52 3DH5_Ant1_2480 Page6of52 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz] OCB [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH5Ant1 24020.840192401.61322402.4534------ 24410.831722440.61832441.4500------ 24800.840362479.61292480.4533------ 2DH5Ant1 24021.19042401.44322402.6336------ 24411.18682440.44172441.6285------ 24801.17632479.44602480.6223------ 3DH5Ant1 24021.18332401.44262402.6259------ 24411.17422440.44992441.6241------ 24801.18222479.44352480.6257------ Page7of52 TestGraphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page8of52 2DH5_Ant1_2402 2DH5_Ant1_2441 Page9of52 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Page10of52 3DH5_Ant1_2480 Page11of52 AppendixC:Maximumconductedoutputpower TestResultPeak TestModeAntennaFrequency[MHz] ConductedPeak Power[dBm] Conducted Limit[dBm] Verdict DH5Ant1 24023.41≤20.97PASS 24411.97≤20.97PASS 24800.91≤20.97PASS 2DH5Ant1 24025.87≤20.97PASS 24414.40≤20.97PASS 24803.26≤20.97PASS 3DH5Ant1 24026.60≤20.97PASS 24415.14≤20.97PASS 24804.07≤20.97PASS Page12of52 TestGraphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page13of52 2DH5_Ant1_2402 2DH5_Ant1_2441 Page14of52 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Page15of52 3DH5_Ant1_2480 Page16of52 AppendixD:Carrierfrequencyseparation TestResult TestModeAntennaFrequency[MHz]Result[MHz]Limit[MHz]Verdict DH5Ant1Hop1.006≥0.954PASS 2DH5Ant1Hop1.204≥0.892PASS 3DH5Ant1Hop1.160≥0.876PASS Page17of52 TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page18of52 Page19of52 AppendixE:Timeofoccupancy TestResult TestModeAntennaFrequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s]Limit[s]Verdict DH1Ant1Hop0.3953170.125≤0.4PASS DH3Ant1Hop1.6521580.261≤0.4PASS DH5Ant1Hop2.899910.264≤0.4PASS 2DH1Ant1Hop0.4053150.128≤0.4PASS 2DH3Ant1Hop1.6571620.268≤0.4PASS 2DH5Ant1Hop2.9041150.334≤0.4PASS 3DH1Ant1Hop0.4073150.128≤0.4PASS 3DH3Ant1Hop1.6561570.26≤0.4PASS 3DH5Ant1Hop2.9081080.314≤0.4PASS Page20of52 TestGraphs DH1_Ant1_Hop DH3_Ant1_Hop Page21of52 DH5_Ant1_Hop Page22of52 2DH1_Ant1_Hop 2DH3_Ant1_Hop Page23of52 2DH5_Ant1_Hop Page24of52 3DH1_Ant1_Hop 3DH3_Ant1_Hop Page25of52 3DH5_Ant1_Hop Page26of52 Page27of52 AppendixF:Numberofhoppingchannels TestResult TestModeAntennaFrequency[MHz]Result[Num]Limit[Num]Verdict DH5Ant1Hop79≥15PASS 2DH5Ant1Hop79≥15PASS 3DH5Ant1Hop79≥15PASS Page28of52 TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page29of52 Page30of52 AppendixG:Bandedgemeasurements TestResult TestModeAntennaChNameFrequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low24023.10-49.64≤-16.9PASS High24800.61-56.87≤-19.39PASS LowHop_24022.90-55.18≤-17.1PASS HighHop_24800.87-56.65≤-19.13PASS 2DH5Ant1 Low24021.87-50.82≤-18.13PASS High2480-0.61-57.57≤-20.61PASS LowHop_24022.88-57.75≤-17.12PASS HighHop_24800.36-56.78≤-19.64PASS 3DH5Ant1 Low24023.04-48.88≤-16.96PASS High24800.66-57.51≤-19.34PASS LowHop_24022.12-57.27≤-17.88PASS HighHop_24800.70-57.15≤-19.3PASS Page31of52 TestGraphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Page32of52 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 Page33of52 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 Page34of52 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Page35of52 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Page36of52 AppendixH:ConductedSpuriousEmission TestResult TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference2.582.58---PASS 30~10002.58-69.04≤-17.42PASS 1000~265002.58-39.48≤-17.42PASS 2441 Reference1.181.18---PASS 30~10001.18-68.66≤-18.82PASS 1000~265001.18-40.26≤-18.82PASS 2480 Reference0.160.16---PASS 30~10000.16-69.67≤-19.84PASS 1000~265000.16-40.69≤-19.84PASS 2DH5Ant1 2402 Reference1.811.81---PASS 30~10001.81-69.39≤-18.19PASS 1000~265001.81-38.45≤-18.19PASS 2441 Reference-0.38-0.38---PASS 30~1000-0.38-69.38≤-20.38PASS 1000~26500-0.38-39.26≤-20.38PASS 2480 Reference-0.29-0.29---PASS 30~1000-0.29-69.42≤-20.29PASS 1000~26500-0.29-41.54≤-20.29PASS 3DH5Ant1 2402 Reference1.991.99---PASS 30~10001.99-69.28≤-18.01PASS 1000~265001.99-40.36≤-18.01PASS 2441 Reference1.541.54---PASS 30~10001.54-69.29≤-18.46PASS 1000~265001.54-42.5≤-18.46PASS 2480 Reference-1.52-1.52---PASS 30~1000-1.52-69.06≤-21.52PASS 1000~26500-1.52-43.16≤-21.52PASS Page37of52 TestGraphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Page38of52 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 Page39of52 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 Page40of52 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference Page41of52 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference Page42of52 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Page43of52 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Page44of52 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 Page45of52 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 Page46of52 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference Page47of52 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Page48of52 AppendixI:DutyCycle TestResult TestModeAntenna Frequency[M Hz] ONTime [ms] Period [ms] DutyCycle [%] DutyCycle Factor[dB] DH5Ant1 24022.913.7677.391.11 244…

Text truncated - open the document above for the full version.

ReportNo.:18220WC40022001FCCID:2BDCA-PG-025Page1of40 FCCTestReport Applicant:ETIGROUPLIMITED Address: FLAT/RM100610/FPOYIPBUILDING23HING YIPSTREETKWUNTONG,HONGKONG,China ProductName:Soundbar ReportDate:Mar.22,2024 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC40022001FCCID:2BDCA-PG-025Page2of40 Contents 1.GeneralInformation.................................................................................................................................6 1.1.ClientInformation...........................................................................................................................6 1.2.DescriptionofDevice(EUT)..........................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest..........................................................................................7 1.4.Operationchannellist....................................................................................................................7 1.5.DescriptionofTestModes.............................................................................................................8 1.6.MeasurementUncertainty.............................................................................................................8 1.7.TestSummary................................................................................................................................9 1.8.DescriptionofTestFacility...........................................................................................................10 1.9.Disclaimer....................................................................................................................................10 1.10.TestEquipmentList....................................................................................................................11 2.Antennarequirement..............................................................................................................................13 2.1.Conclusion...................................................................................................................................13 3.ConductedEmissionatACpowerline..................................................................................................14 3.1.EUTOperation.............................................................................................................................14 3.2.TestSetup....................................................................................................................................14 3.3.TestData......................................................................................................................................15 4.OccupiedBandwidth..............................................................................................................................17 4.1.EUTOperation.............................................................................................................................18 4.2.TestSetup....................................................................................................................................18 4.3.TestData......................................................................................................................................18 5.MaximumConductedOutputPower......................................................................................................19 5.1.EUTOperation.............................................................................................................................19 5.2.TestSetup....................................................................................................................................20 5.3.TestData......................................................................................................................................20 6.ChannelSeparation...............................................................................................................................21 6.1.EUTOperation.............................................................................................................................21 6.2.TestSetup....................................................................................................................................21 6.3.TestData......................................................................................................................................21 7.NumberofHoppingFrequencies...........................................................................................................22 7.1.EUTOperation.............................................................................................................................22 7.2.TestSetup....................................................................................................................................23 7.3.TestData......................................................................................................................................23 8.DwellTime..............................................................................................................................................24 8.1.EUTOperation.............................................................................................................................25 8.2.TestSetup....................................................................................................................................25 8.3.TestData......................................................................................................................................25 9.Emissionsinnon-restrictedfrequencybands.......................................................................................26 9.1.EUTOperation.............................................................................................................................27 9.2.TestSetup.........................................…

Text truncated - open the document above for the full version.

version01 ETIGROUPLIMITED DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:PG-025,ET-025,ET-026,ET-022,ET-023,ET-018,ET-005,ET-017,ET-012, ET-019,ET-020,ET-209,ET-206,ET-030,ET-036,ET-***("***"canbe0-9orA-Z) FCCID:2BDCA-PG-025 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:2.4GANT Typeofantenna:PCBAntenna Gainoftheantenna:-0.68dBi Frequencyrange:2400-2500MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ETIGROUPLIMITED Address:FLAT/RM100610/FPOYIPBUILDING23HINGYIPSTREETKWUN TONGHONGKONG,China City:HONGKONG ZIP/Postalcode:/ Country:China Place:Date:3/22/2024 Signature:

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.73 -0.84 -0.68 -6.15 -3.70 -2.32 MAX. Gain -0.68 Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.73178 -30.0815 -8.48713 2450 -0.845801 -38.5605 -7.88012 2500 -0.685586 -24.0318 -6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -6.1530 -24.1420 -13.0295 2450 -3.7054 -26.5836 -10.6700 2500 -2.32122 -30.4301 -9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

ProjectNo.:18220WC400220Page 1 of 2 AppendixI--TestSetupPhotograph_RF ConductedEmissionatACpowerline Emissionsinfrequencybands(below1GHz) ProjectNo.:18220WC400220Page 2 of 2 Emissionsinfrequencybands(above1GHz)
