2BDCJ-E6Helmet Smart HUD

快速指南 西安维度视界科技有限公司 www.vidoar.com 外观说明 安装耳机 包装清单安装HUD主机安装HUD显示模组 1. 撕下主机底座上的离型纸。 2. 将主机底座粘贴在头盔正后方， 用手按压，直至粘贴牢固。 3. 上下调节后视摄像头的视角。 4. 如需取下主机，轻按主机底座 上的卡扣锁即可。 1. 将附件中的背胶粘贴在显示 模组底座的A面或B面。 2. 将显示模组底座粘贴在帽檐 上，使得显示模组的棱镜处 于人眼正前偏上的位置。 4. 带上头盔开机后微调连接软管 和滑轨，使得人眼余光能够看 清显示模组中的画面。 安装耳机及TF卡 撕下耳机和麦克风背面的离型纸，将其粘贴在头盔内侧的耳机预留位置，将耳机 插头插入到耳机孔中。 电源键 按键 收纳线缆 安装完主机、显示模组和耳机后，将外露的线缆塞进头盔与内部海绵的间隙中， 使布线整洁，不影响头盔佩戴。 安装TF卡 主机关机并从底座上取下，使用十字螺丝刀打开TF卡仓，装入TF卡后再装回盖 子。 功能定义 按键 上键、下键 左键、右键 确认键 返回键 相机键 短按 亮屏/灭屏 向上/向下移动 向左/向右移动 确认当前项 返回到上一级 打开流媒体后视镜 长按（2s） 开机/关机 增大/减小音量 -- 打开语音助手 返回到主页面 对讲PTT 状态指示灯-绿灯 指示灯 指示灯 状态指示灯-蓝灯 充电指示灯 系统开机 摄像头工作 正在充电 充满电 亮灭 HUD主机 x 1显示模组x 1 耳机 x 1 TypeC数据线 x 1 显示模组背胶B x 2显示模组背胶A x 2 快速指南 x 1 蓝牙遥控器套件 x 1 系统关机 摄像头关闭 安装蓝牙控制器 安装蓝牙遥控器 1. 逆时针方向旋转控制器，将 其从底座上拆除。 2. 用扳手将控制器底座安装至 控制器固定支架，并将背胶 粘贴在支架圆弧位置。 3. 撕下背胶离型纸，将组装好 的支架粘贴至机车把手处， 并按压确保安装可靠。 4. 如需更换电池，可用硬币将 控制器背面电池盖沿逆时针 方向打开，更换电池。 开关 头盔智能HUD 本手册适用于以下产品型号 E6/E6-SE M6/M6-SE 状态指示灯 氛围灯 电源键 后视摄像头 装饰彩壳 显示模组与耳机接口 充电接口 前置摄像头接口 充电指示灯 底座卡扣锁 光线传感器 氛围灯 TF卡仓 显示模组磁吸底座 显示模组调节滑轨 转轴 显示模组 上键 左键 下键 右键 OK键 返回键 相机键 显示模组延长杆 x 1 主机底座背胶 x 2 清洁套装 x 2 3. 将显示模组线缆的插头，插入 到HUD主机的显示模组插孔中。 十字螺丝刀 x 1 开始使用 长按电源键2秒开机/关机； HUD主机开机后，短按电源键，待机/唤醒HUD显示屏。 开机/关机： 注意： 使用前，请先将显示模组插头连接到主机上，再开机； 如发生异常，长按电源键10秒可对HUD进行强制重启。 请使用5V充电器对HUD主机充电； 充电时：红色充电指示灯长亮； 电量充满时：充电指示灯熄灭； HUD主机一次充电时间约2.5小时。 充电： 长按上键，调大音量； 长按下键，调小音量。 音量调节： 手机APP下载 （1） HUD开机； （2） 手机上下载MOTOEYE APP，注册MOTOEYE账号并登陆； （3） 在APP主页点击“主机”按钮，打开“设备连接”页面; （4） 搜索HUD主机，并点击名称进行连接，HUD蓝牙名称为“设备型号”-“SN号”， 如M6-47C132C2； （5） 连接成功后，“主机”页面会显示HUD主机的设备信息。 安卓手机：安卓手机客户端可以同时建立HUD与手机的蓝牙数据连接与音频 连接（部分机型需在系统设置中手动连接蓝牙音频）； iPhone手机：iOS客户端仅能建立HUD与手机的蓝牙数据连接，音频连接需 要到系统设置-蓝牙连接中手动连接。 第一次使用时，需在手机上下载MOTOEYE APP并对HUD连接一次， HUD将自动完成语言、时区、时间等设置。 关注MOTOEYE微信公众号，获取更多教程。 蓝牙连接互联网连接 WiFi连接： 通过蓝牙共享手机网络： 车把蓝牙遥控器使用 （1） 同时按住遥控器的相机键与返回键3秒以上，激活遥控器配对广播，此时遥控 器上的红灯与蓝灯交替闪烁； （2） 手机与HUD主机建立蓝牙连接后，点击APP主页或“设备连接”页面的控制器 按钮； （3） 点击“搜索蓝牙控制器”； （4） 选择要连接的蓝牙控制器进行连接。 保修政策 在正常使用本产品过程中，如果产品出现非人为损坏的质量问题，经 本公司检测确定后，可享受以下服务： （1） 自签收次日起7天内出现产品质量问题，用户可享受免费退货或换货服务； （2） 自签收次日起15天内出现产品质量问题，用户可享受免费换货或维修服务； （3） 自签收次日起1年内出现产品质量问题，用户可享受免费维修服务。 在使用过程中，符合下列情形之一则不在三包范围内： （1） 因不可抗力因素造成损坏的，如地震、火灾、洪水、台风等； （2） 消费者因使用、维护、保管不当造成损坏的； （3） 未按《使用说明书》的要求使用、保养及调整造成的任何损坏； （4） 未经过本公司授权的人员私自拆卸、维修、改装等情形造成的任何损坏； （5） 已超出三包有效期限； （6） 国家法律、法规规定的不属于“三包”范畴的其他情形。 产品三包凭证 产品信息 用户信息 经销商信息 SN号码 产品型号 购买日期 姓名 电话 地址 名称 电话 地址 产品出厂时，HUD主机与车把遥控器已配对完成，HUD开机后，按下遥控器任意键 等待几秒，遥控器即可与主机恢复连接。HUD关机后，遥控器会自动进入低功耗休 眠模式。 按下遥控器按键，遥控器上的绿灯亮，表示电量正常。 按下遥控器按键，遥控器上的红灯亮，表示电量低，应尽快更换电池。 如果需要重新配对蓝牙遥控器，可按照下面方法进行操作： DRY WET MOTOEYE手机客户端 MOTOEYE微信公众号 本产品详细使用说明，请查阅MOTOEYE手机APP或微信公众号中的《使用帮助》； 产品软件升级可能带来操作差异，具体以手机APP中的《使用帮助》为准，恕不另 行通知。 （1） 手机APP与HUD主机建立蓝牙连接后，点击“WIFI”按钮； （2） 点击“搜索WIFI”后，选择要连接的WIFI，并输入WIFI密码进行连接。 （1） 通过蓝牙共享手机网络之前，需先在手机上做如下设置： iPhone手机：打开“个人热点”开关； 安卓手机：打开“蓝牙共享网络”开关。 （2） 在HUD主机的设置菜单，进入“蓝牙共享网络”页面，点击“连接”； （3） 如果打开“蓝牙共享网络”页面中的“自动连接”开关，则当HUD与手机蓝牙连 接时会自动联网。 MOTOEYE手机APP连接： 蓝牙音频连接： Quick Guide Xi'an Vidoar Technologies Co., Ltd. www.vidoar.com Appearance Description Install headset Packing ListInstall HUD HostInstall Display Module 1. Remove the release paper from the base of the host. 2. Stick the base of the host behind the helmet and press it down until it is firmly attached. 3. Adjust the camera's perspective up and down. 4. To remove the host, gently press the latch on the base of the host, and then remove the host. 1. Paste the back glue on side A or side B of the display module base. 2. Paste the base of the display module onto the brim of the helmet, so that the prism of the display module is in a position that is directly forward and upward of the human eye. 4. Putting on the helmet and power on the HUD, fine tune the rotation shaft and sliding rail, so that you can see the image in the display module clearly. Install Headset and TF Card Remove the release paper on the back of the headphones and microphone, stick it to the reserved position on the inside of the helmet, and insert the earphone plug into the earphone jack. Power key Key Storage cable After installation, insert the exposed cables into the gap between the helmet and the internal sponge. Install TF card Use a cross screwdriver to open the TF card house, install the TF card, and then install the cover. functional Definition Key Up/down key Left/Right key OK key Return key Camera key Short press On/off screen Up/down move Left/down move Confirm Return/back Start rearview mirror Long press（2s） Power on/off Increase/Decrease volume -- Start voice control Go back home Intercom PTT Status LED-green LED Indicate LED Status LED-blue Charging LED Power on Camera is working Charging Charged OnOff HUD host x 1Display module x 1 Headset x 1 TypeC cable x 1 Display back glue B x 2Display back glue A x 2 Quick guide x 1 Remote controller x 1 Power off Camera is not working Install Remote Controller 1. Rotate the controller counterclockwise to remove it from the base. 2. Use a wrench to install the controller base onto the bracket and attach the back glue to the arc position of the bracket. 3. Remove the release paper from the bracket, paste the assembled bracket onto the handlebar, and press to ensure reliable installation. 4. If need to replace the battery, you can use a coin to open the battery cover and replace the battery. OPENCLOSE Helmet Smart HUD This manual is applicable to the following models E6/E6-SE M6/M6-SE Status LED Atmosphere lights Power key Rearview camera Colorful shell Display and headset interface Type-C Extended camera Charging LED Base buckle Light sensor Atmosphere lights TF card house Magnetic base Sliding rail Rotation shaft Display module Up key Left key Down key Right key OK key Return key Camera key Display extension rod x 1 Host back glue A x 2 Cleaning kit x 2 3. Insert the plug of the display module cable into the display jack of the HUD host. Cross screwdriver x 1 Start Using Press and hold the power key for 2s to power on/off, After the HUD host is power on, short press the power key to standby/wake up the Display module. Power on/off： note: Please connect the display module plug to the host before power on,…

Text truncated - open the document above for the full version.

Xi'an Vidoar Technologies Co., Ltd. 10112, Building 2, Yonghe jinwanhui, Lihua North Road 570, High Tech zone, Xi'an, Shaanxi Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/10/26 U.S. Agent Designation Xi'an Vidoar Technologies Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDCJ-E6): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Xi'an Vidoar Technologies Co., Ltd. Xi'an Vidoar Technologies Co., Ltd. with the FRN [0034405357] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Hui Xie Technical director Xi'an Vidoar Technologies Co., Ltd. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Hui Xie/Manager Company: Xi'an Vidoar Technologies Co., Ltd. Address: 10112, Building 2, Yonghe jinwanhui, Lihua North Road 570, High tech zone, Xi'an, Shaanxi Province China Phone: 19128339201 Fax: N/A E-Mail: [email protected]

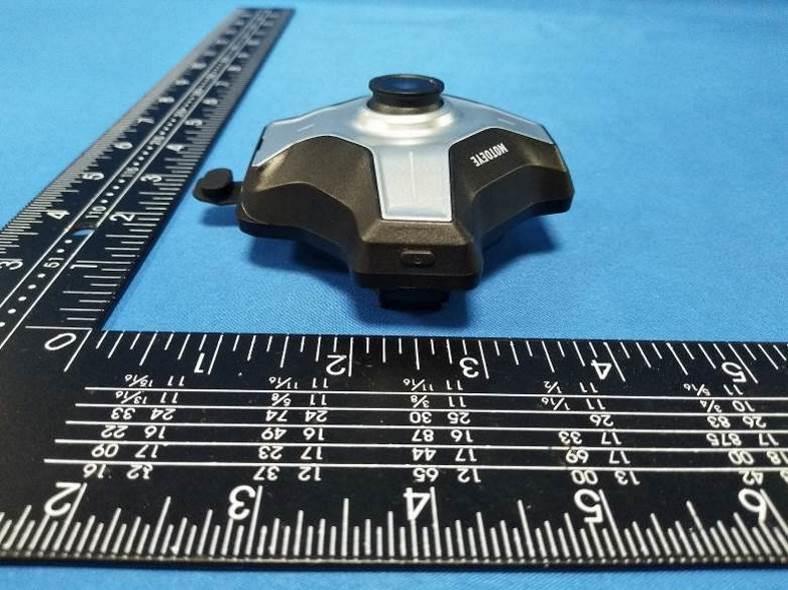

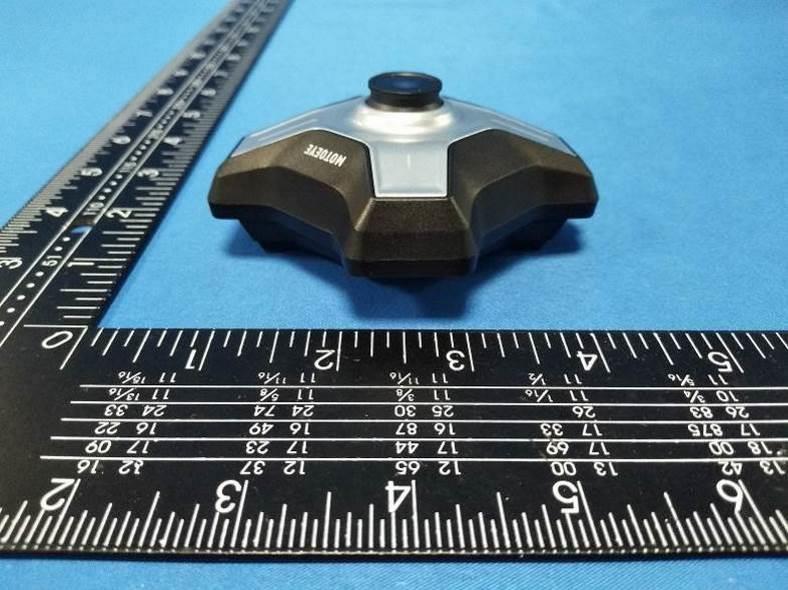

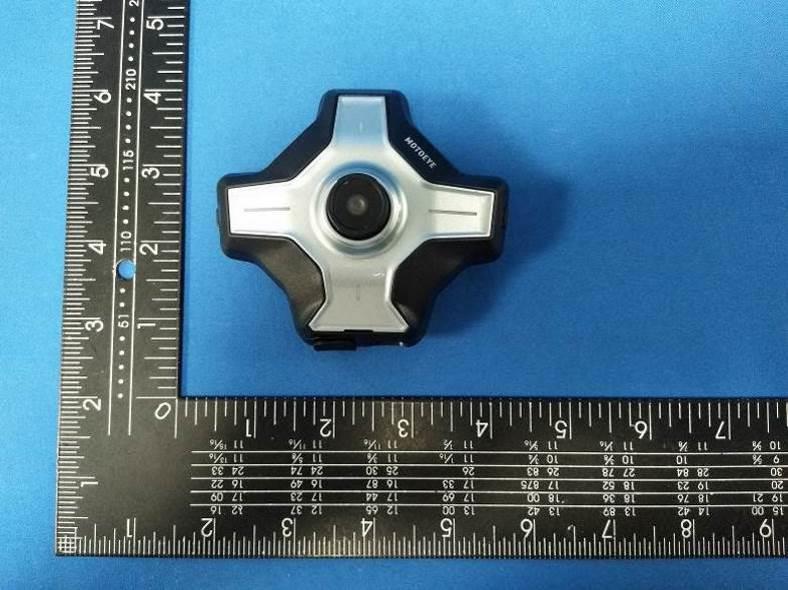

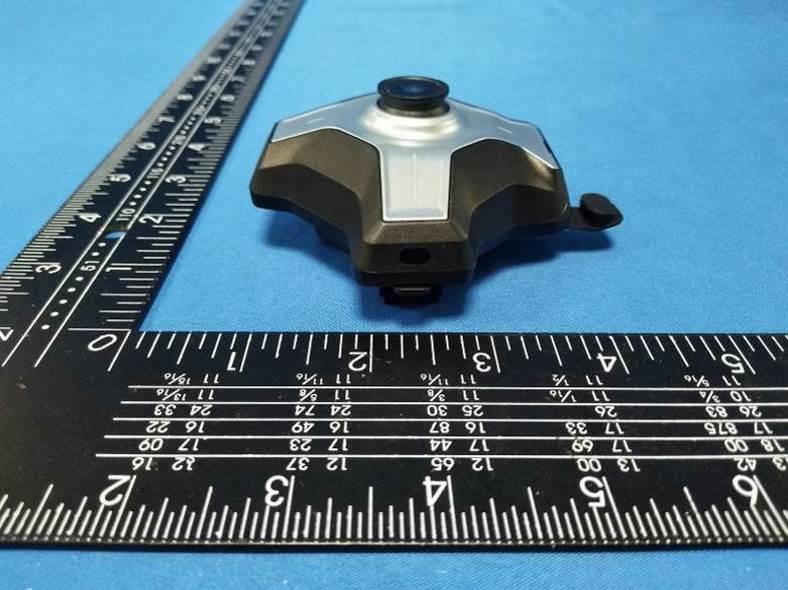

FCC ID: 2BDCJ-E6 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BDCJ-E6 Photo 4 Photo 5 Photo 6 FCC ID: 2BDCJ-E6 Photo 7

MOTOEYE E6 SN:ABCD1234 MN:C3B08 FCCID:2BDCJ-E6

FCC ID: 2BDCJ-E6 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BDCJ-E6 Photo 4 Photo 5 Photo 6 FCC ID: 2BDCJ-E6 Photo 7 Photo 8 Photo 9 FCC ID: 2BDCJ-E6 Photo 10 Photo 11 Photo 12 BT PCB Antenna FCC ID: 2BDCJ-E6 Photo 13 Photo 14 Photo 15 FCC ID: 2BDCJ-E6 Photo 16 Photo 17 BLE/2.4GWIFI /5GWIFI PIFA Antenna 2.4G PIFA Antenna GPS PIFA Antenna

RF Exposure evaluation FCC ID: 2BDCJ-E6 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 2480MHz 99.53 4.27 3.5±1 4.5 Note: EIRP=E-104.8+20logD, D=3 Page 2 of 2 Mode Max. Peak Conducted Output Power (dBm) Max. tune-up BT 0.69 0±1 BLE 3.27 2.5±1 2.4GWIFI 7.01 6.5±1 Mode Max. Average Conducted Output Power (dBm) Max. tune-up 5.2GWIFI 5.31 4.5±1 5.8GWIFI 5.65 5.0±1 2. E v a l u a t i o n R e s u l t Evaluation Results Modular 1 Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion Limit SAR Test Exclusion dBm mW 2.4G 2.450 5 4.5 2.8184 0.8823 3.0 Yes Modular 2 Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion Limit SAR Test Exclusion dBm mW BT 2.450 5 1.0 1.2589 0.3941 3.0 Yes Modular 3 Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion Limit SAR Test Exclusion dBm mW BLE 2.450 5 3.5 2.2387 0.7008 3.0 Yes 2.4GWIFI 2.450 5 7.5 5.6234 1.7604 3.0 Yes 5.2GWIFI 5.2G 5 5.5 3.5481 1.1107 3.0 Yes 5.8GWIFI 5.8G 5 6.0 3.9811 1.2463 3.0 Yes The sample support three modulars, they supports difference antenna, need consider simultaneous transmission; ∑ of (the highest measured or estimated SAR BT +SAR 2.4GSRD+ SAR WIFI )/1.6 = (0.1188+ 0.0531+ 0.2371)/1.6 = 0.256 < 1.0; 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

-1- 承认书 SPECIFICATIONFORAPPROVAL 客户名称CUSTOMER：西安维度视界科技有限公司 客户料号CUSTOMERPARTNO： 供应厂商SUPPLIER：深圳市摩天射频技术有限公司 产品型号PRODUCTMODEL：M6 产品描述PRODUCTNAME：M6-WIFI天线 产品编码PRODUCTCODE：M04-0102950R0A 客户签名CUSTOMERSIGNATURE：客户盖章CUSTOMERSEAL： 供应商签名SUPPLIERSIGNATURE：供应商盖章 SUPPLIERSEAL ： 注意：请将此副本作为您的批准证明回签！ NOTE:PLEASERETURNTHISCOPYASACERTIFICATIONOFYOURAPPROVAL 编制Preparedby： 董春玲 日期Date： 2023-10-12 地址Add：深圳市宝安区铁仔路50号碧桂园凤凰智 谷A410 电话Tel:0755-86503881 -2- 版本信息VERSIONINFORMATION 版本 Version 日期 DATE 版本描述 REVISION DESCRIPTION 编制 PREPARED 审核 CHECKED 批准 APPROVED V1.02023-10-12初版发行董春玲黄文华陈建尤 -3- 性能参数PERFORMANCEPARAMETER 1. 电气参数 ElectricalCharacteristics Antenna 1天线类型Antennamodel全向天线 2频率范围Frequency2400-2500MHz;5100-5900MHz 3驻波比V.S.W.R≤3.5 4 峰值增益 PeakGain 1.84dBi 5 峰值效率 PeakEfficiency 41.24% 6阻抗Impendence50Ω 7极化方式Polarization线极化 2.材料参数Material No部品名称PartName 1材质FPC黑色FPC -4- 性能参数PERFORMANCEPARAMETER 3. 环境参数 EnvironmentCondition 1工作温度WorkingTemp-40°C～+85°C,10%～95%RH 2贮存温度StorageTemp-55°C～+100°C,10%～95%RH 4.环保要求environmentalrequirements： 1 环保 要求 environmental requirements 是否需满足 ROHS/REACH 指令 满足 其它要求- 5.环境符合性要求Environmentalcompliancerequirements： 序号 S/N 测试项目Test items 参考标准 Reference standards 试验方法 testmethod 测试条件 Testconditions 合格判定 Qualificat ion 1低温存储low temperature storage ETSI 300019-2-4 YD/T1059 IEC 60068-2-1 GB/T2423.1 -40°C,24hr, 1°C/min，（常温 放入样品，降温 至-40°C，保持 24hr，2h后升温 试验后在常 温下产品指 标、功能和 机械性能全 部正常 -5- 2高温存储 high temperature storage ETSI 300019-2-4 YD/T1059 IEC 60068-2-2 GB/T2423.2 70°C,24hr,1°C /min，（常温放 入样品，升温至 70°C，保持24hr， 2h后降温至常温 试验后在常 温下产品指 标、功能和 机械性能全 部正常。 3温度循环 temperature cycling ETS 300019-2-4 YD/T1059 IEC 60068-2-14 GB/T 2423.22 -20～90°C，1°C /min，最低温度、 最高温度处保持 3hr，5个循环 试验后在常 温下产品指 标、功能和 机械性能全 部正常。 4盐雾试验salt spraytest ETS 300019-2-4 DKBA4073-20 09.03结构 产品防腐蚀 性能要求 IEC 60068-2-52 GB/T 2423.18 +15～+35°C，5% ±1%NaCl溶液， pH值6.5-7.2， 喷雾2hr；40°C， 93%R.H,保持 22hr，3个循环 应力恢复后 天线表面应 无锈蚀、变 色、及镀层 剥落。试验 后在常温下 产品指标、 功能和机械 性能全部正 常。 -6- 测试图表TESTINGCURVE 1. 性能测试 Performancetest 1.1 驻波比 V.S.W.R 数据表 Datalist Freq2400MHz2500MHz5100MHz5800MHz VSWR1.681.622.201.20 -7- 测试图表TESTINGCURVE 2. 无源测试 Passivetesting 2.1 效率及增益 EfficiencyandGain -8- Freq(MHz) Effi c i e n c y ( % ) G a in ( d Bi ) Freq(MHz) Effi c i e n c y ( % ) G a in ( d Bi ) 24000.0238.6354500.7031.69 24100.4941.2454600.6831.11 24200.6740.5854700.8032.62 24300.9840.9854800.8333.21 24401.1940.0954900.6531.51 24501.1438.5955000.5030.44 24601.0539.2155100.3730.67 24700.9939.6755200.6432.16 24800.9538.4455300.5630.56 24900.8238.0055400.4829.67 25000.6137.0655500.6131.69 51001.1939.5055600.6431.97 51100.8938.3955700.7832.37 51200.9639.7855800.8132.66 51300.9939.3455900.5231.16 51401.0738.8356000.3530.58 51501.2339.6456100.1229.18 51600.8636.9256200.0229.00 51700.7635.9556300.0730.56 51801.0938.4156400.2132.16 51901.1537.8456500.0331.12 52001.3937.9456600.1332.28 52101.4439.6956700.4535.16 52201.2036.5156800.0733.37 52301.2536.825690-0.0932.57 52401.4538.805700-0.2631.42 52501.4938.735710-0.1632.11 52601.2537.0857200.0333.91 52700.9935.8957300.1934.49 52801.2037.9057400.0433.02 52901.1037.0457500.1832.89 53001.4339.1757600.5234.58 53101.2338.1157700.6334.18 53201.0736.1557800.6033.10 53301.3738.7657900.6131.74 53401.3238.1358000.7932.11 53501.3438.2358101.0733.81 53601.4339.7658201.4535.74 53701.2237.8158301.6036.30 53801.0035.8358401.7336.48 53901.2837.1658501.6034.77 54001.2336.2258601.6935.83 54101.0934.7858701.7035.67 54200.9032.9958801.6034.61 54300.6131.3358901.8436.17 54400.2729.9159001.1230.44 -9- 测试图表TESTINGCURVE 2.23D 图 3DMap 2410MHz Gain=0.49dBi 2450MHz Gain=1.14dBi -10- 测试图表TESTINGCURVE 2480MHz Gain=0.95dBi 5100MHz Gain=1.19dBi -11- 5500MHz Gain=0.50dBi 5810MHz Gain=1.07dBi -12- 2.32D图2DFigure H面E1面E2面 2410MHz Gain=0.49dBi H面E1面E2面 2450MHz Gain=1.14dBi 2480MHz Gain=0.95dBi -13- 5100MHz Gain=1.19dBi 5500MHz Gain=0.50dBi 5800MHz Gain=0.50dBi -14- 2.4暗室测试坐标示意图 -15- 工程图SCHEDULEDRAWING AB C DEF AB C DEF 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 S C A L E S H E E T R E V . 1 : 1 1 / 1 V 0 1 D W G N O . : D R : C H K D : A P P D : P A R T N O . : M 0 4 - 0 1 0 2 9 5 0 R 0 A C U S P / N : D I M E N S I O N S A R E I N M I L L I M E T E R S U N L E S S O T H E R W I S E S P E C I F I E D A N G L E S = ± 3 ° U P T O 6 = ± 0 . 1 6 - 4 0 = ± 0 . 2 4 0 - 1 2 0 = ± 0 . 6 1 2 0 - 3 1 5 = ± 1 . 0 A B O V E 3 1 5 = ± 1 . 6 T O L E R A N C E S T I T L E : M 6 M 6 - W I F I R E V . A D E S C R I P T I O N A P P D . D A T E I N I T I A L R E L E A S E D C h e n 2 0 2 3 / 1 0 / 1 2 N o . N a m e F P C M a t e r i a l C o l o r B l a c k T r e a t m e n t A m o u n t R e m a r k 1 7 . 9 6 * 1 7 . 6 7 m m 1 1 备 注 : 1 . 频 率 范 围 ： 2 4 0 0 - 2 5 0 0 M H z ; 5 1 0 0 - 5 9 0 0 M H z 2 . 阻 抗 : 5 0 O H M 3 . 驻 波 : ≤ 3 . 5 4 . 最 大 增 益 : 1 . 8 4 d B i 5 . 线 极 化 : 全 向 7 . 各 零 件 符 合 R O H S 6 . 温 度 范 围 : - 3 0 °C - 8 0 °C M 6 W I F I V 1 . 3 1 7 . 9 6 17.67 -16- 实物图片Physicalpicture -17- 承认书样品尺寸检验报告 CertificateofAcceptanceSampleSizeInspectionReport 项目名称M6-WIFI 天线 类型 全向天 线 检验 日期 2023-10-12 检查清单CheckList 模块 Module 测试项目 TestItem 规格要求 Testcriteria 结果Result 备注 Remark 12345 FPC 颜色与规格书要求 一致，无色差 、错色等不良 功能测 试 驻波比 VSWR ≤3.5 外形尺寸 17.96±0.2 17.67±0.2 备注 核准：审核:检验员： -18- 文件编号MA-QCW-2310-024 文件名 称 M6-WIFI天线 编制李玲 版本A审核徐茂元 QC工程图发布日期2023.10.12 生效日 期 2023.10.12 页 码 1/1批准徐茂元 序 号 流程工序名称 使艺参数/品质 特性 使用设备治 具 检测设 备 检查方 法 检查 频率 使用记录担当者相关文件 1来料检验检验标准/图纸卡尺/目视 AQL 抽检 IQC检验报告IQC 2生产领料生产任务单////领料单仓管员 3 拆箱（拆袋子）确 认数量 送货单////送货单操作员 4做成首件成品 技术文件/图纸 /BOM /手工目视全检生产日报表操作员 5首件外观确认封样样品/目视目视/ IPQC首件巡检 记录 IPQC 6首件性能检测 产品满足设计 规格书中要求 / 网络分 析仪 测试 目视 / IPQC首件巡检 记录 IPQC 7巡检 IPQC过程巡检 规定 /目视目视2H IPQC过程巡检 记录 IPQC -19- 8外观全检 技术文件/图纸/ 外观判定基准 /目视目视全检生产日报表检查员 9测试技术文件/图纸/ 网络分 析仪 测试 目视 全检生产日报表操作员 10 包装（装袋子）数 量确认 图纸/BOM//目视全检生产日报表操作员 11检验 IPQC过程巡检 规定 /目视目视2H IPQC过程巡检 记录 IPQC 12入库生产任务单////产品入库单仓管员 13出货前检验出货通知单网络分析仪测量 AQL 抽检 /OQC 说明：表示操作、加工；表示确认、检查、判定、审批；表示入储存；表示搬运； 记号修改内容版本日期修改者审批 A2023.10.12李玲徐茂元 -20- A B C D E F A B C D E F 8 7 6 54 321 87654321 SCALESHEET REV. 1:1 1/1 V01 DWG NO.: DR: CHKD: APPD: PART NO.: M04-0102950R0A CUS P/N: DIMENSIONS ARE IN MILLIMETERS UNLESS O…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. .................... : FCC ID. ........................................... : CTA23101100505 2BDCJ-E6 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 26, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Xi'an Vidoar Technologies Co., Ltd. Address ............................................ : 10112, Building 2, Yonghe jinwanhui, Lihua North Road 570, High tech zone, Xi'an, Shaanxi Province, China Test specification ........................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Helmet Smart HUD Trade Mark ....................................... : N/A Manufacturer .................................... : Xi'an Vidoar Technologies Co., Ltd. Model/Type reference ...................... : E6 Listed Models .................................. : E6-SE, M6, M6-SE Modulation ....................................... : OFDM Frequency ......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings ............................................. : DC 3.8V From Battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA23101100505 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Helmet Smart HUD Model /Type : E6 Listed Models : E6-SE, M6, M6-SE Applicant : Xi'an Vidoar Technologies Co., Ltd. Address : 10112, Building 2, Yonghe jinwanhui, Lihua North Road 570, High tech zone, Xi'an, Shaanxi Province, China Manufacturer : Xi'an Vidoar Technologies Co., Ltd. Address : 10112, Building 2, Yonghe jinwanhui, Lihua North Road 570, High tech zone, Xi'an, Shaanxi Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23101100505 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions 13 4.3 Maximum Conducted Average Output Power 20 4.4 Power Spectral Density 22 4.5 Emission Bandwidth (26dB Bandwidth) 29 4.6 Minimum Emission Bandwidth (6dB Bandwidth) 33 4.7 Frequency Stability 37 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 39 6 P H O T O S O F T H E E U T ........................................................... 39 Report No.: CTA23101100505 Page 4 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15 Subpart E—Unlicensed National Information Infrastructure Devices ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB789033 D02: General UNII Test Procedures New Rules v01r02 Report No.: CTA23101100505 Page 5 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://ww…

Text truncated - open the document above for the full version.

Report No.: CTA23101100505 Page 31 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH38 CH36 CH46 CH44 CH48 Report No.: CTA23101100505 Page 32 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH38 CH42 CH46 Report No.: CTA23101100505 Page 33 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.6 Minimum Emission Bandwidth (6dB Bandwidth) Limit Within the 5.725-5.85 GHz band, the minimum 6 dB bandwidth of U-NII devices shall be at least 500 kHz. Test Procedure 1. Set resolution bandwidth (RBW) = 100 kHz 2. Set the video bandwidth 3 x RBW. 3. Detector = Peak. 4. Trace mode = Max hold. 5. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Test Configuration EUT SPECTRUM ANALYZER Test Results Type Bands Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a U-NII 3 149 13.800 ≥500KHz Pass 157 12.960 165 15.000 802.11n(HT20) U-NII 3 149 14.560 157 15.040 165 15.120 802.11n(HT40) U-NII 3 151 35.120 159 35.120 802.11ac(HT20) U-NII 3 149 15.840 157 15.120 165 14.360 802.11ac(HT40) U-NII 3 151 35.120 159 35.040 802.11ac(HT80) U-NII 3 155 75.040 Test plot as follows: Report No.: CTA23101100505 Page 34 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11a 802.11n(HT20) CH149 CH149 CH157 CH157 CH165 CH165 Report No.: CTA23101100505 Page 35 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH151 CH149 CH159 CH157 CH165 Report No.: CTA23101100505 Page 36 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH151 CH155 CH159 Report No.: CTA23101100505 Page 37 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Frequency Stability LIMIT Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual. TEST CONFIGURATION TEST PROCEDURE Frequency Stability under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to -30°C. After the temperature stabilized for approximately 30 minutes recorded the frequency. Repeat step measure with 10°C increased per stage until the highest temperature of +50°C reached. Frequency Stability under Voltage Variations: Set chamber temperature to 20°C. Use a variable AC power supply / DC power source to power the EUT and set the voltage to rated voltage. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and recorded the frequency. Reduce the input voltage to specify extreme voltage variation (±15%) and endpoint, record the maximum frequency change. TEST RESULTS Reco…

Text truncated - open the document above for the full version.
