2BDCQWQ-03Bluetooth Earphone

说明书 开机:打开充电仓上盖 关机:耳机放入充电盒并关上 注意 连接操作 1：打开充电盒顶盖，取出耳机 2：设备搜索相对应的型号 3：选择对应型号配对就可以使用 连接过程中请勿关闭充电盒盖，确保左右耳机已连接 如果打开盖子后耳机无法打开，请将耳机放入充电盒中， 合上盖子，插上充电器充电至少一小时 取消配对:需要手机端取消配对 1.请勿自行拆开或改装本产品; 2.请勿将产品存放于潮湿或带热源的环境中; 3.请勿雨中使用耳机水或其他液体流入本产品内部， 导致本产品损坏; 4.在使用耳机的时候不要硬拉硬 拽，要轻戴轻放 5.驾驶汽车、骑自行车或马路上行走时，请勿使用耳机 否则容易导致交通意外 6.使用耳机时请注意控制适当的音量，尽量不要开到最大， 以免损伤听觉. 7.耳塞套保洁，健康、舒适的耳塞套需定期清洗，保持清洁。 ！ 播放:按1次触摸区域 暂停:按1次触摸区域 切换歌曲:按2次触摸区域 切换歌曲:按3次触摸区域 音乐模式 接听:按1次触摸区域 来电拒接:按两次触摸区域 挂断:按2次触摸区域 电话模式 产品参数 工作范围:10m 充电电流：0.3A 充电电压：3.7V 阻抗:32 ohm 充电时间:1-1.5H 频率响应:20-20KHz 灵敏度:112+/-3dB 工作时间:6-12H 説明書です 電源を入れる:充電器を開けて 蓋を閉めます:イヤホンを充電ケース に入れて閉めます に注意 接続操作 1：充電ケースのトップカバーを開け、イヤホンを取り出す 2：デバイス検索対応モデル 3：対応機種を選択してペアリングすれば使用可能 接続中は充電ケースカバーを閉じず、左右のイヤホンが接続 されていることを確認してください蓋を開けてイヤホンが開 かない場合は、イヤホンを充電ケースに入れて、ふたを閉め て、充電器を差し込んで少なくとも1時間充電しますペアリン グ解除：携帯端末のペアリング解除が必要 1.自分で分解したり改造したりしないでください。 2.湿気のある環境や熱源のある環境に製品を保管しないでください。 3.雨の中でイヤホンの水やその他の液体を使用して本製品の内部に流 入しないでください、本製品の損傷を招く、 4.イヤホンを使うときは無理に引っ張らず、軽くつけて軽く置く 5.自動車を運転したり、自転車に乗ったり、道路を歩いたりするときは、 イヤ ホンを使用しないでくださいそうしないと交通事故につながりやすい 6.イヤホンを使 用する時は適切な音量をコントロールし、できるだけ最大 にならないように注意してください、聴覚を傷つけないようにする 7.耳栓カバーは清潔で、健康で快適な耳栓カバーは定期的に洗浄し、清 潔を保つ必要がある。 ！ 再生：タッチエリアを1回押す 一時停止：タッチエリアを1回押す 曲の切り替え：2回タッチエリアを押す 切り替え曲：タッチエリアを3回押す 音楽モード 受信：タッチエリアを1回押す 着信拒否：タッチエリアを2回押す 切断：2回タッチ領域を押す 電話モード 製品パラメータ 動作範囲：10 m 充電電流：0.3 A 充電電圧：3.7 V インピーダンス:32 ohm 充電時間:1-1.5H しゅうはすうおうとう:20-20KHz かんど:112+/-3dB 動作時間：6-12 H Instruction et instruction Démarrage: ouvrez le couvercle supérieur du bac de chargement Ar rêt : éc out eur s dans la boîte de charge e t fer mer Opération de conne xion 1： Ouvr ez le couvercle s upér ieur de la boîte de charge e t re tir ez les écout eurs 2：R echerche d’ équipement pou r le modèle corr espondant 3：Sélec tionnez la pair e de modèle corr espondante peut être u tilisé Ne f ermez pas le couvercle de la boîte de charge pendant la conne xion, assurez-vous que les éc outeurs g auc he e t dr oit s ont c onnectés. Si les éc outeurs ne peuvent p as s’ ouvrir après av oir ouvert le c ouvercle, plac ez les écouteurs dans la boît e de charge, f ermez le couvercle et br anchez le chargeur pour recharger pendant au moins une heure annu ler l’ app airag e: vous av ez besoin de l’extrémit é du t éléphone pour annuler l’app airage Jouer: appuyez sur 1 zone de toucher Pause: appuyez sur la zone 1 touch Commuter la chanson: appuyez 2 fois pour toucher la zone Commuter la chanson: appuyez 3 fois pour toucher la zone Le mode musique Réponse: appuyez sur 1 zone de contact Appel refusé: appuyez deux fois pour toucher la zone Raccrocher: appuyez 2 fois pour toucher la zone Mode de téléphone Paramètres du produit Portée des travaux:10m Courant de charge：0.3A Tension de charge：3.7V impédance:32 ohm Temps de charge:1-1.5H Réponse en fréquence:20-20KHz sensibilité:112+/-3dB Heures de travail:6-12H beschreibung Computer: schloss des laderaum auf Abschalten: die kopfhörer laden und schließen Leitung online 1：Aufladen und kopfhörer entf ernen 2：A usrüs tung nach einem p assenden modell durchsu chen 3：Wä hlen sie das passende modell u nd die passenden dateien aus Während der verbind ung lassen sie den la der deck el immer noch nicht schließen. Verg ewissern s ie sic h, dass die kopfhörer ang esc hlossen und nach dem öffnen des laut sprec hers nicht ange schlossen sind. Das ladegerät la den und schließen sie den deck el, da mit der ladegerät min deste ns eine s tunde lang nicht ang esc hlo ssen wir d: das iphone muss abgebrochen werden Drücken sie eine berührung Pause: auf den berühren -bereich drücken Song wechseln: zweimal berühren Song wechseln: dreimal berühren Auf musikgeschmack. Empfang: drücken sie die "berührung" Ansage: drücken sie zweimal die berührt zone Auflegen: zweimal berühren In telefonform. Parameter sind produkte. Freigabe :10m Strom: 0.3A Lädt spannung: fünf v：3.7V Widerstand.:32 ohm Zeit zum aufladen.:1-1.5H Frequenz antwortet.:20-20KHz War es eine sensibilität.:112+/-3dB Die arbeitszeit.:6-12H manual Enc endido: abr a la cubierta superior del silo de carga Apag ado: auriculares en la caja de carga y c errar Operación de conexión 1：Abra la cubierta superior de la caja de carga y retire los auriculares 2：Búsqueda de dispositivos correspondientes al modelo 3：seleccione el emparejamiento del modelo correspondiente puede ser utilizado No cierre la tapa de la caja de carga durante la conexión, asegúrese de que los auriculares izquierdo y derecho estén conectados si los auriculares no se pueden abrir después de abrir la tapa, coloque los aur iculares en la caja de carga, cierre la tapa y enchufe el cargador para cargar durante al menos una hora cance lar el emparejamiento: r equ ier e el extremo del teléfo no para cancelar el emparejamiento Play: presione el área de 1 toque Pausa: presione el área de 1 toque Cambiar la canción: presione 2 veces para tocar el área Cambiar la canción: presione 3 veces para tocar el área Modo de música Respuesta: presione el área de 1 toque Rechazar llamadas entrantes: pulse dos veces para tocar el área Colgar: presione 2 veces para tocar el área Modo de teléfono Parámetros del producto Alcance del trabajo:10m Corriente de carga：0.3A Voltaje de carga：3.7V impedancia:32 ohm Tiempo de carga:1-1.5H Respuesta de frecuencia:20-20KHz sensibilidad:112+/-3dB Horas de trabajo:6-12H specification Power on: Open the top cover of the charging compartment Power off: Put the earphones in the charging case and turn them off Join operation 1：O pen t he to p o f t he charging case and take out t he headphones 2：Devic e Search f or t he corresponding model 3：Select the c orresponding mo del pair c an be used! Do not close the cover of the charging box during the connection process, and ensure that the left and r ight e arphones are c onnected. If the e arphones cannot be o pen ed after opening t he c over, ple ase put t he earphones in t he chargin g box , clo se t he cover, plu g in the charger an d charge f or at least one hour ！ Play: Press 1 touch area Pause: Press 1 touch area Switch songs: Press the touch area twice Switc…

Text truncated - open the document above for the full version.

ShenzhenWeiqiTechnologyCo.,Ltd Address：Rm8401,4thfloor,DarunTechnologyBuildingNo.613ShajingRoad,Buyong Community,ShajingStreet,Bao'anDistrict,ShenzhenCity,GuangdongProvince,China Date:2024-03-19 FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(7)Filing SUBJECT:FCCApplicationforFCCID:2BDCQWQ-03 FRN:0034391417 ShenzhenWeiqiTechnologyCo.,Ltdcertifiesthat,asofthedateofthefilingofthe application,GSSSERVICEINCisourdesignatedU.S.agentforserviceofprocessforthe abovereferencedFCCID.ShenzhenWeiqiTechnologyCo.,Ltdacceptstomaintainanagent fornolessthanoneyearafterthegranteehasterminatedallmarketingandimportationorthe conclusionofanyCommission-relatedproceedinginvolvingtheequipment. GSSSERVICEINCaccepts,asofthedateofthefilingoftheapplication,theobligationofthe designatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: Name:GSSSERVICEINC Address:6547NAcademyBlvd#2266ColoradoSpringsCOLORADO80918UnitedStates FRN：0033402082 ContactPerson:MichouxLogan Tel.:001-949-2990192 Email:[email protected] Sincerely, SignedonbehalfofShenzhenWeiqi TechnologyCo.,Ltd SignedonbehalfofGSSSERVICEINC Name:YanchunZhangName:MichouxLogan Title:ManagerTitle:Manager Date:2024-03-19Date:2024-03-19

ShenzhenWeiqiTechnologyCo.,Ltd FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:03-14-2024 FCCID:2BDCQWQ-03 Ref.#1:AttestationStatementsPart2.911(d)(5)(i)Filing ShenzhenWeiqiTechnologyCo.,Ltdcertifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorization pursuanttosection2.903oftheFCCrules. Ref.#2:AttestationStatementsPart2.911(d)(5)(ii)Filing ShenzhenWeiqiTechnologyCo.,Ltdcertifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. Applicant:ShenzhenWeiqiTechnologyCo.,Ltd Address:Rm408,4thfloor,DarunTechnologyBuilding,No.613,ShajingRoad,Buyong Community,ShajingStreet,Bao'anDistrict,ShenzhenCity,GuangdongProvince China ContactPerson:YanchunZhang Tel.:15875507240 Email:[email protected] Sincerely, Signature:

ShenzhenWeiqiTechnologyCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:March14,2024 Subject;RequestforConfidentiality FCCID:2BDCQWQ-03 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:YanchunZhang Title:Manager

ShenzhenWeiqiTechnologyCo.,Ltd Date:March14,2024 ProductModelNumber:WQ-03 FCCID：2BDCQWQ-03 Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C. CanadaV5J5K5toactonourbehalfonallmattersconcerningtheabove namedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatQAILaboratoriesLtd.isallowedtoforwardallinformation relatedtotheapprovalprojecttotheappliedcertificationbodyandtothe notificationentitiesandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyQAILaboratoriesLtd.onour behalfshallhavethesameeffectasactsofourown. By: ContactListedonFCCWesbite Title:Manager Email:[email protected] Telephone:15875507240 Onbehalfof:ShenzhenWeiqiTechnologyCo.,Ltd

ShenzhenWeiqiTechnologyCo.,Ltd ModelDifference Productdescription:BluetoothEarphone Modelname:WQ-03,B35,B36,B37,B38,B39,B40,WQ-02,WQ-06,WQ-07,P63,P68,P70,P91,P93,JS270,JS270pro,J05,J06,J08,J09, J11,C21,C23,C25,C27,C29,B13,M3,M5,BT FCCID::2BDCQWQ-03 AllthemodelsarethesamecircuitandRFmodule.Onlycolorofchargingboxisdifferent.ThemodelWQ-03isthetestedsample. Regards Sincerely Client’ssignature: Title:Manager Contactinformation/address:Rm8401,4thfloor,DarunTechnologyBuildingNo.613ShajingRoad,BuyongCommunity,ShajingStreet, Bao'anDistrict,ShenzhenCity,GuangdongProvince,China

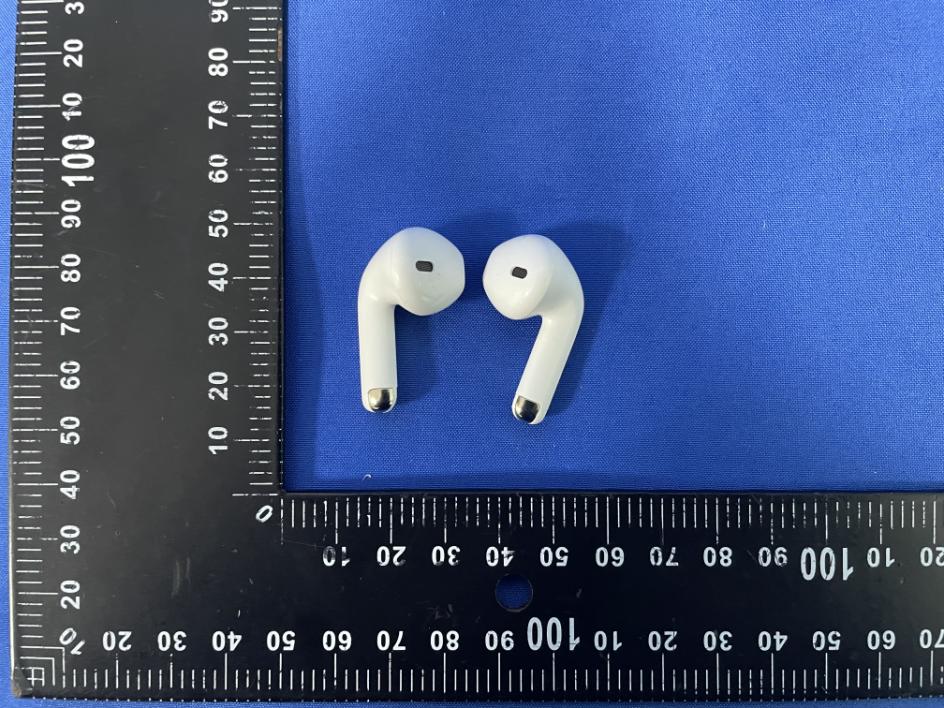

FCC ID:2BDCQWQ-03 EUT PHOTOS(External Photos) FCC ID:2BDCQWQ-03 FCC ID:2BDCQWQ-03 FCC ID:2BDCQWQ-03 ※※※※※ END OF REPORT ※※※※※

FCCID:2BDCQWQ-03

FCC ID:2BDCQWQ-03 EUT PHOTO (Internal Photos) L FCC ID:2BDCQWQ-03 ANT FCC ID:2BDCQWQ-03 R FCC ID:2BDCQWQ-03 ANT FCC ID:2BDCQWQ-03 ※※※※※ END OF REPORT ※※※※※

FCCID:2BDCQWQ-03 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093，Unlessspecifically requiredbythepublishedRFexposureKDBprocedures,standalone1-gheadorbodyand10-gextremitySAR evaluationforgeneralpopulationexposureconditions,bymeasurementornumericalsimulation,isnotrequired whenthecorrespondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtestexclusion thresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤ 3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculationTheresultis roundedtoonedecimalplaceforcomparison Here, ForBluetooth Mode Max conducted Power (dBm) Tune-up power (dBm) Max Power (mW) Frequency(MHz) Min. Distance (mm) Calc. thresholds limit BR/EDR 4.354±13.16 2480 50.995 3.0 BLE 2.012±12.00 2480 50.630 3.0 Note:ANTGain:3dBi SoaSARtestisnotrequired,

2.4GHz 3216 Chip Antenna: 3216F245M02 3216 Chip antenna For Bluetooth / WLAN Applicationsd P/N: 1.23士0.20 咏成园隙科技有限公司 霞括：13530576606 RAIN International Technolo gy Co., Ltd. TEL: 13530576606 第1页共10页 RAIN Manufacture：Shenzhen Weiqi Technology Co., Ltd Address：Rm8401, 4th floor, DarunTechnology BuildingNo.613 Shajing Road, Buyong Community, Shajing Street, Bao'anDistrict, Shenzhen City, Guangdong Province ,China 2.4GHz3216ChipAntenna:3216F245M02 第 2 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 PartNumberInformation RANT3216F245M02 ABCDEF A ProductSeriesAntenna BDimensionLxW3.2X1.6mm(+-0.2mm) CMaterialHighKmaterial D WorkingFrequency2.4~2.5GHz E FeedingmodeMonopole&SingleFeeding F AntennatypeType=02 1.ElectricalSpecification Specification PartNumberRANT3216F245M02 CentralFrequency2450MHz Bandwidth100(Min.)MHz ReturnLoss-6.5(Max)dB PeakGain3dBi Impedance50Ohm OperatingTemperature -40～+85°C MaximumPower4W ResistancetoSolderingHeats 10(@260 °C ) sec. PolarizationLinear AzimuthBeamwidthOmni-directional TerminationCu/Sn(Leadless) Remark:Bandwidth&PeakGainwasmeasuredunderevaluationboardofnextpage 2.4GHz3216ChipAntenna:3216F245M02 第 3 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 2.RecommendedPCBPattern EvaluationBoardDimension Unit:mm SuggestedMatchingCircuit 2.4GHz3216ChipAntenna:3216F245M02 第 4 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 LayoutDimensionsinClearancearea ( Size=5.2*5.0mm ) 50ohmtransmissionLine MatchingCircuit FootPrint(Unit:mm) 2.4GHz3216ChipAntenna:3216F245M02 第 5 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 3.MeasurementResults ReturnLoss 2.4GHz3216ChipAntenna:3216F245M02 第 6 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 RadiationPattern Y X Z Efficiency 2400MHz55.21% 2450MHz66.45% 2500MHz57.53% 2.4GHz3216ChipAntenna:3216F245M02 第 7 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 4.ReliabilityandTestCondictions ITEMREQUIREMENTSTESTCONDITION Solderability1.Wettingshallexceed90%coverage 2.Novisiblemechanicaldamage TEMP(°C) 230°C 4±1sec. 150 °C 60sec Pre-heatingtemperature:150°C/60sec. Soldertemperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Fluxforleadfree:rosin Solderheat Resistance 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% TEMP(°C) 260°C 10±0.5sec. 150°C 60sec Pre-heatingtemperature:150°C/60sec. Soldertemperature:260±5°C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Fluxforleadfree:rosin Component Adhesion (Pushtest) 1.Novisiblemechanicaldamage Thedeviceshouldbereflow soldered(230±5°Cfor10sec.)toatinned coppersubstrateAdynometerforce gaugeshouldbeappliedthesideofthe component.Thedevicemustwith-ST-F 0.5Kgwithoutfailureofthetermination attachedtocomponent. Component Adhesion (Pulltest) 1.Novisiblemechanicaldamage Insert10cmwireintotheremainingopen eyebend,theendsofevenwirelengths upwardandwindtogether. Terminalshallnotberemarkably damaged. 2.4GHz3216ChipAntenna:3216F245M02 第 8 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 Thermalshock 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% Phase Temperature( °C ) Time(min) 1 +85±5°C 30±3 2 RoomWithin Temperature3sec 3 -40±2 °C 30±3 4 RoomWithin Temperature3sec +85 °C =>30±3min -40 °C =>30±3min Testcycle:10cycles Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. Resistanceto High Temperature 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% 3.Nodisconnectionorshortcircuit. Temperature:85±5 °C Duration:1000±12hrs Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. Resistanceto Low Temperature 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% 3.Nodisconnectionorshortcircuit. Temperature:-40±5 °C Duration:1000±12hrs Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. Humidity 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% 3.Nodisconnectionorshortcircuit. Temperature:40±2°C Humidity:90%to95%RH Duration:1000±12hrs Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. 5.SolderingandMounting Mildlyactivatedrosinfluxesarepreferred.Theminimumamountofsoldercan leadtodamagefromthestressescausedbythedifferenceincoefficientsof expansionbetweensolder,chipandsubstrate.Theterminationsaresuitable forallwaveandre-flowsolderingsystems.Ifhandsolderingcannotbe avoided,thepreferredtechniqueistheutilizationofhotairsolderingtools. ReflowSoldering PRE-HEATING 250~260 230 180 150 SOLDERING 10smax. NATURAL COOLING IronSoldering PRE-HEATINGSOLDERINGNATURAL COOLING 60~120s30~60s TIME(sec.) TIME(sec.) Recommendedtemperatureprofilesforre-flowsolderinginFigure1. Productsattachmentwithasolderingironisdiscouragedduetotheinherent processcontrollimitations.Intheeventthatasolderingironmustbe employedthefollowingprecautionsarerecommended. within3s 350 150 Over60s Gradualcooling 300 T E M P E R A T U R E ( ° C ) T E M P E R A T U R E ( ° C ) 2.4GHz3216ChipAntenna:3216F245M02 第 9 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 1.593.511.80 ‧Preheatcircuitandproductsto150°C ‧Nevercontacttheceramicwiththeirontip ‧Usea20wattsolderingironwithtipdiameterof1.0mm ‧280°Ctiptemperature(max) ‧1.0mmtipdiameter(max) ‧Limitsolderingtimeto3sec. 6.PackagingInformation TapeSpecification: ReelSpecification:(7’’,Φ180mm) 2.4GHz3216ChipAntenna:3216F245M02 第 10 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 TapeWidth(mm)A(mm)B(mm)C(mm)D(mm)Chip/Reel(pcs) 89.0±0.560±213.5±0.5178±23000 7.StorageandTransportationInformation StorageConditions Tomaintainthesolderabilityofterminalelectrodes: 1.Temperatureandhumidityconditions:-10~40°Cand30~70%RH. 2.Recommendedproductsshouldbeusedwithin6monthsfromthetimeof delivery. 3.Thepackagingmaterialshouldbekeptwherenochlorineorsulfurexists intheair. TransportationConditions 1.Productsshouldbeha…
