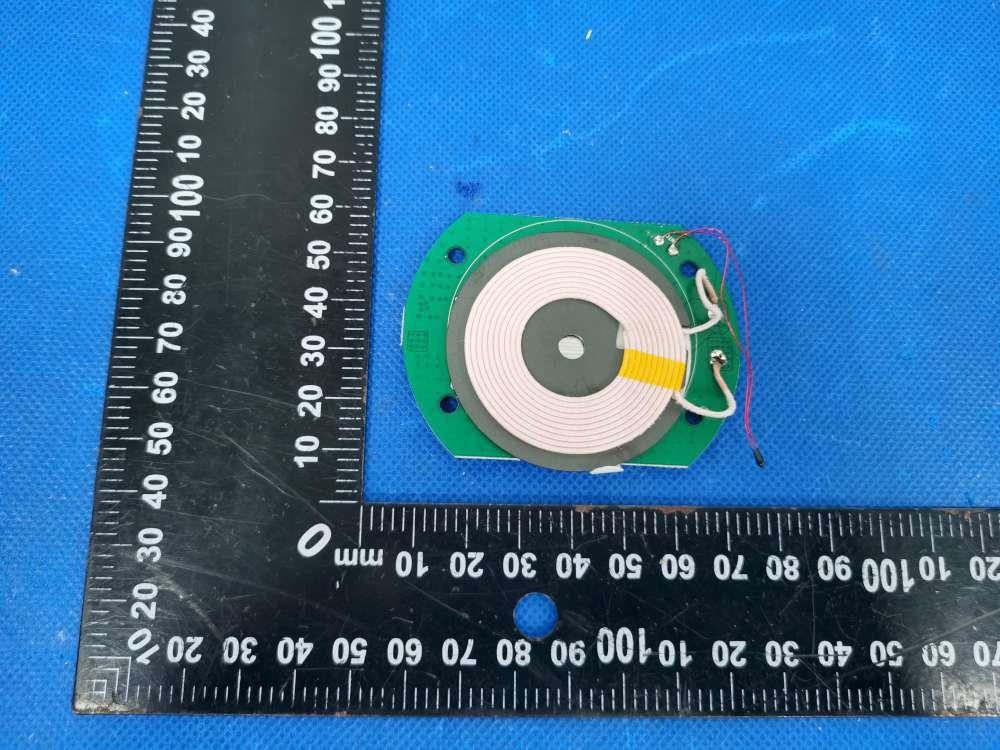

2BDCU-YX379circuit board

YX-379 15W YX-379 Wireless Charge YX-379 15W 1. Revise history version substance section while V1.0 First written / 2023.07.15 1.1 Application introduction This module is a fast wireless charging single coil solution for fast wireless charging of Samsung S6edge +, S7, S7 edge, S8, S9, S10, S22, galaxy Z Flip4, compatible with Apple 8,8 Pulls, X, XS, X Smax Apple 14, Apple Pro, can support Ti, IDT, Qi standard receiver. 1.2 Product Description: 1. Compliance with Qi 1.2.4 A11 specification 2. adapter requirements: 12V adapter, module standby 12V 3. to support the dynamic FOD detection 4.Support for dynamic power adjustment（DPM） 5, Support for overpressure protection（OVP）10.5V 6, Support overcurrent protection (OCP) output current limit of 1.8A 7, Support for overtemperature protection (OTP) 8.service frequency:115KHz~205KHz 9, Working induction distance:2-6mm 2.Electrical specifications 2.1absolute rating parameter symbol rating unit Thejunctiontemperatu re range TJ -40 - +125 °C Storage temperature Tstg -60 - +125 °C Storage humidity Tstr < 95% RH input voltage VIN -0.5至+16 V （HBM） ESD 4 KV YX-379 15W 2.2 Rated parameters Test conditions: ambient temperature: 25 C. test rating least value Crest value unit power consumption VIN=5V 230 200 310 MW service frequency Load distance / 110 205 KHz transmissio n efficiency EESON 75 60 80 % voltage 5W 12 11.8 12.2 V voltage 7.5W 12 11.8 12.2 V voltage 10W 12 11.8 12.2 V voltage 15W 12 11.8 12.2 V export 5W 1 0.8 1.1 A export 7.5W 1 0.8 1.2 A export 10W 1.1 1 1.3 A export 15W 1.66 1.6 1.7 A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

2.911 (d)(5)(i) Equipment Type Attestation v1.2 Hubei Yihang New Material Technology Co., Ltd. Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Hubei Yihang New Material Technology Co., Ltd. Address: No.6,Shanchuan Road, Mamiao Industrial Park, Makou Town, Hanchuan City, Hubei Province, China Product Name: circuit board FCC ID: 2BDCU-YX379 Model(s): YX-379 2.911(d)(5)(i) Equipment Type We, [Hubei Yihang New Material Technology Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Zhao Yuanyuan Date: 2023-10-27 Title and Company name: Manager Hubei Yihang New Material Technology Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

2.911 (d)(5)(ii) Applicant Attestation v1.3 Hubei Yihang New Material Technology Co., Ltd. Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Hubei Yihang New Material Technology Co., Ltd. Address: No.6,Shanchuan Road, Mamiao Industrial Park, Makou Town, Hanchuan City, Hubei Province, China Product Name: circuit board FCC ID: 2BDCU-YX379 Model(s): YX-379 2.911(d)(5)(ii) Applicant filing We, [Hubei Yihang New Material Technology Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Zhao Yuanyuan Date: 2023-10-27 Title and Company name: Manager Hubei Yihang New Material Technology Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Hubei Yihang New Material Technology Co., Ltd. 2.911 (d)(7)USA Agent v1.4 Section 2.911(d)(7) USA Agent for Service of Process Company name: Hubei Yihang New Material Technology Co., Ltd. Address: No.6,Shanchuan Road, Mamiao Industrial Park, Makou Town, Hanchuan City, Hubei Province, China Product Name: circuit board FCC ID: 2BDCU-YX379 Model(s): YX-379 2.911(d)(7) USA Designated Agent for Service of Process We, [Hubei Yihang New Material Technology Co., Ltd.] (“the applicant”) designate [UGK-LVM UNITED INC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: UGK-LVM UNITED INC USA Address: 6547 N Academy Blvd #2266 Colorado Springs, CO 80918 United States FRN Number: 0033476375 Contact Name: Jimmy chen Telephone No: 001-323-51 04660 Email: [email protected] Applicant Company name: Hubei Yihang New Material Technology Co., Ltd. Address: No.6,Shanchuan Road, Mamiao Industrial Park, Makou Town, Hanchuan City, Hubei Province, China Grantee FRN Number: 0034408781 FCC Grantee Code: 2BDCU Contact Name: Zhao Yuanyuan Telephone No: 15072620503 Email: [email protected] Signature: Title: Manager Signature: Title: Manager Hubei Yihang New Material Technology Co., Ltd. 2.911 (d)(7)USA Agent v1.4 Date:2023-10-27 Date: 2023-10-27 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-securit y-threats-to-the-communications-supply-chain-through-the

Hubei Yihang New Material Technology Co., Ltd. Agent Authorization Company name: Hubei Yihang New Material Technology Co., Ltd. Address: No.6,Shanchuan Road, Mamiao Industrial Park, Makou Town, Hanchuan City, Hubei Province, China Product Name: circuit board FCC ID: 2BDCU-YX379 Model(s): YX-379 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-10-27 Name: Zhao Yuanyuan Title: Manager Company: Hubei Yihang New Material Technology Co., Ltd.

Hubei Yihang New Material Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-10-27 Subject; Request for Confidentiality FCC ID: 2BDCU-YX379 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Date: 2023-10-27 Name: Zhao Yuanyuan Title: Manager Company: Hubei Yihang New Material Technology Co., Ltd.

Model Number: YX-379 ANT

Size: 12*10mm M/N: YX-379 FCC ID: 2BDCU-YX379 Label location

Model Number: YX-379 ANT

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231025070E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 7 RF Exposure Evaluation Report 1 Product Information FCC ID: 2BDCU-YX379 Product Name: circuit board Model Number: YX-379 Power Supply： Input: DC 12V/2A Wireless charger Output: 5W, 7.5W, 10W, 15W Frequency Range: 115-205 KHz Antenna Type: Coil Antenna Hardware version V1.0 Software version V1.0 Accessories Mobile phone: SAMSUNG/Galaxy S21 5G Adapter: PD-014 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device Site Description Test Lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231025070E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 7 2 Evaluation Method Per KDB 680106 D01v03r01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces. 6) According to April 2018 TCB Workshop, No need to report E-field measurements. Only H-field required. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231025070E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 7 3 Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 680106 D01 RF Exposure Wireless Charging Apps v03r01: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure F=frequency in MHz *=Plane-wave equivalent power density According to FCC 680106 D01 RF Exposure Wireless Charging Apps v03r01 Section 3. RF Exposure Requirements clause 3 the Emission-Limits in the frequency range fr…

Text truncated - open the document above for the full version.

Page 1 of 3 FY-GZ001 承 認 書 客 戶： CUSTOMER: 客 戶 料 號： CUST P/N: SPECIFICATION FOR APPROVAL 亿 钵 料 號： FINE P/N: 産 品 型 號： DESC: 日 期： DATE: 版 本： Version: 套管-10mm MP-A11 A.0 2022/12/20 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 夏先润 钟梦良 严小姐 FY-GZ001 FY-GZ001 Page 3 of 3 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2021/10/28 倪星 1 3.95UH 6.48UH 2 3.84UH 6.47UH 3 3.77UH 6.5UH 4 3.96UH 6.6UH 5 4.0UH 6.52UH 6 4.1UH 6.5UH 7 3.97UH 6.49UH 8 3.98UH 6.48UH 9 3.89UH 6.45UH 10 4.0UH 6.5UH FY-GZ001 Fine Page 3 of 3 産 品 型 號： SPECIFICATION 客戶CUST: 331 DESC Φ20.5x40-10Ts-0.08x105-20mm- 版本 Rev：A.0 一、尺寸 DIMENSION:(mm) 二、原理图 SCHEMATIC DIAGRAM: 三、绕线参数 Winding Specification: 料号 Fine P/N: FYD331003 客户料号 CUST P/N: A11 A 41.5 ±0.5 B 20.3±0.5 C 0.93±0.05 D1 20mm ±0.2 D2 20mm ±0.2 F 49.5 ±1 G 0.6. ref H 2.0Max I 5.3 ref E 3±0.2 注： 1. 线圈贴磁片，磁片尺寸 45±1mm,内孔 5.3mm,厚度为 2.2±0.2mm。 2. 线圈出线位置缠8mm(ref)宽 度高温胶纸 1-2Ts; 3. 磁片反面贴圆形直径 49mm(ref)白色双面胶,内孔 6.0mm（ref），（必须加带孔 3mm双面胶）。 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 纯铜漆包线 0.08*105P 10Ts CCW 四、电气特性 ELECTRICAL CHARACTERISTICS: 温度 TEMPERATURE:25±10°C, 湿度 RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 6.4uH ±15%单独线圈 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.8uH ±15%加磁片 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤50mΩ LCZ METER 502B 擬制/日期 PREPARED BY/DATE 審核/日期 CHECKED BY/DATE 2022/12/20 2022/12/22

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231025070E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 15 TEST REPORT FCC ID: 2BDCU-YX379 Applicant: Hubei Yihang New Material Technology Co., Ltd. Address: No.6,Shanchuan Road, Mamiao Industrial Park, Makou Town, Hanchuan City, Hubei Province, China Manufacturer: Zhongshan Kuaiku Industrial Co., Ltd Address: 4th Floor, No. 157 Rainbow Avenue, West District, Zhongshan City, Guangdong Province EUT: circuit board Trade Mark: N/A Model Number: YX-379 Date of Receipt: Oct. 16, 2023 Test Date: Oct. 16, 2023 - Oct. 25, 2023 Date of Report: Oct. 25, 2023 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC Part 18 MP-5(1986) Test Result: Pass Report Number: DL-20231025070E Prepared (Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231025070E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 15 TABLE OF CONTENT Page 1.VERSION ................................................................................................................................. 3 2.GENERAL INFORMATION .................................................................................................. 4 2.1 Description of Device (EUT) ...............................................................................................................4 2.2 Tested System Details .........................................................................................................................4 2.3 Test Facility ...........................................................................................................................................4 2.4 MEASUREMENT UNCERTAINTY ....................................................................................................5 2.5 Test Instrument Used...........................................................................................................................6 3.CONDUCTED EMISSION AT THE MAINS TERMINALS TEST .................................... 7 3.1 Block Diagram Of Test Setup .............................................................................................................7 3.2 Test Standard ........................................................................................................................................7 3.3 Power Line Conducted Emission Limit .............................................................................................7 3.4 EUT Configuration on Test..................................................................................................................7 3.5 Operating Condition of EUT ...............................................................................................................7 3.6 Test Procedure .....................................................................................................................................7 3.7 Test Result ............................................................................................................................................7 4.RADIATION EMISSION TEST ............................................................................................. 7 4.1 Block Diagram of Test Setup ..............................................................................................................8 4.2 Test Standard ........................................................................................................................................8 4.3 Radiation Limit ......................................................................................................................................8 4.4 EUT Configuration on Test..................................................................................................................9 4.5 Operating Condition of EUT ...............................................................................................................9 4.6 Test Procedure .....................................................................................................................................9 4.7 Test Result ..........................................................................................................................................10 5.EUT PHOTOGRAPHS ......................................................................................................... 14 6.EUT TEST PHOTOGRAPHS ............................................................................................. 15 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231025070E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 15 1.VERSION Report No. Version Description Approved DL-20231025070E Rev.01 Initial issue of report Oct. 25, 2023 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231025070E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 15 2.GENERAL INFORMATION 2.1 Description of Device (EUT) EUT : circuit board Trademark : N/A Model Number : YX-379 Model Difference : / Power Supply : Input: DC 12V/2A Wireless charger Output: 5W, 7.5W, 10W, 15W 2.2 Tested System Details None. 2.3 Description Of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Item Equipment Mfr/Brand Model/Type No. Series No. Note E1 circuit board N/A YX-379 N/A EUT E2…

Text truncated - open the document above for the full version.

Radiated Measurement Photos
