2BDF3-H1Wireless HD Transmitter Receiver kit

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Xinhaoyuan Technology Co,Ltd Room 1403, No. 2095, Bixin Road (Longgang Section), Nanlian Community, Longgang Street, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/23 U.S. Agent Designation Shenzhen Xinhaoyuan Technology Co,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDF3-H1): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Xinhaoyuan Technology Co,Ltd Shenzhen Xinhaoyuan Technology Co,Ltd with the FRN [0034433599] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Ben zeng Manager Shenzhen Xinhaoyuan Technology Co,Ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Xinhaoyuan Technology Co,Ltd Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: 2025-12-23 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2BDF3-H1 Shenzhen Xinhaoyuan Technology Co,Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Name/Title： Ben zeng/Manager Company: Shenzhen Xinhaoyuan Technology Co,Ltd Address: Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Phone: 13242432090 Fax: 0755-23286935 E-Mail: [email protected]

Shenzhen Xinhaoyuan Technology Co,Ltd Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China 1 | P a g e Attestation Statements To: Federal Communications Commission Date: 2025-12-23 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID:2BDF3-H1 Product Name:Wireless HD Transmitter Receiver kit This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Name/Title： Ben zeng/Manager Company: Shenzhen Xinhaoyuan Technology Co,Ltd Address: Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Phone: 13242432090 Fax: 0755-23286935 E-Mail: [email protected] Shenzhen Xinhaoyuan Technology Co,Ltd Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. The MCU “AM8268D “, The RF chip “AM9421 “ don’t support the mentioned function. ☐ The Memory used is limited to run the Cybersecurity or anti-virus software. ☐ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. ☐ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

Shenzhen Xinhaoyuan Technology Co,Ltd Add: Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Date: 2025-12-23 FCC ID: 2BDF3-H1 Dear Sir/Madam, We, Shenzhen Xinhaoyuan Technology Co,Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number and colour is different for these model: Product name: Wireless HD Transmitter Receiver kit Model no.: H1, H2, H3, H4, H5, H6, H7, H8, H9, H10 Sincerely, Name/Title： Ben zeng/Manager Company: Shenzhen Xinhaoyuan Technology Co,Ltd Address: Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Phone: 13242432090 Fax: 0755-23286935 E-Mail: [email protected]

Shenzhen Xinhaoyuan Technology Co,Ltd Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China FCC Software Configuration Control Declaration Rev1.0 FCC Software Configuration Control Declaration Date: 2025-12-23 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Wireless HD Transmitter Receiver kit/H1, H2, H3, H4, H5, H6, H7, H8, H9, H10 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. (Signature of applicant) Name: Ben zeng Date: 2025-12-23 Title: Manager Address: Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Tel.: 13242432090 Email: [email protected]

Shenzhen Xinhaoyuan Technology Co,Ltd Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Date: 2025-12-23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID: 2BDF3-H1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description ⎯ FCC Software Security Requirements for UNII devices The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Sincerely, Name/Title： Ben zeng/Manager Company: Shenzhen Xinhaoyuan Technology Co,Ltd Address: Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Phone: 13242432090 Fax: 0755-23286935 E-Mail: [email protected]

Shenzhen Xinhaoyuan Technology Co,Ltd Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Date: 2025-12-23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID: 2BDF3-H1 I, the undersigned, hereby authorize (SHENZHEN CTA TESTING TECHNOLOGY CO., LTD.) to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by (SHENZHEN CTA TESTING TECHNOLOGY CO., LTD.) shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with (Shenzhen Xinhaoyuan Technology Co,Ltd). We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Name/Title: Ben zeng/Manager Company: Shenzhen Xinhaoyuan Technology Co,Ltd Address: Room 1403, No. 2095,Bixin Road (Longgang Section), Nanlian Community, Longgang Street,Longgang District, Shenzhen China Phone: 13242432090 Fax: 0755-23286935 E-Mail: [email protected]

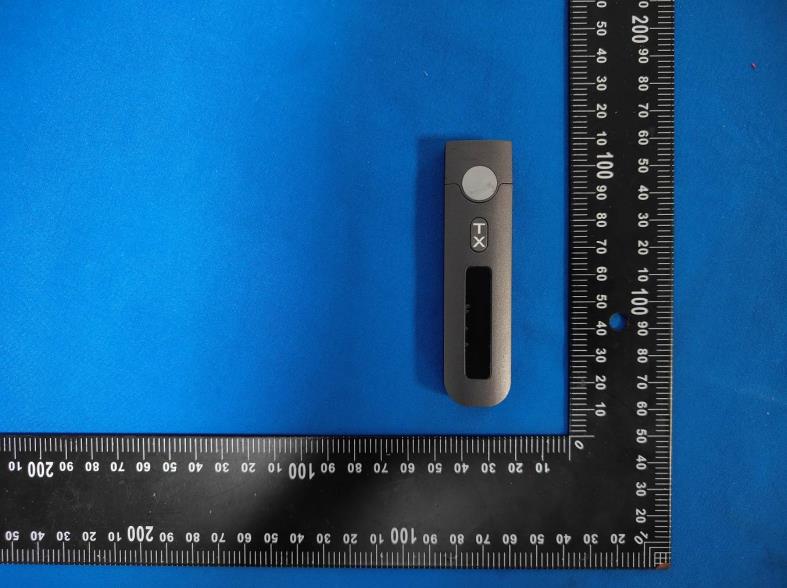

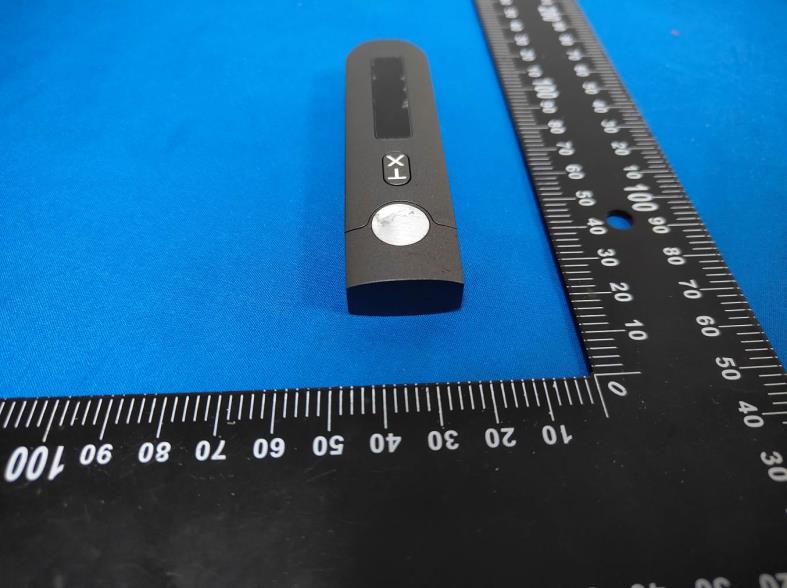

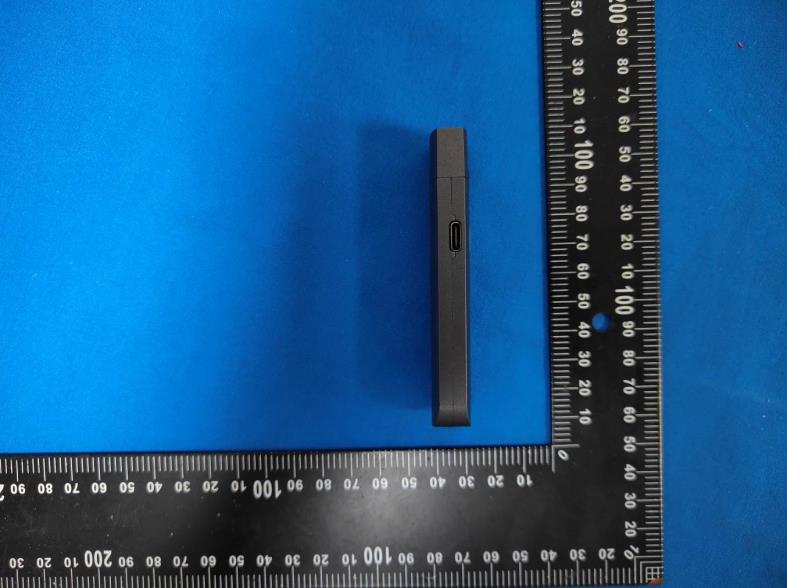

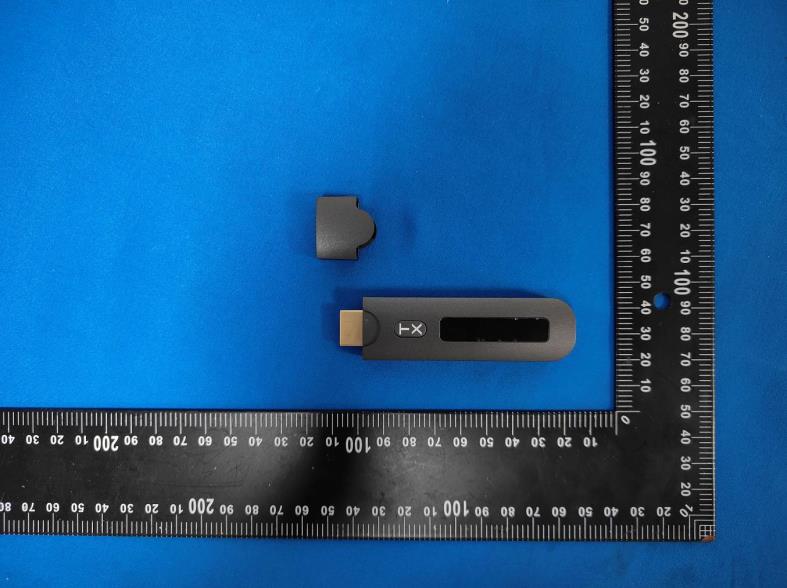

FCC ID:2BDF3-H1 External Photos of the EUT FCC ID:2BDF3-H1 FCC ID:2BDF3-H1

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BDF3-H1

FCC ID:2BDF3-H1 Internal Photos of the EUT FCC ID:2BDF3-H1 ANT

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. .................... : FCC ID. ........................................... : CTA25112800102 2BDF3-H1 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 08, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Xinhaoyuan Technology Co,Ltd Address ........................................... : Room 1403, No. 2095, Bixin Road (Longgang Section), Nanlian Community, Longgang Street, Longgang District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless HD Transmitter Receiver kit Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Xinhaoyuan Technology Co,Ltd Model/Type reference ...................... : H1 Listed Models ................................... : H2, H3, H4, H5, H6, H7, H8, H9, H10 Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25112800102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless HD Transmitter Receiver kit Model /Type : H1 Listed Models : H2, H3, H4, H5, H6, H7, H8, H9, H10 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Xinhaoyuan Technology Co,Ltd Address : Room 1403, No. 2095, Bixin Road (Longgang Section), Nanlian Community, Longgang Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Xinhaoyuan Technology Co,Ltd Address : Room 1403, No. 2095, Bixin Road (Longgang Section), Nanlian Community, Longgang Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112800102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Repo…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model H1 Frequency range 5180-5240MHz, 5745-5825MHz Manufacturer Shenzhen Xinhaoyuan Technology Co,Ltd Address Room 1403, No. 2095, Bixin Road (Longgang Section), Nanlian Community, Longgang Street, Longgang District, Shenzhen, China ANT Peak Gain 0.65 dBi for 5180-5240MHz 0.72 dBi for 5745-5825MHz 2. Antenna Photo: Length :6.70mm Width:2.49mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5180MHz 5220MHz 5240MHz 5745MHz 5785MHz 5825MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID. ........................................... : CTA25112800101 2BDF3-H1 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Dec. 08, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Xinhaoyuan Technology Co,Ltd Address ............................................. : Room 1403, No. 2095, Bixin Road (Longgang Section), Nanlian Community, Longgang Street, Longgang District, Shenzhen, China Test specification .......................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Wireless HD Transmitter Receiver kit Trade Mark ....................................... : N/A Manufacturer..................................... : Shenzhen Xinhaoyuan Technology Co,Ltd Model/Type reference ....................... : H1 Listed Models.................................... : H2, H3, H4, H5, H6, H7, H8, H9, H10 Modulation ....................................... : OFDM Frequency ......................................... : From 5180MHz-5240MHz, 5745MHz-5825MHz Rating ............................................... : DC 5.0V From external circuit Result ................................................ : PASS Report No.: CTA25112800101 Page 2 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless HD Transmitter Receiver kit Model /Type : H1 Listed Models : H2, H3, H4, H5, H6, H7, H8, H9, H10 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Xinhaoyuan Technology Co,Ltd Address : Room 1403, No. 2095, Bixin Road (Longgang Section), Nanlian Community, Longgang Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Xinhaoyuan Technology Co,Ltd Address : Room 1403, No. 2095, Bixin Road (Longgang Section), Nanlian Community, Longgang Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112800101 Page 3 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory.....................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 5GWIFI FCC ID : 2BDF3-H1 Company : Shenzhen Xinhaoyuan Technology Co,Ltd EUT : Wireless HD Transmitter Receiver kit Model Number : H1 Report No. : CTA25112800101 Reviewed By : Eric Wang 2 Appendix A1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 22.560 5168.840 5191.400 --- --- 5220 21.800 5209.240 5231.040 --- --- 5240 22.560 5228.840 5251.400 --- --- 5745 23.480 5732.880 5756.360 --- --- 5785 22.920 5773.160 5796.080 --- --- 5825 23.400 5813.640 5837.040 --- --- 11N20SISO Ant1 5180 22.840 5168.600 5191.440 --- --- 5220 22.560 5208.840 5231.400 --- --- 5240 22.280 5228.800 5251.080 --- --- 5745 23.120 5733.320 5756.440 --- --- 5785 23.280 5773.200 5796.480 --- --- 5825 24.360 5812.880 5837.240 --- --- 3 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 4 11A_Ant1_5745 11A_Ant1_5785 5 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 6 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 7 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 8 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 16.961 5171.5859 5188.5469 --- --- 5220 16.958 5211.5887 5228.5467 --- --- 5240 16.957 5231.5485 5248.5055 --- --- 5745 17.311 5736.3516 5753.6626 --- --- 5785 17.308 5776.3518 5793.6598 --- --- 5825 17.253 5816.3870 5833.6400 --- --- 11N20SISO Ant1 5180 18.018 5171.0208 5189.0388 --- --- 5220 18.022 5211.0050 5229.0270 --- --- 5240 17.985 5231.0298 5249.0148 --- --- 5745 18.374 5735.8206 5754.1946 --- --- 5785 18.340 5775.8473 5794.1873 --- --- 5825 18.373 5815.7887 5834.1617 --- --- 9 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 10 11A_Ant1_5745 11A_Ant1_5785 11 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 12 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 13 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 14 Appendix A3: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.840 5753.160 0.5 PASS 5785 16.320 5776.840 5793.160 0.5 PASS 5825 16.320 5816.840 5833.160 0.5 PASS 11N20SISO Ant1 5745 17.560 5736.240 5753.800 0.5 PASS 5785 17.560 5776.240 5793.800 0.5 PASS 5825 17.520 5816.240 5833.760 0.5 PASS 15 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 16 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 17 11N20SISO_Ant1_5825 18 Appendix B: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty factor(dB) Limit Verdict 11A Ant1 5180 0.14 0.19 73.68 1.33 --- --- 5220 0.14 0.19 73.68 1.33 --- --- 5240 0.15 0.20 75.00 1.25 --- --- 5745 0.15 0.20 75.00 1.25 --- --- 5785 0.15 0.20 75.00 1.25 --- --- 5825 0.15 0.20 75.00 1.25 --- --- 11N20SISO Ant1 5180 0.18 0.23 78.26 1.06 --- --- 5220 0.18 0.23 78.26 1.06 --- --- 5240 0.18 0.23 78.26 1.06 --- --- 5745 0.17 0.22 77.27 1.12 --- --- 5785 0.18 0.23 78.26 1.06 --- --- 5825 0.17 0.22 77.27 1.12 --- --- 19 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 20 11A_Ant1_5745 11A_Ant1_5785 21 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 22 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 23 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 24 Appendix C: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MHz) Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 0.98 73.68 1.33 2.31 ≤23.98 PASS 5220 1.08 73.68 1.33 2.41 ≤23.98 PASS 5240 0.96 75.00 1.25 2.21 ≤23.98 PASS 5745 0.55 75.00 1.25 1.80 ≤30.00 PASS 5785 0.42 75.00 1.25 1.67 ≤30.00 PASS 5825 0.15 75.00 1.25 1.40 ≤30.00 PASS 11N20SISO Ant1 5180 1.09 78.26 1.06 2.15 ≤23.98 PASS 5220 1.08 78.26 1.06 2.14 ≤23.98 PASS 5240 0.98 78.26 1.06 2.04 ≤23.98 PASS 5745 0.50 77.27 1.12 1.62 ≤30.00 PASS 5785 0.61 78.26 1.06 1.67 ≤30.00 PASS 5825 0.32 77.27 1.12 1.44 ≤30.00 PASS 25 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/1MHz] For 5.2G RBW Factor (dB) Duty factor (dB) Result [dBm/MHz] For 5.2G Limit[dBm/MHz] For 5.2G Verdict Result [dBm/300KHz] For 5.8G Result [dBm/500kHz] For 5.8G Limit[dBm/500kHz] For 5.8G 11A Ant1 5180 -9.330 / 1.33 -8.00 ≤11.00 PASS 5220 -8.945 / 1.33 -7.62 ≤11.00 PASS 5240 -9.140 / 1.25 -7.89 ≤11.00 PASS 5745 -14.950 2.22 1.25 -11.48 ≤30.00 PASS 5785 -15.095 2.22 1.25 -11.63 ≤30.00 PASS 5825 -15.596 2.22 1.25 -12.13 ≤30.00 PASS 11N20SISO Ant1 518…
