2BDJ6-MS88SF2Bluetooth low energy module

Copyright© Shenzhen Minewsemi Co., Ltd. Bluetooth LE Module V 1.0.0 MS88SF2 Datasheet 02 MS88SF2 Datasheet Version Note VersionDetailsContributor(s)DateNotes 1.0.0First editMichelle2024.05.09 @ Part Numbers ModelHardware Code MS88SF21 1Y40AI MS88SF23 3Y40AI Click the icon to view and download the latest product documents electronically. https://en.minewsemi.com/file/MS88SF2-nRF52840_Datasheet_M_EN.pdf MS88SF2-nRF52840 The MS88SF2 is a master-slave module that can be switched into master/slave mode by command, master and slave cannot work at the same time and only one-to-one connection is possible. The device defaults to master mode. In master mode, the device can be scanned and connected through commands. The device communicates with the MCU through the UART interface. In command mode, commands can be sent through the UART to modify the scanning interval, scanning timeout, connection interval, broadcasting interval, broadcasting customized data, and baud rate. Support BLE master-slave mode switching, serial port command configu- ration, Bluetooth transmitting master-slave module Webwww.minewsemi.com Tel0086 755-2801 0353 [email protected] Copyright© Shenzhen Minewsemi Co., Ltd. APPLICATION CERTIFICATION Smart Home Consumer Electronics Intelligent Medical care Security Equipment Automotive Equipment Smart Wearable Devices FEATURES Transmission rates as fast as 11kB/S Support serial command configuration One-to-one connection Supports master-slave switching Transmission distance up to 600 meters in open space KEY PARAMETER Chip Model Module Size Flash Receiving Sensitivity Current(TX) Firmware Nordic nRF52840 23.2×17.4×2mm 1M -95dBm(1Mbps) 0dBm-4.8mA Master-Slave UART firmware Antenna GPIO RAM Transmission Power Current(RX) PCB/IPEX 20 256KB -40~ +8dBm 4.6mA MS88SF2-nRF52840 03 MS88SF2 Datasheet Support iBeacon broadcast mode Webwww.minewsemi.com Tel0086 755-2801 0353 [email protected] Copyright© Shenzhen Minewsemi Co., Ltd. 04 MS88SF2 Datasheet 2.Current Consumption Characteristics 11.Storage Conditions 12.Handling Conditions INDEX 05 05 06 06 07 07 07 07 07 08 08 08 08 08 14 14 14 15 16 17 19 20 20 21 22 26 26 26 27 27 1.Electrical Specification 3.Pin Description 4.Pin Definition 7.PCB Layout 5 Module Operation Instruction 5.1 Tool 5.2 Demonstration of module application 5.2.1 Power supply 5.2.2 SLP(Sleep/Awake) 5.2.3 BTDATA(UART control) 5.2.4 UART interface:TX and RX 5.2.5 CON_IND 5.2.6 FIFO_FULL 5.2.7 Command instruction 5.3 Example of operation 5.3.1 Factory Default Parameters 5.3.2 Example of Modifying Parameters 5.3.3 Scanning devices and connections 5.3.4 Mainframe transmission 5.3.5 Slave Radio 5.3.6 Slave Transponder 8.Reflow and Soldering 9.Package Information 23 10.FCC Warning 14.Copyright Statement 15.Related Documents 13.Quality 6.Mechanical Drawing The following power consumption tests were conducted with a supply voltage of 3.3V and at room temperature. The power consumption is not the same in master mode and slave mode. In slave mode, the power consumption is as follows: (broadcast interval is 1s, maximum and minimum connection interval is 20-40ms, and transmit power is 0dBm). 1 ELECTRICAL SPECIFICATION Working Voltage Working Temperature Transmission Power Current(RX) Current(TX) Module Dimension Quantity of IO Port To ensure RF work, supply voltage suggest not lower than 2.3V Storage temperature is -40~+125 Configurable RF reception current in 1Mbps mode RF emission current in 0dBm mode 1.7V-5.5V -40~+85 -40 ~ +8dBm 4.6mA 4.8mA 23.2*17.4*2mm 20 ParametersValueNotes Webwww.minewsemi.com Tel0086 755-2801 0353 [email protected] Copyright© Shenzhen Minewsemi Co., Ltd. 05 MS88SF2 Datasheet 2 CURRENT CONSUMPTION CHARACTERISTICS In host mode, the power consumption is as follows: (Maximum minimum connection interval of 20-40ms, transmit power 0dBm) 0.00027 0.0148 0.0561 0.0587 0.738 1.08 2.11 6.69 6.64 6.31 6.82 7.18 / 1M 125k 1M 125k 1M and 125k switching Average current in sleep state (SLP pulled highBTDATA pulled low) Average current in broadcast state (SLP pin is connected to GND, BTDATA is pulled high) Transparent transmission average current (SLP, BTDATA pins are connected to GND, connected to mobile phones) Status Consumption Peak(mA)Airspeed (bps)Avg(mA) 0.0013 1.18 1.06 0.6085 7.18 7.16 / 1M 125k Average current in sleep state (SLP pulled highBTDATA pulled low) Transparent transmission average current (SLP, BTDATA pins are connected to GND, connected to mobile phones) Status Consumption Peak(mA)Avg(mA) Airspeed(bps) 3 4 PIN DESCRIPTION PIN DEFINITION 1 2~7 8 9 10-12 13 14 15 16 17 18 19 20 21 GND P1.13 to P0.26 P0.04 P0.06 P0.08 to P0.12 GND VDD VDDH D- D+ P0.13 P0.15 P0.18 P0.20 GND BTX BRX GND Power Power SLP BT DATA CON_IND FIFO_FULL Ground GPIO UART TX UART RX GPIO Ground Power Supply Voltage Positive USB interface USB interface Sleep/Awake Serial port control 3.3V power supply interface, need to be connected with VDDH For 5V power supply, connect this pin only. For 3.3V supply, connect with VDD. Low level to wake-up,high level to sleep, no floating Determine if the transmission space is available when it is full 0: Bluetooth module has available space for transmission 1: Host stops transmitting and waits for free space to be released Serial port on / off to control pin, no floating 0: serial port open, can send and receive serial port data 1: Serial port off Sleep state: low level Broadcast status: Low level Connection status: High level Not used in UART, floating TX of Bluetooth Module RX of Bluetooth Module Not used in UART, floating The firmware does not enable USB function The firmware does not enable USB function Pin NumberSymbolTypeDefinitionNote Webwww.minewsemi.com Tel0086 755-2801 0353 [email protected] Copyright© Shenzhen Minewsemi Co., Ltd. 06 MS88SF2 Datasheet PCB Antenna IPEX Antenna Connection indication Transmission space full Not used in UART, floating For burning firmware For burning firmware Not used in UART, float…

Text truncated - open the document above for the full version.

SH ENZHEN MINEWSE MI CO., LTD p 1 / 2 63_Compliance proof covered list- 2.911 ( d ) ( 5 ) ( i ) and ( ii ) - software_V02 12/02/2025 --- Covered List Software Inca pability 1 --- Devic e (model name):MS88SF21,M S88SF2 Grantee:SHENZHEN MIN EWSEMI CO., LTD FCC ID :2BDJ6-MS88SF2 Devi ce features: Operatin g System (as applic able ):NA Storage Capacit y (hard driv e or other permanent memorystorage): 1 MB flash and 256 kB RAM Is in stalla tio n of thir d-party software possib le ? YESNO Does the devic e have an in ternet connectio n? YESNO Can the devic e connect to a PC? YESNO Chipse t/module information: Chip set / module part number:Memorysiz e(MB) nRF52840-QIA A-R1 MB flash and 256 kB RAM Minimum system requirements Kaspersky as of December 3, 2024 AndroidMemory: 120 MBDisc space: unknownProcessor speed: unknown MacOSMemory: 2000 MBDisc space: 2200 MHzProcessor speed: unknown WindowsMemory: 1000 MBDisc space: 1000 MBProcessor speed: 1 GHz LinuxMemory: 1000 MBDisc space: 1000 MHzProcessor speed: 1 GHz Base d on the review of the above fact sh eet(s) and device features, the device ca nnot su pport inst allation of any cy berse cu rity or anti-virus so ftware on the co vered list . potentially ca n operate with any cy berse cu rity or anti-virus so ftware on the co vered list – additional 3 rd party proof is provided to demonst rate co mpliance with requirements as of 2.911(d)5(i),(ii) – page 2 of this docu ment applies. Sig nature: Name:yanyan Zhang Title /P osit io n:Quality Supervisor 1 List of minimum re quire ments to implement covere d list software – if the EUT does not have capability to install Kaspers ky under the given configura tion. Page 2 must also be handed in. Note: If the device is capable of ru nning Kaspers ky software , at least one document must be pro vided fro m a third part y showing that the Kaspers ky software is not pre sent on the device. This could include the re sults of a software scan, a scre en capture of the device software re gister or other o bjective evidence that pro ves the Kaspers ky software is not on the device. Please follow options listed on page 2. SHENZHENMINEWSEMICO.,LTD p 2 / 2 6 3 _ C o m p l i a n c e p r o o f c o v e r e d l i s t - 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - s o f t w a r e _ V 0 2 -Optionstoprovideofcompliancewithcoveredlistsoftwarerequirements- Pleasefillinasapplicableandprovideadditionalproofasrequested: 1Hastheclientsignedanattestationstatingthedeviceis incapableofrunningtheKasperskysoftware(page1)? *YES–nomoreproofneeded–2-5donotapply>N/A **NO–moreproofmustbeprovided(item2-5mustbe answered) YES*NO** 2Didthetestlaborother3rdpartyotherthanthe certificationbodyandapplicantprovidealistofsoftware installedonthedeviceandistherenoevidenceof Kasperskysoftwarebeinginstalled? ***YES–please: YES***NON/A InsertFileName: Insert3 rd PartyName: 3Havetheresultsofasoftwarescanbeenprovided showingthatKasperskysoftwareisnotinstalledonthe device? ***YES–please: YES***NON/A InsertFileName: Insert3 rd PartyName: 4HasanyotherobjectiveevidencethatKasperskysoftware isnotinstalledonthedevicebeenprovided? ***YES–please: YES***NON/A InsertFileName: Insert3 rd PartyName: 5Hasatleastoneoftheaboveitemsbeenshownasa YES? ****NO–applicantfailedtoprovidesufficientproof– applicationfilingisrejected. YESNO**** Note: Filescontainingconfidentialoperationaldetailscanbekeptlong-termconfidentialonapplicant’srequest.

SHE NZ HE N MINEWSEMI CO. , LTD U.S .Age nt Design at ion for Servi ce of Process (Applican t an d U.S .Age nt ar e Separ at e Par ties) TO:Fede ral Com muni cations Com mission 7435 Oakland Mills Roa d Col um bi a, MD 21046 Sign ed by (Printed Nam e/Title) ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: ANTEK SE RVICE INC Address: 901 N PENNSYLVANIA ST STE 0 DENVER, CO 80203 United States FRN:0033437609 Contact Name:Shirley Kwok Tel.:01 303-8006306 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2025-12-15 : The Appl icant acknow ledg es tha t they mus t maint ain an agent for no less tha n one year after termina ting all marketing and impor tation OR the conc lus ion of any Com mission- related pr oceeding inv ol ving the equi pm ent . The appl icant fur the r acknow ledges the ir respons ibi lity to inf or m the FCC whe ne ver the Designa ted U.S .Age nt inf or mation abov e cha nges. Applican t Com pa ny na me:SHEN ZH EN MINEW SEM I CO., LTD Grant ee Code :2B DJ6 FCC ID:2BDJ6-MS88SF2 Cont act Name: yanyan Zha ng StreetAddr ess:Room 402, Bui ldi ng C, Bus ine ss Cent er, Gangz hi long Scienc e Park, No. 8 Qing Lo ng Roa d, Qing hua Com muni ty, Longhua District, She nz he n Telepho ne No: 86- 755- 88868480 Email: yanya n.z ha ng @mine w.com FRN: 0034469049 Applicant Signature: Date: 2025-12-4 Signed by (Printed Name/Title): yanyan Zhang / Quality Supervisor

SHENZHEN MINEWSEMI CO., LTD. 2025/12/15 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for 2BDJ6-MS88SF2 [SHENZHEN MINEWSEMI CO., LTD] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Name:yanyan Zhang / Quality Supervisor SHENZHEN MINEWSEMI CO., LTD 2025/12/15 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for 2BDJ6-MS88SF2 [SHENZHEN MINEWSEMI CO., LTD] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Name:yanyan Zhang / Quality Supervisor

Declar ati on on model diffe rence We the undersig ned hereby confir m that any of o The follo win g models of unit s we produce are id entic al in ele ctric al, mechanic al and physic al structure; The dif ference is only in the model name. Productio n nameTrade nameModel no. Blu etooth lo w energy module MIN EWSEMIMS88SF21,M S88SF2 Signature: Name:yanyan Zhang Title Date: 2025/12/04 :Quality Supervisor Company: SHENZHEN MINEWSEMI CO., LTD

SHENZHEN MINEWSEMI CO., LTD 2025.12.15 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR Product Name: Bluetooth low energy module FCCID: 2BDJ6-MS88SF2 Model(s): MS88SF21,MS88SF2 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Clien t’s signature: Client’s name / title :yanyan Zhang/ Quality Supervisor Contact information / address:Room 402, Building C, Bus in ess Center, Gangzhilong Science Park, No. 8 QingLong Road, Qinghua Community, Longhua District, Shenzhen

SHENZHEN MINEWSEMI CO., LTD 2025.12.15 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION Product Name:Bluetooth low energy module FCCID: 2BDJ6-MS88SF2 Model(s): MS88SF21,MS88SF2 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title :yanyan Zhang/ Quality Supervisor Contact information / address:Room 402, Building C, Business Center, Gangzhilong Science Park, No. 8 QingLong Road, Qinghua Community, Longhua District, Shenzhen

FCC Modular Approval Request Rev 3.0 FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: 2BDJ6-MS88SF2 has been examined against the following requirements SHENZHEN MINEWSEMI CO., LTD Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2025/12/15 Subject; Modular Transmitter Application Company name: SHENZHEN MINEWSEMI CO., LTD FCC ID: 2BDJ6-MS88SF2 Dear S ir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- . Requirement per 15.212 and KDB 996369 D01Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved ) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, It has a shield The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes, This module have buffered modulation/data inputs . The module must contain power supply regulation on the module. Yes, The module have power supply regulation, The supply voltage is DC 3.3V. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204 (c), 15.212(a), 2.929(b). Yes, This module has a Permanently attached antenna The module must demonstrate compliance in a stand-alone configuration. Yes, This module is a stand-alone configuration. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes, The host system have label in a visible area indicated the following texts: " FCC ID: 2BDJ6-MS88SF2 The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes, This module meets the requirements of FCC part 15C(15.247).). The module must comply with RF exposure requirements Yes, This module complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, This equipment SHENZHEN MINEWSEMI CO., LTD FCC Modular Approval Request Rev 3.0 should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body." This module is designed to comply with the FCC statement, FCC ID is: 2BDJ6-MS88SF2 Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of r equirements and Checklist. Refer to the KDB for description of the complete requirements. Name: yanyan Zhang Title: Quality Superviso Date: 2025/12/15 r Signature of applicant

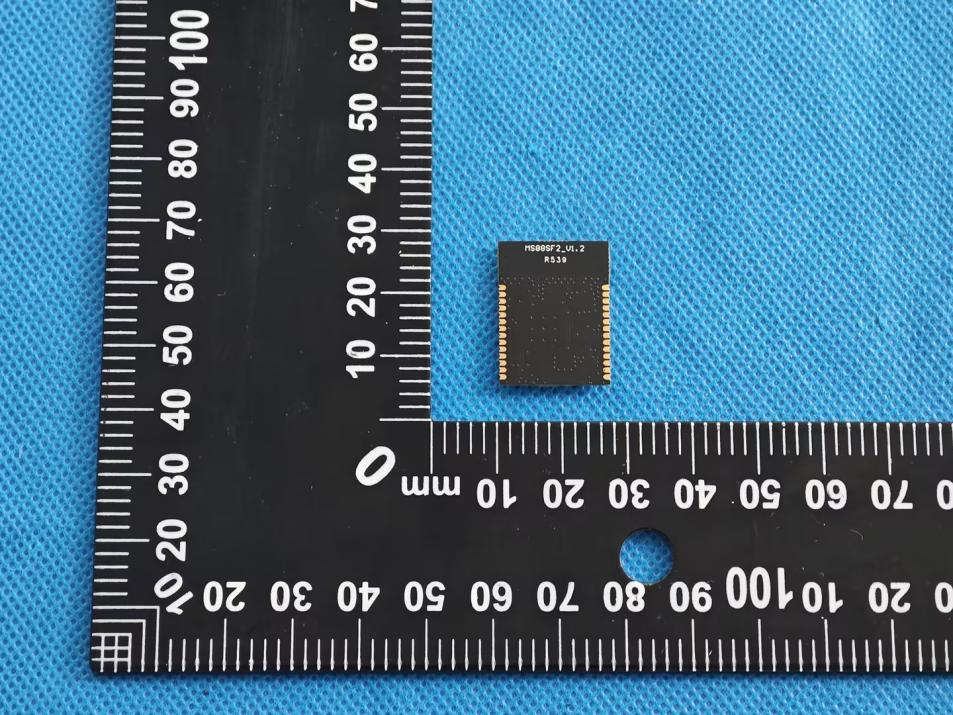

External Photos Antenna

Internal Photos

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.: STS2512133H01 Issued for SHENZHEN MINEWSEMI CO., LTD Room 402, Building C, Business Center, Gangzhilong Science Park, No. 8 QingLong Road, Qinghua Community, Longhua District, Shenzhen, China Product Name: Bluetooth low energy module Brand Name: MINEWSEMI Model Name: MS88SF21 Series Model(s): MS88SF2 FCC ID: 2BDJ6-MS88SF2 Test Standard: FCC 47CFR §2.1091 Page 2 of 7 Report No.:STS2512133H01 TEST REPORT Applicant’s Name ................. : SHENZHEN MINEWSEMI CO., LTD Address ................................. : Room 402, Building C, Business Center, Gangzhilong Science Park, No. 8 QingLong Road, Qinghua Community, Longhua District, Shenzhen, China Manufacturer's Name ........... : SHENZHEN MINEWSEMI CO., LTD Address ................................. : Room 402, Building C, Business Center, Gangzhilong Science Park, No. 8 QingLong Road, Qinghua Community, Longhua District, Shenzhen, China Product Description Product Name ........................ : Bluetooth low energy module Brand Name .......................... : MINEWSEMI Model Name .......................... : MS88SF21 Series Model(s) ...................... : MS88SF2 Test Standards ..................... : FCC 47CFR §2.1091 447498 D01 Interim General RF Exposure Guidance v06 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 2025-12-12 Date (s) of performance of tests ............. : 2025-12-12 to 2025-12-15 Date of Issue .......................................... : 2025-12-15 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 7 Report No.:STS2512133H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 7 Page 4 of 7 Report No.:STS2512133H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 2025-12-15 STS2512133H01 ALL Initial Issue Page 5 of 7 Report No.:STS2512133H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Bluetooth low energy module Brand Name MINEWSEMI Model Name MS88SF21 Series Model(s) MS88SF2 Model Difference Only different in model name. Product Description The EUT is Bluetooth low energy module Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology: BLE Bluetooth Configuration: BLE(Support 1M, 2M) Number Of Channel: 40 Antenna Type: PCB Antenna Antenna Gain (dBi) 2.92 Operation Frequency: 2405~2480 MHz Modulation Type: O-QPSK Radio Technology: Zigbee Bluetooth Configuration: IEEE 802 15.4（Thread, Zigbee） Number Of Channel: 16 Antenna Type: PCB Antenna Antenna Gain (dBi) 2.92 Power Rating DC 3.3V Adapter N/A Battery N/A Hardware Version N/A Software Version N/A 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 7 Report No.:STS2512133H01 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 3.0-30 1842/f 4.89/f *(900/f²) 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1.34-30 824/f 2.19/f *(180f²) 1500 – 100000 -- -- 1.0 F= Frequency in MHz Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. Page 7 of 7 Report No.:STS2512133H01 2.3 TEST RESULT Tune up Mode Detector Tune up Power GFSK PK 8±1dBm Zigbee PK 6±1dBm Multiple transmission: GFSK + Zigbee =0.0031+0.0020=0.0051＜1 Note: 1. The Maxinum power is less than the limit, complies with the exemption requirements. 2. ERP = EIRP - 2.15 ※※※※※END OF THE REPORT※※※※※ Protocol Fre. (GHz) Separati on distance (cm) Max Tune up power (dBm) ANT Gain (dBi) Max EIRP (dBm) Max EIRP (mW) Power Density (mW/cm ²) Limit (mW/ cm²) Ratio Result GFSK 2.480 20 9 2.92 11.92 15.560 0.0031 1 0.0031 Pass Zigbee 2.480 20 7 2.92 9.92 9.817 0.0020 1 0.0020 Pass

ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 1st ProjectNoCS2208BPCBVersionMS88SF2_V1.2 TesterXuNingDate2025.10.31 AuditingDate ApprovalDate AntennaTestReport ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 2nd Contents 1.ProjectInformation.................................................................................................................3rd 2.TechnicalSpecification............................................................................................................4th 3.Theshapeandsizeoftheantenna.........................................................................................5th 4.Theresultofthetest...............................................................................................................5th 4.1.VSWR&Returnloss&Smith......................................................................................5th 4.2.AntennaGainandEfficiency.......................................................................................6th 4.3.RadiationPattern........................................................................................................9th ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 3rd 1．ProjectInformation 1.1.AntennaCoding ： ANT-BBNCNC20009 1.2.AntennaType ： OnboardPCBAntenna 1.3.ModeloftheDUT ： MS88SF2_V1.2 1.4.TestData ： 2025.10.31 1.5.Productpicture ： Product appearance PCBboardand antenna ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 4th 2．TechnicalSpecification ElectricalSpecifications FrequencyRange2400-2480MHz PeakGain2.92dBi Efficiency66.6% ReturnLoss≤-20dB(max) VSWR≤1.22(max) Bandwidth(S11≤-10dB)300MHz InputImpedance50 Ω RadiationdirectionOmni PolarizationTypeLinear LightningProtectionDCgrounding PowerCapacity 1000mW（30dBm） MechanicalSpecifications AntennaSize16.7x5.1mm CoreRadiatorCopper SubstratematerialFR4 Substratethickness0.6mm CoaxialwireNotRequired ConnectTypeNotRequired OperatingTemperature -40to+85°C StorageTemperature -40to+85°C ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 5th 3．Theshapeandsizeoftheantenna Unit：mm 4．Theresultofthetest 4.1.VSWR&Returnloss&Smith Frequency(MHz)ReturnLoss(dB)VSWR 2402-27.71.08 2440-40.51.01 2480-201.22 Bandwidth(S11≤-10dB)300MHz ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 6th 4.2.AntennaGainandEfficiency 4.2.1.Productcoordinateaxisposition Notes：Theantennatowardsto+Z. Insidethemicrowaveanechoic chamber Productcoordinateaxisposition ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 7th 4.2.2.GainandEfficiencydatesheet ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 8th 4.2.3.GraphsofGainandEfficiency ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 9th 4.3.RadiationPattern 4.3.1.3DRadiationPattern 2402MHz 2440MHz 2480MHz ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 10th 4.3.2.2DRadiationPattern E1，XZ-Face，phi=0°;（E1，theta=0~360°，phi=0°） E2，YZ-Face，phi=90°;（E2，theta=0~360°，phi=90°） H，XY-Face，theta=90°;（H，phi=0~360°，theta=90°）

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2512133W01 Issued for SHENZHEN MINEWSEMI CO., LTD Room 402, Building C, Business Center, Gangzhilong Science Park, No. 8 QingLong Road, Qinghua Community, Longhua District, Shenzhen, China Product Name: Bluetooth low energy module Brand Name: MINEWSEMI Model Name: MS88SF21 Series Model(s): MS88SF2 FCC ID: 2BDJ6-MS88SF2 Test Standards: FCC Part15.247 Page 2 of 63 Report No.:STS2512133W01 TEST REPORT Applicant’s Name ................. : SHENZHEN MINEWSEMI CO., LTD Address ................................. : Room 402, Building C, Business Center, Gangzhilong Science Park, No. 8 QingLong Road, Qinghua Community, Longhua District, Shenzhen, China Manufacturer's Name .......... : SHENZHEN MINEWSEMI CO., LTD Address ................................. : Room 402, Building C, Business Center, Gangzhilong Science Park, No. 8 QingLong Road, Qinghua Community, Longhua District, Shenzhen, China Product Description Product Name ....................... : Bluetooth low energy module Brand Name .......................... : MINEWSEMI Model Name .......................... : ... : MS88SF21 Series Model(s) .................... : MS88SF2 Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the IC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ..................... : 2025-12-12 Date (s) of performance of tests ............. : 2025-12-12 to 2025-12-15 Date of Issue .......................................... : 2025-12-15 Test Result.............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 63 Report No.:STS2512133W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING TH…
