2BDL3-MC231Thermal Label Printer

Rev 1/26/2023 Xiamen AiYin Technology Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-19-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BDL3-MC231 Xiamen AiYin Technology Co.,Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Xiamen AiYin Technology Co.,Ltd. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, Signature Aaron zheng Rev 1/26/2023 Xiamen AiYin Technology Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-19-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BDL3-MC231 Xiamen AiYin Technology Co.,Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Signature Aaron zheng

Xiamen AiYin Technology Co.,Ltd. 4th-8th Floor, No.838 Tongfu Road, Tong'an District Xiamen China Date: 2026-08-17 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BDL3-MC231 FRN: 0034490144 US Agent – Attestation Statement / Part 2.911(d)(7) Xiamen AiYin Technology Co.,Ltd. certifies, that as of 2026-08-17, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2BDL3-MC231 Xiamen AiYin Technology Co.,Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Xiamen AiYin Technology Co.,Ltd. for FCC ID: 2BDL3-MC231 Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Xiamen AiYin Technology Co.,Ltd. Designated Agent: FCC US Agent, LLC Company Representative: Aaron zheng Designated Agent Representative: Tim Payne Signature: Signature:

Xiamen AiYin Technology Co.,Ltd. Date: August 18, 2026 FCC ID: 2BDL3-MC231 Model Number: MC231-BT, MC232-BT, MC233-BT, MC231 Pro, MC232 Pro, MC233 Pro, MC231-W, MC232-W, MC233-W, MC231, MC232, MC233 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Xiamen AiYin Technology Co.,Ltd. declare that this EUT (FCC ID: 2BDL3-MC231) will conduct FCC compliance testing, the SDOC part recognized test lab(No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Aaron zheng / manager Company: Xiamen AiYin Technology Co.,Ltd. Address: 4th-8th Floor, No.838 Tongfu Road, Tong'an District, Xiamen, China

Xiamen AiYin Technology Co.,Ltd. Family models difference declaration Product Name: Thermal Label Printer Trade Name: N/A Model Name: MC231-BT Family Model: MC232-BT, MC233-BT, MC231 Pro, MC232 Pro, MC233 Pro, MC231- W, MC232-W, MC233-W, MC231, MC232, MC233 Difference declaration: We (Xiamen AiYin Technology Co.,Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.), same mechanical structure and design (including product enclosure, materials, etc.), the only difference is the model names and appearance color. Regards, Signature Name: Aaron zheng Date: 8/18/2026

Xiamen AiYin Technology Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 8/18/2026 SUBJECT: FCC Application for FCC ID: 2BDL3-MC231 To Whom It May Concern: We, the undersigned, hereby authorize Alex Li at Shenzhen NTEK Testing Technology Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen NTEK Testing Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (signature) (printed name): Aaron zheng

< Xiamen AiYin Technology Co.,Ltd. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 8/18/2026 Subject; Request for Confidentiality FCC ID: 2BDL3-MC231 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Tune up procedure BOM In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Aaron zheng Title: manager Email: [email protected]

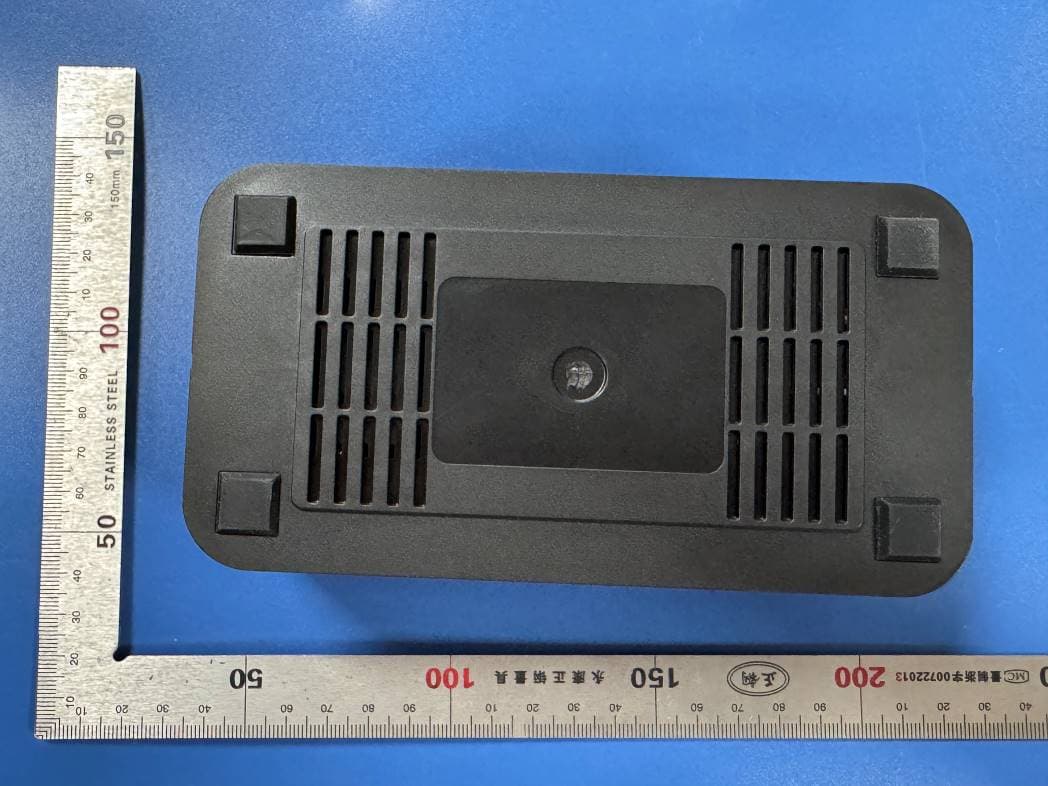

ATTACHMENT PHOTOGRAPHS OF EXT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11

Size:55mm*36mm Location:

FCC ID: 2BDL3-MC231 Portable device According to 47 CFR, Part2.1093 and 47 CFR, Part1.1307, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BR+EDR: Antenna Type: PCB Antenna Antenna Gain: -4.73dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculation SAR Exclusion threshold SAR test exclusion 2.402 2.18 1.65 2±1 3 2.00 <5 0.61847 3.00 YES 2.441 4.28 2.68 4±1 5 3.16 <5 0.98813 3.00 YES 2.480 5.24 3.34 5±1 6 3.98 <5 1.25388 3.00 YES 2.402 2.17 1.65 2±1 3 2.00 <5 0.61847 3.00 YES 2.441 4.32 2.70 4±1 5 3.16 <5 0.98813 3.00 YES 2.480 5.27 3.37 5±1 6 3.98 <5 1.25388 3.00 YES 2.402 2.19 1.66 2±1 3 2.00 <5 0.61847 3.00 YES 2.441 4.33 2.71 4±1 5 3.16 <5 0.98813 3.00 YES 2.480 5.39 3.46 5±1 6 3.98 <5 1.25388 3.00 YES GFSK π/4-DQPSK 8-DPSK For the max result: 1.25388≤ 1.0 for 1-g SAR, No SAR is required. Signature: Date: 2026-08-07 NAME AND TITLE (Please print or type): Alex /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China

NOTE:1.Thereportisinvalidwhenthereisnotheapproversignatureandthespecialstampfortestreport.2.Thetestreport shallnotbereproducedexceptinfullwithoutpriorwrittenpermissionofthecompany.3.Thereportcopyisinvalidwhenthereis nothespecialstampfortestrepor.4.Thealteredreportisinvalid.5.Theentrusttestisresponsibilityforthereceivedsample only Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 TESTREPORT MANUFACTURER:XiamenIleadTekCo.,Ltd. PRODUCTNAME:2.4G_IFA MODELNAME:ANT001 BRANDNAME:PeriPage STANDARD(S): IEEE-149-1979-R2003 RECEIPTDATE: 2020.7.20 TESTDATE:2020.7.20 ISSUEDATE:2020.7.20 Editedby: Pengfuwei(Testengineer) Reviewby: ElvisWang(Auditor) Approvedby: AnneLiu(Supervisor) Page 1 0f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 DIRECTORY 1.Technicalinformation·····················································································3 1.1EquipmentUnderTest(EUT)Description························································3 1.2AntennalayoutandImplementation:······························································4 1.3TestingLaboratoryInformation·····································································5 1.4TestStandardandResults ············································································ 5 1.5TestEquipmentandSoftware ········································································ 6 1.6EnvironmentalConditions ············································································· 6 2.Testresults ···································································································· 7 2.1AntennaGain,Efficiency,Pattern ··································································· 7 AnnexAphotographsoftestsetup····································································11 ChangeHistory VersionDateReasonforchange 1.02020-07-20Firstedition Page20f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 1.Technicalinformation 1.1EquipmentUnderTest(EUT)Description EUTType................................: N/A SampleNo.............................:N/A HardwareVersion.................:N/A SoftwareVersion..................:N/A Applicant................................:XiamenIleadTekCo.,Ltd. Manufacturer.........................:XiamenIleadTekCo.,Ltd. StandardandFrequency Band.........................................: 2400MHz-2483.5MHz TestChannel..........................:N/A ModulationType...................:N/A AntennaType........................:PCBon-board AntennaConnector.............:N/A PowerSupply........................:N/A Note1:Foramoredetaileddescription,pleaserefertoSpecificationorUser’sManualsuppliedby theapplicantand/ormanufacturer. Page30f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 1.2AntennalayoutandImplementation: Figure1:AntennaDimensions L1 3.94mm L2 2.70mm L3 5.00mm L4 2.64mm L5 2.00mm L6 4.90mm W1 0.90mm W2 0.50mm D1 0.50mm D2 0.30mm D3 0.30mm D4 0.50mm D5 1.40mm D6 1.70mm Table1:AntennaDimensions Page40f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 1.3TestingLaboratoryInformation 1.IdentificationoftheResponsibleTestingLaboratory LaboratoryName: Kehu-MorlabTestLaboratory LaboratoryAddress:Unit101,No.1732GangzhongRoad,XiamenArea,PilotFree TradeZone(Fujian)P.R.China Telephone: +865925612050 Facsimile: +865925612095 2.IdentificationoftheResponsibleTestingLocation 1.4TestStandardandResults Thereportistestedaccordingtothefollowingstandard: NoStandardNo.StandardName 1 IEEE-149-1979-R2003 StandardTestProceduresforAntennas Testitemsandtheresultsareasbellow: NoTestFrequencyBandTestItemResult 12400MHz ～ 2483.5MHzGainN/A 22400MHz ～ 2483.5MHzEfficiencyN/A 32400MHz ～ 2483.5MHzPatternN/A Name: Kehu-MorlabTestLaboratory Address: Unit101,No.1732GangzhongRoad,XiamenArea,PilotFree TradeZone(Fujian)P.R.China Page50f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 1.5TestEquipmentandSoftware NoEquipmentType（Version）SupplierCal.DueDate 1 OTATestsystem EMQuest1.11Build 7570 ETS/U.S.A / 2 NetworkAnalyzerAglientE5071C keysight/U.S. A 2021-03-11 3 FullyAnechoic Chamber 4m×4m×4mETS/U.S.A2022-05-31 1.6EnvironmentalConditions Recordtherangeoftestenvironmentduringthetest: Ambienttemperature(°C):15-35 Relativehumidity(%):30-60 Atmospherepressure(kPa):86-106 Page60f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 2.Testresults 2.1AntennaGain,Efficiency,Pattern 2.1.1TestProcedure： ThemeasuredEUTrotates0~180degreesaroundtheθaxis.Themeasured antennaissampledalongtheΦaxisof0~360from15degreestoameasuringstep,and themeasuredvalueisreadautomatically.Theantennagain,efficiency,patternis measured 2.1.2TestResult： MaxGain:-4.73dBi No. Test Frequency （MHz） GainTest Value （dBi） Efficiency testvalue （%） Antenna pattern Result 12400-4.8015.56 Phi=0 Phi=90 Theta=90 N/A 22402-4.8915.66N/A 32404-4.9015.52N/A 42406-4.7315.49N/A 52408-4.7915.44N/A Master computer PathSwitcher NetworkAnalyzer measured antenna Fully Anechoic Chamb…

Text truncated - open the document above for the full version.

Report No.: N26070611307E Version.1.3 Page 1 of 63 RADIO TEST REPORT FCC ID: 2BDL3-MC231 Product: Thermal Label Printer Trade Mark: N/A Model No.: MC231-BT Family Model: MC232-BT, MC233-BT, MC231 Pro, MC232 Pro, MC233 Pro, MC231-W, MC232-W, MC233-W, MC231, MC232, MC233 Report No.: N26070611307E Issue Date: Aug. 07, 2026 Prepared for Xiamen AiYin Technology Co.,Ltd. 4th-8th Floor, No.838 Tongfu Road, Tong'an District, Xiamen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Report No.: N26070611307E Version.1.3 Page 2 of 63 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 38 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 39 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 40 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 42 7.7 PEAK OUTPUT POWER .............................................................................................................................. 43 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 44 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 45 7.10 ANTENNA APPLICATION .......................................................................................................................... 46 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 47 8 TEST RESULTS ................................................................................................................................................... 48 8.1 CONDUCTED OUTPUT POWER ......................................................................................................................... 48 8.2 99% BANDWIDTH ........................................................................................................................................... 50 8.3 20DB BANDWIDTH .......................................................................................................................................... 52 8.4 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 54 8.5 CONDUCTED SPURIOUS & BAND EDGE EMISSION .......................................................................................... 56 8.6 DWELL TIME ................................................................................................................................................... 60 8.7 NUMBER OF HOPPING CHANNEL .................................................................................................................... 63 Report No.: N26070611307E Version.1.3 Page 3 of 63 1 TEST RESULT CERTIFICATION Applicant’s name ........................ : Xiamen AiYin Technology Co.,Ltd. Address ....................................... : 4th-8th Floor, No.838 Tongfu Road, Tong'an District, Xiamen, China Manufacturer's Name ................. : Xiamen AiYin Technology Co.,Ltd. Address ....................................... : 4th-8th Floor, No.838 Tongfu Road, Tong'an District, Xiamen, China Product description Product name ............................. : Thermal Label Printer Model and/or type reference ..... : MC231-BT Family Model .............................. : …

Text truncated - open the document above for the full version.

Report No.: N26070611307E Version.1.3 Page 57 of 63 30.0 MHz - 25000.0 MHz GFSK_DH5_Channel 0 30.0 MHz - 25000.0 MHz π/4DQPSK_2-DH5_Channel 0 Out Of Band Emission GFSK_DH5_Channel 39 Out Of Band Emission π/4DQPSK_2-DH5_Channel 39 30.0 MHz - 25000.0 MHz GFSK_DH5_Channel 39 30.0 MHz - 25000.0 MHz π/4DQPSK_2-DH5_Channel 39 Out Of Band Emission GFSK_DH5_Channel 78 Out Of Band Emission π/4DQPSK_2-DH5_Channel 78 Report No.: N26070611307E Version.1.3 Page 58 of 63 30.0 MHz - 25000.0 MHz GFSK_DH5_Channel 78 30.0 MHz - 25000.0 MHz π/4DQPSK_2-DH5_Channel 78 Out Of Band Emission 8DPSK_3-DH5_Channel 0 30.0 MHz - 25000.0 MHz 8DPSK_3-DH5_Channel 0 Out Of Band Emission 8DPSK_3-DH5_Channel 39 30.0 MHz - 25000.0 MHz 8DPSK_3-DH5_Channel 39 Out Of Band Emission 8DPSK_3-DH5_Channel 78 30.0 MHz - 25000.0 MHz 8DPSK_3-DH5_Channel 78 Report No.: N26070611307E Version.1.3 Page 59 of 63 Out Of Band Emission(Left) GFSK_DH5_Channel Hopping Out Of Band Emission(Left) π/4DQPSK_2-DH5_Channel Hopping Out Of Band Emission(Right) GFSK_DH5_Channel Hopping Out Of Band Emission(Right) π/4DQPSK_2-DH5_Channel Hopping Out Of Band Emission(Left) 8DPSK_3-DH5_Channel Hopping Out Of Band Emission(Right) 8DPSK_3-DH5_Channel Hopping Report No.: N26070611307E Version.1.3 Page 60 of 63 8.6 D WELL TIME Test Result Modulation Packet Channel Pulse Width (ms) Number of Pulses in 31.6 seconds Dwell Time (ms) Limit (ms) Result GFSK DH1 Hopping 0.3816 99 37.78 < 400 PASS DH3 1.632 58 94.66 PASS DH5 2.880 47 135.36 PASS π/4DQPSK 2-DH1 0.3912 109 42.64 PASS 2-DH3 1.632 63 102.82 PASS 2-DH5 2.880 51 146.88 PASS 8DPSK 3-DH1 0.3912 112 43.81 PASS 3-DH3 1.632 51 83.23 PASS 3-DH5 2.880 43 123.84 PASS Note: Dwell time=Pulse time(ms)*Number of Pulses in 31.6 seconds Test Graphs Pulse Width GFSK_DH1 Number of Pulses in 31.6 seconds GFSK_DH1 Pulse Width GFSK_DH3 Number of Pulses in 31.6 seconds GFSK_DH3 Pulse Width GFSK_DH5 Number of Pulses in 31.6 seconds GFSK_DH5 Report No.: N26070611307E Version.1.3 Page 61 of 63 Pulse Width π/4DQPSK_2-DH1 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH1 Pulse Width π/4DQPSK_2-DH3 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH3 Pulse Width π/4DQPSK_2-DH5 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH5 Pulse Width 8DPSK_3-DH1 Number of Pulses in 31.6 seconds 8DPSK_3-DH1 Report No.: N26070611307E Version.1.3 Page 62 of 63 Pulse Width 8DPSK_3-DH3 Number of Pulses in 31.6 seconds 8DPSK_3-DH3 Pulse Width 8DPSK_3-DH5 Number of Pulses in 31.6 seconds 8DPSK_3-DH5 Report No.: N26070611307E Version.1.3 Page 63 of 63 8.7 N UMBER OF HOPPING CHANNEL Test Result Modulation Packet Number of Hopping Channel Limit Result GFSK DH5 79 15 PASS π/4DQPSK 2-DH5 79 15 PASS 8DPSK 3-DH5 79 15 PASS Test Graphs Hopping Plot GFSK Hopping Plot π/4DQPSK Hopping Plot 8DPSK
