2BDL5-405-ECO-WIFIPTZ CAMERA

Premium Engineering. Durable Outdoor Surveillance Ideal for House or Project Site 2023/05 Version 11.0 Network PTZ Camera User Guide V11.0 Visit http://lite.sunbatech.com to access the step by step YouTube video tutorials for setting up Sunba IP PTZ camera. Lite Series FCC Warning (U.S.A) The device has been tested in compliance with limits set by Part 15 of Federal Communication Commission (Class B). The operation of the device is thus limited by the following two conditions: 1) it is not permitted to cause harmful interference to any authorized radio communications, and 2) it must accept any interference it receives. WARNING: Please test the camera indoor before mounting it outside. Stay at least 24 hours to test both daytime and night vision IR LED. MENU 1. Camera Bench Test 2. Camera Setup by Smartphone 3. Camera Setup by VMS Client 4. WiFi Application 5. Mounting Outdoor 6. Web Access 7. Assign a Static IP 8. Access by 3rd Party Software 9. Remote Access 10. Presets,Patrol and Pattern 11. The Full Preset List 12. Camera Configuration 13. Account Management 14. Motion Detection 15. Face Capture 16. FTP Communication 17. Reset the Camera 18. Cable Waterproof Measures 19. Audio Setting 01 03 05 07 11 12 15 15 16 18 19 22 24 25 26 26 27 28 29 - 01 - 1. Camera Bench Test When you take the camera out of the box, please test the camera indoor first before mounting outside. Adapter Do NOT extend the power cable during the bench test because DC power drops quickly along the transmission. A bench test helps you rule out all problems caused by power supply. Underpower causes problems such as 1) PTZ issues 2) unstable infrared (camera reboots repeatedly) and 3) spinning dome. Type A: With DC12V Aadapter (non-PoE) Type B: With PoE Injector/Switch IP Camera RouterPoE Injector Computer Computer IP Camera Router What are you testing in this stage? - 02 - When powered up, the speed dome automatically begins a self-diagnostic process during which the camera will pan horizontally and vertically to make sure PTZ, lens and other parts of the camera are functional. Please contact our technical staff if a self-test does not happen on your unit. Please refrain from disassembling the unit before contacting us. Questions? Ask [email protected] Connection Good Power Good Video and Control Good Tested Day and Night Guess we are ready to mount it outside. 1. Does the camera rotate when powered up? Check the video streaming quality. 2. Live View and Picture Quality 3. Pan Tilt and Zoom Check whether the camera performs the pan, tilt, zoom actions properly. 4. Night Vision Shield the camera front lens, turn off the lights and draw the curtains to see if the camera is able to automatically turn to infrared night vision mode. PoE Standard Note: 802.3at is also known as PoE+; 802.3bt is known as PoE++. 25W802.3at/bt Power Gauge (PD)PoE Standard Support DC12V Adapter? It is important to note that all Sunba pan tilt zoom cameras require to be powered by PoE+/++ adapters (injector/switch) with 802.3at/bt standard. Conventional PoE standard 802.3af delivers only 15.4W per port and using those adapters would cause underpower. Yes - 03 - 2. Camera Setup by Smartphone smartphone.sunba.netvideo tutorial 1 Click the "+" icon to add device. 2 Register to select "Cloud Login" (push notification requires a cloud account to store picture alert). This section will provide the user with information on how to setup the PTZ camera using smartphone for the first time. NOTE: iSunba/iSunba Pro/XMEye These APPs are suitable for Sunba Lite Series cameras. APP iOS Android XMEye ****** - 04 - SUNBA TECH. P2P: 5935d7d9 00XXXXXX The app automatically shows all Sunba devices in LAN. Use “Search” if your camera and smartphone are connected to the same WiFi. Remote or with 4G: manually scan or enter the camera QR code to add device. 4 3 Press the camera to watch live view. Modify other settings such as password for the camera. 5 Click “IPV4 Search” and select the camera, then click “add” to connect the device. Step 2: Open the Device Manager page. 6 Step 1: Install VMS from the CD-ROM or Download form sunbatech.com 3. Camera Setup by VMS Client - 05 - This section will provide the user with information on how to setup the PTZ camera using their computer. Control pan, tilt and zoom, watch live view and set/delete/call presets from this page. Press to speak. (device must support speaker) Check playback. PTZ control. Set/call preset/cruise. Switch between HD/SD display. Turn on/off microphone. Record a video and save the clip to your smartphone. Take a snapshot and save the image to your smapphone. Input the default software account below. The account is to ensure no one can have unauthorized access to your surveillance software. This is not the credential for individual IP camera. VMS for PC: admin/admin VMS for Mac: admin/(blank) Try the following if no device shows up: A. Temporarily disable the firewall; B. Connect the camera directly to your parental router; C. Connect the camera directly to your PC/Mac for testing; D. Contact [email protected] - 06 - ① Tricks: The camera’s default ports are ONVIF 8899, TCP 34567, HTTP 80 and RTSP 554. Those values must also be unique to each other. Now the camera status should show “Connected”. “Connected" status indicates the camera is online. If you checked this function, VMS will automatically modify the IP address of your camera to adapt to the same gateway as your PC. If you do not need VMS to automatically modify the camera IP, please uncheck this function. This chapter only applies to WiFi Version (405-ECO WiFi/ 405-D25X WiFi etc ) - 07 - 4. WiFi Application This section will provide the user with information on how to setup the WiFi connection. Right click and select "Main Stream" to start live view click to open PTZ panel Step 3: Live View Please go to the “Live View” page. video tutorial wifiset.sunbatech.com Fill in the correct WiFi password. 3 Click the "+" icon to add device. 1 Select WiFi Confi…

Text truncated - open the document above for the full version.

Hangzhou Sunba Technology Co.,Ltd 4t-129, B1, No.312 Jiangling South Road, Xixing Street, Binjiang District, Hangzhou, Zhejiang Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/12/01 U.S. Agent Designation Hangzhou Sunba Technology Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDL5-405-ECO-WIFI): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Hangzhou Sunba Technology Co.,Ltd Hangzhou Sunba Technology Co.,Ltd. with the FRN [0034490086] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Haitao Qiu Manager Hangzhou Sunba Technology Co.,Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Haitao Qiu/Manager Company: Hangzhou Sunba Technology Co.,Ltd Address: 4t-129,B1,No.312 Jiangling South Road, Xixing Street, Binjiang District, Hangzhou, Zhejiang Province China Phone: 13480686521 Fax: N/A E-Mail: [email protected]

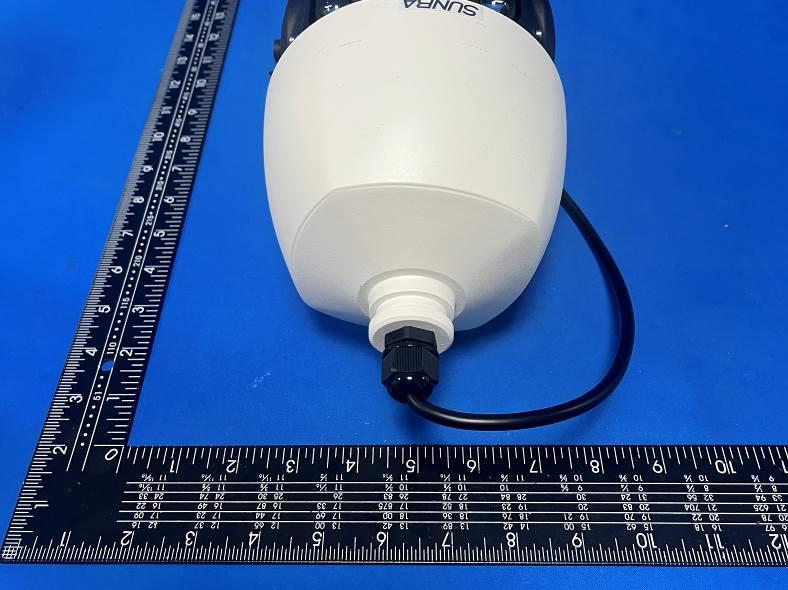

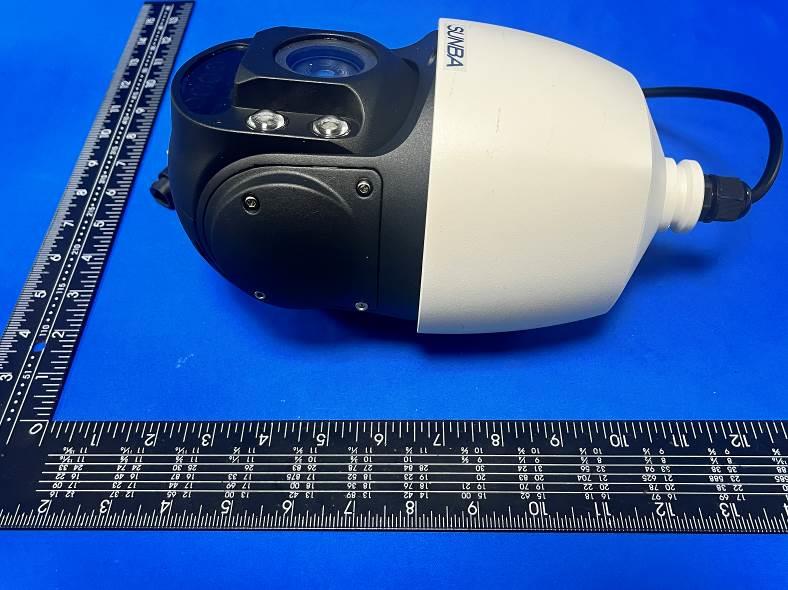

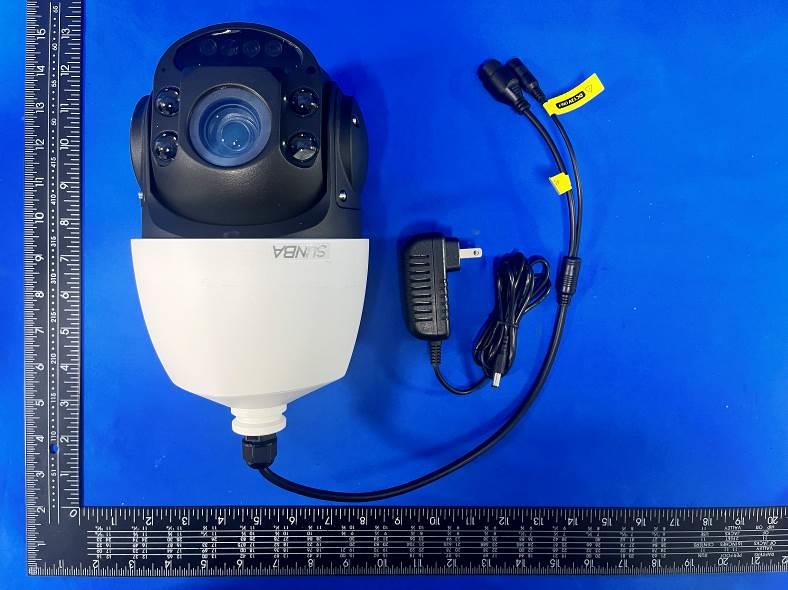

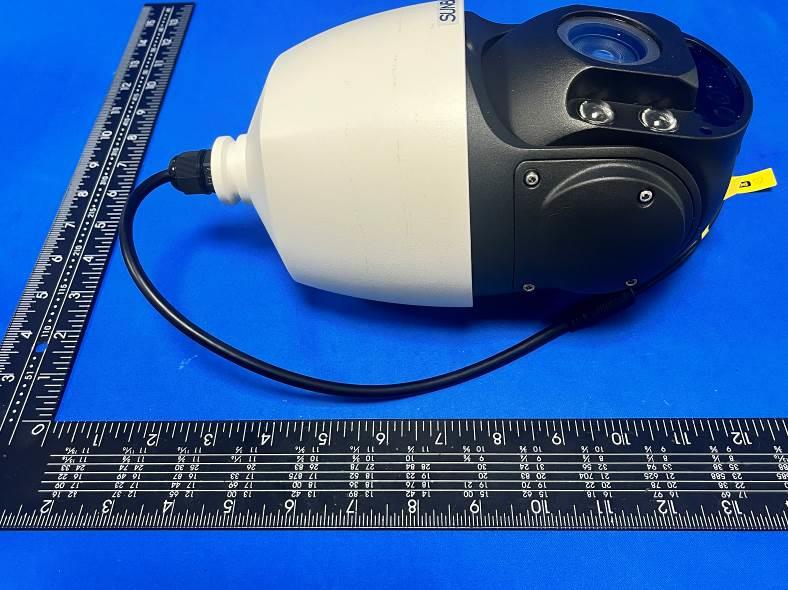

FCC ID: 2BDL5-405-ECO-WIFI External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BDL5-405-ECO-WIFI Photo 4 Photo 5 Photo 6 FCC ID: 2BDL5-405-ECO-WIFI Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location Model No.: 405-ECO-WiFi FCC ID : 2BDL5-405-ECO-WIFI

FCC ID: 2BDL5-405-ECO-WIFI Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BDL5-405-ECO-WIFI Photo 4 Photo 5 Photo 6 FCC ID: 2BDL5-405-ECO-WIFI Photo 7 Photo 8 Photo 9 FCC ID: 2BDL5-405-ECO-WIFI Photo 10 Photo 11 Photo 12 2.4G WIFI PIFA Antenna FCC ID: 2BDL5-405-ECO-WIFI Photo 13 Photo 14 Photo 15 FCC ID: 2BDL5-405-ECO-WIFI Photo 16 Photo 17 Photo 18 FCC ID: 2BDL5-405-ECO-WIFI Photo 19 Photo 20 Photo 21 FCC ID: 2BDL5-405-ECO-WIFI Photo 22 Photo 23 Photo 24 FCC ID: 2BDL5-405-ECO-WIFI Photo 25 Photo 26 Photo 27 FCC ID: 2BDL5-405-ECO-WIFI Photo 28

RF Exposure evaluation FCC ID: 2BDL5-405-ECO-WIFI Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information 405-ECO-WiFi can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PIFA antenna 1.67dBi for 2400-2500MHz 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 14.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.67dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 16.0 31.6228 1.67 1.4689 0.0092 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PIFA antenna Model 405-ECO-WiFi Frequency range 2400-2500MHz Manufacturer Hangzhou Sunba Technology Co.,Ltd ANT Peak Gain 1.67 dBi 2. Antenna Photo: Length: 39.79mm Width: 18.53mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23112000401 2BDL5-405-ECO-WIFI Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 28, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Hangzhou Sunba Technology Co.,Ltd Address ............................................ : 4t-129, B1, No.312 Jiangling South Road, Xixing Street, Binjiang District, Hangzhou, Zhejiang Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : PTZ CAMERA Trade Mark ....................................... : N/A Manufacturer .................................... : Hangzhou Sunba Technology Co.,Ltd Model/Type reference ...................... : 405-ECO-WiFi Listed Models .................................. : 305-D8X-WiFi, 601-D25X-WiFi, 603-D20X4G, 603-D25X4G, 301-WiFi, 405-WiFi, 601-WiFi, 801-WiFi Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA23112000401 Page 2 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : PTZ CAMERA Model /Type : 405-ECO-WiFi Listed Models : 305-D8X-WiFi, 601-D25X-WiFi, 603-D20X4G, 603-D25X4G, 301-WiFi, 405-WiFi, 601-WiFi, 801-WiFi Applicant : Hangzhou Sunba Technology Co.,Ltd Address : 4t-129, B1, No.312 Jiangling South Road, Xixing Street, Binjiang District, Hangzhou, Zhejiang Province, China Manufacturer : Hangzhou Sunba Technology Co.,Ltd Address : 4t-129, B1, No.312 Jiangling South Road, Xixing Street, Binjiang District, Hangzhou, Zhejiang Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23112000401 Page 3 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 P H O T O S O F T H E E U T ........................................................... 36 Report No.: CTA23112000401 Page 4 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid Syst…

Text truncated - open the document above for the full version.

Report No.: CTA23112000401 Page 31 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA23112000401 Page 32 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 3GHz -25GHz Report No.: CTA23112000401 Page 33 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.: CTA23112000401 Page 34 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 1.67 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23112000401 Page 35 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA23112000401 Page 36 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA23112000401 Page 37 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 38 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 39 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 40 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 41 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 42 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 43 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 44 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 45 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 46 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23112000401 Page 47 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial …

Text truncated - open the document above for the full version.

FCC ID: 2BDL5-405-ECO-WIFI Test Setup Photos of the EUT
