2BDMA-YR350A012A003Smart string downlights

SHENZHEN EETHING TECHNOLOGY CO., LTD. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/30/2023 U.S. Agent Designation SHENZHEN EETHING TECHNOLOGY CO., LTD. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDMA-YR350A012A003): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of SHENZHEN EETHING TECHNOLOGY CO., LTD.. SHENZHEN EETHING TECHNOLOGY CO., LTD. with the FRN 0034490268 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature Lifu Xue Manager SHENZHEN EETHING TECHNOLOGY CO., LTD. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: SHENZHEN EETHING TECHNOLOGY CO., LTD. Address: 3rd Floor, Building C, Senhainuoweijian Industrial Park, Shiyan Street, Baoan District, Shenzhen 518108, China Phone: +86-18676778069 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-11-30 Name / Title: Lifu Xue / Manager Company: SHENZHEN EETHING TECHNOLOGY CO., LTD. Address: 3rd Floor, Building C, Senhainuoweijian Industrial Park, Shiyan Street, Baoan District, Shenzhen 518108, China Phone: +86-18676778069 Fax: N/A E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BDMA-YR350A012A003 YR350A012A003, YR350A012A001, YR350A012A002, YR350A012A004, YR350A012A005, YR350A012A006 We, applicant Company Name: SHENZHEN EETHING TECHNOLOGY CO., LTD. Address: 3rd Floor, Building C, Senhainuoweijian Industrial Park, Shiyan Street, Baoan District, Shenzhen 518108, China Phone: +86-18676778069 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-11-30 Name / Title: Lifu Xue / Manager Company: SHENZHEN EETHING TECHNOLOGY CO., LTD. Address: 3rd Floor, Building C, Senhainuoweijian Industrial Park, Shiyan Street, Baoan District, Shenzhen 518108, China Phone: +86-18676778069 Fax: N/A E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BDMA-YR350A012A003 YR350A012A003, YR350A012A001, YR350A012A002, YR350A012A004, YR350A012A005, YR350A012A006 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-11-30 Name / Title: Lifu Xue / Manager Company: SHENZHEN EETHING TECHNOLOGY CO., LTD. Address: 3rd Floor, Building C, Senhainuoweijian Industrial Park, Shiyan Street, Baoan District, Shenzhen 518108, China Phone: +86-18676778069 Fax: N/A E-Mail: [email protected]

Page 1 of 1 Rev.2.0 SHENZHEN EETHING TECHNOLOGY CO., LTD. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2BDMA-YR350A012A003 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Lifu Xue / Manager Signature: Phone: +86-18676778069 Email: [email protected] Date: 2023-11-30

SHENZHEN EETHING TECHNOLOGY CO., LTD. 3rd Floor, Building C, Senhainuoweijian Industrial Park, Shiyan Street, Baoan District, Shenzhen 518108, China Date: November 30, 2023 FCC ID: 2BDMA-YR350A012A003 Model Number: YR350A012A003, YR350A012A001, YR350A012A002, YR350A012A004, YR350A012A005, YR350A012A006 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, SHENZHEN EETHING TECHNOLOGY CO., LTD. hereby declare that our product (Smart string downlights) Model Number: YR350A012A003, YR350A012A001, YR350A012A002, YR350A012A004, YR350A012A005, YR350A012A006 board, Schematic, Hardware version, Software version, structure and internal photos are same, named and appearance differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title: Lifu Xue / Manager Company: SHENZHEN EETHING TECHNOLOGY CO., LTD. Address: 3rd Floor, Building C, Senhainuoweijian Industrial Park, Shiyan Street, Baoan District, Shenzhen 518108, China Tel: +86-18676778069 Fax: N/A E-Mail: [email protected]

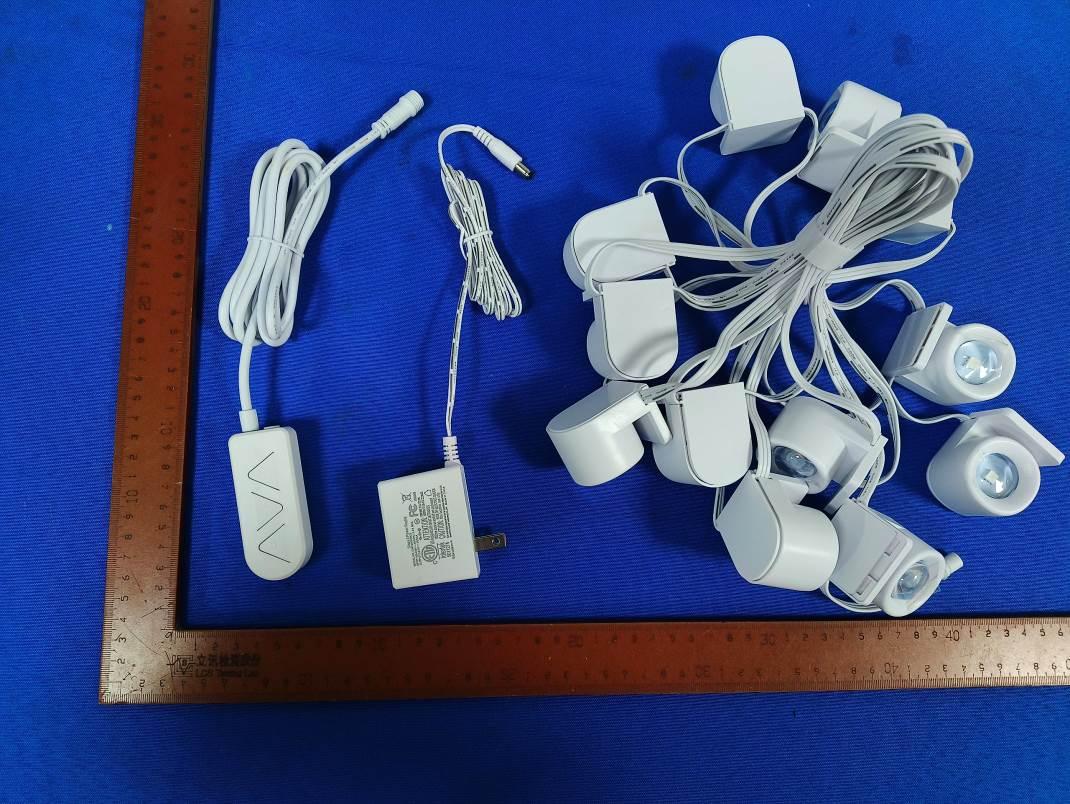

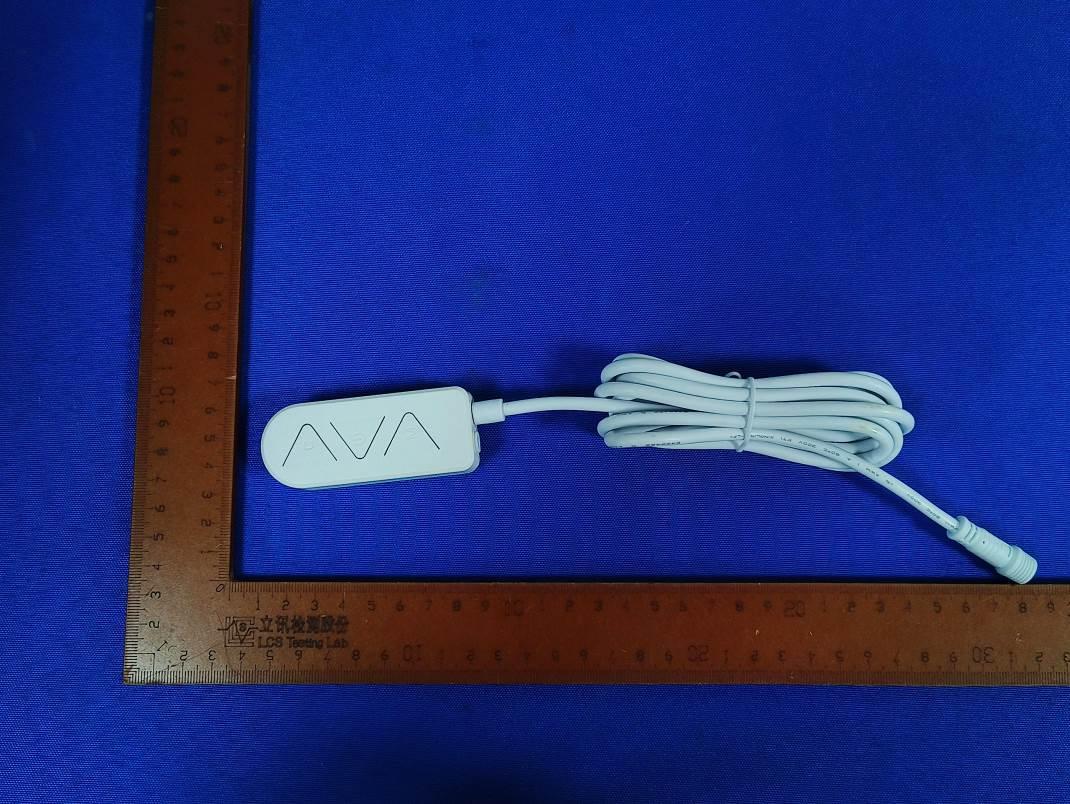

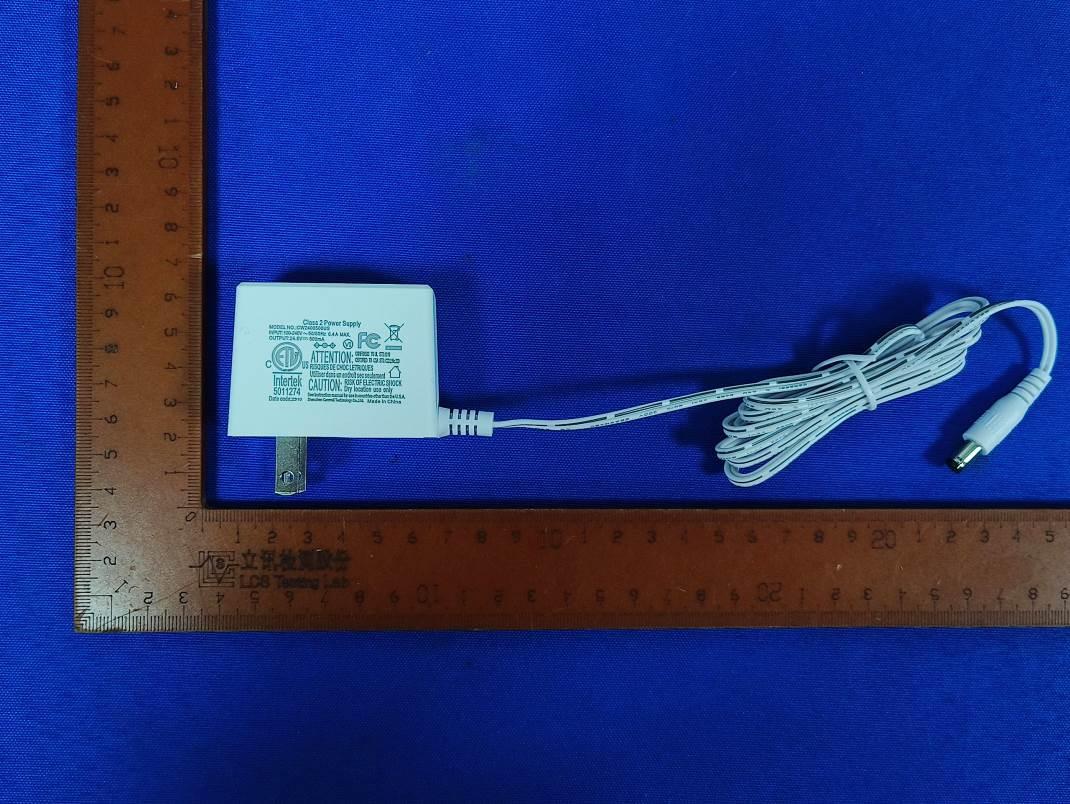

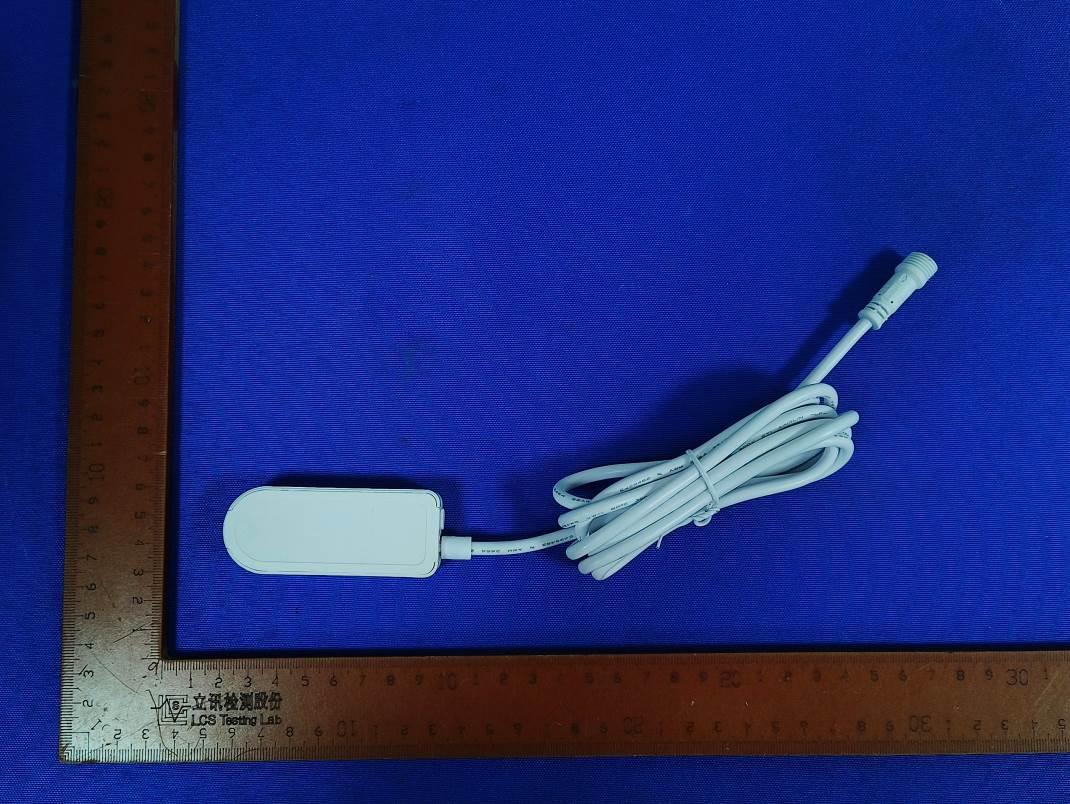

Page1of5FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of5FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of5FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of5FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of5FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9

Page1of1FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L0.5cmx0.5cm) LabelLocation Smartstringdownlights Model:YR350A012A003 FCCID:2BDMA-YR350A012A003

Page1of3FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of3FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Antenna

Page1of4FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation ProductnameSmartstringdownlights TestModelYR350A012A003 AdditionalModelNo.YR350A012A001,YR350A012A002,YR350A012A004, YR350A012A005,YR350A012A006 ModelDeclarationPCBboard,structureandinternalofthesemodel(s)arethesame, Sonoadditionalmodelsweretested PowerSupplyInput:100-240V~,50/60Hz,0.4AMax Output:24V500mA HardwareVersion / SoftwareVersion / FrequencyRange2412MHz~2462MHz ChannelNumber11Channelsfor20MHzbandwidth(2412~2462MHz) 7Channelsfor40MHzbandwidth(2422~2452MHz) ChannelSpacing5MHz ModulationTypeIEEE802.11b:DSSS(CCK,DQPSK,DBPSK) IEEE802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaDescriptionPCBAntenna,2.2dBi(max.) ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevices 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensures thatthepublicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobile devicewherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelow RFPermissibleExposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesum oftheMPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPE ratioofeachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperating configurationsandexposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpower densitytoMPElimit,atthetestfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrom measurementsornumericalsimulationsmaybeusedtodeterminetheMPEratios.Spatialaveragingdoesnot applywhenMPEisestimatedusingsimplecalculationsbasedonfar-fieldplane-waveequivalentconditions. Theantennainstallationandoperatingrequirementsforthehostdevicemustmeettheminimumtest separationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmissionoperations, tosatisfycompliance. Page2of4FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation PCBAntennacanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal Identification Antennatypeand antennanumber Operatefrequency band Maximumantenna gain Note AntennaPCBAntenna2412MHz-2462MHz2.2dBi(Max.)WIFIAntenna Page3of4FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6.ConductedPower <2.4GWIFI> ModeChannelFrequency(MHz) MaxConductedPower (dBm) IEEE802.11b 1 2412 14.16 6 2437 14.13 11 2462 14.21 IEEE802.11g 1 2412 12.03 6 2437 12.5 11 2462 11.8 IEEE802.11n HT20 1 2412 13.28 6 2437 12.35 11 2462 11.81 IEEE802.11n HT40 3 2422 11.49 6 2437 11.02 9 2452 11.77 7.ManufacturingTolerance <2.4GWIFI> 11B(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 14.0 14.014.0 Tolerance±(dB) 1.01.01.0 11G(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 12.0 12.011.0 Tolerance±(dB)1.01.01.0 11N20SISO(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 13.0 12.011.0 Tolerance±(dB)1.01.01.0 11N40SISO(Peak) ChannelChannel3Channel6Channel9 Target(dBm) 11.011.011.0 Tolerance±(dB)1.01.01.0 Page4of4FCCID:2BDMA-YR350A012A003 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 8.MeasurementResults 8.1StandaloneMPE AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast20cmfromany bodypartoftheuserornearbypersons;fromthemaximumEUTRFoutputpower,theminimumseparation distance,r=20cm,aswellasthegainoftheusedantennare…

Text truncated - open the document above for the full version.

AntennaSpecification Manufacture：TUYA ProductName：CBUAntenna AntennaType：PCB TestDate：2020.11.24 Testedby：YinhuaZhang Approvedby：Licco Content 1.GeneralDescription.................................................................................1 2.TestConfigurations...................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment...............................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults..............................................................................................3 3.1GainandEfficiency..........................................................................3 3.2RadiationPattern............................................................................4 4.AntennaDimensions................................................................................5 5.EUTPhoto................................................................................................5 6.TestSetupPhoto......................................................................................6 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room701,Building3,MoreCenter,No.87GuDunRoad, Hangzhou,Zhejiang,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameCBUAntenna Productmodel CBU AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 2400 2.1132.36 2410 2.1832.3 2420 32.2.201 2430 2.0632.4 2440 2.0732.9 2450 1.9130.9 2460 2.0430.8 2470 2.0930.7 2480 1.9831.6 2490 1.9130.6 2500 1.0330.5 4 3.2RadiationPattern Phi02D Phi902D Theta902D 5 2440MHz3D 4.AntennaDimensions 5.EUTPhoto 6 6.TestSetupPhoto

Pag1of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixA RFTestDatafor2.4GWIFI(ConductedMeasurement) ProductName:Smartstringdownlights TestModel:YR350A012A003 EnvironmentalConditions Temperature: 23.8C RelativeHumidity:52.1% ATMPressure:100.0kPa TestEngineer: NickPeng Supervisedby: JackCheng Pag2of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.1-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTb2412Ant111.072>=0.5Pass NVNTb2437Ant112.012>=0.5Pass NVNTb2462Ant112.057>=0.5Pass NVNTg2412Ant115.125>=0.5Pass NVNTg2437Ant115.08>=0.5Pass NVNTg2462Ant115.064>=0.5Pass NVNTn202412Ant110.049>=0.5Pass NVNTn202437Ant112.573>=0.5Pass NVNTn202462Ant111.274>=0.5Pass NVNTn402422Ant133.791>=0.5Pass NVNTn402437Ant132.507>=0.5Pass NVNTn402452Ant135.068>=0.5Pass Pag3of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs -6dBBandwidthNVNTb2412MHzAnt1 -6dBBandwidthNVNTb2437MHzAnt1 Pag4of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTb2462MHzAnt1 -6dBBandwidthNVNTg2412MHzAnt1 Pag5of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTg2437MHzAnt1 -6dBBandwidthNVNTg2462MHzAnt1 Pag6of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTn202412MHzAnt1 -6dBBandwidthNVNTn202437MHzAnt1 Pag7of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTn202462MHzAnt1 -6dBBandwidthNVNTn402422MHzAnt1 Pag8of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTn402437MHzAnt1 -6dBBandwidthNVNTn402452MHzAnt1 Pag9of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.2MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaTotalPower(dBm)Limit(dBm)Verdict NVNTb2412Ant114.1630Pass NVNTb2437Ant114.1330Pass NVNTb2462Ant114.2130Pass NVNTg2412Ant112.0330Pass NVNTg2437Ant112.530Pass NVNTg2462Ant111.830Pass NVNTn202412Ant113.2830Pass NVNTn202437Ant112.3530Pass NVNTn202462Ant111.8130Pass NVNTn402422Ant111.4930Pass NVNTn402437Ant111.0230Pass NVNTn402452Ant111.7730Pass Pag10of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.3MaximumPowerSpectralDensityLevel ConditionModeFrequency(MHz)AntennaTotalPSD(dBm/3kHz)Limit(dBm/3kHz)Verdict NVNTb2412Ant1-12.198Pass NVNTb2437Ant1-12.238Pass NVNTb2462Ant1-11.528Pass NVNTg2412Ant1-17.778Pass NVNTg2437Ant1-18.018Pass NVNTg2462Ant1-17.628Pass NVNTn202412Ant1-16.778Pass NVNTn202437Ant1-17.038Pass NVNTn202462Ant1-17.768Pass NVNTn402422Ant1-20.698Pass NVNTn402437Ant1-21.378Pass NVNTn402452Ant1-20.138Pass Pag11of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PSDNVNTb2412MHzAnt1 PSDNVNTb2437MHzAnt1 Pag12of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTb2462MHzAnt1 PSDNVNTg2412MHzAnt1 Pag13of55FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-8259…

Text truncated - open the document above for the full version.

Page1of37FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For SHENZHENEETHINGTECHNOLOGYCO.,LTD. Smartstringdownlights TestModel:YR350A012A003 AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:SHENZHENEETHINGTECHNOLOGYCO.,LTD. Address:3rdFloor,BuildingC,SenhainuoweijianIndustrialPark,Shiyan Street,BaoanDistrict,Shenzhen,China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:November08,2023 Numberoftestedsamples:2 Samplenumber:A10183222-1,A10183222-2 Serialnumber:Prototype DateofTest:November08,2023~November23,2023 DateofReport:November23,2023 Page2of37FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA10183222EA DateofIssue.......................................:November23,2023 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:SHENZHENEETHINGTECHNOLOGYCO.,LTD. Address................................................:3rdFloor,BuildingC,SenhainuoweijianIndustrialPark,Shiyan Street,BaoanDistrict,Shenzhen,China TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................: Smartstringdownlights TradeMark..........................................:N/A TestModel...........................................:YR350A012A003 Ratings.................................................:Input:100-240V~,50/60Hz,0.4AMax Output:24V500mA Result..................................................:Positive Compiledby:Supervisedby:Approvedby: LingZhu/AdministratorCaryLuo/TechniqueprincipalGavinLiang/Manager Page3of37FCCID:2BDMA-YR350A012A003ReportNo.:LCSA10183222EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA10183222EA November23,2023 Dateofissue TestModel.............................. : YR350A012A003 EUT......................................... : Smartstringdownlights Applicant...............................:SHENZHENEETHINGTECHNOLOGYCO.,LTD. Address...................................:3rdFloor,BuildingC,SenhainuoweijianIndustrialPark, ShiyanStreet,BaoanDistrict,Shenzhen,China Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:SHENZHENEETHINGTECHNOLOGYCO.,LTD. Address...................................:3rdFloor,BuildingC,SenhainuoweijianIndustrialPark, ShiyanStreet,BaoanDistrict,Shenzhen,China Telephone...............................:/ Fax...........…

Text truncated - open the document above for the full version.
