2BDNF-J10E-INK PAD

Smart Office Laptop Operation Guide Product Introduction How-to guide Power on and off Power on: In the shutdown state, press and hold the power button, and the system will enter the power interface for about 30 seconds Unlock: When the power button is pressed or the waiting time reaches the automatic lock screen time, the lock screen will enter the lock state, and the power button will be pressed again to wake up. Shutdown: In the power-on state, press and hold the power button, the screen will display the shutdown confirmation interface, select the shutdown option to confirm, and the system will automatically shut down. Battery management and charging A: Connect the machine to the power supply, the battery icon "[" on the desktop of the machine is displayed with a lightning bolt sign, which means that the device is charging, and the charging indicator is red when charging is in progress. When fully charged, the battery icon changes to "C" and stops, at which point the charging indicator turns off. B: When the battery is completely drained and recharged, please wait for a while and then turn it back on. [Note] In order to ensure the best use of potassium batteries, please note the following: 1. Do not charge in a high-temperature environment (such as a balcony or direct sunlight). 2. The carp battery does not need to be discharged, nor does it need to be charged when the power is exhausted, you can charge the battery while it is still charged. 3. When this product is not used for a long time, please fully charge it at least once every two weeks to avoid over-discharging the battery and affecting its charging performance. Wireless and networking 1. In the setting options, select WLAN, click the switch behind the wireless WIFI to turn on the wireless Internet access, and if you don't turn it on, you will not open it 2. Click to enter the WIFI settings, select the wireless network you need to connect to, click on it, and enter the password; If the WIFI connection is successful, it will prompt "Connected to ***" and the wireless connection is completed, and you can travel to the sea of learning Function buttons Homepage: Click Back to Home, you can find all features on the Home pageBack: Click Back to the previous step. Refresh: Click Refresh to clear the previous residual image caused by the characteristics of the ink screen, making the visual effect clearer and cleanerSettings: Quickly enter the settings interface, which can facilitate all the operations about the setting function. WIFI: After your machine is connected to WIFI, there will be an icon like Bluetooth: When your machine turns on Bluetooth, the Bluetooth icon will appear, and the connection will be paired After the work, the status of "*" will appear. Time: It is convenient to view the current time status Battery: The battery status indicator icon shows the various states of the battery when it is not charging and when charging, and there is a lightning bolt mark when charging. Headphones: There will be a prompt for headphones to connect when they are plugged in Precautions for use 1. List of accessories: manual, data cable, spare nib, tip replacement tool). 2. Please do not disassemble this product by yourself. 3. Please do not use the machine in a dusty place or store or vibrate the machine to avoid damaging the parts of the machine. 4. Do not use or store the machine in high temperature, high pressure, humidity, strong static electricity and strong magnetic field environment. 5. Do not put the product, battery, etc. in and around the heating equipment or high-voltage equipment (such as: microwave oven, oven, radiator, electric heater, etc.), otherwise it may cause circuit damage, fire and explosion and other accidents. 6. Do not use any highly corrosive liquid to clean the components of this machine, you need to use a soft cleaning cloth and neutral detergent when cleaning. 7. This machine is not waterproof, it is strictly forbidden to drench any liquid, if accidentally drenched, please do not turn on the machine, wipe the fuselage dry, and send it to the maintenance center for maintenance in time 8. Avoid the product from falling from a height or being under excessive pressure, do not weigh heavy objects on the product screen, and do not use sharp objects such as pens, ballpoint pens, pencils and other sharp objects to touch the touch screen, so as not to damage the touch screen. 9. Please refer to this manual for detailed operation. 10. The warranty card is a general warranty card for some of the company's products, so the accessories and functions of the machine involved in this document are not all the accessories and functions of the machine you purchased. 11. If you encounter any difficult problems when using this product, please call the company's hotline for consultation. Precautions 1. The warranty method is for the user to send for repair, please contact our after-sales department to determine the cause of the failure and fill in the warranty card; 2. The warranty service is limited to the failure of electrical components (mainly referring to the hardware motherboard and display screen), excluding the shell, manual, packaging and other consumables. 3. This product is sold without a power adapter, and it has been stated in the manual that consumers should purchase and use a power adapter that has obtained CCC certification and meets the requirements of the standard 4. Note: Replacing the battery with the wrong model will have a risk of explosion, so be sure to dispose of the used battery according to the instructions. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, …

Text truncated - open the document above for the full version.

Zhuoyue Technology (Shenzhen) Co., Ltd 1805-B059, Block B, Jiangsu Building, 6013 Yitian Road, Fuxin Community, Lianhua Street, Futian District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/11/17 U.S. Agent Designation Zhuoyue Technology (Shenzhen) Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDNF-J10): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Zhuoyue Technology (Shenzhen) Co., Ltd Zhuoyue Technology (Shenzhen) Co., Ltd with the FRN [0034499194] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Hailian Yu Manager Zhuoyue Technology (Shenzhen) Co., Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Hailian Yu/Manager Company: Zhuoyue Technology (Shenzhen) Co., Ltd Address: 1805-B059, Block B, Jiangsu Building, 6013 Yitian Road, Fuxin Community, Lianhua Street, Futian District, Shenzhen China Phone: 13751152512 Fax: N/A E-Mail: [email protected]

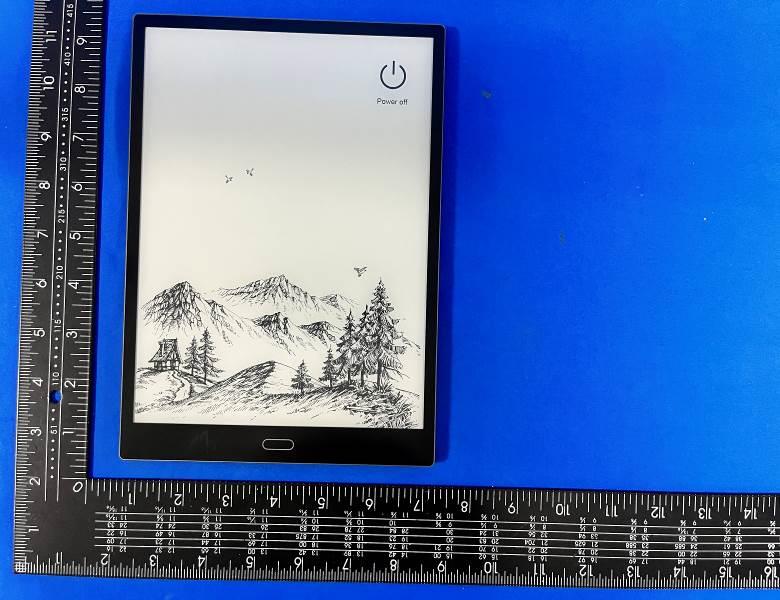

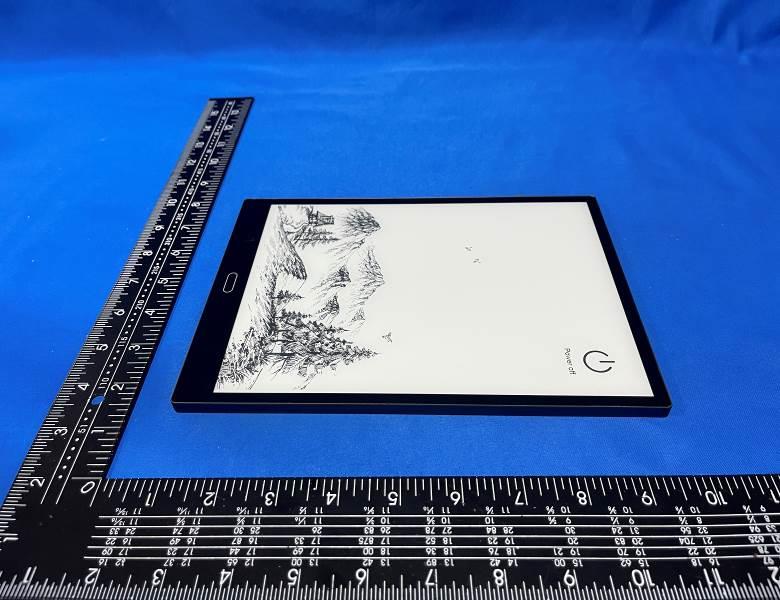

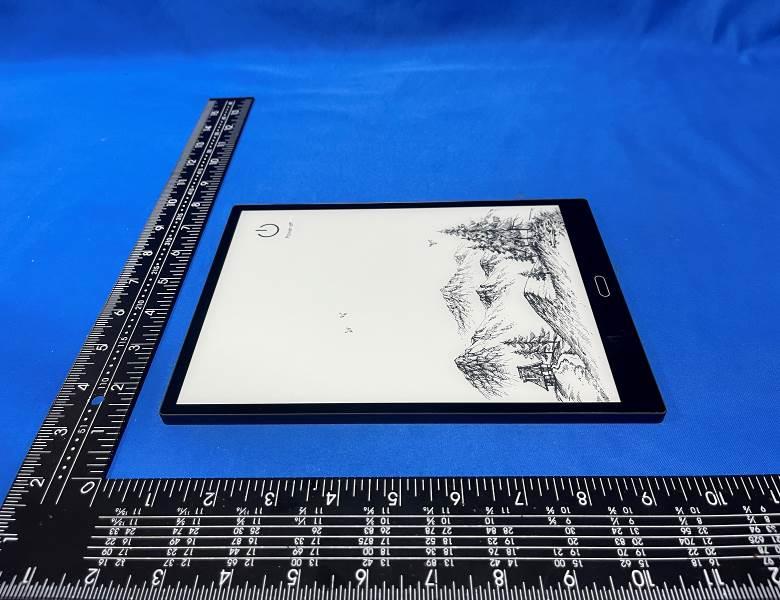

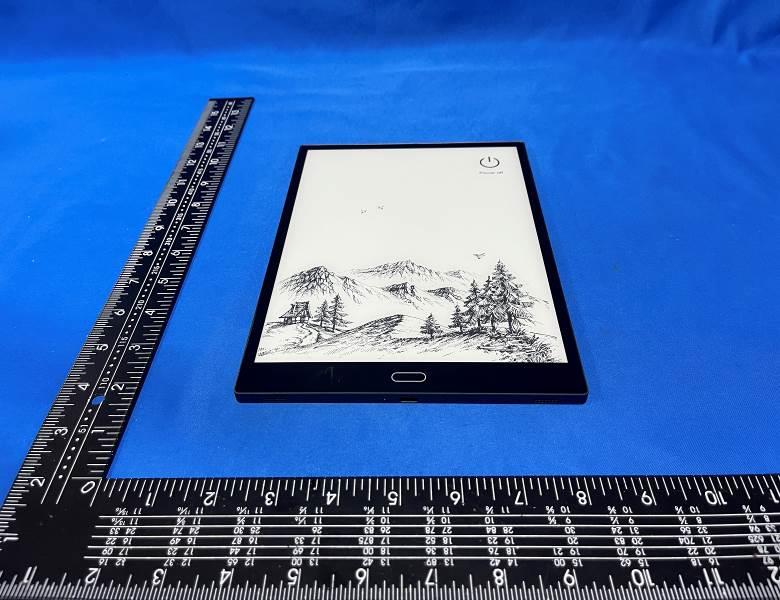

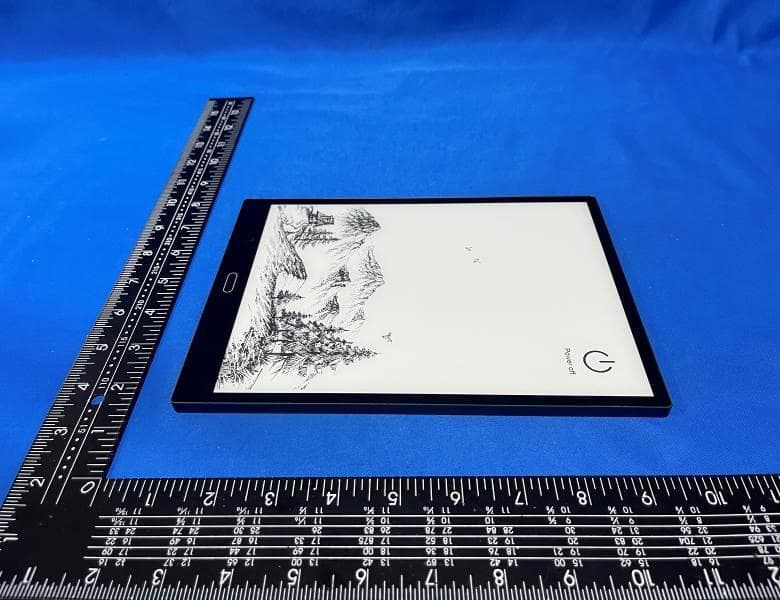

FCC ID: 2BDNF-J10 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BDNF-J10 Photo 4 Photo 5 Photo 6 FCC ID: 2BDNF-J10 Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location Model No.: J10 FCC ID : 2BDNF-J10

FCC ID: 2BDNF-J10 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BDNF-J10 Photo 4 Photo 5 Photo 6 BT/WIFI PIFA Antenna FCC ID: 2BDNF-J10 Photo 7 Photo 8 Photo 9 FCC ID: 2BDNF-J10 Photo 10 Photo 11 Photo 12 FCC ID: 2BDNF-J10 Photo 13 Photo 14 Photo 15 FCC ID: 2BDNF-J10 Photo 16 Photo 17

RF Exposure evaluation FCC ID: 2BDNF-J10 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance Mode Max. Peak Conducted Output Power (dBm) Max. tune-up BT 0.04 0±1 BLE 3.64 3.0±1 2.4GWIFI 7.3 6.5±1 Mode Max. Average Conducted Output Power (dBm) Max. tune-up 5.2GWIFI 3.86 4.0±1 5.8GWIFI 4.92 5.0±1 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion Limit SAR Test Exclusion dBm mW BT 2.450 5 1.0 1.2589 0.3941 3.0 Yes BLE 2.450 5 4.0 2.5119 0.7863 3.0 Yes 2.4GWIFI 2.450 5 7.5 5.6234 1.7604 3.0 Yes 5.2GWIFI 5.2G 5 5.0 3.1623 1.4422 3.0 Yes 5.8GWIFI 5.8G 5 6.0 3.9811 1.9175 3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PIFA antenna Model J10 Frequency range 2400-2500MHz Manufacturer Zhuoyue Technology (Shenzhen) Co., Ltd ANT Peak Gain 2.09 dBi 2. Antenna Photo: Length: 21.24mm Width: 10.42mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23110800602 2BDNF-J10 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 16, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Zhuoyue Technology (Shenzhen) Co., Ltd Address ............................................ : 1805-B059, Block B, Jiangsu Building, 6013 Yitian Road, Fuxin Community, Lianhua Street, Futian District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : E-INK PAD Trade Mark ....................................... : JOYOBOOK Manufacturer .................................... : Zhuoyue Technology (Shenzhen) Co., Ltd Model/Type reference ...................... : J10 Listed Models .................................. : J1X（X=1,2,3,4,5,6,7,8,9） Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 3.8V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA23110800602 Page 2 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : E-INK PAD Model /Type : J10 Listed Models : J1X（X=1,2,3,4,5,6,7,8,9） Applicant : Zhuoyue Technology (Shenzhen) Co., Ltd Address : 1805-B059, Block B, Jiangsu Building, 6013 Yitian Road, Fuxin Community, Lianhua Street, Futian District, Shenzhen, China Manufacturer : Zhuoyue Technology (Shenzhen) Co., Ltd Address : 1805-B059, Block B, Jiangsu Building, 6013 Yitian Road, Fuxin Community, Lianhua Street, Futian District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23110800602 Page 3 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 25 4.6 Number of hopping frequency 27 4.7 Time of Occupancy (Dwell Time) 29 4.8 Out-of-band Emissions 33 4.9 Pseudorandom Frequency Hopping Sequence 42 4.10 Antenna Requirement 43 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 44 6 P H O T O S O F T H E E U T ........................................................... 45 Report No.: CTA23110800602 Page 4 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA23110800602 Page 5 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen…

Text truncated - open the document above for the full version.

Report No.: CTA23110800602 Page 35 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn GFSK(CH78) π/4DQPSK (CH00) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA23110800602 Page 36 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK (CH39) π/4DQPSK (CH78) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA23110800602 Page 37 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH00) 8DPSK (CH39) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA23110800602 Page 38 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH78) reference 30MHz-1G 3G-25G Report No.: CTA23110800602 Page 39 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: GFSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA23110800602 Page 40 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA23110800602 Page 41 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA23110800602 Page 42 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.9 Pseudorandom Frequency Hopping Sequence TEST APPLICABLE For 47 CFR Part 15C section 15.247 (a) (1) requirement: Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hop-ping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hop-ping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. EUT Pseudorandom Frequency Hopping Sequence Requirement The pseudorandom frequency hopping sequence may be generated in a nice-stage shift register whose 5 th and 9 th stage outputs are added in a modulo-two addition stage. And the result is fed back to the input of the first stage. The sequence begins with the first one of 9 consecutive ones, for example: the shift register is initialized with nine ones. ● Number of shift register stages:9 ● Length of pseudo-random sequence:29-1=511 bits ● Longest sequence of zeros:8(non-inverted signal) An example of pseudorandom frequency hopping sequence as follows: Each frequency used equally one the average by each transmitter. The system receiver have input bandwidths that match the hopping channel bandwidths of their corresponding transmitter and shift frequencies in synchronization with the transmitted signals. Report No.: CTA23110800602 Page 43 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.10 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (c), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. Refer to statement below for compliance The manufacturer may design the unit so that the user can replace a broken antenna, but the use of a standard antenna jack or electrical connector is prohibited. Further, this requirement does not apply to intentional radiators that must be professionally installed. Antenna Connected Construction The maximum gain of antenna was 2.09 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not a…

Text truncated - open the document above for the full version.

FCC ID: 2BDNF-J10 Test Setup Photos of the EUT
