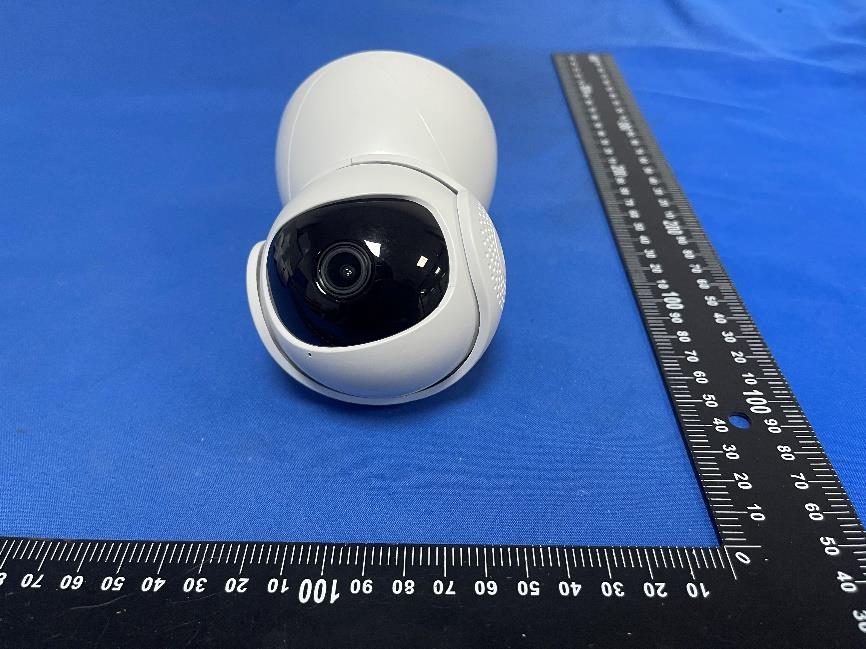

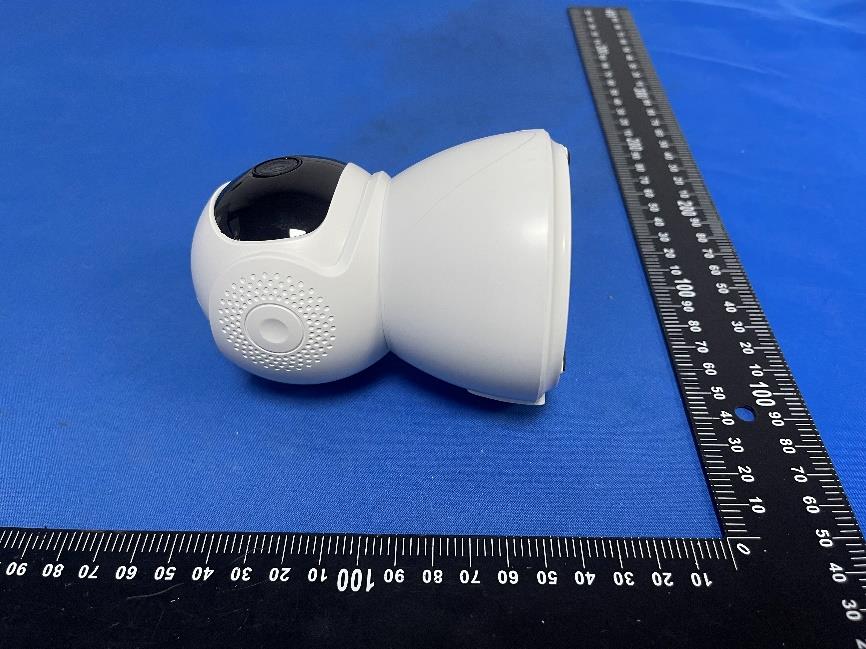

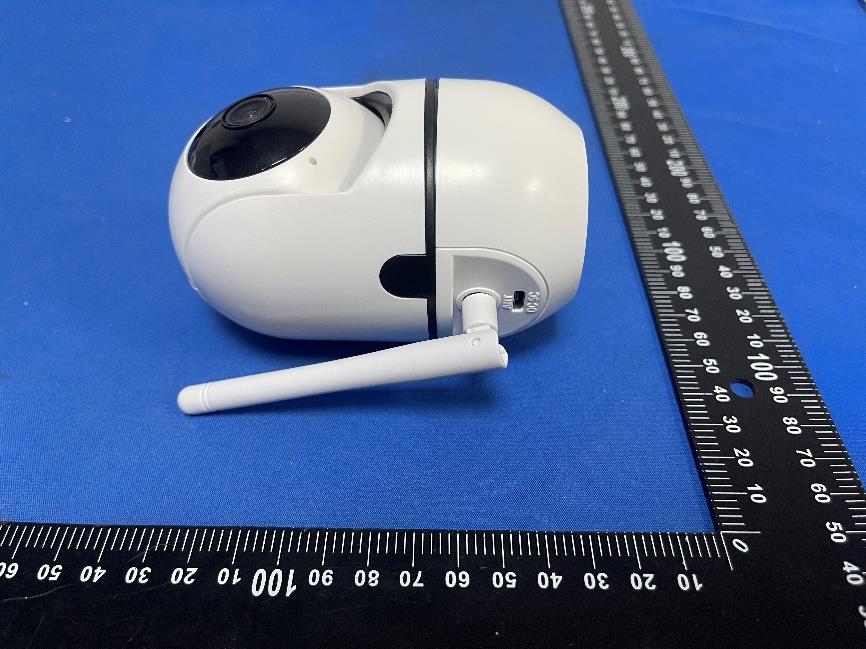

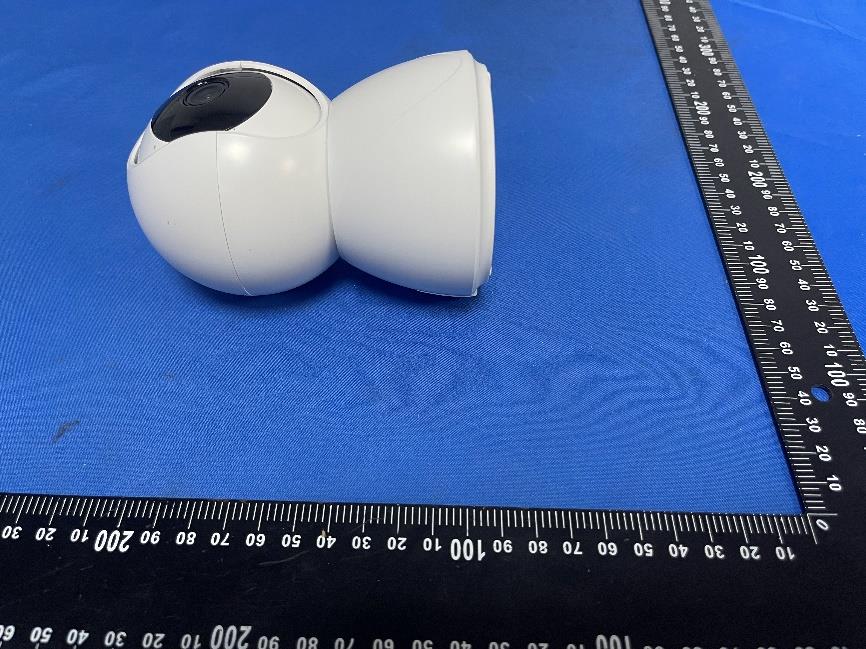

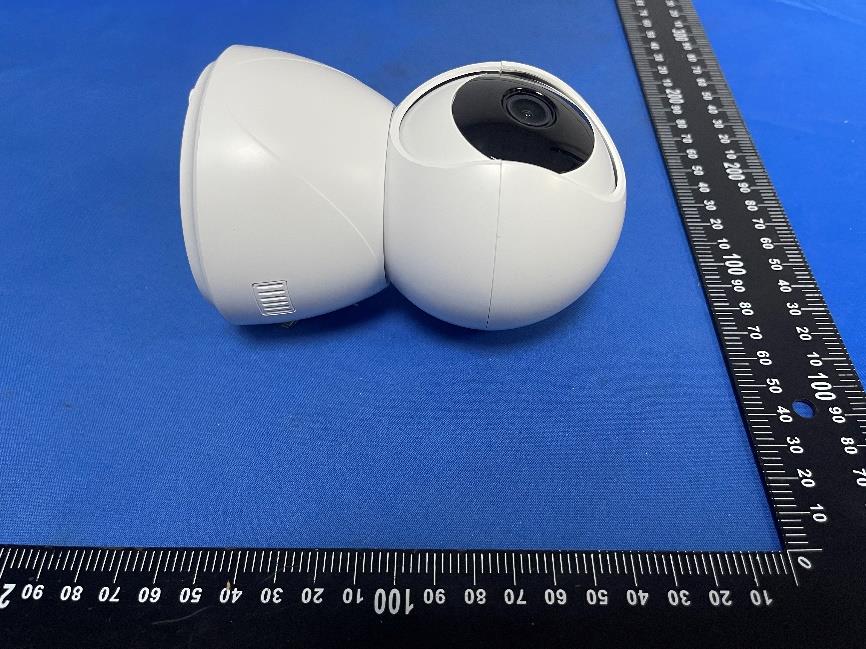

2BDQV-WP-5020Surveillance camera

Magyar（匈牙利语） Português（葡萄牙语） Ελληνικά（希腊语） • Ζώνη συχνοτήτων λειτουργίας: 2400–2500 MHz • Μέγιστη ισχύς ραδιοσυχνότητας: 6±2 dBm Suomi（芬兰语） • Toimintataajuuskaista: 2400–2500 MHz • Suurin radio-taajuusteho: 6±2 dBm Română（罗马尼亚语） • Bandă de frecvență de funcționare: 2400–2500 MHz • Putere maximă de radiofrecvență: 6±2 dBm Lietuvių kalba（立陶宛语） • Veikimo dažnio juosta: 2400–2500 MHz • Maksimali radijo dažnio galia: 6±2 dBm Türkçe（土耳其语） • Çalışma Frekans Bandı: 2400–2500 MHz • Maksimum Radyo Frekans Gücü: 6±2 dBm Русский язык（俄语） • Рабочий диапазон частот: 2400–2500 МГц • Максимальная мощность радиочастоты: 6±2 дБм Українська мова（乌克兰语） • Робочий діапазон частот: 2400–2500 МГц • Максимальна потужність радіочастоти: 6±2 дБм Norsk（挪威语） • Driftsfrekvensbånd: 2400–2500 MHz • Maksimal høyfrekveneffekt: 6±2 dBm תיִרְבִע（希伯来语） • ספ רדת הלועפ: 2400–2500 הגמ-ץרה • קפסה רדת וידר ילמיסקמ: 6±2 לביצד-טאווילמ Български език（保加利亚语） • Работна честотна лента: 2400–2500 MHz • Максимална радиочестотна мощност: 6±2 dBm Hrvatski（克罗地亚语） • Radni frekvencijski pojas: 2400–2500 MHz • Maksimalna snaga radijskih frekvencija: 6±2 dBm Eesti keel（爱沙尼亚语） • Töösagedusriba: 2400–2500 MHz • Maksimaalne raadiosagedusvõimsus: 6±2 dBm Latviešu valoda（拉脱维亚语） • Darba frekvenču josla: 2400–2500 MHz • Maksimālā radiofrekvenču jauda: 6±2 dBm Slovenčina（斯洛伐克语） • Pracovné frekvenčné pásmo: 2400–2500 MHz • Maximálny výkon vysokých frekvencií: 6±2 dBm Slovenščina（斯洛文尼亚语） • Delovni frekvenčni pas: 2400–2500 MHz • Največja moč radijskih frekvenc: 6±2 dBm Íslenska（冰岛语） • Starfsfrkvæðabandið: 2400–2500 MHz • Hámarks háfrkvæðakraftur: 6±2 dBm

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. 中文版（简易版说明书） Deutsch（德语） • Betriebsfrequenzband: 2400–2500 MHz • Maximale Hochfrequenzleistung: 6±2 dBm Español（西班牙语） • Banda de frecuencia de funcionamiento: 2400–2500 MHz • Potencia de radiofrecuencia máxima: 6±2 dBm Français（法语） • Bande de fréquence de fonctionnement: 2400–2500 MHz • Puissance radioélectrique maximale: 6±2 dBm Italiano（意大利语） • Banda di frequenza di funzionamento: 2400–2500 MHz • Potenza a radiofrequenza massima: 6±2 dBm 한국어（韩文）/한국말 • 동작 주파수 대역: 2400–2500MHz • 최대 고주파 출력: 6±2 dBm 日本語（にほんご） 動作周波：2400–2500MHz 最大高周波出力：6±2 dBm Svenska（瑞典语） Čeština（捷克语） ةيبرعلا（阿拉伯语） زترهاجيم 2400–2500 :ليغشتلا ددرت قاطن • طاو يللم لبيسيد 2±6 :يكلسال ددرت ةردق ىصقأ • Polski（波兰语） Nederlands（荷兰语） Dansk（丹麦语）

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26042201902 2BDQV-WP-5020 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 08, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Tenganda lntelligent Equipment Co., Ltd Address............................................ : Second floor, building B, No. 1, Bantian shangxue science and Technology Park, Longgang District, Shenzhen, Guangdong, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Surveillance camera Trade Mark ....................................... : WJG Manufacturer .................................... : Shenzhen Tenganda lntelligent Equipment Co., Ltd Model/Type reference ...................... : WP-5020 Listed Models ................................... : WP-5120, WP-3120SZ, WP-3120 Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26042201902 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Surveillance camera Model /Type : WP-5020 Listed Models : WP-5120, WP-3120SZ, WP-3120 Model difference : The PCB boards, circuits, structures and interiors of these models are the same. These models only differ in terms of the cameras and model numbers. Applicant : Shenzhen Tenganda lntelligent Equipment Co., Ltd Address : Second floor, building B, No. 1, Bantian shangxue science and Technology Park, Longgang District, Shenzhen, Guangdong, China Manufacturer : Shenzhen Tenganda lntelligent Equipment Co., Ltd Address : Second floor, building B, No. 1, Bantian shangxue science and Technology Park, Longgang District, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042201902 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conc…

Text truncated - open the document above for the full version.

FCC ID:2BDQV-WP-5020 Test Setup Photos of the EUT FCC ID:2BDQV-WP-5020

33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.39 99.52 0.02 0.12 11G Ant1 2412 0.15 0.20 75.00 1.25 6.67 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2462 0.17 0.22 77.27 1.12 5.88 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.22 81.82 0.87 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix I: Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -58.76 2.00 0.03 38.47 ≤54 PASS AV 2385.800 -55.84 2.00 0.03 41.39 ≤54 PASS AV 2390.000 -56.55 2.00 0.03 40.68 ≤54 PASS Peak 2310.000 -52.09 2.00 0.00 45.11 ≤74 PASS Peak 2389.960 -46.61 2.00 0.00 50.59 ≤74 PASS Peak 2390.000 -46.61 2.00 0.00 50.59 ≤74 PASS High 2462 AV 2483.500 -55.98 2.00 0.02 41.24 ≤54 PASS AV 2488.730 -55.06 2.00 0.02 42.16 ≤54 PASS AV 2500.000 -57.36 2.00 0.02 39.86 ≤54 PASS Peak 2483.500 -48.42 2.00 0.00 48.78 ≤74 PASS Peak 2485.760 -46.41 2.00 0.00 50.79 ≤74 PASS Peak 2500.000 -49.24 2.00 0.00 47.96 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.96 2.00 1.25 38.49 ≤54 PASS AV 2384.500 -58.04 2.00 1.25 40.41 ≤54 PASS AV 2390.000 -58.19 2.00 1.25 40.26 ≤54 PASS Peak 2310.000 -50.64 2.00 0.00 46.56 ≤74 PASS Peak 2387.230 -48.48 2.00 0.00 48.72 ≤74 PASS Peak 2390.000 -50.12 2.00 0.00 47.08 ≤74 PASS High 2462 AV 2483.500 -58.68 2.00 1.25 39.77 ≤54 PASS AV 2486.640 -57.6 2.00 1.25 40.85 ≤54 PASS AV 2500.000 -59.01 2.00 1.25 39.44 ≤54 PASS 49 Peak 2483.500 -50.53 2.00 0.00 46.67 ≤74 PASS Peak 2490.600 -46.91 2.00 0.00 50.29 ≤74 PASS Peak 2500.000 -51.23 2.00 0.00 45.97 ≤74 PASS 11N20SIS O Ant1 Low 2412 AV 2310.000 -59.91 2.00 1.06 38.35 ≤54 PASS AV 2388.010 -58.13 2.00 1.06 40.13 ≤54 PASS AV 2390.000 -58.56 2.00 1.06 39.70 ≤54 PASS Peak 2310.000 -52.12 2.00 0.00 45.08 ≤74 PASS Peak 2382.420 -48.17 2.00 0.00 49.03 ≤74 PASS Peak 2390.000 -50.95 2.00 0.00 46.25 ≤74 PASS High 2462 AV 2483.500 -58.67 2.00 1.12 39.65 ≤54 PASS AV 2484.770 -57.71 2.00 1.12 40.61 ≤54 PASS AV 2500.000 -58.85 2.00 1.12 39.47 ≤54 PASS Peak 2483.500 -50.93 2.00 0.00 46.27 ≤74 PASS Peak 2489.720 -48.1 2.00 0.00 49.10 ≤74 PASS Peak 2500.000 -50.73 2.00 0.00 46.47 ≤74 PASS 11N40SIS O Ant1 Low 2422 AV 2310.000 -59.1 2.00 1.06 39.16 ≤54 PASS AV 2386.700 -57.29 2.00 1.06 40.97 ≤54 PASS AV 2390.000 -57.79 2.00 1.06 40.47 ≤54 PASS Peak 2310.000 -50.78 2.00 0.00 46.42 ≤74 PASS Peak 2386.400 -47.04 2.00 0.00 50.16 ≤74 PASS Peak 2390.000 -48.33 2.00 0.00 48.87 ≤74 PASS High 2452 AV 2483.500 -57.9 2.00 1.06 40.36 ≤54 PASS AV 2484.125 -57.33 2.00 1.06 40.93 ≤54 PASS AV 2500.000 -57.79 2.00 1.06 40.47 ≤54 PASS Peak 2483.500 -50.83 2.00 0.00 46.37 ≤74 PASS Peak 2494.375 -47.53 2.00 0.00 49.67 ≤74 PASS Peak 2500.000 -50.89 2.00 0.00 46.31 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BDQV-WP-5020 Company : Shenzhen Tenganda lntelligent Equipment Co., Ltd EUT : Surveillance camera Model Number : WP-5020 Report No. : CTA26042201901 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.920 2404.040 2419.960 0.5 PASS 2437 15.880 2429.040 2444.920 0.5 PASS 2462 15.560 2454.240 2469.800 0.5 PASS 11N20SISO Ant1 2412 16.720 2403.720 2420.440 0.5 PASS 2437 16.640 2428.480 2445.120 0.5 PASS 2462 16.960 2453.480 2470.440 0.5 PASS 11N40SISO Ant1 2422 36.000 2403.920 2439.920 0.5 PASS 2437 35.280 2419.720 2455.000 0.5 PASS 2452 35.680 2434.320 2470.000 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.391 2405.3362 2418.7272 --- --- 2437 13.387 2430.3198 2443.7068 --- --- 2462 13.459 2455.2647 2468.7237 --- --- 11G Ant1 2412 16.872 2403.6107 2420.4827 --- --- 2437 16.851 2428.6042 2445.4552 --- --- 2462 16.839 2453.6048 2470.4438 --- --- 11N20SISO Ant1 2412 17.869 2403.0812 2420.9502 --- --- 2437 17.910 2428.0374 2445.9474 --- --- 2462 17.864 2453.1013 2470.9653 --- --- 11N40SISO Ant1 2422 36.016 2404.0692 2440.0852 --- --- 2437 36.040 2419.0764 2455.1164 --- --- 2452 36.031 2434.1086 2470.1396 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.10 ≤30.00 PASS 2437 14.26 ≤30.00 PASS 2462 14.41 ≤30.00 PASS 11G Ant1 2412 13.88 ≤30.00 PASS 2437 14.22 ≤30.00 PASS 2462 14.30 ≤30.00 PASS 11N20SISO Ant1 2412 13.71 ≤30.00 PASS 2437 13.97 ≤30.00 PASS 2462 14.23 ≤30.00 PASS 11N40SISO Ant1 2422 14.15 ≤30.00 PASS 2437 14.46 ≤30.00 PASS 2452 14.47 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.18 ≤8.00 PASS 2437 -11.87 ≤8.00 PASS 2462 -11.68 ≤8.00 PASS 11G Ant1 2412 -18.33 ≤8.00 PASS 2437 -17.69 ≤8.00 PASS 2462 -16.91 ≤8.00 PASS 11N20SISO Ant1 2412 -17.66 ≤8.00 PASS 2437 -17.68 ≤8.00 PASS 2462 -16.36 ≤8.00 PASS 11N40SISO Ant1 2422 -20.30 ≤8.00 PASS 2437 -19.16 ≤8.00 PASS 2452 -20.09 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.87 -48.83 ≤-18.13 PASS High 2462 2.00 -54.69 ≤-18 PASS 11G Ant1 Low 2412 -2.60 -34.24 ≤-22.6 PASS High 2462 -2.38 -57.12 ≤-22.38 PASS 11N20SIS O Ant1 Low 2412 -2.61 -34.66 ≤-22.61 PASS High 2462 -2.30 -57.43 ≤-22.3 PASS 11N40SIS O Ant1 Low 2422 -5.85 -33.74 ≤-25.85 PASS High 2452 -5.58 -56.37 ≤-25.58 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.48 1.48 --- PASS 30~1000 1.48 -68.15 ≤-18.52 PASS 1000~26500 1.48 -55.15 ≤-18.52 PASS 2437 Reference 1.70 1.70 --- PASS 30~1000 1.70 -67.06 ≤-18.3 PASS 1000~26500 1.70 -55.03 ≤-18.3 PASS 2462 Reference 0.70 0.70 --- PASS 30~1000 0.70 -68.18 ≤-19.3 PASS 1000~26500 0.70 -55.25 ≤-19.3 PASS 11G Ant1 2412 Reference -3.53 -3.53 --- PASS 30~1000 -3.53 -67.9 ≤-23.53 PASS 1000~26500 -3.53 -55.54 ≤-23.53 PASS 2437 Reference -3.05 -3.05 --- PASS 30~1000 -3.05 -67.9 ≤-23.05 PASS 1000~26500 -3.05 -54.79 ≤-23.05 PASS 2462 Reference -2.77 -2.77 --- PASS 30~1000 -2.77 -67.49 ≤-22.77 PASS 1000~26500 -2.77 -55.35 ≤-22.77 PASS 11N20SISO Ant1 2412 Reference -3.22 -3.22 --- PASS 30~1000 -3.22 -67.95 ≤-23.22 PASS 1000~26500 -3.22 -55.02 ≤-23.22 PASS 2437 Reference -3.44 -3.44 --- PASS 30~1000 -3.44 -67.93 ≤-23.44 PASS 1000~26500 -3.44 -55.19 ≤-23.44 PASS 2462 Reference -2.75 -2.75 --- PASS 30~1000 -2.75 -66.07 ≤-22.75 PASS 1000~26500 -2.75 -54.62 ≤-22.75 PASS 11N40SISO Ant1 2422 Reference -6.34 -6.34 --- PASS 30~1000 -6.34 -67.62 ≤-26.34 PASS 1000~26500 -6.34 -54.69 ≤-26.34 PASS 2437 Reference -6.10 -6.10 --- PASS 30~1000 -6.10 -66.95 ≤-26.1 PASS 1000~26500 -6.10 -54.42 ≤-26.1 PASS 2452 Reference -5.60 -5.60 --- PASS 30~1000 -5.60 -56.12 ≤-25.6 PASS 1000~26500 -5.60 -55.19 ≤-25.6 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500

Report No.: CTA26042201901 Page 54 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 55 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 56 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn WP-3120SZ Report No.: CTA26042201901 Page 57 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 58 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 59 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 60 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 61 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 62 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 63 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 64 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn WP-5120 Report No.: CTA26042201901 Page 65 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 66 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 67 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 68 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 69 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042201901 Page 70 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Report **********************

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26042201901 2BDQV-WP-5020 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 08, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Tenganda lntelligent Equipment Co., Ltd Address ............................................ : Second floor, building B, No. 1, Bantian shangxue science and Technology Park, Longgang District, Shenzhen, Guangdong, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Surveillance camera Trade Mark ....................................... : WJG Manufacturer .................................... : Shenzhen Tenganda lntelligent Equipment Co., Ltd Model/Type reference ...................... : WP-5020 Listed Models ................................... : WP-5120, WP-3120SZ, WP-3120 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26042201901 Page 2 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Surveillance camera Model /Type : WP-5020 Listed Models : WP-5120, WP-3120SZ, WP-3120 Model difference : The PCB boards, circuits, structures and interiors of these models are the same. These models only differ in terms of the cameras and model numbers. Applicant : Shenzhen Tenganda lntelligent Equipment Co., Ltd Address : Second floor, building B, No. 1, Bantian shangxue science and Technology Park, Longgang District, Shenzhen, Guangdong, China Manufacturer : Shenzhen Tenganda lntelligent Equipment Co., Ltd Address : Second floor, building B, No. 1, Bantian shangxue science and Technology Park, Longgang District, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042201901 Page 3 of 70 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.…
